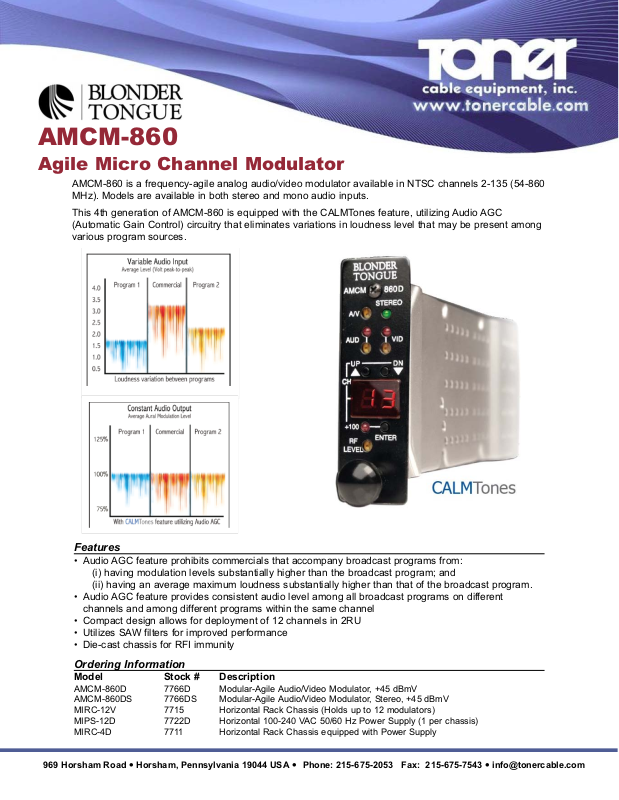

AMCM-860

Agile Micro Channel Modulator

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

AMCM-860 is a frequency-agile analog audio/video modulator available in NTSC channels 2-135 (54-860
MHz). Models are available in both stereo and mono audio inputs.

This 4th generation of AMCM-860 is equipped with the CALMTones feature, utilizing Audio AGC
(Automatic Gain Control) circuitry that eliminates variations in loudness level that may be present among
various program sources.

Features

• Audio AGC feature prohibits commercials that accompany broadcast programs from:
(i) having modulation levels substantially higher than the broadcast program; and
(ii) having an average maximum loudness substantially higher than that of the broadcast program.

• Audio AGC feature provides consistent audio level among all broadcast programs on different

channels and among different programs within the same channel

• Compact design allows for deployment of 12 channels in 2RU

• Utilizes SAW filters for improved performance

• Die-cast chassis for RFI immunity

Ordering Information

Model Stock # Description

AMCM-860D 7766D Modular-Agile Audio/Video Modulator, +45 dBmV
AMCM-860DS 7766DS Modular-Agile Audio/Video Modulator, Stereo, +45 dBmV
MIRC-12V 7715 Horizontal Rack Chassis (Holds up to 12 modulators)
MIPS-12D 7722D Horizontal 100-240 VAC 50/60 Hz Power Supply (1 per chassis)
MIRC-4D 7711 Horizontal Rack Chassis equipped with Power Supply

Specifications Subject To Change Without Notice Rev 06-11 ©Toner Cable Equipment, Inc.

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

AMCM-860

Agile Micro Channel Modulator

Specifications

Video
Connector: “F” Female
Impedance: 75 Ω
Return Loss: 24 dB
Input Level: 1.0 volt Peak-to-Peak (87.5% depth of modulation)
Frequency Response: 1.0 dB Peak-to-Valley (fv to fv+4.2 MHz)
Peak to Peak Video-to-RMS
Hum Ratio: 65 dB
Signal-to-Noise Ratio: 62 dB (Weighted; 4MHz bandwidth)
Differential Gain: 2.0% (87.5% depth of modulation)
Differential Phase: 1.0 degree (87.5% depth of modulation)

Chrominance/Luminance Delay: Per FCC Requirements

Mono Audio(standard)
Connector: RCA
Input Impedance: Greater than 10 kΩ, unbalanced
Input Level:
(for 25 KHz deviation) 0.5 - 4.0 volt peak-to-peak (constant AGC range)
Frequency Range: 50 Hz to 12 kHz
Frequency Response: ± 1 dB
Total Harmonic Distortion: 1% @ 25 kHz deviation
Signal-to-Noise Ratio: 66 dB
Stereo Audio (optional)
Connector: RCA
Input Impedance: Greater than 10 kΩ, unbalanced
Input Sensitivity:
(for 55 kHz peak deviation) 0.5 - 4.0 volt peak-to-peak

(AGC range with pilot tone)

Frequency Response: ± 0.75 dB (50 Hz to 12 kHz)
Separation: 20 dB @ 50 Hz to 10 kHz

Connector: “F” Female
Impedance: 75 Ω
Return Loss: 12 dB
Frequency Range: 54 to 860 MHz (NTSC CATV Ch. 2 -135)
Power Level: +45 dBmV
Power Level Range: 10 dB continuously adjustable
Carrier-to-Noise:(In Channel) 63 dB
Broadband Noise: -75 dBc (@ +45 dBmV output level,

4 MHz bandwidth)

Spurious Outputs: -60 dBc
Aural/Visual Carrier Ratio: -11 to -19 dB continuously adjustable

4.5 MHz Aural Inter-carrier
Frequency Tolerance: ±150 Hz; 77 °F (25 °C)
Visual Carrier Frequency
Tolerance Standard Channels: ±10 kHz; 32 to 122 °F (0 to 50 °C)
FCC Aeronautical Channels: ±5 kHz; 32 to 122 °F (0 to 50 °C)

Front-Panel Indicator

Channel No. & Mode: 2-Digit Red LED Display

+100 channel: Red LED

Video Over-modulation: Red LED

Audio Over-modulation: Red LED

Stereo: Green LED

Front-Panel Controls

Output Level: Potentiometer

Video Level: Potentiometer

Audio Level: Potentiometer

Aural Carrier Level: Potentiometer

INPUT OUTPUT Modes 1 & 2

ALARMS / MONITORING / CONTROL

Dimensions (W x D x H)

AMCM Modules: 1.0 x 7.78 x 3.5 inches (25 x 198 x 89 mm)

MIPS-12C Power Supply: 4.6 x 7.5 x 3.5 inches (106 x 191 x 89 mm)

MIRC-12V Chassis: 19 x 12.0 x 5.25 inches (483 x 305 x 133 mm)

MIRC-4D Chassis: 19 x 9.0 x 1.75 inches (483 x 229 x 44 mm)

Power

MIPS-12C Power Supply: 100-240 VAC; 50/60 Hz

MIRC-4D Power Supply: 100-240 VAC; 50/60 Hz

Power Dissipation: ~ 5 W (max. per AMCM Module)
Weight

AMCM Module: 0.8 lbs (0.36 kg)

Fully Loaded Chassis: 15.8 lbs (7.2 kg)
Operating Temperature: 32 to 122 °F (0 to 50 °C)
Storage Temperature: -13 to 158 °F (-25 to 70 °C)
Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensation
Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensation

GENERAL
