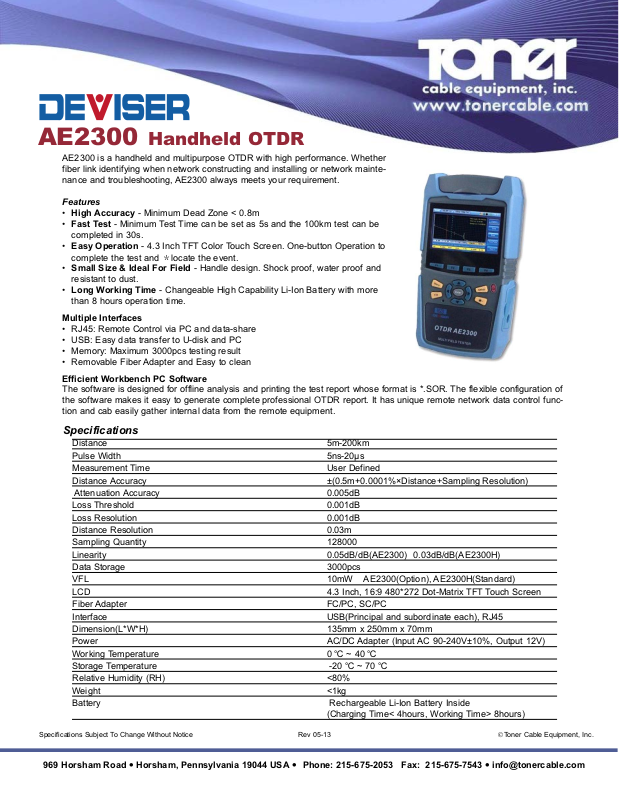

AE2300 is a handheld and multipurpose OTDR with high performance. Whether
fiber link identifying when network constructing and installing or network mainte­nance and troubleshooting, AE2300 always meets your requirement.

Features

• High Accuracy - Minimum Dead Zone < 0.8m

• Fast Test - Minimum Test Time can be set as 5s and the 100km test can be
completed in 30s.

• Easy Operation - 4.3 Inch TFT Color Touch Screen. One-button Operation to
complete the test and ＊locate the event.

• Small Size & Ideal For Field - Handle design. Shock proof, water proof and
resistant to dust.

• Long Working Time - Changeable High Capability Li-Ion Battery with more
than 8 hours operation time.

Multiple Interfaces

• RJ45: Remote Control via PC and data-share

• USB: Easy data transfer to U-disk and PC

• Memory: Maximum 3000pcs testing result

• Removable Fiber Adapter and Easy to clean

Efficient Workbench PC Software

The software is designed for offline analysis and printing the test report whose format is *.SOR. The flexible configuration of
the software makes it easy to generate complete professional OTDR report. It has unique remote network data control func­tion and cab easily gather internal data from the remote equipment.

Specifications

Distance 5m-200km
Pulse Width 5ns-20μs
Measurement Time User Defined
Distance Accuracy ±(0.5m+0.0001%×Distance+Sampling Resolution)

Attenuation Accuracy 0.005dB
Loss Threshold 0.001dB
Loss Resolution 0.001dB
Distance Resolution 0.03m
Sampling Quantity 128000
Linearity 0.05dB/dB(AE2300) 0.03dB/dB(AE2300H)
Data Storage 3000pcs
VFL 10mW AE2300(Option), AE2300H(Standard)
LCD 4.3 Inch, 16:9 480*272 Dot-Matrix TFT Touch Screen
Fiber Adapter FC/PC, SC/PC
Interface USB(Principal and subordinate each), RJ45
Dimension(L*W*H) 135mm x 250mm x 70mm
Power AC/DC Adapter (Input AC 90-240V±10%, Output 12V)
Working Temperature 0 ℃ ~ 40 ℃
Storage Temperature -20 ℃ ~ 70 ℃
Relative Humidity (RH) <80%
Weight <1kg
Battery Rechargeable Li-Ion Battery Inside

(Charging Time< 4hours, Working Time> 8hours)

Specifications Subject To Change Without Notice Rev 05-13 ©Toner Cable Equipment, Inc.

AE2300 Handheld OTDR
