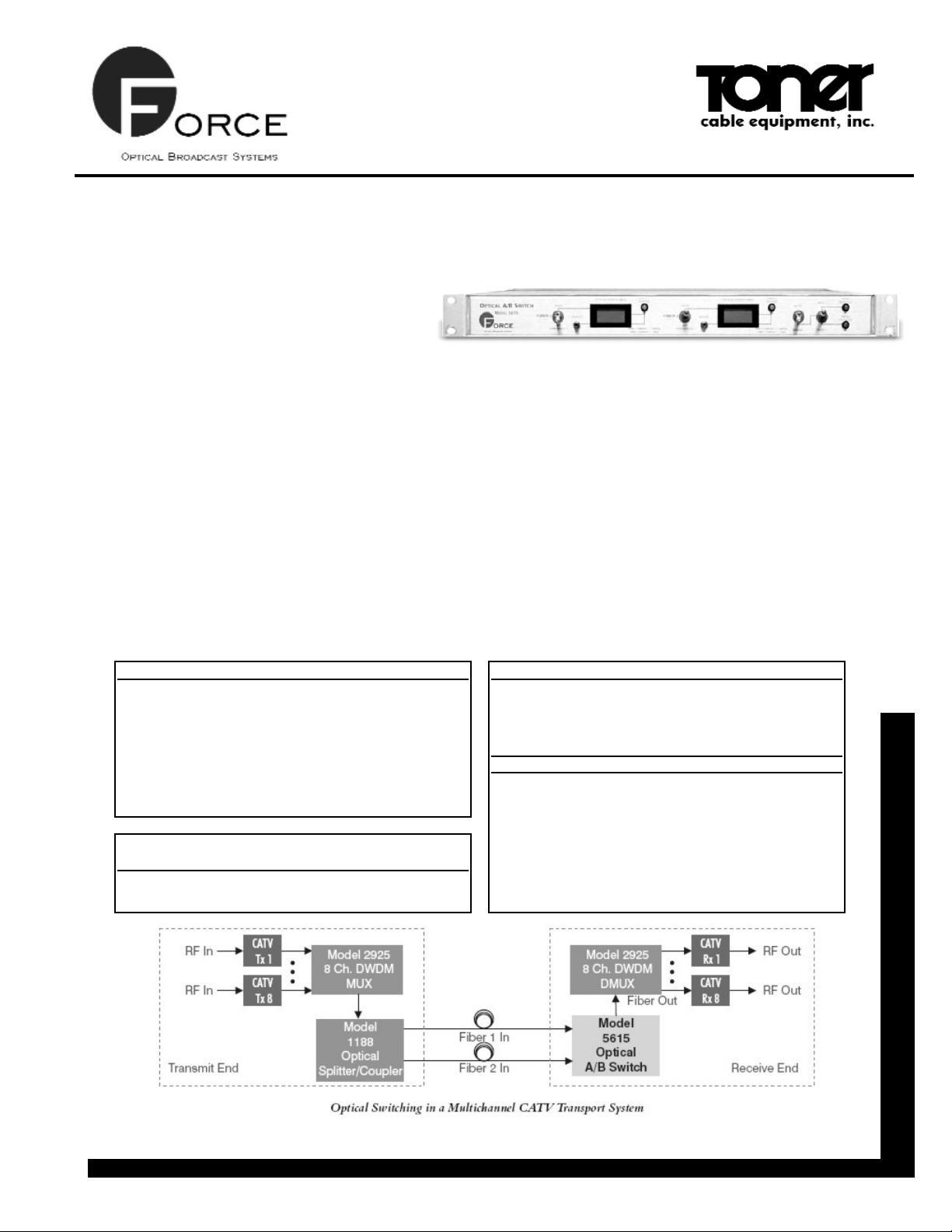

Force 5615 Optical A/B Switch
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
Optical A/B Switch
Model 5615
Optical A/B Switch
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Model 5615 Specifications and Ordering Information
Optical Characteristics*
Operating Wavelength 1200 to 1610 nm
Optical Input Range +20 dBm
Optical Insertion Loss 2.0 dB
Optical Trip Threshold/
Meter Range -35 to +20 dBm
Optical Switch Speed 15 ms
Backreflection Tolerance -50 dB
Features
x Two bi-color green/red LEDs allow for quick assessment of
optical power levels and the optical trip threshold levels.
x Additional flexibility via forced manual channel selection.
x Two displays and adjustment pots provide viewing and
adjustment of the desired optical trip threshold and actual
fiber optical power levels.
x Provides an automatic fiber switching function for redun-
dant protection of optical signal.
x 1RU rack-mount enclosure with UL Approved 100-240
Volts AC power supply.
The Force Model 5615 Optical A/B Switch provides an automatic fiber switching function for
redundant protection of optical signals. Each
fiber’s optical signal power level is monitored, as
is an adjustable optical trip threshold for each
channel. If the primary fiber’s optical signal
power level falls below the desired optical trip
threshold, the unit automatically switches to the
secondary fiber, thus eliminating the need for
intervention of a system operator. Returning to
the primary fiber is automatic when the signal on
fiber 1 is restored. The disabled path selection
switch in auto mode prevents path 2 from being
set at the primary fiber. Additional flexibility is
added via forced manual channel selection. This
feature expands the functionality of the redundant unit. For example, the user could not provide unique signals to each channel and switch
between each as desired. The Model 5615 adds
stability to many system applications, such as
WDM networks, high-speed communications,
and long-haul telecommunications.
Electrical Characteristics*
Power Supply Voltage 100 to 240 VAC
Power Supply Frequency 50 to 60 Hz
Fuse Type 1.25 Amp, Slo-Blo
Environmental Characteristics*
Operating Temp. Range +10 to +40 °C
Storage Temp. Range -40 to +80 °C
Humidity (RH, non-condensing) 5 to 90 %
Weight 6 lbs (2.2 kg)
Dimensions 19.0x14.2x1.72 in
483x361x44 mm
*See IOM5615 for complete operating specifications.
Optical A/B Switch Options
Single-mode, 1310nm/1550nm
5615S-SFSP SC/APC Connector
5615S-SFAP FC/APC Connector
