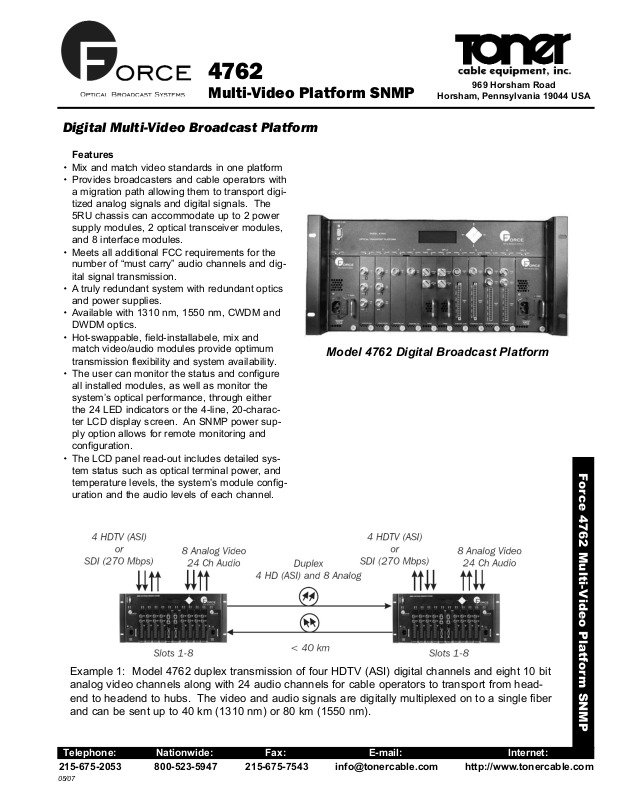

Force 4762 Multi-Video Platform SNMP
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
4762
Multi-Video Platform SNMP
Features
Mix and match video standards in one platformProvides broadcasters and cable operators with
a migration path allowing them to transport digi­tized analog signals and digital signals. The 5RU chassis can accommodate up to 2 power supply modules, 2 optical transceiver modules, and 8 interface modules.
Meets all additional FCC requirements for the
number of “must carry” audio channels and dig­ital signal transmission.
A truly redundant system with redundant optics
and power supplies.
Available with 1310 nm, 1550 nm, CWDM and
DWDM optics.
Hot-swappable, field-installabele, mix and
match video/audio modules provide optimum transmission flexibility and system availability.
The user can monitor the status and configure
all installed modules, as well as monitor the system’s optical performance, through either the 24 LED indicators or the 4-line, 20-charac­ter LCD display screen. An SNMP power sup­ply option allows for remote monitoring and configuration.
The LCD panel read-out includes detailed sys-
tem status such as optical terminal power, and temperature levels, the system’s module config­uration and the audio levels of each channel.
Example 1: Model 4762 duplex transmission of four HDTV (ASI) digital channels and eight 10 bit analog video channels along with 24 audio channels for cable operators to transport from head­end to headend to hubs. The video and audio signals are digitally multiplexed on to a single fiber and can be sent up to 40 km (1310 nm) or 80 km (1550 nm).
Model 4762 Digital Broadcast Platform
Telephone: Nationwide: Fax: E-mail: Internet:
Force 4762 Multi-Video Platform SNMP
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Optical and V/A Characteristics
Tx Optical Output Power 0 to +3 dBm Rx Optical Input Power -20 dBm Operating Wavelengths 1310 nm
1550 nm
CWDM, DWDM Optical Loss Range 0 to 20 dB Line Data Rate
(All modules) 2.485 Gb/s
RS-232C Data Rate 115,200 b/s RS-422/485 Data Rate 460,800 b/s Ethernet Data Rates 10 Mb/s
100 Mb/s Analog Video Bandwidth 8 MHz Analog Video I/O Levels 1.0 Volts p-p Analog Video SNR 67 dB Analog Video I/O Impedance 75 Ohms Analog Audio Frequency Response 20 Hz to 20 kHz Analog Audio SNR 90 dB Analog Audio THD 0.8 % Analog I/O Impedance 600 Ohms
(user selectable; balanced or unbalanced)
10 k Ohms SDI Digital Data Rate 270 Mb/s DVB-ASI Digital Data Rate 19.4 to 213 Mb/s DVB-ASI Clock Speed 270 MHz SMPTE 310M Digital Data Rate 19.4 Mb/s SMPTE 310M I/0 Amplitude 800 mV p-p
Electrical Characteristics
Power Supply Voltage 85-264 VAC Power Supply Frequency 50 to 60 Hz Rated Fuse Current 1.0 A
Environmental Characteristics
Operating Temperature Range +10 to +40°C Storage Temperature Range -20 to +50°C Humidity 5 to 90 %
5RU Optical Standard SNMP
Chassis Power Supply Power Supply
4762-5RU 4762P-STD-XX* 4762P-SNMP-XX*
Blank Panel, 1RU Blank Panel, 1RU
for Unused Module Slot for Unused Power Supply Slot
4762-BLANK-M 4762-BLANK-P
1310 NM 1550 NM CWDM DWDM
4762X-1310-SC14762X-1550-SC14762XC-XXXX-SC
1,2
4762XD-ITUXX-SC
1,2
4762X-1310-SA14762X-1550-SA14762XC-XXXX-SA
1,2
4762XD-ITUXX-SA
1,2
Transmitter Receiver
Single Channel SDI 4762T-SDI-1CH 4762R-SDI-1CH Single Channel ASI 4762T-ASI-1CH 4762R-ASI-1CH
3 Channel ASI 4762T-ASI-3CH 4762R-ASI-3CH
Single Channel 4762T-ANA-1C-6A 4762R-ANA-1C-6A
Analog Video/Audio
Dual Channel 4762T-ANA-2C-6A 4762R-ANA-2C-6A
Analog Video/Audio
310 to ASI Converter 4762T-310-ASI 4762R-ASI-1CH
310 to ASI Converter with 4762T-310-ASI-L 4762R-ASI-1CH
Monitor Ouptut Dual Channel SMPTE 310M 4762T-310-2CH 4762R-310-2CH Six Channel SMPTE 310M 4762T-310-6CH 4762R-310-6CH 12 Channel Audio 4762T-AUD-12CH 4762R-AUD-12CH
Transceiver
Ehternet 4762X-IP-10/100
Ds3 4762X-DS3-3T3R
Model 4762 Specifications and Ordering Information
Video/Audio Modules P/N
Optical Modules P/N
Optical Chassis and P.S. P/N
Example 2: Model 4762 optical transport of eight HDTV (ASI) channels that will allow cable oper­ators to transport HDTV from headend to headend or to various hub sites over long distances. The HD signals are digitally multiplexed on to a single fiber and can be sent up to 40 km (1310 nm) or 80 km (1550 nm).
1) FC/PC connector options are available. Replace SC in the part number with FC. FC/APC connector options are available. Replace SA in the part number with FA.
2) The “XXXX” in the part number specifies one of eight CWDM wave­lengths. The "ITUXX" in the part number specifies one of thirty four DWDM wavelengths. CWDM wavelengths are 1471 nm, 1491 nm, 1510 nm, 1531 nm, 1551 nm, 1571 nm, 1591 nm, and 1611 nm, depending on the channel plan ordered.
* Universal AC and -48 Volts DC power options available
