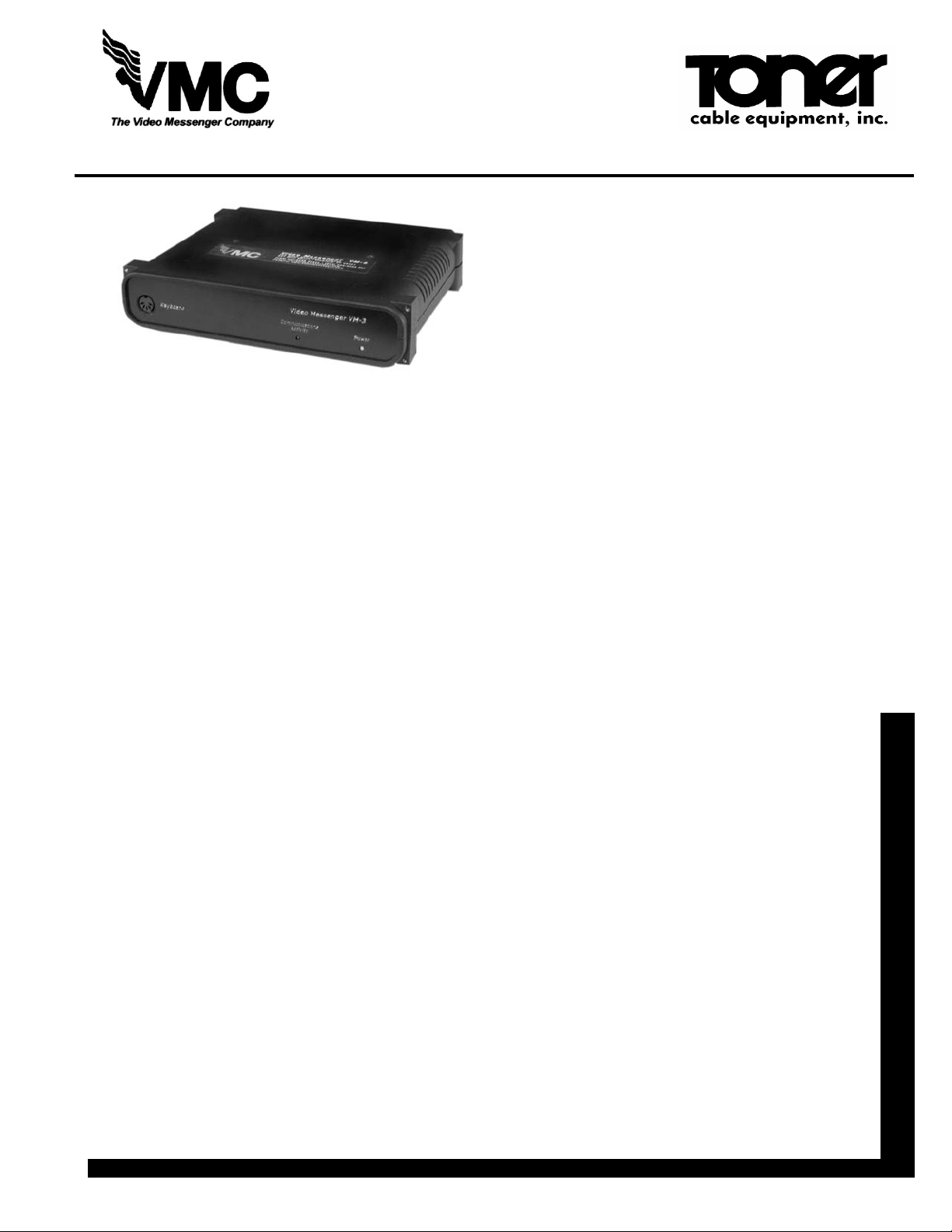

VMC VM-3 Video Messenger System
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
VM-3 Video Messenger System
Finally, an affordable character generator that offers professional features and ease of use that can be utilized in
many different types of locations:
Bars, Restaurants, Fast Food Department Store Chains
Schools Shopping Centers & Malls
Bank Branches Airports
Office Buildings Hotels & Hospitals
Condos & Apartments Convention Centers
No matter what your business is Video Messenger has an affordable system that will help you communicate
more efficiently with your customers and guests. We offer a variety of systems from multi-channel, multilocation networks to single set solutions.
Affordable and Packed with Features
It is priced to fit into almost any budget. As your budget allows you can expand the VM-3 into a multimedia and multi-channel system. You can operate the system locally or remotely via modem or IP/LAN
interface.
Easy To Use
Fonts, color selections and character positioning can all be done with shortcut keys that are clearly
shown on the keyboard. The short cuts and easy to use menus add up to an extremely intuitive system
and a short learning curve.
Messages Can Be Scheduled
Messages can be scheduled to play during selected times of the day, days of the week and date range.
This feature allows you to have a dynamic play list that can change by the hour, day of week and calendar date. Messages play when they are in the play window, i.e.; their scheduled time to play coincides
when the current time, day and date.
Messages Can Be Routed to All VM-3’s Locally Networked
Messages can also be routed to play on only selected VM-3 network units. Up to 32 VM-3’s can be networked together in this manner. This allows you, the user, to display messages in different locations of
your facility or on multiple channels using one keyboard.
Message Can Be Linked to Play with High-Resolution Images or Video Clips
With the High Impact Video Package; the VM-3 turns the everyday into something special. This package
includes a Philips
®
175 DVD player, interface cable and a start up disc which transforms the VM-3 into a
true multi-media device.
Can Be Updated Remotely with Modem or IP/LAN Interface
This allows you to control multiple units. The option VMConsole software for Windows
®
PC’s allows the
user to control many units with push of a key. Effortlessly, put the same message on many remote VM-3
or a unique set of messages on each unit.
Features & Benefits
Create and Play Text Messages over
Existing Programs or Internal Color
Backgrounds
Create and Schedule up to 250 Messages
Easy to Control and Operate
Works with Satellite, Cable, CCTV &
Security Systems
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
VMC VM-3 Video Messenger System
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
VM-3 Specifications
(VM-3) Text Generator & Video
Controller
• Color text with multiple font
selections • Schedule by date
range, day and time • Run
messages on as many
channels as desired (optional
equipment required)
• Requires no PC • Extremely
user friendly • 1/2RU
• 120VAC, 60Hz (220VAC
model available) • IEC 320
plug • UL listed
Applications
• Hotels (meetings, internal
promotions) • Conference
Centers • Cable Companies
• Banks • Retail • Brokerages
• Schools and Institutional
• Railroad stations
• Commercial environments
• Any application that needs
quick and easy information
delivery • Display recreational
activities • Meeting schedules
• Menu specials • Stock alerts
• Interest rates • Weather &
sports updates
Video Attributes
• 640 x 480 resolution • 16
basic colors plus fine adjust
• 1 small sized system font
(avg. 50 characters across the
page) • 3 medium sized fonts
(avg. 30-45 characters across
the page) • 1 large sized font
(avg. 18-20 characters across
the page)
Connections
• One video jack (in) and 2
video jacks (out): one for edit
monitor and one for TV system
or floor display • 2X MIDI (din
5): one in and one out • two
RS 232 (9 pin) jacks for
keypad operation, external
DVD player, modem or
IP/LAN Connection
• Front panel 5-pin connector
for A T101 keyboard
Software
Up to 250 full screen
messages or crawl lines
• Color by line • Copy/paste by
message• Copy/paste
message attributes • Clear
function by selected
paragraph • Insert function at
cursor position • Date,
day/time scheduling by
message • Multi- channel
operation via daisy chained
network units • Message
routing (by daisy chained
network units) • Advanced edit
navigation features • Delete by
character, paragraph and
message • Font size and style
by line and paragraph • Image
and video file linking by page
• Flexible message length
• Remote operation via Modem
or IP/LAN Interface • Help
function on all menus
VM-3 includes a full AT101
Keyboard...................
Note: This system is designed as a
video bulletin board with built-in
backgrounds of various colors. It
will also genlock text messages
over any external video source.
VM-3 Local Network Unit
• Allows display of separate
messages to be shown
simultaneously in separate
areas of a location, i.e.,
cafeteria, lobby, lounge, etc.
• Each Network Unit is
addressable with its own ID
• Messages can be shared
between networked units
automatically or manually
The High Impact Video Package
• Links digital CD images and
MPEG video with your text
messages for maximum
impact (like a Power Point
presentation) integrates VM- 3
Text and Video Generator &
Controller with a DVD player.
This allows the user to play
hundreds of high-resolution
images and/or MPEG video
• The VM-3 plays both images
and video clips while
overlaying text
The Modem System
• Consists of two VM-3's with
modems: one sender, one
receiver • Can control a VM-3
from remote location
• Designed as a plug and play
device with minimum setup
• Can be operated as a stand
alone or multi-media system
• Optional VMConsole
allows the storage of thousands
of messages on a PC
(Windows®) for future use.
The IP Addressing System
Using an IP to serial port
converter the VM-3 can be
installed on a LAN and
controlled via your PC .Users
can send data using the
VMConsole software which
delivers it to the VM-3. The VM3 converts the data stream into
video characters then
superimposes them over
programming from your cable
box, satellite receiver, VCR or
DVD Player.
