Toner Cable 2801 User Manual

Telephone: Nationwide: Fax: E-mail: Internet:
10/06
Force 5 & 10 Channel 1310 nm Link
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
5 & 10 Channel VSB/AM Fiber Optic Video Link
5 Channel VSB/AM Fiber Optic Link
Features
Transmits up to 10 CATV channels over one
single-mode fiber.
Supports transmission of sub-band, low-band, FM,
mid-band, and high-band channels, adding flexibility to the system.
Built-in RF input level indicator aids in commission-
ing and troubleshooting the link.
Return path receiver option is available for back-
haul applications
Compatible with standard television industry volt-
ages and impedances.
Ideal for small corporate TV video distribution, cam-
pus media retrieval, teleconferencing, and much more.
The CATV Model 2801PRO 5 Channel CATV VSB/AM video link provides a high-quality system for transferring five video chan­nels per multimode fiber with complete EMI immunity. The use of state-of-the-art 1300 nm LEDs and PIN detectors allows Model 2801PRO to operate at exceptional performance levels. The unit offers excellent analog bandwidth that ranges from 5 to 350 MHz, allowing transmission of all sub-band, low-band, FM, mid-band, and high-band channels. This system also offers excellent performance at lower channel loadings. The Model 2801PRO provides an inexpensive option for transmitting high­quality video, making it an obvious choice for video delivery ser­vices using multimode fiber.
Features
Able to transmit up to 5 CATV channels over one
multimode fiber.
Supports transmission of sub-band, low-band, FM,
mid-band, and high-band channels, adding flexibility to the system.
Plug-and-play design assures easy installation.
The most comprehensive product of its type avail-
able in the industry.
Ideal for small corporate TV video distribution, cam-
pus media retrieval systems, teleconferencing appli­cations, or as a return path transmitter for larger video systems.
Model 2802PRO
10 Channel VSB/AM Fiber Optic Link
The Model 2802PRO 10 Channel CATV VSB/AM video link offers a state-of-the-art solution for high-quality CATV transmis­sion. The Model 2802PRO offers exceptional analog bandwidth from 5 to 400 MHz allowing transmission of all sub-band, low­band, FM, mid-band, and high-band channels. This feature allows the system to deliver custom designed video services. In conjunction with a VCR, camcorder, or cable television feed, the Model 2802PRO can transmit TV channels and their sound car­riers, over a distance of 10 km or more at 1310 nm over one single-mode-fiber. A return path receiver is available for back­haul applications. The unit utilizes inputs from standard CATV VSB/AM modulators, processors, and other ancillary equipment, making the Model 2802PRO link an excellent plug-and-play sys­tem. LED indicators and built-in RF and optical power meters allow for quick assessment of the link’s status.
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
Force 5 & 10 Channel 1310 nm Link
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
Model 2801Specifications
Model 2802 Specifications
Optical Characteristics*

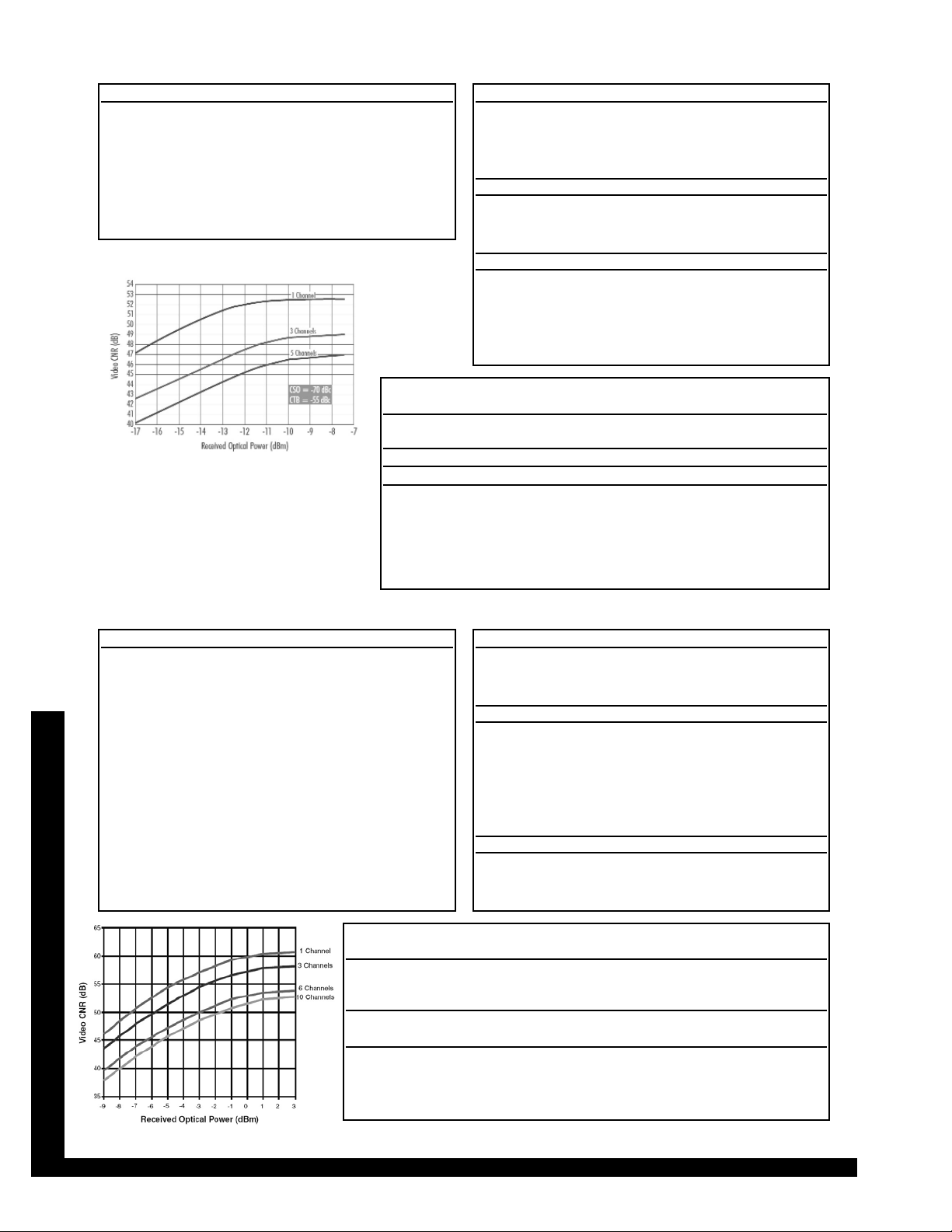

Operating Wavelength 1300 nm Lower Bandwidth 2 MHz Upper Bandwidth 400 MHz Optical Output Power -7.0 dBm Optical Loss Range 0-9 dB Impedance 75 Ohms Carrier-to-Noise Ratio See Graph Below
Electrical Characteristics*
Power Supply Voltage (Tx) +9 to +11.0 VDC Power Supply Voltage (Rx) +9 to +11.0 VDC Power Supply Current (Tx) 250-270 mA Power Supply Current (Rx) 100-110 mA
Physical Characteristics*
Weight 6 oz. (170 g) Dimension 3.75x2.95x1.12”
95x75x29 mm
Environmental Characteristics*
Operating Temp. Range +10 to +45 °C Storage Temp. Range -20 to +70 °C Relative Humidity 10-95 %
*System performance specifications indicated for use with 62.5/125 m multimode fiber.
MM 5 Channel Tx and Rx P/N
2801PRO Tx and Rx Options
Stand-Alone Tx, 1300 nm, ST 2801P-T-1310-ST Stand-Alone Rx, 1300 nm, ST 2801P-R-ST
Rack and P.S. P/N
Accessory Options Rack Accessories Power Supplies
Tx Stand-alone P.S. +9 VDC PS090-1 Tx Stand-alone P.S. +9 VDC PS090-1 3RU Rack Chassis 2981CA-NN 3RU Adapter Card 2981A-NN-1 3RU P.S., Universal AC 2981UA-NN 3RU P.S, -48 VDC 2981UB-NN
Optical And RF Characteristics
Tx Optical Output Power +3.0 dBm Rx Optical Input Power -9.0 to +4.0 dBm Optical Loss Range 0-12 dB Operating Wavelength 1310 nm Lower Bandwidth 5 MHz Upper Bandwidth 400 MHz Impedance 75 Ohms Carrier-to-Noise Ratio See Graph Below End-to-End Link Gain
0 dB Optical Loss +24 dB
10 dB Optical Loss +4 dB Composite Triple Beat -63 dB Composite Second Order -70 dB Flatness ±1.0 dB
Electrical Characteristics
Power Supply Voltage +9 VDC Tx Current Draw 205 mA Rx Current Draw 95 mA
Physical Characteristics
Weight (Stand-alone Tx/Rx) 6 oz. (170 g) Weight (3RU Rx) 8 oz. (227 g) Dimensions
(Stand-alone Tx/Rx) 5.75x2.95x1.143”
146x75x29 mm
Dimensions (3RU Rx) 5.06x1.39x12.00”
129x35x305 mm
Environmental Characteristics
Operating Temp. Range +10 to +40 °C Storage Temp. Range -20 to +70 °C Relative Humidity 0-95 %
SM 10 Channel Link P/N
2802PRO Tx and Rx Options FC/APC Conn. SC/APC Conn.
Stand-Alone Tx, SM, 1310 nm 2802P-T-1310-FA 2802P-T-1310-SA Stand-Alone Rx, SM 1310/1550 nm 2802P-R-FA 2802P-R-SA 3RU Dual Return Rx, SM, 1310/1550 nm 2802P-R-DUAL-FA 2802P-R-DUAL-SA
Rack and P.S. P/N
Accessory Options Rack Accessories Power Supplies
Stand-alone P.S. +9 VDC PS095-1 3RU 19” Chassis 3000CB-NN 3RU P.S., Universal AC 3000UC-NN 3RU P.S., -48 VDC 3000UE-NN
