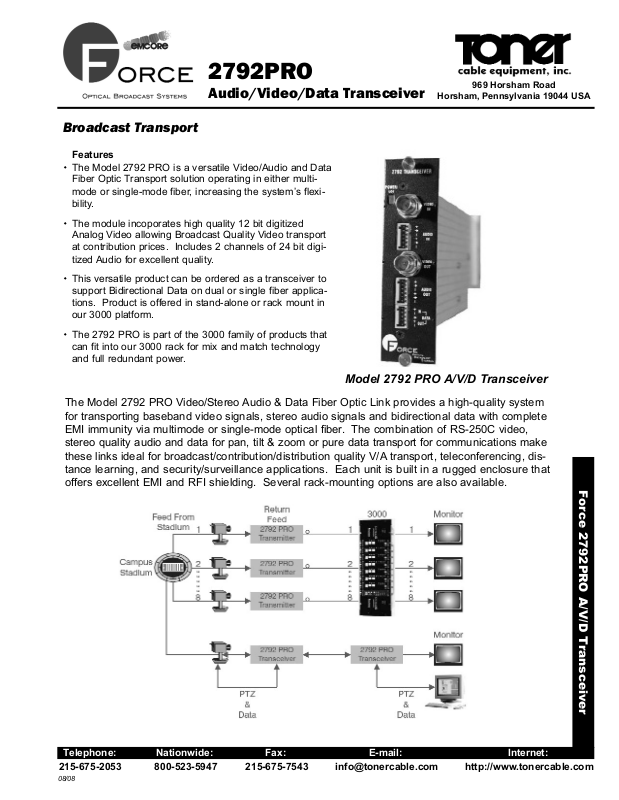

Audio/Video/Data Transceiver
Broadcast Transport
Features
The Model 2792 PRO is a versatile Video/Audio and Data
Fiber Optic Transport solution operating in either multimode or single-mode fiber, increasing the system’s flexibility.
The module incoporates high quality 12 bit digitized
Analog Video allowing Broadcast Quality Video transport
at contribution prices. Includes 2 channels of 24 bit digitized Audio for excellent quality.
This versatile product can be ordered as a transceiver to
support Bidirectional Data on dual or single fiber applications. Product is offered in stand-alone or rack mount in
our 3000 platform.
The 2792 PRO is part of the 3000 family of products that
can fit into our 3000 rack for mix and match technology
and full redundant power.
The Model 2792 PRO Video/Stereo Audio & Data Fiber Optic Link provides a high-quality system
for transporting baseband video signals, stereo audio signals and bidirectional data with complete
EMI immunity via multimode or single-mode optical fiber. The combination of RS-250C video,
stereo quality audio and data for pan, tilt & zoom or pure data transport for communications make
these links ideal for broadcast/contribution/distribution quality V/A transport, teleconferencing, distance learning, and security/surveillance applications. Each unit is built in a rugged enclosure that
offers excellent EMI and RFI shielding. Several rack-mounting options are also available.
Model 2792 PRO A/V/D Transceiver
Telephone: Nationwide: Fax: E-mail: Internet:
Force 2792PRO A/V/D Transceiver
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Optical Characteristics
1310 nm
Optical Output Power (Tx) -2.5 dBm
Optical Sensitivity (Rx) -28.0 dBm
Optical Saturation (Rx) 0 dBm
1550 nm
Optical Output Power (Tx) -2.5 dBm
Optical Sensitivity (Rx) -28.0 dBm
Optical Saturation (Rx) -1 dBm
Video, Data, and Audio Characteristics
Required Fiber Bandwidth 1000 MHz
Differential Gain Error .5 to 2.0%
Differential Phase Error .5 to 2.0%
Input Signal Range 100 IRE
Video Channel Gain 1.0 V/V
Video Resolution 12 Bits
Video SNR
1
67 dB
Video Bandwidth ±0.2 dB to 6 MHz
Number of Audio Channels 2
Audio Frequency Response 20 Hz to 20 kHz
Audio SNR 90 dB
Audio THD .1 %
Audio I/O Impedance 600 Ohms
(user selectable) 10 kOhms
Audio Signal Resolution 24 Bits
Audio Channel Gain -1.0 to +1.0 dB
Audio Channel Crosstalk -70 dB
Number of Data Channels 1
RS-232 Data Rate (user selectable) 115,200 b/s
RS-422 Data Rate (user selectable) 460,800 b/s
BER 10
-7
Model 2792PRO Specifications and Ordering Information
1) SNR: Measured EIA-250 weighted.
2) This product conforms to the Electromagnetic Compatibility
Requirements in accordance with European Community Directive #89-336EEC.
Electrical, Environmental, and Physical Characteristics
1310 nm
Power Supply Voltage +12 to +24 VDC
Power Dissipation 6 Watts
Operating Temp. (SM) 0 to +50 °C
Storage Temp. -20 to +70 °C
Humidity (RH, non-condensing) 0 to 95%
Weight (Stand-alone) 50 oz
Weight (3RU) 20 oz
Dimensions (Stand-alone) 4.36 x 1.26 x 11.50 in
111 x 32 x292 mm
Dimensions (3RU) 5.06 x 1.39 x 12.00 in
129 x 35 x 305 mm
Transmitter, Receiver, and Transceiver P/N
3RU Chassis and all P.S. P/N
Model 2792 PRO Transmitter & Receiver
Model 2792 PRO Transceiver Stand-alone
1) The "XXXX" in the part number specifies one of
eight CWDM wavelengths. CWDM wavelengths are
1470 nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm,
1570 nm, 1590 nm, and 1610 nm, depending on the
channel plan ordered.
2) SC/PC and SC/APC connector options available.
Replace ST in the part number with SC for SC/PC
or SA for SC/APC.
