Tomura PS-9316MI User Manual

DVR User Manual

PS-9316MI

For H.264 8/16-channel digital video recorder

All rights reserved

DVR User Manual

CAUTION

 Please read this user manual carefully to ensure that you can use the device correctly and safely
 We do not warrant all the content is correct. The contents of this manual are subject to change without notice
 This device should be operated only from the type of power source indicated on the marking label. The voltage of the power

must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long
period of time.

 Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat
 Do not install this device near water. Clean only with a dry cloth
 Do not block any ventilation openings and ensure proper ventilation around the machine
 Do not power off the DVR when the device is functioning. The correct operation to shut down the DVR is to stop recording,

use “shut-down” button from the menu, and switch off the main power.

 This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get

ins ide the machine‟s case, please turn off the device im mediately and get it checked by a qualified technician.

 Do not try to repair the device by yourself without technical aid or approval.
 When this product is in use, the relevant contents of Microsoft, Apple and Google will be involved in. The pictures and

screenshots in this manual are only used to explain the usage of our product. The ownerships of trademarks, logos and other
intellectual properties related to Microsoft, Apple and Google shall belong to the above-mentioned companies.

 This manual is suitable for 8/16-channel digital video recorders. All examples and pictures used in the manual are from

16-channel DVR.

DVR User Manual

Table of Contents

1 Introduction .......................................................................................................................................... 1

1.1 DVR Introduction ................................................................................................................................................................................ 1

1.2 Main Features..................................................................................................................................................................................... 1

2 Hardware Installation............................................................................................................................ 4

2.1 Install Hard Drive &DVD Writer........................................................................................................................................................ 4

2.1.1 Install Hard Drive............................................................................................................................................................................. 4

2.1.2 Install DVD Writer ............................................................................................................................................................................ 5

2.2 Front Panel Descriptions................................................................................................................................................................... 5

2.3 Rear Panel Instructions..................................................................................................................................................................... 6

2.4 Remote Controller .............................................................................................................................................................................. 8

2.5 Control with Mouse ..........................................................................................................................................................................10

2.5.1 Connect Mouse ................................................................ ................................................................ ............................................. 10

2.5.2 Use Mouse ................................................................................................................................................................................... 10

3 Basic Function Instruction................................................................................................................. 12

3.1 Startup & Shutdown .........................................................................................................................................................................12

3.1.1 Startup.......................................................................................................................................................................................... 12

3.1.2 Shutdown...................................................................................................................................................................................... 12

3.2 Login...................................................................................................................................................................................................13

3.3 Live Preview......................................................................................................................................................................................13

3.3.1 Live Playback................................................................................................................................................................................ 13

4 Main Menu Setup Guide ..................................................................................................................... 15

4.1 Basic Configuration..........................................................................................................................................................................16

4.1.1 System ......................................................................................................................................................................................... 16

4.1.2 Date & Time ................................................................................................ ................................ .................................................. 18

4.1.3 DST.............................................................................................................................................................................................. 18

4.2 Live Configuration ............................................................................................................................................................................19

DVR User Manual

4.2.1 Live .............................................................................................................................................................................................. 19

4.2.2 Main Monitor ................................................................................................................................................................................. 20

4.2.3 Spot.............................................................................................................................................................................................. 20

4.2.4 Mask ................................................................................................................................ ............................................................ 20

4.3 Record Configuration.......................................................................................................................................................................21

4.3.1 Enable .......................................................................................................................................................................................... 22

4.3.2 Record Bitrate ............................................................................................................................................................................... 22

4.3.3 Time ............................................................................................................................................................................................. 23

4.3.4 Stamp ................................................................................................ ................................................................ ........................... 23

4.3.5 Recycle Record............................................................................................................................................................................. 24

4.3.6 Snap............................................................................................................................................................................................. 25

4.4 Schedule Configuration...................................................................................................................................................................25

4.4.1 Schedule ................................................................................................ ................................................................ ...................... 25

4.4.2 Motion .......................................................................................................................................................................................... 26

4.4.3 Sensor.......................................................................................................................................................................................... 26

4.5 Alarm Configuration .........................................................................................................................................................................27

4.5.1 Sensor.......................................................................................................................................................................................... 27

4.5.2 Motion .......................................................................................................................................................................................... 28

4.5.3 Video Loss .................................................................................................................................................................................... 30

4.5.4 Other Alarm................................................................................................................................................................................... 30

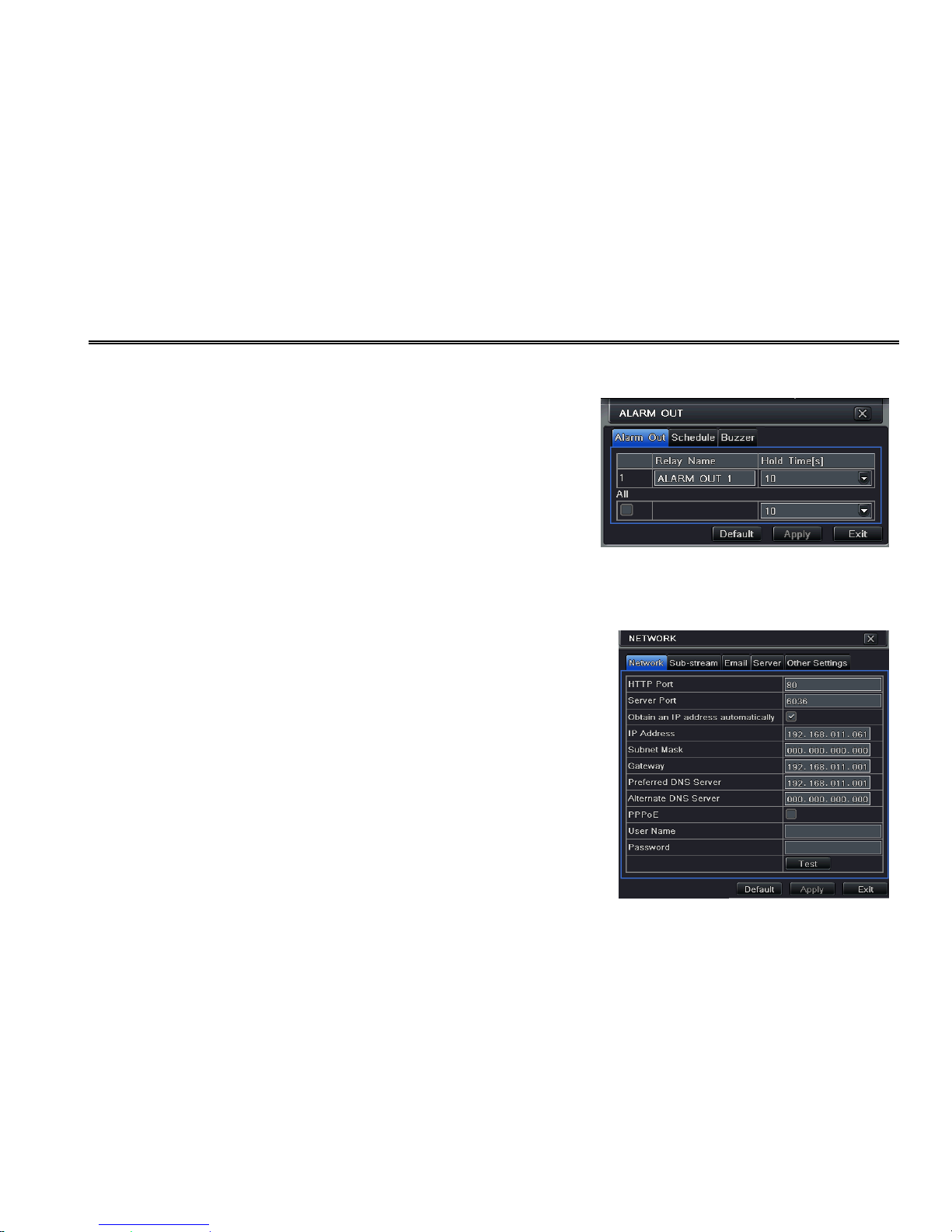

4.5.5 Alarm Out ..................................................................................................................................................................................... 31

4.6 Network Configuration.....................................................................................................................................................................31

4.6.1 Network ........................................................................................................................................................................................ 31

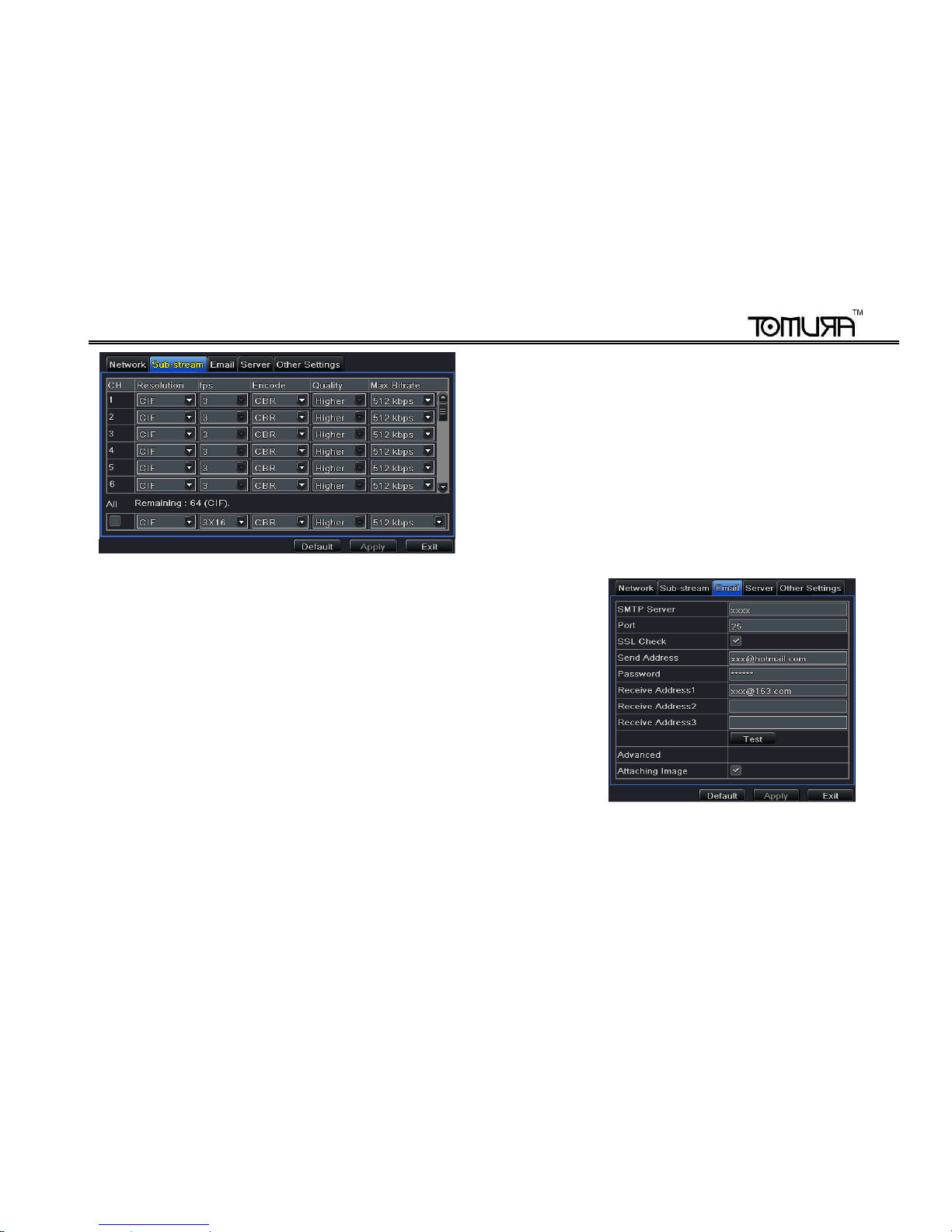

4.6.2 Sub-stream ................................................................................................................................................................................... 32

4.6.3 Email ............................................................................................................................................................................................ 33

4.6.4 Server........................................................................................................................................................................................... 33

4.6.5 Other Settings ................................................................................................ ................................................................ ............... 34

DVR User Manual

4.7 User Management Configuration ..................................................................................................................................................37

4.8 P.T.Z Configuration...........................................................................................................................................................................38

4.9 Advanced...........................................................................................................................................................................................41

4.9.1 Reset................................................................................................................................................................ ............................ 42

4.9.2 Import/Export ................................................................................................................................................................................ 42

4.9.3 Block/Allow list .............................................................................................................................................................................. 42

5 Search，Playback & Backup ............................................................................................................. 43

5.1 Time Search ......................................................................................................................................................................................43

5.2 Event Search ....................................................................................................................................................................................44

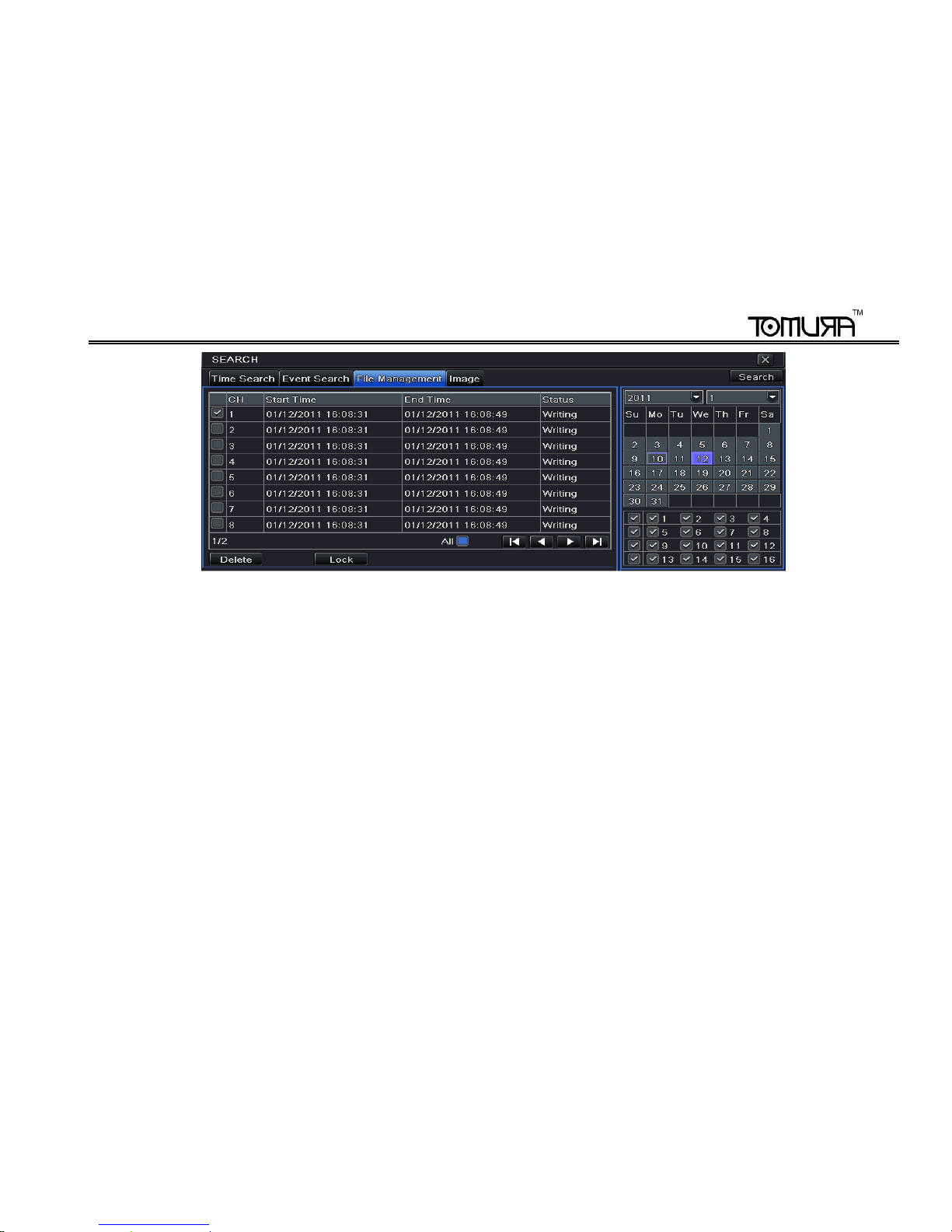

5.3 File Management .............................................................................................................................................................................45

5.4 Search by Image ..............................................................................................................................................................................46

5.5 Backup ...............................................................................................................................................................................................47

6 Manage DVR ....................................................................................................................................... 48

6.1 Check System Information .............................................................................................................................................................48

6.1.1 System Information........................................................................................................................................................................ 48

6.1.2 Event Information ................................................................................................................................................................ .......... 48

6.1.3 Log Information ................................................................................................................................ ................................ ............. 48

6.1.4 Network Information ...................................................................................................................................................................... 48

6.1.5 Online Information ......................................................................................................................................................................... 48

6.1.6 Record Information ................................................................................................................................ ........................................ 49

6.2 Manual Alarm ....................................................................................................................................................................................49

6.3 Disk Management ............................................................................................................................................................................49

6.4 Upgrade .............................................................................................................................................................................................50

6.5 Logoff .................................................................................................................................................................................................50

7 Remote Surveillance ................................................................................................ .......................... 51

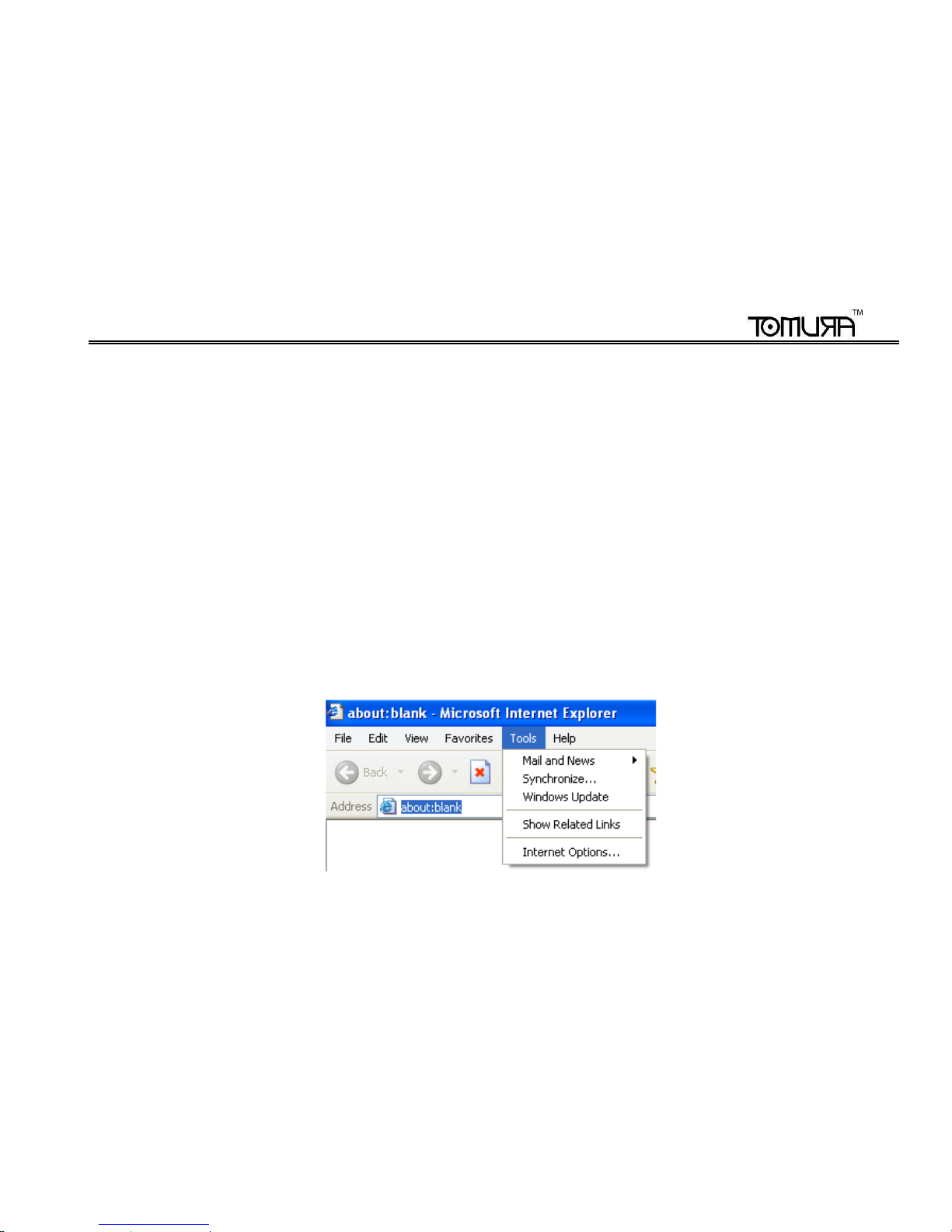

7.1 IE Remote Surveillance...................................................................................................................................................................51

7.1.1 On LAN ........................................................................................................................................................................................ 51

DVR User Manual

7.1.2 On WAN ................................................................ ................................................................ ................................ ....................... 51

7.2 Remote Surveillance through Apple PC .......................................................................................................................................53

7.2.1 On LAN ........................................................................................................................................................................................ 54

7.2.2 On WAN ................................................................ ................................................................ ................................ ....................... 56

7.3 Remote Preview ...............................................................................................................................................................................57

7.4 Remote Playback & Backup...........................................................................................................................................................61

7.4.1 Remote Playback ................................................................ ................................................................ .......................................... 61

7.4.2 Remote Backup............................................................................................................................................................................. 66

7.5 Remote System Configuration .......................................................................................................................................................67

7.6 Tools...................................................................................................................................................................................................68

7.7 Remote Information .........................................................................................................................................................................68

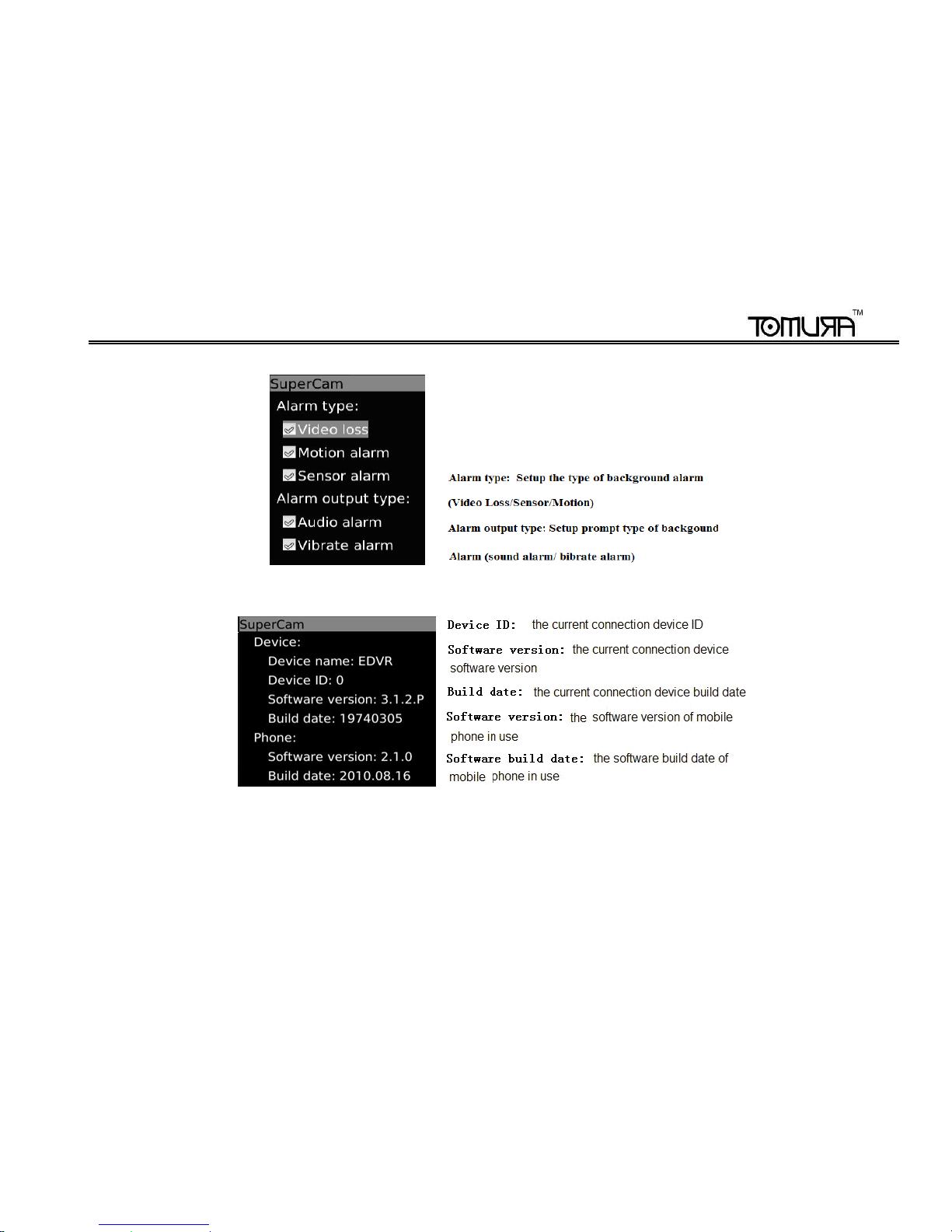

8 Mobile Surveillance ............................................................................................................................ 70

8.1 By Phones with Windows Mobile OS............................................................................................................................................70

8.2 By Phones with Symbian OS .........................................................................................................................................................71

8.3 By Phones with Iphone OS ............................................................................................................................................................73

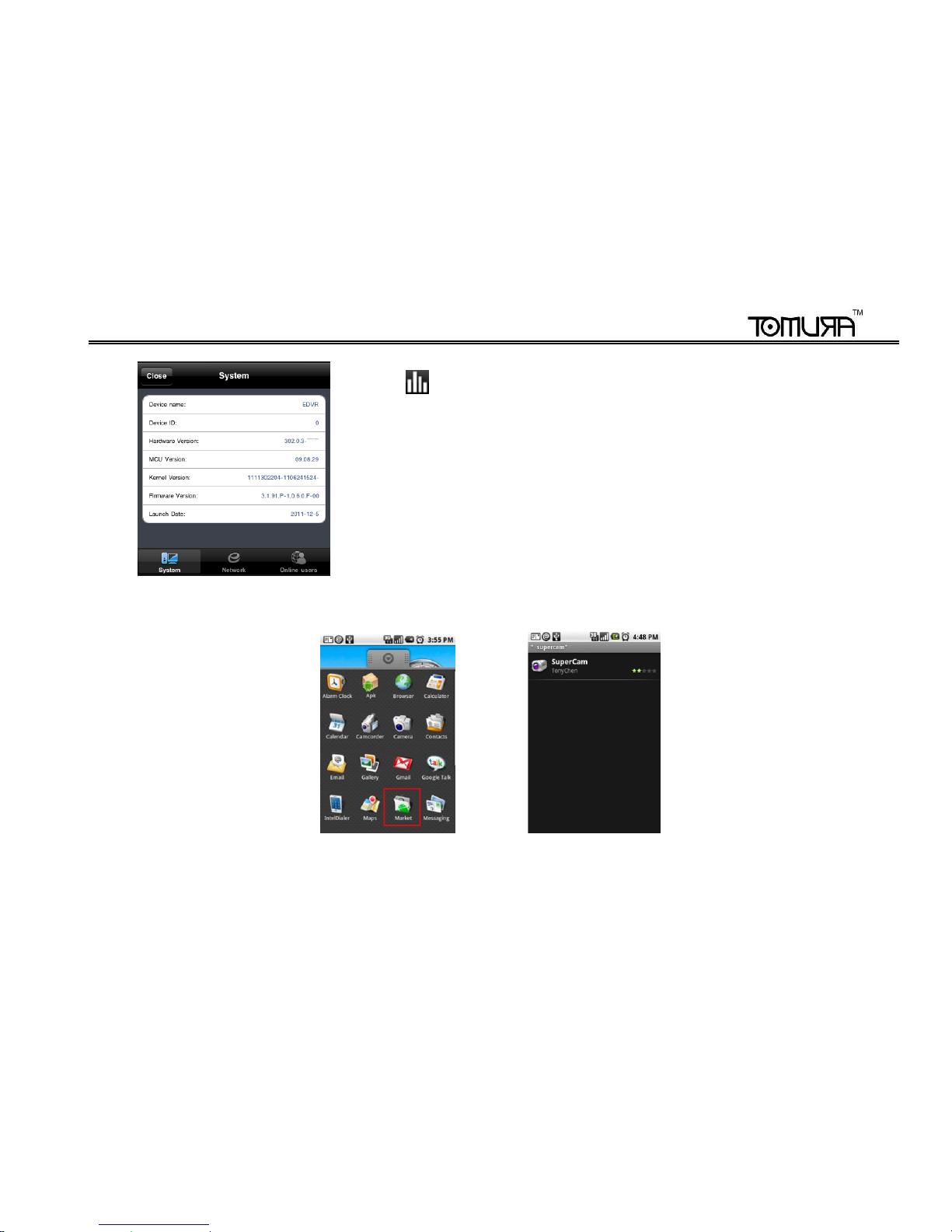

8.4 By Phones with Android OS ...........................................................................................................................................................81

8.5 By Phones with Blackberry OS......................................................................................................................................................86

Appendix A FAQ.................................................................................................................................... 92

Appendix B Calculate Recording Capacity ......................................................................................... 98

Appendix C Compatible Devices ......................................................................................................... 99

Appendix D 8-CH Specifications ................................................................. Error! Bookmark not defined.

Appendix E 16-CH Specifications ...................................................................................................... 101

DVR User Manual

1

1 Introduction

1.1 DVR Introduction

This model DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video
processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard
H.264 with low bit rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote
control, mobile view(by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive
characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on.

1.2 Main Features

COMPRESSION FORMAT

 Standard H.264 compression with low bit rate and better image quality

LIVE SURVEILLANCE

 Support HD VGA output
 Support channel security by hiding live display
 Display the local record state and basic information
 Support USB to make full control

RECORD MEDIA

 Support two SATA HDD to record for a longer time without any limitation

BACKUP

 Support USB 2.0 devices to backup
 Support built-in SATA DVD writer to backup
 Support saving recorded files with AVI standard format to a remote computer through internet

DVR User Manual

2

RECORD & PLAYBACK

 Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
 Support recycle after HDD full
 Resolution, frame rate and picture quality are adjustable
 128MB for every video file packaging
 4 audio channels available
 Two record search mode: time search and event search
 Support 8/16 screen playback simultaneously
 Support deleting and locking the recorded files one by one
 Support remote playback in Network Client through LAN or internet

ALARM

 1 channel alarm output and 8/16 channel alarm input available
 Support schedule for motion detection and sensor alarm
 Support pre-recording and post recording
 Support linked channels recording once motion or alarm triggered on certain channel
 Support linked PTZ preset ，auto cruise and track of the corresponding channel

PTZ CONTROL

 Support various PTZ protocols
 Support 128 PTZ presets and 8 auto cruise tracks
 Support remote PTZ control through internet

SECURITY

 Customize user right: log search, system setup, two way audio, file management, disk management, remote login, live

view, manual record, playback, PTZ control and remote live view

 Support 1 administrator and 63 users.

DVR User Manual

3

 Support event log recording and checking, events unlimited

NETWORK

 Support TCP/IP, DHCP, PPPoE, DDNS protocol
 Support IE browser to do remote view
 Support setup client connection amount
 Support dual stream. Network stream is adjustable independently to fit the network bandwidth and environment.
 Support picture snap and color adjustment in remote live
 Support remote time and event search, and channel playback with picture snap
 Support remote PTZ control with preset and auto cruise
 Support remote full menu setup, changing all the DVR parameters remotely
 Support mobile surveillance by smart phones , symbian, WinCE, Iphone or Gphone, 3G network available
 Support CMS to manage multi devices on internet

DVR User Manual

4

2 Hardware Installation

Notice: Check the unit and the accessories after getting the DVR.

Please don‟t power up the unit till the physical installation is com plete.

2.1 Install Hard Drive &DVD Writer

2.1.1 Install Hard Drive

Notice: 1. This series supports two SATA hard drives. Please use the hard drive the manufacturers recommend specially for

security and safe field.

2. Please calculate HDD capacity according to the recording setting. Please refer to “Appendix B Calculate Recording
Capacity”.
Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the HDD onto the bottom case as Fig2.1.
Step3: Screw the HDD as Fig2.2

Note: For the convenience to install, please connect the power and data cables firstly, and then screw to fix.

Fig 2.1 Connect HDD Fig 2.2 Screw HDD

DVR User Manual

5

2.1.2 Install DVD Writer

Notice: 1. The writers must be the compatible devices we recommend. Please refer to “Appendix C Compatible Devices ”

2. This device is only for backup.
Step1: Unscrew and Open the top cover.
Step2: Connect the power and data cables. Place the DVD writer onto the bottom case as Fig2.3.
Step3: Screw the DVD writer as Fig2.4

Fig 2.3 Connect the DVD Writer Fig 2.4 Screw the Writer

2.2 Front Panel Descriptions

Notice: The front panel descriptions are only for reference; please make the object as the standard.

Item

Type

Name

Description

1

Work state

indicator

Power

Power Indicator, when connected, the light is blue.

HDD

The light turns blue when reading/writing HDD.

Net

The light turns blue when it is able to access the network.

Backup

The light turns blue when backing up files and data.

Play

The light turns blue when playing video.

REC

The light turns blue when recording

DVR User Manual

6

Item

Type

Name

Description

2

Compound

button

MENU/+

1. Enter menu in live 2. Increase the value in setup

BACKUP/-

1. Decrease the value in setup 2. Enter backup mode in live

RECORD/FOCUS

1. Record manually 2. FOCUS function enables at PTZ mode.

REW/SPEED

1. Rewind key 2. SPEED function enables at PTZ mode

SEARCH/ZOOM

1. Enter search mode 2.ZOOM function enables at PTZ mode.

PLAY /IRIS

1. Enter play interface 2. IRIS function enables at PTZ mode

FF/ P.T.Z.

1. Fast forward 2. Enter PTZ mode in live

STOP/ESC

1. Quit play mode 2. Exit the current interface or status

3

Digital button

1-9

Input number 1-9 or choose camera

0/10+

Input number0, 10 and the above number together with other
digital keys

4

Input button

Direction button

Change direction to select items

Multi-screen

Change screen display mode like1/4/9/16 channel

Enter button

Confirm selection

5

IR receiver

IR

For remote controller

6

USB

USB port

To connect external USB devices like USB flash, USB HDD for
backup or update firmware; or connect to USB mouse

2.3 Rear Panel Instructions

:

DVR User Manual

7

Fig 2.6 Rear Panel for 16-ch

Item

Name

Description

1

Power switch

Turn on/off the power supply.

2

DC 12V

Power input

3

P/Z

Connect to speed dome

4

K/B

Connect to keyboard

5

Alarm out

1-ch relay output. Connect to external alarm.

6

GND

Grounding

7

Alarm in

Connect to external sensor1-16

8

Audio in

4 CH Audio input

9

Audio out

Audio output, connect to the sound box

10

CVBS port

CVBS video signal output

11

Spot

Connect to monitor as an AUX output channel by channel. Only video
display, no menu show

12

Video in

Video input channels from 1-16

13

HDMI port

Connect to high-definition display device

14

USB port

To connect external USB devices like USB flash, USB HDD for backup or
update firmware; or connect to USB mouse

15

LAN

Network port

16

VGA port

VGA output, connect to monitor

DVR User Manual

8

2.4 Remote Controller

It uses two AAA size batteries.

 Open the battery cover of the Remote Controller.
 Place batteries. Please take care of the polarity (+ and -).
 Replace the battery cover.

Fig 2.7 Remote Controller

Button

Function

Power Button

Switch off—to stop DVR. Use it before turning off the power

Record Button

To record manually

-/-- /0-9 Digital Button

Input number or choose camera

Fn1 Button

Unavailable temporarily

Multi Button

To choose multi screen display mode

Next Button

To switch the live image

SEQ

To enter into auto dwell mode

Audio

To enable audio output in live mode

Switch

To switch the output between BNC and VGA

Direction button

To move cursor in setup or pan/title PTZ

Enter Button

To confirm the choice or setup

Menu Button

To enter into menu

DVR User Manual

9

Exit Button

To exit the current interface

Focus/IRIS/Zoom/PTZ

To control PTZ camera. Move camera/zoom/IRIS/Focus

Preset Button

To enter into preset setting in PTZ mode

Cruise Button

To enter into cruise setting in PTZ mode

Track Button

To enter into track setting in PTZ mode

Wiper Button

To enable wiper function in PTZ mode

Light Button

To enable light function in PTZ mode

Clear Button

To return to the previous interface

Fn2 Button

Unavailable temporarily

Info Button

Get information about DVR like firmware version, HDD information

To control playback. Play/Pause/Stop/Previous Section/Next
Section/Rewind/Fast Forward

Snap Button

To take snapshots manually

Search Button

To enter into search mode

Cut Button

To set the start/end time for backup in playback mode

Backup Button

To enter into backup mode

Zoom Button

To zoom in the images

PIP Button

To enter into picture in picture setting mode

Note: You shall press P.T.Z button to enter into PTZ setting mode, choose a channel and press P.T.Z button again to hide the
P.T.Z control panel. Then you can press preset, cruise, track, wiper or light button to enable the relevant function.

Note: Key points to check in cas e the rem ote doesn‟t work.

1. Check batteries polarity.

2. Check the remaining charge in the batteries.

3. Check IR controller sensor for any masking.

4. Check the ID of the remote with respect to the DVR.

DVR User Manual

10

If it still doesn't work, please try using a good known remote, or contact your dealer.
The interface of remote controller is shown in Fig2.7 Remote Controller.

Operation processes with remote controller to control multi-DVR

The default device ID of the DVR is 0. It‟s not necessary to reset the device ID when a remote is to be used to control a single
DVR. However when controlling multiple DVRs with multiple remote controllers, you would need to configure the device ID,
please refer to below steps:

 Activate remote controller to control the DVR: Turn the IR sensor of the remote controller towards the IR receiver on the front

panel, press the number key 8 twice on the remote, then input device ID of the DVR to be controlled (Range from: 0-65535;
the default device ID is 0) and press ENTER to confirm.

 You can check the device ID of a DVR from System SetupBasicDevice ID. You can also set multiple DVRs with the same

device ID however this can cause interference if the DVRs are kept close to each other.

2.5 Control with Mouse

2.5.1 Connect Mouse

It supports USB mouse through the ports on the rear panel.
Notice: If mouse is not detected or doesn't work, check below steps:

1. Make sure the mouse is plugged in the USB mouse port not the USB port on the front panel.

2. Try with a good know mouse.

2.5.2 Use Mouse

During live:

Double-click on any camera window for the full screen mode. Double-click again to return to the previous screen mode.
Right click to reveal the control menu on the screen. Right click to hide the control menu.

DVR User Manual

11

In Configuration:

Click to enter a particular option. Right click to cancel the option or to return to the previous menu.
In order to input a value in a particular screen, move cursor to the input box and
click. An input window will appear as Fig2.8. It supports digits, alphabets and
symbols as inputs. Click Shift button to input Capital letters and symbols; click
Shift button again to return.

You can change some values using the mouse wheel, such as time. Move cursor

onto the value and roll the wheel when the value blinks.

Fig 2.8 Digital Numbers and Letters Input Window

It supports mouse drag. For e.g. setting up motion detection area, click customized, hold down the left button and drag to set
motion detection area.

Setting up Schedule: hold left button and drag to set schedule time.

In Playback:

Click to choose the options. Right click to return to live mode.

In Backup:

Click to choose the options. Right click to return to previous picture.

In PTZ Control:

Click left button to choose the buttons to control the PTZ. Click right button to return to live.

Note: Mouse is the default tool for all operations unless an exception, as indicated.

DVR User Manual

12

3 Basic Function Instruction

3.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial
to expanding the life of your DVR.

3.1.1 Startup

Step1: Connect with the source power.

Step2: The device will boot and the power LED would turn blue.

Step3 A WIZZARD window will be pop-up and show some information about time zone，time setup，network configuration,
record configuration and disk management. User can setup here and refer to the concrete setup steps from the corresponding

chapters . If users don‟t want to setup Wizard, please click Exit button to exit.

Note: This DVR can only display options on either VGA/HDMI monitor or CVBS monitor at a given point of time. If you have
connected CVBS monitor, you will get a tip that says “Long press „ESC‟ or „Stop‟ to display the menu”. That is to say, long
press ESC/Stop key can switch the output between CVBS and VGA/HDMI.

3.1.2 Shutdown

You can shut down the device by using IR remote controller and mouse.

By IR remote controller:

Step1: Press Power button. This will bring up a shutdown window. The unit will shut down by clicking “OK” button.
Step2: Disconnect the power

By mouse:

Step1: Enter into Menu and select “Shut Down” icon. This will take you to a shutdown window.
Step2: Click OK. Then the unit will power off after a while.

DVR User Manual

13

Step3: Disconnect the power

3.2 Login

User can login or log off the DVR system. Once logged off the user cannot do any
other operation except changing the multi-screen display.
Notice: The default user name and pas sword is “admin” and 123456”
For complete operational steps for changing password, adding or deleting users，
please refer to section 4.7 User Management Configuration. Fig 3-1 Login

3.3 Live Preview

Fig 3-2 Live Preview Interface

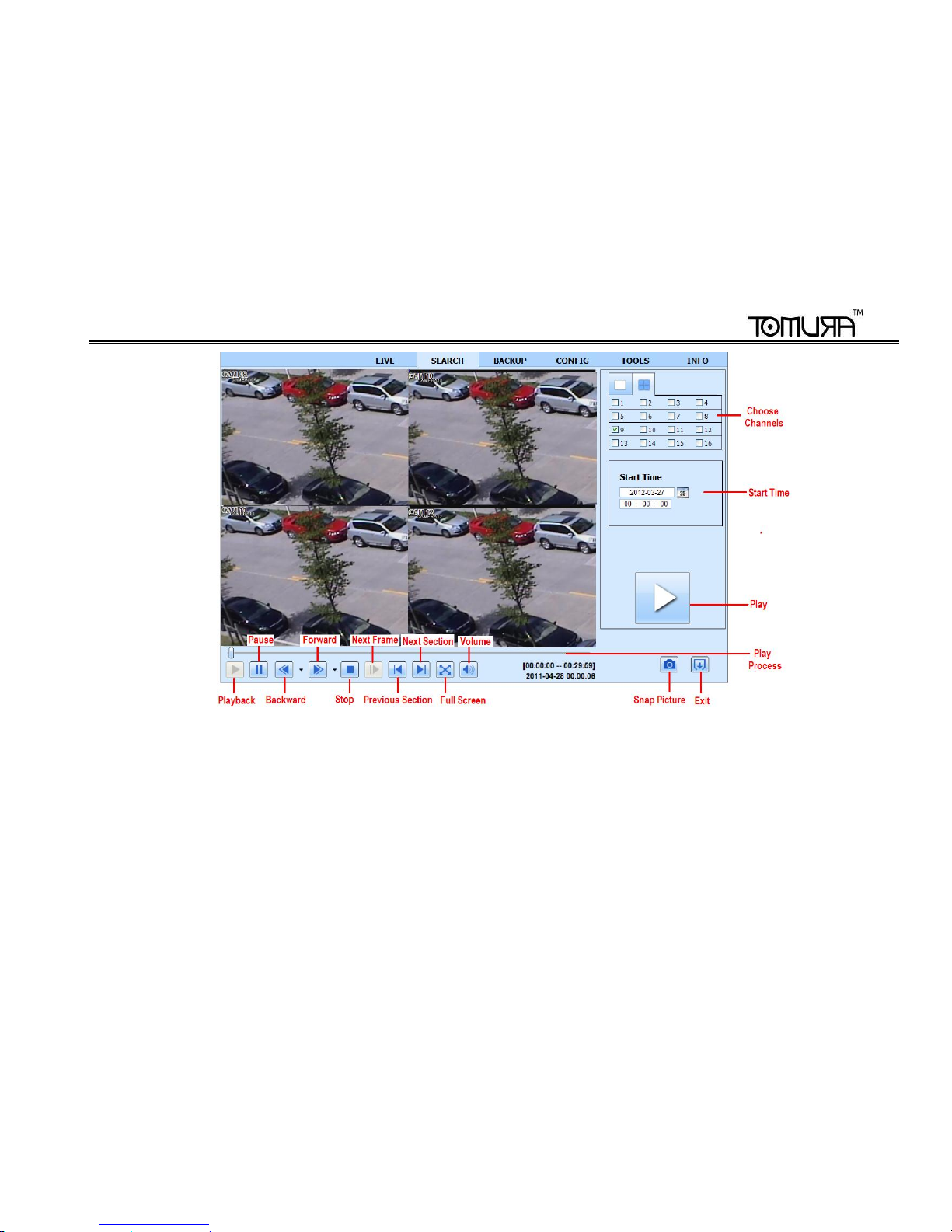

3.3.1 Live Playback

Click Play button to play the record. Refer to Figure3-3. User can do complete operation by clicking the buttons on screen.

Symbol

Meaning

Green

Manual record

Yellow

Motion detection record

Red

Sensor Alarm record

Blue

Schedule record

DVR User Manual

14

Fig 3-3 Live Playback

DVR User Manual

15

4 Main Menu Setup Guide

Right click or press ESC button on the front panel to display the menu toolbar on the bottom of the screen. Refer to Fig 4-1:

Fig 4-1 Main Menu Toolbar
Click the icon beside the screen display mode to display a channel select dialog. 6/8/13 channels can realize single channel
big screen. Images can drag to any place to display in the live interface. Click the icon beside the playback icon to select the
time to playback. For example, if 2 minutes is selected and then click playback button, it will start to playback from the past 2
minutes.
Dwell: Dwell means to display live images from different cameras in a sequence. The images may be displayed as a single
channel or in a grid fashion from different cameras. Dwell mode is enabled only when the chosen display mode is not able to
display all the available cameras.

Color: If this button is enabled, you can adjust the color of live images.
E-Zoom: Single channel large screen electronic amplification.
Volume: Enable sound.
PTZ: Click the PTZ button to control rotation position, speed and auto scan of the PTZ connected to the IP camera.
Snap: Use this button to take snapshots. These pictures will automatically be saved in the HDD.
Record: Click this button to start/stop recording.
Playback: Click this button to playback the recorded files.

User can click button and drag it anywhere with the left mouse

Click Menu button to pop up a window as Fig 4-2; you can also press MENU button on the front panel or operate with
remote controller to display the main menu. Clicking Setup icon will pop-up the configuration menu:

DVR User Manual

16

Fig 4-2 System Setup

4.1 Basic Configuration

Basic configuration includes three sub menus: system, date & time and DST.

4.1.1 System

Step1: Enter into MenuSetupBasicSystem. Refer to Fig 4-3:
Step2: In this interface you can setup the device name, device ID, video format, max
network user, VGA resolution and language. The definitions for every parameters
display as below:
Device Name: The name of the device as it may display on the client end or on CMS,
this would help the user to recognize the device remotely.
Device ID: This ID is used to map the DVR with IR remote controller and speed dome
cameras.
Video Format: Two modes: PAL and NTSC. User can select the video format
according to the cameras being used. Fig 4-3 Basic Configuration-Basic
Password Check: If enabled the user would need to input the user name and the password for performing corresponding
operations.
Show System Time: If selected, displays the current time during live monitoring...

DVR User Manual

18

Max Online Users: To set the maximum number of concurrent user logins in the DVR.
Show wizard: If selected, the GUI would launch the startup wizard on every boot, allowing the user to do basic setup.
VGA resolution: The resolution of live display interface, ranges from: CVBS, VGA800*600, VGA1024*768, VGA1280*1024

and HDMI.

Note： Switching between HDMI/VGA and CVBS will change the menu output mode. Please connect to relevant monitor.

Language: To setup the menu language.
Note: After changing the language and video output, the device needs to login
again.
Logout After (Minutes): You can setup the screen interval time (30s, 60s, 180s,

300s). If there is no any operation within the setting period, the device will auto
logout and return to the login interface.

No Image When Logout: If selected, there will be no image showing when logout.

4.1.2 Date & Time

Step1: Enter into MenuSetupBasicDate & Time tab. Refer to Fig 4-4:
Step2: Set the date format, time format, time zone in this interface; checkmark “s ync

time with NTP server” to refresh NTP server date; user can also adjust system date

manually. Fig 4-4 Basic Configuration-Date & Time
Step3: Click “Apply” to save the s etting; click “Exit” to exit current interface.

4.1.3 DST

Step1: Enter into MenuSetupBasicDST interface. Refer to Fig 4-5:
Step2: In this interface, enable daylight saving time, time offset, mode, start & end
month/week/date, etc.
Step3: Click “default” button to restore default setting; click “apply” button to save
the setting; click “exit” button to exit current interface. Fig 4-5 Basic Configuration-DST

DVR User Manual

19

4.2 Live Configuration

Live configuration includes four submenus: live, main monitor, spot and mask.

4.2.1 Live

In this interface, user can setup camera name, adjust colors: brightness, hue, saturation and contrast.
Step1: Enter into MenuSetupLiveLive tab. Refer to Fig 4-6:
Note: A soft keyboard will pop up by clicking the camera name. User can self-define the camera name.
Step2: For a particular camera/channel setting, please click “s etting” button to see a window as Fig 4-7:
Step3: In this tab, user can adjus t brightness, hue, s aturation and contrast in live; click “default” button to restore default setting,
click “OK” button to save the setting.
Step4: Select “All” to setup all channels with the same parameters.

Fig 4-6 Live ConfigurationLive Fig 4-7 Live-Color Adjustment

DVR User Manual

20

4.2.2 Main Monitor

Step1: Enter into MenuSetupLiveMain Monitor tab. Refer to Fig
4-8:
Step2: Select split mode: 1×1、2×2、2×3、3×3、4×4 and channel. Click

button to setup the previous channel group. Click button to set
the latter channel group.
Step3: Set the dwell time.
Step4: Click “default” to restore default setting; click “apply” to save the
setting; click “exit” to exit current tab. Fig 4-8 Live Configuration-Host Monitor

4.2.3 Spot

Step1: Enter into MenuSetupLiveSpot tab. Refer to Fig 4-9:
Step2: Select split mode: 1×1 and map the channel
Step3: Set the dwell time.
Step4: Select the split mode and then setup current picture group. Click

button to setup the previous channel groups of dwell picture. Click

button to set the latter channel groups of dwell picture.
Step5: Click “apply” button to save the setting; Click “exit” button to exit
current tab. Fig 4-9 Live Configuration-Spot

4.2.4 Mask

You can setup private mask area on the live image picture. For a given channel a maximum of three areas can be masked.
Setup mask area: Click Setting button, enter into live image to press left mouse and drag mouse to set mask area. Please
refer to the below picture. Right click to exit. Click Apply button to save the setting.
Delete mask area: Select a certain mask area and double click to delete that mask area. Then click Apply button to save the

DVR User Manual

21

setting.

Fig 4-10 Live Configuration-Mask

Setup Mask Area Live Image Mask Area

4.3 Record Configuration

Record configuration includes six sub menus: enable, record bit rate, time, recycle record, stamp and snap.

DVR User Manual

22

4.3.1 Enable

Step1: Enter into MenuSetupRecordEnable tab. Refer to Fig 4-11:

Fig 4-11 Record Configuration-Enable
Step2: Checkmark record and audio.
Step3: Select All to setup the same settings for all channels.

4.3.2 Record Bitrate

Step1: Enter into MenuSetupRecordRecord Bitrate tab. Refer to Fig 4-12:
Step2: Setup rate, resolution, quality, encode and max bit stream.
Step3: Select “All” to set same settings for all channels.
Step4: Click “default” button to restore default setting; click “apply” button to save the setting; click “exit” button to e xit current
interface.

Note: If the rate value set is over high the maximum resources of the device, the value will be adjusted automatically.

Parameter

Meaning

Record

To enable/disable recording
for the channel

Audio

To enable/disable audio
recording for the channel

DVR User Manual

23

Fig 4-12 Record Configuration-Record Bitrate

4.3.3 Time

Step1: Enter into MenuSetupRecordTime interface. Refer to
Fig 4-13:
Pre-alarm record time: The record time prior to actual triggering of
an alarm i.e. record time before motion detection or a sensor alarm
was triggered.
Post-alarm record: Set the post recording time after the alarm is
finished, five options: 10s, 15s, 20s, 30s, 60s, 120s, 180s and 300s.
Expire time: The time till which the records would be retained. If
the set date is overdue, the recorded files will be deleted
automatically.
Step2: Select “All” to setup all channels with the same parameters.
Step3: Click “apply” to save the setting; click “exit” to exit current interface. Fig 4-13 Record Configuration-Time

4.3.4 Stamp

Parameter

Meaning

Rate

Range from: 1-30（NTSC）1-25(PAL)

Resolution

Support CIF , HD1, D1

Quality

The higher the value is, the clearer the
recorded image is. Six options: lowest,
lower, low, medium, higher and highest.

Encode

VBR and CBR

Max bit
stream

Range from: 256kbps~2Mpbs

DVR User Manual

24

Stamp：This provides an option to enable or disable the Camera Name and
the Time stamp on the video. You can also choose a position for the stamp

on the screen.
Step1: Enter into MenuSetupRecordStamp tab. Refer to Fig 4-14:
Step2: Checkmark camera name and time stamp; click Setting button. User
can use cursor to drag the camera name and time stamp at random
positions, referring to below Figures:
Step3: Select “All” to setup all channels with the same parameters.

Fig 4-14 Record Configuration-Stamp

Before Drag After Drag

4.3.5 Recycle Record

This option is used to recycle the HDD space once it is full. If enabled, the system will automatically delete the old records
(FIFO, recycling space) and recycle the space if it is completely utilized. The setting steps are as follows:
Step1: Enter into MenuSetupRecordRecycle Record tab.

Step2: Checkmark the „recycle record‟ box to activate the auto recycling.
Step3: Click “apply” button to save the setting; click “exit” button to exit current interface.

Note: If the option is disabled or not selected, the DVR would stop recording once the HDD is full.

DVR User Manual

25

4.3.6 Snap

In this interface, user can set up Resolution, quality, snap interval, snap number.

4.4 Schedule Configuration

Schedule configuration includes three sub menus: schedule, motion and alarm.

4.4.1 Schedule

This tab allows defining schedule for normal recording for seven days of a week, 24 hours of a day. Every row denotes an
hourly timeline for a day. Click the grid to do relevant setup. A highlighted area denotes selected timeline.
Step1: Enter into MenuSetupSchedule tab. Refer to Fig 4-15.
Step2: Select channel and double-click to pop up a window as Fig 4-16. Now you can edit week schedule:

Click “ ” button to add a certain day schedule; click “ ” button to delete the selected schedule;
Copy: Copy the specified schedule to other dates.

If you want to copy the schedule settings of a channel to other or all channels, you just need to select channel and click “C opy”

button.

Fig 4-15 Schedule Configuration-Schedule Fig 4-16 Schedule-Week Schedule

DVR User Manual

26

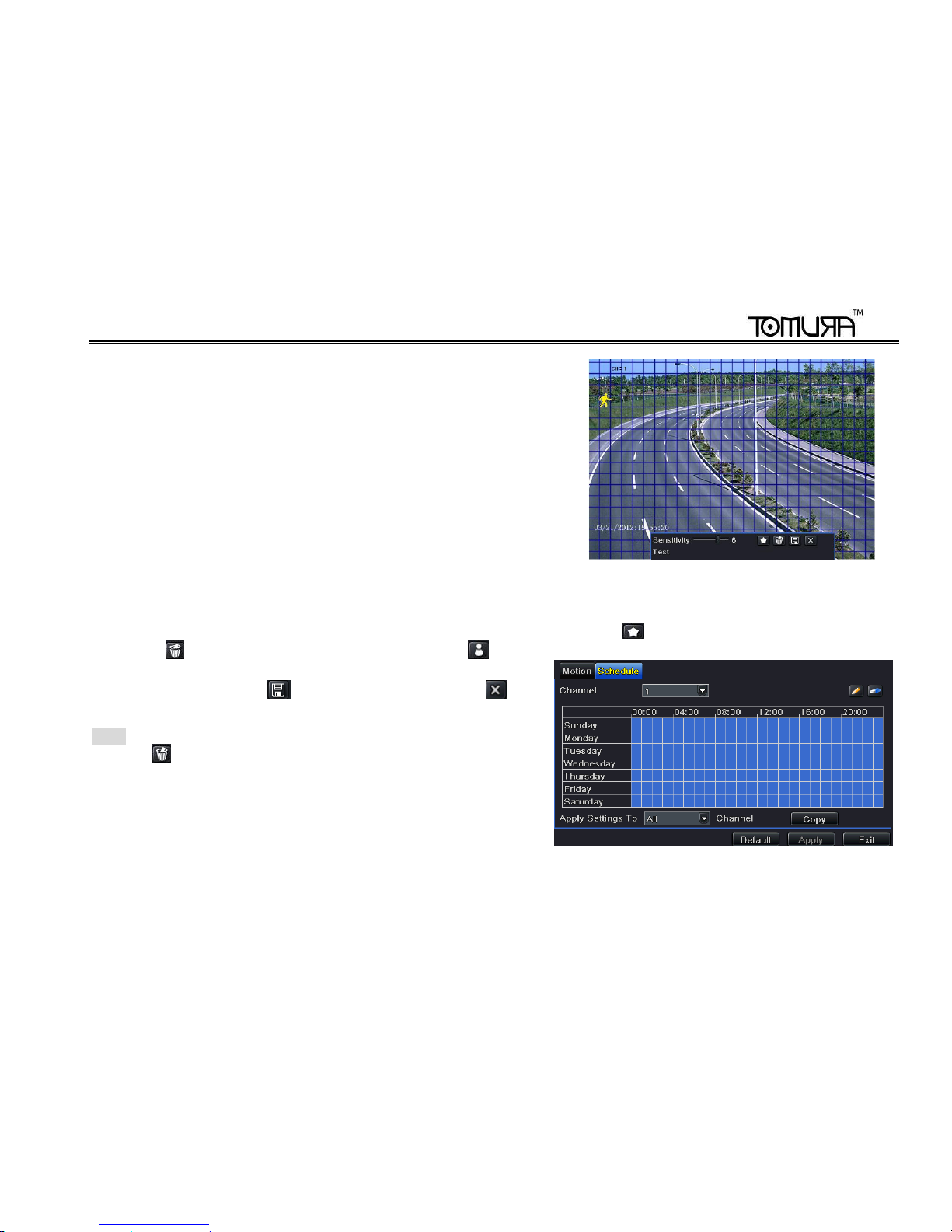

4.4.2 Motion

This tab allows to setup schedule for motion based recording.
Step1: Enter into MenuSetupScheduleMotion tab. Refer to Fig
4-17:
Step2: The setup steps for schedule for motion based recording are
similar to normal schedule setup. You can refer to 4.4.1 Schedule for
details.

Note: The default schedule of motion based recording is 24x7, that is,
the color of schedule settings interface is dark blue. This enables motion
based recording for 24x7. If you want to activate motion based recording,
you must enable motion alarm and setup schedule for motion alarm
(Refer to Chapter 4.5.2 Motion Alarm for more details). Fig 4-17 Schedule Configuration-Motion

4.4.3 Sensor

This tab allows to setup schedule for sensor based recording.

Step1: Enter into MenuSetupScheduleSensor tab. Refer to Fig
4-18:
Step2: The setup steps for schedule for sensor based recording are
similar to normal schedule setup (Refer to 4.4.1 Schedule for details).
Note: The default schedule of sensor based recording is 24x7, that is,
the color of schedule settings interface is dark blue. This enables sensor
based recording for 24x7. If you want to activate sensor based recording,
you must enable sensor alarm and setup schedule for sensor alarm
(Refer to Chapter 4.5.1 for more details).
Fig 4-18 Schedule Configuration-Sensor

DVR User Manual

27

4.5 Alarm Configuration

Alarm configuration includes five sub menus: sensor, motion, video loss, other alarm and alarm out.

4.5.1 Sensor

Sensor includes three sub menus: basic, alarm handling and schedule.
Operate the following steps to configure sensor alarm:
Step1: Enter into MenuSetupAlarmSensorBasic tab. Refer to
Fig 4-19:
Step2: Enable channels by checking the checkboxes beside the desired
channels.
Step 3: Set the alarm type according to triggered alarm type. Two option:
NO and NC.
Step4: Click “Apply” button to save settings.
Step5: Enter into Alarm Handling tab. Refer to Fig 4-20.

Fig 4-19 Alarm Configuration-Sensor-Basic

Select hold time and then click Trigger button. A dialog box will pop-up as Fig 4-21:

Fig 4-20 Alarm Configuration-Sensor-Alarm Handling Fig 4-21 Alarm Handling-Trigger

DVR User Manual

28

Step 6: Enter into alarm tab to select the options to handle alarm.

Buzzer: If selected, the local inbuilt buzzer would be activated on an alarm.
Full screen alarm: If selected, there will pop up the chosen channel

on the monitor on an alarm trigger.
To alarm out: If selected, this would trigger the external relay output
on detecting a sensor based alarm.
Email: If you select this option, the DVR will send an email alert to
the preconfigured email address in case of a sensor based alarm
from the particular input.
Snap: If selected, the system will snap images of the checked
channels on an alarm and save them in the HDD automatically.
Step 7: Enter into To Record tab. Select recoding channels. It would
be recorded in case of an alarm. Click OK button to save the setting.
Step 8: Enter into To PTZ tab. Set preset, cruise and track options for Fig 4-22 Sensor-Schedule
a PTZ in case of a sensor based alarm. Single or multiple PTZ units could be programmed to perform this function on the same
alarm.

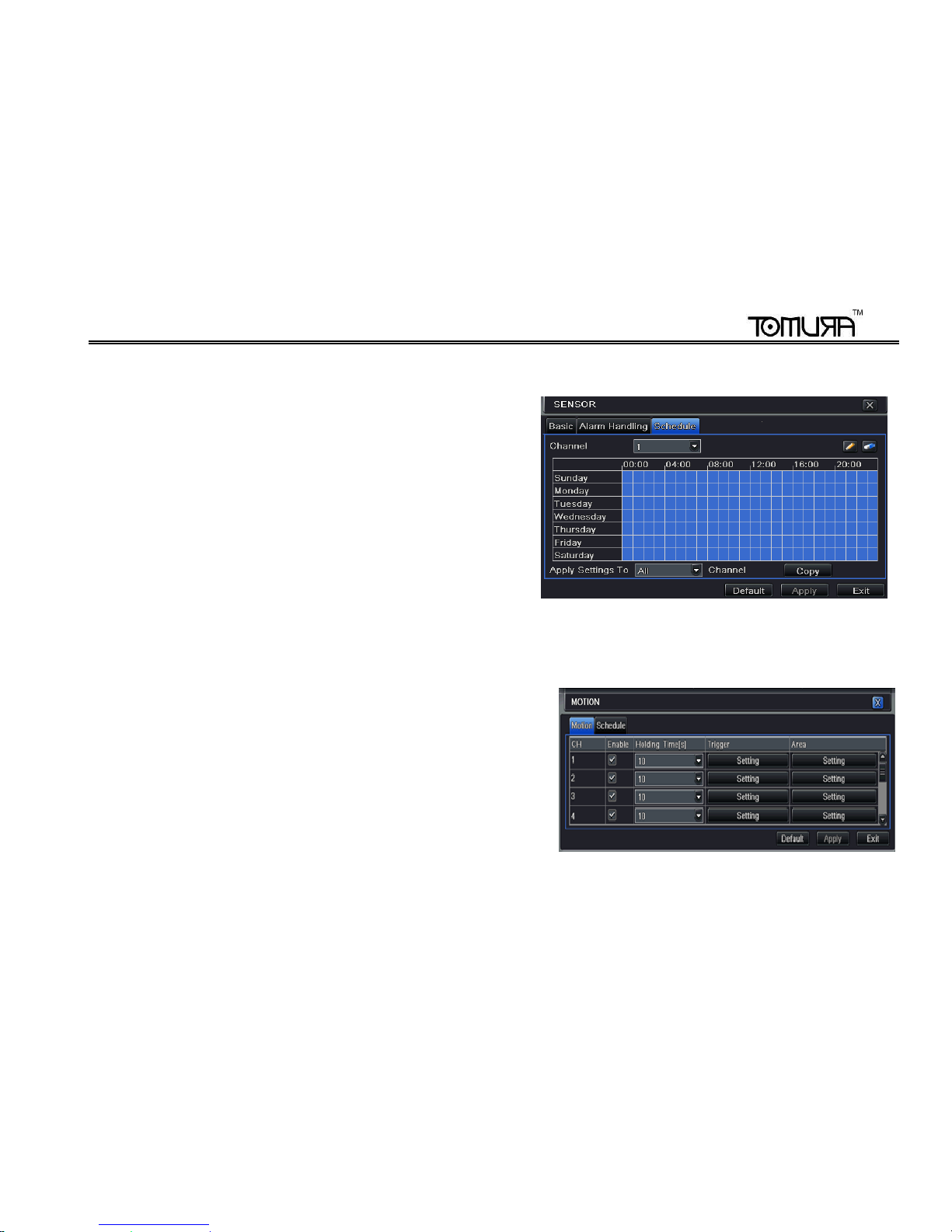

Step9: Enter into Schedule tab. Refer to Fig 4-22. The setup steps for schedule for sensor based alarm are similar to normal
schedule setup. You can refer to Chapter 4.4.1 Schedule for more
details. This step is very important for sensor alarm. Even if you have
enabled the sensor alarm for all channels and setup the trigger, you will
not see the result of sensor alarm if no schedule is added.
If you have set the schedule for senor based recording in the same
timeline, recordings can also be triggered.

4.5.2 Motion

Motion includes two sub menus: motion and schedule.
The steps to set up motion alarm are as follows: Fig 4-23 Alarm Configuration-Motion

DVR User Manual

29

Step1: Enter into MenuSetupAlarmMotion tab. Refer to Fig 4-23:
Step2: Enable motion alarm, set alarm hold time which refers to the time till
which the system will wait for further detection of motion. Eg. If the holding
time is set to 10 seconds, once the system detects a motion, it will go into
alarm but would not detect any other motion alarm (specific to channel) until
30 seconds. If there is other motion detected during this period, it is
considered it as continuous movement, otherwise it will be considered as a
single motion.

Step3: The setup steps of motion trigger are similar to „A larm Handling‟. You
can refer to Chapter 4.5.1 Sensor Alarm Handling for more details.

Step4: Click “Setting” button under the Area to display the following
picture as shown in Fig 4-24: Fig 4-24 Mot ion-Area
Step5: In t he Area t ab, you can drag slide bar t o set t he sensitivity value (1-8). The higher the value is the more sensitive it is to
motion. Since the sensit ivit y is influenced by color and t ime (day or night), you can adjust its value according to the pract ical
conditions. Left click the grid and drag to delete area. Drag again to add area. Click icon to set the whole area as detection
area. Click icon to clear the set detection area. Click icon to

test the sensit ivit y as per the local conditions. Once motion is sensed, it

displays a f igure icon. Click icon to save the setting. Click icon,
exit current int erface.

Not e: Prior to setting motion detection field it is recommended that
you click icon to clear the existing field and set afresh.

Step6: Select “All” to setup all channels with the same parameters.
Step7: Click “apply” butt on to save the setting.
Step 8: Enter int o Schedule tab. The setup st eps for schedule for
motion based alarm are similar to normal schedule setup; you can refer
to 4.4.1 Schedule for det ails.
Fig 4-25 Motion-Schedule

DVR User Manual

30

This step is very important for motion based alarm. Eve n if you have enabled t he motion based alarm for all channels and setup
the trigger, you will not see the result of motion based alarm if no schedule is added.
If you have set the schedule for senor based recording in the same timeline, recordings can also be triggered.

4.5.3 Video Loss

Step1: Enter into MenuSetupAlarmVideo Loss tab. Refer to Fig 4-26:
Step2: The setup steps of video loss trigger are similar to alarm handling. You can refer
to Chapter 4.5.1 Sensor alarm handling for more details.
Step3: Click “apply” button to save the setting; click “exit” button to exit current
interface.

Fig 4-26 Video Loss

4.5.4 Other Alarm

This tab gives a choice to configure alarm for Disk Full, IP Conflict, the Disconnect event, Disk Attenuation or Disk Lost.
Step1: Enter into MenuSetupOther alarm interface. Refer to Fig 4-27:
Step 2: Use the dropdown menu and select the event or the alarm.
Step 3: Check the required trigger options.

If the s elected event is “Disk Full”, then us e the drop down box for “Disk Shortage
Alarm” to choose a threshold value for rem aining HDD space. If the threshold value

is reached, the system will trigger the Disk Full Alarm.
Click “Apply” to save settings ; Click “Exit” to exit the current interface

Fig 4-27 Other Alarm

DVR User Manual

31

4.5.5 Alarm Out

Alarm out includes three sub menus: alarm out, schedule and buzzer
To setup alarm out:
Step 1: Enter into MenuSetupAlarm out tab. Refer to Fig 4-28. Input relay
name and hold time.
Step 2: Select the Schedule tab. This will bring up the schedule setup
interface. T he setup steps for schedule for alarm out are similar t o normal

schedule setup; you can refer to 4.4.1 Schedule for details.
This step is very important for alarm out. Even if you have enabled alarm out in
the motion based alarm or sensor based alarm, you will not see t he result of Fig 4-28 Alarm Out
alarm out if no schedule is added here.

Buzzer

It is an inbuilt alarm output device. To setup Buzzer:
Step1: Enter into MenuSetupAlarm out Buzzer tab;
Step2: Checkmark Buzzer and set buzzer alarm hold time. This would trigger the
buzzer when the system is in alarm.

4.6 Network Configuration

Network configuration includes five submenus: network, sub stream, Email,
server and other settings. Network settings must be configured if DVR is used for
monitoring over network.

4.6.1 Network

Step 1: Enter into MenuSetupNetworknetwork tab. Refer to Fig4-29:
Step 2: HTTP port: the default value is 80. If the value changed, you need to

DVR User Manual

32

modify the IP address in the IE address .i.e. if HTTP port is set to 82 and IP address is, 192.168.0.25, then you shall input IP
address as Fig 4-29 Network Configuration-Network
http://192.168.0.25:82 in IE browser.
Server port: Communication port.
Step 3: Connect internet. If you have a DHCP server running and would like your DVR to automatically obtain an IP address
and other network settings from that server, check the checkbox beside "Obtain an IP address automatically". Then the device
will distribute IP address, subnet mask, and gateway IP and DNS server. If you want to configure your own settings, please
input the IP address, Subnet mask, Gateway DNS server manually. You can also check the PPOE checkbox to enable this
feature and then enter username and password. Once the setup is completed, your DVR will automatically dial up into your
network.
Step 4: No matter what kinds of way to connect internet, you should test the effectiveness of the network by clicking “Test”
button after you setup the network.
Step 5: If the network is well connected, please click “Apply” button to save settings.

4.6.2 Sub-stream

Step 1: Enter into MenuSetupNetwork Sub-stream tab. Refer to Fig 4-30:
Step 2: Select fps, resolution, quality, encode and max bit rate
Step 3: Select “All” to setup all channels with the sam e parameters.

Parameter

Meaning

FPS

Range from: 1-6 (PAL)

Resolution

Support CIF

Quality

The higher the value is, the clearer the

record image. Six options: lowest,
lower, low, medium, higher and highest.

Encode

VBR and CBR

Max Bitrate

Range from: 32kbps~728kbps

DVR User Manual

33

Fig 4-30 Network Sub-stream

4.6.3 Email

Step 1: Enter into MenuSetupNetworkEmail tab. Refer to Fig 4-31:

SMTP Server/Port: The name and port number of SMTP server. Check the
SSL checkbox if the server requires a secure connection (SSL); user can setup
mail servers (such as Gmail) as required.

Send address/password: Sender‟s em ail address/password
Receive address: Receiver‟s email address. Here user can add at least three

mail addresses. Click TEST button to test the validity of the mailbox.
Attaching image: After selecting it, the system will attach images when
sending the emails.

Fig 4-31 Network Configuration-Email

4.6.4 Server

DVR User Manual

34

This function is mainly used for connecting ECMS. The setting steps are
as follows:
Step 1: In the server tab, select “enable” as shown in the Fig 4-32.
Step 2: Check the IP address and port of the transfer media server in the
ECMS. The default server port for auto report is 2009. If it is modified,
please enter into the transfer media interface to check.
Step 3: Enable the auto report in the ECMS when adding a new device.
Then input the remaining information of the device in the ECMS. After that,
the system will auto allot a Device ID. Please check it in the ECMS. Fig 4-32 Network Configuration-Server
Step 4: Input the above-mentioned server IP, server port and device ID in the server interface .Then click “Apply” button to save
settings. Now, the ECMS system will automatically connect this device.

4.6.5 Other Settings

If your DVR is setup to use PPPoE as its default network connection, you may
setup DDNS to be used in connection. The setting steps are as follows:
Step 1: Select Other Settings tab. Enable DDNS server.
Step2: Select DDNS server.
Step 3: Input user name, password and host domain name registered in the DNS
website (See the following example).
Step 4: Click TEST to test the effectiveness of the relevant information.
Step 5: Click “apply” button to save the settings.
Note: The domain name server that selected by user is a banding domain name of
DVR. User should logon the website which provided by the server supplier to
register a user name and password firstly, and then apply for a domain name on line. Fig 4-33 Other Settings
Once applied, user can access the server from the IE client by using that domain name.

DVR User Manual

35

Enable UPnP: User may select UPnP and then enable UPnP function in the user‟s router. Then there is no need for user to
forward its IP address and port in router in connection of internet.

 How to apply for a domain name?

Here we take www.dyndns.com for example.
Step 1: Input www.dyndns.com in the IE address bar. Click ”Free Trial of DynDNS Pro””Start the trial” to register.
Step 2: Input hostname, select service type and input your IP address. The picture is shown as follows:

Step 3: Click “Add to cart”. Then Dynamic DNS Hosts dialog box will be displayed.
Step 4: Create us er account. For example, the us ername is “bcd”, password is “123456”.

DVR User Manual

36

Click” Create Account” button to create user account. After that, you shall provide your card number, card expiration and
security code as well as billing address. Finally click “sign up for trial” button.

Now, according to the domain name registration of “DDNS”，the domain name for DVR is “abc.dyndns.tv”, username is “bcd”
and pass word is “123456”

Connect DVR via network:
Step 1: Enter into Main menuNetworkother settings, checkmark DDNS, select “Dyndns” at the DDNS Sever pull down list
box and input user name and password.
Step 2: Enter into configuration interface of the router to map the server port and IP address (if the user enables UPnP function,
he can skip this step). Click Save button to save the setting
Step 3: Login IE browser and input registered domain name “http://www.abc.dyndns.tv” to connect DVR.

Definitions and descriptions of network configuration:

DVR User Manual

37

DDNS server

DDNS server

Website provided by dynamic domain name supplier. The optional:
www.meibu.com ，www.dyndns.com, www.no-ip.com and mintdns type.

User name

User name for log in the website of domain name supplier

Password

Password for log in the website of domain name supplier

Host domain

The dom ain name user registered at the supplier‟s website.

Update interval

The interval time of upgrading DVR IP address

4.7 User Management Configuration

This tab allows you to add normal or advanced users. To add user and setup user authority:
Step 1: Enter into MenuSetupUser management configuration. Refer to Fig 4-34:
Step 2: Click Add button to display a dialog box as Fig 4-35:
Step 3: In General tab, input username, password and select user type. You can also check „Binding PC MAC Address‟ and
input this address.
Step 4: Click „OK‟ button to save settings.
Note: When the default value of binding PC MAC address is 0, the user is not bound with the specified computer. If the bind
option is used, the user would be able to log into the DVR only through the specific computer (carrying the MAC address).

DVR User Manual

38

Fig 4-34 User Management Configuration Fig 4-35 Add-General

Step 5: Select Authority tab and then assign the operation rights for particular user. Refer to fig 4-36.

Fig 4-36 Add User-Authority
If you want to delete the user, please select the user you want to delete in the user list box and then click “Delete” button.
If you want to modify the user, please select the user you want to modify in the user list box and then click “Setup” button to
modify its general information and authority.
If you want to change password of a user, please select the user in the user list box and then click “Change Password” button.

4.8 P.T.Z Configuration

P.T.Z configuration includes two submenus: serial port and advanced settings.
Serial port settings are as follows:
Step 1: Enter into MenuSetup  P.T.Z Serial port tab. Refer to Fig 4-37:
Step 2: Select “enable” and setup the value of address, baud rate and protocol according to the settings of the speed dome.
Step 3: Configure all channels with the same parameters by selecting the “All” box and then doing the relevant setup.

DVR User Manual

39

Fig 4-37 P.T.Z Configuration-Serial Port

Definitions and descriptions of network stream:

Advance settings are as
follows:
Step 1: Enter into MenuSetup P.T.Z Advanced tab. Refer to Fig 4-38:
Step 2: In the Advanced tab, click pres et “Setting” button to see a dialog box as Fig 4 -39:

Parameter

Meaning

Address

The address of the PTZ device

Baud rate

Baud rate of the PTZ device. Range form: 110, 300, 600, 1200, 2400,
4800, 9600, 19200, 34800, 57600, 115200, 230400, 460800, 921600.

Protocol

Communication protocol of the PTZ device. Range from: NULL, PELCOP,
PELCOD, LILIN, MINKING, NEON, STAR, VIDO, DSCP, VISCA,
SAMSUNG, RM110, HY, N-control.

Simulative

Cruise

If enabled, no matter whether the PTZ device supports cruise or not, the
presets will cruise.

DVR User Manual

40

Fig 4-38 P.T.Z Configuration-Advanced Fig 4-39 Advanced-Preset
Step 3: In the preset setting tab, while clicking Setting button, a dialog
will pop-up as Fig 4-40:
 User can control the dome by rotating up, down, left, right and
adjust the rotating speed zoom, focus and iris of the dome;

 Select the serial number of the preset point. Click button to
enable the PTZ wiper and click button to enable the PTZ light. Fig 4-40 Preset Setting

Note: PTZ must support wiper and light, these two functional buttons can take effect. At the same time these two buttons are
just available when selecting PELCOP or PELCOD.

 Click Save button to save the settings, click icon to hide the
tool bar, right click to view the toolbar again; click icon to exit the

current interface.
 In the preset interface, click OK button to save the setting; click
Exit button to exit current interface.
Step4: In the Advanced tab, while clicking cruise “Setting” button, a
dialog box will pop-up as Fig 4-41: Fig 4-41 Cruise Setting
 Click Add button to add cruise line in the list box (max 8 cruise line can be added); select a cruise line and click Setup
button to see a dialog box as Fig 4-42:

DVR User Manual

41

 Click Add icon to set the speed and time of preset point; select a preset point and then click Delete icon to
delete that preset point; click Modify icon to modify the setting of a preset point. User can click icons to

adjust the position of preset point. Click Preview button to preview the cruise line; click OK button to save the setting; click Exit
button to exit current interface.
 Select a preset point in the cruise line list box. Click Delete button to delete that cruise line; click Clear all button to clear all
cruise line from the list box; click OK button to save the setting; click Exit button to exit current interface.
Step5: In the Advanced tab, while clicking track “Setting” button, a dialog box will pop-up as Fig 4-43:

Fig 4-42 Cruise Setting-Modify Cruise Line Fig 4-43 Track Setting

 User can control the dome by rotating up, down, right, left and can adjust the rotating speed and zoom, focus and iris of
the dome; click Start Record button and move the PTZ in the required manner to record by the DVR. Click this button again can
stop recording. Click Start track button to play recorded track. Click this button again can stop the playback.

 Click icon to hide the tool bar and right click to view the toolbar again. Click icon to exit the current tab.
Step 6: After the completion of settings, click “Apply” button to save settings.

4.9 Advanced

Advanced configuration includes three submenus: Reset, Import/Export and Block/Allow list.

DVR User Manual

42

4.9.1 Reset

This would reset the system to factory defaults and reboot the DVR.

4.9.2 Import/Export

User can export the data files into mobile storage devices as backup and can also import specified data files from mobile
storage device to DVR.

4.9.3 Block/Allow list

Fig 4-44 Block/Allow List

Here authorized user can prohibit computer users within a certain IP address range from accessing DVR or allow computer
users within a certain IP address range to access DVR. For example, if an admin don‟t want computer users within IP address
range from 196.168.000.002 to 196.168.000.004 to access the DVR, he can checkmark „Block list‟ option, and then input such
IP address range. If it is required that computer users within a certain IP address range access DVR, they can checkmark
“Allow list option”, and then do the required configuration.

DVR User Manual

43

5 Search，Playback & Backup

Search configuration includes four submenus: time search, event search, file management and image.

5.1 Time Search

Step1: Enter into MenuSearch Time search tab. Refer to Fig 5-1:

Fig 5-1 Search Configuration-Time Search
Step2: Select date and channels on the right hand side and press “Search” button. A date with highlighted borderline indicates
presence of data.
Step3: Set the start time by clicking a particular grid or by entering the specific value in the start time field.

DVR User Manual

44

Step4: Select the channel display mode and click button to play record. Use the playback toolbar to control the playback.

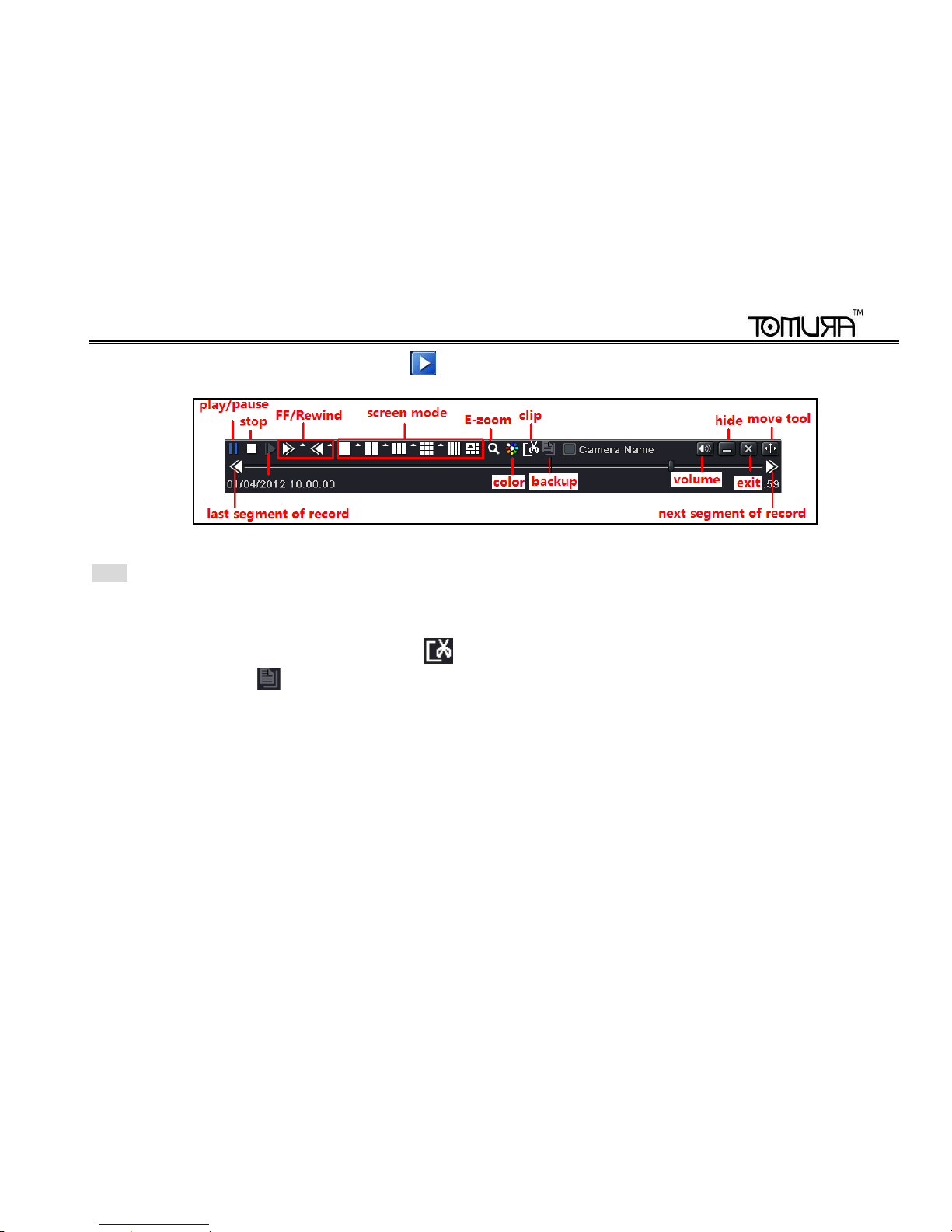

Playback Buttons

Note: When the monitor resolution is set to VGA800*600, Part of the time search interface will be hidden. Click the “Expand to”
button to expand the whole interface.

The method of record backup during a certain period in the playback interface:

Select the start time by dragging the slider and click icon. Then select the end time and click this icon again to confirm the
record period. Next, click icon to backup the record during this period.

5.2 Event Search

Step1: Enter into MenuSearchEvent Search tab. Refer to Fig 5-2:

DVR User Manual

45

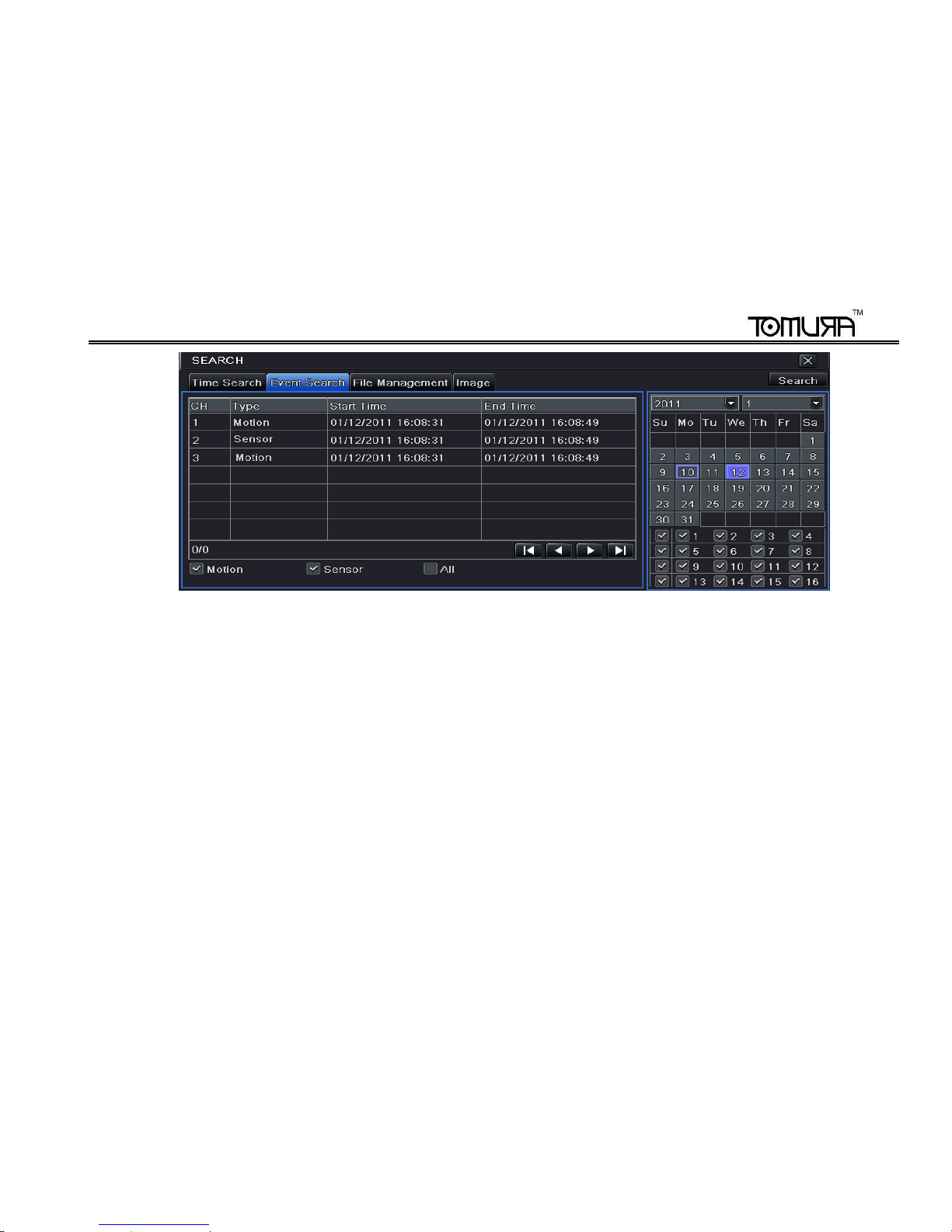

Fig 5-2 Search Configuration-Event Search
Step 2: Select date and channels on the right hand side. A data with highlighted borderline indicates presence of data.
Step 3: Then checkmark Motion, Sensor or All accordingly. You can search for motion based recording and sensor based
recording.
Step 4: Press “Search” button to display the searched event information in the event list box.
Step 5: Double click the event item to play the record.

5.3 File Management

Step1: Enter into MenuSearchFile Management tab. Refer to Fig 5-3:
Step 2: Select date and channels. The date with highlighted borderline indicates presence of data.
Step 3: Press “Search” button to display the searched files in the file list box.

DVR User Manual

46

Fig 5-3 Search Configuration-File Management

Lock: Select a file and click Lock button to lock this file. Once locked, the file cannot be deleted.
Unlock: Select a locked file and click Lock button to unlock this file
Delete: Select an unlocked file and click Delete button to delete this file.

Step 4: Use “All” button to lock/unlock or delete all files in the file management column.
Step 5: Double click an unlocked item to playback.

5.4 Search by Image

Step 1: Enter into MenuSearchImage tab.
Step 2: Select data and channels on the right hand side.
Step 3: Press “Search” button to search for a recorded image.
Step 4: Once an alarm image has been identified, the user can double click the image to play the recording.
You can lock the image by clicking “Lock” button. Click “Save” button to copy the image on the HDD. Click “Save All” to copy all
images on the HDD.
Note: In order to take images on alarm, the snapshot feature should be activated in “Alarm Handling” for different kind of alarms.

DVR User Manual

47

Please refer to 4.5 Alarm Configuration for details.

5.5 Backup

This unit supports backup by built-in SATA DVD Writer or USB flash drive. User also can make backup by IE browser via
internet. Refer to 7.3.2 Remote backup.
Step1: Enter into main menu  Backup interface. Refer to Fig 5-4:

Fig 5-4 Backup Configuration
Step2: Set the start & end time, select channels and click Search button to display the searched data in the data backup list box
Step3: Select a required file or checkmark “All” to select all data files. Click Backup button to display Backup information
window.
Step4: In the backup information interface, user can check the relevant options for backing up files. These options include
storage Media, backup player and save file type. Then click Start button to start backup.

Note： If the backup files are saved in DVR format, please check backup player. Only this player can play these files in DVR format. If the
backup files are saved in AVI format, you can play these files with common media player.

DVR User Manual

48

6 Manage DVR

6.1 Check System Information

Check system information includes six submenus: system, event, log, network, online user and record information.

6.1.1 System Information

In this tab, user can check the hardware version, MCU version, kernel version, device ID, etc.

6.1.2 Event Information

In this tab, you can search for events like motion, sensor and video loss. The utility provides an interface to have a date based
and a channel based search. This report can further be saved on a USB flash drive as an html file using the export button.

6.1.3 Log Information

In this tab, you can search for relevant logs as per the set date and event which includes operation, setup, playback, backup,
search, check information and error. This report can further be saved on a USB flash drive as an html file using the export
button.

6.1.4 Network Information

In this tab, you can check relevant parameters of network.

6.1.5 Online Information

In this tab, you can check the details of the connected online users.
Refresh: refresh the current interface.

DVR User Manual

49

Disconnect: Disconnect the online users to access DVR. If this function is used by the admin, the particular PC will not be able
to access the device for five minutes. .

6.1.6 Record Information

In this tab, a user can check resolution, ftp and record status including sensor based recording, motion based recording,
manual recording or schedule recording.

6.2 Manual Alarm

In this tab, user can trigger a manual alarm.

6.3 Disk Management

1. Format the disk

Step1: Enter into disk management tab.

Note: please format the hard disk before recording. If not formatted, it will show the status of the disk-free space, and total
space at the bottom of screen.

Step2: Click Refresh button to refresh the disk information in the list box;
Step3: Select a hard disk and click Format button to start format.

Note: All recorded files in the hard disk will be lost once it is formatted.

2. Advanced

User may check model, S/N, firmware, health status of the disk in this interface. User also can monitor the temperature, internal
circuit, dielectric material of the disk, analysis the potential problems of the disk and warn so as to protect its data.

DVR User Manual

50

6.4 Upgrade

The DVR can be upgraded by using USB flash drive. Get the upgrading software from your vendor when there is a new
software version.

Upgrade Steps:

Step 1: Copy the upgrade software which gets from vendor into the USB storage device
Step 2: Connect the USB flash drive to the USB port.
Step 3: Enter MenuUpgrade tab. Then the upgrade software name would be displayed in the upgrade list box.
Step 4: Select that software and then click upgrade button. It will upgrade automatically.
Note: Please wait for a while when the system reboots. Never cut off power during upgrading. The original configuration will be
reserved after upgrade.

6.5 Logoff

Enter into Menu  Logoff tab. A log off dialogue box will popup. The device will log off by clicking “OK” button. If you want to log
in again, click icon to enter into user name and password to re-login.

DVR User Manual

51

7 Remote Surveillance

7.1 IE Remote Surveillance

In order to view the DVR from a network it must be connected to a LAN/WAN or internet. The network setup should be done
accordingly. Please refer to 4.6 Network Setup. This DVR supports IE browser, on Windows XP and Vista platform.

7.1.1 On LAN

Step 1: Enter into the DVR‟s Main Menu SetupNetwork tab to input IP address, Subnet Mask, etc .If using DHCP, please
enable DHCP in both the DVR and the router.
Step 2: Enter Record Setup to set network video parameters like resolution, frame rate etc.
Step 3: Open IE on a computer on the same network. Input the IP address of the DVR in IE address bar and press enter.
Step 4: IE will download ActiveX component automatically. Enter the username and password in the subsequent window

Notice: If HTTP port is not 80, other number instead, need add the port number after IP address. For example, set HTTP

port as 82, need input IP address like 192.168.0.25:82.

User name and password here are the same with that used on the DVR. The default is admin and 123456.

7.1.2 On WAN

There are two ways for the DVR to connect to internet.

1. Connect the DVR to internet through router or virtual server

Step 1: Enter into the DVR‟s Main MenuSetupNetwork interface to input IP address, Subnet Mask, etc. If using DHCP,
please enable DHCP in both the DVR and router.
Step 2: Forward IP address and port number in Virtual Server setup of the router or virtual server (If the user has enabled the
UPnP function in both the DVR and router, he can skip this step). Configure the firewall to allow accessing the DVR.

Note: Port forwarding settings may be different in different routers and server. Please refer to the router‟s manual for details.

DVR User Manual

52

Step 3: Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after
IP address or domain name.
Step 4: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and
password correctly, and enter to view.

Note: If you cannot download and install ActiveX, please refer to FAQ Q8.

Fig 7-1 View with IE Browser

2. Connect the DVR to internet through PPPoE directly.

Step 1: Enter into the DVR‟s Main MenuSetupNetwork interface to enable PPPoE and then input user name and password
received from your ISP. Next, click „Apply‟. The DVR will connect to the server and would give a confirm ation m essage.

Step 2: When accessing the remote interface of DVR, user can input WAN IP to access directly (user can enter into Main
menuInformationNetwork interface to check IP address).
Step 3: If users want to utilize dynamic domain name, please apply for a domain name in a DNS server supported by the DVR or
router. Then add to the DVR or router.

DVR User Manual

53

Step 4: The following setting steps are as the same as Step3 and Step4 in Point 1.

7.2 Remote Surveillance through Apple PC

Note: Because the current plug-in version of client end just only supports 32-bit mode, so the safari browser shall start 32-bit

mode. If the browser is the earlier MACOS version, the default setting is 32-bit mode and the setting can be skipped.
The Setting steps are as follows:
First: Right click safari icon and select “Show in Finder”.
Second: Select ApplicationsRight click “Safari. App”Select “Get Info”.

Third: Select “open in 32- bit mode”.

DVR User Manual

54

7.2.1 On LAN

Step 1: After starting Apple computer, click Apple icon. The following window will pop up. Please select “System
Preferences””Internet &Wireless”click “Network”

Step 2: Enter into Network interface and then click “Ethernet Connected” to check the internet connection of Apple PC.

DVR User Manual

55

Step 3: After acquiring the IP address, Subnet Mas k and so on, please enter into the DVR‟s Main Menu SetupNetwork
interface to manually input IP address, Subnet Mask and Gateway according to the configuration of PC. The network segment
should be the same as the PC. If using DHCP, please enable DHCP in the DVR and router.
Step 4: After finishing the above information, users can enter LAN IP and http port in the Safari browser. For example: input
http://192.168.1.100:81(here 192.168.1.100 is LAN IP of D VR, 81 is the http port of DVR). Click “ ”button, the browser will
download Active X control as shown below:

Step 5: Click icon and then select the Active X control, the welcome interface will be shown. Click “Continue””Install”

DVR User Manual

56

button，the following window will pop up：

Input the name and pass word of Apple PC and then click “OK” to install this Active X control.
Step 6: After finishing installing the Active X control, please quit from the Safari browser. Right click Safari icon on the desktop
and then select “Quit” button to quit the browser. Then restart Safari browser. Input the IP address and http port to enter i nto the
login interface of DVR.

7.2.2 On WAN

There are also two ways for DVR to connect to Internet.

1. Connect the DVR to internet through router or virtual server

Step 1: The network setups are the same as step one to step four of point 1 on WAN of IE remote surveillance.
Step 2: Enter WAN IP and http port in the Safari browser to install the Active control. Then a window pops up and asks for user
name and password. Input name and password correctly, and enter to view.

2. Connect the DVR to internet directly.

Step 1: The network setups are the same as step one of point 2 on WAN of IE remote surveillance.
Step 2: Enter WAN IP and http port or domain name in the Safari browser to install the Active control. Then a window pops up
and asks for user name and password. Input name and password correctly, and enter to view.

DVR User Manual

57

7.3 Remote Preview

Fig 7-2 Remote Live Preview

Symbol and function Definitions:

①

Channel indicator

②

Screen display mode

③

Volume

④

Snapping picture

⑤

Start manual record

⑥

Start IE record

⑦

Bidirectional talk

⑧

Playback

⑨

Color

⑩

PTZ control

⑪

Master/sub stream status

Note: click button to record manual and the record file will be saved in user’s PC.
Screen display mode:

DVR User Manual

58

Click the icon beside the screen display mode,
channel select dialog will appear as below:
Take 8-channel view for example: user can checkmark 8
channels form 1-ch to 16-ch at random to display the live
pictures, A maximum of 16 channels can be selected.
Then click OK button to confirm the setting.

Fig 7-3 Channel Selection

Snap pictures

The system will automatically capture pictures and save those pictures in the computer by clicking “Snap” icon,
User should set up the path for those picture in the ConfigurationLocal configuration.

Color adjustment:

Drag the slide bar to adjust Brightness, Contrast, Hue, and Saturation. Click Default to reset them to original value.

Buttons

Description

Drag the scroll bar to adjust the brightness of channel

Drag the scroll bar to adjust the contrast of channel

Drag the scroll bar to adjust the saturation of channel

Drag the scroll bar to adjust the hue of channel

Click this button to recover the default value of brightness,
contrast, saturation and hue.

Save the adjustment

PTZ control

Please connect speed dome to the device via RS485 firstly. Make sure the protocol of the speed dome is supported by the
device and is configured accordingly in the DVR. User can move the dome up, down, right, left and adjust rotation speed, Iris
and zoom, focus and set the presets, etc.
Buttons definition:

Buttons

Description

means the dome rotate up. means the dome rotate up left. means the dome

rotate up right means the dome rotate down. means the dome rotate left down.

means the dome rotate right down. means the dome rotate left. means the

dome rotate right. means the dome stop rotating.

DVR User Manual

60

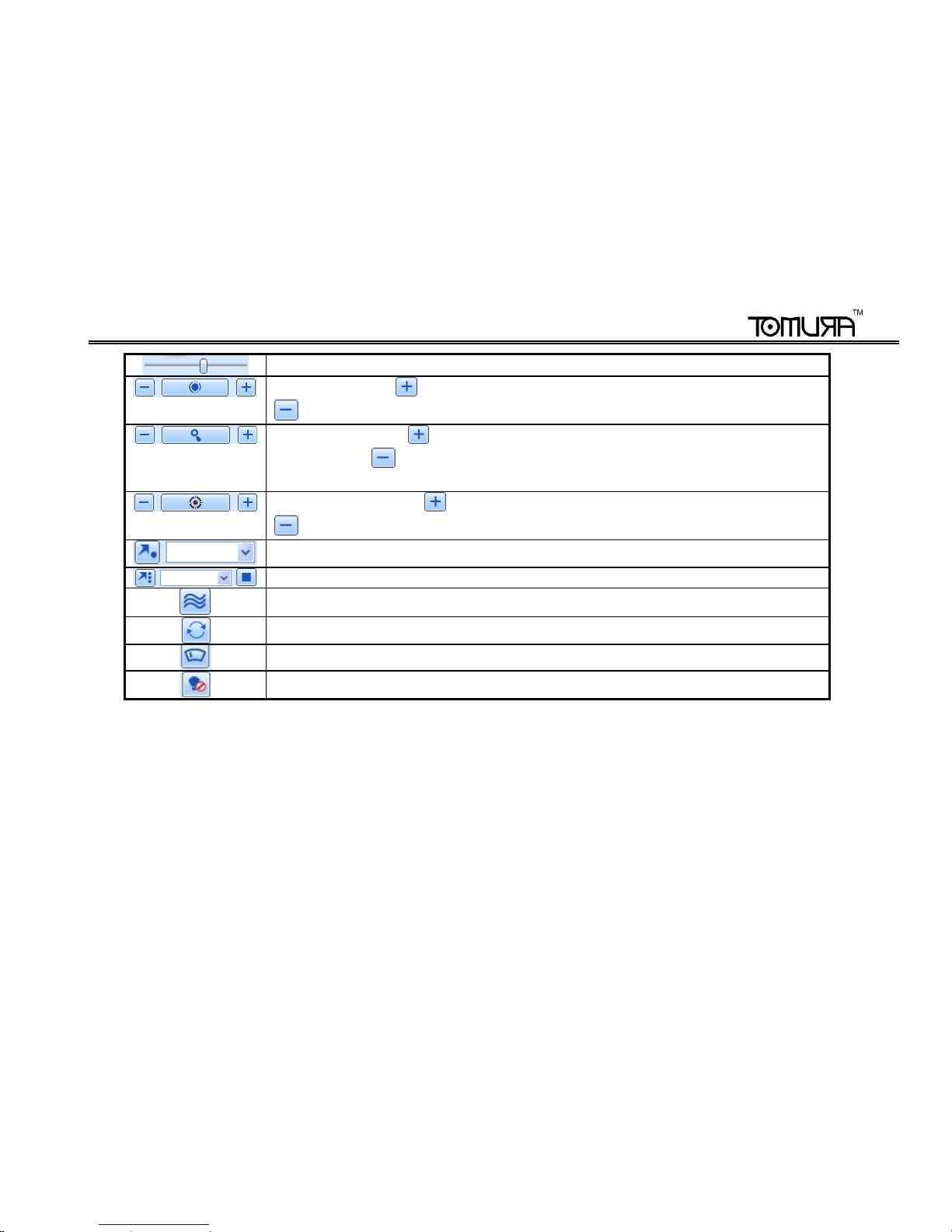

Drag the scroll bar to adjust rotating speed of the dome.

'Iris' button. Click button near 'Iris' button to increase light of the dome. Click

button near 'Iris' button to decrease light of the dome.

'Zoom' button. Click button near 'Zoom' button to zoom in the locale picture of this
camera. Click button near 'Zoom' button to zoom out the locale picture of this

camera.

'Focus' button. Click button near 'Focus' button to have long focus. Click

button near 'Focus' button to have short focus.

Go to the Preset

Select and do auto cruise

Track

Auto scan

Wiper button

Light button

Click the right mouse on the live interface to display a pull-down menu as below

DVR User Manual

61

Fig 7-4 Right Key Sub Menu

Stream: This DVR supports master stream and sub stream. Master stream has higher frame rate, max 25 fps（PAL）/30 fps
（NTSC） for every channel, but it needs higher network bandwidth; second stream has low frame rate, max 6FPS （PAL）

/7FPS（NTSC） for every channel, but it requires low network bandwidth as compared to the master stream. Therefore, users
can select the stream according to their bandwidth.

All to master/sub stream: Set all channel to master stream or sub stream.
Enable audio: Enable or disenable audio
Full screen: The live preview picture will display in full screen and the tool bar will be hidden; double click left or click right

mouse to return.
Zoom in: Single channel large screen electronic amplification. Click the channel which needs to be zoomed. Right click to
select zoom in button to zoom in the image. Double click or right click to exit.

7.4 Remote Playback & Backup

7.4.1 Remote Playback

Click button to enter into record playback interface, refer to Fig 7-5:
Select the record date and channels and double-click the file name in the record file list box. Then user can play that file and
preview the picture.

DVR User Manual

62

Fig 7-5 Play Record File Interface

This DVR supports remote time search, event search and file management.

By Time Search:
Step1: Enter into SearchTime search. Refer to Fig 7-6:

DVR User Manual

63

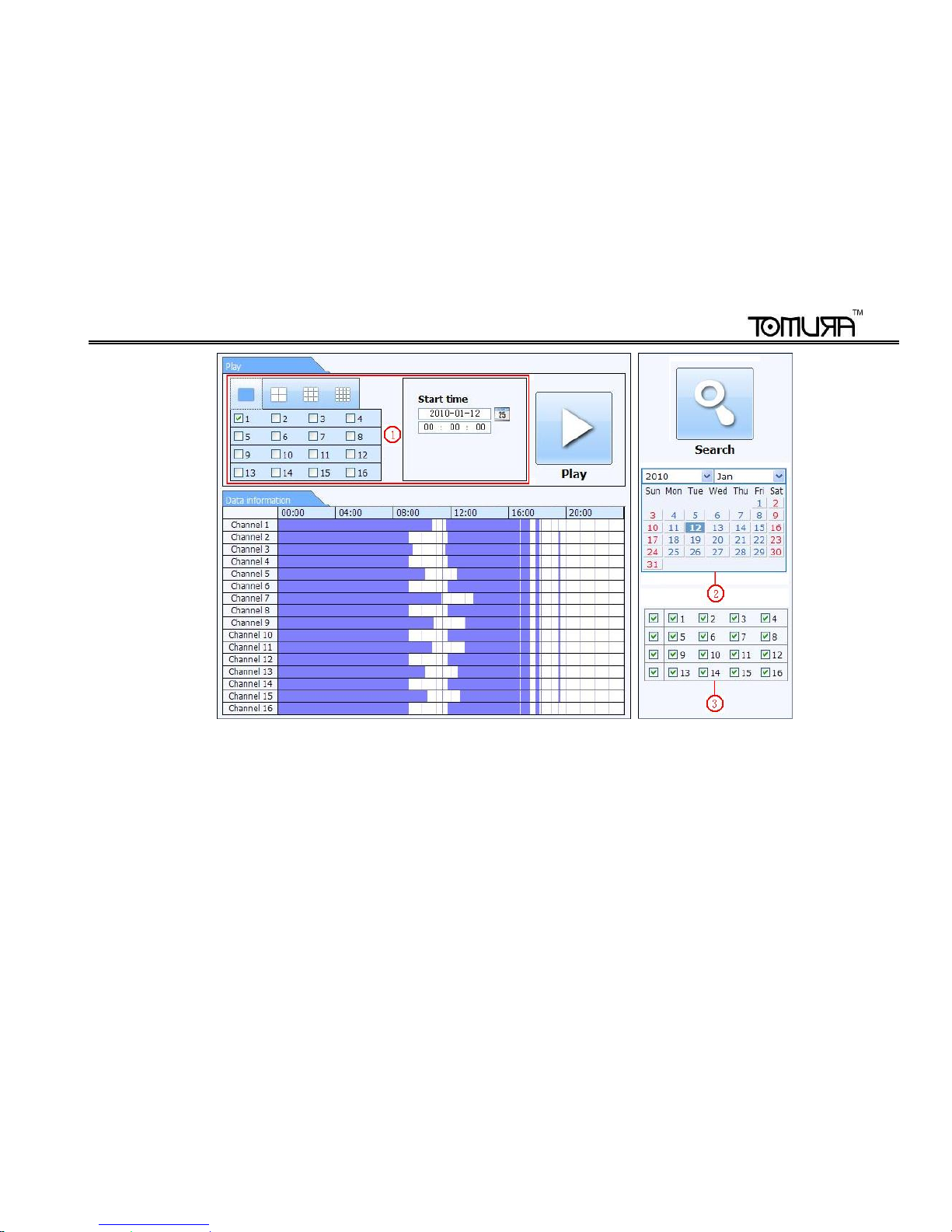

Fig 7-6 Time Search Interface

Step2: The highlight date in the area② indicates recorded data. Select the date in the area ② and record channels in area③
Step3: Click “Search” button. The record data will be displayed in the data information list box;
Step 4: Set the Start time and display mode in the area① as required
Step 5: Click “play” button to playback
Step 6: Click the relevant buttons in the interface for operation, like FF, pause, change channel mode, research, etc. Please

refer to Fig 7-7:

DVR User Manual

64

Fig 7-7 Playback by Event Search

By Event Search:
Step1: Enter into SearchEvent Search. Refer to Fig 7-8:

DVR User Manual

65

Fig 7-8 Event Search Interface

Step 2: Click the highlight date and select record channels.
Step 3: Checkmark the event type: motion and sensor.
Step 4: The events will be display in the event list box by clicking Search button.
Step 5: Double-click certain item to playback

File Management
Step 1: Enter into SearchFile management. Refer to Fig 7-9:
Step 2: Select highlighted date and channels.
Step 3: Click “Search” button to search the recorded files.

DVR User Manual

66

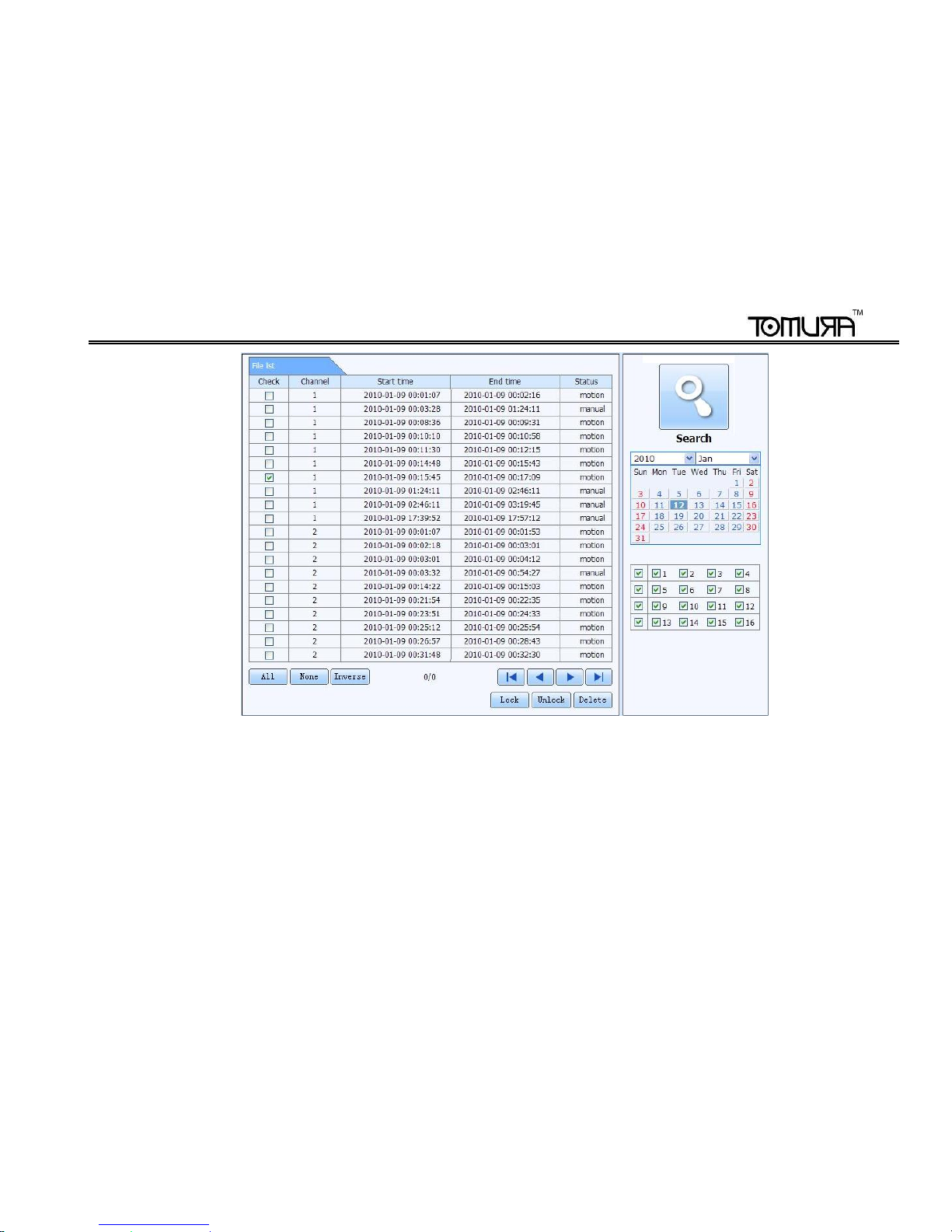

Fig 7-9 File Management Interface
Lock: Select certain file item in the file list box and then click “Lock” button to lock this file that ca not be deleted or overlai d
Unlock: Select a locked file and then click “unlock” button to unlock this file
Delete: Select an unlock file and then click “delete” button to delete this file from file list

7.4.2 Remote Backup

Click Backup button to enter into backup interface. Refer to Fig 7-10:

DVR User Manual

67

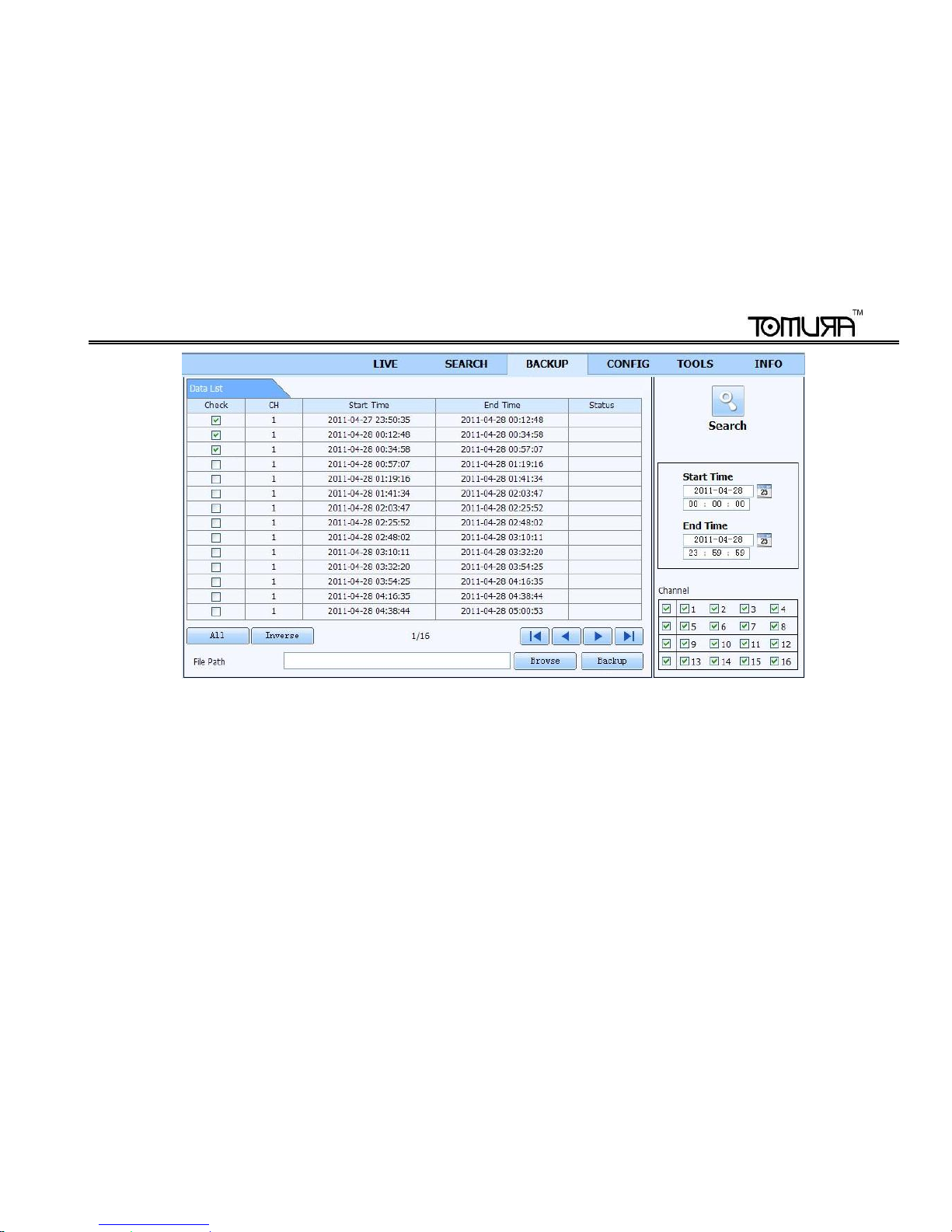

Fig 7-10 Remote Backup Interface
Step1: Select channels, set the start and end time and then click “search‟ button to display the file information in the file list box
Step2: Select backup files and click “browse” button to set the path. Then click “backup” button to start backup. The backup
files will be s aved on us er‟s PC.

7.5 Remote System Configuration

You can do remote setup of the device which includes functions like basic configuration, live configuration, record configuration,
schedule configuration, alarm configuration, network configuration, PTZ configuration and user configuration. You should
select an option from the menu list on the left and then setup the relative parameters. Only one user can do configuration setup
at a given point of time. Click Config tab to enter into the below interface as Fig 7-11:

DVR User Manual

68

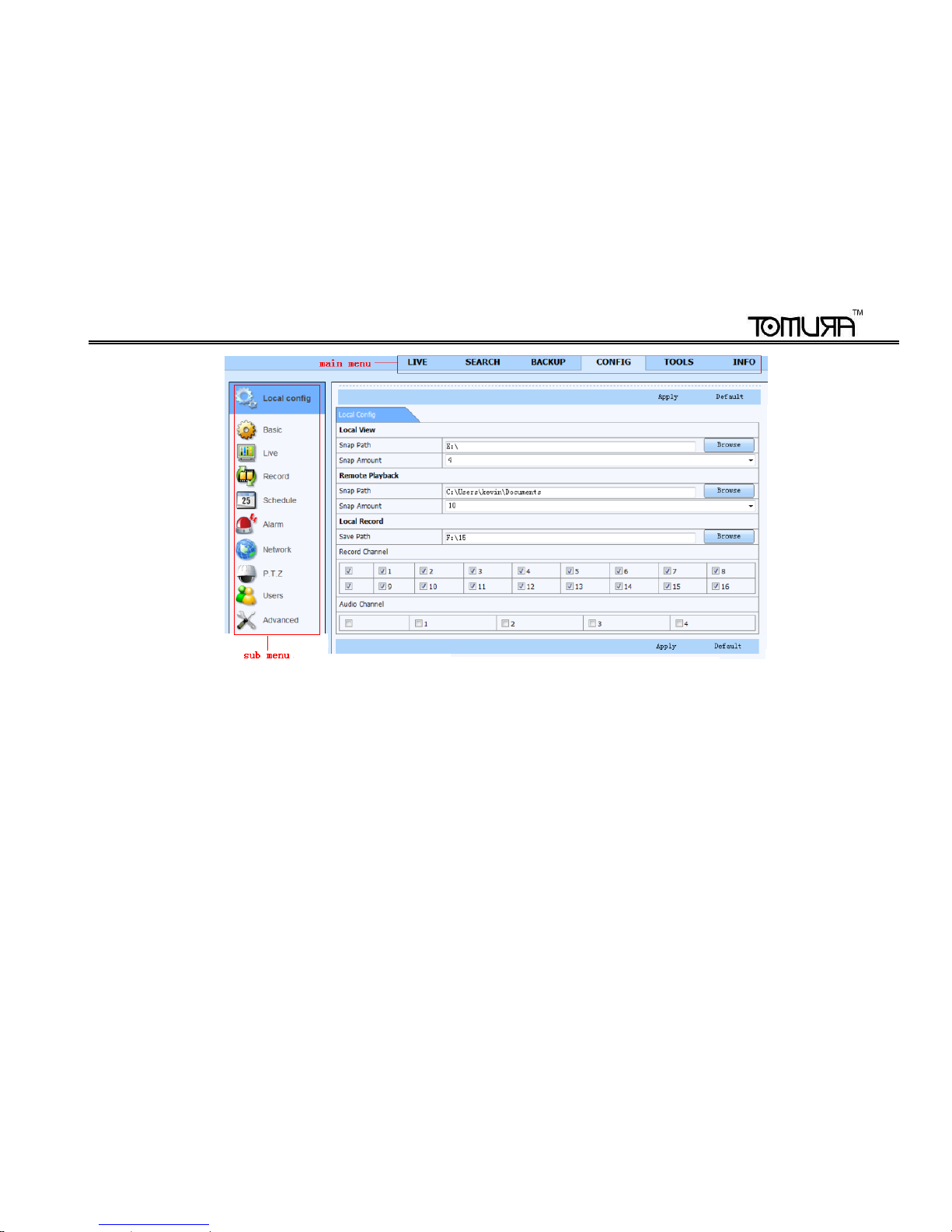

Fig 7-11 Remote System Configuration
The sub menu list and the options in every menu are similar to that of the DVR. Please refer to Chapter 4 Main Menu Setup
Guide for more details.

7.6 Tools

Click on tool‟s tab to access the disk management tool. You can view the status of the HDD, change/view the read/write
properties and can also format the HDD remotely.

7.7 Remote Information

The Info tab provides a web based interface to access the general information pertaining to the DVR‟s settings. It includes five
submenus: System, Event, Log, Network and Online users. The sub menu list and the options in every menu are similar to that

DVR User Manual

69

of the DVR. Please refer to Chapter 6 System information for more details.

Fig 7-12 Remote Information Search

Note: There may be slight differences with respect to functions of remote surveillance between through IE and
through Apple PC. Here we only take IE remote access for example.

DVR User Manual

70

8 Mobile Surveillance

This DVR supports mobile surveillance by phones with Windows mobile, symbian, android, Iphone and Blackberry OS. At the
same time, it supports 3G network. We tested Dopod D600 (WM5) and Dopod S1 (WM6), which work fine with the DVR.
If you want to make mobile surveillance, please enable network service on the DVR first and refer to Chapter 4.6 Network
configuration. The below is the use instructions on mobile client end for five OS.

8.1 By Phones with Windows Mobile OS

Step1： Firstly activate the network access on mobile phone and then run “Internet Explorer”. Input the server‟s address and

the connection is built up shown as below picture in the left:

Step2：Click on the software name. A dialog box pops up as below picture in the middle:
Step3：Click “Yes” to start downloading and installing:
Step4：PCam will be opened automatically after installation. Refer picture in the right:

Step5：Input the server‟s address , ID and password respectively in the field of “Server”, “User” and “Password”, and click “Go”

DVR User Manual

71

to log on the server. Refer below picture in the left:
Step6：Camera 1 is the default channel after login. Change the channel in rolling-down menu of “Channel”. Refer below picture

in the right:

8.2 By Phones with Symbian OS

Please use the smart phones with symbian version supported by this unit. The detail information is as follows:

Symbian S40

support

Symbian UIQ

support

Symbian S80

support

Symbian S60

support

Symbian S60 3rd Edition-Symbian OS v9.1

support

Symbian S60 3rd Edition with FP 1-Symbian OS v9.2

support

Symbian S60 3rd Edition with FP2-Symbian OS v9.3

support

Symbian S60 5th Edition-Symbian OS v9.4

support

Symbian S60 5.1 Edition-Symbian OS v9.5

support

Step1：Enable the network access on mobile phone. Then run Web browser.

Notice: User name and
password here are the same
with that used on the DVR.
The default is admin and

123456.

DVR User Manual

72

Step2：Input the DVR server‟s IP address in a new-built bookmark. Click this bookmark to connect to the DVR. Refer picture in
the left:

Step3：A welcome window will pop up and requires a package. Click the software name to download. Refer picture in the right:

Step4：A security windows will pop up after downloading and ask if install the package. Click YES to install.
Step5：A Scam shortcut icon appears on the system menu after finished.

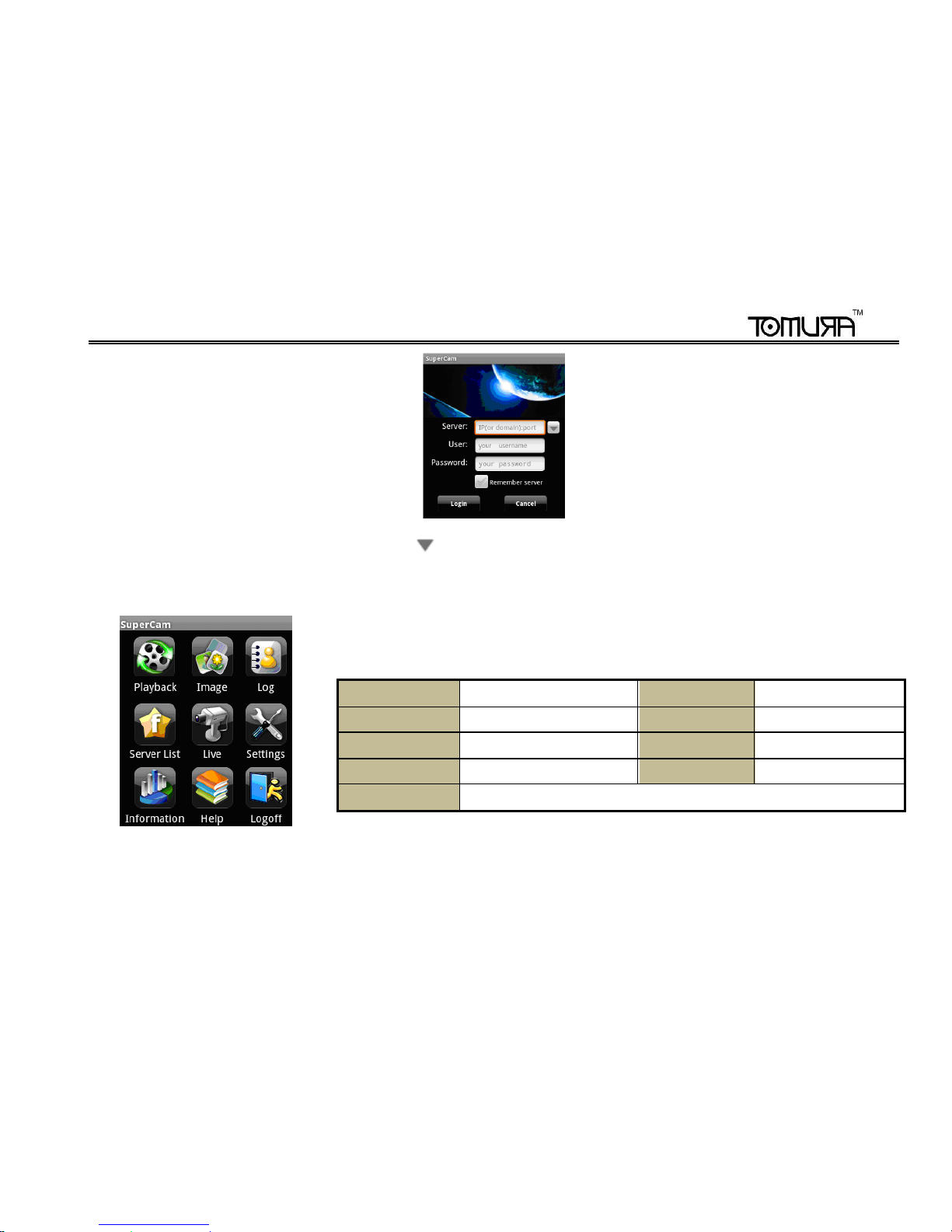

Step6：Run Scam program. It will enter a function interface. Refer picture in the left:
Step7：Click System setting--->Login Setting to enter login interface. Refer picture in the right:

Step8：Input the server‟s address, ID and password respectively. Then save.

Notice: About Access point, there may be different access points in different countries or from service providers.

DVR User Manual

73

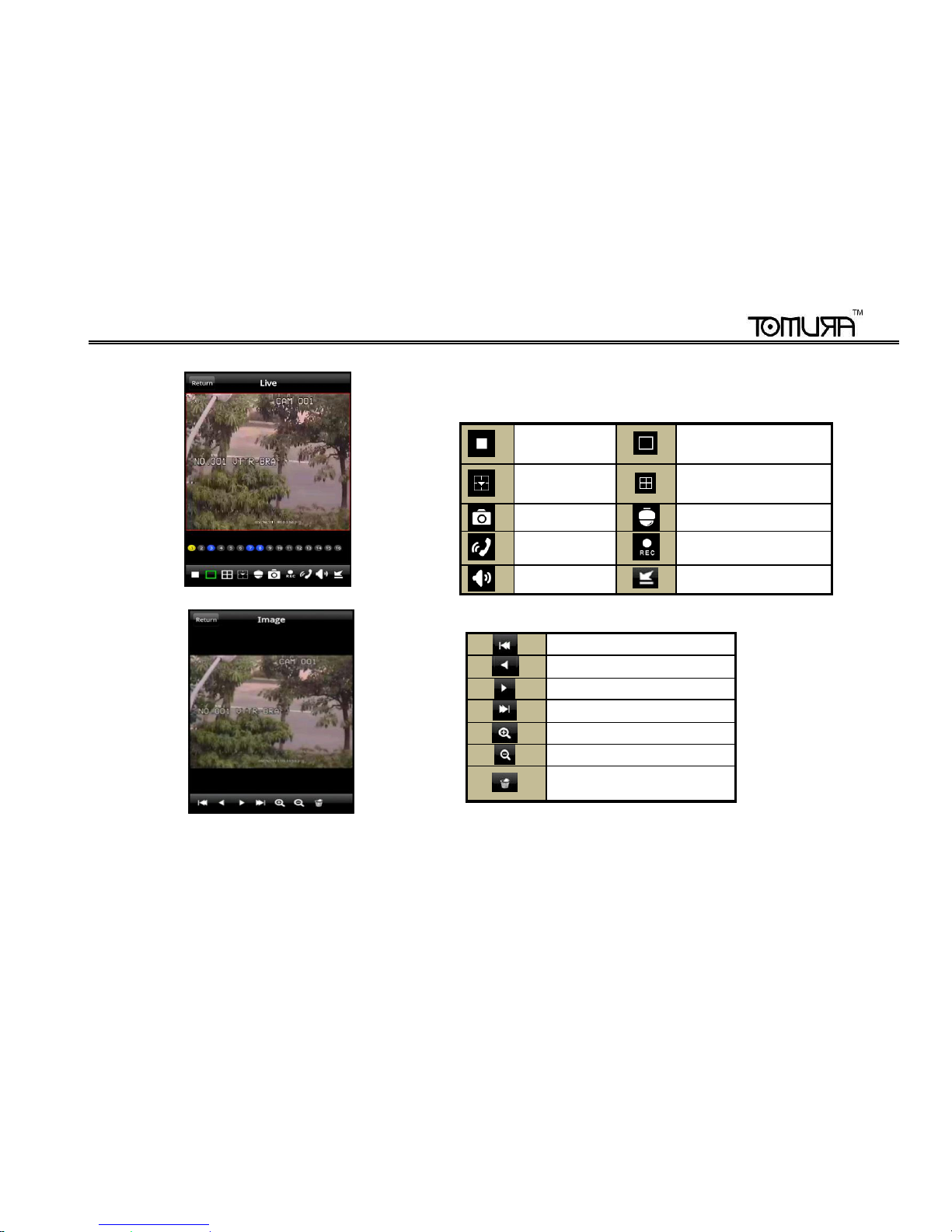

Step9：Enter Live View, it will connect the server and display pictures. Refer picture in the left:

Notice: User name and password here are the same with that used on the DVR. The default is admin and 123456.

Step10：In Live View, users can snap pictures, change channels and control PTZ. Refer picture in the right:

8.3 By Phones with Iphone OS

1. Install through Iphone.

Step 1. Open App Store function of Iphone.
Step 2. Enable “search” function to search “Superlive”.

DVR User Manual

74

Step 3: Click Superlive-pro, enter into “introduce” interface and then click “FREE”, it will change into “INSTALL”

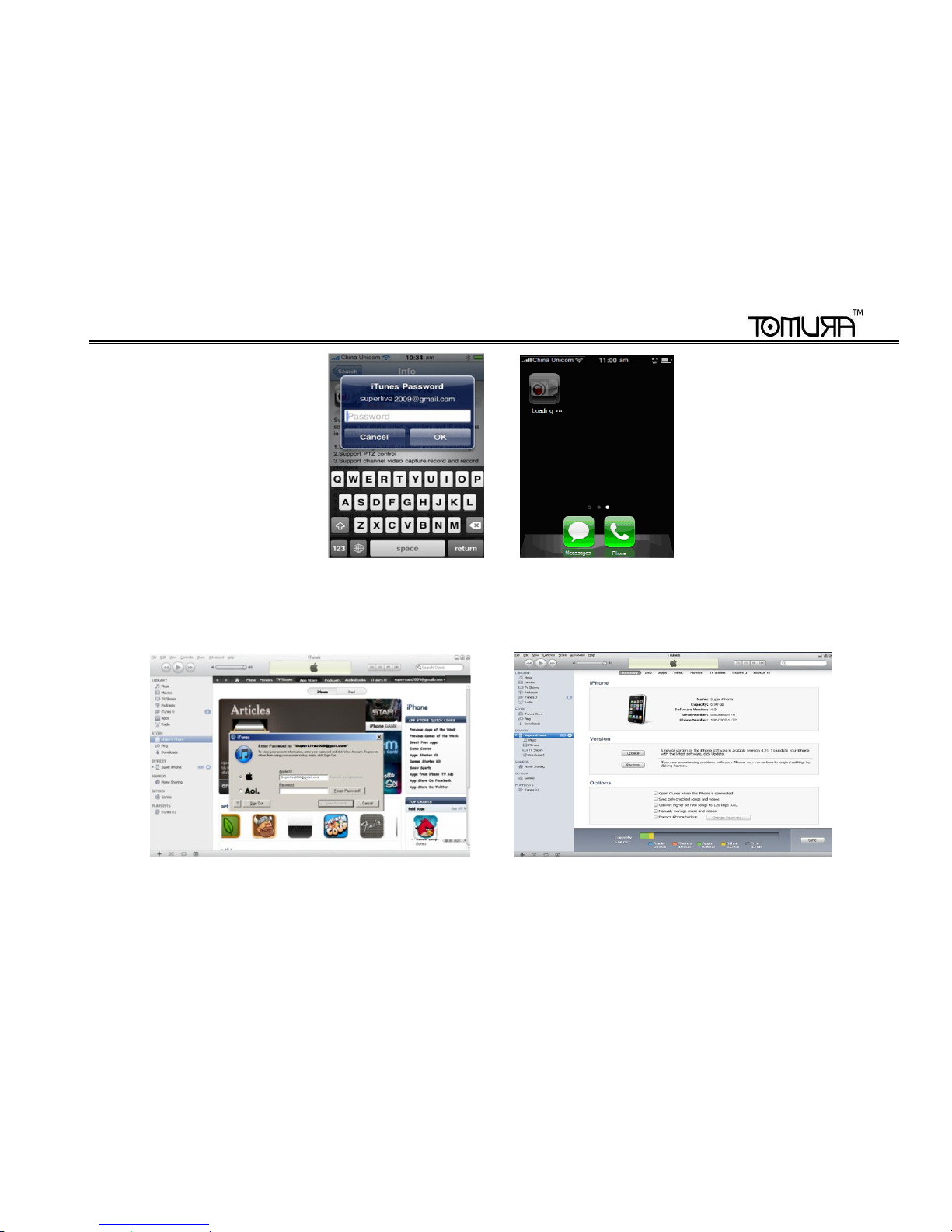

Step 4: Input iTunes Store password and then click “OK”. The software will be installed automatically.

DVR User Manual

75

Note: If it is the first time for user to operate, please enter user ID; if there is no Store account, user needs to apply for
one.

2. Install through PC.

Step 1: Install iTunes store in PC and then login Step 2: Connect iPhone and PC

DVR User Manual

76

Step 3: Enable “search” function to search “Superlive-Pro” Step 4: Click “free application” button

Step 5: Input apple ID and pass word, then click “acquire”
Step 6: Checkmark “synchronously apply program” and “Superlive-pro”, and then click “apply” button

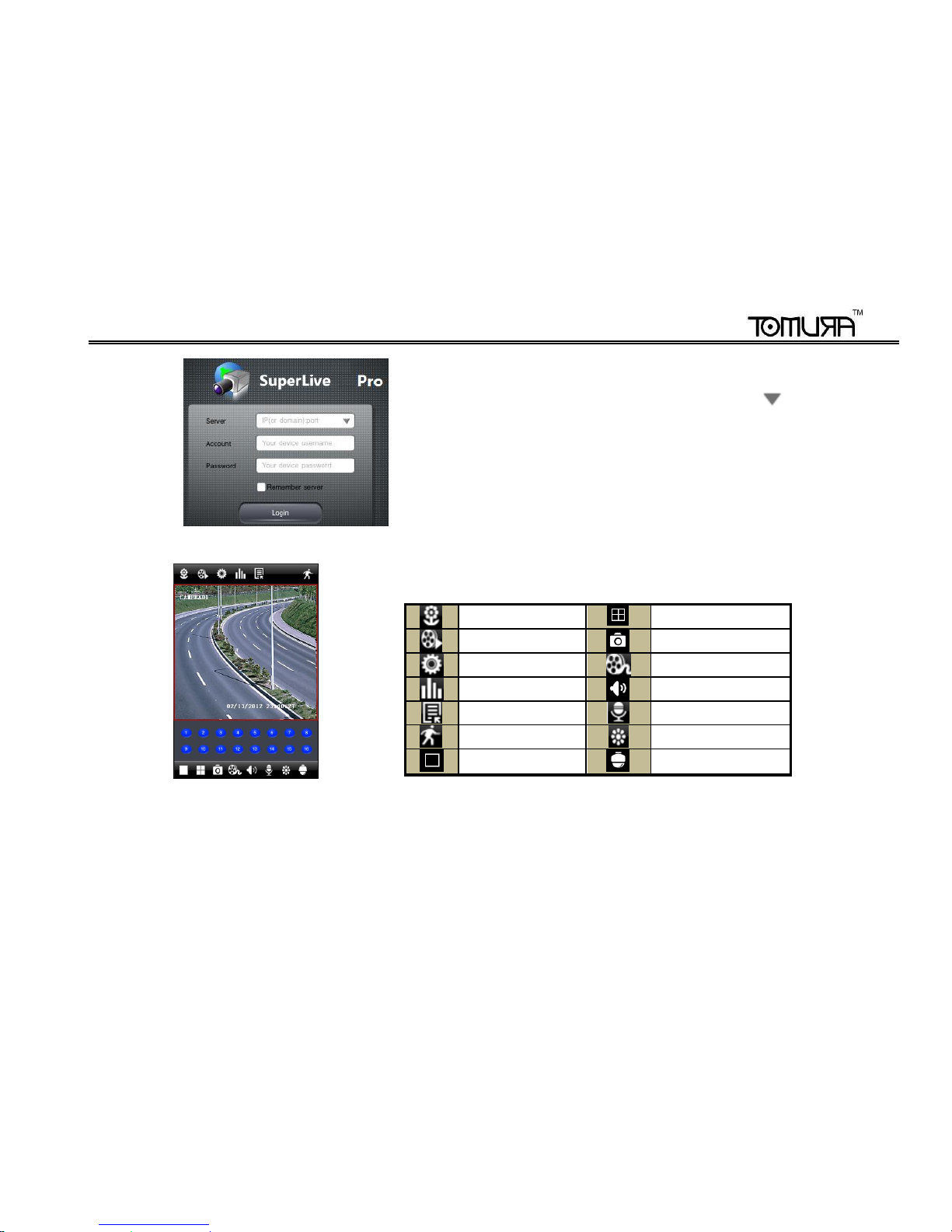

Operation Instruction for Superlive-Pro

1. Login interface

DVR User Manual

77

Enter server‟s IP address (or domain name), user name and password
Click “Remember server” to s ave the setting; click button can quick

input saved server address, user name and password.

2. Main Interface

Image view

Four channel

Playback

Snap

Setting

Record

Information view

Audio

Server list

Talk Logoff

Color

Single channel

PTZ

DVR User Manual

78

Upward rotates the PTZ

Downward rotates the PTZ

Leftward rotates the PTZ

Rightward rotates the PTZ

Stop rotating the PTZ

Zoom In/Focus In/Iris Add

Zoom Out/Focus Out/Iris Sub

To enter into the next interface

To return to the previous interface

Preset

select the preset point

Cruise

Set the cruise line

Speed

Rotate speed of the PTZ

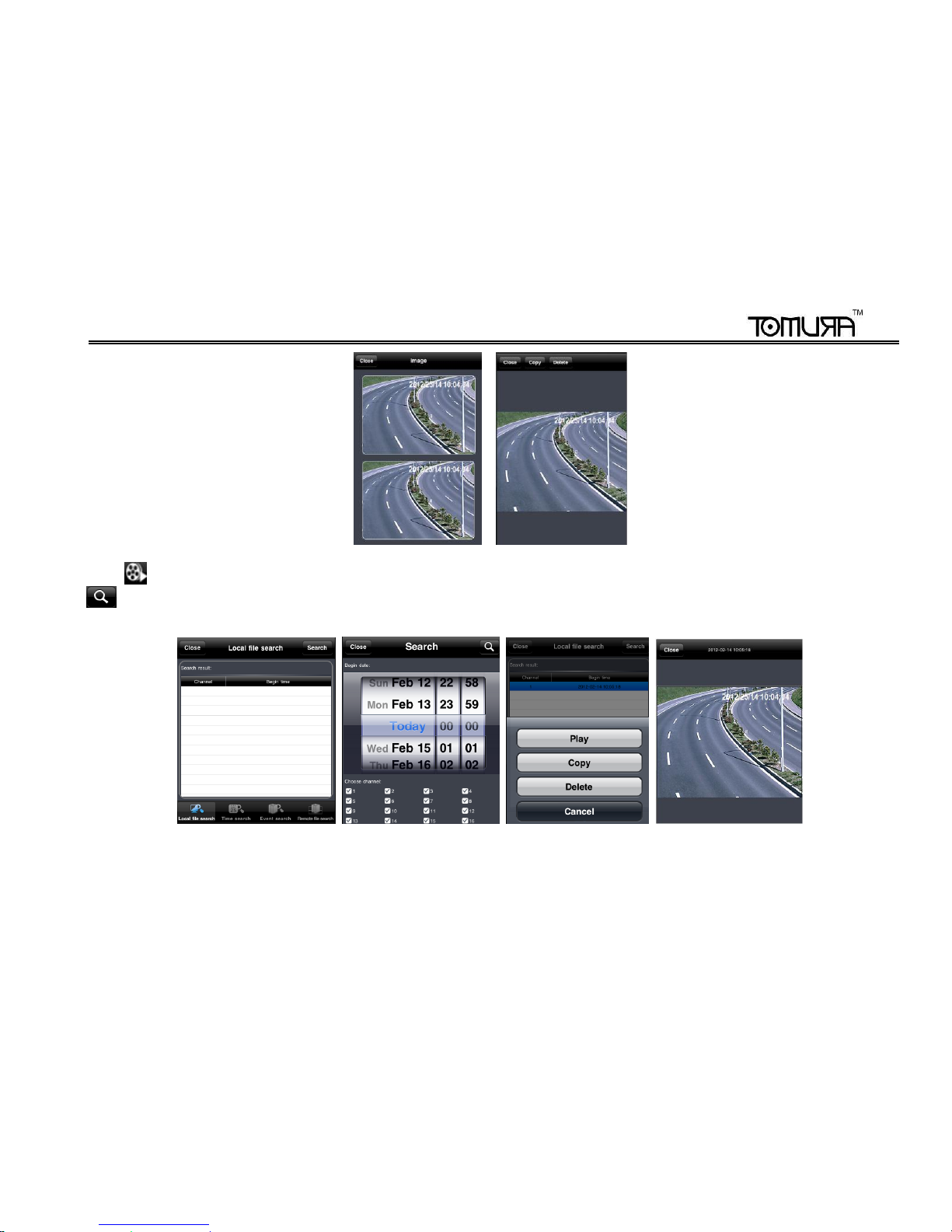

3. Image View

After the image is snapped, you can click icon to enter into the image view interface. Select the image and click it to amplify

this image. Then you can copy or delete the im age. Click „close‟ button to return to the previous interface.

DVR User Manual

79

4. Playback

Click icon to enter into the playback interface. Then click „Search‟ button, s elect the time and channel to playback and click

button. Now you can see the local file list. Select a file and click play button to playback. You can also copy or delete the

file. Finally, click „Close‟ button to return to the previous interface.

You can also search file to playback through time search, event search and remote file search. Please click the related button.

5. Server list

DVR User Manual

80

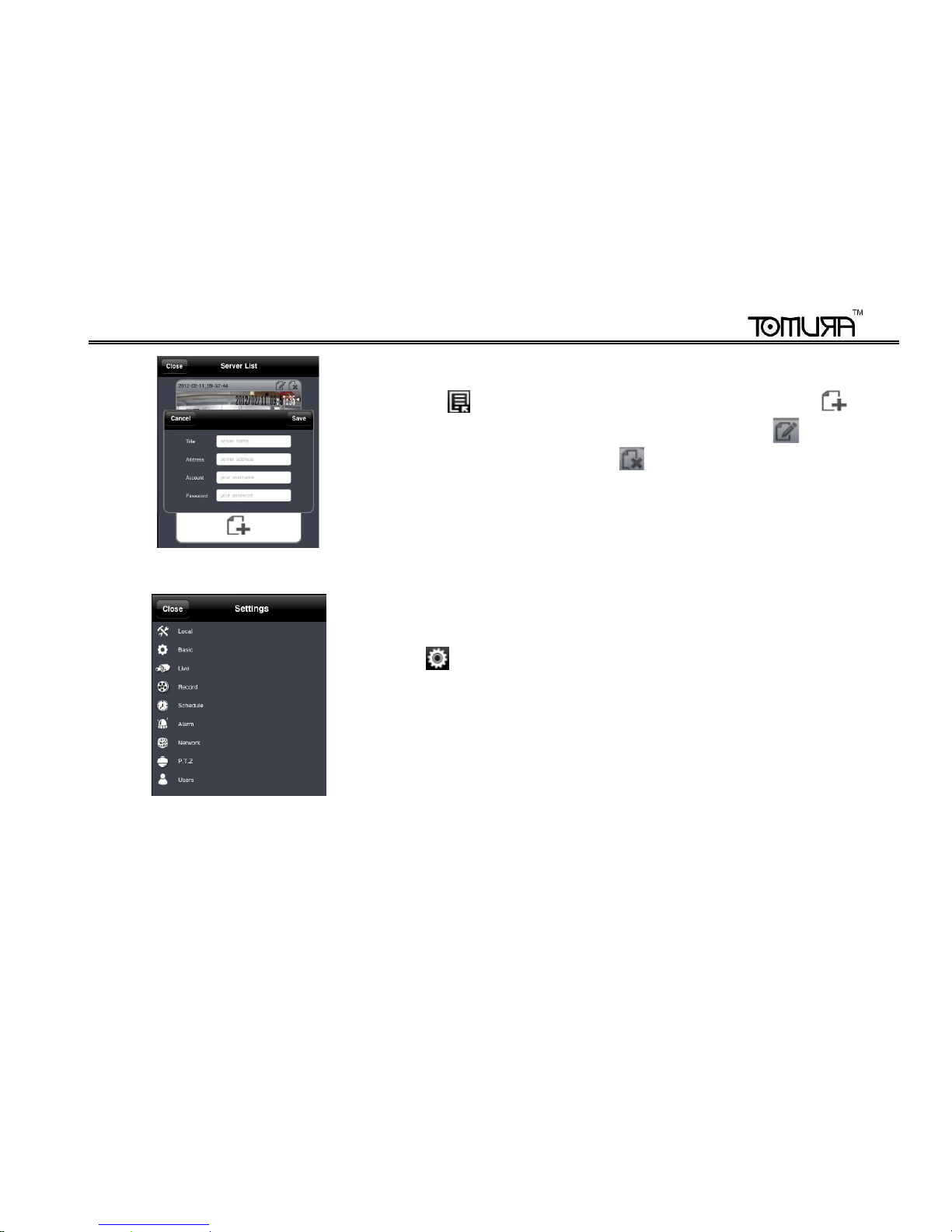

Click button to enter into server list interface. You can click

icon to add a server list. After you add the list, you can click icon to

edit the server information and click icon to delete this server

information.

6. Configuration interface

Click icon to enter into Settings interface. You can set many properties,

such as local, basic, live, record, schedule, alarm, network, etc. Please see

chapter four in respect of setting steps for more details.

7. Information View Interface

DVR User Manual

81

Click icon to enter into information view interface. You can check the information of system,
network and online users. In the system interface, you can see the information of device name,
device ID, hardware version, MCU version and so on. In the network interface, you can see the

information of http port, server port, IP address, gateway, network status, etc. In the online users

interface, you can see the information of the current online users.

8.4 By Phones with Android OS

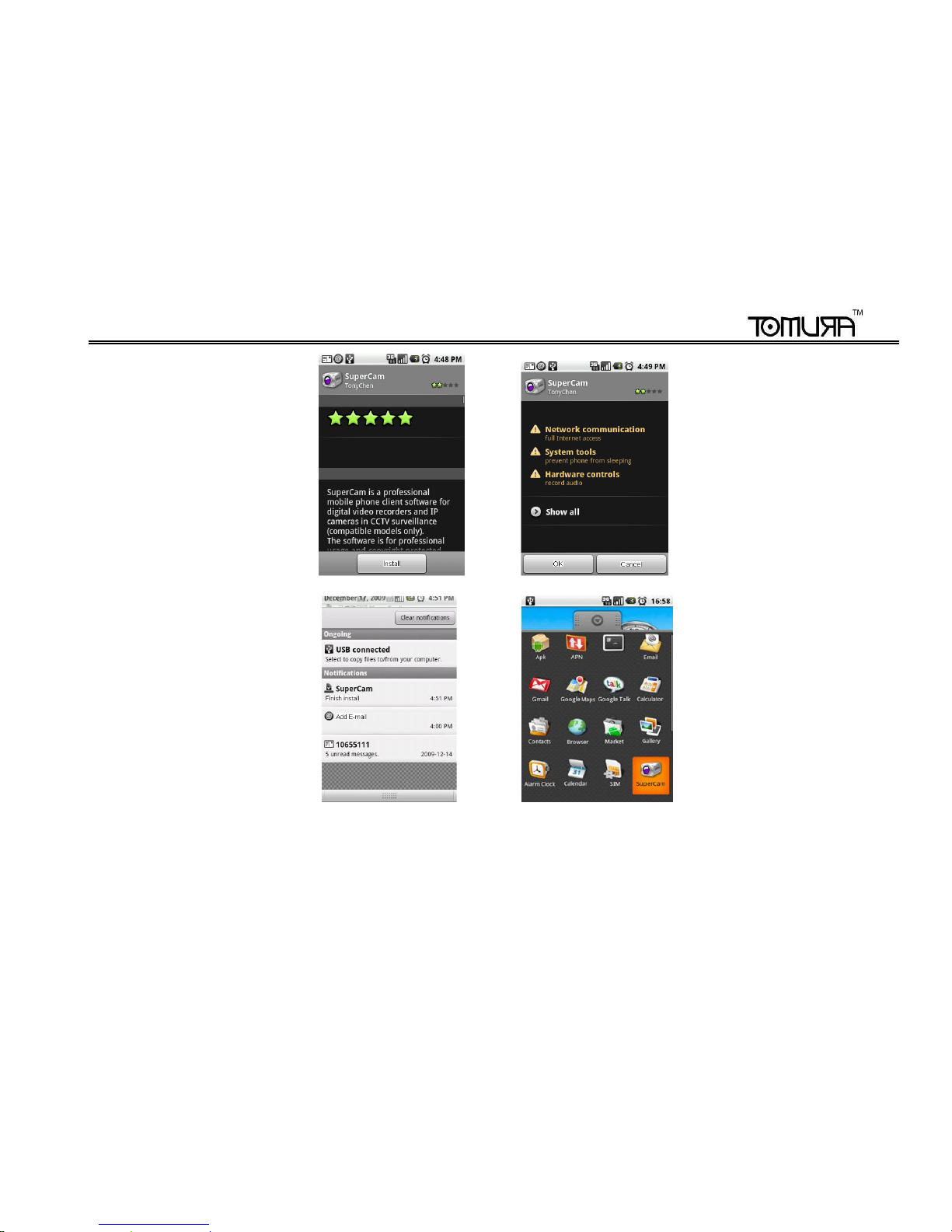

Software Installation

Step 1: run Google Market program Step 2: s earch”Superlive”

DVR User Manual

82

Step 3: press “Install” button Step 4: click “OK” button

Step 5: user can view the download and install process in notifications; Once finishing downloading, the software will install
automatically.

Login

DVR User Manual

83

Enter into server‟s IP addres s (or domain name), us er‟s ID and pass word.
Click “Remember server” to save the setting; click button can quick input saved server address, user name and password.

Main menu

【Playback】

playback record file

【Image】

image view

【Log】

log record

【Server List】

device list

【Live】

live view

【Settings】

software setting

【Information】

device information view

【Help】

software help center

【Logoff】

logoff and return to login interface

DVR User Manual

84

Live view

Image view

Stop playing

Single channel
display

Screen
mode

Four channels
display

Snap

PTZ

Talk Record

Live audio

Hide

The first picture

The previous picture

Next picture

The last picture

Zoom in

Zoom out

Delete

DVR User Manual

85

Record playback

Click Playback icon in the Main Menu interface to enter into the playback interface. First, choose channel. Second, select the
record file and click it to playback. Finally, click „Return‟ button to return to the previous interface.

Server list

Config interface

Play/Pause

Stop

Fast forward

Slow play

Add a server list

Modify a server list

Delete a server list

Return

Return to the previous
interface

DVR User Manual

86

Information view

8.5 By Phones with Blackberry OS

Alarm setting

If Audio alarm is enabled, when Video
Loss/Sensor/Motion happen，sound alarm will be

triggered; If shake Alarm is enabled, when Video
Loss/Sensor/Motion happen，shake alarm will be

triggered.

Storage setting

User can setup the relevant parameters of mobile
video. This function can be valid only insert SD card.

Display setting

User can setup display order or display mode.

DVR User Manual

87

1. Open the browser of BlackBerry phone and enter sever address

2. Click “Superlive” to link

3. Click “Download” button on the popup interface and the download progress will be shown.

4. Finished downloading, the software will be installed automatically.

Note: If the software fails to download, please check in accordance with the following steps:

1. Check whether the network of mobile phone is normal or not

2. Check whether DVR server connect network normally or not

3. Modify the option of Browser Configuration.
(1) Enter into Menu->Option->Browser Configuration; configure referring to the following figure in the left.
(2) Enter into Menu->Option->Cache Operations, clear up browser cache. Refer below picture in the right:

DVR User Manual

88

Note：When user used the Superlive software in mobile phone with touch screen, there will be compatible problem.
Solution: Enter into Options Menu->Advance options->Applications->Superlive and click “Disable Compatibility” button. This

problem will be solved.

Login

Enter server‟s IP addres s (or domain name), user‟s ID and pas sword.
Click “Remember server” to save the setting; click button can quick input

saved server address, user name and password.

Main interface

Playback

playback record file


image view

Log

log record

Server List

device list

Information

device information
view

Help

software help
center

Logoff

logoff and return to
login interface

Settings

software setting

Live

live view

DVR User Manual

89

Live view

Note: User can click Return button on the Blackberry phone to return the previous interface.

DVR User Manual

90

Mark 1

Current viewing channel

Mark 2

Channel status

Switch channels

PTZ, click to switch to Fig 2 interface

Snap

Full screen

Background alarm

Stop rotating the PTZ

Upward rotates the PTZ

Downward rotates the PTZ

Leftward rotates the PTZ

Rightward rotates the PTZ

Zoom In/Focus In/Iris Add

Zoom Out/Focus Out/Iris Sub

Preset

Select the preset point

Group

Set the cruise line

Server list

DVR User Manual

91

Software configuration

Information view

DVR User Manual

92

Appendix A FAQ

Q1. Why the DVR doesn’t turn on even after connecting to the power?

a. The power adapter could have gone bad. Please change a new power adapter
b. The power from the adapter may be not enough for operating the DVR. Please use the power adaptor supplied along with the
DVR.
c. It could be a hardware problem.

Q2. There is no menu displayed and only has live image display.

a. Check whether the monitor is connected to the main video out and not the spot out. The monitor might be connected to VGA
port whereas the DVR may be set for output through BNC or vice versa. Long press ESC key to toggle the output modes.

Q3. The DVR LED turns on, however there is no output.

a. The power from the adapter may be not enough for operating the DVR. Please use the power adaptor supplied along with the
DVR.
b. It could be a wiring issue. Please check the connection for the same.
c. Check the monitor settings.

Q4. Why are no images displayed on few or all the channels of the DVR?

a. It could be a wiring issue. Please check the cable and the ports of the cameras and DVR.
b. The problem can also be related to cameras. Please check the same.
c. Please make sure that the channels are not programmed as hidden channels and check the status from admin login.

Q5. Cannot find HDD

a. The power from the adapter may be not enough for operating the DVR. Please use the power adaptor supplied along with the
DVR.
b. It could be a wiring issue. Please check the power and data cables of the HDD.

DVR User Manual

93

c. The HDD could have gone bad. Change a new one.

Q6. Cannot record

a. Make sure the HDD was formatted prior to use.
b. Maybe the user hasn‟t enabled the record function or has done incorrect setup. Please refer to Chapter 5.
c. Maybe HDD is full and thus the DVR is not able to record. Check HDD information from Disk management and if required,
please enable the recycle function.
d. Check the attributes of the HDD. It might be set to read only mode.
e. The HDD could have gone bad. Please change another one.

Q7. Mouse does not work.

a. The mouse should be connected to the USB port at the rear side.
b. After connecting the mouse, allow the DVR to detect the mouse for seconds. If not detected, try restarting the DVR.
c. The mouse may be incompatible or faulty. Please change a mouse.

Q8. Cannot download ActiveX control.

a. IE browser blocks activeX. Please do setup as per the steps mentioned below.

① Open IE browser. Click Tools-----Internet Options….

DVR User Manual

94

② select Security------Custom Level….Refer to Fig 8-1
③ Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 8-2
④ Then click ok to finish setup.

b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings.

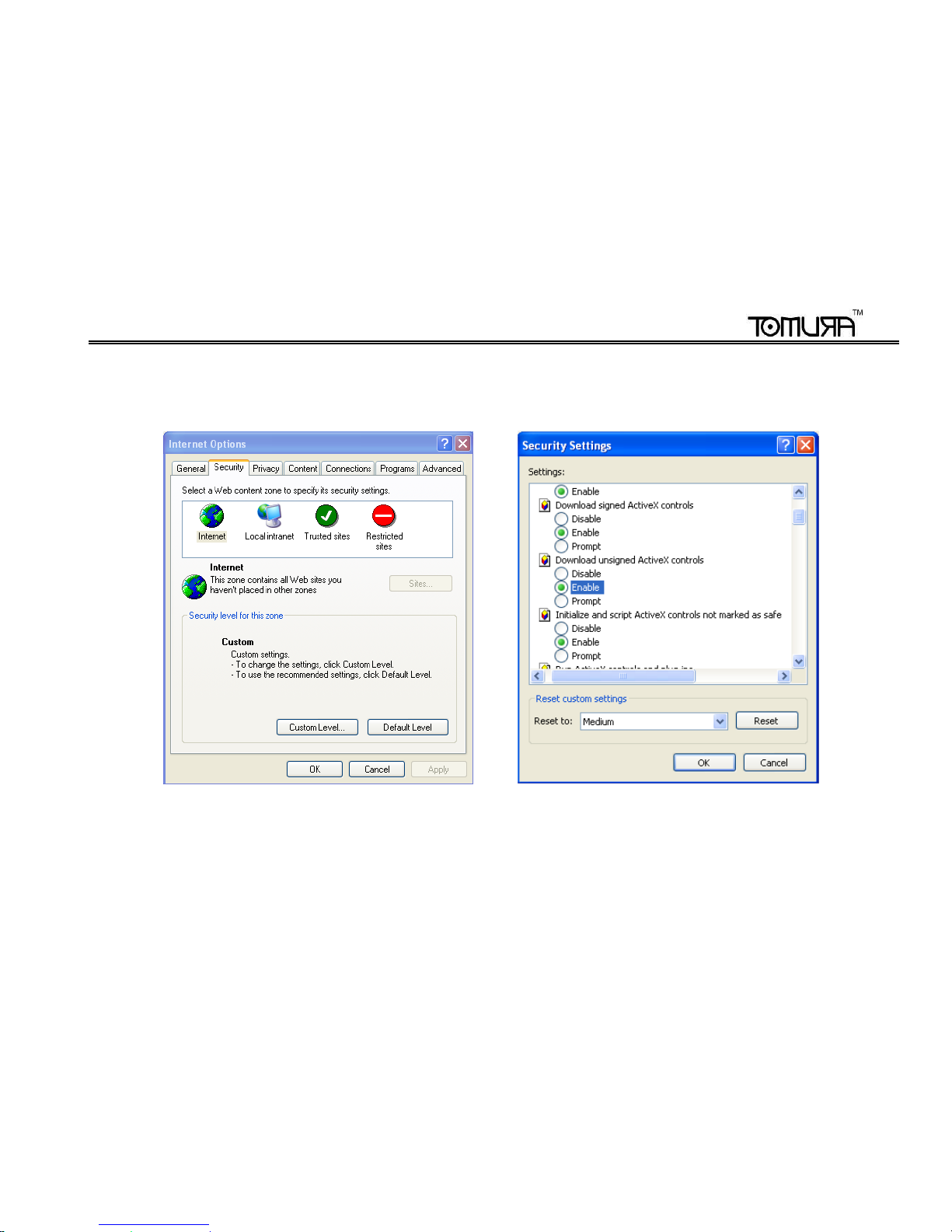

Fig 8-1 Fig 8-2

Q9: DVR displays “please wait…”all the time

a.HDD power cable and data cable may not be well connected. Please check the connections for HDD.

b. It is also possible that the DVR was forced to stop because HDD has a bad sector and it may have caused the system to

DVR User Manual

95

halt. Check with a good known HDD or try formatting the existing HDD.

Q10: How to input password and numbers in the interface?

Click the password or the input box a small keyboard will pop up. Please select characters to be input (the initial password is

123456), or you can use the digital keys on the front panel, or the digital keys on the remote controller.

Q11: A hard disk is being identified as a new device however it was being used with another DVR of same model.
Should it be formatted prior use?

It is possible to migrate an HDD from one DVR to another provided that the DVRs are of the same model and that the HDD
being migrated would be used as the sole disk in the new DVR. However in cases where the new DVR already contains a HDD,
the migrated disk being installed would have to be formatted. In general migrating disks from one DVR to another is not
recommended.

Q12: What is the minimum configuration required for remote monitoring?

PC Module

Parameters

CPU

Intel Celeron 2.4G

Motherboard

Intel 845

HDD

80G

RAM

512M

VGA

NVIDIA GeForce MX440/FX5200
ATIRADEON 7500/X300

OS

Windows 2000(SP4 above) /Windows XP(SP2 above) /VISTA

DirectX

9.0

Q13: What is the PC configuration for 16-ch real time viewing of mainstream?
