USB 2.0 Mini Wireless-N Adapter 150Mbps
D36
Quick install guide
Introduction
Thank you for purchasing the Wireless-N USB Adapter,.
Wireless-N USB 2.0 Adapter allows you to connect your laptop or desktop to
any Wireless-N networks in your home or office. The Wireless-N (802.11n)
USB 2.0 Adapter is great for those who want to upgrade older computers to
be able to access the internet over a Wireless-N network.
Package Contents
• Wireless-N USB Adapter
• Setup CD with user manual
• Quick install guide
System Requirements•
Notebook or desktop PC with Pentium 1 GHz-compatible or higher
processor
• Windows 2000/XP/Vista/7, MAC OS, Linux
• Available Hi-Speed USB 2.0 port
Installation
IMPORTANT: For proper operation, do not connect the Wireless-N USB
Adapter to your computer before you install the software. If you do, wait for
the Found New Hardware screen to display and click “Cancel”; otherwise,
the installation process will likely be adversely affected.
Insert the included setup
CD in the CD-ROM Drive
and start the Setup.exe
program.
To start the installation,
please click on the “USB
Wireless 802.11N
Drivers”
Wait for the installer to
run
Select Language and
click “Next” to continue
with the installation.

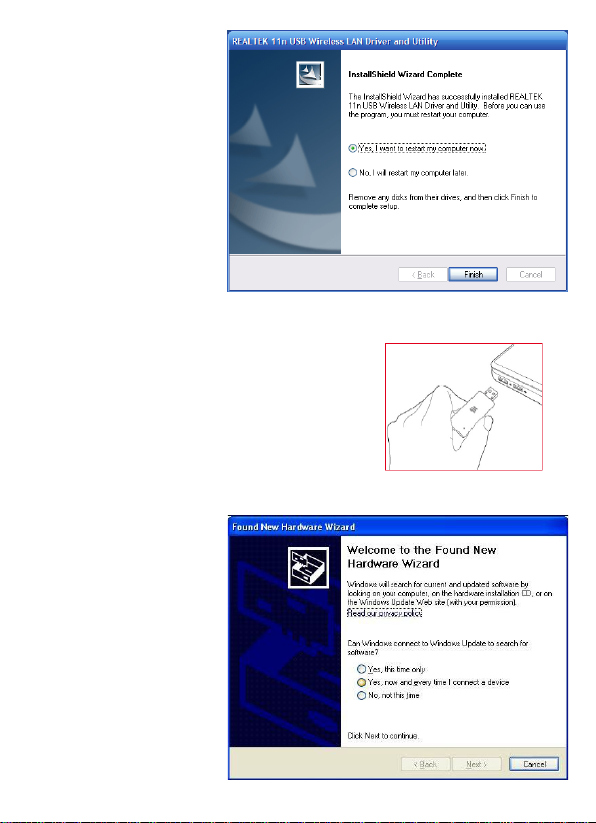

The installer will
automatically install the
program. When done
Select Yes, I want to
restart my computer now
and click Finish to reboot
your computer.
With the computer now turned on, insert the
Wireless-N USB Adapter into an open USB 2.0
port.
With the Welcome to the
Found New Hardware
Wizard screen displayed
(which is automatic when
the adapter is connected
to the .computer), select
the option “No, not this
time” and click “Next.”

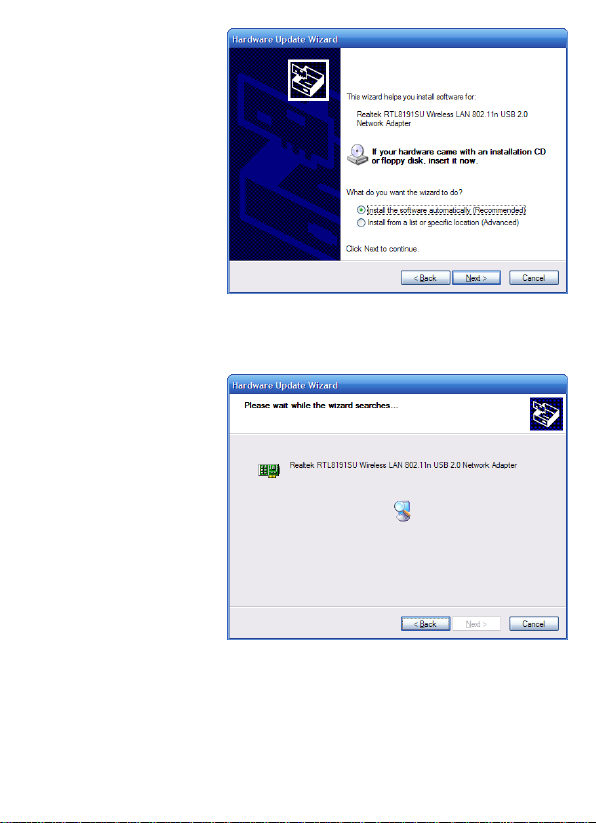

When prompted with
“What do you want the
wizard to do?” select
“Install the software
automatically
(Recommended)” and
click “Next.”
A status screen will
display, indicating that
the installation is in
progress. No action is
needed at this point.
When the Completing the Found New Hardware Wizard screen displays, it
indicates that the installation has been successfully completed and your
Wireless-N USB Adapter is ready for configuration.
Configuration
Once the installation is complete, you can configure the Wireless-N USB
Adapter to connect to a wireless access point (AP). The wireless
configuration utility will start automatically, and you’ll also find a tray icon at
the lower right in your Windows systems tray.
1. Right-click the Wireless
tray icon and select “Open
Config Utility.”
2. The configuration utility will scan for wireless networks within range. Click
“Refresh” to refresh the list of available wireless networks. To join a
particular network that displays, select it and click “Add to Profile.”

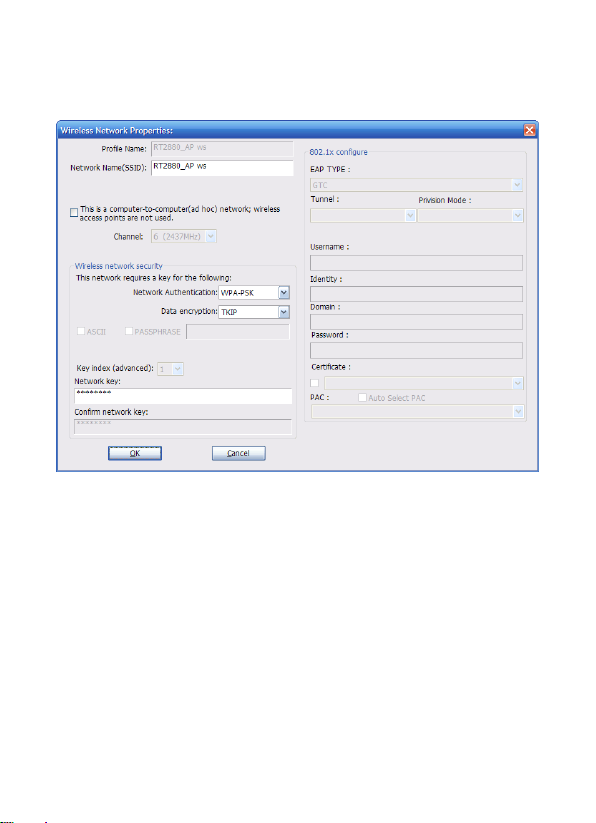

3. If the wireless network uses encryption, you need to input the correct
encryption key. The configuration utility automatically suggests the correct
authentication type (see the drop-down list), and you should not change the
suggested value.
NOTE: For WPA/WPA2 networks, you need to select the correct
encryption type, as well (AES or TKIP). These settings depend on how the
wireless network is set up. Only the owner of the wireless network can
provide the required information.
*** When you select the TKIP encryption mode, the speed would switch to
802.11g 54M following the TKIP protocol

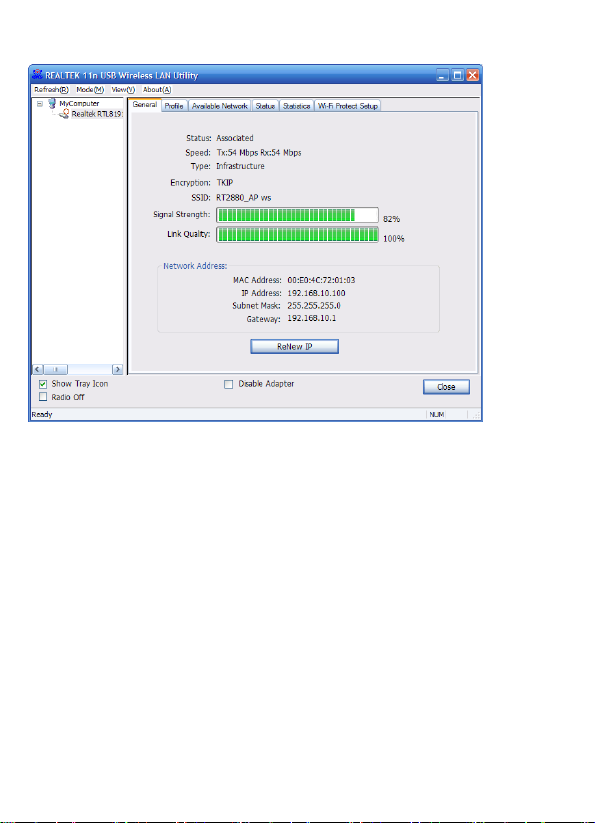

4. If the wireless access point is successfully connected, you’ll see.
NOTE: 1）For advanced settings and additional features of the Wireless-N USB
Adapter, refer to the user manual on the enclosed CD.
2）This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
3)This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a C
lass B digital device, pursuant to part 15 of the FCC Rules. These limits are desi
gned to provide reasonable protection against harmful interference in a residenti
al installation. This equipment generates, uses and can radiate radio frequency e
nergy and, if not installed and used in accordance with the instructions, may cau
se harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determi
ned by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which th
e receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party resp
onsible for compliance could void the user's authority to operate this equipment.
RF Exposure: The highest measured body SAR value (1g) is: 1.166 W/Kg
