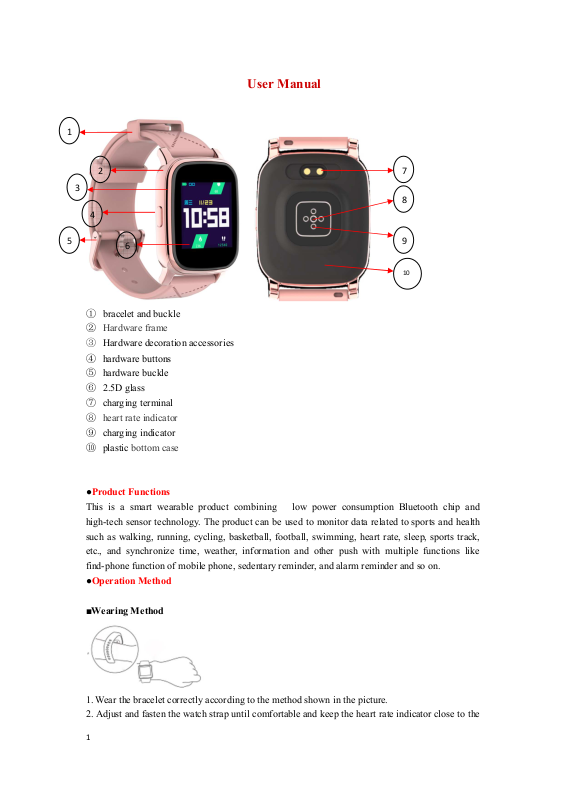

User Manual
1
2
3
4
6
7
8
5
9
10
① bracelet and buckle
② Hardware frame
③ Hardware decoration accessories
④ hardware buttons
⑤ hardware buckle
⑥ 2.5D glass
⑦ charging terminal
⑧ heart rate indicator
⑨ charging indicator
⑩ plastic bottom case
●Product Functions
This is a smart wearable product combining low power consumption Bluetooth chip and
high-tech sensor technology. The product can be used to monitor data related to sports and health
such as walking, running, cycling, basketball, football, swimming, heart rate, sleep, sports track,
etc., and synchronize time, weather, information and other push with multiple functions like
find-phone function of mobile phone, sedentary reminder, and alarm reminder and so on.
●Operation Method
■Wearing Method
1. Wear the bracelet correctly according to the method shown in the picture.
2. Adjust and fasten the watch strap until comfortable and keep the heart rate indicator close to the
1
skin without loosening.
■Power on/off
Long press on the side button for 3S to get powered on and have the screen lit up. Then enter the
main interface, find "Shut down" in the menu, and turn off by touching the menu.
■Device Connection
Make sure the bracelet is on, open the APP on the phone, and implement the device scanning.
When the ID number corresponding to the bracelet is identified, confirm the link. When the link is
successful, implement the data synchronization to the APP.
■Interface Switching
There are 4 main screens. Press the main screen for 3S and slide to have corresponding screens
displayed. After selection, go back to main menu. The selected screen will be displayed
accordingly.
■Step Counting
Real - time step counting is conducted. The device starts counting after 20 steps are taken, and
will continue to provide synchronous step counting, which will be displayed synchronously on the
APP, together with the corresponding data of mileage and calories burned.
■Monitor of Heart Rate, Blood Pressure and Blood Oxygen
When switched to “heart rate”, the indicators of blood pressure and heart rate will flicker
constantly. After 30S, automatic monitoring will be conducted with corresponding data displayed
on the device and APP synchronously. When switch or return to another interface, the monitoring
will be terminated.
■Monitor of Motion Mode
Multiple motion modes
2
After entering any of the motion modes, click on 321 to start timing and click on “stop” at the end
of exercises. The mileage, time and calories will be displayed accordingly.
■ Sleep Monitoring
Set the corresponding sleep time, such as 8H, start time and end time in the APP.
At the end of the second day, the sleep status, the time of wakefulness, light sleep and deep sleep,
and the corresponding comparison chart will be displayed in the APP.
■More Settings
Brightness adjustment- 8 levels of brightness are provided. Slide up till the brightness adjustment
menu appears, then increase the brightness by clicking clockwise and reduce the brightness by
clicking anti-clockwise.
To query the product ID number and software version, slide to "Settings" and click to enter the
"about" menu, and then the corresponding product ID number and software version will be
displayed.
Flip over can be turned on in the settings of the watch and APP.
Sedentary reminder can be turned on in the settings of the watch and APP.
Stopwatch: Turn on stopwatch by clicking on the menu, click “start” to get it work and click “end
“to terminate the stopwatch.
Alarm: Turn on the alarm by clicking on the menu, set the time and motor vibration reminder will
3
be activated at the set time.
Android APP
IOS APP
Find phone: Activate the function in the APP setting. When the phone cannot be found, the device
will send remainders for searching by vibration within an appropriate distance.
Music control: Open the function in the APP setting. Turn on the applied program of music player
in the mobile setting, and previous/next/pause functions can be achieved accordingly.
Cameral control: Open the function in the APP setting and turn on the applied program of camera
in the mobile setting.
●Factory data reset: Find and click on “setting” till “About” is spotted, continue clicking till
“Reset” is found. The device will be restarted after 3-5s.
●Charging: Plug one end of the magnetic USB charging cable into the 5V 500Mah charger port,
and the other end directly to the charging contact point of the watch. The charging status is
displayed while charging. Generally, it takes 2h to get fully charged.
● Installation and Operation of APP
Google play
Scan the QR code below to identify the APP and install after downloading it directly from the
Google play or App store.
Equipment requirements: IOS8.0 or above, Android 4.4 or above, support for Bluetooth 4.0
Bluetooth connection: After the pairing is successful, the APP automatically saves the
4
Bluetooth address of the bracelet. After the APP is opened and runs in the background, it will
automatically search and connect successfully.
Data synchronization: Manually pull down to get synchronization data on the APP homepage,
and the bracelet can store offline data of 7 days. The more data there is, the longer the
synchronization time may be. After the synchronization is completed, there will be a
corresponding prompt.
Cautions
●
Avoid strong impact, extreme heat and heavy rain
Do not disassemble, repair or modify the machine by yourself.
Use 5V 500Mh charging, and avoid using overload power supply voltage
The operating temperature is 0-45 °. Do not throw into the fire to avoid explosions.
Do not charge with wet hands, otherwise, oxidation of the charging hardware terminal may
be caused, resulting in charging failure.
Keep away from chemicals such as gasoline, cleaning solvents, propanol, alcohol or insect
repellent.
Do not use this product in high-voltage and high-magnetic environments.
If you have sensitive skin or wear too tight, you may feel uncomfortable.
Do not wear bracelet to take a hot bath.
Please promptly wipe the sweat droplets on the wrist, as when the watchband is exposed to
long time contact with soap sweat, allergens or contaminated ingredients, allergic itching
may be caused to the skin.
●FAQ
What can be done when the Bluetooth doesn't work? (connection failure/slow connection)
Make sure that your device supports Bluetooth 4.0 in IOS8.0 and Android4.4 or above
1. Due to the problem of signal interference in wireless connection, the connection time may be
too long. If the connection cannot be preceded for a long time, please make sure to operate in the
environment without magnetic field or interference of multiple Bluetooth devices.
2. Turn off Bluetooth and turn it on again.
3. Restart the phone after turning off the applications.
4. Do not connect other Bluetooth devices or functions to your phone at the same time.
5. Check whether the APP is running normally in the background, otherwise, it may not be
connected.
● Unable to search for mobile phone
1. If the Bluetooth is not searched by the phone, make sure the phone is powered and activated and
not bound to other phones. Then close the bracelet to the phone. If it still doesn't work, please turn
off the phone Bluetooth, and restart the Bluetooth after 20S.
2. Make sure the phone GPS is turned on.
●Why wear a tight bracelet when measuring heart rate?
The bracelet adopts the principle of light reflection and collects the signal reflected to the sensor
after the light source penetrates the skin to calculate your heart rate. If you wear it loosely, there
will be ambient light entering the sensor, which will affect the measurement accuracy.
●
Whether the bracelet is waterproof
5
Support IP67 waterproof and dustproof (can be worn at will when washing hands and cars
normally)
●Basic parameters
evice Model TS01 Battery Type Polymer
D
Display Screen 1.3 inches 2.5D Battery Model 382227
Touch Screen Full Touch Battery Volume 180MAH
CPU NRF52832 Bracelet Length 25cm
Waterproof Level IP67 Weight 40G
Band Material TPU/Silica
Gel/Dermis Optional
This device complies with Part 15 of the FCC rules. Operation is subject to the following twoconditions: 1) this device may not
cause harmful interference, and 2) this device must acceptany interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This
equipment generates, usesand can radiate radio frequency energy and, if not installed and used in accordance with theinstructions,
may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a
particular installation. If this equipment does causeharmful interference to radio or television reception, which can be determined by
turning theequipment off and on, the user is encouraged to try to correct the interference by one or more ofthe following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.
—Consult the dealer or an experienced radio/TV technician for help.
Packaging List Host, Charging
Wire, Manual
