Tomcat Nano Edge Operating Instructions Manual
COMMERCIAL CLEANING EQUIPMENT
https://harrissupplyind.com - To Order Parts Call 608-268-8080
Operating Instructions (EN)
& Parts Manual
MODELS:
9'' NANO EDGE
Read these Instructions before
using the machine.
Read these Safety Messages
before using the machine.
www.tomcatequip.com VERSION 16.126
© 2016 RPS Corporation TC-NANOEDGE-OP-EN
BLANK
https://harrissupplyind.com - To Order Parts Call 608-268-8080
THIS PAGE WAS INTENTIONALLY LEFT BLANK
TABLE OF CONTENTS
https://harrissupplyind.com - To Order Parts Call 608-268-8080
Table of Contents 3
Safety 4
Maintenance 6
Transportation 8
Operation 9
Handle Attachment 11
Maintenance Records 12
Common Wear Parts 13
NANO EDGE Pads: 13
SPARE PARTS & KITS: 13
Parts 14
TC-NANOEDGE-OP-EN - 3 -
You will see four kinds of safety reminders in this manual:
https://harrissupplyind.com - To Order Parts Call 608-268-8080
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, could result in minor or moderate
injury or damage to this machine or nearby objects.
CAUTION also can be used to alert against unsafe
practices.
NOTICE
NOTICE indicates information considered important, but
not hazard-related. This safety message may be related
to property damage or warranty warnings.
SAFETY
Your safety, and that of others, is very important. Operating this machine safely is an important responsibility.
DO NOT OPERATE THIS MACHINE:
• Unless you are trained and authorized to do so by an RPS authorized and certifi ed distributor
• Unless you have read and understood this complete Operator’s Manual
• On surfaces with greater than an 2% / 3.49° grade at any time
• In water depth more than 0.125'' (3.175mm)
• On carpeting - Only for use on fl at, smooth, hard fl oor surfaces
WHEN OPERATING THIS MACHINE:
• Remove loose objects from the fl oor that could be projected from the oscillating pad
• Keep your hands and feet away from the oscillating pad
• Do not operate this machine where fl ammable liquids are present
• Use caution when maneuvering close to walls
• Use PPE (Personal Protective Equipment)
BEFORE LEAVING THE MACHINE:
• Turn the machine OFF and unplug the power cord from wall AC power
- 4 - TC-NANOEDGE-OP-EN
WARNING
https://harrissupplyind.com - To Order Parts Call 608-268-8080
Do not operate this machine around any fl ammable
materials. Work areas should be well ventilated.
WARNING
Always wear safety goggles when operating this
machine to avoid eye injury from debris projected from
the oscillating pad.
WARNING
Do not remove, paint over or destroy warning decals. If
warning decals become damaged, call 1-262-681-3583
for free replacements.
WARNING
To avoid electrical shock, do not operate this machine
over electrical fl oor outlets.
WARNING
To avoid electrical shock, do not use this machine if the
handle has gotten wet or if water has penetrated past
the plastic shell.
WARNING
To avoid electrical shock, unplug the power cord before
adjusting the handlebar height or replacing the pad.
WARNING
Always turn off this machine and unplug the power
cord before leaving it unattended. Do not allow
untrained persons to operate this machine.
WARNING
Always wear a dust mask when operating this machine
to avoid inhaling dust created by the oscillating pad.
Inhaling dust created by this machine can cause
serious respiratory injury.
WARNING
To avoid electrical shock, do not pull on the power cord
to move the machine or unplug the power cord from
the electrical outlet.
WARNING
Dress safely. Keep hands, feet and loose clothing away
from moving parts on this machine.
WARNING
To avoid electrical shock, always keep the power cord
clear of the oscillating pad and in good condition.
Always lift the power cord over the machine.
WARNING
Never operate this machine under the infl uence of
alcohol or drugs. Do not allow anyone under the age of
18 to operate this machine.
WARNING
Never sand wood decks. Due to uneven surfaces
this could lead to damage to the machine as well as
some pressure treated wood found in decking contains
arsenic, which, when sanded, will create hazardous
dust.

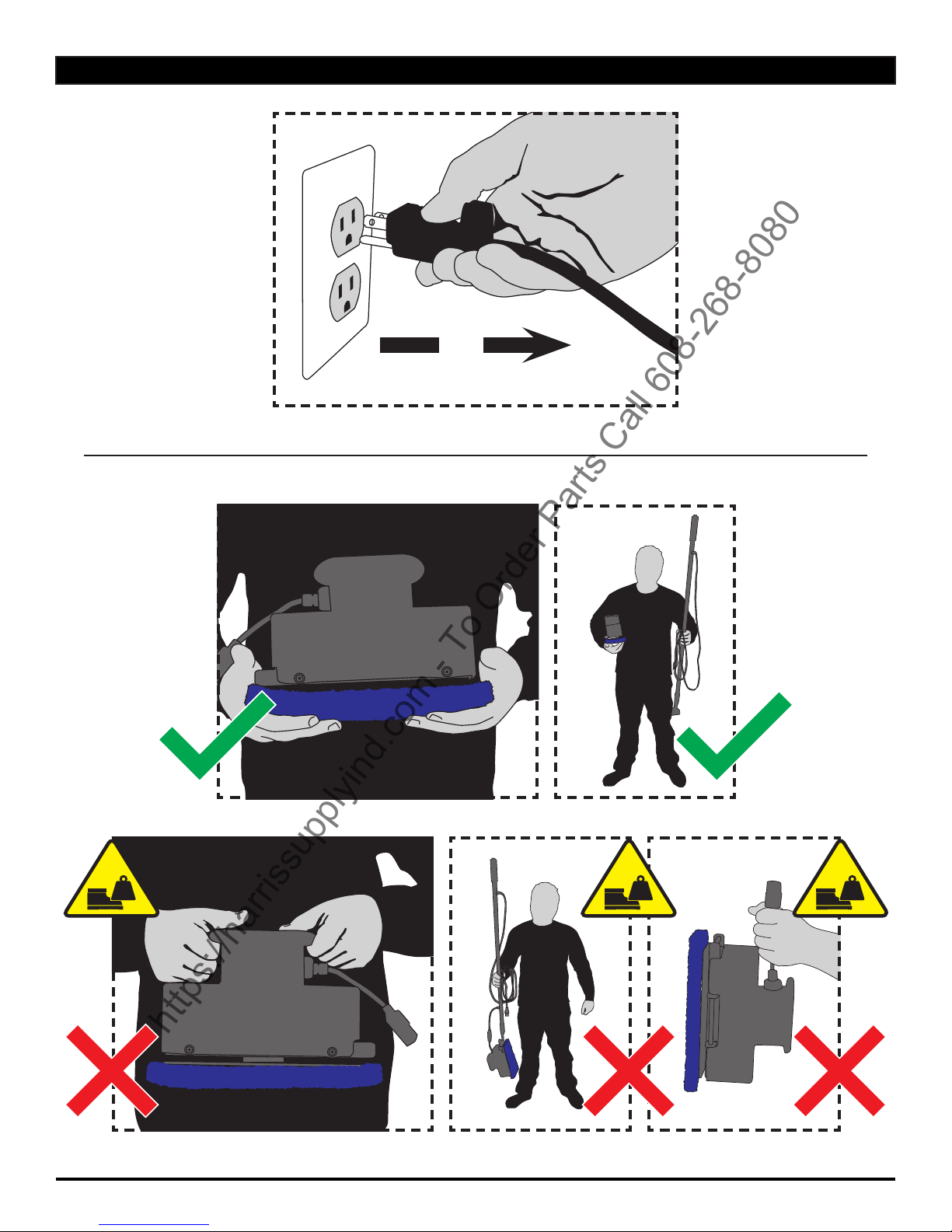

CAUTION
To avoid personal injury and/or damage to this
machine, the persons lifting the machine should carry
the machine by the base. Do not attempt to lift the
machine by the handlebar only.
CAUTION
Always unplug the power cord before attempting to
transport this machine.
CAUTION
Always leave the pad on the machine when transporting
to avoid damage to the grip face.
TC-NANOEDGE-OP-EN - 5 -
CAUTION
Do not operate this machine if any parts have been
damaged or removed.
CAUTION
Alterations to this machine may result in personal injury
or property damage, and voids the warranty.
CAUTION
Always unplug the power cord before changing the pad.
