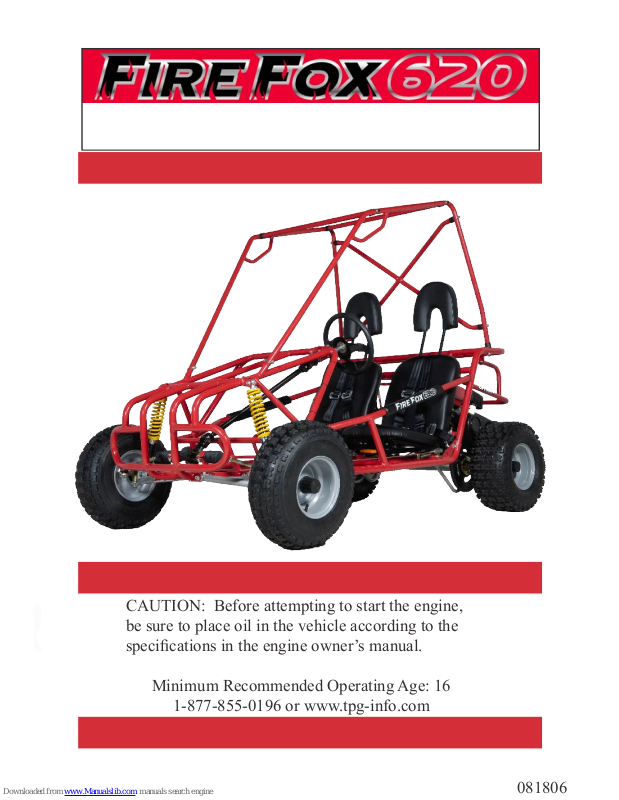

CAUTION: Before attempting to start the engine,
be sure to place oil in the vehicle according to the
specifications in the engine owner’s manual.
Minimum Recommended Operating Age: 16
1-877-855-0196 or www.tpg-info.com
081806
The Warranty Registration Card For This Kart
Must Be Filled Out and Returned To The
Manufacturer.
The warranty registration for this vehicle may be filled out by:
returning the warranty registration insert in this manual, registering
online at www.tpg-info.com, or telephone at 1-877-855-0196. Please
have the following information ready when registering your product:
ENGINE NUMBER VIN NUMBER
(Located on the engine) (Below Driver’s seat on frame)
__________________________ _________________________
DATE STORE NUMBER
(See Receipt)
__________________________ _________________________
Tomberlin Product Group
LIMITED WARRANTY
The following warranty only applies to vehicles which after being
unloaded from their original packaging, assembled as described in
this manual, and under normal use, conditions, and service are found
to have defects in manufacturing and workmanship that are not the
operator’s fault.
The limited warranty covers the frame, suspension, steering, brakes,
engine, and engine related components for a period of one (1) year
from the date of purchase. This warranty only applies to the original
purchaser of this product.
This warranty does not cover items such as tires, batteries, belts,
brake pads, or any other components that wear under normal use.
This warranty also does not cover items that the seller deems
defective due to improper care, improper assembly, modifications,
abuse, or accidents.
All warranties are voided if the vehicle has been altered in any way,
or meets any of the following criteria:
1. Contains parts deemed “non-original” replacement parts.
2. The vehicle serves as a rental unit.
3. The vehicle is altered, affecting performance, safety, and/or
reliability
4. The vehicle is used in competitions or races.
5. Wheels are bent or broken due to impact.
Do NOT return this unit to the retailer. Many problems that arise are
easily repaired by the consumer or service center. For parts and
service, please contact our customer service representatives toll free:
1-877-855-0196 or visit our website: www.tpg-info.com.
i
Foreword
Congratulations on your purchase of the FireFox 620 go-kart.
Tomberlin Product Group wishes you many exciting ventures with
your new off-road vehicle. The FireFox 620 combines the joy of
off-road driving with state of the art engineering to provide
customers the best possible product.
This manual contains assembly, operational, safety, warning, and
maintenance information that will help prolong the life of the vehicle
and promote safe driving amongst all users. In reading this manual,
please note the sections that deal with safety while driving and tips
that will help drivers deal with different driving conditions.
Carefully read this entire manual before driving, or allowing others
to operate and/or ride in this go-kart. Failure to thoroughly read and
understand this manual may result in severe injury or death to drivers
and/or passengers.
Tomberlin Product Group wishes all drivers a safe, enjoyable
experience with the FireFox 620. Carefully read the section dealing
with maintenance and be sure to fill in the chart showing scheduled
maintenance and service.
Servicing and maintaining this vehicle using the provided schedule
will improve longevity and allow for a more joyous experience.
It is important that this manual remain with the go-kart in the event
that it is sold. It provides important information and warnings that
will help keep all off-road enthusiasts safe. If the manual is lost or
damaged, please call 1-877-855-0196 or visit www.tpg-info.com for
a replacement.
Assumption of Risk
The owner/operator of this go-kart, and all passengers who may ride
assume responsibility for all risks and/or incidents arising from its
use. Failure to follow guidelines and warnings set forth in this
manual may result in serious injury or death.
ii
Table of Contents
Warnings.........................................................1
Warning Decals...............................................2
Safety Operation Guidelines...........................3
Assembly.........................................................7

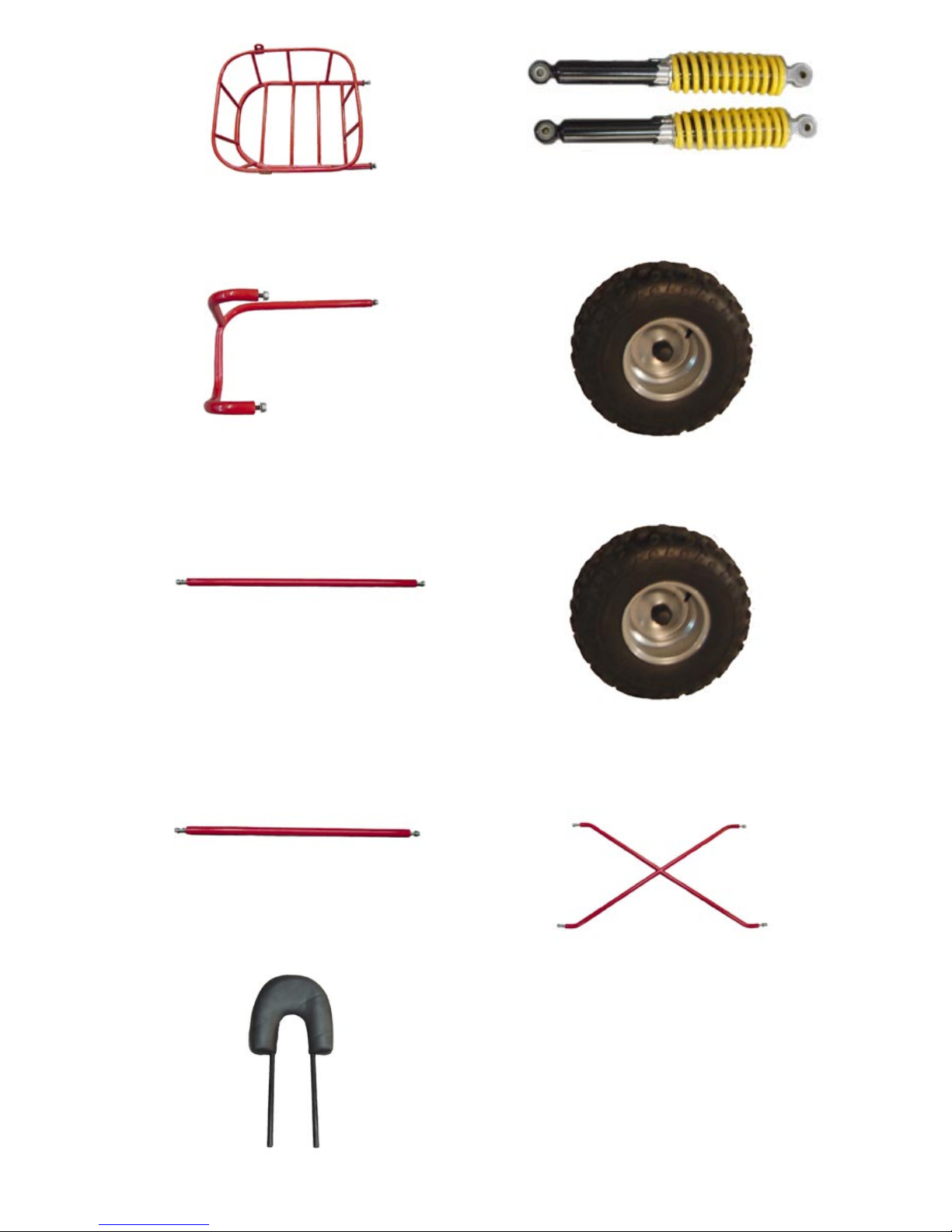

Parts................................................................8
Before Each Ride..........................................20
Driving..........................................................24
Starting the Engine........................................26
Maintenance..................................................27
Important Information..................................29
Service Intervals...........................................30
California Emissions.....................................31
Notes.............................................................33
iii
WARNING: Read the entire manual before operating
this go-kart. Be sure to carefully read sections dealing with
safety, warnings, and special instructions.
WARNING: This vehicle is intended for OFF-ROAD
USE ONLY. Before operating this vehicle, read all of the
instructions for safe assembly and operation as well as the
instructions governing the engine and other portions of the
vehicle. Pay close attention to all caution and warning labels
on the go-kart.
WARNING: Hearing protection is required while
operating this unit.
WARNING: Do NOT attempt to start the engine if the
driver is not correctly seated with his/her seatbelt properly
fastened.
WARNING: To avoid serious burns or injury, always
use caution when working with gasoline. The engine should
only be refueled while it is not running and outdoors in a well
ventilated area. Avoid spilling gasoline anywhere. If gasoline
comes in contact with skin or clothing, immediately wash it off
with soap and water and change clothes. Do NOT smoke near
or expose the gasoline to an open flame. Follow all gasoline
producer directions and be sure to tighten the fuel cap after
fueling.
WARNING: The maximum combined weight for
driver and passenger is 400 pounds.
1
2
Safety Operation Guidelines
1. This manual is NOT intended to serve as a service manual for the
FireFox 620. This manual provides instructions for assembly,
maintenance, and general operation. For additional information,
please reference the engine owner’s manual.
2. The FireFox 620 should only be assembled by persons with
the necessary skills to properly read, understand, and follow
mechanical instructions.
3. When working on areas of the go-kart away from the engine,
remove the spark plug to prevent the engine from starting. If
working on or near the engine, avoid the muffler and other hot
areas around the engine.
4. Use extreme caution when working on an engine that has been in
use. Engine components will be extremely hot.
5. Do NOT attempt to modify or change any of the original
equipment on the FireFox 620. The removal of any parts or
components could render the vehicle unsafe or in violation of state
laws.
6. Before each use, check all hardware on the vehicle to ensure that
it is safe to use. Check all connections, cables, bolts, locknuts,
and other parts prior to use.
7. It is not possible to obtain a license for this vehicle. This vehicle
is only to be used on private property or areas where local laws
permit. To prevent accidents, avoid areas where other recreational
vehicles are operating. Do not operate the FireFox 620 on any
location without proper permission.
3
8. All persons under 18 years of age must have parental supervision
at all times while operating or riding as a passenger in the
FireFox 620.
9. Do NOT operate this vehicle while under the influence of
alcohol, drugs, or any substance that may impair one’s ability.
Operating the vehicle under these conditions may cause harm
to yourself and/or others.
10. Do NOT attempt to use this vehicle if you have no prior
experience driving. If you have no prior driving experience,
please take the time to practice and learn basic driving techniques
before operation.
11. Before each use, ALWAYS inspect the kart using the guidelines
in this manual.
12. ALWAYS check the fuel level before starting the FireFox 620.
Do NOT fill the gas tank while the motor is running or still hot.
While filling the tank, avoid enclosed places and open flames.
13. Tire pressure should be checked before each use. Improper tire
pressure may cause unstable conditions while operating the
FireFox 620.
14. The FireFox 620 should NEVER be started unless the throttle is
in idle position. The driver MUST be seated before attempting to
start the vehicle. Do NOT attempt to start the vehicle unless all
riders are seated with their safety harness fastened. Always keep
your foot on the brake while attempting to start the vehicle.
15. Engine components become extremely hot. Do not touch the
engine while the vehicle is running or while attempting to start
the vehicle.
4
16. The brush guard surrounding the driver and passenger is not
intended to serve as rollover protection. Before each use, be sure
that tubes are securely in place by checking for loose bolts.
17. Due to the poisonous nature of carbon monoxide, this vehicle
should NEVER be started or operated indoors. Carbon monoxide
is an odorless, tasteless gas found in engine exhaust fumes.
18. Do NOT race this vehicle. The FireFox 620 is not designed
for racing or use on rental tracks.
19. This vehicle is designed to hold ONE driver and ONE
passenger. No person should ride on this vehicle unless properly

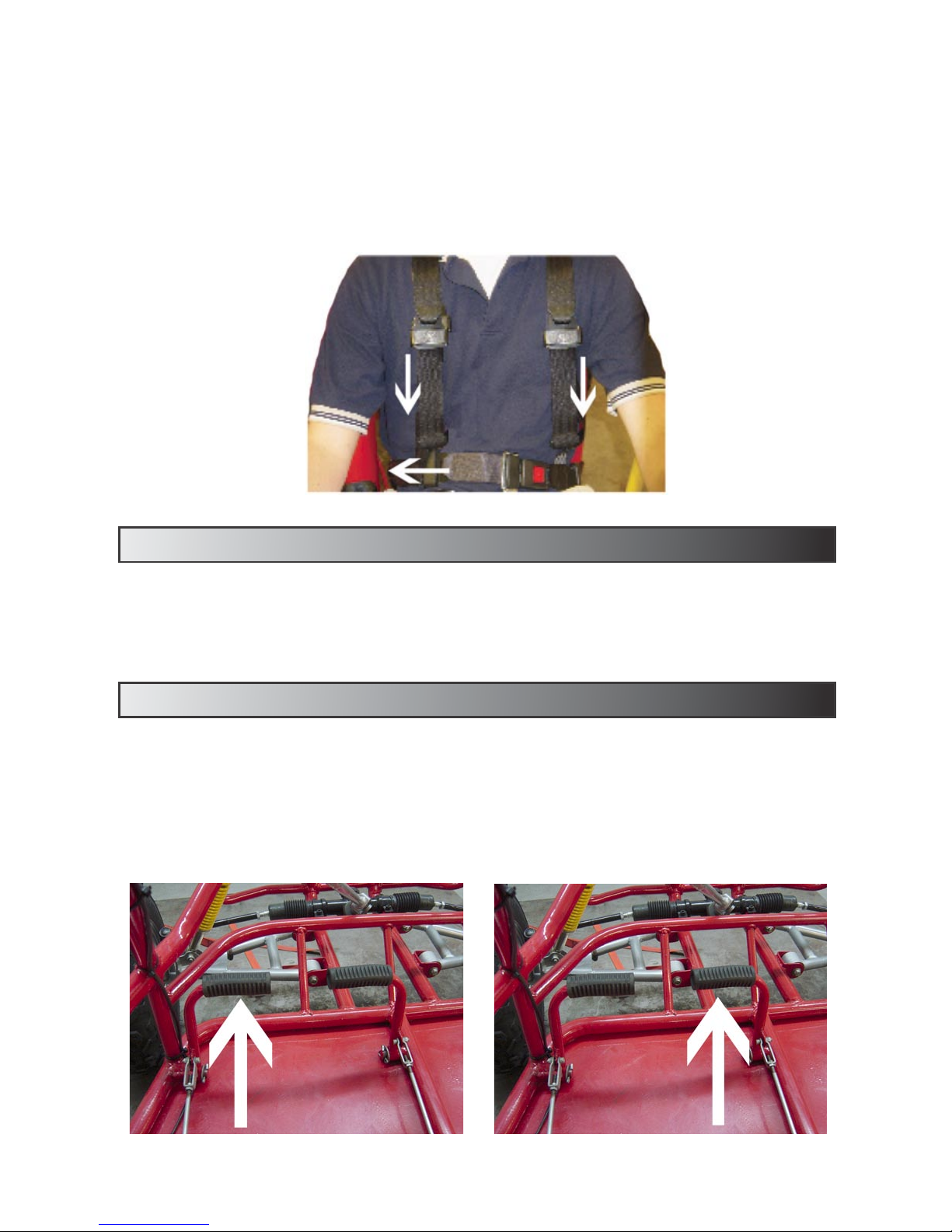

seated with the safety harness securely fastened.
20. If driving without a passenger, fasten the passenger safety harness
to prevent it from getting caught in moving parts.
21. Do NOT operate this vehicle unless wearing proper clothing.
Proper clothing includes but is not limited to: helmets approved
by the proper agencies, face guards/goggles, closed toe shoes,
and other protective clothing.
22. The recommended minimum age for drivers and passengers in
this vehicle is 16 years. Ability to operate this vehicle safely
depends on the drivers/passengers age, experience, size,
understanding, and mental and physical capabilities.
23. ALWAYS slow down for turns. Excessive speed in turns may
cause the vehicle to flip or roll. In some cases, excessive speed
can lead to the driver losing control. Use Caution when operating
on or around hills or obstacles.
5
24. Failure to slow down while turning may cause injury to the driver
and passenger.
25. This vehicle does not operate the same on all driving surfaces.
Operate ONLY on familiar terrain. If operating in the rain, the
FireFox 620 will require additional space to brake.
26. Slow speeds are necessary when operating the vehicle on wet,
slick, rough, or steep terrains. WARNING: Excessive speed
in these conditions may cause bodily harm to the driver,
passenger, or those nearby.
27. Do NOT attempt to roll, flip, spin-out, or jump while operating
the FireFox 620. Forcing the vehicle into these conditions may
cause bodily harm and/or damage to the vehicle.
28. When the vehicle is not in use, the engine and the fuel petcock
should be turned off.
6
ASSEMBLY
The first step in preparing your FireFox 620 for driving is

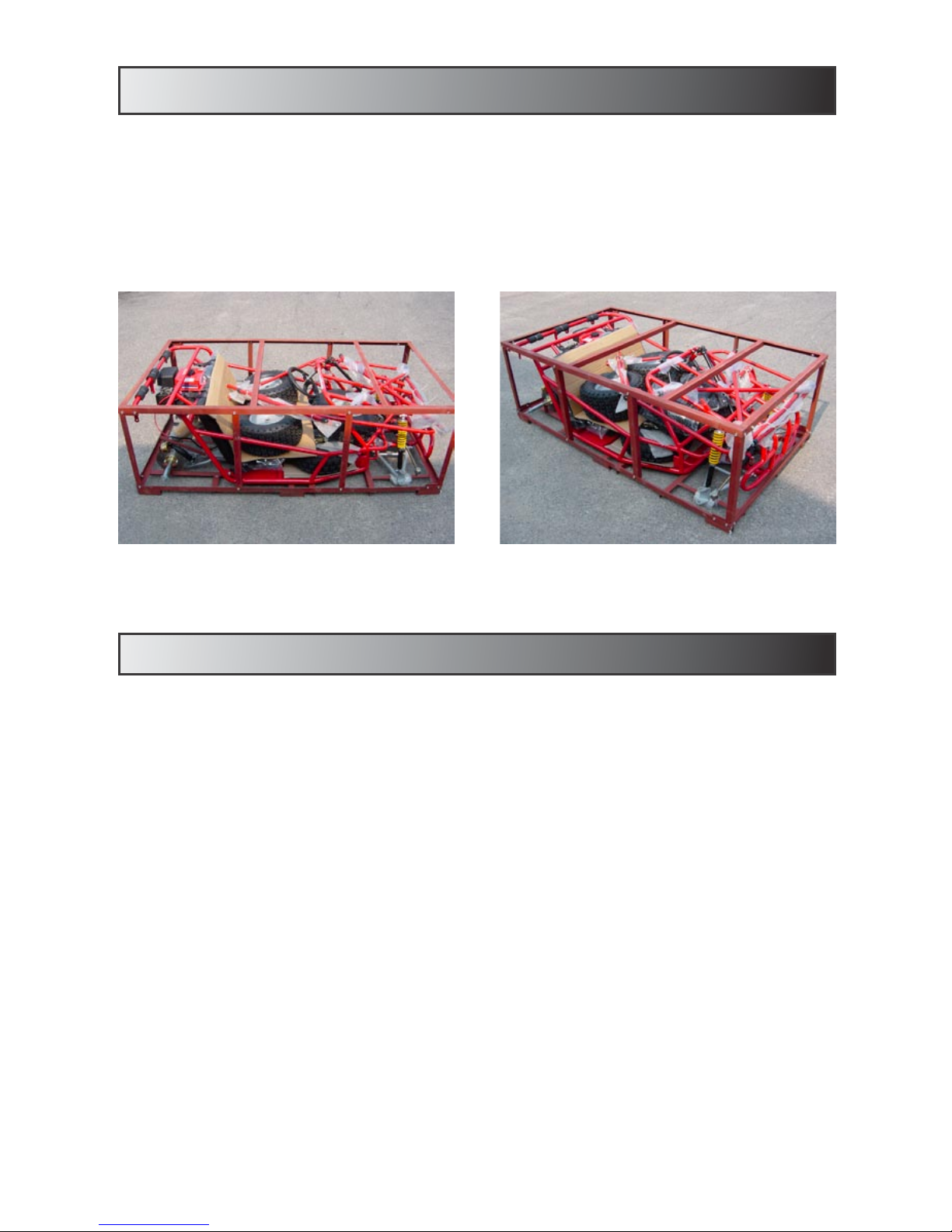

removing the parts from the shipping box.
Unpacking Parts
1. Remove all loose parts and place in an open area where they are
easily accessible and will not be damaged. It may be necessary
to cut the zip ties to access all loose parts.
2. After all loose parts are removed, begin assembling the go-kart.
3. Loose parts are listed on the following page. If you are
missing any parts, or require assistance in your assembly
process please contact us toll free: 1-877-855-0196 or visit our
website: www.tpg-info.com
4. Please refer to the parts list on the following page.
7
(1) Cross Support
(2) Front Tires
(2) Rear Tires
(1) Rear Support Tube
(1) Front Support Tube
(1) Storage Compartment
(1) Engine Guard
(2) Headrest
8
(2) Rear Shocks

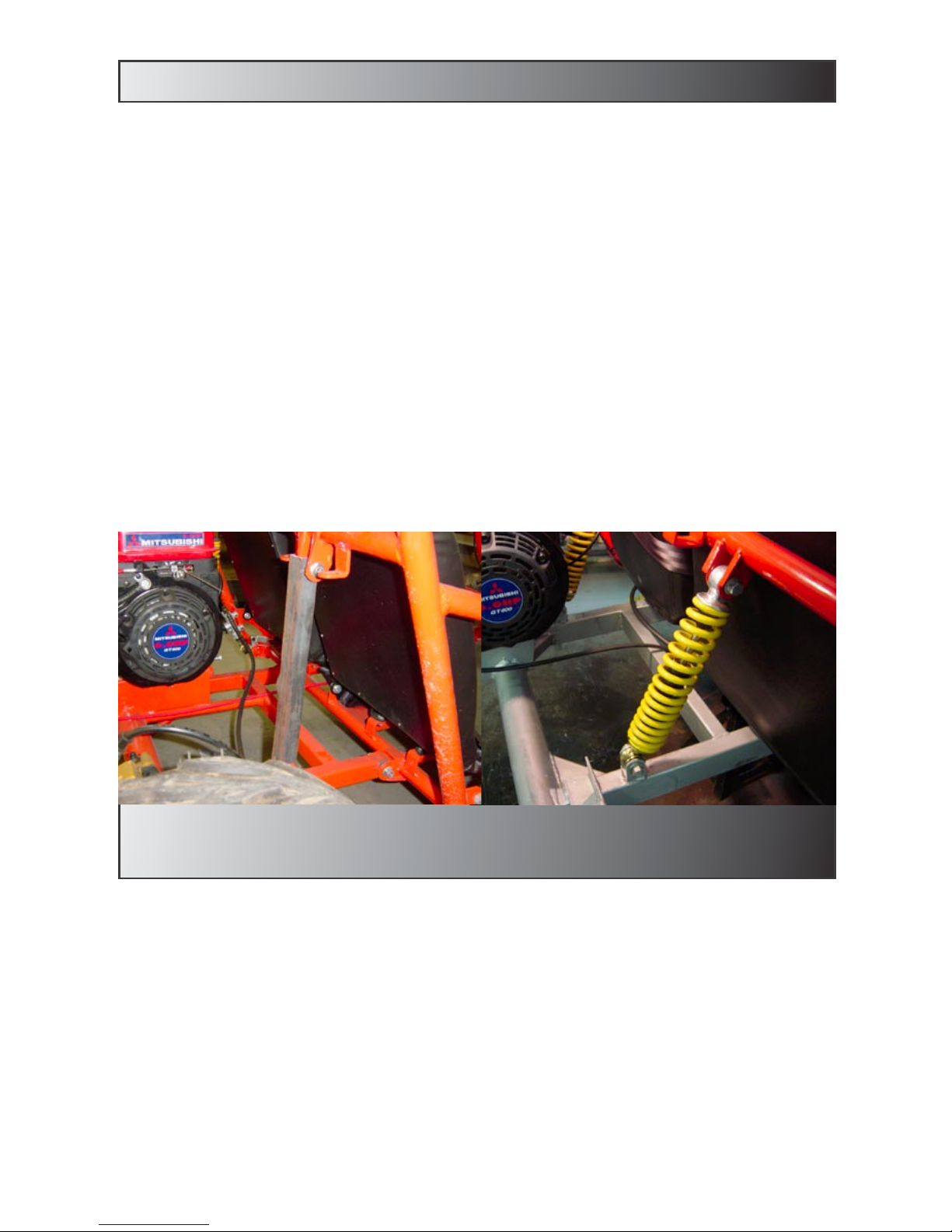

Rear Shocks
The FireFox 620 is shipped with the rear shocks not attached. It is
necessary to install the shocks in their appropriate positions before
attempting to operate the go-kart. Locate the rear shocks from the
loose parts. Remove the shipping bar from each side of the kart. IMPORTANT: The kart frame needs to be properly supported before removing the shipping bars and attempting to install the shocks. Slide
the shock into one of the top housings located on the go-kart frame,
ensuring that the coils are closest to the top housing. Align the predrilled holes in the bracket with the openings in the shock mount.
Slide the bolt through the holes and place the nut on the end of the
bolt and tighten. Repeat this process for the shocks on both sides of
the kart. Do NOT attempt to operate the FireFox 620 without installing both rear shocks in their correct operating positions.

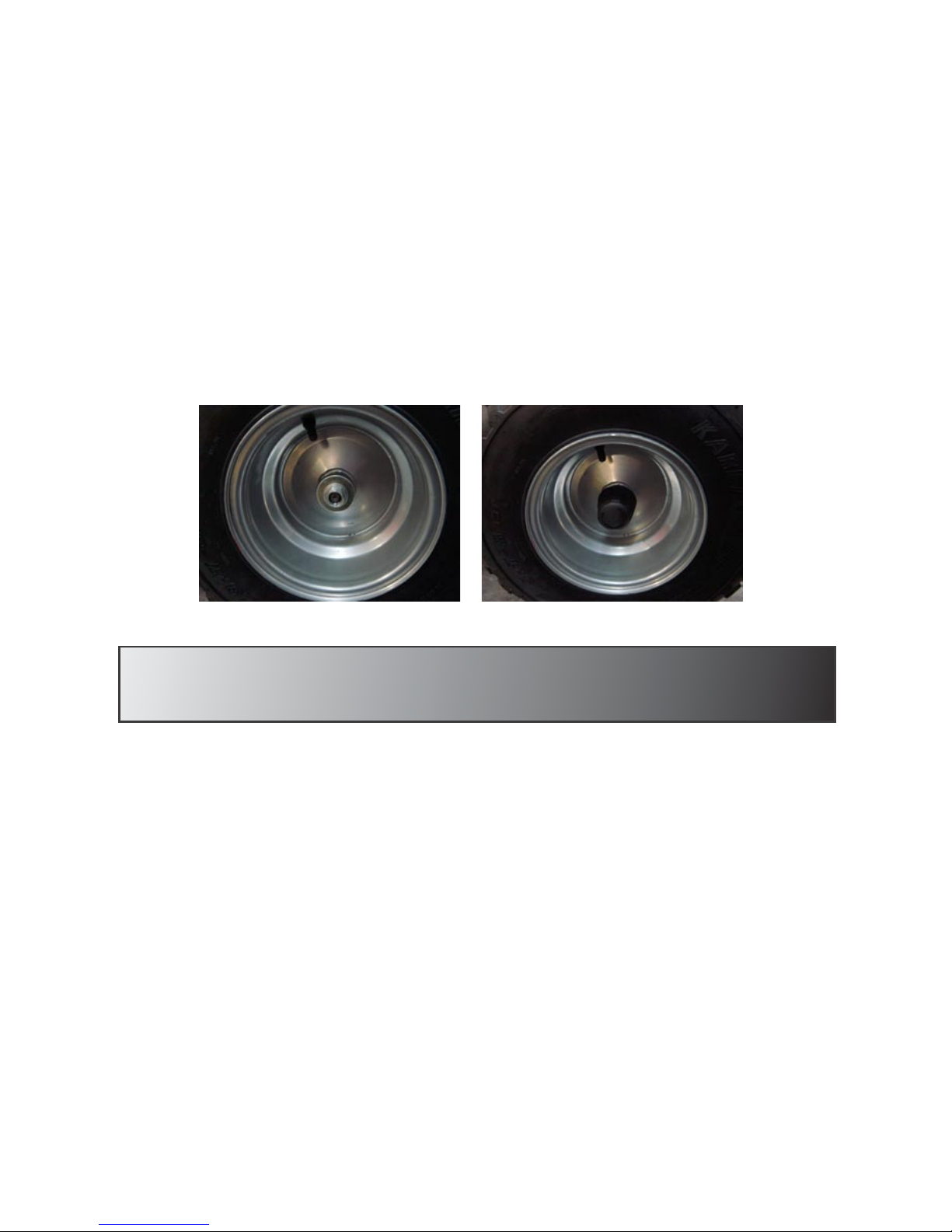

Rear Wheels
Rear Tire Size - 18 x 9.5-8
The rear of the kart needs to be raised in order to install the rear tires.
Be careful not to damage any kart components while raising the rear
of the kart. Remove the nut from the tire hub before attempting to
place the tire on. In order to ensure that the tires are assembled
correctly, place the tire on the hub so that the valve stem faces
outward and the directional arrow rotates towards the front of the gokart. To slide the tire on, align the hole in the rim of the tire with the
hole in the rear wheel hubs. Place the nut on the stud and tighten
9
using the provided tools. Repeat this process for the rear tires on
both sides of the kart.
IMPORTANT: The air pressure in the rear tires should register
between 18-20 psi.
NOTE: The rear tires for the FireFox 620 are directional tires.
While assembling the go-kart, please ensure that the valve stems are
facing outward and the directional arrow on the sidewall of the tire
rotates towards the front of the kart.

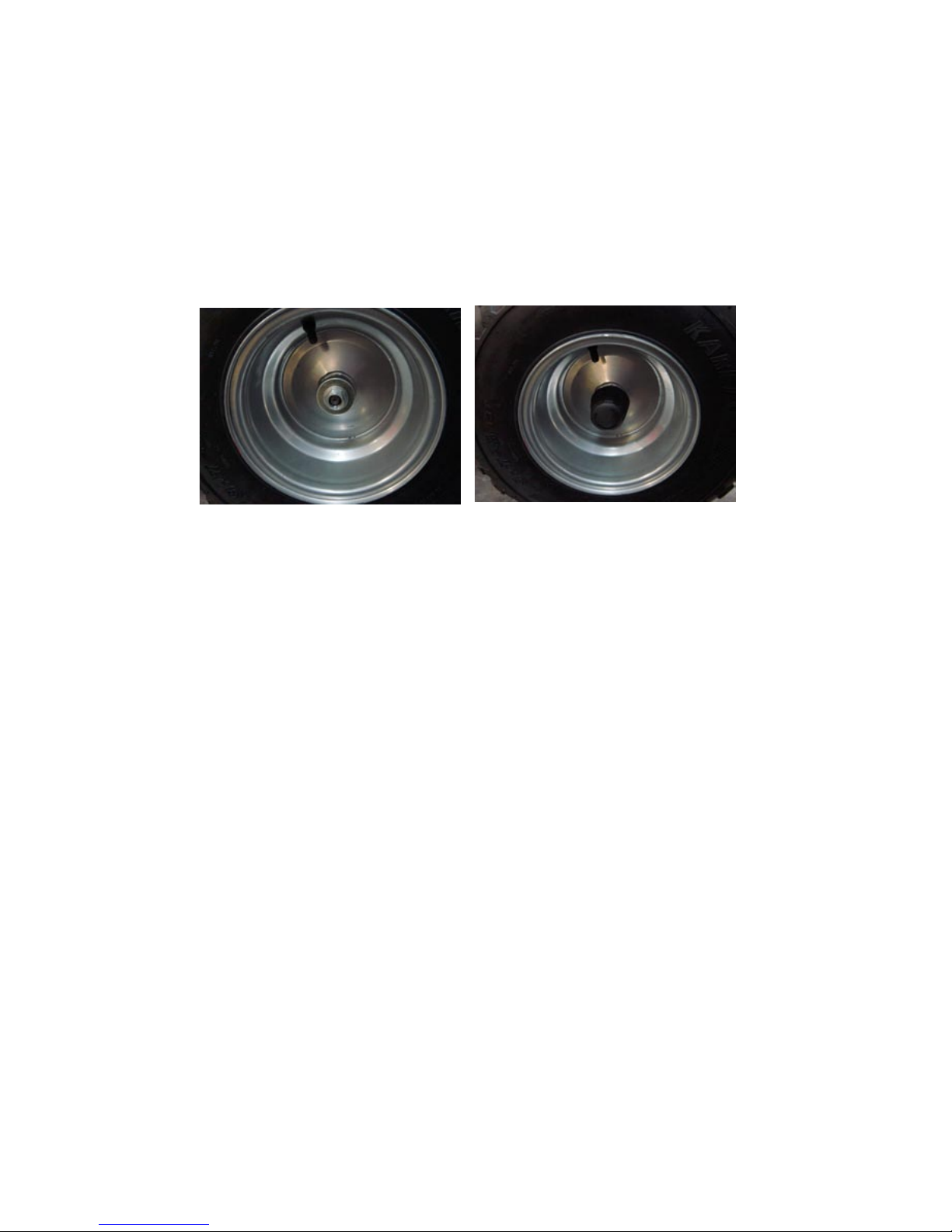

Front Spindles / Tie Rods
Front Tire Size - 19 x 7-8
In order to install the front tires, you will need to raise the front end
of the go-kart. Be careful not to damage any kart components while
raising the front end. Locate the drivers side tire. NOTE: The
spindle is already attached to the tire and needs to be attached to the
go-kart frame. The drivers side tire will have the directional facing
forward and the valve stem facing out while viewed from the drivers
side of the kart. Remove the nut and bolt from the spindle. Align
the pre-drilled holes in the spindle with the pre-drilled holes in the Aarm housing. The spindle should slide inside the housing. Slide the
bolts down through all pre-drilled holes and place the nut on the bolt.
Torque the bolt according to specifications. Remove the cotter
10
pin and castle nut from the tie rod on the drivers side. Slide the tie
rod end down through the top of the pre-drilled hole in the spindle.
Place the castle nut on the tie rod end and tighten. Slide the cotter pin
through the opening in the tie rod end and bend each end of the pin in
opposite ninety degree directions. Repeat this process for both front
spindles and tie rods.
IMPORTANT: The air pressure in the front tires should register
between 12-14 psi.
11

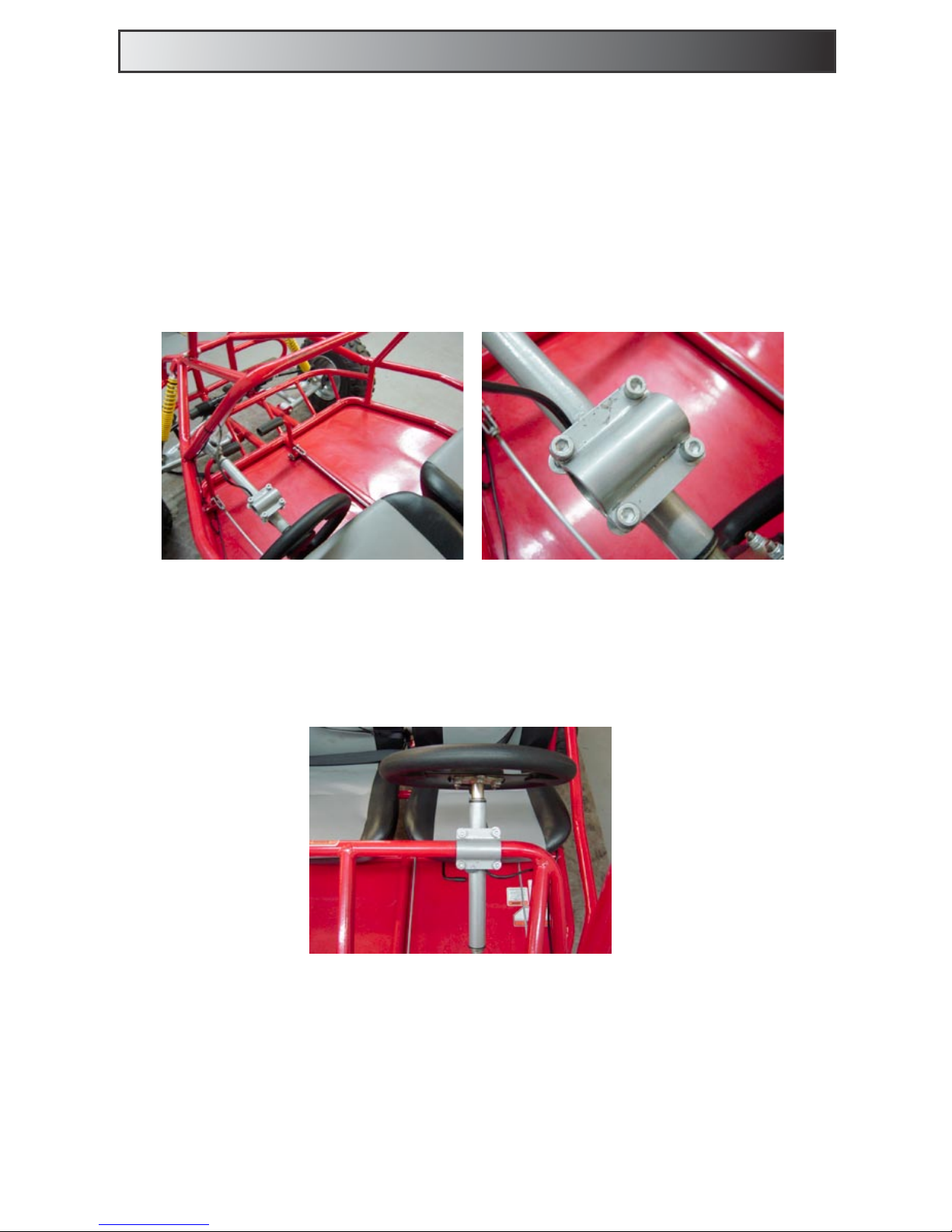

Steering Wheel
The steering wheel needs to be moved from the shipping position to
the operating position before attempting to operate the go-kart. Do
NOT attempt to operate this go-kart without moving the steering
wheel into the proper operating position.
1. Locate the steering wheel in front of the Driver’s seat. Remove
the four nuts and bolts holding the mounting plates together.
2. Place the plates in their appropriate position around the frame
of the kart directly in front of the Driver’s seat. The position of
the steering wheel should offer the driver the best possible control
of the kart. Tighten the bolts using the tools provided.
WARNING: Do NOT operate this go-kart without placing the steering wheel in the appropriate operating position. The operating
position should provide the driver the best possible control of the
vehicle during operation.
If you have any questions regarding assembly, please contact our
customer service team toll free: 1-877-855-0196, or visit our
website: www.tpg-info.com.

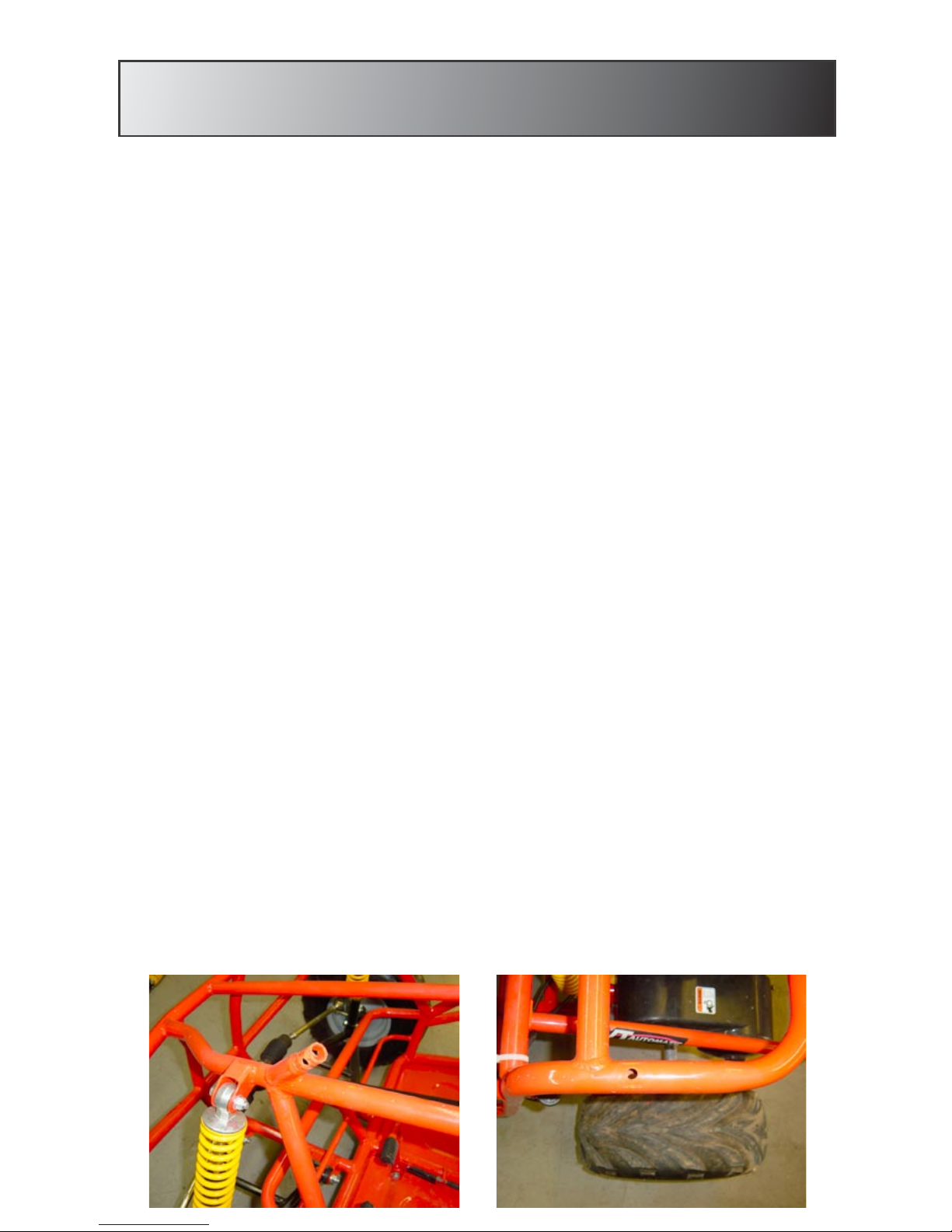

Brush Guard
Side Supports
1. Locate the two points of contact that hold the passenger side
support in place. The first contact point is located directly behind
the front shock. The second contact point is located directly
above the rear tire.
2. Locate the passenger side support. Remove the nut, bolt, and
washer from the front contact point. Remove the washer and bolt
from the rear contact point.
3. Align the pre-drilled holes in the front of the side support with the
pre-drilled holes in the bracket on the main frame.
4. Slide the bolt through all pre-drilled holes. Place the washer and
nut on the bolt in that order. NOTE: Do not tighten the nut all the
way on the bolt. Leaving slight movement in the supports will
allow for easier assembly.
5. Align the pre-drilled hole in the bottom of the side support with
the pre-drilled hole in the second contact point.
6. Place a washer on the bolt and slide the bolt through all pre-drilled
holes. NOTE: Do not tighten the nut all the way on the bolt.
Leaving slight movement in the supports will allow for easier
assembly.
7. Repeat this process for the Driver’s side support.
Front Support
1. Locate the shorter, straight tube from the loose parts.
2. Remove the bolt and washer from each end of the tube.
3. Align the pre-drilled holes in each end of the tube with the pre drilled holes in each side support.
4. For each side, place a washer on each bolt, and insert a bolt
through all pre-drilled holes and tighten. NOTE: Do not tighten
the bolts all the way. Leaving slight movement in the supports
will allow for easier assembly.
14

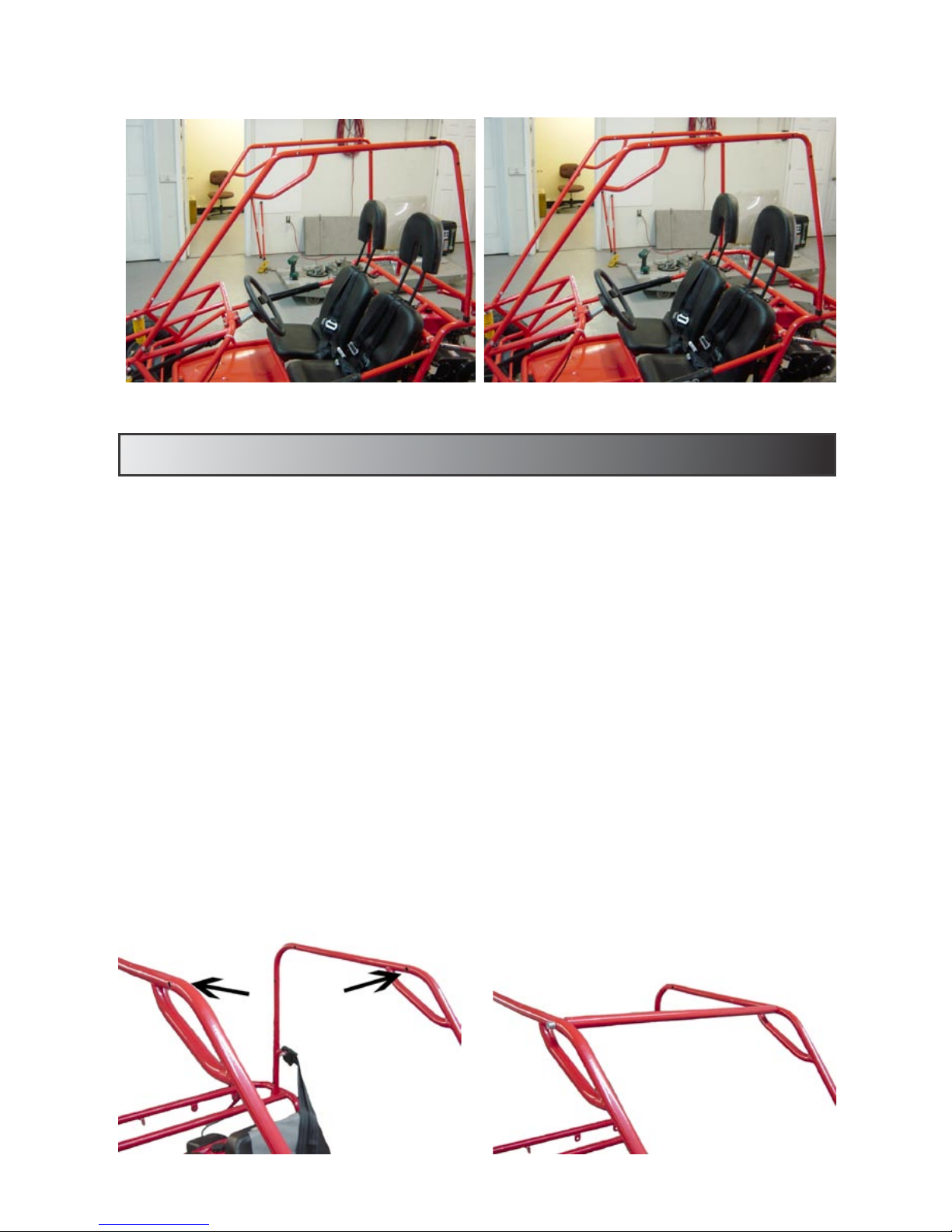

Rear Support
1. Locate the longer, straight tube from the loose parts.
2. Remove the bolt and washer from each end of the tube.
3. Align the pre-drilled holes in each end of the tube with the pre drilled holes in each side support.
4. Place a washer on each bolt, for each side, insert a bolt
through all pre-drilled holes and tighten. NOTE: Do not tighten
the bolts all the way. Leaving slight movement in the supports
will allow for easier assembly.

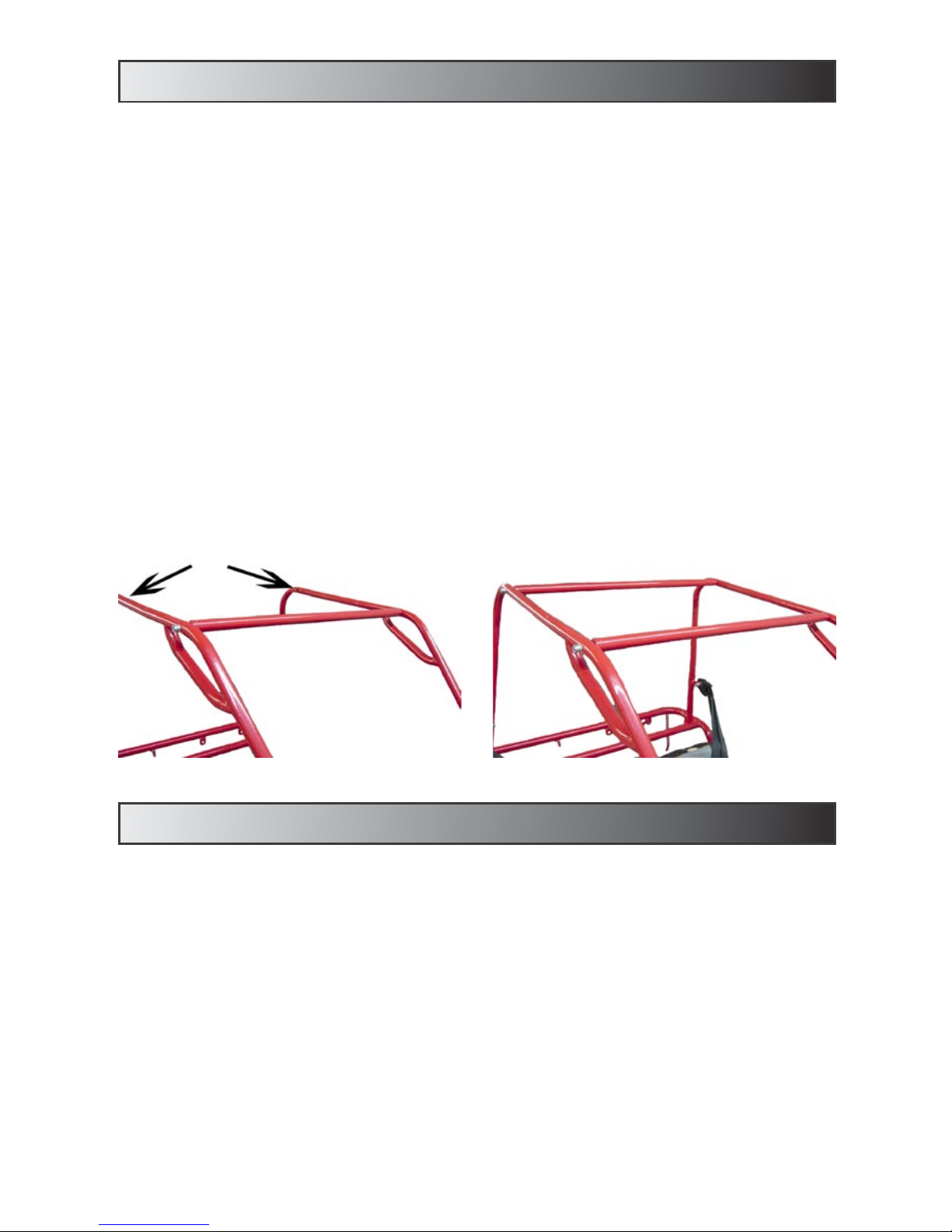

Cross Support
1. Locate the “X” shaped tube from the loose parts.
2. Remove the bolts and washers from each of the four contact
points.
3. Align the pre-drilled holes in each end of the “X” cross support
with the pre-drilled holes in each side support. IMPORTANT:
The top half of the “X” cross support is shorter than the bottom
half. The top two contact points on the “X” cross support should
15
align with the top two points on the side supports.
4. Align the pre-drilled holes in each end of the tube with the pre drilled holes in each side support.
5. Place a washer on the bolt for each side. Insert a bolt
through all pre-drilled holes and tighten.
IMPORTANT: After all brush guard components have been attached to the main frame of the kart, please tighten all bolts to ensure
that the brush guard is held firmly in place. Do NOT attempt to operate this go-kart unless all bolts have been properly tightened.
16

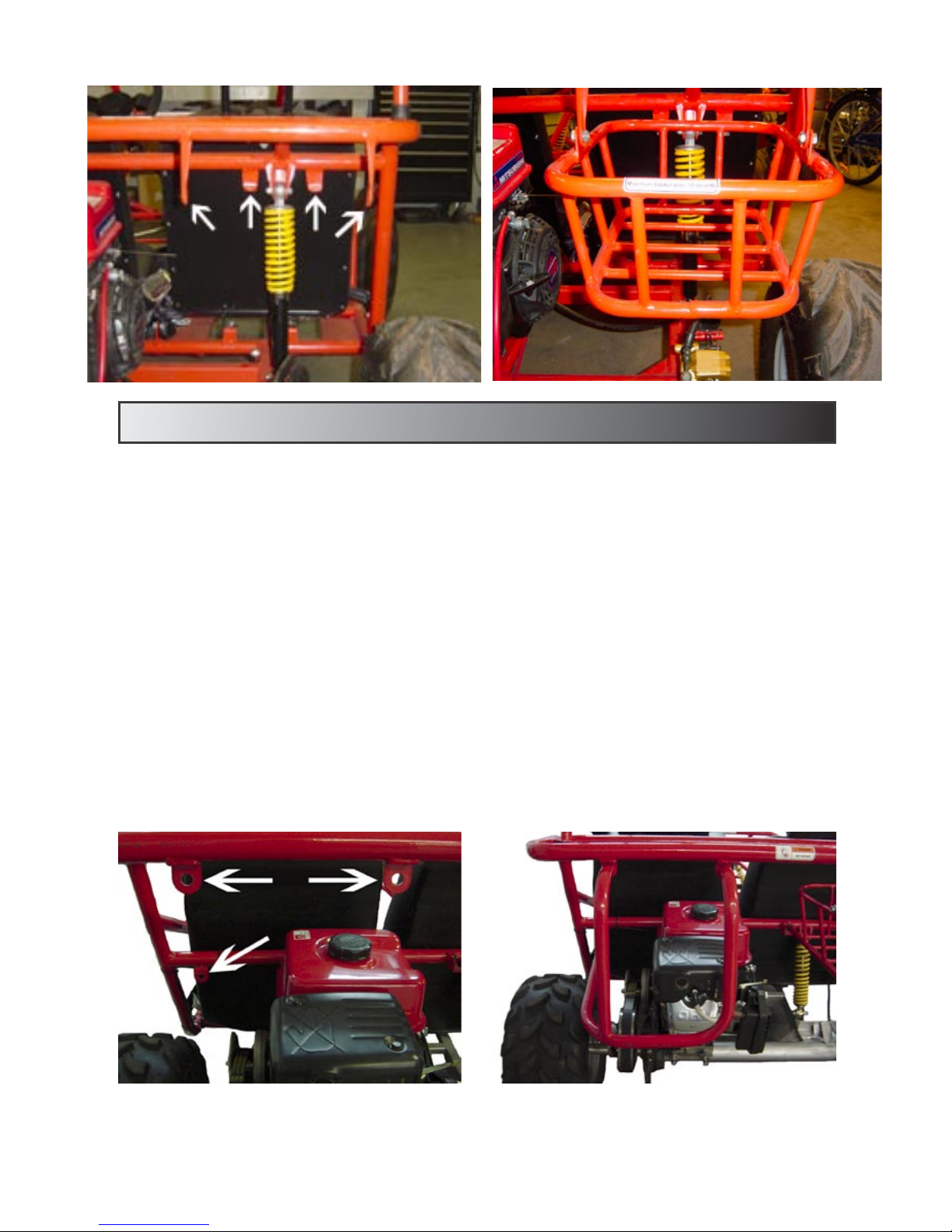

Storage Compartment
1. Locate the nuts and bolts that will hold the storage compartment
in place from the loose parts. .
2. Align the studs on the storage compartment with the pre-drilled
holes in the main frame directly behind the passenger’s seat.
Slide the studs through the pre-drilled holes and hand tighten the
bolts in place.
3. Align the pre-drilled holes in the brackets with the pre-drilled
holes on the top of the storage compartment. Place a washer on
the bolt and slide the bolt through the pre-drilled holes. Place
a nut on the bolt and tighten. Repeat this process for both contact
points.
4. Tighten all nuts and bolts for each contact point securely in place.
WARNING: The storage compartment is not designed to hold cargo
in excess of 10 lbs. Do not attempt to ride or allow others to ride in
the storage compartment. Allowing anyone or anything to ride in or
on the storage compartment may result in serious injury or death.
17
Engine Guard
1. Locate the engine guard from the loose parts.
2. Remove the nuts and washers from the three studs on the engine
guard.
3. Align the three studs on the engine guard with the three pre-drilled
holes in the kart main frame.
4. Slide the studs through the pre-drilled holes. Place a washer and
bolt over each stud. Tighten each nut securely in place.
18

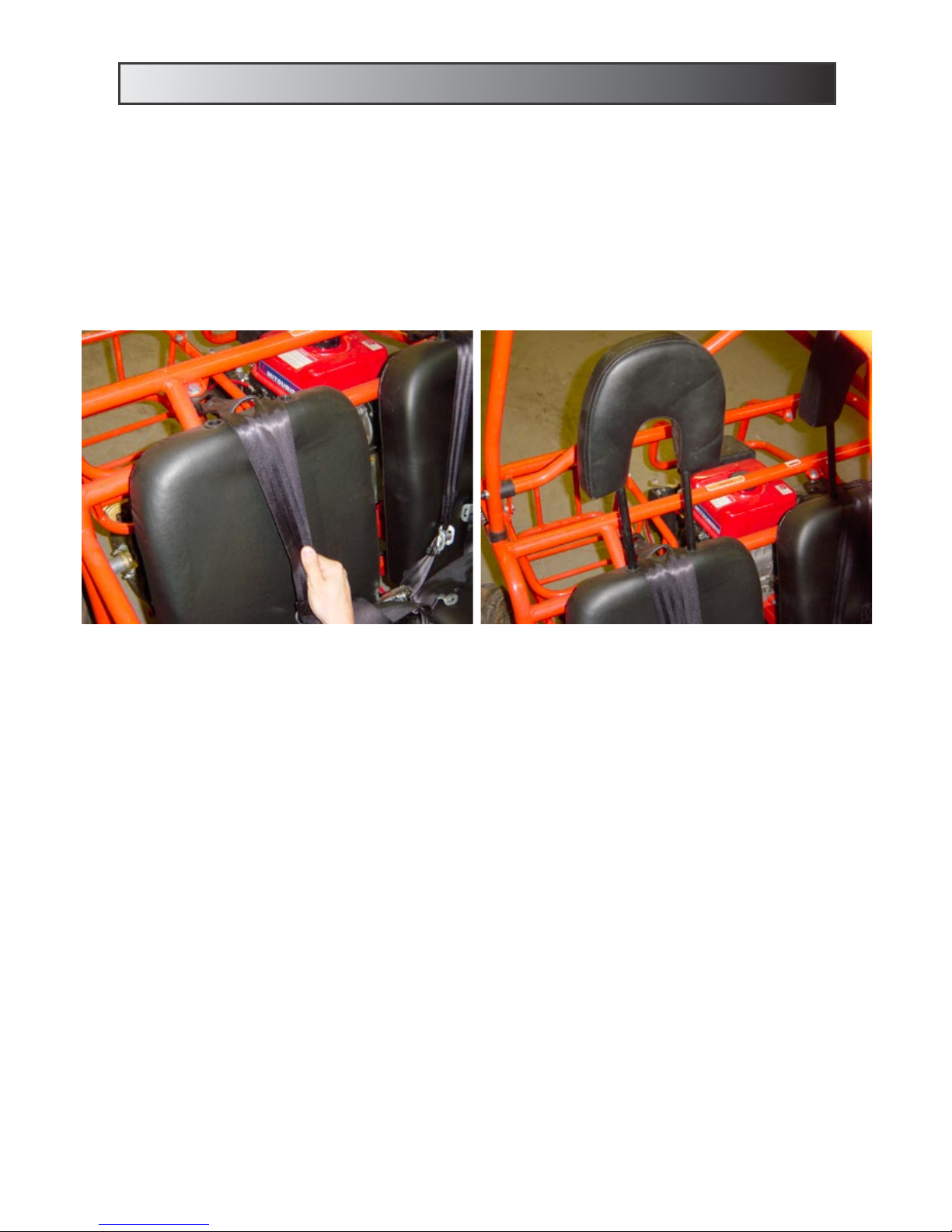

Headrest
Holding the release button on the side of the opening in the top of the
seat, slide the metal rods into the openings on the top of the driver’s
and passenger’s seats. Be sure that both metal pieces slide into the
holes on the tops of the seats and the headrest is facing the correct
position. NOTE: Be sure to hold the release button on the top of
each seat while inserting the headrest into their appropriate locations.
WARNING: Before attempting to operate this vehicle, be sure to
tighten all loose bolt connections. Do NOT attempt to operate this
vehicle with hand-tightened, or loose bolt connections.
19
Before Each Ride
Do NOT attempt to operate this vehicle unless you:
1. Have proper adult supervision if you are under the age of 18.
2. Read this manual and understand the warning labels.
3. Have an understanding of all the controls and how to properly
operate them.
4. On every ride in this vehicle, it is important that the driver
and passenger both wear their safety harness.
WARNING: Operating this vehicle without wearing an
approved motorcycle helmet, eye protection, and protective
clothing increases your chances of head and/or eye injury, and the
possibility of death in a severe accident. Always wear an
approved motorcycle helmet that fits properly, eye protection
(goggles or face shield), gloves, boots or closed toe shoes,
long-sleeved shirt or jacket, and long pants.
Driving Gear
Drivers and passengers should wear helmets at all times while
operating this vehicle. Helmets should be approved by an
organization (DOT, SNELL) and contain a label with said approval.
Goggles or a face shield should also be worn to protect operator’s
and passenger’s eyes and help improve sight. To protect the body,
all drivers/passengers should wear boots or closed toe shoes, gloves,
long sleeved shirt or jacket, and long pants along with the suggested
helmet and goggles. For added safety, purchase motorcycle boots,
off-road motorcycle gloves, as well as clothing with built in padding.
(Motorcycle driving pants, driving jersey, and chest protector)
WARNING: Allowing a person under the age of 16 to
operate this vehicle could be hazardous or result in severe injury
or death. Operating or becoming a passenger in this vehicle, or any
other vehicle, which is not recommended for his/her age could result
in loss of control resulting in severe injury or death. A minor under
18 should have adult supervision while operating this kart.
20
Check The Oil
To check the oil, remove the dipstick from the engine. (See Figures
below) Wipe clear any oil from the dipstick and place it back in
the hole it was removed from. Do NOT twist the dipstick back into

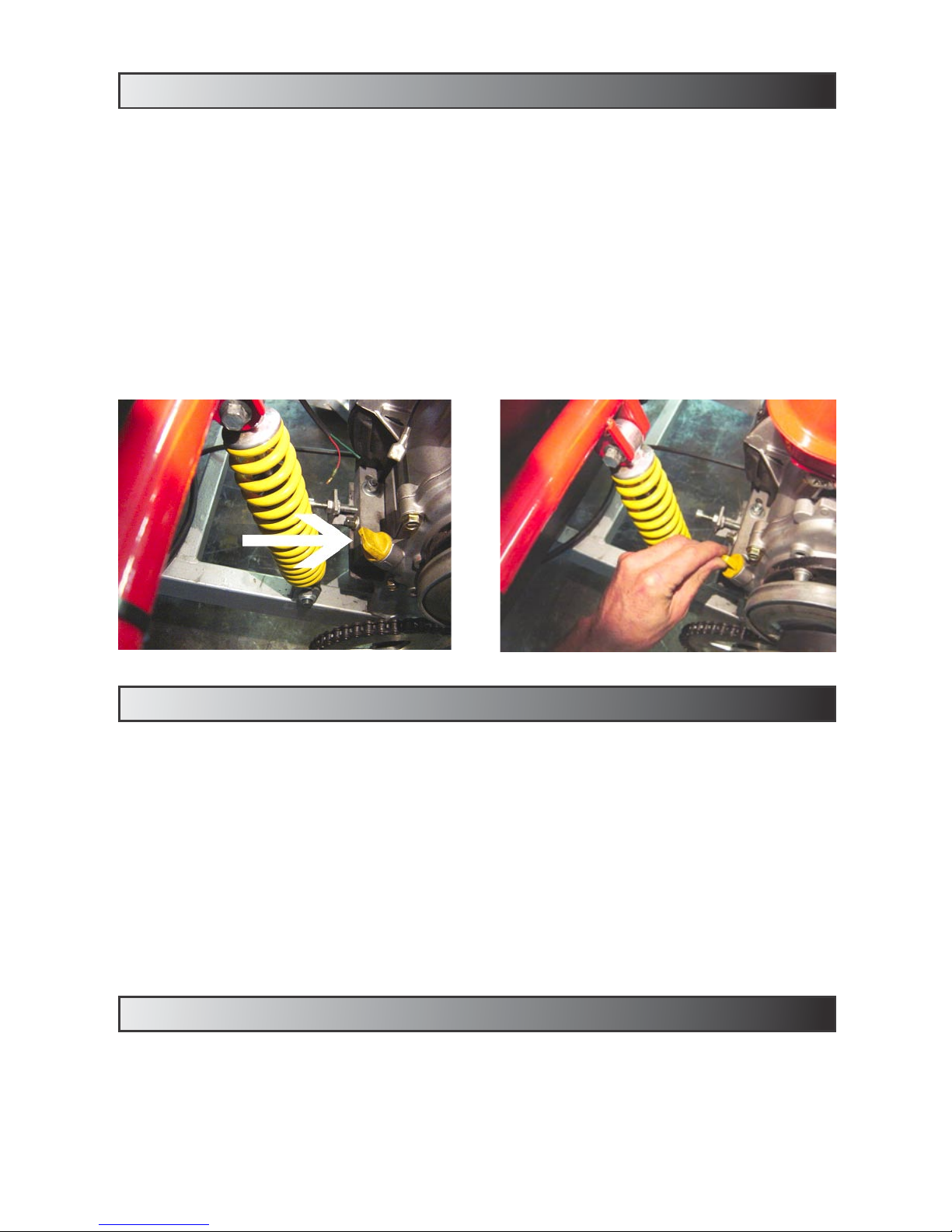

place, doing so will give you a false reading. Push the dipstick down
until the threads on the cap prevent it from going any farther. Pull
the dipstick out and check the oil level. If additional oil is needed,
please refer to the engine owner’s manual for directions on how to
add/change the oil. After checking the oil, be sure to screw the
dipstick back into place.
Check The Fuel
If more fuel is needed, using a funnel proceed to add gas to the tank
until it is full. Do NOT overfill the tank, doing so may cause damage
to the kart or increased risk of fire. Do NOT open the fuel cap while
the go-kart engine is running, doing so may cause serious injury. 93
octane fuel is recommended. Be sure that the fuel is clean and fresh.
If the kart will not be used for 30 days or longer, be sure to use a fuel
stabilizer. Do NOT attempt to mix the gas and the oil. This is a four
stroke engine and does NOT require the mixing of gas and oil.
Bolts/Connections
Inspect the connections on the go-kart that involve nuts, bolts, pins,
and other moving components. Be sure that all connections are
secure and that there are no major problems visible with the go-kart.
If bolts need to be tightened, use the proper wrench to tighten.
21
Tires
Check the air pressure in the tires. Inspect the tire for loose bolts,
worn spots, and damage. Do NOT operate the go-kart with any
damaged, worn, or loose components on the tire. If you have any
questions, contact our customer service center toll free:
1-877-855-0196 or visit our website: www.tpg-info.com.
Undercarriage
Before operating the FireFox 620, check the bottom of the unit for
grass, dirt, and/or objects that could cause an accident. Remove
these objects or any debris that is stuck to the bottom. Failure to
remove debris could result in injury.
Cables
Be sure that all cables are secured and in place. Do NOT operate the
go-kart if cables are loose or hanging. Check all connectors to ensure
that they are firmly in place.
Brake Test
On level ground, with the driver/passenger seated with their seat
belts properly fastened, release the handbrake and SLOWLY push the
go-kart from behind. Have the driver apply the foot brake to ensure
that the vehicle will stop. Do NOT attempt to push the vehicle up or
down any angle of slope, doing so may cause injury.
Brakes
Be sure that the foot brake is working properly and that all associated
cables are connected. Check for a smooth operating foot pedal.
When the pedal is engaged, it should engage smoothly and with firm
resistance. When the pedal is released, it should return to its original
position. Do NOT attempt to operate this go-kart if you experience
problems with your brakes. Immediately contact a customer service
representative.
22
Gas Pedal
The pedal should not stick when applied or released. The pedal
should also return to the original position when released. If the pedal
sticks or hangs, please contact a customer service representative.
Loose Parts
Check the go-kart for any loose bolts, loose components, or leaks.
Any of these problems could affect the performance of the vehicle.

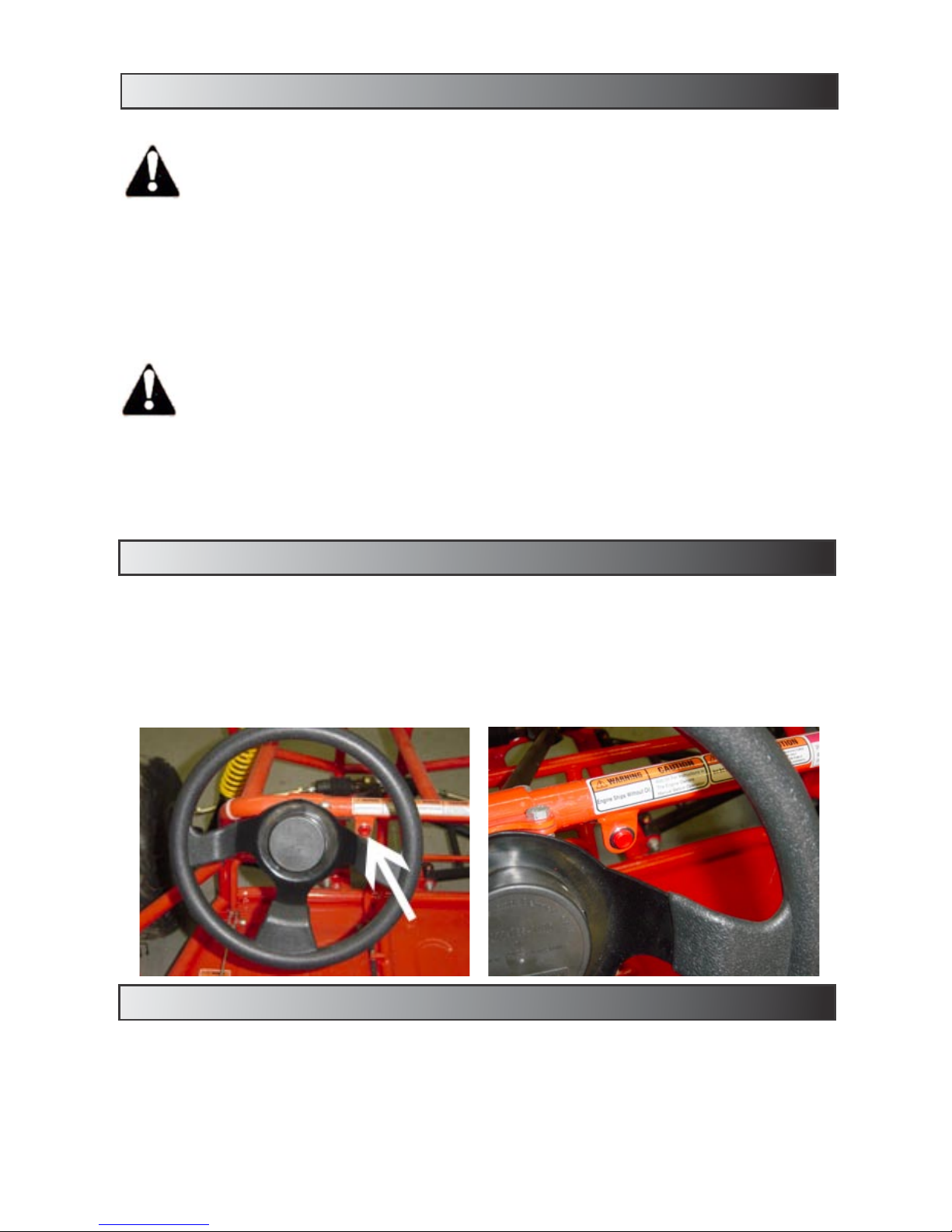

Stop Engine Switch
With the engine running, press the red engine stop button located
next to the steering wheel. Make sure that the engine stops. Do NOT
operate the go-kart if engine stop switch does not work properly.
No Drugs Or Alcohol
It is not safe to operate the FireFox 620 while under the influence of
alcohol or any type of drug. Choosing to operate this vehicle under
these conditions may result in serious injury to the driver and/or
passenger. If you have any questions about prescription medication,
please contact your physician.
WARNING: Operating this vehicle after consuming
alcohol or drugs can seriously impair your judgment, cause you to
react more slowly, effect your balance and perception, and could
result in serious injury or death. Never consume alcohol or drugs
while operating this vehicle.
WARNING: The exhaust system on this vehicle is
extremely hot while riding and immediately following operation.
Touching the exhaust system during or after operation could result
in severe burns. After use, park vehicle out of reach of children and
by-standers.
23
Driving
WARNING: Do not operate this vehicle without first
reading this manual. To ensure a safe riding experience, familiarize
yourself with all of the controls necessary to operate this unit. Before
attempting to start the engine, be sure that all riders are seated
properly with his/her seat belt securely fastened.
WARNING: If there is not a passenger riding in the
FireFox 620, be sure that the passenger seat belt is properly buckled.
Buckling the passenger’s seat belt without a passenger riding will
keep the seat belt from getting caught in moving go-kart components.
Stop Engine Switch
It is important to perform a test on the stop engine switch before
riding. With the engine running, press the red engine stop button.
The engine should shut off. If the engine does not shut off during the
test, Do NOT operate this vehicle and contact customer service
immediately.
Safety Harness
Do NOT operate or ride in this vehicle without properly wearing the
safety Harness. The FireFox 620 has (2) safety harnesses, (1) for the
driver and (1) for the passenger. Do NOT allow anyone to operate
or ride in this vehicle without being properly seated with their safety
harness securely fastened and properly adjusted. This vehicle seats
(2) people, (1) driver and (1) passenger.
To connect the harness, properly sit in the seat and place each arm
through the shoulder strap on the corresponding side. After
shoulder straps are in place, buckle the lap belt and tighten by pulling
the loose ends away from the buckle. Proceed to tighten the shoulder
straps by pulling the loose ends towards the bottom of the go-kart..
Accelerator
The foot pedal on the RIGHT side is the accelerator pedal and
controls the speed of the go-kart. The engine utilizes an automatic
transmission and requires NO manual clutch or changing of gears.
Brake
The foot pedal on the LEFT side is the brake pedal and controls the
slowing/stopping of the go-kart. Applying pressure to this pedal
will slow the vehicle. If the brakes are not functioning properly, do
NOT attempt to drive this vehicle and immediately contact customer
service. When applying brakes, release the accelerator.
BRAKE
ACCELERATOR
Starting The Engine
Please reference the engine owner’s manual for proper starting
procedures.
WARNING: Prior to starting the engine, check the
throttle assembly to ensure that when the pedal is pushed all the way
forward the assembly is working smoothly and returns to idle when
released. Do NOT operate if pedal or engine throttle linkage fail to
return to idle. If you are unable to correct the problem through
lubrication, adjustment, or replacement of worn parts, contact our
customer service center for assistance.
Passengers
The FireFox 620 is designed to carry (1) driver and (1) passenger.
The combined weight of the driver and passenger should not exceed
180 kilograms or 400 pounds. Exceeding this weight limit may
create hazardous driving/riding conditions.
While Driving
This vehicle is intended for use on off-road surfaces. Driving on
paved surfaces can affect the handling, control, and overall feel of the
vehicle. Do NOT drive the go-kart on paved surfaces.
WARNING: Operating this vehicle on paved surfaces
may seriously effect handling and control of the vehicle. Never
operate this vehicle on any paved surface. Furthermore, Do NOT
operate this vehicle on public streets, roads, or highways, doing so
may cause a collision with another vehicle.
Control Speed While Driving
Driving this vehicle at excessive speeds may produce dangerous
conditions for the driver and passenger. Excessive speeds cause
slower reaction times, and hinder the performance of the vehicle.
26
Do Not Attempt Stunts
While driving the FireFox 620, it is very important to keep all four
wheels on the ground. Attempting to perform stunts or any tricks
while driving this vehicle may result in serious injury to all parties
involved.
Rolling Over
It is possible for all off-road vehicles to roll over if not properly
operated, especially when riding over rough/uneven terrain, or
attempting to perform sliding stops, or using excessive speed in
turns. If the go-kart begins to roll, keep hands and feet inside the
vehicle. Always operate this vehicle on familiar terrain at proper
speeds. If attempting to operate this vehicle on unfamiliar terrain,
thoroughly check the terrain for dangerous conditions. Do not use
excessive speeds when dealing with new terrain. It is possible for the
driver to drive beyond his/her ability while operating this vehicle.
Maintenance
Engine Oil
The engine oil must be changed after the first five (5) hours of use.
This will allow for an initial break in period for the engine. After
the first five hours, the engine oil should be changed every fifty (50)
hours. This engine uses the following engine oil: SF-SG (SAE 10W-
40).
Checking the engine oil
1. Park the go-kart on a flat surface.
2. Unscrew dipstick and wipe with a clean cloth.
3. Return the dipstick to the hole. For an accurate reading, push the
dipstick in until the threads catch. Do not screw the dipstick back
into the hole, doing so will cause a false oil reading.
27
Replacing The Spark Plug
1. Clean the carbon build-up from around the spark plug to prevent
carbon from falling into the cylinder when the spark plug is
removed.
2. The spark plug is located above the battery housing, directly
behind the passenger’s seat.
3. Remove the spark plug wire from the spark plug housing.
4. Remove the spark plug from the kart.
5. Clean the carbon build-up on the spark plug with a steel brush.
6. The spark plug gap should be between 0.06 mm and 0.07mm
wide.
WARNING: If the spark plug appears to have too
much carbon build-up, or excessive wear, it should be replaced.
Storing
Please reference your engine owner’s manual for proper procedures
regarding storage of the FireFox 620.
WARNING: Do NOT handle gas near an open flame
or while smoking.
WARNING: The pipe, muffler, and heat shields are
extremely hot during and after operation. Do NOT touch them until
they have cooled. The engine exhaust from this product contains
chemicals known to cause cancer, birth defects, and other
reproductive harm. Gasoline powered engine exhaust fumes are
poisonous and may cause loss of consciousness, and/or death. Avoid
prolonged exposure.
28
IMPORTANT INFORMATION
VIN Number
1. The VIN number is stamped into the frame on the drivers side
where the safety harness connects to the frame.
2. Please take the time to write this number down in the manual.
The VIN number will be required for ordering parts or attempting
to contact customer support.
Gas
1. It is recommended that this go-kart operate on unleaded fuel, rated
93 octane. The minimum octane rating for fuel used in this go kart is 83.
WARNING: Use caution when handling gasoline to avoid
injury.
- Always refuel outside in a well ventilated area with the engine
turned off. Allow the engine to cool before adding fuel.
- Do NOT spill any fuel while fueling and be sure to tighten gas
cap when fueling is complete. Do NOT smoke or expose flames
to gasoline. If fuel comes into contact with the skin, rinse area
immediately.
Oil
Engine Oil
1. This engine operates on SF-SG (SAE 10W-40) motor oil.
2. Please refer to the engine owner’s manual for proper instructions
on how to change the engine oil.
VIN Number:
________________
29
Service Intervals
Interval
(Months)
Service
Date
Service Performed By: Type of Service
1
3
6
12
18
24
30
36
42
48
54
60
Torque Chart
FASTENER
Thread Size
TORQUE
(ft/lbs/in lbs)
T O R Q U E
(Nm)
5 mm bolts and nuts 39-52 in lbs 4.5-6 Nm
6mm bolts and nuts 69-104 in lbs 8-12 Nm
8mm bolts and nuts 13-18 ft lbs 18-25 Nm
10 mm bolts and nuts 22-29 ft lbs 30-40 Nm
12 mm bolts and nuts 36-43 ft lbs 50-60 Nm
4 mm screws 22-30 in lbs 2.5-3.4 Nm
5mm screws 30-43 in lbs 3.5-5 Nm
6 mm hex bolts 87-121 in lbs 10-14 Nm
8 mm hex bolts 17-22 ft lbs 24-30 Nm
10 mm hex bolts 25-32 ft lbs 35-45 Nm
30
California Emissions Warranty
Your Warranty Rights And Obligations
The California Air Resources Board and Tomberlin Product Group (TPG). are pleased to
explain the emission control system warranty on your 2005 small off-road engine.
In California, new small off-road engines must be designed, built and equipped to meet the
State’s stringent anti-smog standards. TPG must warrant the emission control system on
your small off-road engine for the periods of time listed below provided there has been no
abuse, neglect or improper maintenance of your small off-road engine.
Your emission control system may include parts such as the carburetor or fuel-injection
system, the ignition system, and catalytic converter. Also included may be hoses, belts,
connectors and other emission-related assemblies. Where a warrantable condition exists,
TPG will repair your small off-road engine at no cost to you including diagnosis, parts and
labor.
Manufacturer’s Warranty Coverage:
The 1995 and later small off-road engines are warranted for two years. If any emission
related part on your engine is defective, the part will be repaired or replaced by TPG.
Owner’s Warranty Responsibilities:
- As the small off-road engine owner, you are responsible for the performance of the
required maintenance listed in your owner’s manual. TPG recommends that you retain all
receipts covering maintenance on your small off-road engine, but TPG cannot deny warranty
solely for the lack of receipts or for your failure to ensure the performance of all scheduled
maintenance.
- As the small off-road engine owner, you should however be aware that TPG may deny you
warranty coverage if your small off-road engine or a part has failed due to abuse, neglect,
improper maintenance or unapproved modifications.
- You are responsible for presenting your small off-road engine to a TPG distribution center
as soon as a problem exists. The warranty repairs should be completed in a reasonable
amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should
contact a customer service representative at 1-877-855-0196.
-Warranty Parts List
Carburetor, Air Cleaner Element, Intake Manifold, Spark Plug: Ignition Coil & Magneto
Assembly, Hoses, Connectors and Assemblies
Defects Warranty Requirements for 1995 and Later Small Off-Road Engines.
(a) Applicability. This section applies to 1995 and later small off-road engines. The warranty
period begins on the date the engine or equipment is delivered to an ultimate purchaser.
(b) General Emissions Warranty Coverage. The manufacturer of each small off-road engine
must warrant to the ultimate purchaser and each subsequent purchaser that the engine is:
(1) Designed, built, and equipped so as to conform with all applicable regulations adopted
by the Air Resources Board pursuant to its authority in Chapters 1 and 2, Part 5, Division 26
of the Health and Safety Code; and
(2) Free from defects in materials and workmanship that cause the failure of a warranted part
to be identical in all material respects to the part as described in the engine
manufacturer’s application for certification for a period of two years.
(c) The warranty on emissions-related parts will be interpreted as follows:
31
(1) Any warranted part that is not scheduled for replacement as required maintenance in the
written instructions required by Subsection (d) must be warranted for the warranty period
defined in Subsection (b)(2). If any such part fails during the period of warranty coverage, it
must be repaired or replaced by the engine manufacturer according to Subsection (4) below.
Any such part repaired or replaced under the warranty must be warranted for the remaining
warranty period.
(2) Any warranted part that is scheduled only for regular inspection in the written instructions required by Subsection (d) must be warranted for the warranty period defined in
Subsection (b)(2). A statement in such written instructions to the effect of “repair or replace
as necessary” will not reduce the period of warranty coverage. Any such part repaired or
replaced under warranty must be warranted for the remaining warranty period.
(3) Any warranted part that is scheduled for replacement as required maintenance in the
written instructions required by Subsection (d) must be warranted for the period of time
prior to the first scheduled replacement point for that part. If the part fails prior to the first
scheduled replacement, the part must be repaired or replaced by the engine manufacturer
according to Subsection (4) below. Any such part repaired or replaced under warranty must
be warranted for the remainder of the period prior to the first scheduled replacement point
for the part.
(4) Repair or replacement of any warranted part under the warranty provisions of this article
must be performed at no charge to the owner at a warranty station.
(5) Notwithstanding the provisions of Subsection (4) above, warranty services or repairs
must be provided at all manufacturer distribution centers that are franchised to service the
subject engines.
(6) The owner must not be charged for diagnostic labor that leads to the determination that
a warranted part is in fact defective, provided that such diagnostic work is performed at a
warranty station.
(7) The engine manufacturer is liable for damages to other engine components proximately
caused by a failure under warranty of any warranted part.
(8) Throughout the engine’s warranty period defined in Subsection (b)(2), the engine manufacturer must maintain a supply of warranted parts sufficient to meet the expected demand
for such parts.
(9) Any replacement part may be used in the performance of any warranty maintenance or
repairs and must be provided without charge to the owner. Such use will not reduce the warranty obligations of the engine manufacturer.
(10) Add-on or modified parts that are not exempted by the Air Resources Board may not be
used. The use of any non-exempted add-on or modified parts will be grounds for disallowing
a warranty claim made in accordance with this article. The engine manufacturer will not be
liable under this article to warrant failures of warranted parts caused by the use of a nonexempt add-on or modified part.
(11) The Executive Officer may request and, in such case, the engine manufacturer must
provide, any documents that describe that manufacturer’s warranty procedures or policies.
(d) Each manufacturer must include a copy of the following emission warranty parts list
with each new engine, using those portions of the list applicable to the engine.
(1) Fuel Metering System
(i) Carburetor and internal parts (and/or pressure regulator or fuel injection system).
(ii) Air/fuel ratio feedback and control system.
(iii) Cold start enrichment system.
(2) Air Induction System
32
Notes
33
Notes
34
Tomberlin Product Group
3123 Washington Road
Augusta, Georgia, 30907
Toll Free: 1-877-855-0196
www.tpg-info.com
Do not return this product to the
retailer. If you require assistance,
please contact customer support toll
free: 1-877-855-0196 or visit our
website: www.tpg-info.com.
