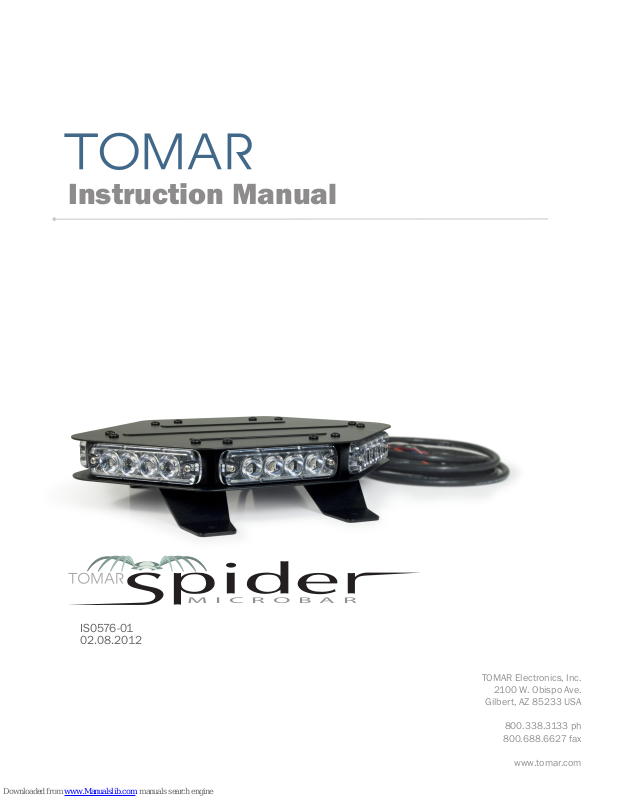

Tomar Spider Microbar Instruction Manual

Instruction Manual

MICROBAR

IS0576-01

02.08.2012

TOMAR Electronics, Inc.

2100 W. Obispo Ave.

Gilbert, AZ 85233 USA

800.338.3133 ph

800.688.6627 fax

www.tomar.com

MICROBAR

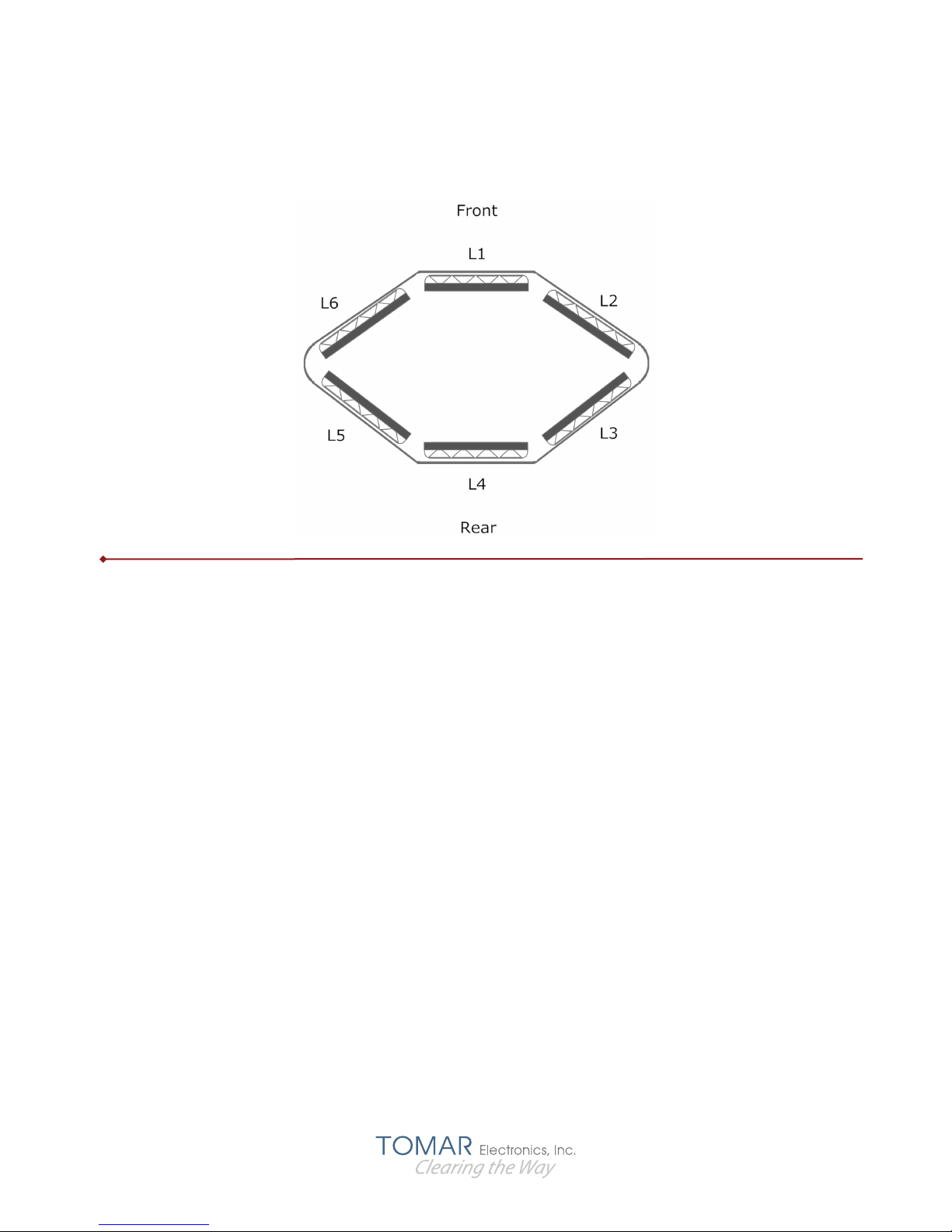

Spider Microbar Wiring

Red +12Vdc

Black Ground

Orange Warning Mode 1

Blue Warning Mode 2

Orange & Blue Warning Mode 3

Red/White Alt Mode Circle Fill

Brown/White Alt Mode Circle Trail

Red/White & Brown/White All Lamps On

Brown N/A

Green Intensity Control

Programming Instructions

Entering Programming Mode:
To activate the Lstick programming mode, connect the BLACK Wire to ground then simultaneously
attach the GREEN wire and the RED wire to +12 Vdc.

Changing Warning Patterns and Flash Rates:
Six unique warning patterns can be selected by using different combinations of the ORANGE, BLUE,
BROWN/WHITE and RED/WHITE wires. See example below:

ORANGE WIRE Warning Mode 1
BLUE WIRE Warning Mode 2
ORANGE and BLUE WIRES Warning Mode 3
BROWN/WHITE WIRE Alt Mode 1*
RED/WHITE WIRE Alt Mode 2*
BROWN/WHITE and RED/WHITE WIRES Alt Mode 3*

*Alt modes will override warning modes if both are activated simultaneously.

To change the warning mode, attach the wire(s) corresponding to the mode to be changed to +12Vdc.

Tap the Red/WHITE wire to +12Vdc to advance the flash pattern. See the list of available flash patterns
below.

A unique flash rate can be assigned to each warning mode. To change the flash rates enter the
programming mode as described above. Move the green wire from +12Vdc to Ground. Tap the
BROWN/WHITE wire to +12Vdc to advance the flash rate. See the list of available flash rates below.
