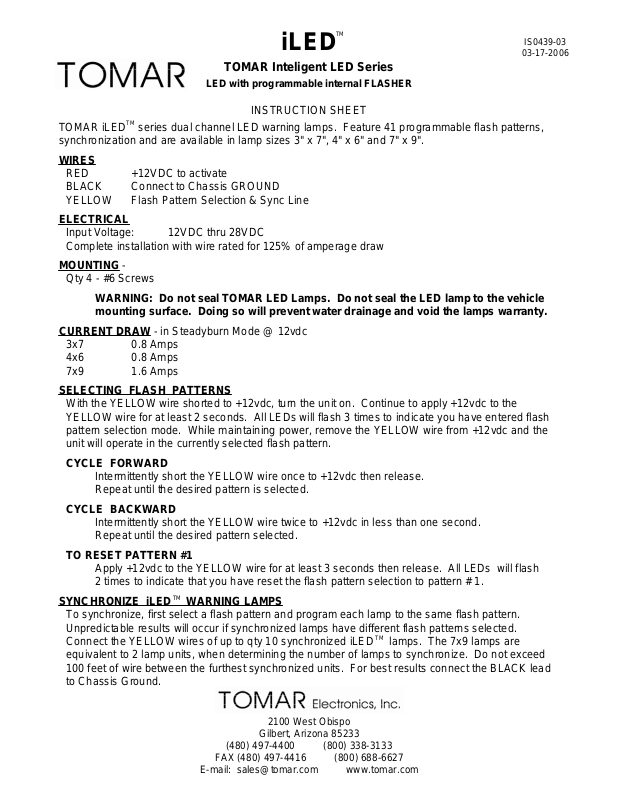

Tomar Inteligent LED Series, iLED Instruction Sheet

iLED

IS0439-03

03-17-2006

TOMAR Inteligent LED Series

LED with programmable internal FLASHER

INSTRUCTION SHEET

TOMAR iLED seri es dual channel LED warning lamps . Feature 41 programmable flash p atterns, synchronization and are available in lamp sizes 3" x 7", 4" x 6" and 7" x 9".

WIRES

RED +12VDC to activa te BLACK Connect to Chassis GROUND YELLOW Flash Pattern Select ion & Sync Line

ELECTRICAL

Input Voltage: 12VDC thru 28VDC Comp lete ins tallat ion with wire rat ed for 12 5% of amperage dr aw

MOUNTING -

Qty 4 - #6 Screws

WARNING: Do not seal TOMAR LED Lamps. Do not seal the LED lamp to the vehicle mounting surface. Doing so will prevent water drainage and void the lamps warranty.

CURRENT DRAW - in Steadyburn Mode @ 12vdc

3x7 0.8 Amps 4x6 0.8 Amps 7x9 1.6 Amps

SELECTING FLASH PATTERNS

With the YELLOW wire shorted to +12vdc, turn the unit on. Continue to apply +12vdc to the YELLOW wire for at least 2 seconds. All LEDs will flash 3 times to indicate you have entered flash pattern selection mode. While maintaining power, remove the YELLOW wire from +12vdc and the unit will operate in the currently selected flash pattern.

CYCLE FORWARD

Intermittently short the YELLOW wire once to +12vdc then release. Repeat until the desired pattern is select ed.

CYCLE BACKWARD

Intermittently short the YELLOW wire twice to +12vdc in less than one second. Repeat until the desi red pat tern sel ected.

TO RESET PATTERN #1

Apply +12vdc to the YELLOW wire for at least 3 seconds then release. All LEDs will flash 2 times to indicate that you have reset the flash pattern selection to pattern # 1.

SYNCHRONIZE iLED WARNING LAMPS

To synchronize, first select a flash pattern an d program each lamp to th e same flash pattern. Unpredictable results will occur if synchronized lamps have differe nt fl ash patt erns selected. Connect the YELLOW wires of up to qty 10 synchronized iLED lamps. The 7x9 lamps are

equivalent to 2 lamp units, when determining the number of lamps to synchronize. Do not exceed 100 feet of wire between the furthest synchronized units. For best results connect the BLACK lead to Chassis Ground.

2100 West Obispo

Gilbert, Arizona 85233

(480) 497-4400 (800) 338-3133

FAX (480) 497-4416 (800) 688-6627

E-mail: sales@tomar.com www.tomar.com

iLED

TOMAR Inteligent LED Series

LED with programmable internal FLASHER

INSTRUCTION SHEET

SELECTABLE FLASH PATTERNS

1. Neobe 150 FPM alternating (Factory Setting)

2. Neobe 150 FPM simultaneous [Phas e 0]

3. Neobe 150 FPM combo (2 cycles alt + 2 cycles sim)

4. Neobe 150 FPM California steady (half 150 FPM, half steady)

5. Neobe 150 FPM simultaneous [Phas e 1]

6. Neobe 75 FPM alternating

7. Neobe 75 FPM simultaneo us [Phase 0]

8. Neobe 75 FPM combo (2 cycles alt + 2 cycles sim)

9. Neobe 75 FPM California steady (half 75 FPM, half steady)

10. Neobe 75 FPM simultaneous [Phase 1]

11. Double flash 250 FPM alternating

12. Double flash 250 FPM simultaneous [Phase 0]

13. Double flash 250 FPM combo (2 cycles alt + 2 cycles sim)

14. Double flash 250 FPM California steady (half 250 FPM, half steady)

15. Double flash 250 FPM simultaneous [Phase 1]

16. Double flash 125 FPM alternating

17. Double flash 125 FPM simultaneous [Phase 0]

18. Double flash 125 FPM combo (2 cycles alt + 2 cycles sim)

19. Double flash 125 FPM California steady (half 125 FPM, half steady)

20. Double flash 125 FPM simultaneous [Phase 1]

21. Single flash 375 FPM alternating

22. Single flash 375 FPM simultaneous [Phase 0]

23. Single flash 375 FPM combo (2 cycles alt + 2 cycles sim)

24. Single flash 375 FPM California steady (half 375 FPM, half steady)

25. Single flash 375 FPM simultaneous [Phase 1]

26. Single flash 150 FPM alternating

27. Single flash 150 FPM simultaneous [Phase 0]

28. Single flash 150 FPM combo (2 cycles alt + 2 cycles sim)

29. Single flash 150 FPM California steady (half 150 FPM, half steady)

30. Single flash 150 FPM simultaneous [Phase 1]

31. Single flash 75 FPM alternating

32. Single flash 75 FPM simultaneous [Phase 0]

33. Single flash 75 FPM combo (2 cycles alt + 2 cycles sim)

34. Single flash 75 FPM California steady (half 75 FPM, half steady)

35. Single flash 75 FPM simultaneous [Phase 1]

36. Neobe 150 FPM Steady Flicker

37. Neobe 75 FPM Steady Flicker

38. Steady burn

39. Multi flash 1 (Patterns 1, 12, 21, 2)

40. Multi flash 2 (Patterns 6, 17, 26, 32)

41. Demo Mode (sequences through patterns # 1 - # 38 )
