Tomahawk E- Series
Model number 2008 EB – Belt drive
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 2
www.indoorcycling.com
The Tomahawk team thanks you fo
r believing in our promise to provide
you the best in Indoor Cycling and make you part of the Tomahawk
Difference.
< Important precautions page 3
< Before you begin / component groups in carton page 4
< How to assemble the Indoor Cycle page 5-7
< How to adjust the Indoor Cycle page 8-9
< Resistance adjustment page 10
< How to move the Indoor Cycle page 10
< Preventive maintenance page 11-15
< Daily maintenance page 11
< Weekly maintenance page 11
< Bi-weekly maintenance page 11-12
< Monthly maintenance page 13
< Belt drive system, wearing parts page 14-15
< Maintenance Activity Plan & Checklists page 16-17
< Explosion drawings of structural components page 18-23
< Spare part reference list page 24
< Limited warranty E-Series page 25-26
Technical specifications:
The Tomahawk E-Series Bike is according to EN 957 a Class S product for
professional and / or commercial use. Such training equipment is intended for the
use in training areas of organizations such as Fitness Clubs or Sport Associations,
where access and control is specially regulated by the person who has the legal
responsibility.
Foot print: 55 x 115 cm / 22 x 46 inch
Weight of bike: 50 kg / 110 lbs
Max saddle height: 110 cm / 43.5 inch
Max handlebar height: 110 cm / 43.5 inch
Max user weight: 130 kg / 287 lbs
The bike is designed to accommodate most users from 150 to 205 cm / 59 to 81 inch
Body height
TABLE OF CONTENTS
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 3
www.indoorcycling.com
WICHTIGE SICHERHEITSHINWEISE
1. It is the sole responsibility of the owner
to ensure that all users of the indoor
cycle are informed of all warnings and
precautions by an authorized trainer or
instructor prior to use.
2. Operate and maintain the indoor cycle
only as described in this manual and
after proper assembly and functionality
check (see page 5-10).
3. Keep the indoor cycle indoors, away from
moisture and dust. Do not place the
indoor cycle in a garage or covered patio
or near water.
4. Place the indoor cycle on a level surface.
To protect the floor or carpet from
damage, place a mat beneath the indoor
cycle. Make sure that there is adequate
room around the indoor cycle to mount,
dismount, and operate it.
5. Regularly inspect and properly tighten all
parts of the indoor cycle as
recommended in this manual. Please
replace defective parts immediately and
do not use the bike until repair is
performed. Only use original parts from
the manufacturer.
6. Children under the age of 18 should only
be allowed use of the indoor cycle with
parental approval and if guided by a
specially trained instructor.
7. The indoor cycle should not be used by
persons weighing more than 290
lbs/130 kg.
8. Always wear appropriate athletic
clothes and shoes while operating the
indoor cycle. Do not wear loose clothes
that could become caught on the
indoor cycle or shoes with loose laces.
9. Before using the indoor cycle, make
sure that you are familiar with the
setup/operation of the indoor cycle
(see pages 8-12).
10. The indoor cycle does not have an
independently moving flywheel
(wheel); the pedals will continue to
move together with the flywheel until
the flywheel stops.
11. Always regulate the flywheel
resistance so that your pedalling
motion is controlled (see page 8-10).
12. Keep your back straight while using
the indoor cycle; do not arch your
back.
13. If you feel pain or dizziness while
exercising, stop immediately, rest and
cool down and consult a physician.
14. If replacement parts are needed, use
only manufacturer supplied parts.
WARNING!
To reduce the risk of serious injury, read the following important precautions and
information before operating the indoor cycle.
WARNING:
Before beginning any exercise program, consult your physician. This is especially
important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. Be aware that incorrect or extensive training may
result in serious health injuries. The manufacturer assumes no responsibility for
personal injury or property damage sustained by or through the use of this product
.
USER’S MANUAL – E-SERIES
IMPORTANT
PRECAUTIONS
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 4
www.indoorcycling.com
Dear Customer,
Congratulations on selecting the TOMAHAWK Indoor Cycle. The TOMAHAWK Indoor Cycle
offers an impressive array of features designed to enhance cardiovascular fitness, tone
muscles, and develop endurance. Whether users are beginners or experienced athletes, the
indoor cycle offers workouts that will help users to reach their individual fitness goals.
IMPORTANT: Read this manual carefully before assembling or
using the indoor cycle. If you have questions after reading this manual, please
contact your local distributor or refer to the website www.indoorcycling.com. Before reading
on, please familiarize yourself with the parts that are labeled in the drawing below.
BEFORE YOU
BEGIN
USER’S MANUAL – E-SERIES
Tools
needed for assembly
:
open end spanner: 17/19mm, 13/15mm,
Allen key: 3mm, 6mm
Handlebar assembly
• mounting bolt w. washer
• handlebar upper part
• vertical handlebar stem
Seat post
assembly
• adjustment knob
• horizontal saddle support
• vertical
seat
stem
Rear stabilizer bar
• leveling feet
Front stabilizer bar
• leveling feet
• transport wheels
Stabilizer mounting kit
• 4 bolts
• 4 cap nuts
• 4 stainless steel washers
• 8 plastic washers
• 2 PVC gaskets
Combi pedal
• toe clip
• toe strap
• binding system
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 5
www.indoorcycling.com
Due to the weight of the indoor cycle, it is recommended that two people
perform the assembly. Set the cycle in a cleared area and remove all packing
materials; do not dispose of the packing materials until assembly is completed.
1. Identify the rear stabilizer. Orient
the rear stabilizer so the widest parts
of the stabilizer end caps (A) are at
the rear.
While a second person lifts the rear of
the frame, attach the rear stabilizer to
the frame with two M10 x 60mm bolts
(B), four M10 washers, a stabilizer
gasket (C), two plastic washers (D),
and two M10 cap nuts as shown.
2. Orient the front stabilizer so the
widest parts of the stabilizer end caps
(A) are at the front.
While a second person lifts the front
of the frame, attach the front
stabilizer to the frame with two M10 x
60mm bolts (B), four M10 washers, a
stabilizer gasket (C), two plastic
washers (D), and two M10 cap nuts.
It is important that the plastic
washers (D) and PVC gasket (C)
used on the front and rear
stabilizers are mounted in the
correct manner and used to
prevent direct contact of metal
surfaces
HOW TO ASSEMBLE THE INDOOR CYCLE
2
1
D
USER’S MANUAL – E-SERIES
To avoid damaging the rear stabilizer,
do not over tighten the cap nuts.
To avoid damaging the front stabilizer,
Do not over tighten the cap nuts.
A
D
B
C
A
B
C
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 6
www.indoorcycling.com
Do not over tighten the adjustment
knob. Make sure the pin of the
adjustment knob is fully engaged and
saddle post does not slide while riding.

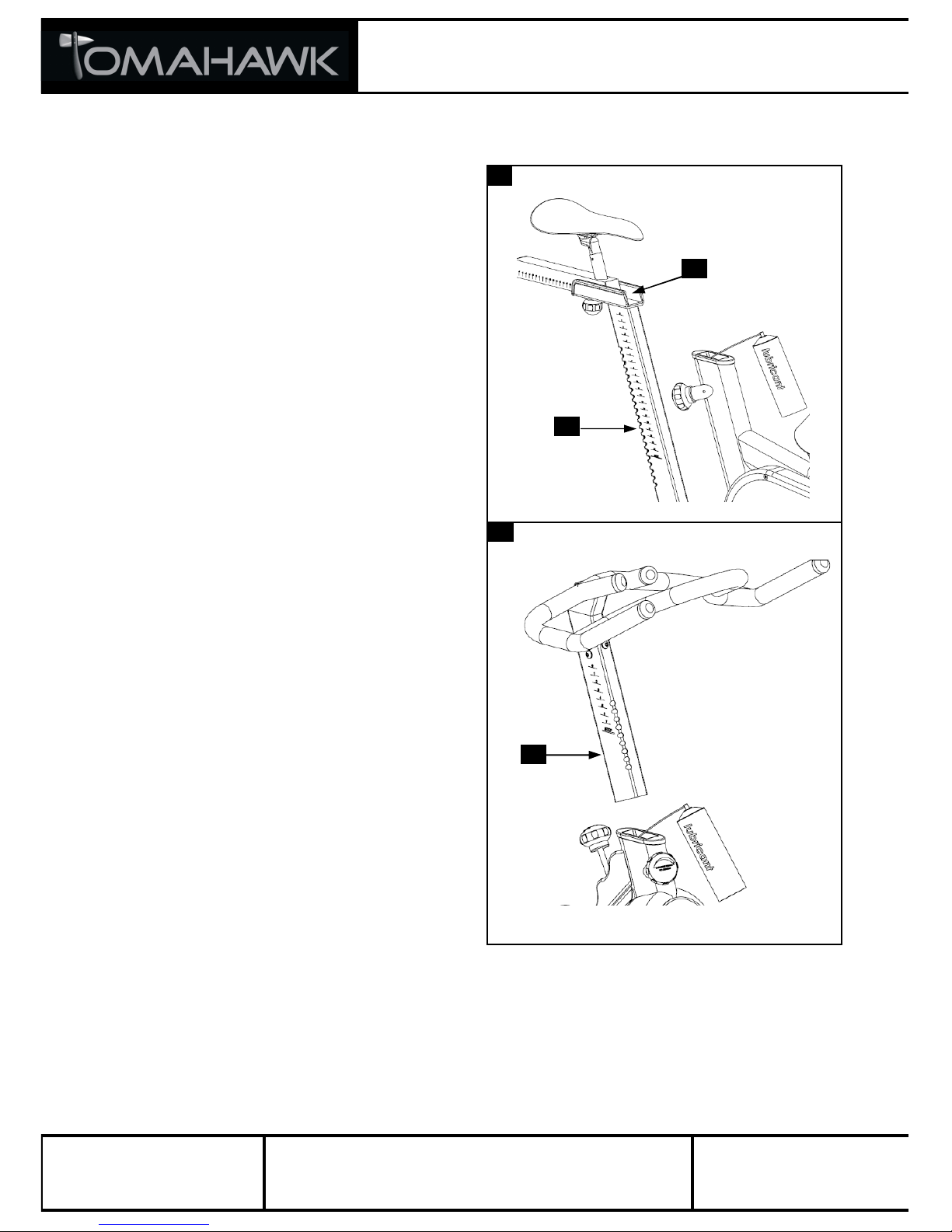

3. Turn the rear adjustment knob
(A) counter clockwise and pull the
adjustment knob to insert the
saddle post (B) into the frame.
Next, bring the saddle post to the
desired height, release the
adjustment knob so the pin
engages into the holes of the
saddle post. Then turn the
adjustment knob clockwise to
retighten until it is snug. Then
place the horizontal saddle
support (C) into the slider bracket
and connect it from beneath with
the small adjustment knob (D).
Please don’t adjust the height of
the vertical saddle support
beyond the stop mark to avoid
instability.
4. Loosen the M8 bolt on the
lower side of the aluminium
saddle bracket (A) several turns
without removing it. Next, turn
the upper part of the saddle
clamp (B) one quarter of a turn,
and set the rails of the saddle in
the grooves of the lower saddle
clamp. Then, lift the upper saddle
clamp, turn it back to its original
position, and set it on top of the
rails. Finally, firmly retighten the
bolt and make sure that the
saddle is mounted in its most
horizontal position at the middle
of the rail.
3
4
M8 bolt
B
USER’S MANUAL – E-SERIES
Stop
mark
C
A
B
D
A
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 7
www.indoorcycling.com
Do not over tighten the connecting bolts.
Make sure the pop pin adjustment knob is
fully engaged and the handlebar post does
not wobble while riding.
5. Orient the parts needed to
assemble the handlebar. Slide
upper part of the handlebar into
the handlebar stem and connect
the 2 pieces using the 7 allen bolts
and washers provided.
Make sure that the connecting
allen bolts are appropriately
tightened and handlebar does
not wobble because of a loose
connection.

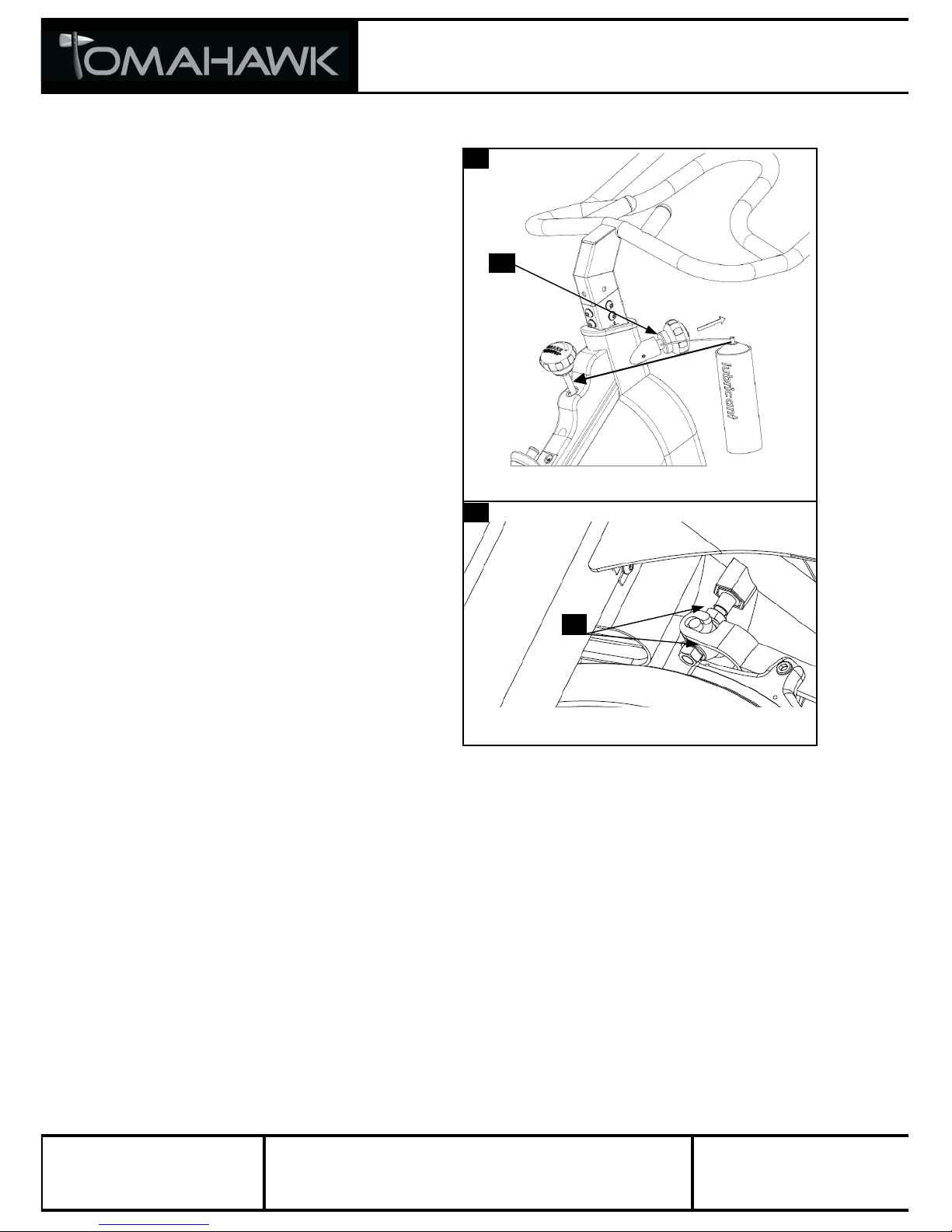

6. Turn the front pop pin
adjustment knob (A) counter
clockwise, and pull the adjustment
knob to insert the handlebar post
(B) into the frame. Next, bring the
handlebar post to the desired
height, release the adjustment knob
so pin engages with the holes of the
vertical stem and turn the
adjustment knob clockwise to
retighten until it is secure.
Please don’t adjust the height of the
vertical saddle support beyond the
stop mark to avoid instability.
5
6
7
USER’S MANUAL – E-SERIES
Stop mark
7. Identify the Right pedal.
Carefully insert the right pedal into
the crank arm by hand turning it
clockwise assuring that it is aligned
horizontally. Using a 15mm pedal
wrench, firmly tighten the right
pedal clockwise into the right crank
arm. Repeat the same procedure for
the left pedal but in a counter
clockwise motion.
The manufacturer recommends
the use of semi loctite to mount
the pedals and to avoid that
pedals become loose while
riding.
8. Make sure that the brake pad is thoroughly soaked with lubricant (WD-40)
BEFORE the indoor cycle is used. Also make sure there is a space (approx. as
thin as a credit card) between the brake pad and flywheel on the lowest
resistance setting. This precaution will avoid extensive wear on the brake
pad. To protect the floor or carpet, place a mat under the indoor cycle.
A
B
8
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 8
www.indoorcycling.com
The indoor cycle can be adjusted for maximum comfort and exercise effectiveness.
The instructions below describe one approach to adjusting the indoor cycle to ensure
optimal user comfort and ideal body positioning; you may choose to adjust the indoor
cycle differently.
PEDAL STRAP ADJUSTMENT
Sit on the saddle and position your feet on the pedals, with the balls of your feet
directly above the spindles of the pedals (see the drawing below). Adjust the pedal
straps so the toe clips (cages) are snug but not too tight. Note: In the case of a bike
being fitted with combi-pedals, the pedals feature toe clips on one surface and SPD
cleats on the opposite surface. If desired, use the shoe cleats with cycling shoes
instead of the toe clips.
SADDLE HEIGHT ADJUSTMENT
Sit on the saddle and slowly pedal until the right pedal is in the lowest position. Your
knees should be slightly bent without a dropping of the hips. To avoid hyper
extending your knees, make sure that your legs are not completely straight.
HOW TO ADJUST THE INDOOR CYCLE
USER’S MANUAL – E-SERIES
Please do not adjust
handlebar height beyond
the stop mark on the
stem (see page 7)
Please do not adjust
saddle height beyond
the stop mark on the
stem (see page 6)
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 9
www.indoorcycling.com
SADDLE HORIZONTAL ADJUSTMENT
Proper horizontal adjustment of the saddle is very important in avoiding injury to the
knees. Sit on the saddle and move the pedals until the crank arms are in horizontal
position.
Using your forward most leg as a marker, your kneecap should be directly above the
center of the pedal so that a straight line is created between knee and center of the
pedal (see the dotted line in image below). To adjust the horizontal position of the
saddle, first dismount the indoor cycle. Next, loosen the rear adjustment knob, slide
the saddle forward or backward as required, and then retighten the knob.
USER’S MANUAL – E-SERIES
A
B
Handlebar
up-down
adjustment knob
HANDLEBAR ADJUSTMENT
Begin with the top of the handlebar at relatively the same height or just slightly
higher than the top of the saddle (dotted horizontal line A in the drawing below)
and at a neutral fore/aft position (see dotted vertical line B in drawing below). If
your knees touch the handlebars or if you experience back discomfort while
pedalling for extended periods of time, the height of the handlebar can be
adjusted. First, dismount the indoor cycle. Next, turn the front adjustment knob
counter clockwise, slide the handlebar post up or down, and then retighten the
adjustment knob. Changing your hand position can change the angle of your
back, neck, and arms. To minimize the stress on your muscles during your
workouts, change your hand position frequently.
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 10
www.indoorcycling.com
RESISTANCE ADJUSTMENT
The preferred level of difficulty in pedalling (resistance) can be regulated in fine
increments by use of the resistance knob. To increase the resistance, turn the
resistance knob clockwise. To decrease the resistance, turn the knob counter
clockwise.
IMPORTANT: To stop the flywheel (wheel) while pedalling, push down on the red
brake knob. The flywheel should quickly come to a complete stop. Please make sure
your shoes are fixed into the toe clip or in case cycling shoes are used your shoe
cleat is connected to the pedal binding while riding.
WARNHINWEIS: Das Indoor Cycle verfügt über keinen Freilauf. Die
Schwungscheibe ist fest mit den Pedalen verbunden und stoppt nicht selbstständig wenn der
Benutzer die Tretbewegung unterbricht. Bitte kontrollieren Sie immer Ihre Bewegungen und
verlangsamen Sie diese kontrolliert um anzuhalten. Notrbremse = Bremsgriff nach unten drücken
HOW TO MOVE THE INDOOR CYCLE
Due to the weight of the indoor cycle, it is recommended that two people move it. While
one person lifts the back of the indoor cycle, the second person firmly holds the handlebar and
tips the indoor cycle forward until it rolls on the wheels. Carefully move the indoor studio cycle to
the desired location and then lower it. CAUTION: To reduce the risk of injury, use extreme
caution while moving the indoor studio cycle. Do not attempt to move it over uneven
surfaces and make sure a safety space of a minimum of 20 inches to the nearest
equipment is redeemed.

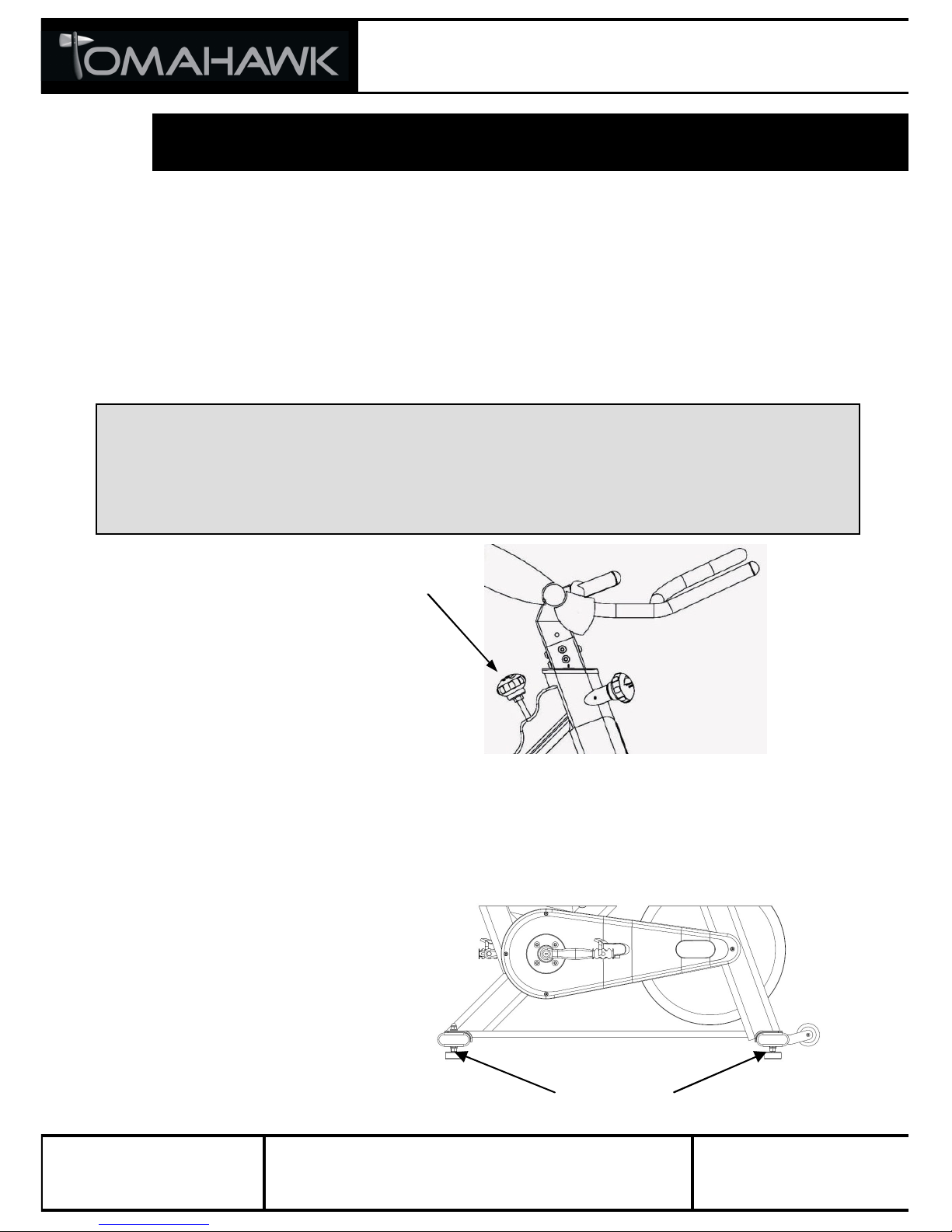

If the indoor cycle rocks
on the floor after being set
down, turn the levelling
feet (see diagram) underneath
the front or rear stabilizer until
the rocking motion is eliminated.
Important: Please do not unscrew
the levelling feet more than ½ inch!
Red resistance knob
emergency brake
HOW TO OPERATE THE INDOOR CYCLE
Leveling feet
USER’S MANUAL – E-SERIES
WARNING: The indoor cycle does not have a free moving flywheel (wheel); the
pedals will continue to move together with the flywheel until the flywheel stops. Reducing
speed in a controlled manner is required. To stop the flywheel immediately, push down the
red emergency break knob. Always pedal in a controlled manner and adjust your desired
cadence according to your own abilities. Push the red knob down = emergency stop
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 11
www.indoorcycling.com
Regular maintenance must be performed on the indoor cycle for optimal
performance and longevity. Please read and follow all instructions below. If the
indoor cycle is not maintained as described, components may wear excessively and
the indoor cycle may become damaged. Improper maintenance will void the warranty
terms. If you have questions about maintenance, contact your local distributor or
refer to www.indoorcycling.com
Note: Many maintenance procedures require lubricant spray. Manufacturer
recommends WD40, Brunox or a similar solvent free lubricant.
DAILY MAINTENANCE
1. Make sure that the indoor cycle is level. If the indoor cycle rocks on your floor, turn
the levelling feet underneath the front or rear stabilizer until the rocking motion is
eliminated (see HOW TO MOVE THE INDOOR CYCLE on page 10).
2. After each user finishes exercising, the indoor cycle should be disinfected and
cleaned to maintain a hygienic environment. First, apply a disinfectant spray to the
handlebars and the saddle. Using a lint-free cloth, dry the handlebars and the saddle.
Next, apply a small amount of disinfectant to a lint-free cloth and clean the
adjustment knobs and the adjustment handles. Avoid using strong detergents on the
indoor cycle frame.
WEEKLY MAINTENANCE
1. Apply a small amount of the lubrication spray to a lint-free cloth, and thoroughly
clean the frame, the handlebar slider and seat sliders, the flywheel and the plastic
parts of the indoor cycle.
2. (Picture A) For optimal performance of the resistance
system, and to minimize wear on the brake pad, the
solvent free lubricant spray should be applied to the
brake pad using the lubrication holes on the plastic part
of the brake pad. If fuzz or lint appears on the brake pad,
the brake pad has become too dry—lubricant spray should
be applied more frequently. Make sure brake pad is
thoroughly soaked from end to end with lubricant spray.
Then, wipe the excess off.
BI-WEEKLY MAINTENANCE
1. (Picture B) The indoor cycle should not be used if the
emergency brake system is not working properly. While
sitting on the saddle and pedalling, test the brake by
pushing down the brake knob. The flywheel should
come to a quick and complete stop.
PREVENTIVE MAINTENANCE
A
USER’S MANUAL – E-SERIES
B
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 12
www.indoorcycling.com
2. To maintain the easy adjustability of the
saddle post, the saddle post should be
cleaned and lubricated. Remove the
saddle post out of the frame as described
on page 6. Apply a small amount of
lubricant spray to a lint-free cloth, and
clean the saddle post (A). Next, apply a
small amount of lubricant spray inside of
the rear frame sleeve. Then, reinsert the
saddle post into the frame and adjust it to
the desired height. Next, loosen the rear
adjustment knob and slide the saddle
carriage as far backward as possible. Apply
a small amount of lubricant spray to a lintfree cloth, and clean the top of the saddle
slide (B). Then, slide the saddle carriage as
far forward as possible and clean the top of
the saddle slide. Finally, adjust the saddle
to the desired position.
3. To maintain the easy adjustability of the
handlebar post, the handlebar post should
be cleaned and lubricated. Remove the
handlebar post out of the frame as
described on page 7. Apply a small amount
of lubricant spray to a lint-free cloth and
clean the handlebar post (C). Next, apply a
small amount of lubricant spray inside of
the front frame sleeve. Then, reinsert the
handlebar post into the frame and adjust it
to the desired height.
A
B
2
3
C
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 13
www.indoorcycling.com
MONTHLY MAINTENANCE
1. To maintain the smooth
function of the adjustment knobs
which control the handlebar and
saddle vertical and horizontal
adjustments, the metal threads (A) on
the adjustment knobs must be
lubricated.
2. To maintain the easy adjustability of
the resistance system, the screw
threads on the lower end of the brake
rod should be lubricated.
First, turn the resistance knob
clockwise until it stops. Next, look
under the right or left side of the frame
and locate the brake rod (C). Apply a
small amount of synthetic grease
(white lithium grease) to the thread on
the brake rod. Then, turn the
resistance knob counter-clockwise until
it stops.
1
2
A
C
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 14
www.indoorcycling.com
3a. Belt driven bike
Important: A loose belt will increase the risk of
injury due to slipping and a highly over-tightened
belt can cause damage to the ball bearings of the
drive system and lead to excessive wear.
Correcting the belt tension:
To correct a loose belt: To adjust the belt, pull
off the right and the left maintenance covers (A).
Loosen the axle nut (B) on both ends of the
flywheel axle two full turns.
Loosen the outer adjustment nut (C) facing the
head of the allen bolt on each side of the flywheel.
Then, turn both (right and left sides) of the inner
adjustment nuts (D) on the inside of the flywheel
bracket 1/4 of a turn at a time (upward on the R
side and downward on L side) until the belt is
properly adjusted and does not slip. Make sure to
turn both adjustment screws exactly the same
amount to avoid misalignment of the flywheel.
Finally, retighten the two outer adjustment nuts (C)
and the two axle nuts (B), and reattach the
maintenance covers. To avoid damage to the
flywheel bearings, do not over tighten the
axle nuts (B). Unusual noises, roughness or
vibrations are indications that the belt has been
over tightened, the flywheel or bottom bracket
bearings are damaged or that the flywheel is at an
angle.
3b. User safety
To ensure user safety, frequently check if belt is
firmly tightened and does not slip while riding
under a resistance load. If the belt slips, proceed
using the same technique as described above.
Please note that a belt drive gear never shows slack
but will slip if not properly tightened. In case of a
misalignment, the belt will show extensive wear.
Please check the wear on the belt every 3 months
of use and replace if necessary.
Please avoid getting lubrication fluid in
contact with the belt, the drive gear pulleys or
any component of the belt drive system since
this will highly increase the risk of slipping.
3
A
B
C
D
Right s
ide
USER’S MANUAL – E-SERIES
Below graphics are the right side
of the Bike (riding position)
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 15
www.indoorcycling.com
4. The brake pad will become worn as a
result of repeated use. The indoor cycle
should not be used if the emergency brake
system is not working properly (see page
11)! Should you feel that the resistance
system’s functions are deficient, it is
essential to fine-tune the resistance
system before the bike is used again!
Please check the setting of the brake
system as follows: First turn the
resistance regulator on the brake system
as far as it will go to the left (minimum
braking effect). If the setting is correct,
the brake pads should be flush with the
flywheel and barely touching so that it’s
possible to cycle with a hardly noticeable
amount of resistance. Next, check the
brake pad for signs of wear. If the brake
pad does show signs of excessive wear,
thoroughly soak the brake pad with
lubricant spray using the 2 lubrication
holes (A), and then wipe off the excess.
5. Some parts of the indoor cycle may
become loose as a result of repeated use.
Check pedals, toe clips, and pedal straps,
and make sure that they are properly
tightened. Next, check all exposed screws,
bolts, and nuts, and make sure that they
are properly tightened. Finally, check the
saddle to make sure that it is not loose or
damaged.
4
5
A
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 16
www.indoorcycling.com
Activity Details
found on
page…
Daily Weekly Bi -
weekly
Monthly
Feet leveling, disinfecting and cleaning
of the bike
10, 11,12 X
Servicing brake pads, detailed cleaning
of the entire bike
11,15 X
Check emergency brake function 11 X
Clean and lubricate saddle and
handlebar sliders / posts
12 X
Check adjustment knobs 13 X
Check brake system, lubricate 13, 15 X
Check belt drive system 14 X
Check brake pad for signs of wear 15 X
Check pedals, toe clip and straps for
signs of wear
15 X
Check all connections and fixings if they
are secure and correctly tightened
15 X
Examples of maintenance plan charts for in-house service technicians:
(Examples of Weekly / Bi-Weekly / Monthly)
Weekly Maintenance Checklist
Bike
No.
Production code
bike
Observations Action taken Result Name / date
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Maintenance Activity
Plan &
Checklists
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 17
www.indoorcycling.com
Bi-Weekly Maintenance Checklist
Bike
No.
Production code
bike
Observations Action taken Result Name / date
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Monthly Maintenance Checklist
Bike
No.
Production code
bike
Observations Action taken Result Name / date
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 18
www.indoorcycling.com
Brake parts
SPARE PARTS
USER’S MANUAL – E-SERIES
Desc
riptions of parts on page 2
4
02 5
0 A
02 5
0 0
3 A
02 50 05
02 50 06
02 50 04
01 40 A2
01 40 CS 08
02 40 CRMO R E 08
02 40 C 2RS
02 40 90
02 40 CMD 20 08
02 40 CRMO L E 08
Bottom bracket parts
Part of 02 40 B
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 19
www.indoorcycling.com
USER’S MANUAL – E-SERIES
Flywheel
USER’S MANUAL – E-SERIES
Descriptions of parts on page 24
01 40 08 ES 08
02 40 02
Part of 02 40 B
02 40 H L
02 42 02 E 08
02 42 01
02 42 03 E 08
02 42 04
02 99 03
02 99 05
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 20
www.indoorcycling.com
USER’S MANUAL – E-SERIES
Frame
Descriptions of parts on page 24
Belt d
rive
kit
02 10 A
02 20 04
2008 RA
E
02 99 02
02 40 BE
02 40 B
02 10 B 08
02 10
B 08
02 10 A
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 21
www.indoorcycling.com
Rear s
tabilizer
Descriptions of parts on page 24
Front s
tabilize
r
02 11 05 B
02 11 06
02 11 E
02 11 02 E 08
02 11 A
02 11 B
02 11 01 E 08
02 11 E
02
11 06
02 11 05 B
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 22
www.indoorcycling.com
Protection plates
(optional)
Saddle support
USER’S MANUAL – E-SERIES
Descriptions of parts on page 24
01 21 VL3125
SI
02 21 01
02 20 01 E 08
02 10 D
02 20 02
02 20 03
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 23
www.indoorcycling.com
Pedals
(combi pedal system)
Handlebar
USER’S MANUAL – E-SERIES
Descriptions of parts on page 24
02 30 01 E 08
02 30
02
E 08
(optional)
01 40 A2
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 24
www.indoorcycling.com
Article No. Description
Article No.
Description
Drive gear Frame parts
02 40 BE Belt PL 1397/550 L 2008 RA E-Series main frame
02 40 B Belt drive assembly set 02 10 A Vertical insert sleeve
02 40 90 Pulley mounting bolts 02 20 04 Rubber bumber - handlebar
02 40 CRMO R E 08 Crank - right side, black 02 10 B 08 Pop pin adjustment knob
02 40 CRMO L E 08 Crank - left side, black 02 99 02 Sweat shroud
02 40 CS 08 Crank bolt M8x20x1. Front & rear stabilizer
02 40 CMD 20 08 MD20 BB spindle 02 11 02 E 08 Rear stabilizer
02 40 C 2RS Ball bearing SKF 6004Z 02 11 06 Flush endcap
Brake system 02 11 05 B Rubber feet
02 50 A Brake adjustment knob 02 99 11 Rear protection plates (option)
02 50 06 Bell crank /lower brake 02 99 10 Front protection plates (option)
02 50 04 Brake pad 02 11 01 E 08 Front stabilizer
02 50 03 A Upper brake system 02 11 B Stabilizer mounting Kit
02 50 05 Lower brake system 02 11 E Rubber gasket
Flywheel 02 11 A Transport wheel
02 40 H Flywheel axle Saddle assembly
02 40 02 Chain tensioner 0121VL3135si Tomahawk saddle silver
02 40 H L Ball Bearing 6001Z 02 20 03 Aluminium saddle bracket
02 40 08 ES 08 E-Series flywheel 02 21 01 E 08 Horizontal saddle support
Chain guard 02 20 02 Horizontal guide sleeve
02 42 02 E 08 Outer chainguard 02 20 01 E 08 Vertical saddle support
02 42 04 Rubber pop out cover 02 10 D Small adjustment knob
02 42 01 Inner chainguard
02 99 03 Plastic washer with mounting
bolts M4x15
Handlebar
02 43 03 E 08 Leftside cover 02 30 01 E 08 Regular handlebar
02 99 05 Plastic washer 02 30 02 E 08 Horizontal adjustable handlebar
(option)
Pedals
01 40 A 2 Combi pedal with toe clip and
toe strap
SPARE PARTS LIST
USER’S MANUAL – E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 25
www.indoorcycling.com
CYTECH GmbH warrants that all new equipment will be free of manufacturing defects in
workmanship and materials, becoming effective on the date of original installation. Parts repaired
or replaced under the terms of this warranty will be warranted for the remainder of the original
warranty period only. Warranty may vary by region or country.
Limited Warranty
Parts are warranted to be free from defects in materials and workmanship for the duration of the
warranty period as described below.
5 Year warranty: Frame construction, welding defects, and pulleys;
1 Year warranty: Brake system, saddle, belt and rubber feet
2 Year warranty: Adjustment knobs, crank arms, drive gear components, bottom bracket
assembly, flywheel hub assembly, powder coating, D10 combi – SPD pedals, insert sleeves for
saddle and saddle bar posts
Following parts are not covered under warranty and considered wear items:
Pedal straps, brake pads, pedal binding system, toe clips, seat cover
Limited warranty does not apply to:
1. Repairs performed on product with missing, altered, or defaced serial numbers
2. Repair pick-up, delivery, or freight charges other than those specified below
3. Labor costs
LIMITED WARRANTY E
-
SERIES INDOOR CYCLE
LIMITED WARRANTY E-SERIES
Version 1.
3
Copyright by
CYTECH GmbH 2008
ENG 26
www.indoorcycling.com
LIMITED WARRANTY E-SERIES
1. The expressed warranty is provided according to the guidelines listed below and applies on the E - Series only
while:
a) proper assembly and maintenance as required in the Care and Maintenance Manual has been followed.
(Important note: Improper assembly of the product or improper maintenance will void the warranty
terms)
b) it remains in the possession of the original purchaser and proof of purchase is demonstrated,
c) it has not been subject to accident, misuse, abuse, improper service or modification, and
d) claims are made within the warranty period
2. If a legitimate warranty claim is determined the local product distributor will deliver or ship to you any new or
rebuilt replacement part or component, or, at the option of the manufacturer, replace the product. Any shipment
cost incurred by the commercial client for the purpose of inspection of part by the local product distributor will only
be reimbursed after legitimacy of the claim is established by the manufacturer. Method of shipment must be
approved in writing by local product distributor prior mailing. In the case of non-legitimate claims the purchaser
carries the cost of the replacement parts and the shipping.
3. This warranty does not cover damage or equipment failure caused by failure to provide required maintenance
as outlined in this manual. Any failures or damage caused by unauthorized service, misuse, accident, negligence
or improper assembly or installation; debris resulting from any construction or repair activities in the product’s
environment; rust or corrosion as a result of the product’s location; alterations or modifications made without
written authorization; or failure on your part to use, operate, and maintain the product as set forth in this manual
will void this warranty. All terms of this warranty are void if the product is moved beyond the country to
which it was originally sold and are then subject to the terms provided by that country’s local authorized
Cytech GmbH representative.
4. Cytech GmbH. Limited Warranty service can be obtained by contacting your local product distributor. You can
also reach us directly for support at www.indoorcycling.com.
5. Product limited warranty is void when product is installed in a country other than where it was sold.
Your responsibility
The purchaser is obligated to examine the goods immediately on delivery, for defects, otherwise the goods are
considered approved and accepted. Retain proof of purchase; install, use, operate, and maintain the Product as
specified in this manual; notify Customer Service of any defect within 10 days after discovery of the defect; and, if
instructed, return any defective part for replacement, or, if instructed, return the entire product for repair.
Placing a warranty claim
Simply contact your local product distributor, provide them your name, address, and the serial number of your
product. A representative will assess the situation and take appropriate measures. If applicable you will be told
how to get a replacement part.
Exclusive warranty
Cytech GmbH nor its distributors are responsible or liable for indirect, special, or consequential damages arising
out of, or in connection with, the use or performance of the product or damages with respect to any economic
loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation, or
other consequential damages of whatsoever nature. Unauthorized changes to warranty: The terms of this
limited warranty cannot be changed, modified, or extended by anyone including local product distributors without
the signed acceptance by CYTECH GmbH.
Country laws
This warranty gives you specific legal rights according to European regulations and you may have other rights
which vary from country to country. Some countries may not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to you. The warranty extended
hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a
particular purpose is limited in its scope and duration to the terms set forth herein.
TERMS A
ND CONDITIONS OF WARRANTY
Loading...
