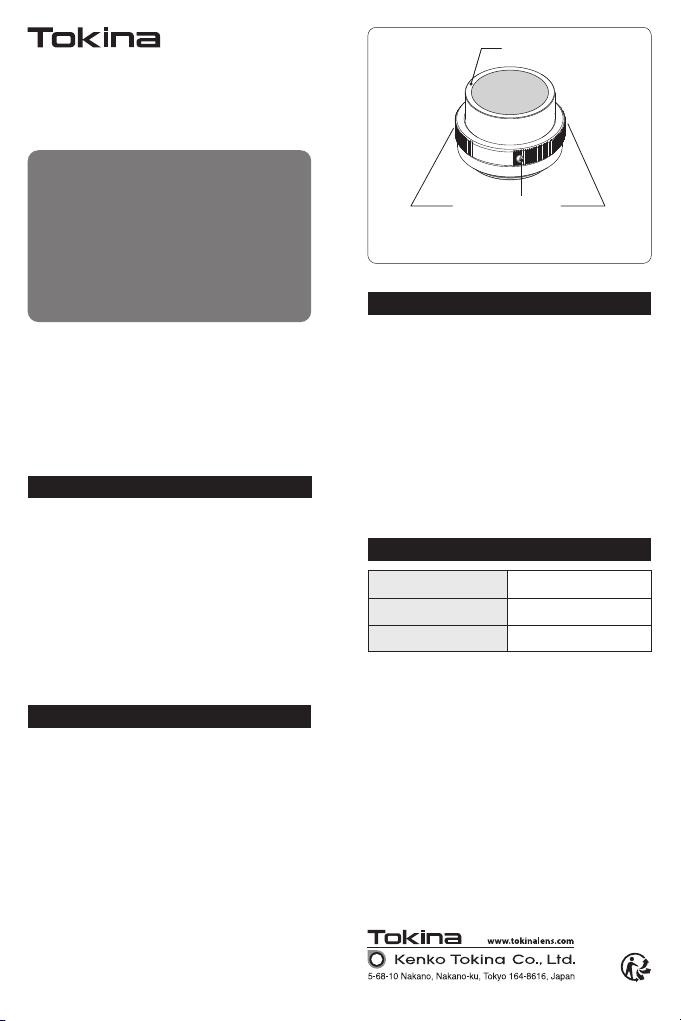

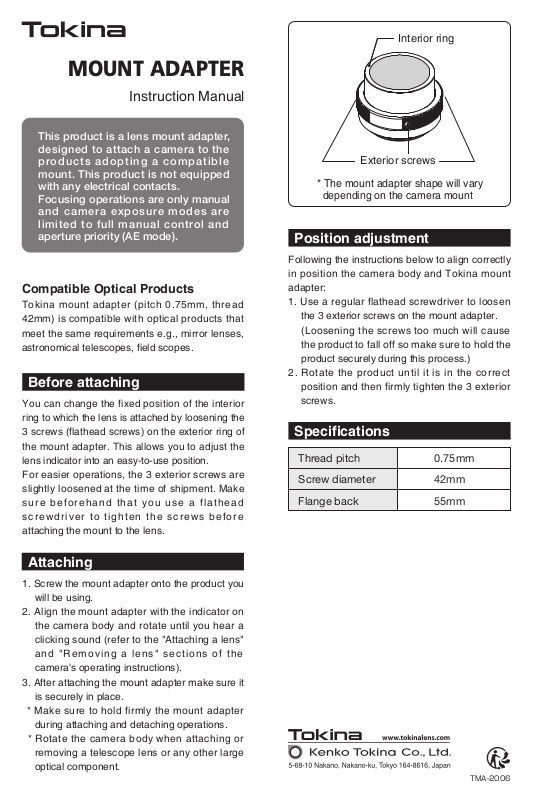

MOUNT ADAPTER
Instruction Manual
This product is a lens mount adapter,
designed to attach a camera to the
products adopting a compatible
mount. This product is not equipped
with any electrical contacts.
Focusing operations are only manual
and camera exposure modes are
limited to full manual control and
aperture priority (AE mode).
Compatible Optical Products
Tokina mount adapter (pitch 0.75mm, thread
42mm) is compatible with optical products that
meet the same requirements e.g., mirror lenses,
astronomical telescopes, field scopes.
Before attaching
You can change the fixed position of the interior
ring to which the lens is attached by loosening the
3 screws (flathead screws) on the exterior ring of
the mount adapter. This allows you to adjust the
lens indicator into an easy-to-use position.
For easier operations, the 3 exterior screws are
slightly loosened at the time of shipment. Make
sure beforehand that you use a flathead
screwdriver to tighten the screws before
attaching the mount to the lens.
Interior ring
Exterior screws
* The mount adapter shape will vary
depending on the camera mount
Position adjustment
Following the instructions below to align correctly
in position the camera body and Tokina mount
adapter:
1. Use a regular flathead screwdriver to loosen
the 3 exterior screws on the mount adapter.
(Loosening the screws too much will cause
the product to fall off so make sure to hold the
product securely during this process.)
2. Rotate the product until it is in the correct
position and then firmly tighten the 3 exterior
screws.
Specifications
Thread pitch
Screw diameter
Flange back
0.75mm
42mm
55mm
Attaching
1. Screw the mount adapter onto the product you
will be using.
2. Align the mount adapter with the indicator on
the camera body and rotate until you hear a
clicking sound (refer to the "Attaching a lens"
and "Removing a lens" sections of the
camera's operating instructions).
3. After attaching the mount adapter make sure it
is securely in place.
* Make sure to hold firmly the mount adapter
during attaching and detaching operations.
* Rotate the camera body when attaching or
removing a telescope lens or any other large
optical component.
TMA-2006
