Page 1

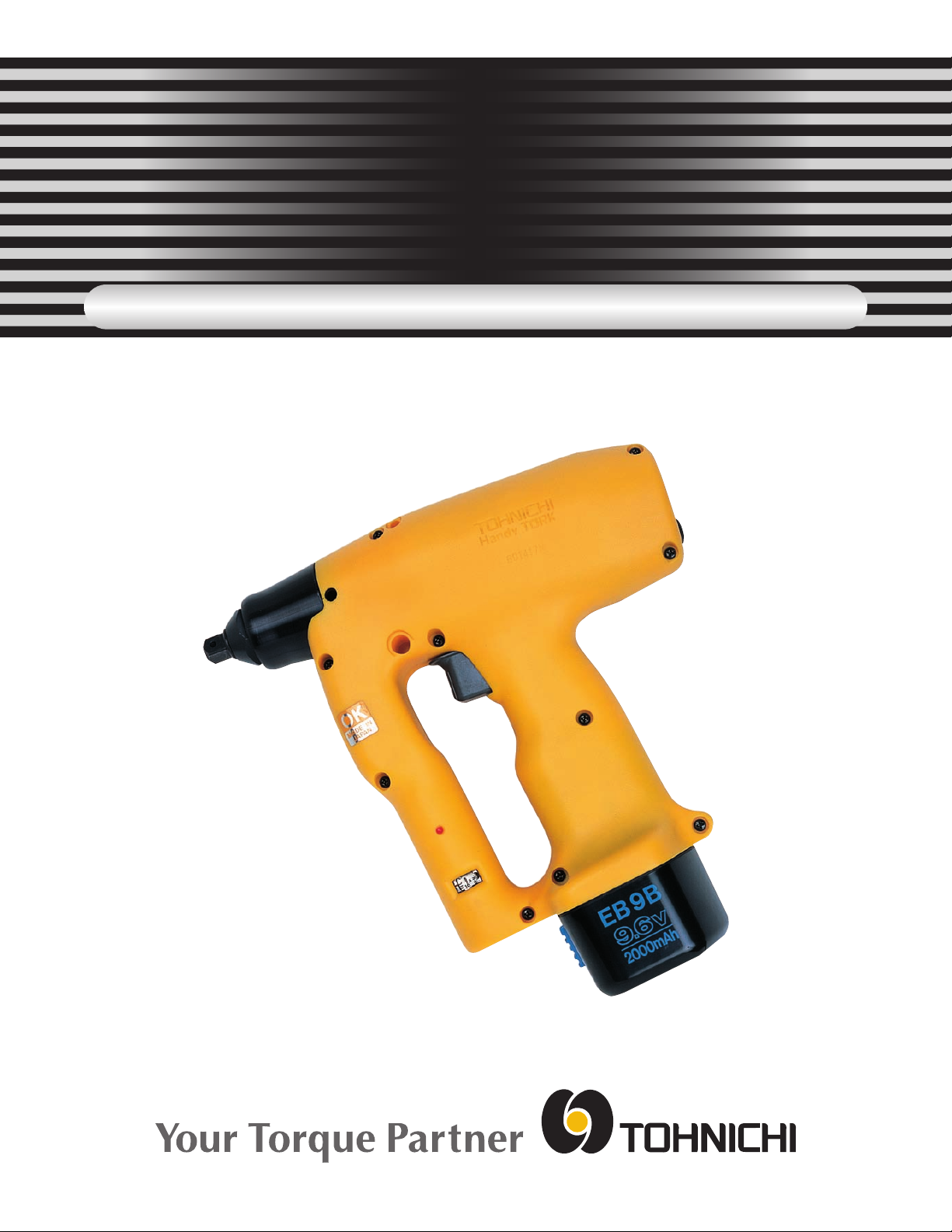

BATTERY OPERATED TORQUE DRIVER
MODEL HAT
OPERATING INSTRUCTIONS
Page 2
Features :
The model “HAT” series are rechargeable battery fully automatic operated torque
drivers. This tool is used to tighten M5-M10 bolts. This series can be calibrated by
using a torque wrench tester. The torque setting is adjusted by turning the hex bolt
located at the bottom of the front arm of the tool. A 4mm hex wrench is needed for
turning the hex bolt to adjust the torque. The “HATR” features both right and left
operation, and the FM type allows you to eliminate the chance of miss tightening by
adding the CNA-4 Tohnichi checker to the HAT/HATR.
Standard Accessories :
- Main body
- Rechargeable Battery (BP-9 or BP-12)
- Hex key
- Operating Manual
Rechargeable Battery (Optional Accessory)
Part Number BP-9 BP-12
Capacity 2000 mAh 2000 mAh
Applicable HAT
Size
Voltage DC 9.6V DC 12V
Note： If using a BP-9, than the spare battery should also be a BP-9. If using a BP-12, than the spare
battery should also be a BP-12. Using the incorrect battery will affect the applied torque.
5N, 12.5N 25N
2
Page 3
Battery Charger (Optional Accessory)
Part Number BC-1
Single-phase current
Input Power
Charging Time
Charging Voltage 7.2 – 12V
Charging Current 9A
Power Cord Balanced type plastic cord
Weight 1.0 kgs
Operating
Temperature Limit
50/60Hz
Voltage 100V
14 Minutes (at 20℃)
0- 40 ℃
To attach and detach a rechargeable battery
Detaching the battery:
Hold the HAT tightly, press and hold the blue clip on the battery and gently slide the
battery out.
Attaching the battery:
Hold the HAT tightly and slide the battery into the bottom of the tool until you feel the
blue clip click.
Operation of HAT driver:
1. Select a proper pin, o-ring and socket that will fit onto the end of the
tool.
2. Attach the pin, o-ring and socket to the end of the tool.
3. Set the tool to the proper torque by turning the hex bolt located at the bottom of the
front arm. A 4mm hex wrench is needed for turning the hex bolt. The adjusting
scale (located on the bottom left side of the front arm) will move up or down when
3
Page 4
turning the hex bolt.
4. Right/Left operations for HATR version only. Setting the right/left operating
direction of the tool is done by using the right/left switch located above the trigger.
To use in clockwise mode push the right side of the black switch in and to use in
counter clockwise mode push the left side of the black switch in.
5. The HAT’s & HATR’s will tighten 1000 bolts with a fully charged battery.
Other optional items for HAT series
FM Receiver : R-FM96D ( for FM model)
Counter checker : CAN-4 (for FM model)
Reaction Arm : Standard accessory for HAT25N & HATR25N. Provided as an
option for all other models.
