Multimedia ICs
QXpander™ processor
QX2130FS / QX2130S
The QX pander chip (QX-2000 Series) is a sound enhancement sound processor based on QSOUND's QX pander™ technology, and produces virtual 3D sound from ordinary audio signals. This IC requires no special encoding
of input signals or additional speakers, and so simplifies the development of high-value-added personal computers,
televisions and audio products.
•
Applications
Speaker systems for desktop and notebook multimedia personal computers, televisions, audio equipment, video
games and other devices
•
Features
1) Virtual 3D sound from ordinary audio signals.
2) No special encoding signals are necessary.
3) Three enhanced modes:
QX1: Pro Listening
QX2: Wide Listening
QX3: Wow for Games
4) Internal functions for personal computers: power
saver function, output muting function and stereo
bypass function.
5) TTL-compatible control pins (at 5V).
6) Low noise (45µV
rms)
7) Low power consumption
8) Available in SSOP-A20 pin package or SDIP22 pin
package.
•
Block diagram
GND
BIAS
V
CC
20
19
18
17 16
15
14
13
12
11
10
9
8
7
6
5
432
1
VIRTUAL AUDIO
QXpander
TM
PROCESSOR
BIASIN
MUTE
LCHIN
CTRL0
CL1
CL2
CL3
CL4
LCHOUT
GND
BIASOUT
RCHIN
CTRL1
CR1
CR2
CR3
CR4
RCHOUT
POWERSAVE
V
CC
Note:The above diagram is for the QX2130FS (SSOP - A20 package)
查询QX2130供应商
2
Multimedia ICs QX2130FS / QX2130S
•
Absolute maximum ratings (Ta = 25°C)
Parameter Symbol Limits Unit
Power supply voltage V
CC 13 V
QX2130S
Power dissipation Pd
QX2130FS
750
∗
2
1000
∗
1
mW
Operating temperature
Topr 0 ~ + 70 °C
Storage temperature
Tstg – 55 ~ + 125 °C
∗
1 When mounted on a 90 × 50 × 1.6mm glass epoxy board
Reduced by 10.0mW for each increase in Ta of 1°C over 25°C.
∗
2 When mounted on a 90 × 50 × 1.6mm glass epoxy board
Reduced by 7.5mW for each increase in Ta of 1°C over 25°C.
•
Recommended operating conditions (Ta = 25°C)
Parameter
Operating power supply voltage V
CC 4.5 12.5 V—
Symbol Min. Typ. Max. Unit
3
Multimedia ICs QX2130FS / QX2130S
•
Input / output circuits (with QX2130FS)
50k
50k
5k
30k
75k
2k
30k
RR
RR
RR
RR
R
R
25k
RRR
R
25k
10k
10k
50k
50k
RR
RR
RR
30k
75k
2k
5k
1pin BIAS IN 2pin MUTE 3pin LCH IN 4pin CTRL0 5pin CL1
6pin
CL2
7pin CL3 8pin CL4 9pin LCH OUT
11pin POWER SAVE
12pin RCH OUT
13pin
CR4
14pin
CR3
15pin CR2
16pin CR1
pin17 CTRL1
18pin RCH IN
19pin
BIAS OUT
4
Multimedia ICs QX2130FS / QX2130S
•
Analog characteristics (VCC = + 5V DC, GND = 0V DC, Ta = 25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
〈Supply current〉
Supply current (QX mode)
ICC1 1.3 3.0 5.2 mA
Supply current (stereo mode) ICC2 1.3 3.0 5.2 mA
Supply current (power saving mode) ICC3 — 230 500 µA
〈Maximum input level〉
Maximum input level (QX3 mode)
VINMax.1 – 8.3 – 5.3 — dBV
V
IN = 100Hz VOUT1%
SINGLE channel INPUT
Maximum input level (QX2 mode) VINMax.2 – 7.6 – 4.6 — dBV
V
IN = 100Hz VOUT1%
SINGLE channel INPUT
Maximum input level (QX1 mode)
VINMax.3 – 7.4 – 4.4 — dBV
V
IN = 1kHz VOUT1%
SINGLE channel INPUT
Maximum input level (stereo mode)
VINMax.4 – 2.4 + 0.6 — dBV
V
IN = 1kHz VOUT1%
SINGLE channel INPUT
Maximum output level
VOUTMax. – 3.0 + 0.5 — dBV
V
IN = 1kHz VOUT1%
SINGLE channel INPUT
〈Maximum mute level〉
Maximum mute level (QX mode)
VMUTE1 — – 86 – 76 dBV
BW: DIN AUDIO
V
IN = 1kHz, – 20dBV
Maximum mute level (stereo mode) VMUTE2 — – 97 – 87 dBV
BW: DIN AUDIO
V
IN = 1kHz, – 20dBV
Channel balance CB – 1.5 0 + 1.5 dB VIN = 600Hz, L + RIN
Output current IOUT ——
+ / –
1
mA
Load resistance RL 10 — — kΩ
Load capacitance CL — — 1000 pF
Input impedance RIN 50 75 100 kΩ
Output impedance ROUT — — 200 Ω
〈Distortion〉
Distortion (QX3 mode)
DSTN1 — 0.15 0.5 %
Distortion (QX2 mode) DSTN2 — 0.07 0.3 %
Distortion (QX1 mode) DSTN3 — 0.04 0.2 %
Distortion (stereo mode) DSTN4 — 0.02 0.2 %
〈Output noise voltage〉
Output noise voltage (QX mode)
VNOISE1 — – 87 – 77 dBV
BW: DIN AUDIO
R
g = 600Ω
Output noise voltage (stereo mode) VNOISE2 — – 98 – 88 dBV
BW: DIN AUDIO
R
g = 600Ω
〈Crosstalk〉
Crosstalk (stereo mode)
CT — – 98 – 88 dBV
BW: DIN AUDIO
V
IN = 1kHz, – 20dBV
∗
BW1: 400Hz – 30kHz (VIN = 1kHz) , BW2: – 30kHz (VIN = 100Hz)
THD + NOISE
V
IN = 1kHz, – 20dBV
THD + NOISE
V
IN = 1kHz, – 20dBV
THD + NOISE
V
IN = 1kHz, – 20dBV
THD + NOISE
V
IN = 1kHz, – 20dBV
No signal Input
No signal Input
No signal Input
—
—
—
—
—
5
Multimedia ICs QX2130FS / QX2130S
(VCC = + 12V DC, GND = 0V DC, Ta = 25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
〈Supply current〉
Supply current (QX mode)
ICC1 2.0 4.9 12.0 mA
Supply current (stereo mode) ICC2 2.0 4.9 12.0 mA
Supply current (power saving mode) ICC3 — 560 1200 µA
〈Maximum input level〉
Maximum input level (QX3 mode)
VINMAX.1 + 1.6 + 4.6 — dBV
V
IN = 100Hz VOUT1%
SINGLE channel. INPUT
Maximum input level (QX2 mode) VINMAX.2 + 2.3 + 5.3 — dBV
V
IN = 100Hz VOUT1%
SINGLE channel INPUT
Maximum input level (QX1 mode) VINMAX.3 + 2.5 + 5.5 — dBV
V
IN = 1kHz VOUT1%
SINGLE channel INPUT
Maximum input level (stereo mode) VINMAX.4 + 8.0 + 11.0 — dBV
V
IN = 1kHz VOUT1%
SINGLE channel INPUT
Maximum output level VOUTMax. + 7.8 + 10.8 — dBV
V
IN = 1kHz VOUT1%
SINGLE channel INPUT
〈Maximum mute level〉
Maximum mute level (QX mode)
VMUTE1 — – 85 dBV
BW: DIN AUDIO
V
IN = 1kHz, – 20dBV
Maximum mute level (stereo mode) VMUTE2 — – 97 dBV
BW: DIN AUDIO
V
IN = 1kHz, – 20dBV
Channel balance CB — 0 — dB
V
IN = 600kHz, L + RIN
Output current IOUT —— ± 1mA
Load resistance RL 10 — — kΩ
Load capacitance CL — — 1000 pF
Input impedance RIN 50 75 100 kΩ
Output impedance ROUT — — 200 Ω
〈Distortion〉
Distortion (QX3 mode)
DSTN1 — 0.16 0.5 %
THD + NOISE
V
IN = 1kHz, – 20dBV
Distortion (QX2 mode) DSTN2 — 0.07 0.3 %
THD + NOISE
V
IN = 1kHz, – 20dBV
Distortion (QX1 mode) DSTN3 — 0.05 0.2 %
THD + NOISE
V
IN = 1kHz, – 20dBV
Distortion (stereo mode) DSTN4 — 0.02 0.2 %
THD + NOISE
V
IN = 1kHz, – 20dBV
〈Output noise voltage〉
Output noise voltage (QX mode)
VNOISE1 — – 85 dBV
BW: DIN AUDIO
R
g = 600Ω
Output noise voltage (stereo mode) VNOISE2 — – 99 dBV
BW: DIN AUDIO
R
g = 600Ω
〈Crosstalk〉
Crosstalk (stereo mode)
CT — – 98
– 75
– 87
– 75
– 89
– 88 dBV
BW: DIN AUDIO
V
IN = 1kHz, – 20dBV
∗
BW1: 400Hz – 30kHz (VIN = 1kHz) , BW2: – 30kHz (VIN = 100Hz)
Quiescent
Quiescent
Quiescent
6
Multimedia ICs QX2130FS / QX2130S
•
Digital characteristics (VCC = 4.5 – 5.5V DC, GND = 0V DC, Ta = 25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
High level Input voltage V
IH 2.0 — 5.0 V
Low level Input voltage V
IL 0.0 — 0.8 V
I / O current, high level I
IH 0.0 — 0.3 mA VIH = V
CC
I / O current, low level IIL 0.0 — 0.1 mA VIL = 0V
(VCC = 5.6 – 12.5V DC, GND = 0V DC, Ta = 25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
High level Input voltage V
IH 2.5 — 5.0 V
Low level Input voltage V
IL 0.0 — 0.8 V
I / O current, high level I
IH 0.0 — 0.4 mA VIH = 5V
I / O current, low level I
IL 0.0 — 0.1 mA VIL = 0V
•
Measurement circuit
Unit: R (Ω)
C (F)
L (H)
Note: This diagram is for the QX2130FS (SSOP - A20 package) .
3.3µF
MUTE L
IN
3.3µF
600
CTRL0
2200p 2200p 2200p 0.1µF
L
OUT
1200p
8.2k
3.3µF
GND
BIAS
V
CC
100µF
0.01µF
100µH
V
CC 5-12V
100µF
600
3.3µF
R
IN CTRL1
2200p 2200p 2200p 0.1µF
1200p
8.2k
3.3µF
R
OUT
POWERSAVE
20
19
18
17 16 15
14 13
12
11
1098
7
6
5
43
21
VIRTUAL AUDIO
QXpander
TM
PROCESSOR

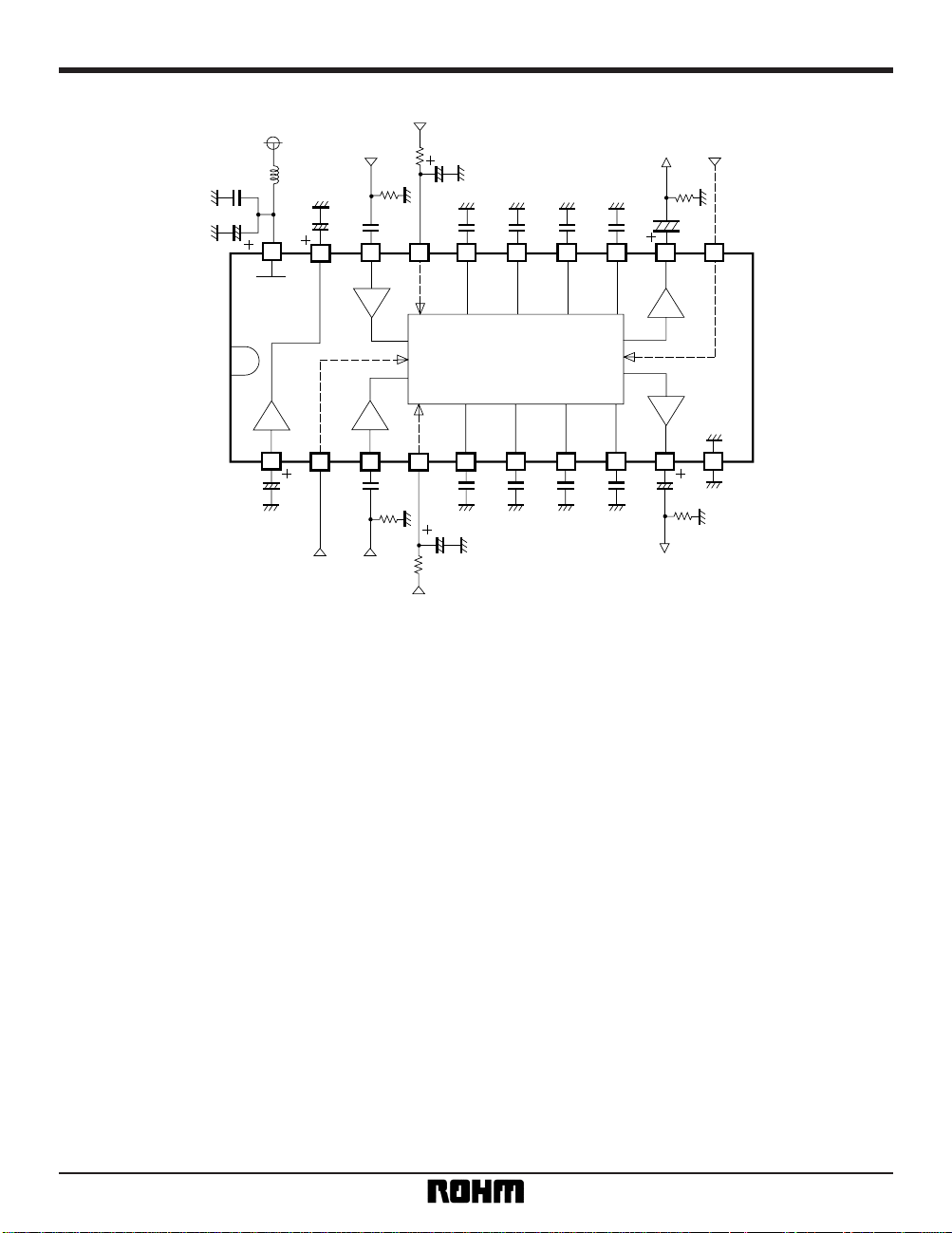

Fig.1
7
Multimedia ICs QX2130FS / QX2130S
•
Control mode
(1) CTRL0 & CTRL1 (pins 4 and 17)
CTRL0 CTRL1
L H STEREO Stereo Bypass —
L H QX1 Pro Listening Minimum
H L QX2 Wide Listening Middle
H H QX3 Wow for Games Maximum
MODE FUNCTIONS ENHANCEMENT
(2) Mute (pin 2)
CTRL
L NOT Mute Enabled Output (Lch / Rch)
H Mute Muted Output (Lch / Rch)
MODE FUNCTIONS
(3) Power saving mode (pin 11)
CTRL
L Active Normal
H Powersave Shut Down
MODE FUNCTIONS
8
Multimedia ICs QX2130FS / QX2130S
•
Application example
Unit: R (Ω)
C (F)
L (H)
Note:The above diagram is for the QX2130FS (SSOP-A20 package) .
10µF
MUTE LIN
0.1µF
27k
CTRL0
2200p 2200p 2200p 0.1µF
GND
BIAS
V
CC
100µH
5-12V
100µF
27k
0.1µF
R
IN
CTRL1
2200p
0.1
µ
F
47k
1µF
R
OUT
POWERSAVE
20
19
18 17 16
15
14
13
12
11
10
98
7
6
5
4
3
21
L
OUT
47k
1µF
330k
1µF
1µF
330k
2200p 2200p
100µF
0.01µF
VCC
VIRTUAL AUDIO
QXpander
TM
PROCESSOR
Fig.2
9
Multimedia ICs QX2130FS / QX2130S
•
Operation notes
The QX2130FS and QX2130S were developed using
technologies patented by QSOUND (U.S.A.) (patents
5,105,462 and 5,208,860), as well as other patented
technologies (including related patents pending both
inside and outside Japan). To use this IC, this technology must be licensed from QSOUND.
For inquiries concerning QSOUND™ licensing and
technologies, contact:
David Gallagher
QSOUND LABS, INC.
2748 37th Ave. N.E. Calgary, Alberta, Canada
T1Y 5L3
Phone: 1-403-291-2492 Fax: 1-403-250-1521
bbs : 1-403-291-3206
The QSOUND logo and Qx pander™ are registered
trademarks of QSOUND. QSOUND recommends that
licensed users display the SQOUND logo.
•
External dimensions (Units: mm)
SDIP22
3.95 ± 0.3
0.51Min.
19.4 ± 0.3
3.4 ± 0.2
0.5 ± 0.1
6.5 ± 0.3
1
11
12
22
0.3
± 0.1
0° ~ 15°
1.778
7.62
SSOP-A20
11
10
20
1
0.11
7.8 ± 0.3
5.4 ± 0.2
8.7 ± 0.2
0.15 ± 0.1
0.36 ± 0.10.8
1.8 ± 0.1
0.3Min.
0.15
