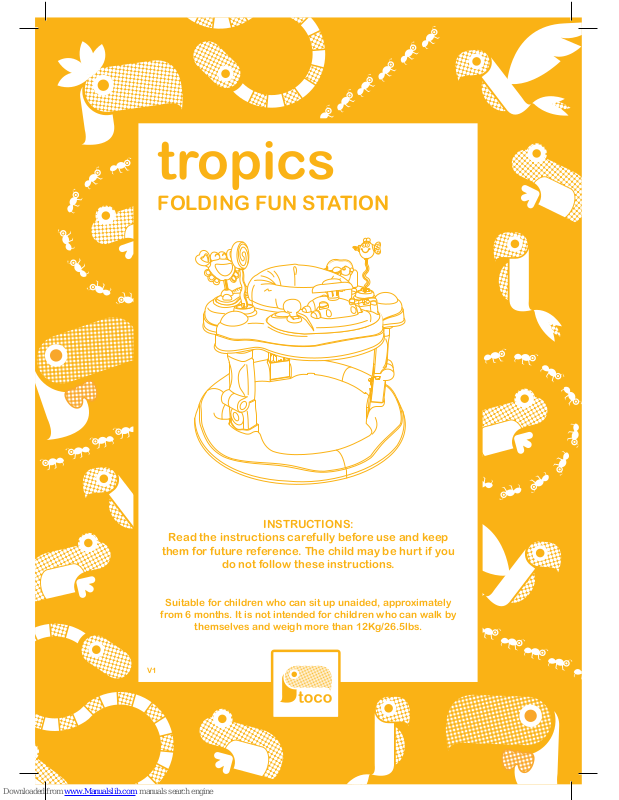

V1
FOLDING FUN STATION
tropics
INSTRUCTIONS:
Read the instructions carefully before use and keep
them for future reference. The child may be hurt if you
do not follow these instructions.
Suitable for children who can sit up unaided, approximately
from 6 months. It is not intended for children who can walk by
themselves and weigh more than 12Kg/26.5lbs.

2
Safety
WARNING: Adult assembly required.
WARNING: Use the activity centre only if your child meets all of the following conditions:
• Your child is at least 6 months old.
• Your child can sit up unaided.
• Your child is less than 76.2cm (30 inch) tall.
• Your child weighs less than 12kg (26.5lbs).
WARNING: Do not use the activity centre in dangerous conditions or situations.
WARNING: NEVER leave the child unattended in the activity centre. ALWAYS keep child in
view while child is in the product.
WARNING: NEVER move the activity centre while the child is in the seat.
WARNING: It can be dangerous to allow other children to play near the activity centre.
WARNING: Strings can cause strangulation! DO NOT place items with string around
child’s neck, such as hood strings or dummy cords. DO NOT suspend string over the
product or attach strings to toys or place near curtain blinds cords or other hanging
cords. Do not add any strings or straps to any part of the activity centre.
WARNING: DO NOT use any parts other than those supplied or recommended by the
manufacturer.
WARNING: DO NOT place the activity centre on an elevated surface e.g. near steps or
stairs. A child’s movement can slide the activity centre.
WARNING: To avoid the activity centre toppling over, place it on a flat, level floor. Adjust
legs to same height so that the tray is level before placing child in the product.
WARNING: For INDOOR use only.
WARNING: Do not use the product if any of the toys, seat or structural parts are
damaged. Remove the child immediately if you find any small loose parts or sharp/broken
parts.
Important: Care should be taken in unpacking and assembly.
Important: Examine product frequently for damaged, missing, or loose parts.
Always take care to insert your batteries correctly, observing the plus and minus
marks on the battery and appliance.
Do not mix new and used batteries.
Do not mix different types of batteries.
Always remove dead batteries and all batteries if you are not going to use the
product for long periods (as batteries may leak and cause damage).
Exhausted batteries should be removed from the product and disposed of in
accordance with the makers recommendations.
Only place batteries marked alkaline in normal household waste.
Never attempt to re-charge ordinary (non-rechargeable) batteries.
Batteries should always be changed by an adult.
Keep batteries out of reach of children.
Never dispose of batteries in a fire this may cause them to explode.
Children can choke on batteries. If swallowed seek medical advise immediately.
Battery warnings

3
Whilst we make and test our products to the highest standards of durability
there’s always a small chance of a hiccup! Our promise is to repair, replace or
refund a Toco product that has an identified manufacturing defect from the date of
purchase for a full 3 years thereafter at no extra cost.
However, you must register within 28 days of the date of purchase to receive the
full 3 years guarantee!
To receive your full guarantee you can register your product by:
visiting www.tocobaby.co.uk/warranty.html and complete the warranty form,
or by telephone on 0161 335 2508.
Your 3 year warranty
Welcome
Battery disposal
Exhausted batteries should be removed from the product and taken to a recycling
facility. You can place batteries marked alkaline in normal household waste, but
these are better taken to a recycling facility.
Please follow these symbols on batteries, which contain harmful substances:
Pb = Battery contains Lead
Cd = Battery contains Cadmium
Hg = Battery contains Mercury
CdPb Hg
Batteries should not be considered regular waste. Empty batteries should be
returned to a recycling facility
Thank you for purchasing this Toco Tropics Folding Fun Station.
Please read the instructions and safety advice carefully before use, to ensure safe
and satisfactory operation of this product. Your child’s safety is your responsibility.
Your child’s safety is your responsibility. If you have a query with this product or
require replacement parts, please contact the Toco Helpline on 0161 335 2508.
Lay out the parts on a soft level surface and compare them to the parts list below.
Do not discard any packaging until you are sure that you have all the parts.
Keep children clear during assembly as the pack may contain small parts which
could present a choking hazard. All plastic packaging should be disposed of or
destroyed to keep them away from children.

4
Parts list
Contained in your carton are:
NoPart Qty
1 Seat tray 1
2 Base sections 3
3 Legs 3
4 Seat unit 1
5 Play tray 1
6 Toy car 1
7 Toy turtle 1
8 Toy fish 1
9 Toy lolly 1
10 Toy crab 1
11 Crab base 1
5
6 7
2
1
3 4
You will require one Phillips screwdriver (not
supplied).
8
9
10
11

5
1. Lay out all three base parts (A) and click them together as shown.
1. Fold out the legs (A) ensuring they click
open.
2. With the seat tray (B) upside down, push
the larger pivot point (C) into the socket on
the underside of the seat tray as far as it will
go.
Base assembly
Attaching the legs to the seat tray
Click
Click
A
B
C

6
1. Place the assembled base (A) on the oor
and working on one leg at a time; hold in
button (B) and push the leg fully into socket
(C) on the base. Check each leg is at the
same height and then “LOCK” them into
position by sliding button (D) on the inside
of each leg downwards.
D
C
Attaching the legs to the seat tray
3. With the larger pivot point (C) pushed into the socket; push the smaller pivot point (D) down
into the socket till it clicks into place.
Click
Assembling the base and seat tray
A
C
C
C
B
D

7
1. Place the seat unit (A) into the seat tray
(B) and using moderate force push the seat
unit downwards until it clicks into position.
Adjusting the height of the fun station
1. To adjust the height, slide button (A) on the inside of each leg upwards to the “UNLOCK”
position. Press button (B) on each leg and slide the legs up or down to one of the three possible
heights. Check all legs are at the same height then slide button (A) on the inside of each leg back to
the “LOCK” position.
WARNING! Ensure you always lock ALL the legs after adjusting the height.
WARNING! Check ALL legs are fully locked open and that they cannot fold before placing
your child in the fun station.
Attaching the seat unit
B
A
Click
A
B

8
Attaching the play tray
1. Place the play tray (A) into the recessed area
(B) on the top of the fun station. Secure the
play tray by turning the two locks (C) on the
underside of the recessed area in a clockwise
direction.
1. Remove the toy car from the musical play tray. Turn the toy car over and using a Phillips
screwdriver, unscrew the battery cover on the underside of the toy car.
Musical play tray
A
C
B

9
2. Insert 2 x 1.5V AA batteries (not
supplied) ensuring the correct battery
orientation is observed and then reattach the
cover, replacing the screw, making certain it
is not over-tightened.
1. Insert the crab (A) into the crab base (B).
2. Position the assembled toy crab (C) and toy
turtle (D) over the correct recesses on the fun
station and push them rmly into position
ensuring they click into place.
3. Insert the toy lolly (E) and toy sh (F) into
the round recesses on the fun station and once
in place turn them clockwise to lock them in
position.
Musical play tray (continued)
Attaching the remaining toys
C
D
E
F
A
B

10
Folding the fun station
1. Slide and hold lock (A) open whilst pressing
button (B) and fold each leg inwards.
1. With one hand, hold the centre of the fun station and raise it upwards. Whilst holding the fun
station raised up with one hand, begin locking the legs into position by pushing the legs outwards
ensuring they click open.
WARNING! Check ALL legs are fully locked open and that they cannot fold before placing
your child in the fun station.
A
B
Opening the fun station
Click

Care and maintenance
• To prolong the life of your nursery product keep it clean and do not leave it
in direct sunlight for extended periods of time.
• Plastic parts can be wiped clean with a damp cloth and mild soap then
allowed to air dry.
• DO NOT immerse plastic parts in water.
• Clean toys before use. Not dishwasher safe.
• Removable fabric covers and trims may be machine washed in cold water
on a delicate cycle. Use a low heat for tumble drying.
• Do not dry clean, or use bleach.
• Non removable fabric covers and trims may be cleaned using a damp
sponge with soap or mild detergent. Allow it to dry completely before
folding or storing it away.
• In some climates the covers and trims may be affected by mould and
mildew. To help prevent this occurring, do not fold or store the product if it
is damp or wet. Always store the product in a well ventilated area.
• Always check parts regularly for tightness of screws, nuts and other
fasteners - tighten if required. To maintain the safety of your nursery
product, seek prompt repairs for bent, torn, worn or broken parts.
• Regularly clean parts that have been mouthed by your child.
