Tobii Dynavox T7, T10+, T15 User Manual
T-Series Devices
User’s Manual
T7
T10
T10+
T15
User’s manual T-Series Devices
Version 2.2
03/2016
All rights reserved.
Copyright © Tobii AB (publ)
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form, by any means
(electronic, photocopying, recording, or otherwise) without
the prior written permission of the publisher.
Copyright protection claimed includes all forms and matters
of copyrightable material and information allowed by statutory
or judicial law or hereafter granted, including without
limitation, material generated from the software programs
which are displayed on the screen such as screen displays,
menus, etc.
The information contained in this document is proprietary to
Tobii Dynavox. Any reproduction in part or whole without
prior written authorization by Tobii Dynavox is prohibited.
Products that are referred to in this document may be either
trademarks and/or registered trademarks of the respective
owners. The publisher and the author make no claim to these
trademarks.
While every precaution has been taken in the preparation of
this document, the publisher and the author assume no
responsibility for errors or omissions, or for damages
resulting from the use of information contained in this
document or from the use of programs and source code that
may accompany it. In no event shall the publisher and the
author be liable for any loss of profit or any other commercial
damage caused or alleged to have been caused directly or
indirectly by this document.
Content subject to change without notice.
Please check Tobii Dynavox web site www.TobiiDynavox.
com for updated versions of this document.
Table of Contents
1 Introduction.................................................................................................................................... 4
1.1 Explanation of Admonitions.................. . . . .............. . . . . .............. .. . ............... . . . .............. . . . ...........4
1.2 Symbols and Markings ......... .. . ............... . . . .............. . . . ............... . . . .............. . . .............. .. . . .........4
1.3 Intended Use ......................... . . . ............... . . . .............. . . .............. .. . . .............. .. . ............... . . . ......5
1.4 Package Contents....................... . . . .............. .. . ............... . . . .............. . . . . .............. . . . ............... . ..5
1.5 myTobiiDynavox . .............. .. . . . ............. .. . ............... . . . .............. .. . ............... . . . .............. . . . . ..........6
1.6 Additional Documentation .......... . . .............. .. . . . ............. . . . .............. . . . . .............. .. . ............... . . . ...6
2 Safety ............................................................................................................................................ 7
3 Overview of the T-Series device................................................................................................... 10
3.1 T7 ..... .. . ............... . . . .............. . . . . .............. . . . .............. . . ................ . . .............. .. . ............... . . . ....10
3.2 T10 .. . .............. . . . . .............. .. . ............... . . . .............. . . . ............... . . . .............. . . .............. .. . . .......12
3.3 T10+..... .. . ............... . . . .............. . . . . .............. . . . ............... . . . .............. . . . ............... . ................ . .13
3.4 T15 .. . .............. . . . . .............. .. . ............... . . . .............. . . . ............... . . . .............. . . .............. .. . . .......15
4 Turning the T-Series On for the First Time .................................................................................... 17
4.1 Troubleshooting ............................. . . . ............... . . . .............. . . . ............... . ................ . . ..............17
5 Charging the Battery .................................................................................................................... 18
5.1 Prolonging the T-Series Battery Life — Do’s and Don’ts ........ . . .............. .. . . .............. .. . ...............18
6 Product Care ............................................................................................................................... 19
6.1 Temperature/Humidity/Atmospheric Pressure Ranges .............. . . . . .............. . . . ............. .. . ...........19
6.2 Mounting/Transporting the T-Series................ . . . .............. . . . . ............ .. . . . .............. . . ................ . .19
6.3 Product Cleaning/Handling ................. . . . .............. . . . . .............. . . . .............. . . . . ............ .. . . . .........19
6.4 Cautions - Handling, Storage and Shipping .............................. . . . ............... . . . .............. . . . .........19
6.5 Disposing of the T-Series Device ....... . . .............. .. . . .............. .. . ............... . . . .............. . . . ............20
6.6 Disposing of the Batteries ................... . . . .............. . . . . .............. .. . ............... . . . .............. . . . .........20
Appendix A Support, Warranty, Training Resources ......................................................................... 21
A1 Customer Support........... . . . ............... . ................ . . .............. .. . . . ............. . . . ............... . . . ...........21
A2 Warranty ....... . . . .............. . . . . .............. . . . .............. . . ................ . . . ............. .. . ............... . . . ...........21
A3 Training Resources.. . ............... . . . .............. . . . ............... . ................ . . .............. .. . . . ............. . . . ....21
Appendix B Compliance Information................................................................................................. 22
B1 FCC Statement..................... . . ................ . . .............. .. . ............... . . . .............. . . . . .............. . . . .....22
B1.1 For P15B Equipment ... . . . . .............. .. . ............... . . . .............. . . . ............... . . . .............. . .22
B1.2 For Portable Devices .. . .............. . . . . .............. . . . ............... . ................ . . . ............. .. . ....22
B1.3 Radio Wave Exposure and Specific Absorption Rate (SAR) Information .. . ............. .. . ....22
B2 Industry Canada Statement .... . . .............. .. . ............... . . . .............. . . . . .............. . . . .............. . . .......25
B2.1 English ........ . . . .............. . . . . .............. . . . ............... . ................ . . .............. .. . . ..............25
B2.2 Français....... .. . . .............. .. . ............... . . . .............. . . . ............... . ................ . . ..............26
B3 CE Statement ....................... . . ................ . . .............. .. . ............... . . . .............. . . . . .............. . . . .....26
Appendix C Technical Specifications................................................................................................ 27
Appendix D Approved Accessories .................................................................................................. 30
1 Introduction
The Tobii Dynavox T7, T10,T10+ andT15 are integrated hardware and software solutions for Augmentative and Alternative
Communication (AAC), a purpose built Speech Generating Device (SGD), which feature theCompass communication
software.
This User’s Manual provides an overview of the basic operation of your T7, T10,T10+ andT15 Android tablets. It points out
key hardware features and describes the most frequently-used features and functions of your device.
1.1 Explanation of Admonitions
In this manual we use five (5) levels of admonitions as follows:
Is used for notifying the user of something important or of something that needs special attention.
Is used to inform of something that could cause harm to, or malfunction of, the equipment.
Is used to inform of something in which there is a conceivable risk of harm to the user if the Warning is ignored.
Is used to inform of something that can cause damage to hearing.
Is used to inform of something that cause permanent bodily harm with prolonged skin contact if the Warning is
ignored.
1.2 Symbols and Markings
This section provides information about the symbols that are used on the T-Series, its accessories or packaging.
Symbol or Markings Description
Power On
Dispose of in accordance with your country's requirements.
CE is the abbreviation of the European Communities and this
mark tells customs officials in the European Union that the
product complies with one or more of the EC Directives.
This mark is a certification mark employed on electronic
products manufactured or sold in the United States which
certifies that the electromagnetic interference from the device is under limits approved by the Federal Communications
Commission.
Degree of protection against harmful ingress of water or particulate matter (for adaptor).
Degree of protection against the ingress of water or particulate matter (for main unit/appliance).
Consult User´s Manual
4
1 Introduction
#401487-F T-Series Devices User’s manual v.2.2 - en-US
Symbol or Markings
Description
Type L and Type R Listing Marks for Canada and the United
States
Conforms to relevant Australian EMC requirements
Safety Class II equipment (reinforced insulation)
This mark show the pin out polarity on the AC/DC Power
Adapter.
-
Volume down
+
Volume up
Type BF applied part
Warning
For indoor use
Product full compliant German Product Safety law
1.3 Intended Use
The T-Series devices are intended for use as an augmentative communication aid, computer access, and environmental control
unit for those with speech, language, physical, and cognitive disabilities. Their intended purpose is to compensate for lack of
speech due to injury or handicap, and to provide a means of controlling the environment for persons who are unable to reach
environmental control equipment due to injury or handicap. The device is accessible via touchscreen, keyboard, mouse/trackball, switch, and head tracking. T-Series devices are transit-operable equipment. During use, the T-Series devices may be
placed on a flat surface, or mounted using an approved mount.
Your T-Series device is intended for everyday communication situations. It should not be relied upon as a means of communicating emergency medical information. We recommend having multiple ways to communicate information during a medical
emergency.
1.4 Package Contents
The items below are included with your T-Series package:
● 1 Device (7″, 10″ or 15″)
● 1 Power Supply
● 1 Android operating system (installed)
● 1 Compass (pre-installed)
● 1 T-Series User’s Manual (on the device)
● 1 Compass User’s Manual (on the device)
● 1 Quick Start Manual (printed)
#401487-F T-Series Devices User’s manual v.2.2 - en-US
1 Introduction
5
Keep the original packaging materials for the T-Series.
In case the device needs to be returned to Tobii Dynavox for Warranty related issues or repair, it is required that the
original packaging (or equal equivalent) is used for shipping.
1.5 myTobiiDynavox
Go to www.myTobiiDynavox.com to register for an account and register your T-Series device.
The myTobiiDynavox Community offers a large and steadily increasing library of over 250 Knowledgebase articles that cover all
aspects of the T-Series devices and the Compass software.
1.6 Additional Documentation
A Quick Start Guide was shipped with your T-Series device. This guide provides an overview of your T-Series device, walks
you through starting up and customizing it, and provides information on resources available to you on both www.myTobiiDyna-
Vox.com and through the Help menu on your T-Series device.
The Compass User’s Manual is an introductory reference to the Compass software running on your T-Series device. It includes basic step-by-step instructions for selecting a pageset and access method, customizing the software for your user, modifying and editing pages, creating new pages, using the camera, programming the Remote Manager, and backing up and
restoring.
On your device, open the Settings menu. Then select Help > Compass User’s Manual.
6
1 Introduction
#401487-F T-Series Devices User’s manual v.2.2 - en-US
2 Safety
The T-Series device has been tested and approved as compliant to all the Specifications and Standards listed in Appendix B
Compliance Information, page 22 of this manual and in the Appendix C Technical Specifications, page 27 -- including, but not
limited to, the Medical Device Standard (Class 1/Type B). In order to ensure safe operation of your T-Series device, there are a
few safety warnings to bear in mind:
The patient is an intended operator and may safely use all device functions available from the device software.
Separate power supply (adaptor) is specified as a part of the product.
The whole appliance (excluding adaptor) is the applied part.
Expected service life: 5 years
This unit has been thoroughly tested and inspected to assure proper performance and operation.
The T-Series device may be mounted to a wheelchair or fixed on a table.
No modification of this equipment is allowed
Place your T-Series device in a stable area and supervise children and pets while they are in the vicinity of the
T-Series device. To prevent strangulation, do not play with cables. Keep small parts, such as the detachable cover of
the USB port, out of reach of children and animals that may inhale or swallow them.
Young children or people with intellectual disabilities should be supervised while using the T-Series device.
Care should be taken to avoid excessive dirt and dust that could cause unreliable operation. Do not place your
T-Series device in bright sunlight for long periods, near fireplaces, radiant heaters, steam kettles, or nebulizers, to
avoid potential overheating or damage to the device.
Your T-Series device requires little maintenance other than charging the battery and a periodic inspection of the
power cords for signs of wear and damage. If the power cords show signs of wear and damage, they should be replaced. Regular preventive inspection and maintenance should be performed.
The patient may clean the exterior of the device as specified in 6.3 Product Cleaning/Handling. All other maintenance
and repairs must be done by a certified technician.
Turn off the device and disconnect cables and accessories prior to cleaning, service, or maintenance. Do not clean,
service, or maintain the device while it is in use.
Tobii Dynavox will provide circuit diagrams, component part lists, descriptions, and calibration instructions to assist
authorized service personnel in parts repair.
Your device contains a Lithium Ion battery. A safety hazard may develop when the battery is placed in or near fires or
stoves, or in locations with temperatures above 113 ℉ / 45 ℃. These conditions may cause the battery to generate
heat or explode.
Do not perforate, disassemble or modify the battery. If you must dispose of the battery, do so in accordance with the
local laws that apply to the area where you live.
If you must dispose of the T-Series device or its accessories, do so in accordance with the local laws that apply to
the area where you live.
#401487-F T-Series Devices User’s manual v.2.2 - en-US
2 Safety
7
Restrictions specified on other equipment or network/data couplings to which a signal input/output part may be
connected.
Do not open the enclosure, stretch the openings, or touch the camera and the inner circuit.
This T-Series device presents a risk of electrical shock if the casing is opened. Do not open the casing that surrounds
the device.
Do not use the device during thunder or electrical storms. There is a risk of electric shock and damage to the device.
During storms, shut down and unplug the device.
Do not put the device screen or charging indicator light close to your eyes. Doing so could result in damage to the
eyes.
If the screen is uncomfortable to look at, turn down the screen brightness or power off the device.
When connecting headphones to the device, ensure that the device volume is set low in order to protect the ears
from potential harm.
The device can only be connected with other accessories and equipment which has been approved to be used safely
without danger of high voltage. Use of unapproved accessories may result in electric shock.
Your T-Series device is not suitable for use in the presence of flammable anesthetics or other combustible materials
such as fuels and chemicals.
Do not charge, power on, or use the device near combustible fuels or chemicals, such as at a gas station.
Your T-Series device conforms to IP22. IP22 explanation: the first digit [2] indicates the level of protection that the enclosure provides against access to hazardous parts [e.g. electrical conductors, moving parts] ,and the ingress of foreign objects. Level 2 provides protection to an object >12.5 mm [fingers or similar objects]. The second digit [2]
indicates the level of protection that the enclosure provides against harmful ingress of water. Vertically dripping water
shall have no harmful effect when the enclosure is tilted at an angle up to 15 degrees from its normal position.
You T-Series charger conforms to IP21. IP21 explanation: the first digit [2] indicates the level of protection that the
enclosure provides against access to hazardous parts [e.g. electrical conductors, moving parts] ,and the ingress of
foreign objects. Level 2 provides protection to an object >12.5 mm [fingers or similar objects]. The second digit [1] indicates the level of protection that the enclosure provides against harmful ingress of water. It is protected from
condensation.
When you are charging your T-Series device, remember that the main outlet that you will be using to power the adapter must be accessible from within 6 feet (2 meters) of the device. There should be no switches or disconnect devices
in the ground conductor.
The plug of the power adapter is used as the isolation means from mains. Do not position the device in such a way
that the plug is difficult to disconnect.
Use care when installing and routing cables and accessories to avoid tangling and a possible tripping hazard.
Running the T-Series device for a long time may cause the temperature to temporarily rise to above 105 ℉ / 41 ℃.
Please power off the T-Series device if it is overheating. Do not hold an overheating device in your hands; place it on
a hard, heat-resistant surface in an area with air flow to allow heat to dissipate.
The edge of the display can reach temperatures of up to 49℃/120℉. To prevent burns, do not touch the edge of the
display for longer than 1 minute continuously.
The touch screen can reach temperatures of up to 46℃/115℉. To prevent burns, do not touch the screen in excess
of 10 minutes continuously.
8
2 Safety
#401487-F T-Series Devices User’s manual v.2.2 - en-US
The necessary support for installation and use of your device is provided in this User’s Manual and in the Knowledgebase at myTobiiDynavox.com. Anything unusual occurring during operation should be reported to Tobii Dynavox tech-
nical support.
This product needs special precautions regarding EMC and needs to be installed and put into service according to
the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment.
This machine should not be used adjacent to or stacked with other equipment. If adjacent or stacked use is necessary, this machine should be observed to verify normal operation in the configuration in which it will be used
The use of accessories, transducers and cables other than those specified, with the exception of transducers and cables sold by Tobii Dynavox as replacement parts for internal components, may result in increased emissions or decreased immunity of the me equipment or me system.
Because of internal chemical reactions, battery performance may deteriorate over time. In addition, failure to keep the
conditions of use (charge, discharge, ambient temperature, etc.) within specified ranges may shorten the battery life
expectancy, or damage your T-Series device. If the battery cannot maintain a charge for long periods of time, even
when it is charged correctly, it may need to be replaced.
The battery needs to be replaced every 12 to 18 months with typical use.
For safe and proper operation of your T-Series device, use only chargers, batteries, and accessories that have been
approved by Tobii Dynavox.
Never, under any circumstances, disassemble your T-Series device. Doing so for any reason will void the warranty,
and you will be responsible for the cost of any required repairs.
The LCD may show "image persistence" if the same image or page is displayed for four (4) consecutive hours or longer. The visual artifacts may or may not be noticeable or distracting. They will not cause permanent damage to the
LCD.
#401487-F T-Series Devices User’s manual v.2.2 - en-US
2 Safety
9
3 Overview of the T-Series device
3.1 T7

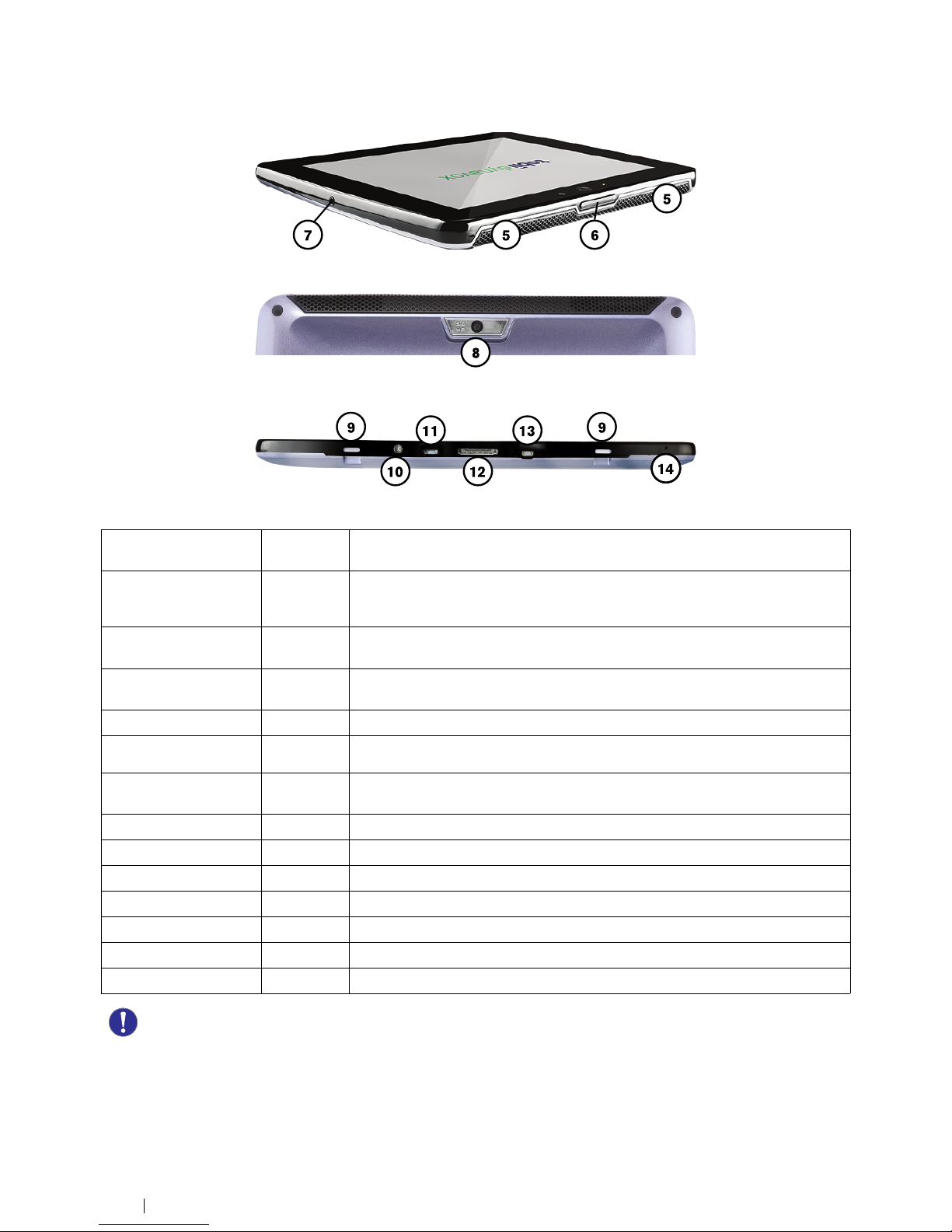

Figure 3.1 T7 Front
Figure 3.2 T7 Top
Figure 3.3 T7 Back
10
3 Overview of the T-Series device
#401487-F T-Series Devices User’s manual v.2.2 - en-US
Loading...
