User Manual
Mercedes-Maybach S 650 Cabriolet
BATTERY OPERATED RIDE-ON CAR
Item No. ZB188
The Ride-on Car must be assembled by an adult who has read
and understands the instructions in this manual.
Keep the package away from children and dispose of properly
before use.
Keep this manual for future reference.
Our products are suitable for
ASTM F963; GB6675 and GB19865; EN71 and EN62115 standard.
Manufacturer：
Shanghai Zhenbao Industrial Co., Ltd.
Room 102, XinFeng Highway Road#4972,
Fengxian District, Shanghai,
China
The logo and word mark of "Mercedes-Benz"and "Mercedes-Maybach",
and the design of the enclosed product are subject to intellectual
property protection owned by Daimler AG. They are used by Shanghai
Zhenbao Industrial Co., Ltd. under license.
Charge Mode
● Do not reverse the battery.
● Please check the battery charger before charging, whether battery and plugs
are damaged. If any damage is found, you should stop using until the repair is
done and then you can use.
● it is normal that the battery charger is with thermal phenomenon during
charging, but when the temperature is too high, you should check timely
whether the charge current is too large or there is internal short circuit in the
battery.
● Use press plate to fix the battery charger. If the car is overturned, the battery
is likely to fall and hurt children.
● If the product is collected or kept for a long time without using, you must first
charge it fully and recharge it once a month to ensure the battery life.
● The charger and battery are not toys, and it doesn’t allow children to play.
● When charging, you must turn off
the power switch.
charging hole
● for the first use, the recommended
charging time is 4-6 hours, but not
more than 10 hours.
● When the vehicle is significantly
slower than normal speed, it
indicates that the battery power is
low, please charge timely.
● After using, please charge for 8-12
hours, but not more than 20 hours.
Trouble shooting
(1) The vehicle cannot run:
1. Check whether the power plug is plugged in securely;
2. Whether the fuse cuts off the power automatically caused by
overloading or locked-rotor or short circuit, and identify the reason or
replace the fuse.
3. Whether the round plug by charger output voltage is plugged into the
charging hole of the car, if you insert it into the charging hole, the power
of vehicle will cut off the power automatically. Pull out the rear, it will
return to normal.
9
Safety and Points for Attention
1. In order to prevent accidents, please tell the following safety rules to your children and their
playmates, and make sure they have understood.
2. The vehicle assembly should be completed by an adult according to the steps the manual
describes,and confirm assembly correct and in place.
3. In order to ensure the children’s safety, after opening packaging, please clean up the
packaging promptly to store in the place where children cannot reach!
4. In order to avoid injury of small parts, keep the small parts away from children under 3 years
old!
5. When driving bassinet, it must be looked after or guided by an adult or parents, and
caregivers shouldn’t leave and make sure your children are always within your caring range.
6. Warning. Not to be used in traffic. The toy should be used with caution since skill required to
avoid falls or collisions causing injury to the user or third parties.
7. Avoid children traveling in a dark environment. Prohibit running around the place where there
are obstructions, which may cause striking or damage;
8. While driving a vehicle, you must wear a safety helmet, put on shoes and fasten the seat
belt.
9. Note that the vehicle is suitable for running on hard and flat road. In order to ensure safety,
prohibit traveling in the non-secure environment, such as beside gutter, small rivers, swimming
pool, lawns, slopes, uneven roads and other non-secure places.
10. It is strictly prohibited insolation in the blazing sun, and don’t use the product outdoors in
rainy and snowy weather.
11. When shift, make sure the vehicle has been completely stopped.
12. Use this product according to the specifications of the dead weight capacity and the age
range. It is strictly prohibited to use for overloading and overage!
13. Don’t change the structure of the vehicle and wiring systems arbitrarily.
14. Don’t use the vehicle fuse with different specifications.
15. Eliminate direct short circuit of circuit, and prevent the danger of fire and burning.
16. Check whether the wiring plug of the vehicle is loose, aging and falling and whether the
wires, electrical appliance, shell, steering systems, fasteners, etc. are normal(completed by an
adult) regularly (recommend check once every two weeks).
17. Don’t wash the vehicle with water directly or rain the vehicle, and prevent water from
damaging the electrical appliance and circuit.
18. The battery and charger of the vehicle are not individual toys, and ban children from playing
the battery and charger.
19. In order to avoid accidents, ensure that the vehicle is safe before driving.
20. Please don’t let any children approach the moving vehicles. Don’t let the children touch the
rotating wheels.
21. Don’t use the batteries by mixing old batteries with new batteries. After dry battery is
exhausted, the battery should be removed from battery holders timely, and pay attention to
protect the environment and don’t throw it away.
22. When the improper operations of overload or locked-rotor or short circuit,
etc. self-resetting fuse will cut off the power for 10-20 seconds automatically, and then connect
the power automatically; when meeting improper operations, glass tube fuse will blow the fuse
automatically, and after asking professional maintenance personnel to repair, replace the fuse.
The vehicle uses the 10A -15A fuse.
23. Default of sealed lead-acid battery is used the different types of batteries or battery can not
mix between the old and the new. Charge must by adult operation, must use match the
specifications of the charger.(Attention: Charge is not toys, prohibit children play with the
charger directly.)
2
24. When this vehicle stop using for a long time, please pull up the red positive cable on the
battery put the switch in the position of “off” to ensure the safety circuit. In order to prolong
the useful life of battery, please charge at least once every three months during the outage
for a long time.
25. Special Tips: after the round plug by battery charger outputting voltage into the charging
hole on the vehicle, the vehicle will cut off the power automatically. The vehicle doesn’t
work, you must wait for unplugging round plug on the charger off the charging hole, and
then the vehicle power supply will return to normal.
26. The packaging components of the vehicle have important information. Please do not
throw them away and save them for future use.
List of Critical Components
Car body X1 steering wheel X1 front wheelx2
1 2 3
Rear
wheelX2
Mirror X 1 pair
Decorative Wheel Cover
X4
4
seat X1
Windshield X1
5 6
4*12 screw X1
Using 2.4G Remote Control Function Description
Slow,middle,fast indicator light
3 speeds loop
control button
Forward and
backward
Code indicating
lamp
1, First use or change the battery, need to code:
A:Link to the power of the battery then turn on the car;
B:Open the remote control and fit with dry cell;
C:Long press code button about 5-7 seconds, when the indicator light flicker to not bright,
her is OK
2, General use
A. Choose speed: 3 lights flash slowly is low speed, 3 lights flash middle is middle speed,
3 lights flash fast is high speed. Every speed have slow start.
B. Forward and backward have slow start and slow stop; Left and right control the left and
right direction; Emergency brake button will stop in any dangerous circumstances.
C. Under rc or manual circumstances, press emergency brake button, the car will stop.
D. When not using the remote control after 15 seconds automatically cut off the battery no
power, no need for frequent re-use.
Emergency brake
Left and right
Code button
7 8 9
10mm lock nut X4 10mm Washer X4 12mm Washer X2
10 11 12
Remote Control
2.4G
Charger Spanner
3
3, Swing function
Press down stop button on remote control lasts 3 seconds, then press forward button lasts
3 seconds, release these 2 buttons at the same time, it will start forward and backward
swing. Use speed button control swing speed. Press any button will stop swing except
speed button.
4. Precautions
A. The remote control has energy-saving settings, a time when not in use, shut down
automatically,then use the time and return to normal state;
B. Frequency of keys during the initial use and replace the batteries need to do this once;
C. Make sure the remote is not damp, wet, otherwise it will affect the performance of or
inability to use；
D. Note that the battery polarity when installing the battery；
E. Don’t use the new and old battery at same time;
F. When the remote distance is short, please change the battery;
G. If not use the remote control for a long time, please take off the battery;
H. Be careful using the remote control, to prevent the break；
I. Please recycle used batteries, so as not to pollute the environment.
8
CATALOGUE
-Instructions before Use
-Specification
-Safety and Points for Attention
-List of Critical Components
-Exploded View

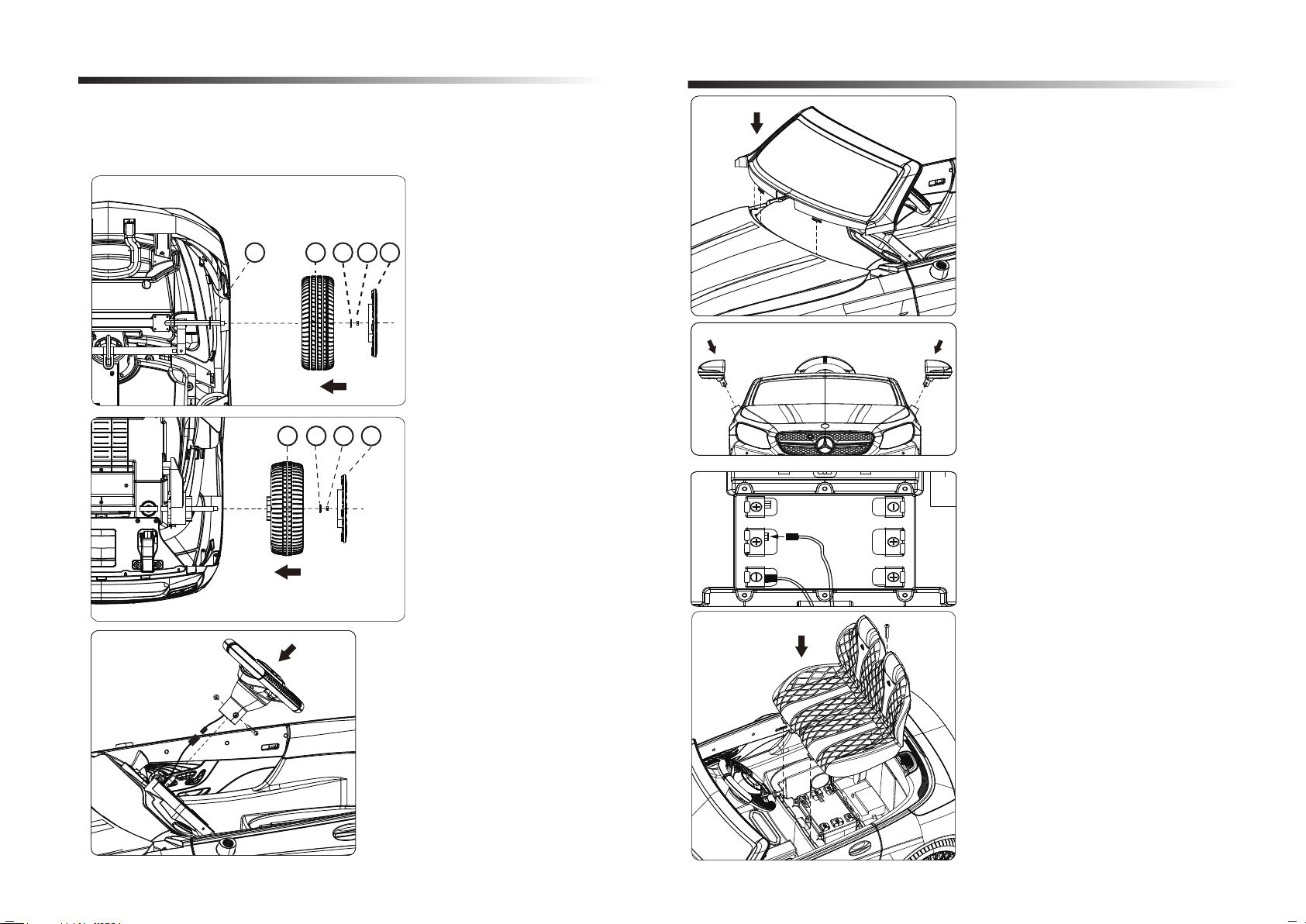

-Assembly Process Diagram
-The Function Diagram and Operation Method
-Charge Mode
-Trouble shooting
Instructions before Use:
Dear customers, please read this manual carefully before you use the
products. Because it can tell you the correct method of installation and
operating procedures to avoid damaging the products or hurting your
children caused by incorrect operating procedures and without
understanding safety knowledge. Please keep this instruction for future
use and place it in easily accessible place.
Specification：
Car Size
Applicable age
Maximum
loading
The running
speed
Fuse Size
Driving motors
The battery
for R/C
124×70×50cm
37-95 months
30kg
2-6KM/H
10A(15A)
12V/35W×2
AAA battery *2
The battery
power supply
modes
The charger
specification
Normal
charging time
Regular life of
battery
Steering wheel
motor
12V7AH(12V10AH)
Charge Type
12V1000MA
8-12h
About 280 times
12V/20W×1
4. Whether the manual button or switch is stuck;
5. Whether the driven wheels are stuck by debris;
(2) The slow speed of car:
1. Whether the battery power is low or it needs charging timely;
2.Whether the vehicle is overloaded;
3. Whether the charger is damaged, causing the battery not to be charged
with electricity;
4. Whether there is debris stuck between the wheels and the wheel axle;
(3) The car cannot be charged:
1. Whether the charger is burned? Normally, the charger should be with
thermal phenomena when charging;
2. Whether the battery has been damaged, with deformation, leakage and
other phenomena, it should be replaced timely;
3. Whether the connections between charger and battery and switch plug
are loose? They must be connected firmly.
Problem: Travel time of vehicle is very short.
Cause of the problem: the battery is not charged enough Charging time of
battery is not enough. Please charge timely after using, and charge it at
least once a month. The recommended charging time is 8-12 hours,not
exceeding 20 hours.
Cause of the problem: the battery is aging
Battery is vulnerable consumable, and its useful life depends on the timely
or correct charging and maintenance operations. So the useful life of
battery is 1-3 years, if it exceeds the useful life, propose to replace with
new battery.
Problem: there is thermal phenomenon on the charger when
charging.
It is normal phenomenon. But if the temperature is too high, you should
check whether the charging power supply is too large or there is internal
short circuit in the battery.
1
10
Exploded ViewFunction Diagram and Operation Method
(The product is prohibited for children less than 36 months)
MP3(MP4)
MP3 functions
Bluetooth (for smartphone connection)
USB
USB socket
TF socket
TF
AUX
MP3 input
Education (Pressing for a longer time to lower the volume)
Story (next one)
Music(Pressing for a longer time to Higher the volume)
Model choose (MP3,FM,Bluetooth,TF,USB Connector)
Function Diagram
Start Key
Light switch
Forward/backward
High speed/low speed
Foot Switch
+
MODE
Display
10
11
1
12
7
6
2
7
8
3
9
MP4 functions
Power display
Volume
Back to last page
Music/Songs
Movie/Video
ON/OFF
U disk Aux
TF Aux
5
Profile
Home page
4
Bluetooth
Radio
10
5
MP3/Mobile Aux
7
4
Assembly Process Diagram
Assembly Process Diagram
● Before using, the vehicle must be assembled by an adult. It takes about 20 minutes to assemble
the product.
● Small parts are likely to be swallowed into throat, and prohibit children from touching and playing
● Before installation, please check the number of all parts, and packaging bags of product should
be disposed. Prohibit children from playing with it, which may result in the danger of suffocation!
Front Wheel Assembly
● Taken off the 10mm lock nut and
10mm washer, but keep the 12mm
washer onto the axle;
10
12
4
3
11
11
10
5
● Slide a front wheel onto the axle,
and make sure the wheel match up
with the washer;
● Slide the 10mm washer onto the
rear axle;
● Tighten a lock nut to the end of
the rear axle with a spanner;
● Fit the hubcaps to the wheels.
5
Steering Wheel Assembly
● Connect the lines of steering wheel
with the lines from dashboard;
● Take off the screw on the steering
wheel axle;
● Slide the steering wheel into the
axle;
● Tighten the lock nut to locking the
steering wheel;
Rear Wheel Assembly
● Taken off the 10mm lock nut
and 10mm washer;
● Slide a rear wheel onto the axle,
and make sure the wheel match
up with the motor;
● Slide the 10mm washer onto the
rear axle;
● Tighten a lock nut to the end of
the rear axle with a spanner;
● Fit the hubcaps to the wheels.
a
b
Connect
the battery
Windshield Assemby
● Fit the windshield to car body and press
down, make sure it will be in the right way
Mirror Assembly
● Fit the mirror to the car body.
Note: Distinguish left and right mirrors
for assembly
Seat Assembly
● Connect the red postitive battery cable
as shown in Figure a;
● Fit teh seat as shown in Figure b (make
sure the seat into the slots on the rear of
the vehicle);
● Insert the M4x12 machine screw
through the seat and into the vehicle
body,and tighten it with a screwdriver.
5
6
Loading...
