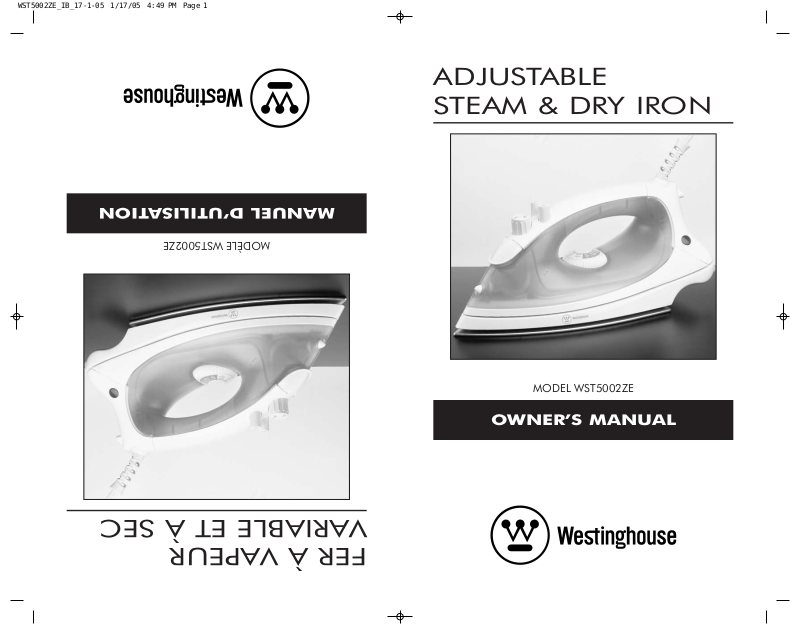

Toastmaster WST5002ZE User Manual

ADJUSTABLE
STEAM & DRY IRON

MODEL WST5002ZE

OWNER’S MANUAL

IMPORTANT SAFEGUARDS

When using your flat iron, basic safety precautions should always
be followed including the following:

1. Read all instructions.

2. Use iron only for its intended use.

3. To protect against a risk of electric shock, do not immerse
the iron in water or other liquids.

4. The iron should always be turned to off before plugging or
unplugging from outlet. Never yank cord to disconnect from
outlet; instead, grasp plug and pull to disconnect.

5. Do not allow cord to touch hot surfaces. Let iron cool com­pletely before putting away. Loop cord loosely around iron
when storing.

6. Always disconnect iron from electrical outlet when filling with
water or emptying and when not in use.

7. Do not operate iron with a damaged cord or if the iron has
been dropped or damaged. To avoid the risk of electric
shock, do not disassemble the iron. Incorrect reassembly can
cause a risk of electric shock when the iron is used. Contact
Consumer Service for examination and repair.

8. Close supervision is necessary for any appliance being used
by or near children. Do not leave iron unattended while con­nected or on an ironing board.

9. Burns can occur from touching hot metal parts, hot water, or
steam. Use caution when you turn a steam iron upside
down---there may be hot water in the reservoir.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high
wattage appliance on the same circuit.

2. If an extension cord is absolutely necessary, a 15-ampere
cord should be used. Cords rated for less amperage may
overheat. Care should be taken to arrange the cord so that it
cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

For Household Use Only

2

ADDITIONAL IMPORTANT
SAFEGUARDS

CAUTION HOT SURFACES: This appliance generates heat and escap­ing steam during use. Proper precautions must be taken to prevent
the risk of burns, fires or other damage to persons or property.

1. All users of this appliance must read and understand this Owner’s Manual
before operating or cleaning this appliance.

2. The cord to this appliance should be plugged into a 120V AC electrical
outlet only.

3. If this appliance begins to malfunction during use, immediately unplug the
cord. Do not use or attempt to repair the malfunctioning appliance.

4. Do not leave this appliance unattended during use.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other).
To reduce the risk of electric shock, this plug is intended to fit into a
polarized outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician. Do
not attempt to modify the plug in any way.

ELECTRIC POWER

If the electrical circuit is overloaded with other appliances, your appli­ance may not operate properly. It should be operated on a separate
electrical circuit from other appliances.

3

GETTING TO KNOW YOUR
WESTINGHOUSE WST5002ZE
ADJUSTABLE STEAM & DRY IRON

PRODUCT MAY VARY SLIGHTLY FROM ILLUSTRATION.

Temperature
Control
Dial

Variable Steam
Dial with
Removable
Steam Valve
P/N 50203

Blast of
Steam
Button

Spray
Button

Swivel
Cord

Water
Tank
Opening

MAX
Fill
Mark

Spray
Nozzle

Polished Soleplate
with Steam Vents

Heating/
Ready
Light

Heel

Water Tank
(Reservoir)

4

BEFORE USING FOR THE FIRST TIME

Carefully unpack your Iron and remove all packaging materials and
any adhesive stickers from the Soleplate. Make sure all adhesive is
removed by rubbing Soleplate with a damp cloth. To remove any dust
that may have accumulated on the Iron during packaging, simply wipe
with a clean, damp cloth. Do not use abrasive cleansers. Do not put the
Iron, cord or plug in water.

NOTE: Before you use your Iron for the first time, you should
flush the Soleplate steam vents to ensure that no stain is
transferred onto fabric from residue possibly left in the vents
from the manufacturing process. To do this, see SELF-CLEANING/

FLUSHING section for detailed instructions.

OPERATING INSTRUCTIONS

FABRIC CHART

Fabric Setting

NO STEAM Acrylic ACRYLIC

Acetate
Silk SILK

Nylon
Rayon RAYON
Wool WOOL

Polyester

STEAM Cotton COTTON

Triacetate
Linen LINEN

FOR BEST RESULTS

1. Check garment labels for the temperature and steam setting

recommended by the fabric manufacturer.

2. To prevent damaging garments from too hot of an Iron, it is best

to first iron garments that require a low temperature. If you should
need to switch from a high setting to a lower temperature, for
example, “ • • • ” to “ • ”, allow the Iron about 5 minutes to
reach the lower temperature.

5

OPERATING INSTRUCTIONS (Cont.)

FOR BEST RESULTS (Cont.)

3. If you are unsure of a garment's fabric content, start on a low

setting and test the Iron on an area of the garment that does not
show, such as a seam. Gradually increase the heat setting until
wrinkles remove without damaging the fabric.

4. To prevent shine, iron dark garments, or those made of silk,

acetate or rayon, inside out.

WARNING: To prevent fire, do not leave Iron unattended
while plugged in.

IRONING WITHOUT STEAM

The Iron can be used with or without water in the Tank. However, it is
best to avoid having the Tank too full of water while ironing without
steam.

1. Position Temperature Control Dial to the lowest MIN setting.

2. Turn the Variable Steam Dial to NO STEAM.

3. Stand the Iron on its Heel in an upright position on an iron-safe

surface and plug into a 120V AC outlet.

4. Turn the Temperature Control Dial to the desired setting.

5. When the Heating/Ready Light turns off, the Iron has reached the

desired temperature.

6. If desired, you may still use the Spray Button or Blast of Steam

Button as long as there is water in the Tank.

7. When finished, turn Temperature Control Dial to the lowest MIN

setting and unplug. Allow the Iron to cool before cleaning the
exterior or before storing.

NOTE: During ironing, the Heating/Ready Light may turn on
again which indicates that the Iron is heating up to maintain
the proper temperature.

CAUTION: If the Iron has been used for a long period of time
and is hot, DO NOT fill it with water.

6

OPERATING INSTRUCTIONS (Cont.)

IRONING WITH STEAM

When using as a Steam Iron, be sure the temperature setting on the
Temperature Control Dial is within the WOOL; COTTON; or LINEN set­ting to avoid water spotting on a garment.

1. Position Temperature Control Dial to the lowest MIN setting.

2. With the unit UNPLUGGED, fill the Iron's Water Tank to the MAX

Fill Mark.

3. Stand the Iron on its Heel in an upright position on an iron-safe

surface and plug it into a 120V AC outlet.

4. Turn the Temperature Control Dial to the WOOL; COTTON; or

LINEN setting.

5. Allow approximately 2 minutes for the Iron to reach the desired

temperature.

6. Turn the Variable Steam Dial to for Moderate Steam or

for Maximum Steam. As soon as the Iron is held horizontally, steam
will flow through the Vents. If the iron fails to steam, gently tap the
Soleplate on the Iron surface. Placing the Iron on its Heel in an
upright position interrupts the flow of steam.

7. When finished, turn the Temperature Control Dial to MIN and

unplug. Allow Iron to cool fully before cleaning the exterior of the
Iron or before storing.

CAUTION: Avoid coming into contact with escaping steam.
CAUTION: If the Iron has been used for a long period of time

and is hot, DO NOT fill it with water. Allow to cool, then refill
and resume ironing.

BLAST OF STEAM

The “Blast of Steam” is very useful for removing stubborn creases from
fabrics.

1. Fill Water Tank and set Temperature Control Dial to either the

WOOL; COTTON; or LINEN setting.

2. Press down on the Blast of Steam Button.

NOTE: If the temperature setting is too low, water may drip from
Soleplate. To obtain a good flow of steam, press Blast of Steam Button
several times, pausing 5 seconds between each blast to allow Iron to
reheat.

7

OPERATING INSTRUCTIONS (Cont.)

USING THE SPRAY BUTTON

For a mist of water to moisten dry and difficult fabrics such as linen,
cotton or wool, or to handle stubborn wrinkles, press the Spray Button.

The Spray Function is also handy to moisten creases accidentally

ironed into the fabric.

NOTE: You may have to pump the Spray Button several times
the first time your use the Iron in order to start the spraying
action.

FILLING THE WATER TANK

1. Unplug the Iron before filling.

2. Turn the Variable Steam Dial to NO STEAM setting.

3. Hold the Iron in horizontal position (Soleplate down).

4. Using a measuring cup, slowly pour water into the Water Tank

Opening.

5. Check see-through Water Tank to see if Iron is filled to MAX Fill

Mark.

NOTE: Your Iron is designed to use tap water. However, if your water
is very hard, it is recommended that you use distilled water. DO NOT
use water from home water softening systems because such water may
contain minerals that may harm the Iron.

CAUTION: Never fill Iron with fabric conditioner, starches, or any
other solution as these will damage the steam mechanism. Do not
use contaminated water.

EMPTYING THE WATER TANK

The Water Tank should be emptied after each use.

1. Unplug Iron from the electrical outlet.

2. While the Iron is still warm, hold the Iron over a sink and allow the

Iron to drain by tipping the point of the Iron down.

3. Gently shake the Iron to loosen any water drops that may be

trapped. The warmth of the Iron should dry out any remaining
water.

NOTE: If you empty the Water Tank after the Iron has cooled, set
the Iron in an upright position on its Heel. Plug it in and set the
Temperature Control Dial to MAX heat for 2 minutes. Then unplug
the Iron and let it cool before storing.

8

USER MAINTENANCE INSTRUCTIONS

This appliance requires little maintenance and contains no user
serviceable parts. Do not try to fix it yourself. Refer it to qualified
service personnel if servicing is needed.

SELF-CLEANING/FLUSHING

Flushing the Iron is advised after every 5 uses to prevent harmful
mineral build-up that can clog the Iron and prevent it from heating
and steaming properly.

1. With the Iron unplugged, position the Temperature Control Dial to

the lowest MIN setting.

2. Turn the Variable Steam Dial to NO STEAM.

3. Fill the see-through Water Tank to the MAX Fill Mark.

4. Plug the Iron into a 120V AC outlet and set the Temperature

Control Dial to its highest setting “ • • • ” Linen. Let the Iron heat
for 2 minutes.

5. Turn the Variable Steam Dial to for Self-Clean setting.

6. Place a hand towel over the ironing surface.

7. Hold the Iron horizontally 2 inches above a towel, allowing steam

to flow through the Vents for 1-2 minutes. You may also press the
Blast of Steam Button several times, pausing 5 seconds between
blasts to allow the Iron to reheat.

8. Pass the Iron over a damp cloth to clean the Soleplate.

9. When finished, turn the Temperature Control Dial to the lowest

MIN setting and unplug from outlet. Allow the Iron to cool com­pletely before cleaning the exterior of the Iron or before storing.

10. Use a cloth to wipe the exterior of the Iron before storing.

9

USER MAINTENANCE INSTRUCTIONS

(Cont.)

TO CLEAN SOLEPLATE

The Iron should be fully cooled before Soleplate cleaning begins. Make
sure the Iron is unplugged before cleaning. Empty the Water Tank of
any remaining water. Apply a small amount of mild cleaner to a damp
cloth. Gently rub Soleplate, then wipe with a moist cloth. NEVER USE
scouring pads or abrasive cleaners on the Soleplate, as this may scratch
the surface.

Wipe all other surfaces with a slightly damp cloth. Never allow water or
any other liquid to get into the unit, except when filling the Water Tank.
NEVER put any chemical cleaning agents or solvents in the Water Tank.

BEFORE USING AGAIN, preheat and move Iron over an old cloth
several times to remove any residue from the Soleplate.

CLEANING THE STEAM VALVE

The variable steam dial/valve is removable to clean build-up scale
which can result in poor steam performance. Cleaning of the steam
valve is only necessary if you notice a reduction in steam performance.

Always disconnect from electrical outlet when cleaning the
steam valve.

TO REMOVE STEAM VALVE

1. Empty the water tank and let the Iron
cool down. Place the Iron on the
Soleplate.

2. Firmly turn the STEAM dial counter­clockwise to the icon. It will pop
up.

3. Pull up to remove steam valve fully.
Wipe tip gently to clean.

4. To replace: Align with the
indicator arrow. Push down and turn
clockwise.

CAUTION: Do not pour water into the steam valve hole.

10

USER MAINTENANCE INSTRUCTIONS

(Cont.)

STORAGE

Unplug appliance and allow to cool. STORE IN UPRIGHT POSITION
ON HEEL REST. Never store Iron lying on the Soleplate. Never store it
while it is hot or still plugged in. Never wrap cord tightly around the
appliance. Do not put any stress on the cord where it enters the unit, as
it could cause the cord to fray and break.

11

LIMITED ONE-YEAR WARRANTY

Warranty Coverage: This product is warranted to be free from defects in
materials or workmanship for a period of one (1) year from the original pur­chase date. This product warranty is extended only to the original con­sumer purchaser of the product and is not transferable. For a period of
one (1) year from the date of original purchase of the product, our Repair
Center will, at its option, either (1) repair the product or (2) replace the
product with a reconditioned comparable model. These remedies are the
purchaser's exclusive remedies under this warranty.
Warranty Service: To obtain warranty service, you must call our warranty
service number at 1-800-233-9054 for return instructions on how to deliver
the product, in either the original packaging or packaging affording an
equal degree of protection to the Repair Center specified below. You must
enclose a copy of your sales receipt or other proof of purchase to demon­strate eligibility for warranty coverage.

To return the appliance, ship to:

ATTN: Repair Center
708 South Missouri Street
Macon, MO 63552 USA

What Is Not Covered: This warranty does not cover damage resulting
from misuse, accident, commercial use, improper service or any other
damage caused by anything other than defects in material or workmanship
during ordinary consumer use. This warranty is invalid if the serial number
has been altered or removed from the product. This warranty is valid only
in the United States and Canada.
LIMITATION ON DAMAGES: THERE SHALL BE NO LIABILITY FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS
PRODUCT.

To contact us, please write to, call, or email:

Consumer Relations Department
PO Box 7366
Columbia MO 65205-7366 USA
1-800-233-9054
E-mail:
[e-mail]

DURATION OF IMPLIED WARRANTIES: EXCEPT TO THE EXTENT
PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES AND
CONDITIONS, INCLUDING, WITHOUT LIMITATION, IMPLIED WAR­RANTIES AND CONDITIONS OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE OR USE ON THIS PRODUCT ARE LIM­ITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, or allow limitations on how long an implied war­ranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may have other rights
under the laws of your jurisdiction.

For more information on our products, visit our website: www.maxim-toastmaster.com.
