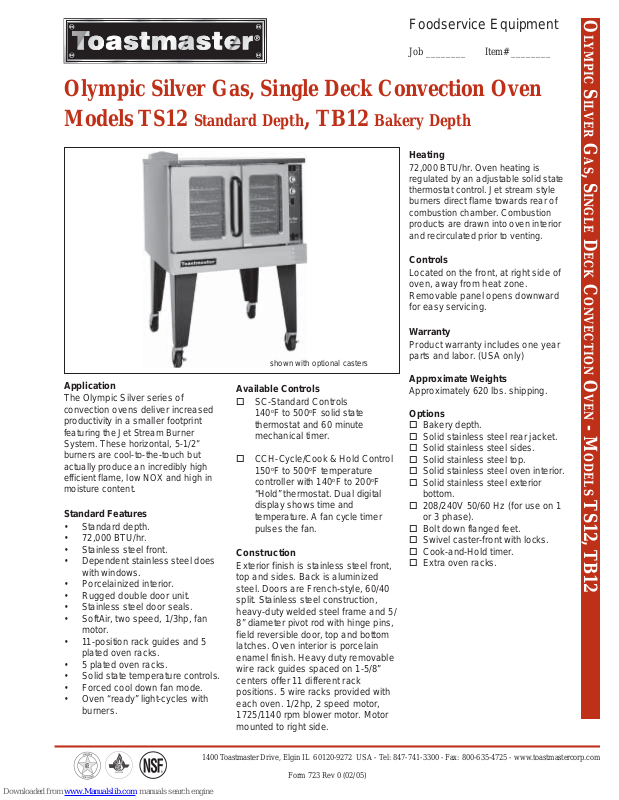

Toastmaster TB12, TS12 Brochure

Foodservice Equipment

Job ________ Item# ________

Olympic Silver Gas, Single Deck Convection Oven

OLYMPIC SILVER GAS, SINGLE DECK CONVECTION OVEN - MODELS TS12, TB12

Models TS12

Application

The Olympic Silver series of
convection ovens deliver increased
productivity in a smaller footprint

featuring the Jet Stream Burner
System. These horizontal, 5-1/2”
burners are cool-to-the-touch but
actually produce an incredibly high
efficient flame, low NOX and high in
moisture content.

Standard Features

• Standard depth.

• 72,000 BTU/hr.

• Stainless steel front.

• Dependent stainless steel does

with windows.

• Porcelainized interior.

• Rugged double door unit.

• Stainless steel door seals.

• SoftAir, two speed, 1/3hp, fan

motor.

• 11-position rack guides and 5
plated oven racks.

• 5 plated oven racks.

• Solid state temperature controls.

• Forced cool down fan mode.

• Oven “ready” light-cycles with

burners.

Standard Depth, TB12 Bakery Depth

shown with optional casters

Available Controls

! SC-Standard Controls

! CCH-Cycle/Cook & Hold Control

Construction

Exterior finish is stainless steel front,
top and sides. Back is aluminized
steel. Doors are French-style, 60/40
split. Stainless steel construction,
heavy-duty welded steel frame and 5/
8” diameter pivot rod with hinge pins,
field reversible door, top and bottom
latches. Oven interior is porcelain
enamel finish. Heavy duty removable
wire rack guides spaced on 1-5/8”
centers offer 11 different rack
positions. 5 wire racks provided with
each oven. 1/2hp, 2 speed motor,
1725/1140 rpm blower motor. Motor
mounted to right side.

o

140

F to 500oF solid state
thermostat and 60 minute
mechanical timer.

150oF to 500oF temperature
controller with 140oF to 200oF
“Hold” thermostat. Dual digital
display shows time and
temperature. A fan cycle timer
pulses the fan.

Heating

72,000 BTU/hr. Oven heating is
regulated by an adjustable solid state
thermostat control. Jet stream style
burners direct flame towards rear of
combustion chamber. Combustion
products are drawn into oven interior
and recirculated prior to venting.

Controls

Located on the front, at right side of
oven, away from heat zone.
Removable panel opens downward
for easy servicing.

Warranty

Product warranty includes one year
parts and labor. (USA only)

Approximate Weights

Approximately 620 lbs. shipping.

Options

! Bakery depth.
! Solid stainless steel rear jacket.
! Solid stainless steel sides.
! Solid stainless steel top.
! Solid stainless steel oven interior.
! Solid stainless steel exterior

bottom.

! 208/240V 50/60 Hz (for use on 1

or 3 phase).

! Bolt down flanged feet.
! Swivel caster-front with locks.
! Cook-and-Hold timer.
! Extra oven racks.

1400 T oastmaster Drive, Elgin IL 60120-9272 USA - Tel: [phone] - Fax: [phone] - www.toastmastercorp.com

Form 723 Rev 0 (02/05)

Olympic Silver Gas, Single Deck Convection Oven

Models TS12

Standard Depth, TB12 Bakery Depth

OLYMPIC SILVER GAS, SINGLE DECK CONVECTION OVEN - MODELS TS12, TB12

INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.

Toastmaster, in line with its policy to continually improve its product, reserves the right to change materials or specifications without notice. Such

revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
