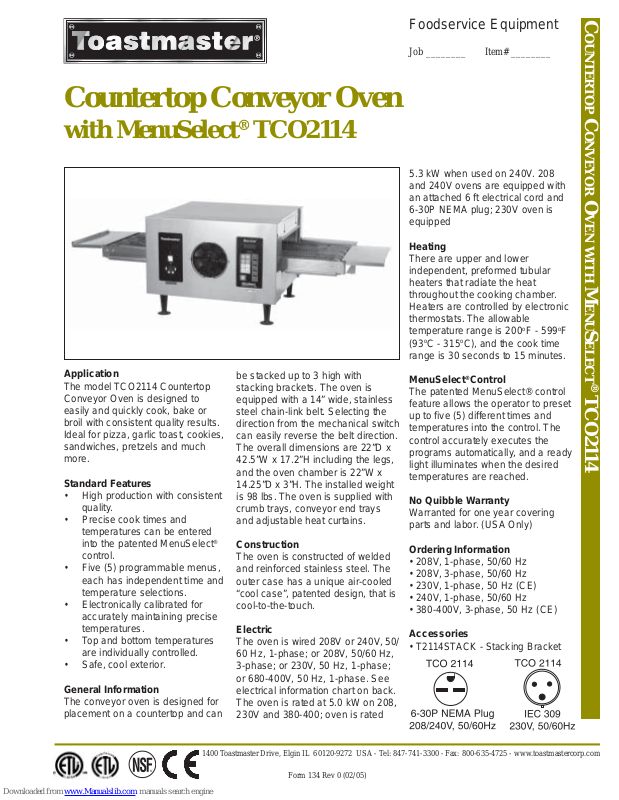

Toastmaster TCO2114 Brochure

Countertop Conveyor Oven

with MenuSelect® TCO2114

Foodservice Equipment

COUNTERTOP CONVEYOR OVEN WITH MENUSELECT

Job ________ Item# ________

5.3 kW when used on 240V. 208
and 240V ovens are equipped with
an attached 6 ft electrical cord and
6-30P NEMA plug; 230V oven is
equipped

Heating

There are upper and lower
independent, preformed tubular
heaters that radiate the heat
throughout the cooking chamber.
Heaters are controlled by electronic
thermostats. The allowable
temperature range is 200oF - 599oF
(93oC - 315oC), and the cook time
range is 30 seconds to 15 minutes.

Application

The model TCO2114 Countertop
Conveyor Oven is designed to
easily and quickly cook, bake or
broil with consistent quality results.
Ideal for pizza, garlic toast, cookies,
sandwiches, pretzels and much
more.

Standard Features

• High production with consistent
quality.

• Precise cook times and
temperatures can be entered
into the patented MenuSelect
control.

• Five (5) programmable menus,
each has independent time and
temperature selections.

• Electronically calibrated for
accurately maintaining precise
temperatures.

• Top and bottom temperatures
are individually controlled.

• Safe, cool exterior.

General Information

The conveyor oven is designed for
placement on a countertop and can

®

be stacked up to 3 high with
stacking brackets. The oven is
equipped with a 14” wide, stainless
steel chain-link belt. Selecting the
direction from the mechanical switch
can easily reverse the belt direction.
The overall dimensions are 22”D x

42.5”W x 17.2”H including the legs,
and the oven chamber is 22”W x

14.25”D x 3”H. The installed weight
is 98 lbs. The oven is supplied with
crumb trays, conveyor end trays
and adjustable heat curtains.

Construction

The oven is constructed of welded
and reinforced stainless steel. The
outer case has a unique air-cooled
“cool case”, patented design, that is
cool-to-the-touch.

Electric

The oven is wired 208V or 240V, 50/
60 Hz, 1-phase; or 208V, 50/60 Hz,
3-phase; or 230V, 50 Hz, 1-phase;
or 680-400V, 50 Hz, 1-phase. See
electrical information chart on back.
The oven is rated at 5.0 kW on 208,
230V and 380-400; oven is rated

MenuSelect®Control

The patented MenuSelect® control
feature allows the operator to preset
up to five (5) different times and
temperatures into the control. The
control accurately executes the
programs automatically, and a ready
light illuminates when the desired
temperatures are reached.

No Quibble Warranty

Warranted for one year covering
parts and labor. (USA Only)

Ordering Information

• 208V, 1-phase, 50/60 Hz

• 208V, 3-phase, 50/60 Hz

• 230V, 1-phase, 50 Hz (CE)

• 240V, 1-phase, 50/60 Hz

• 380-400V, 3-phase, 50 Hz (CE)

Accessories

• T2114STACK - Stacking Bracket

®

TCO2114

1400 T oastmaster Drive, Elgin IL 60120-9272 USA - Tel: [phone] - Fax: [phone] - www.toastmastercorp.com

Form 134 Rev 0 (02/05)

Countertop Conveyor Oven

®

with MenuSelect

TCO2114

®

TCO2114

COUNTERTOP CONVEYOR OVEN WITH MENUSELECT

INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.

Toastmaster, in line with its policy to continually improve its product, reserves the right to change materials or specifications without notice. Such

revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.

1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: [phone] - Fax: [phone] - www.toastmastercorp.com

Form 134 Rev 0 (02/05)
