Thank you for purchasing TOA's Close-Talking Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

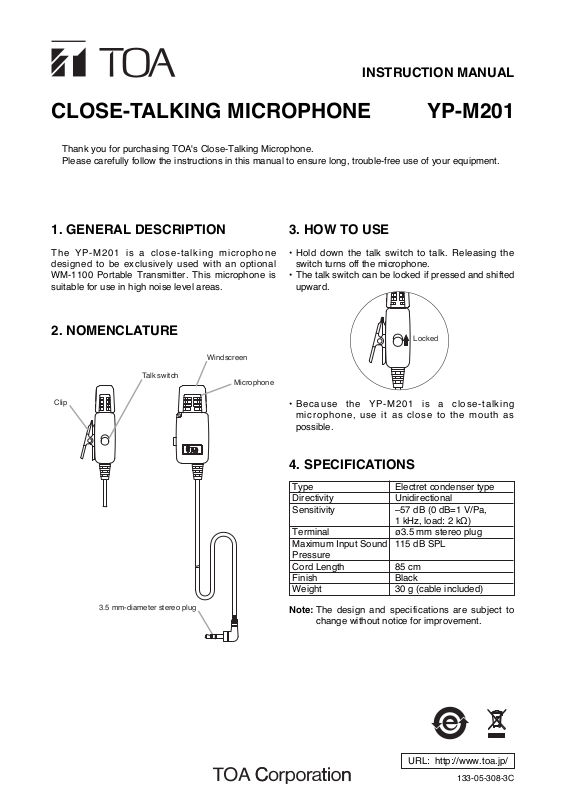

YP-M201CLOSE-TALKING MICROPHONE

INSTRUCTION MANUAL

1. GENERAL DESCRIPTION

The YP-M201 is a close-talking microphone
designed to be exclusively used with an optional
WM-1100 Portable Transmitter. This microphone is
suitable for use in high noise level areas.

2. NOMENCLATURE

3. HOW TO USE

• Hold down the talk switch to talk. Releasing the
switch turns off the microphone.

• The talk switch can be locked if pressed and shifted
upward.

Note: The design and specifications are subject to

change without notice for improvement.

Type Electret condenser type
Directivity Unidirectional
Sensitivity –57 dB (0 dB=1 V/Pa,

1 kHz, load: 2 kΩ)
Terminal ø3.5 mm stereo plug
Maximum Input Sound 115 dB SPL
Pressure
Cord Length 85 cm
Finish Black
Weight 30 g (cable included)

Locked

4. SPECIFICATIONS

• Because t h e YP-M201 i s a c l o s e - t a l k i n g
micr o p h one, u s e it as c lose t o the mout h as
possible.

133-05-308-3C

URL: http://www.toa.jp/

Windscreen

Talk switch

Clip

Microphone

3.5 mm-diameter stereo plug
