OPERATING INSTRUCTIONS
UHF WIRELESS MICROPHONE WM-5320
WM-5320A
WM-5320H
Thank you for purchasing TOA's UHF Wireless Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ............................................................................... 2
2. GENERAL DESCRIPTION ............................................................................. 2
3. FEATURES .......................................................................................................... 2
4. HANDLING PRECAUTIONS .......................................................................... 3
5. NOMENCLATURE ............................................................................................. 3
6. BATTERY INSERTION .................................................................................... 5
7. CHANNEL NUMBER SETTING .................................................................... 6
8. OPERATION ........................................................................................................ 6
9. OPERATIONAL HINTS .................................................................................... 7
10. DISTANCE BETWEEN THE MICROPHONE AND THE MOUTH ...... 7
11. AUDIO LEVEL ADJUSTMENT (SENSITIVITY CONTROL) ................ 7
12. SPECIFICATIONS ............................................................................................. 8
2
1. SAFETY PRECAUTIONS
• Be sure to read the instructions in this section carefully before use.
• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
• We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
2. GENERAL DESCRIPTION
The TOA's WM-5320 is a lapel wireless microphone, and the WM-5320A and WM-5320H are headset
wireless microphones, which are all designed for speech use.
The WM-5320 employs an omni-directional electret condenser microphone element, while the WM-5320A and
WM-5320H employ unidirectional electret condenser microphone elements.
The WM-5320A differs from the WM-5320H in that the WM-5320A features sweat-proof design and is
supplied with a waist pouch.
3. FEATURES
• One frequency can be selected from 64 frequencies (16 channels x 4 banks) of 636 – 698 MHz.
• An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient
temperature or voltage fluctuation.
• Audio level control adjusts the microphone sensitivity.
• Power/Battery lamps indicate battery consumption to prevent the unit from malfunctioning when the battery
level remarkably decreases.
• Compact and high reliability
• Sweat-proof handset with an adjustable fixing band is exclusively designed for use by aerobics instructors.
(WM-5320A only)
• To prevent the electromagnetic wave from badly influencing medical equipment, make sure to switch off the
unit's power when placing it in close proximity to the medical equipment.
• When the unit is not in use for 10 days or more, be sure to take the battery out of the unit because battery
leakage may cause personal injury or contamination of environment.
• Make sure to observe the following handling precautions so that a fire or personal injury does not result from
leakage or explosion of the battery.
· Do not short, disassemble, heat nor put the battery into a fire.
· Never charge batteries of the type which are not rechargeable.
· Do not solder a battery directly.
· Be sure to use the specified type of battery.
· Note correct polarity (positive and negative orientation) when inserting a battery in the unit.
· Avoid locations exposed to the direct sunlight, high temperature and high humidity when storing batteries.
CAUTION TO USER: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
CAUTION
3
• Operates on a single AA battery.
• Employs a built-in antenna.
• The state of battery consumption can be displayed on the tuner's indicator when the unit is used in
conjunction with the optional WT-5800, WT-5805 or WT-5810 Wireless Tuner.
4. HANDLING PRECAUTIONS
• Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as
doing so may result in unit failure.
• Never open nor remove the unit case to modify the unit. Refer all servicing to your nearest TOA dealer.
• Take care not to drop the unit onto the floor nor bump it against a hard object as the unit could fail.
• Do not place the unit in locations of high temperature (ex. in an ill-ventilated car in summer) or high humidity
as the unit could fail.
• Do not use the unit in locations where it is exposed to seawater.
• To clean, use a dry cloth. When the unit gets very dirty, wipe lightly with a cloth damped in a dilute neutral
cleanser, then wipe with a dry cloth. Never use benzine, thinner, or chemically-treated cleaning towel.
• Avoid using a mobile telephone near the wireless microphone in use. Noise could be picked up.
• When using two or more wireless microphones, keep them at least 50 cm away from each other to avoid
malfunctions or noise.
• Keep the wireless microphone at least 3 m away from the receiving antenna. Using the microphone in close
proximity to the antenna could result in malfunctions or noise.
Unit: mm
5. NOMENCLATURE
[Main unit]
Audio level control
Power ON/OFF switch
Power/Battery lamps
A green LED lights as long as the battery capacity is sufficient.
When the battery capacity becomes low, the green LED starts
to dim, while the red LED to light.
Keep the switch in the "L"
position (factory-preset).
Leave the switch setting to
Inside of a
battery cover
Channel setting switch
qualified service technicians.
98
Clip
19
23
62
4
[Microphone unit] (WM-5320 only)
Neck strap attachment
Neck strap (supplied with the
WM-5320 and WM-5320H)
Clip
130 cm in length
Tie-clip attachment
Plug lock
ø3.5 mm
5

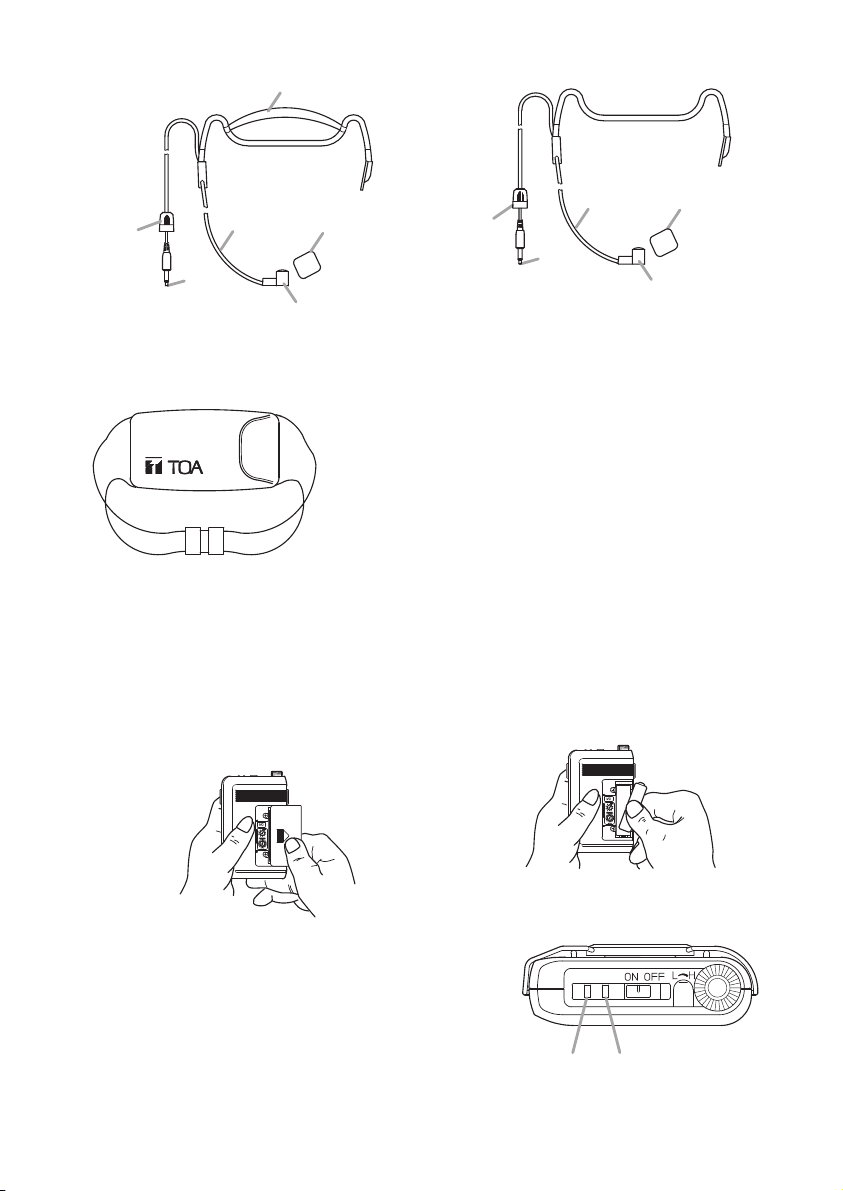

[Headset] (WM-5320A only)
[Headset] (WM-5320H only)
[Waist pouch] (WM-5320A only)
6. BATTERY INSERTION
Step 1. Turn off the power switch.
Step 2. Remove the battery cover from the unit.
Slide the battery cover in the direction
indicated by the arrow while pushing down
the cover with a thumb as shown in the
figure.
Step 3. Insert an AA battery according to (+) and (–)
indications on the battery compartment.
Step 4. Replace the removed battery cover.
Battery replacement
• A brand-new AA alkaline battery will continuously operate the unit
for about 10 hours.
• When the battery capacity becomes low, the green LED of the
Power/ Battery lamps starts to dim, while the red LED to light.
When only the red LED lights, replace the battery with a new one.
In this condition, the unit transmits the remaining battery capacity
information to the tuner, causing the tuner's BATT indicator to light.
Note: Windscreens are also available as optional product WH-4000S.
Adjustable band
Plug lock
Gooseneck
ø3.5 mm
Windscreen
Microphone
Plug lock
ø3.5 mm
Gooseneck
Windscreen
Microphone
Red LED
Green LED
6
8. OPERATION
Step 1. Plug the microphone's plug into the input connector as illustrated.
Step 2. Confirm that the wireless microphone and the wireless tuner are identical in the channel number.
If not identical, turn the power ON/OFF switch to the OFF position, then set the channel number to the
same channel number as the tuner.
Step 3. Turn the Power ON/OFF switch to the ON position. Then, confirm the green LED of the Power/Battery
lamps will light.
For the WM-5320A, put the unit into the waist pouch as shown in the figure below.
Step 4. Turn the Power ON/OFF switch to the OFF position after use.
Secure the connection with the plug lock. Illustration for WM-5320A
7. CHANNEL NUMBER SETTING
Step 1. Turn off the power switch, and then remove the battery
cover.
Step 2. Using the supplied screwdriver, set the Channel setting
switch pointer to the desired channel number.
Step 3. Replace the battery cover.
Note
Make sure that the wireless microphone is identical to the
wireless tuner in the channel number. Should the microphone's
setting differ from that of the tuner, the tuner does not receive the
microphone signal.
Channel setting switch
Main unit (WM-5320)
Belt
Waist pouch
Hook and loop fastener
Plug lock
Plug lock
7
9. OPERATIONAL HINTS
• The microphone's service distance is 3 – 120 m. When the microphone user moves in a facility, signal
dropouts (momentary losses of signal reception) may be encountered. These dropouts are caused by the
building's architectural designs or materials which block the travel of or reflect the radio signal. If this occurs,
the user needs to change locations for better signal reception.
• The proper operation of your wireless system may be interfered with by other system operating on the same
frequency. In such cases, change the operating frequency of your system. (As to dealing with the
interference, refer to the operating instructions of the wireless tuner.)
• Should you have any questions regarding the use or availability of TOA wireless products, please contact
your local TOA dealer.
10. DISTANCE BETWEEN THE MICROPHONE AND THE MOUTH
[Lapel Wireless Microphone WM-5320]
Keep your mouth 15 – 20 cm away from the microphone for the best possible sound reproduction. Take care
not to bring your mouth too close to the microphone (within 5 cm) as this impairs speech clarity if you speak
loudly.
[Headset Wireless Microphones WM-5320A and WM-5320H]
By adjusting the gooseneck, locate the microphone with the supplied windscreen in front of your mouth, and
position it 3 – 5 cm away from your mouth for the best sound reproduction. When the microphone is too close
to your mouth or you speak too loud, speech clarity will be impaired, making it hard for the audience to hear
announcements.
11. AUDIO LEVEL ADJUSTMENT (SENSITIVITY CONTROL)
To change the factory-preset level, follow the procedures below.
Step 1. Holding the microphone body, open the rubber cap as
illustrated.
Step 2. Switch on the power of the tuner and microphone.
Step 3. Adjust the audio level control using the supplied
screwdriver. The microphone sensitivity increases as the
control is rotated clockwise, and decreases as rotated
counterclockwise.
Step 4. Adjust the corresponding tuner's volume control so that
its knob points to the 2 o'clock position. If the tuner's AF
peak lamp remains lit, readjust the microphone's audio level control to the position that causes the
indicator to flash when the tuner output level reaches its peak. The AF peak lamp lights when the
output level reaches the point of about 3 dB below the clipping level.
Note
The AF peak lamp operates in response to the volume control position.
However, the AF level lamp on the LCD (on the WT-5800/5805) indicates the level regardless of the
volume control setting.
Step 5. Replace the battery cover.
3
1
Power ON/OFF
2
switch
Audio level control
133-07-267-7A
URL: http://www.toa.jp/
Main unit
Modulation Frequency modulation
Frequency Range 636 – 698 MHz, UHF
Selectable Channel 64 frequencies (the number of channels may differ from country to country.)
RF Carrier Power Less than 50 mW
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 120 dB SPL
Battery LR6 (AA)
Battery Life More than 10 hours (alkaline)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature –10 to +50°C
Finish Resin, coating
Dimensions 62 (w) x 102.5 (h) x 23 (d) mm
Weight 90 g (with battery)
Headset
Microphone Element Electret type, cardioid pattern
Cable Length 1.4 m
Connector ø3.5 mm mini-plug
[WM-5320A, WM-5320H]
Note: The design and specifications are subject to change without notice for improvement.
• Accessories
Microphone Element Electret condenser type, omni-directional pattern
Modulation Frequency modulation
Frequency Range 636 – 698 MHz, UHF
Selectable Channel 64 frequencies (the number of channels may differ from country to country.)
RF Carrier Power Less than 50 mW
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 110 dB SPL (Audio level control: Maximum position)
Battery LR6 (AA)
Battery Life More than 10 hours (alkaline)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature –10 to +50°C
Finish Resin, coating
Dimensions 62 (w) x 102.5 (h) x 23 (d) mm
Weight 110 g (with battery)
Note: The design and specifications are subject to change without notice for improvement.
• Accessories
12. SPECIFICATIONS
[WM-5320]
Screwdriver (for setting) .................................... 1
Storage case ..................................................... 1
Neck strap ......................................................... 1
Screwdriver (for setting) .................................... 1
Waist pouch (WM-5320A only) ......................... 1
Neck strap (WM-5320H only) ............................ 1
License requirement
The term "IC:" before the radio certification number only signifies that Industry Canada Technical
specifications were met. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the
antenna or the device is permitted. Any change to the antenna or the device could result
in the device exceeding the RF exposure requirements and void user's authority to
operate the device.
Loading...
