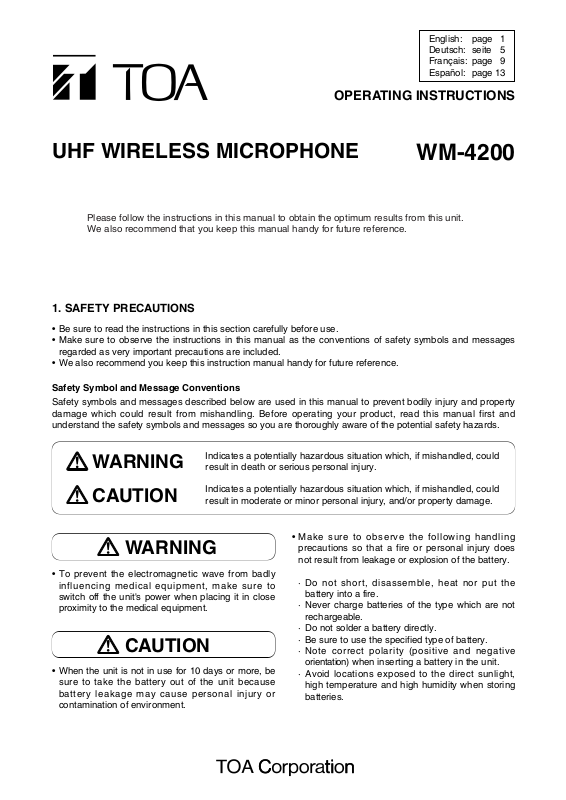

Toa WM-4200 User Manual [en, de, es, fr]

Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

WM-4200

UHF WIRELESS MICROPHONE

OPERATING INSTRUCTIONS

• To prevent the electromagnetic wave from badly
influencing medical equipment, make sure to
switch off the unit's power when placing it in close
proximity to the medical equipment.

• When the unit is not in use for 10 days or more, be
sure to take the battery out of the unit because
battery leakage may cause personal injury or
contamination of environment.

• Make sure to observe the following handling
precautions so that a fire or personal injury does
not result from leakage or explosion of the battery.

· Do not short, disassemble, heat nor put the

battery into a fire.

· Never charge batteries of the type which are not

rechargeable.

· Do not solder a battery directly.

· Be sure to use the specified type of battery.

· Note correct polarity (positive and negative

orientation) when inserting a battery in the unit.

· Avoid locations exposed to the direct sunlight,

high temperature and high humidity when storing
batteries.

1. SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully before use.

• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages

regarded as very important precautions are included.

• We also recommend you keep this instruction manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.

WARNING

CAUTION

Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.

Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.

WARNING
CAUTION

English: page 1
Deutsch: seite 5
Français: page 9
Español: page 13

2

2. GENERAL DESCRIPTION

The WM-4200 Wireless Microphone employs a dynamic microphone element with high input handing capacity
and is suitable for vocal applications and other professional uses.

3. FEATURES

• One frequency can be selected from 64 operating frequencies (4 banks x 16 channels) of 690 – 865 MHz.

• An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient

temperature or voltage fluctuation.

• Dynamic range of over 110 dB can be obtained when the unit is used in combination with the WT-4800.

• Audio level control adjusts the microphone sensitivity.

• Power switch features a lock mechanism to protect accidental power-off.

• Battery lamp indicates battery consumption to prevent the unit from malfunctioning when the battery level

remarkably decreases.

4. HANDLING PRECAUTIONS

• Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as
doing so may result in unit failure.

• Never open nor remove the unit case to modify the unit. Refer all servicing to your nearest TOA dealer.

• Take care not to drop the unit onto the floor nor bump it against a hard object as the unit could fail.

• Do not place the unit in locations of high temperature (ex. in a car parked in summer) or high humidity as the

unit could fail.

• Do not use the unit in locations where it is exposed to seawater.

• To clean, use a dry cloth. When the unit gets very dirty, wipe lightly with a cloth damped in a dilute neutral

cleanser, then wipe with a dry cloth. Never use benzine, thinner, or chemically-treated cleaning towel.

• Avoid using a mobile telephone near the wireless microphone in use. Noise could be picked up.

5. NOMENCLATURE

Power ON/OFF switch

Power/Battery lamp
(Orange LED)

Audio level control

Bank select switch

Channel select switch

Battery clip

3

6. BATTERY INSERTION

Step 1. Hold the microphone body and rotate the microphone

grip counterclockwise to remove it.

Step 2. Insert the battery 6LR61 (Alkaline 9 V) according to

the instructions attached to the inside of the battery
compartment. Pay attention to the correct polarity
when inserting the battery.

Step 3. Replace the microphone grip by sliding and rotating it

clockwise.

Battery replacement

• A brand-new battery will provide the power enough to operate the unit
continuously for 10 hours.

• As long as the battery has sufficient power for the microphone to function
properly, the orange LED will light. When the orange LED starts to fade and
then flash, replace it with a new one.

7. OPERATION

Step 1. Make sure that the receiver and the wireless microphone are of the same bank and channel (frequency).
Step 2. If they are not identical in bank channel, you have to adjust the bank and channel switches.
Step 3. Place the microphone ON/OFF switch in the ON position.

The orange LED indicates the circuit is active. Moving the knob strongly beyond the ON position locks
the switch in place.

Step 4.

Make sure to shift the ON/OFF switch back to the OFF position after using the WM-4200 wireless microphone.
To release the switch from lock, move the knob strongly toward the OFF position.

8. OPERATIONAL HINTS

• The microphone's service distance is 3 – 150 m. When the microphone user moves in a facility, signal
dropouts (momentary losses of signal reception) may be encountered. These dropouts are caused by the
building's architectural designs or materials which block the travel of or reflect the radio signal. If this occurs,
the user needs to change locations for better signal reception.

• The proper operation of your wireless system may be interfered with by other system operating on the same
frequency. In such cases, change the operating frequency of your system. It is recommended that the Scan
function (of the WT-4800) be used to avoid the frequency interference, which always searches and shows
idle frequencies.

• Should you have any questions regarding the use or availability of TOA wireless products, please contact
your local TOA dealer.

9. BANK/CHANNEL NUMBER SETTING

Step 1. Switch off the power. Rotate the microphone grip

counterclockwise to remove it.

Step 2. Using the supplied screwdriver, set the Bank setting

switch pointer to the desired bank number.

Step 3. Using the supplied screwdriver, set the Channel setting

switch pointer to the desired channel number.

Step 4. Replace the microphone grip.

Note: Make sure that the wireless microphone is identical to the

wireless tuner in both the bank and channel numbers.
Should the microphone's setting differ from that of the
tuner, the tuner does not receive the microphone signal.

1

2

Orange LED

Indicates the battery
level by lighting or
flashing.

4

11. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.

• Accessories

Microphone holder (with stand adapter) ............... 1

Screwdriver (for setting) ....................................... 1

Storage case ........................................................ 1

Microphone Element Dynamic type, Cardioid pattern
Emission F3E
Frequency Range 690 – 865 MHz, UHF
Selectable Channel 64 frequencies (the number of channels may differ from country to country)
RF Carrier Power Less than 50 mW
Tone Frequency 32.768 kHz
Maximum Input Level 145 dB SPL (Audio level adjustment: Minimum)
Maximum Deviation ±40 kHz
Audio Frequency Response 70 – 15,000 Hz (with WT-4800)
Dynamic Range More than 110 dB (with WT-4800)
Battery 6LR61 (9 V x 1)
Battery Life More than 10 hours (alkaline)
Indicator Power/Battery lamp (orange LED)
Antenna 1/4 λ herical type
Operating Temperature –10 to +50°C
Finish Resin, rubber coating, dark gray
Dimensions ø52.2 x 279.4 mm (antenna length included)
Weight 270 g (with battery)

10. AUDIO LEVEL ADJUSTMENT (SENSITIVITY CONTROL)

The microphone sensitivity is variable within a range of 15 dB.
To change the factory-preset level, follow the procedures below.

Step 1. Holding the microphone body, rotate the microphone grip

counterclockwise to remove it.

Step 2. Switch on the power of the tuner and microphone.
Step 3. Adjust the audio level control using a small screwdriver.

The microphone sensitivity increases as the control is rotated
clockwise, and decrease as rotated counterclockwise.
(Maximum input level: 130 dB SPL for maximum sensitivity and
145 dB SPL for minimum sensitivity).

Step 4. Adjust the corresponding tuner's volume control so that its knob points to the 2 o'clock position. When

the tuner's AF PEAK indicator remains lit, readjust the microphone's audio level control to the position
that causes the indicator to flash when the tuner output level reaches its peak. The AF PEAK indicator
lights when the output level reaches the point of about 3 dB below the clipping level.
Note: The AF PEAK indicator operates in response to the volume control position. However, the AF

LEVEL indicator (on the WT-4800) indicates the level regardless of the volume control setting.

Step 5. Replace the microphone grip.

Audio level control

LO

LEVEL

HI

License requirement

Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

5

• Das Mikrofon bitte nach Gebrauch immer ausschalten. Insbesondere ist darauf zu achten, dass es zu keiner
gegenseitigen Beeinflussung mit Medizintechnischen Geräten kommt.

Das Funkmikrofon wird mit Batterien betrieben.

• Verwenden Sie nur die angebenen Batterietypen und achten Sie beim Einsetzen auf die korrekte Polung.

• Nehmen Sie die Batterien aus dem Mikrofon, wenn dieses länger als 10 Tage ausser Betrieb genommen
wird. Auslaufende Batterien können zu Schäden am Mikrofon führen.

• Werfen Sie verbrauchte Batterien nicht in den Müll oder ins offene Feuer. Schließen Sie keine Batterien kurz
und öffnen Sie diese niemals.

• Setzen Sie Batterien auch nicht starkem Sonnenlicht, Hitze oder Regen aus. Laden Sie niemals Batterien auf.

Bitte folgen Sie den Hinweisen in dieser Bedienungsanleitung, um optimale Ergebnisse zu erzielen.
Bewahren Sie die Bedienungsanleitung sorgfältig und zugänglich auf.

WM-4200UHF Drahtlos-Mikrofon

Bedienungsanleitung

1. SICHERHEITSHINWEISE

Die folgenden Sicherheits- und Warnhinweise sind zu Ihrem Schutz aufgeführt. Bitte lesen Sie diese sorgfältig durch.

Erläuterung für Deutschland:

Das Drahtlosmikrofon darf erst nach Zuteilung von Frequenzen zur Nutzung für den Betrieb bei der
zuständigen Außenstelle der Regulierungsbehörde für Telekommunikation und Post (RegTP) und auch nur
auf den zugeteilten Frequenzen betrieben werden! Bei Zuwiderhandlungen kann die Behörde
Strafmaßnahmen gegen Sie erwirken.
Antragsformulare erhalten Sie bei der Regulierungsbehörde für Telekommunikation und Post (RegTP) oder
über das Internet unter "www.regtp.de".
Von der Homepage der RegTP navigieren Sie wie folgt:

• (linke Spalte) Regulierung Telekommunikation...

• (rechte Spalte) Frequenzverwaltung

• (rechte Spalte) Funkdienste-spezifische Angelegenheiten

• (rechte Spalte) Nichtöffentlicher Mobilfunk, Satellitenfunk

• (rechte Spalte) Anträge und Ausfüllhinweise

• (mittlere Spalte): laden Sie die Formulare unter der Überschrift "Durchsage-Funk".

DER BETRIEB IM FREQUENZBEREICH VON 863,1 MHZ BIS 864,9 MHZ IST NICHT ANMELDEPFLICHTIG.

WICHTIGER HINWEIS!

Melden Sie Ihr Drahtlossystem vor dem ersten Einschalten bei der zuständigen Behörde an.

Bitte entnehmen Sie aus der beiliegenden Tabelle die Frequenzen, die im jeweiligen Staat genutzt werden
können. Beachten Sie unbedingt auch den folgenden Hinweis!

Zeigt eine potenziell gefährliche Situation auf.
Die Nichtbeachtung der Warnhinweise kann zu Verletzungen,
möglicherweise auch mit tödlichem Ausgang, führen.

WARNUNG

Zeigt eine potenziell gefährliche Situation auf.
Die Nichtbeachtung dieser Hinweise kann zu Verletzungen oder
Sachschäden führen.

ACHTUNG
