Page 1
TS S
ERIES
P
ORTABLE
C
ONFERENCE
S
YSTEM
TS-700 S
YSTEM
C
ONTROLLER
TS-701 C
HAIRPERSON
S
TATION
TS-702 D
ELEGATESTATION
H
IGHLIGHTS
TOA TS SERIES PORTABLE CONFERENCE SYSTEMS
are ideal for applications such as boardrooms,
meeting halls and community buildings.
Compact, lightweight and easy to set up and
operate, the TS Series is comprised of three main
components: TS-700 System Controller, TS-701
Chairperson Station and TS-702 Delegate
Station. The Chairperson/ Delegate Stations
connect to the System Controller in a "daisychain" configuration using supplied cables.
The Chairperson and Delegate Stations include a
built-in Speaker and detachable gooseneck
microphone with a distinctive red LED for visual
indication of the person speaking. Both stations
have a Press On/Off Talk button and a recording
output. The Chairperson Station also includes a
Press-To-Talk Priority button that activates a
single-tone chime and overrides all Delegate
Stations.
The TS-700 System Controller includes inputs for
an external microphone and two auxiliary
sources plus line outputs for recording and
external PA system connection. You can connect
a up to 70 Chairperson/Delegate Stations to a
single System Controller or a maximum of 140
Chairperson/ Delegate Stations using three
System Controllers.
The TS Series Portable Conference System is
backed with a five year warranty.
Compact, lightweight and portable
– sets up in minutes!
Simple push-lock connection using supplied cables
Chairperson/Delegate Station Capacity:
70 Stations (1 TS-700)
105 Stations (2 TS-700)
140 Stations (3 TS-700)
Inputs for external sources such as microphones, mixers or
music sources
Recording Outputs on each station for personal recording
Time-Out feature automatically turns off active microphones
Detachable gooseneck microphone and built-in speaker on
each station
Distinctive red LED ring on microphone lights when station
is active
Press On/Off Talk button on each station
Priority button on Chairperson station activates chime tone
and overrides all Delegate stations
Five year warranty
A
PPLICATIONS
A/V Rentals
Boardrooms
City Councils
Community Buildings
Conference Facilities
Educational Facilities
Hotels
Meeting Rooms
Offices
Public Forums
School Boards
Training Rooms
Page 2
TS SERIES
PORTABLE CONFERENCE SYSTEM
Tel:800-733-7088
Fax: 800-733-9766
www.toaelectronics.com
S
YSTEM
C
OMPONENTS
Visit www.toaelectronics.com to download:
Installation Manual
Architect and Engineering Specifications
CAD Drawings
TS-700 System Controller
Supplies DC power to up to (70) TS-701/702 stations
Input jacks for one microphone and two auxiliary sources with
adjustable volume control
Selectable number of simultaneously active Delegate
microphones (1, 2, 4 or 6)
Automatic microphone shut-off (20 or 40 sec)
Line output jacks for connecting external recording or
sound reinforcement systems
Separate volume controls for external microphone, auxiliary,
line (for conference station’s built-in speaker) and priority chime
Optional rack-mount kit, model MB-23B-BK (2 RU)
Five year warranty
TS-701 Chairperson Station
Adjustable gooseneck condenser microphone
Red ring LED on microphone lights when active
Press-to-talk priority switch activates chime and overrides all
Delegate stations
Press-on/off talk button
Recording output jack
Quick-lock mini-connector
Connection cable included
Multiple simultaneous Chairperson Stations operation possible
Five year warranty
TS-702 Delegate Station
Adjustable gooseneck condenser microphone
Red ring LED on microphone lights when active
Press-on/off talk button
Recording output jack
Quick-lock mini-connector
Connection cable included
Five year warranty
YR-700 Extension Cable
Allows remote location of TS-700 System Controller or
TS-701/702 stations
Five year warranty
Page 3
S
PECIFICATIONS
TS SERIES
PORTABLE CONFERENCE SYSTEM
Tel:800-733-7088
Fax: 800-733-9766
www.toaelectronics.com
Model No. TS-700
Power Requirements 100/120 VAC,50/60 Hz (selectable)
Power Consumption Max. 135 W
Input Microphone: -60 dBV,600 Ω, unbalanced, phone jack
AUX 1: -20 dBV, 10k Ω, unbalanced,phone jack
AUX 2: 0 dBV, 600 Ω, unbalanced,phone jack
Lines 1 & 2: 0 dBV,unbalanced, 8 pin mini socket
Output Recording: -20 dBV, 10k Ω, unbalanced,phone jack, RCA jacks (2)
Lines 1 & 2: 0 dBV,unbalanced, 8 pin mini socket
Power Requirements: 35 VDC 1 A/line,2 lines, 2 A in total
Control Priority Speech Chime: Operation of TS-701’s priority button activates a single tone chime
Speaker Restriction: Number of simultaneously usable TS-702’s can be set for 1,2, 4 or 6
No. of Connectable 70 max., 35 stations per line, max. 140 stations when three system controllers are used together, two of which are expansion amplifiers
Conference Stations and one is the system controller.
Operating Temperature 32
º
F to 104ºF (0º C to +40º C)
Range
Finish Colored steel plate, semi-matte black
Dimensions (W x H x D) 8.27" x 3.48" x 12.44"
(210 x 93 x 316 mm)
Weight 8.5 lbs. (3.9 kg)
Accessory Power cord: 1
Optional Components YR-700 Extension Cable (distance of 32.8’or 10 m)
Model Nos. TS-701 and TS-702
Power Requirements 35 VDC,less than 30 mA, supplied from system controller
Input Gooseneck Microphone: Unidirectional back electret
Condenser Microphone: -60 dBV, with LED,detachable type
Line: 0 dBV, unbalanced,8 pin mini socket
Output Recording: -20 dBV, 10k Ω, unbalanced, mini-jack
Lines: 0 dBV, unbalanced,8 pin mini socket
Internal Speaker: 130 Ω, 200 mW
Control Talk Button (TS-701): Microphone,speaker on/off control by speech switch
Priority Button (TS-701): Microphone,speaker on/off,other microphone cutoff and single-tone chime activation
Speech Button (TS-702): Microphone, speaker on/off control by speech switch
Operating Temperature 32
º
F to 104ºF (0º C to +40º C)
Range
Finish Base: ABS resin, semi-matte black
Speaker: Metallic brown
Dimensions (W x H x D) 6.69" x 2.32" x 5.79"
(microphone excluded)
(170 x 59 x 147 mm)
Weight 1.23 lbs. (560 g) without connection cable
Accessory Connection cable: 1 (1 m x 2 m)
TS-700 System Controller
TS-701 Chairperson Station and TS-702 Delegate Station
Page 4
Literature Order #: L-TS-SERIES
Specifications subject to change without notice.
© 2003 TOA Electronics, Inc.
TS S
ERIES
P
ORTABLE
C
ONFERENCE
S
YSTEM
TOA E
LECTRONICS
, INC.
601 G
ATEWAYBLVD
., S
UITE
300
S
OUTHSANFRANCISCO
, CA 94080
TEL: 800-733-7088
FAX: 800-733-9766
www.toaelectronics.com

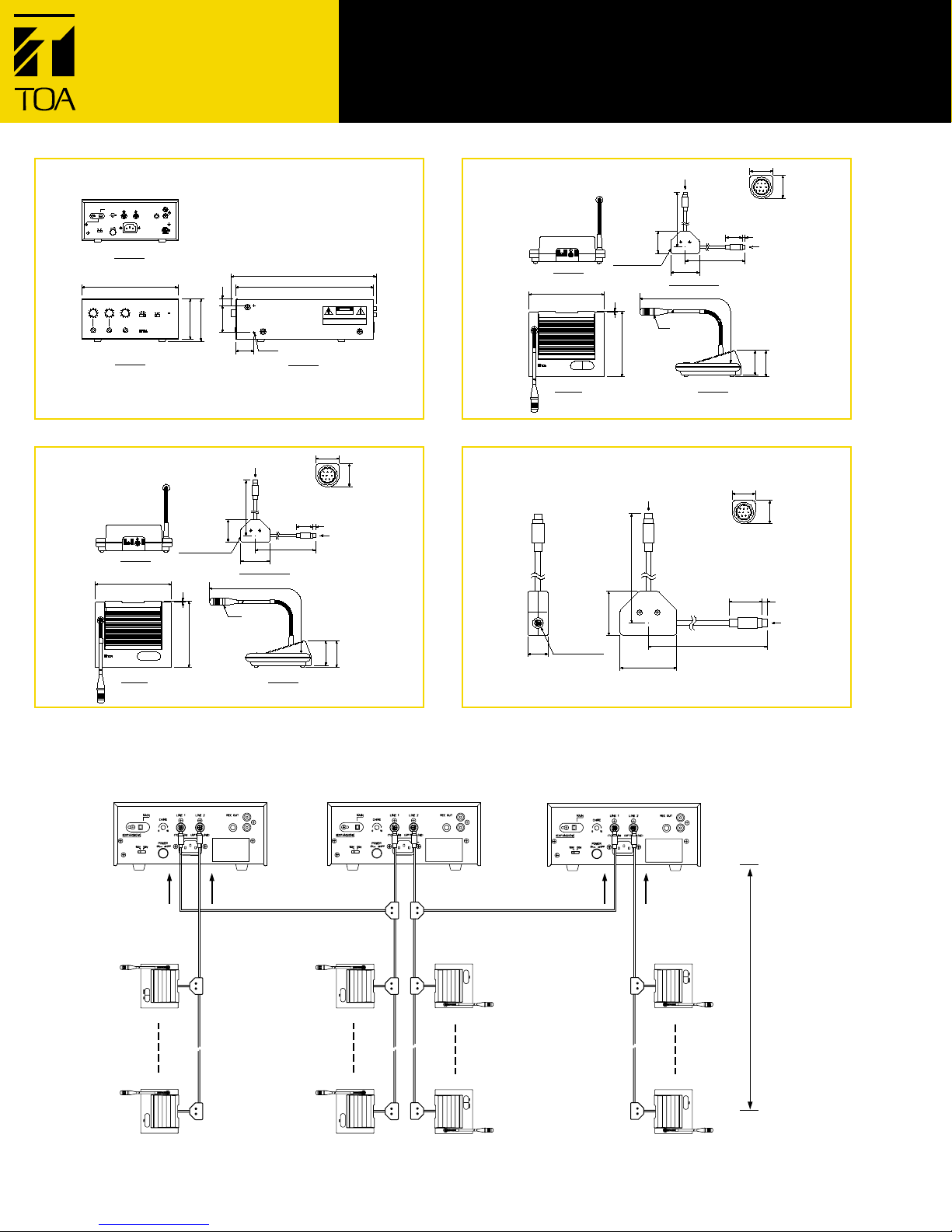

WIRING DIAGRAM
DIMENSIONAL DRAWINGS
TS-700
TS-702
YR-700
TS-701
(EXPANSION)
100V
MIC
100100100
MAIN
120V
CHIME
0
POWER
ON
AUX 1 LINE
LINE 1
10
(AFTER LINE)(TO MAIN)
OFF
100V/120V AC 50/60Hz 135W
Rear View
8.27
AUX 2
Front View
REC OUT
LINE 2
CENTER AMPLIFIER
model TS-700
RATED OUTPUT 95W
TOA Corporation
R
ENGINEERED IN JAPAN
ASSEMBLED IN TAIWAN
LINE CONTROL
MIC LIMITER
POWER
TIME OUT
2
20s
4
6OFF
40s
1
CENTER AMPLIFIER
TS-700
3.48
3.66
2.30 0.59
1.57
12.44
11.81
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE D£CHARGE £LECTRIQUE - NE PAS OUVRIR.
ATTENTION
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
4-M4
Side View
TS-701
A
3.94
REC OUT
LINE
Rear View
6.69
Top View
PRIORITY
TALK
8P mini socket
0.08
5.79
1.97
Connection Cord
LED
2.52
15.47
Side View
78.74
0.51
0.51
Mini plug as seen
from point A.
0.241.46
A
2.17
2.32
REC OUT
LINE
Rear View
6.69
TS-702
Top View
System Controller
TALK
8P mini socket
0.08
5.79
TS-700
1.97
Connection Cord
LED
78.74
0.51
Mini plug as seen
from point A.
0.241.46
A
2.17
2.32
0.51
A
39.37
1.97
0.91
8P mini socket
393.70 (32.81 ft)
2.52
0.51
Mini plug as seen
from point A.
A
3.94
2.52
15.47
Side View
TS-700
System Controller
TS-700
System Controller
0.51
0.241.46
A
To LINE 1 To LINE 2 To LINE 1
Up to 35 Stations
Up to 35 Stations Up to 35 Stations
(TS-701/702)
To LINE 2
Up to 35 Stations
Maximum
