Toa ST-34B User Manual
Step 1. Fix the supplied bracket to the speaker.
Use the supplied speaker mounting screws (M8)
and plain washers (for M8) for the mounting.
Step 2. Loosen the knob B, and spread the legs pulling
up th e o ut er p ip e un ti l th e s ta y s e xt e nd
horizontally.
Then, retighten the knob B.
Step 3. Mount the speaker (with the bracket mounted)
onto the stand.
Loosen the bracket fixing screw enough for the
bracket to fit onto the inner pipe.
Step 4. Determine the speaker direction, and tighten the
bracket fixing screw.
Step 5. Adjust the stand height.
5-1. Loosen the knob A while supporting the
speaker weight.
5-2. Pull out the safety pin.
5-3. Adjust the inner pipe at the desired height.
Note
The inner pipe has stopper holes to catch the
safety pin at 85 mm intervals along the pipe
length. Ensure that the safety pin is securely
inserted into one of the holes after adjusting the
stand height.
Caution
Never pull the inner pipe beyond the red line on
the pipe.
Step 6. Tighten the knob A.
2. HOW TO USE (refer to the figure on the right)

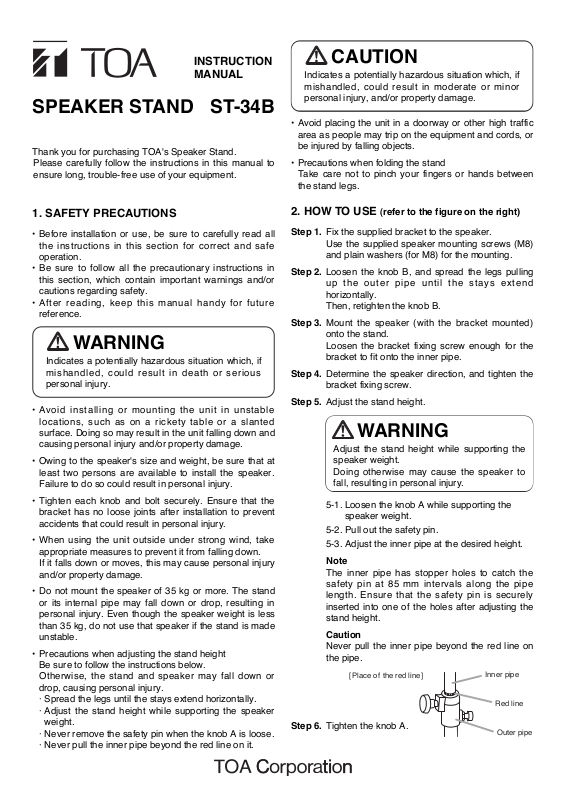

INSTRUCTION
MANUAL
SPEAKER STAND ST-34B
Thank you for purchasing TOA's Speaker Stand.
Please carefully follow the instructions in this manual to
ensure long, trouble-free use of your equipment.
• Before installation or use, be sure to carefully read all
the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in
this section, which contain important warnings and/or
cautions regarding safety.
• After r e a ding, ke ep thi s manual handy f o r futur e
reference.
WARNING
Indicates a potentially hazardous situation which, if
mis h a n dled, co u l d result in death or serious
personal injury.
• Avoid in s t a l ling or mounting the unit in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling down and
causing personal injury and/or property damage.
• Owing to the speaker's size and weight, be sure that at
least two persons are available to install the speaker.
Failure to do so could result in personal injury.
• Tighten each knob and bolt securely. Ensure that the
bracket has no loose joints after installation to prevent
accidents that could result in personal injury.
• When using the unit outside under strong wind, take
appropriate measures to prevent it from falling down.
If it falls down or moves, this may cause personal injury
and/or property damage.
• Do not mount the speaker of 35 kg or more. The stand
or its internal pipe may fall down or drop, resulting in
personal injury. Even though the speaker weight is less
than 35 kg, do not use that speaker if the stand is made
unstable.
• Precautions when adjusting the stand height
Be sure to follow the instructions below.
Otherwise, the stand and speaker may fall down or
drop, causing personal injury.
· Spread the legs until the stays extend horizontally.
· Adjust the stand height while supporting the speaker
weight.
· Never remove the safety pin when the knob A is loose.
· Never pull the inner pipe beyond the red line on it.
CAUTION
Indicates a potentially hazardous situation which, if
mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Avoid placing the unit in a doorway or other high traffic
area as people may trip on the equipment and cords, or
be injured by falling objects.
• Precautions when folding the stand
Take care not to pinch your fingers or hands between
the stand legs.
WARNING
Adjust the stand height while supporting the
speaker weight.
Doing otherwise may cause the speaker to
fall, resulting in personal injury.
1. SAFETY PRECAUTIONS
[Place of the red line]
Inner pipe
Red line
Outer pipe
Speaker
Less than 35 kg (static load)
101 – 153 mm
Inner pipe, outer pipe, leg: Aluminum, black, mat paint
Bracket: Rolled steel plate, black, paint
ø1290 (open legs) x 1373 – 1968 (height with bracket mounted) mm
4.2 kg
Permissible Speaker Load
Speaker Mounting Pitch
Finish
Dimensions
Weight
3. SPECIFICATIONS
Bracket ............................................................ 1
Speaker mounting screw M8 .......................... 2
Plain washer for M8 ........................................ 2
• Accessories
Note: The design and specifications are subject to change without notice for improvement.
133-05-454-5A
URL: http://www.toa.jp/
Bracket with a speaker unloaded
Speaker mounting screw
Bracket (supplied)
4
Bracket fixing screw
6
Inner pipe
Knob A
Outer pipe
1
101 – 153 mm
3
Safety pin
5
Plain washer
Note
To prevent loss, store the speaker mounting screws
and plain washers as shown above when not used.
Plain washer for M8 (supplied)
Speaker mounting screw M8 (supplied)
Note
Ensure that both screws are firmly tightened.
WARNING
Never pull the safety pin when the knob A is loose.
The mounted speaker may fall, causing personal injury.
Knob B
2
Leg
Note
Spread the legs until the stays are made level to the ground.
Stay
