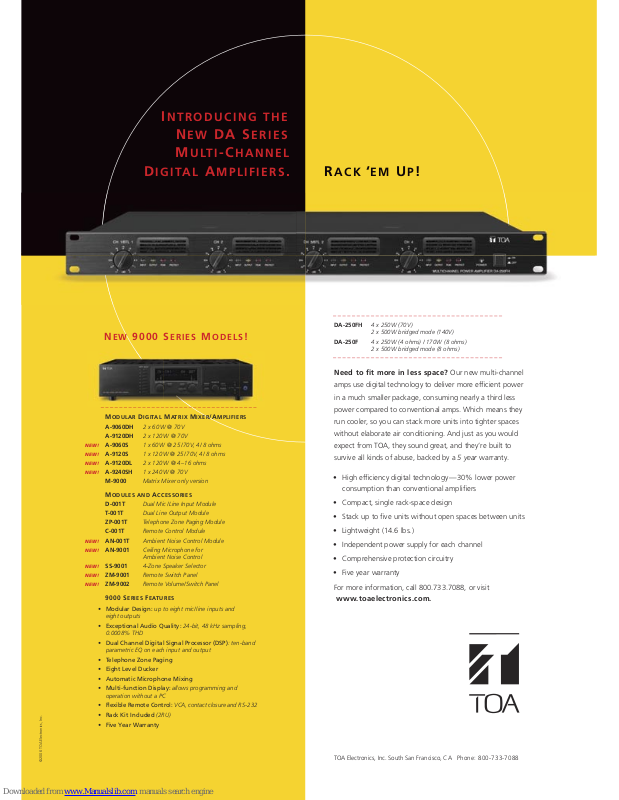

Toa A-9060DH, A-9120DH, A-9120DL, A-9120S, A-9240SH Specifications

©2006 TOA Electronics, Inc.

R A C K ‘E M UP!

I

N T R O D U C I N G T H E

N E W D A S E R I E S
M U LT I - C H A N N E L

D

I G I TA L A M P L I F I E R S .

TOA Electronics, Inc. South San Francisco, CA Phone: [phone]

Need to fit more in less space? Our new multi-channel

amps use digital technology to deliver more effi cient power

in a much smaller package, consuming nearly a third less

power compared to conventional amps. Which means they

run cooler, so you can stack more units into tighter spaces

without elaborate air conditioning. And just as you would

expect from TOA, they sound great, and they’re built to

survive all kinds of abuse, backed by a 5 year warranty.

• High effi ciency digital technology— 30% lower power
consumption than conventional amplifi ers

• Compact, single rack-space design

• Stack up to fi ve units without open spaces between units

• Lightweight (14.6 lbs.)

• Independent power supply for each channel

• Comprehensive protection circuitry

• Five year warranty

For more information, call 800.733.7088, or visit
www.toael ectro nics.com.

N E W 9 0 0 0 S E R I E S M O D E L S !

MOD ULAR D IG ITAL MATRI X MI XE R/ AM PL IF IER S

A-9060DH 2 x 60W @ 70V
A-9120DH 2 x 120W @ 70V

NEW! A-9060S 1 x 60W @ 25 / 70V, 4/8 ohms
NEW! A-9120S 1 x 120W @ 25/ 70V, 4/ 8 ohms
NEW! A-9120DL 2 x 120W @ 4 –16 ohms
NEW! A-9240SH 1 x 240 W @ 70V

M-9000 Matrix Mixer only version

MOD ULES A ND AC CESS OR IE S

D-001T Dual Mic/ Line Input Module
T-001T Dual Line Output Module
ZP-001T Telephone Zone Paging Module
C-001T Remote Control Module

NEW! AN-001T Ambient Noise Control Module
NEW! AN-9001 Ceiling Microphone for

Ambient Noise Control

NEW! SS-9001 4-Zone Speaker Selector
NEW! ZM-9001 Remote Switch Panel
NEW! ZM-9002 Remote Volume/Switch Panel

900 0 SE RIES FE ATURES

• Modular Design: up to eight mic /line inputs and
eight outputs

• Exceptional Audio Quality: 24-bit, 48 kHz sampling,

0.0008% THD

• Dual Channel Digital Signal Processor (DSP): ten-band
parametric EQ on each input and output

• Telephone Zone Paging

• Eight Level Ducker

• Automatic Microphone Mixing

• Multi-function Display: allows programming and

operation without a PC

• Flexible Remote Control: VCA, contact closure and RS-232

• Rack Kit Included (2RU)

• Five Year Warranty

DA-250FH 4 x 250W (70V)
2 x 500W bridged mode (140V)

DA-250F 4 x 250W (4 ohms) / 170W (8 ohms)
2 x 500W bridged mode (8 ohms)
