Toa SR-TB4 User Manual
Printed in Japan
133-01-441-50

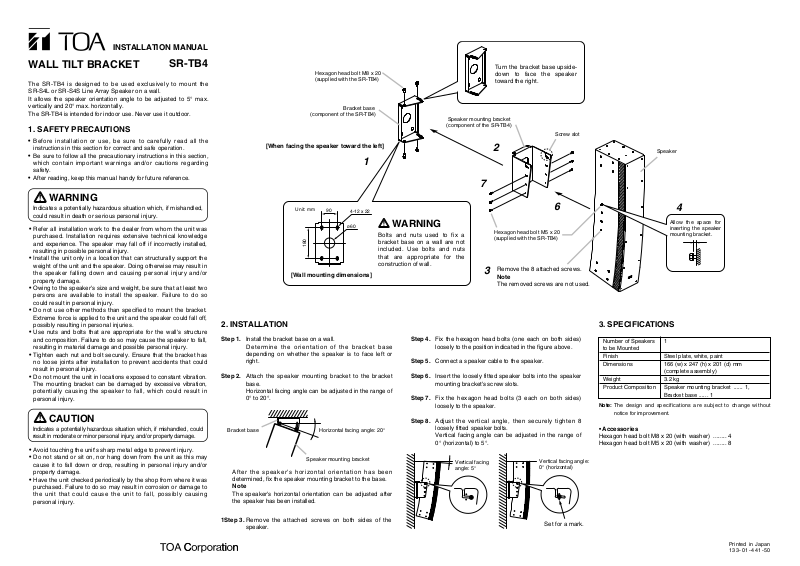

INSTALLATION MANUAL
WALL TILT BRACKET
SR-TB4
The SR-TB4 is designed to be used exclusively to mount the
SR-S4L or SR-S4S Line Array Speaker on a wall.
It allows the speaker orientation angle to be adjusted to 5° max.
vertically and 20° max. horizontally.
The SR-TB4 is intended for indoor use. Never use it outdoor.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the
instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this section,
which contain important warnings and/or cautions regarding
safety.
• After reading, keep this manual handy for future reference.
3. SPECIFICATIONS
• Accessories
Hexagon head bolt M8 x 20 (with washer) ........ 4
Hexagon head bolt M5 x 20 (with washer) ........ 8
Note: The design and specifications are subject to change without
notice for improvement.
Step 1. Install the bracket base on a wall.
Determine the orientation of the bracket base
depending on whether the speaker is to face left or
right.
Step 2. Attach the speaker mounting bracket to the bracket
base.
Horizontal facing angle can be adjusted in the range of
0° to 20°.
2. INSTALLATION
After the speaker's horizontal orientation has been
determined, fix the speaker mounting bracket to the base.
Note
The speaker's horizontal orientation can be adjusted after
the speaker has been installed.
Step 4. Fix the hexagon head bolts (one each on both sides)
loosely to the position indicated in the figure above.
Step 5. Connect a speaker cable to the speaker.
Step 6. Insert the loosely fitted speaker bolts into the speaker
mounting bracket's screw slots.
Step 7. Fix the hexagon head bolts (3 each on both sides)
loosely to the speaker.
Step 8. Adjust the vertical angle, then securely tighten 8
loosely fitted speaker bolts.
Vertical facing angle can be adjusted in the range of
0° (horizontal) to 5°.
• Refer all installation work to the dealer from whom the unit was
purchased. Installation requires extensive technical knowledge
and experience. The speaker may fall off if incorrectly installed,
resulting in possible personal injury.
• Install the unit only in a location that can structurally support the
weight of the unit and the speaker. Doing otherwise may result in
the speaker falling down and causing personal injury and/or
property damage.
• Owing to the speaker's size and weight, be sure that at least two
persons are available to install the speaker. Failure to do so
could result in personal injury.
• Do not use other methods than specified to mount the bracket.
Extreme force is applied to the unit and the speaker could fall off,
possibly resulting in personal injuries.
• Use nuts and bolts that are appropriate for the wall's structure
and composition. Failure to do so may cause the speaker to fall,
resulting in material damage and possible personal injury.
•
Tighten each nut and bolt securely. Ensure that the bracket has
no loose joints after installation to prevent accidents that could
result in personal injury.
•
Do not mount the unit in locations exposed to constant vibration.
The mounting bracket can be damaged by excessive vibration,
potentially causing the speaker to fall, which could result in
personal injury.
Indicates a potentially hazardous situation which, if mishandled,
could result in death or serious personal injury.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
CAUTION
• Avoid touching the unit's sharp metal edge to prevent injury.
•
Do not stand or sit on, nor hang down from the unit as this may
cause it to fall down or drop, resulting in personal injury and/or
property damage.
•
Have the unit checked periodically by the shop from where it was
purchased. Failure to do so may result in corrosion or damage to
the unit that could cause the unit to fall, possibly causing
personal injury.
1Step 3. Remove the attached screws on both sides of the
speaker.
Number of Speakers 1
to be Mounted
Finish Steel plate, white, paint
Dimensions 166 (w) x 247 (h) x 201 (d) mm
(complete assembly)
Weight 3.2 kg
Product Composition Speaker mounting bracket ...... 1,
Bracket base ...... 1
Hexagon head bolt M8 x 20
(supplied with the SR-TB4)
(component of the SR-TB4)
[When facing the speaker toward the left]
Bracket base
1
Unit: mm
[Wall mounting dimensions]
Bracket base
90
180
Horizontal facing angle: 20°
Speaker mounting bracket
4-12 x 22
ø60
Bolts and nuts used to fix a
bracket base on a wall are not
included. Use bolts and nuts
that are appropriate for the
construction of wall.
Turn the bracket base upsidedown to face the speaker
toward the right.
Speaker mounting bracket
(component of the SR-TB4)
2
7
WARNING
Hexagon head bolt M5 x 20
(supplied with the SR-TB4)
Remove the 8 attached screws.
3
Note
The removed screws are not used.
Vertical facing
angle: 5°
Vertical facing angle:
0° (horizontal)
Screw slot
6
Speaker
4
Allow the space for
inserting the speaker
mounting bracket.
Set for a mark.
