High quality sound reinforcement equipment for demanding environments.
LINE ARRAY SPEAKER
SYSTEMS
Page 2
Among TOA's wide range of sound reinforcement
products, Line Array Speaker Systems play an
important role in providing high quality audio for
medium sized venues that can range from places of
worship, gymnasiums, to various sports facilities and
other problematic environments. TOA Line Array
Speaker Systems are designed to perform optimally
with ideal sound dispersion characteristics in spaces
that pose difficulties for more conventional speaker
systems. Available in different configurations and
with a wide range of mounting possibilities to suit
particular requirements precisely, these slim towerconfigured speakers and modular speaker systems
offer perfect solutions for difficult sound
reinforcement problems that require effective
coverage.
Driver complement
Both speaker types are 2-way line array speakers, each
containing 32 speaker elements-8 x 10cm woofers and 24
high frequency drivers. Driver units are installed vertically and
with minimal space between units in order to create a
continuous linear sound source. This enables delivering a
uniform sound pressure that resists attenuation with distance.
Sound dispersion
characteristics
The SR-S4L speaker features
a linear design tailored for
distance sound transmission
applications and the SR-S4S
features a gently curved line
designed for a 10° vertical
coverage area which offers
ideal sound coverage over a
shorter distance.
Directed sound dispersion
Type S Series speakers limit vertical sound dispersion in order to
focus directivity at the targeted listening area.
Multi-speaker array-configurable
Both systems can be combined to realize a versatile speaker
array that performs equally well in terms of sound coverage
and dispersion over short and long distances. Less
difference in sound level is perceived whether close to or
somewhat distant from the speakers, providing a uniform
response. Individual speaker systems of each type can be
assembled together as multiple configurations, acting as
longer sound sources that can deliver greater output as well
as project the sound a greater distance.
Reflection-free
The speakers' construction and characteristics make them
resist floor- and ceiling-originating reflections, enhancing
clarity even in reverberant spaces and other problem
environments.
Feedback-resistant
The design of the speakers also makes them highly resistant to
annoying feedback because volume levels are not extraordinarily
high even close to the speakers and makes setting gain levels
easier.
Biamp or single amp drive
Factory-set for single amplifier driving, the Type S series speakers
can simply be set for biamping by making a simple internal wiring
change. For optimal biamping, a digital signal processor can be
employed to set crossover frequency points.
High impedance-compatible
The speaker can also be conveniently set for high-impedance
applications by using the optional MT-S0601 matching
transformer. This option is only possible when driving the speaker
with a single amplifier.
Type S Series Main Features
Versatile operational and installation feature
s
SR-S4S/
SR-S4SWP
SR-S4L/
SR-S4LWP
Page 3

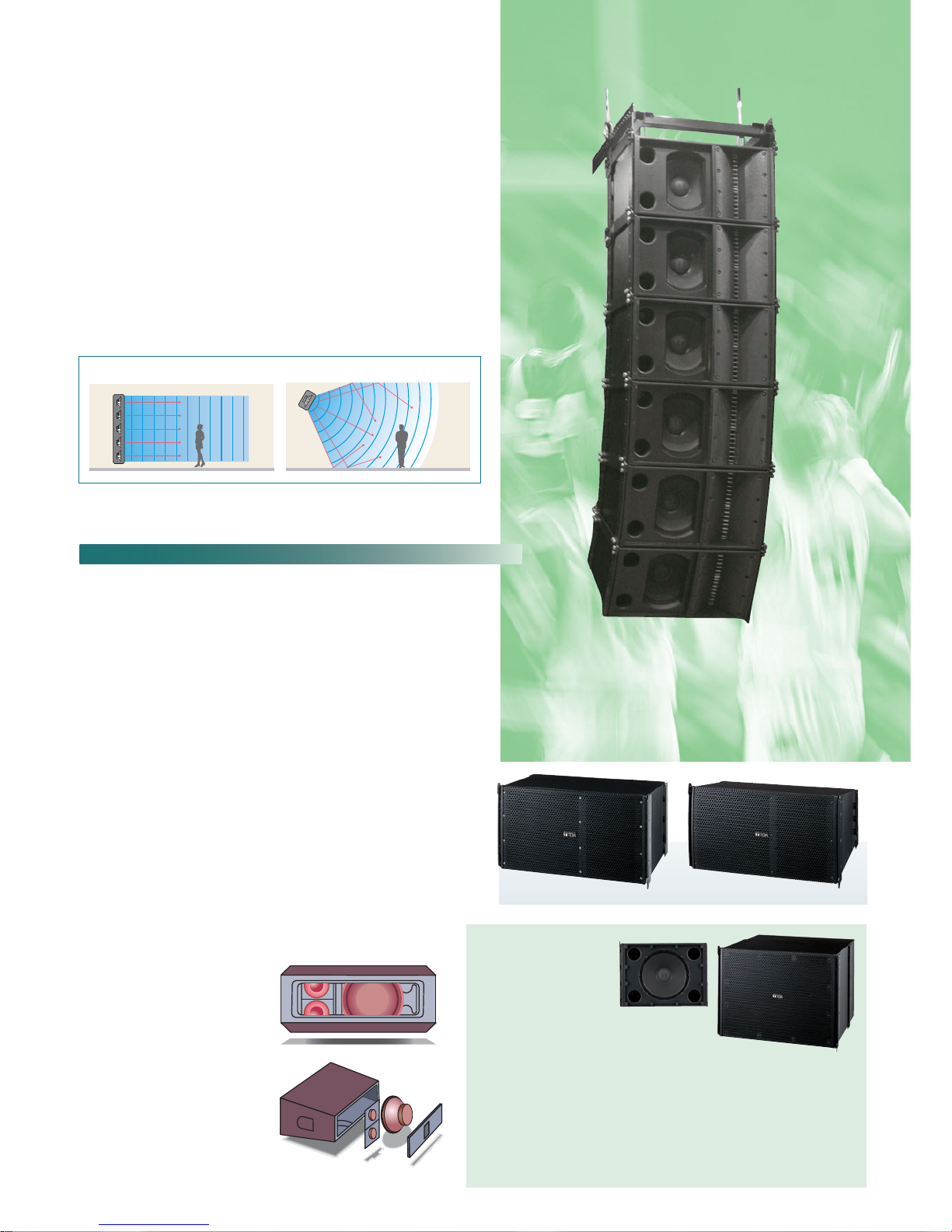

TOA Line Array Speaker Systems are designed for
permanent installations and are available in slim, towerconfigured types, the SR-S4L and SR-S4S (Type S).
For installations where greater sound output with a
wider frequency response are required, the modular
SR-A12L, the SR-A12S and a companion SR-A18B
(Type A) low frequency module can be utilized. A
wide range of mounting brackets enables flexible
speaker mounting options for the best sound
coverage characteristics.
Wide frequency range
Offering greater output levels with wider frequency response, the
SR-A12 modular speaker units are compact but powerful 2-way
configurations.
Drive complement
Each speaker features a 12" woofer and a high-frequency horn
that is connected to 2 high-performance compression drivers.
TOA's horn features a proprietary phase front wave control throat
that realizes the best performance from the compression drivers.
Each speaker is loaded with two high-performance compression
drivers to achieve greater output.
Sound coverage options
Type A Series includes one speaker configuration with a
5-degree taper specifically designed to transmit sound over
distance as well as a 15-degree taper configuration which provides
greater short range coverage. Both configurations may be
combined as required to achieve uniform sound coverage in
various environments.
Ideal for permanent installations
Type A Series are capable of high-quality sound with ideal
coverage and dispersion characteristics in environments that
used to pose severe difficulties for permanent installations,
especially when high fidelity sound is desired.
Easy maintenance and servicing
Keeping operational
requirements in mind,
TOA has made it possible to
quickly replace the low
frequency driver as well as
the high frequency driver from
the rear of the enclosure.
In a permanent installation,
ease of service and
maintenance are important
points to consider.
Type A Series Main Features
enhance sound reinforcement applications.
SR-A12L/SR-A12LWP SR-A12S/SR-A12SWP
Sub-Woofer
SR-A18B
Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 720W
Rated Impedance 8Ω
Sensitivity 95dB (1W, 1m)
Frequency Response 40 – 400Hz (when using the optional DP-0206 Digital processor)
Crossover Frequency 80Hz (when using the optional DP-0206 Digital processor)
Speaker Component 46cm cone-type
Input Connector M5 screw terminal, distance between barriers: 12.2mm and
Neutrik NL4MP x 2 (usable cable connector: Neutrik NL4FC)
Finish Enclosure: Plywood black, paint
Front grill: Punched steel plate, black, acrylic paint
Dimensions 740 (W) × 573 (H) × 698 (D)mm
Weight 66kg (including accessories)
Accessory Joint plate × 2, Joint plate mounting bolt (M10) × 16
Line Array Speaker Standard Speaker
Page 4
Specifications are subject to change without notice.
Printed in Japan (0502) 833- - - u
TOA Corporation
www.toa.jp

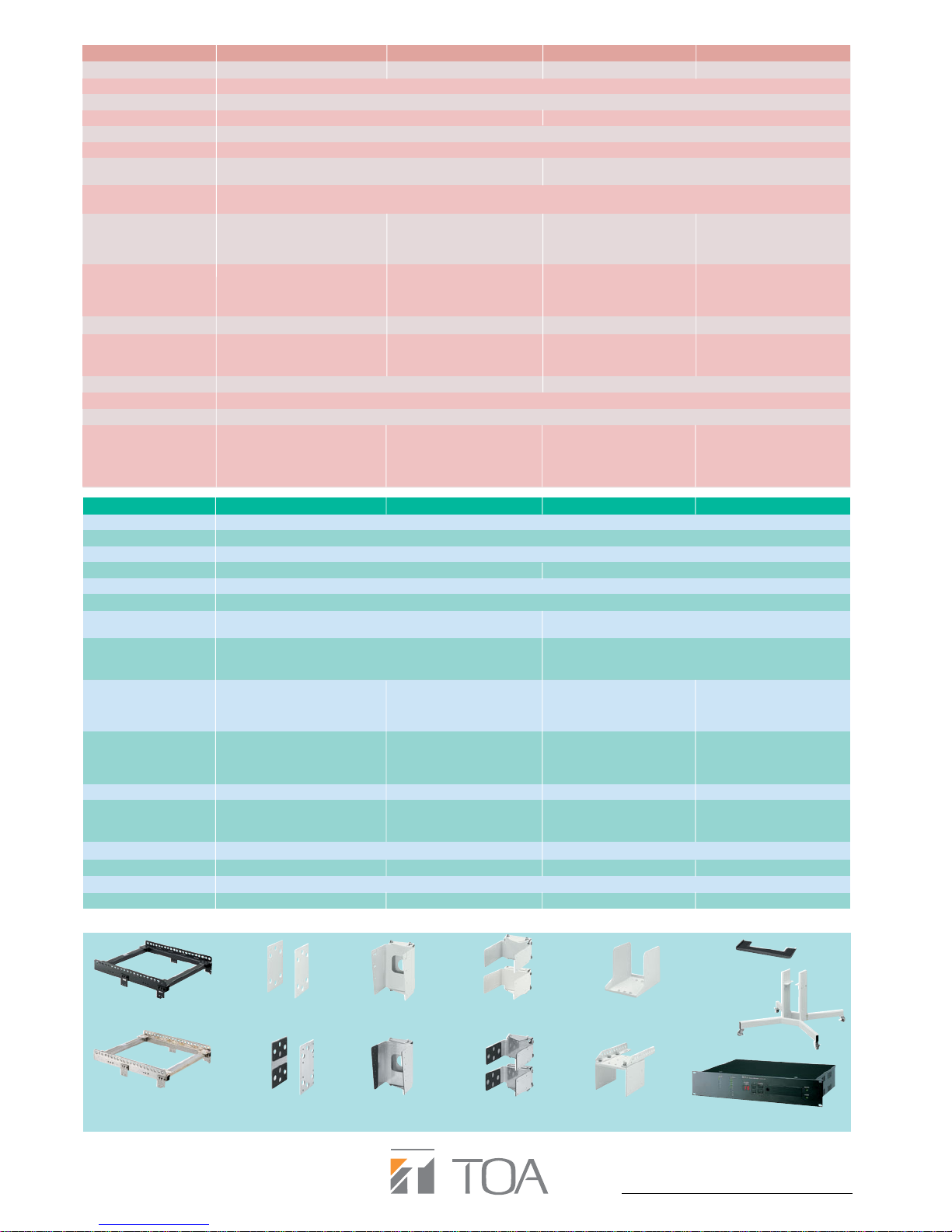

SPECIFICATIONS
SR-A12L SR-A12LWP SR -A12S SR-A12SWP
Enclosure Bass-reflex type
Power Handling Capacity Continuous program: Low frequency; 450W, High frequency; 180W
Rated Impedance Low frequency; 8Ω, High frequency; 16Ω
Sensitivity Low frequency; 98dB (1W, 1m), High frequency; 110dB (1W, 1m) Low frequency; 98dB (1W, 1m), High frequency; 109dB (1W, 1m)
Frequency Response 50 – 20,000Hz (when using the optional DP-0206 Digital processor)
Crossover Frequency 1,000Hz (when using the optional DP-0206 Digital processor)
Directivity Angle Horizontal: 90° Horizontal: 90°
Vertical: 5° Vertical: 15°
Speaker Component Low frequency: 30cm cone-type Low frequency: 30cm cone-type
High frequency: Wave front control horn 90° (horizontal) × 5° (vertical) High frequency: Wave front control horn 90° (horizontal) × 15° (vertical)
+ compression driver × 2 + compression driver × 2
Input Connector M5 screw terminal, distance M5 screw terminal, distance
between barriers: 12.2mm and
—
between barriers: 12.2mm and
—
Neutrik NL4MP x 2 (usable cable Neutrik NL4MP x 2 (usable cable
connector: Neutrik NL4FC) connector: Neutrik NL4FC)
Connected Cable Direct cable withdrawal from Direct cable withdrawal from
—
internal speaker: ø8.6mm,
—
internal speaker: ø8.6mm,
conductor cross section: 1.25mm
2
,conductor cross section: 1.25mm2,
4-core cable, 3m 4-core cable, 3m
Water Protection — IPX4 — IPX4
Finish Enclosure: Plywood black, paint Plywood, black, urethane coating Plywood, black, paint Plywood, black, urethane coating
Front grill: Punched steel plate, Punched stainless steel (SUS304), Punched steel plate, Punched stainless steel (SUS304),
black, acrylic paint black, paint black, acrylic paint black, paint
Dimensions 740 (W) × 433 (H) × 469 (D)mm 740 (W) × 433 (H) × 467 (D)mm
Weight 49kg (including accessories) 51kg (including accessories) 47kg (including accessories) 48kg (including accessories)
Accessory Joint plate × 2, Joint plate mounting bolt (M10) × 16
Option
Rigging frame: SR-RF12, Digital processor: DP-0206 Rigging frame: SR-RF12WP, Digital processor: DP-0206 Rigging frame: SR-RF12, Digital processor: DP-0206 Rigging frame: SR-RF12WP, Digital processor: DP-0206
SR-S4L SR-S4LWP SR-S4S SR-S4SWP
Enclosure Bass-reflex type Sealed type Bass-reflex type Sealed type
Power Handling Capacity Continuous program: 600W
Rated Impedance 8Ω
Sensitivity 94dB (1W, 1m) 93dB (1W, 1m)
Frequency Response 70 – 20,000Hz (when using the optional DP-0206 Digital processor)
Crossover Frequency 3,500Hz
Directivity Angle Horizontal: 90° Horizontal: 90°
Vertical: 0° (within the range of speaker height) Vertical: 10°
Speaker Component Low frequency: 10cm cone-type × 8
High frequency: 2.5cm balanced dome-type × 24
Input Connector M5 screw terminal, distance M5 screw terminal, distance
between barriers: 12.2mm and
—
between barriers: 12.2mm and
—
Neutrik NL4MP x 2 (usable cable Neutrik NL4MP x 2 (usable cable
connector: Neutrik NL4FC) connector: Neutrik NL4FC)
Connected Cable Direct cable withdrawal from Direct cable withdrawal from
—
internal speaker: ø8.6mm,
—
internal speaker: ø8.6mm,
conductor cross section: 1.25mm
2
,conductor cross section: 1.25mm2,
4-core cable, 3m 4-core cable, 3m
Water Protection —IPX4—IPX4
Finish Enclosure: MDF, white, paint Plywood, white, urethane coating MDF, white, paint Plywood, white, urethane coating
Front grill: Punched steel plate, Punched stainless steel (SUS304), Punched steel plate, Punched stainless steel (SUS304),
white, acrylic paint white, paint white, acrylic paint white, paint
Dimensions 160 (W) × 895 (H) × 255 (D)mm 160 (W) × 892 (H) × 303 (D)mm
Weight 16kg
Accessory Bi-amplifier drive rating label × 1, Bi-amplifier drive input indication label × 1
Option
Matching transformer: MT-S0601, Extension plate: SR-EP4, Matching transformer: MT-S0601, Matching transformer: MT-S0601, Extension plate: SR-EP4,
Matching transformer: MT-S0601,
Flying bracket: SR-FB4, Wall mounting bracket: SR-WB4, Extension plate: SR-EP4WP, Wall tilt bracket: SR-TB4WP, Flying bracket: SR-FB4, Wall tilt bracket: SR-TB4, Extension plate: SR-EP4WP, Wall tilt bracket: SR-TB4WP,
Wall tilt bracket: SR-TB4, Stand adapter: SR-SA4, Wall mounting bracket: SR-WB4WP, Stand adapter: SR-SA4, Protection pad: SR-PP4, Protection pad: SR-PP4, Digital processor: DP-0206
Protection pad: SR-PP4, Floor stand: SR-FS4, Protection pad: SR-PP4, Digital processor: DP-0206 Digital processor: DP-0206
Digital processor: DP-0206
Optional Accessories
SR-RF12
Rigging Frame
for indoor use
SR-RF12WP
Rigging Frame
for outdoor use
SR-TB4
Wall Tilt Bracket
for indoor use
SR-TB4WP
Wall Tilt Bracket
for outdoor use
SR-WB4
Wall Mounting Bracket
for indoor use
SR-FB4
Flying Bracket
SR-PP4
Protection Pad
SR-SA4
Stand Adapter
SR-WB4WP
Wall Mounting Bracket
for outdoor use
SR-EP4
Extension Plate
for indoor use
SR-EP4WP
Extension Plate
for outdoor use
SR-FS4
Floor Stand
DP-0206
Digital Processor
