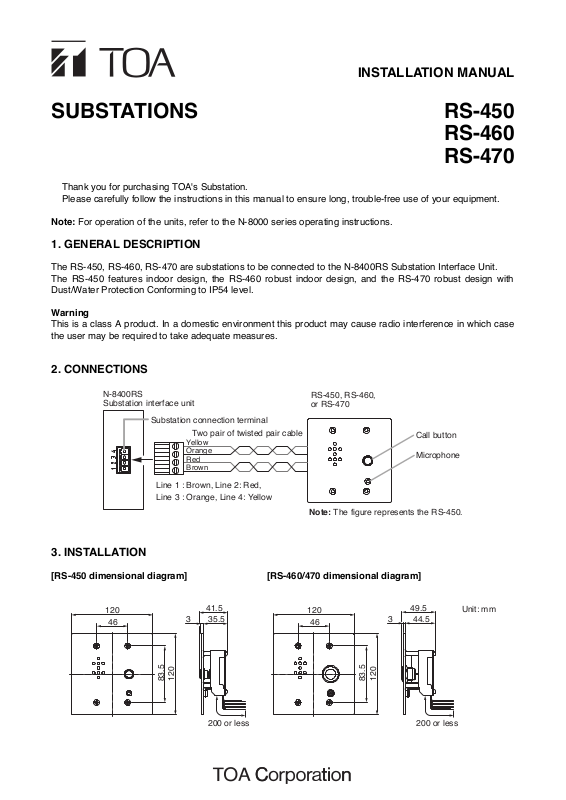

Toa RS-470 User Manual
Thank you for purchasing TOA's Substation.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
Note: For operation of the units, refer to the N-8000 series operating instructions.
1. GENERAL DESCRIPTION
The RS-450, RS-460, RS-470 are substations to be connected to the N-8400RS Substation Interface Unit.
The RS-450 features indoor design, the RS-460 robust indoor design, and the RS-470 robust design with
Dust/Water Protection Conforming to IP54 level.
Warning
This is a class A product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
2. CONNECTIONS
RS-450
RS-460
RS-470
SUBSTATIONS
INSTALLATION MANUAL
3. INSTALLATION
[RS-450 dimensional diagram] [RS-460/470 dimensional diagram]
N-8400RS
Substation interface unit
Substation connection terminal
Yellow
Orange
Red
Brown
Line 1 : Brown, Line 2: Red,
Line 3 : Orange, Line 4: Yellow
Two pair of twisted pair cable
RS-450, RS-460,
or RS-470
Note: The figure represents the RS-450.
120
46
41.5
35.53
120
46
49.5
44.5
3
Call button
Microphone
Unit: mm
83.5
120
200 or less
83.5
120
200 or less
4. SPECIFICATIONS
133-21-947-60
URL: http://www.toa.jp/
Mount the substation to the YC-302 2-gang electrical box mounted in the wall.
Notes
• When using the PA paging function, keep the station as far away from
the PA paging speaker as possible to avoid acoustic feedback.
• When installing the RS-470 at outdoor or locations where it gets wet
with water, tightly seal the panel edges. Besides, provide a weep hole
at the underside of the mounting box to permit water to drain off.
[In-wall mounting using an electrical box]
Accessory screws
The RS-450, RS-460, and RS-470 come with 2
types of screws: M4 x 25 and UNC No. 6-32 x 18.
For the electrical box provided with unified
threads, use the UNC No. 6-32 x 18.
Model No. RS-450 RS-460 RS-470
Call Button Momentary (Emergency call: Press twice within 400 ms.)
Rated Input 1 W
Internal Speaker Cone-type
Internal Mic Electret condenser type
Wiring Twisted pair cables (2-pair)
Transmission Range 1000 m/ø0.5 mm (AWG24), 1500 m/ø0.65 mm (AWG22),
2000 m/ø0.9 mm (AWG19)
Operating Temperature –10 to +50°C (Temperature range not to freeze the speaker and switch)
Housing Protection
-
BS EN62262: 2002: IK02 equivalent
Dust/Water Protection
-
IP54
Finish (Panel) Stainless steel, hairline
(Call button) Resin, black Metal, silver
(Circuit board) (RS-470 only) Weather-resistant coating
Dimensions (w) 120 mm
(h) 120 mm
(d) 41.5 mm 49.5 mm
Weight 510 g 540 g 550 g
Accessory No. 6-32 UNC x 18 ... 4, Machine screw M4 x 25 ... 4
Applicable Box 2-gang electrical box: YC-302 (option)
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
RS-470's front panel
YC-302
2-gang electrical box
(option)
Substation
Machine screw M4 x 25
(accessory)
Note: This figure represents the RS-460/470.
Seal the panel edges.
Wall surface
