OPERATING INSTRUCTIONS
SPEAKER SYSTEMS
HX-5B-WP EB-Q
HX-5W-WP EB-Q
Thank you for purchasing TOA's Speaker
System.
Please carefully follow the instructions in this
manual to ensure long, trouble-free use of
your equipment.
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ...................... 2
2. GENERAL DESCRIPTION ................... 3
3. FEATURES ......................................... 3
4. ABOUT THE INPUT OVERLOAD
PROTECTION CIRCUITRY ................... 3
5. INSTALLATION PRECAUTIONS .......... 4
6. DIMENSIONAL DIAGRAM and
................................ 4
7. CHANGING THE ORIENTATION OF
REAR PLATE ...................................... 5
8. CHANGING THE SPEAKER'S
9. SUSPENDED INSTALLATION
10. DIRECT WALL MOUNTING
............ 7
11. MOUNTING ON A POLE
.............. 10
12. MOUNTING BRACKET TYPES
................... 11
13. COMBINATION WITH THE MT-200
......... 12
14.
EQUALIZATION USING
MATCHING TRANSFORMER ........... 12
15.
FREQUENCY RESPONSE
................................. 12
16. SPECIFICATIONS
................ 13
INPUT SECTION
DIRECTIVITY ANGLE .......................... 5
............................ 13
A EQUALIZER
Traceability Information for Europe
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
EN 54-24: 2008
12
1438/CPD/0281
1438
2
When Installing the Unit
• Refer all installation work to the dealer from whom the speaker was purchased. Installation for flying requires
extensive technical knowledge and experience. The speaker may fall off if incorrectly installed, resulting in
possible personal injury.
• Flying Precautions
Be sure to follow the instructions below. Otherwise, the suspension wires or belts may be off or snap and
the speaker may fall off, causing personal injury.
· Check to confirm that the suspension wires and belts are strong enough to withstand the speaker load.
· The connectors of the suspension wires and belts must be securely linked with those of the speaker.
· All parts and components (such as enclosures, metal pieces, and screws) must be free from any
deformation, crack, and corrosion.
· Be sure to use screws supplied with the optional flying hardware when installing the speaker using such
hardware.
• Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket.
Doing otherwise may result in the unit falling down and causing personal injury and/or property damage.
• When installing the unit in the snowy area, take appropriate measures to prevent snow from lying on the
unit. If the snow lies on the unit, the unit may fall, causing personal injuries.
• Owing to the unit's size and weight, be sure that at least two persons are available to install the unit. Failure
to do so could result in personal injury.
• Do not use other methods than specified to mount the bracket. Extreme force is applied to the unit and the
unit could fall off, possibly resulting in personal injuries.
• Use nuts and bolts that are appropriate for the ceiling's or wall's structure and composition. Failure to do so
may cause the speaker to fall, resulting in material damage and possible personal injury.
• Tighten each nut and bolt securely. Ensure that the bracket
has no loose joints after installation to prevent
accidents that could result in personal injury.
• Do not mount the unit in locations exposed to constant vibration. The mounting bracket can be damaged by
excessive vibration, potentially causing the unit to fall, which could result in personal injury.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
WARNING
3
When Installing the Unit
• Avoid touching the unit's sharp metal edge to prevent injury.
• To avoid electric shocks, be sure to switch off the unit's power when connecting speakers.
When the Unit is in Use
• Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal
injury and/or property damage. In addition, the object itself may fall off and cause injury and/or damage.
• Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate and result in a fire.
• Do not stand or sit on, nor hang down from the unit as this may cause it to fall down or drop, resulting in
personal injury and/or property damage.
• Have the unit checked periodically by the shop from where it was purchased. Failure to do so may result in
corrosion or damage to the unit or its mounting bracket that could cause the unit to fall, possibly causing
personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
CAUTION
2. GENERAL DESCRIPTION
The HX-5B-WP EB-Q and HX-5W-WP EB-Q are 2-way compact speaker system that permits both constant
directivity control over a wide frequency range and changes in directivity.
It is ideal for reproducing clear sound in spaces with longreverberation times or high background noises.
The
HX-5B-WP EB-Q and HX-5W-WP EB-Q can be used outdoor.
3. FEATURES
• Four speaker modules ensure high power and high quality.
• The changeable orientation of each of the four speaker modules independently allows the directivity angle of
the speaker system to be adjusted.
• Built-in passive network ensures appropriate sound quality.
• Ideal for both permanent and temporary installations, including both vertical and horizontal positioning.
• Equipped with a convenient carrying handle.
• Can be mounted directly on a wall or suspended by wire, chain or shackle with no need to use optional
brackets.
• Optional mounting brackets allow use in a wide variety of applications, including suspension, ceiling
mounting, wall mounting, and speaker stand mounting. Mounting procedures are described in the instruction
manuals enclosed with the mounting bracket or stand adapter.
4. ABOUT THE INPUT OVERLOAD PROTECTION CIRCUITRY
The speaker system features internal input overload protection circuitry. If an extremely high input level is fed
to the unit, the protection circuitry automatically cuts off the signal to the tweeters.
A drastic reduction in sound volume for the high frequency range indicates that the protection circuitry has
been enabled.
In such cases, simply reduce the amplifier volume. The protection circuitry will automatically reset in
approximately 10 seconds. After reset, try to maintain the volume at a level slightly lower than before.
Caution
This protection circuitry does not completely protect the unit against extremely high input power levels.
Depending on the type or duration of excessive power input, the protection circuitry might not be enabled,
resulting in damage to the speaker element. Also, if the excessive power input continues for a long period of
time, the circuitry may not be capable of resetting to its original condition.
Use the system with care so that the speakers are not exposed to excessive power input.
5. INSTALLATION PRECAUTIONS
The HX-5B-WP EB-Q and HX-5W-WP EB-Q can be used outdoor.
For outdoor installation, observe the following precautions.
• All speaker modules must point downward from the horizontal. Failure to do so could adversely affect their
intended weather-resistant capability, leading to malfunction.
• Both the HX-5B-WP EB-Q and HX-5W-WP EB-Q employ a splash-proof construction that allows them
to be installed outdoors, but they should only be installed in locations where the ambient temperature is
within the range of –15°C to +50°C. Exceeding the temperature range will cause the speaker to fail.
4
Horizontal
Tilt down from the horizontal.
Horizontal
Tilt down from the horizontal.
]noitallatsni latnoziroH[]noitallatsni lacitreV[
6. DIMENSIONAL DIAGRAM and INPUT SECTION
[Top]
[Front]
• Input Section
[Side]
[Rear]
408 243
546
Unit: mm (inches)
Rear plate
Speaker cable
(60 cm long)
Figures show the HX-5 WP series speaker system with a directivity angle set to 60° mode (factory-preset).
Black
(+)
White
(‒)
5
7. CHANGING THE ORIENTATION OF REAR PLATE
The orientation of the speaker system's rear plate can be changed as follows.
[Factory-preset mounting]
Rear plateRear plate
8. CHANGING THE SPEAKER'S DIRECTIVITY ANGLE
The speaker system's directivity angle mode is factory-preset to 60°,
but this mode can be changed to 45°, 30°, or 15° by following the
procedure described below.
The figure on the right shows the speaker system in 60° mode.
Step 1.
Loosen the 2 bolts on the input section side.
60
directivity angle
°
Step 2.
Turn the speaker system upside down.
Input section
Then, loosen the 4 bolts indicated by arrows.
6
Step 2.
Reposition the 4 bolts to the desired directivity angle, then retighten them securely.
The sound coverage area can also be made asymmetrical by shifting the position of each bolt to
different directivity angle.
Step 3.
Reposition the speaker system by turning it upside down. Then, tighten the 2 bolts loosened in step 1.
Observe the following instructions to tighten the bolts securely.
Failure to do this could cause the speaker to fall, potentially
resulting in damage and/or personal injury.
• Ensure that each bolt is correctly inserted into its slot before
tightening it.
• Bolts can be tightened using either a Phillips screwdriver or a
wrench, but be sure to finish the tightening with the wrench to
ensure optimum tightness.
WARNING
15° mode
Example of independent
angle adjustment
[60° mode (factory-preset)]
Angle adjustment section
60° mode
45° mode30° mode
15° mode
7
9. SUSPENDED INSTALLATION
The speaker systems may be suspended either vertically or horizontally.
Step 1.
For vertical suspension: Remove the speaker grill on the module to be suspended. (Below, upper)
For horizontal suspension: Remove the speaker grills on the modules at both ends of the speaker
system. (Below, lower)
Remove the grill fixing screws using the supplied hex head wrench.
Grill fixing screw
Speaker module
Speaker grill
[Vertical suspension]
[Horizontal suspension]
]noisnepsus latnoziroH[]noisnepsus lacitreV[
8
Step 2.

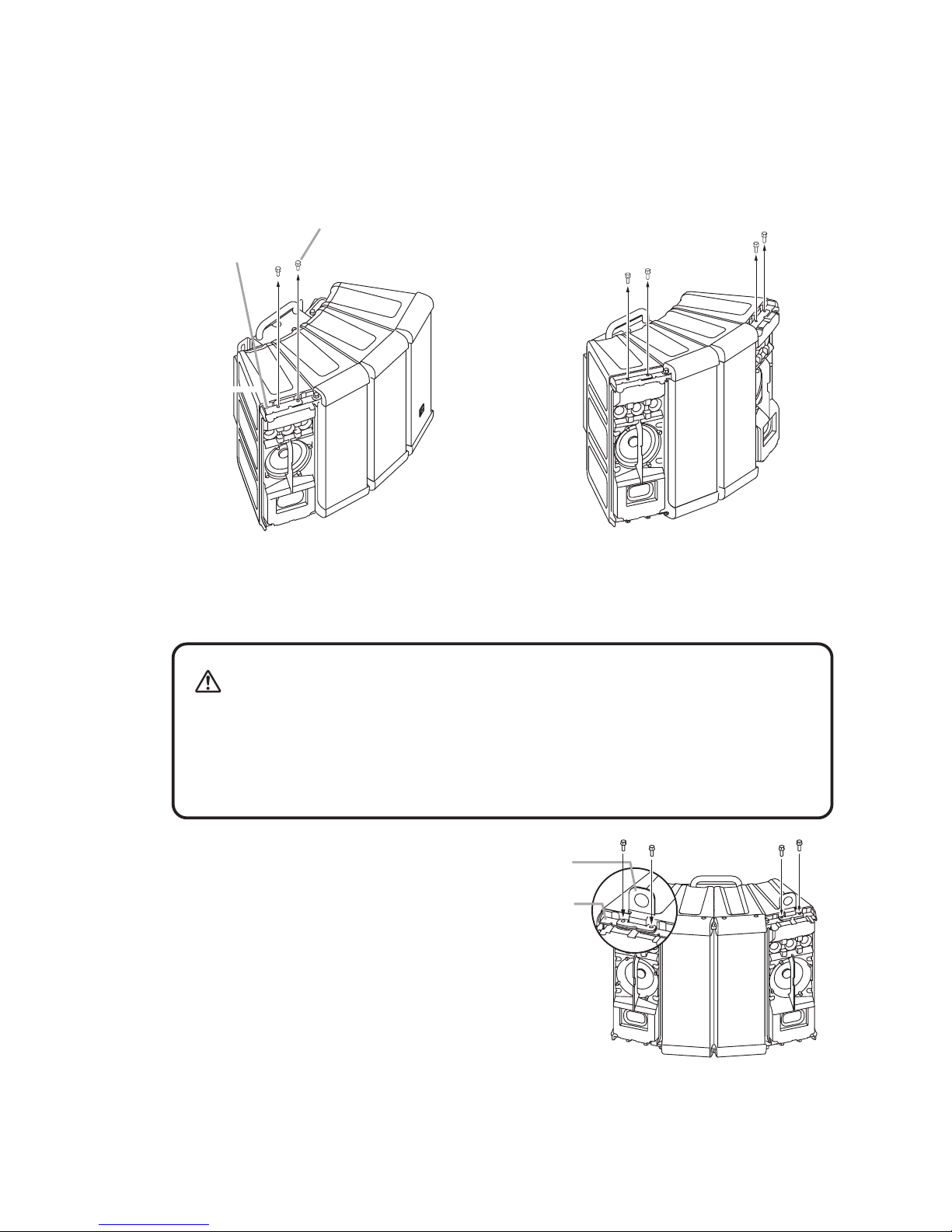

For vertical suspension: Remove the 2 front bar fixing bolts. (Below, upper)
For horizontal suspension: Remove the 4 front bar fixing bolts. (Below, lower)
Place the speaker system on a workbench when doing this work.
Front bar fixing bolts
Front bar
[Vertical suspension]
[Horizontal suspension]
Step 3.
Fix the suspension bracket and the front bar with the bolts removed in step 2.
Observe the following instructions to tighten the bolts securely.
Failure to do this could cause the speaker to fall, potentially
resulting in damage and/or personal injury.
• Ensure that each bolt is correctly inserted into its slot before
tightening it.
• Bolts can be tightened using either a Phillips screwdriver or a
wrench, but be sure to finish the tightening with the wrench to
ensure optimum tightness.
WARNING
The figure on the right is for the
horizontal suspension of speaker system.
For the vertical suspension, the work is
done on either module to be suspended.
Suspension bracket
(supplied)
Front bar
9
Step 4.
For vertical suspension:
Be sure to select wires, chains, and/or anchor shackles with a
safety factor appropriate to the weight of the speaker system.
Incorrect selection of these suspension components may cause
the speaker system to fall, potentially resulting in damage and/or
personal injury.
WARNING
Step 5.
Suspend the speaker system using appropriate commercially obtained wires, chains, or anchor
shackles.
To mount the speaker system horizontally, rotate the speaker system's rear plate 90° from the
factory-preset orientation. For details, refer to p. 5, Changing the orientation of rear plate.
Run the anchor shackles, etc. through the holes in the 2 suspension brackets and rear plate as shown
in the figure.
Suspension bracket (supplied)
Speaker grill
isfitted in the slot.
Step 5.
Replace the removed speaker grill.
Be sure to use the supplied hex head wrench
to tighten the fixing screws.
Turn the speaker system upside down.
Then, mount the suspension bracket
in the same manner as described
in steps 2 and 3.
Ensure that the sponge
Speaker
Sponge
Punched
grill
]noisnepsus latnoziroH[]noisnepsus lacitreV[
Rear plate
Anchor shackle
Suspension bracket
[Direct wall mounting dimensions]
(Angle mode of 60°)
408
131
4-12 x 41
546
181
6
23
Unit: mm (inches)
Rear plate
Speaker system
[Direct wall mounting dimensions]
(Angle mode of 60°)
Unit: mm (inches)
546
Rear plate
Speaker system
181
6
408
23
131
4-12 x 41
10
10. DIRECT WALL MOUNTING
Note: Anchor bolts, nuts, and washers are not supplied with the speaker system.
10.1. Vertical Installation
10.2. Horizontal Installation
Observe the following instructions when mounting the speakers on a wall.
Doing otherwise may cause the speaker system to fall, potentially
resulting in damage and/or personal injury.
• Use anchor bolts, nuts, and washers with specifications appropriate for
carrying the load of the speaker system. Also ensure that the structure
of the wall is robust enough to stand the weight of the speaker.
• Take measures to prevent nuts and bolts from loosening and sliding out
of their positions as required.
WARNING
Note
For outdoor use, install the HX-5B-WP EB-Q or HX-5W-WP EB-Q in conjunction with the HY-WM1WP
Speaker Mounting Bracket so that all speaker modules point downward from the horizontal.
Failure to do so could adversely affect their water-resistant capability, leading to malfunction.
11
11. MOUNTING ON A POLE
The speaker can be mounted on a pole using the optional SP-131 Speaker Mounting Bracket in conjunction
with the YS-60B Mounting Band and HY-WM1WP Speaker Mounting Bracket. Before installing the SP-131 on
a pole, attach it to the rear plate of the speaker system.
For the mounting procedures on a pole, refer to the instruction manuals attached to the SP-131 and YS-60B.
When installing the speaker, follow the precautions below. Doing
otherwise may result in the speaker falling down, causing personal injury.
• The SP-131 mounting hardware is comprised of 2 brackets. Be sure to
use both brackets and 2 mounting bands. Securely tighten the bands,
making sure that they firmly hold the brackets.
• Take measures to prevent the bolts or nuts from unscrewing or
loosening.
WARNING
11.1. Vertical Speaker Mounting
SP-131 Speaker Mounting Bracket (optional)
Washer*
* Supplied with the SP-131
Nut*
Bolt*
HY-WM1WP Speaker
Mounting Bracket (optional)
SP-131
HY-WM1WP
YS-60B
Pole
[Example of pole mounting]
For the mounting procedures, refer to the instruction
manual attached to the HY-WM1WP.
Note
Install the speaker so that all speaker modules face
downward from the horizontal axis. Doing otherwise
could adversely affect the speaker's weather
resistance and possibly lead to malfunction or failure.
11.2. Horizontal Speaker Mounting
SP-131
YS-60B
Pole
[Example of pole mounting]
SP-131 Speaker Mounting Bracket (optional)
Washer*
* Supplied with the SP-131
Nut*
Bolt*
Rear plate
Change the factory preset position of the rear plate
as shown at left.
12
12. MOUNTING BRACKET TYPES
The following mounting brackets are optional.
Consult the instruction manual enclosed with each bracket for details on their installation and use.
Speaker system
HX-5B-WP HX-5W-WP
Mounting bracket
Speaker rigging frames
HY-PF1WP
Speaker mounting brackets
HY-CW1WP
Speaker mounting brackets
HY-WM1WP
HY-WM2WP
Speaker Extension brackets
HY-CN1B-WP
HY-CN1W-WP
[Speaker systems and mounting brackets]
13. COMBINATION WITH THE MT-200 MATCHING TRANSFORMER
Using the optional MT-200 matching transformer allows the speaker system to be connected to a highimpedance amplifier. This matching transformer is best for use when the distance between the amplifier and
speaker is very long, or when multiple speaker systems are parallel-connected to a single amplifier.
Regarding the procedure for mounting the transformer on the speaker, refer to the instruction manual
enclosed with the MT-200.
The HX-5B-WP EB-Q and HX-5W-WP EB-Q are certified to EN 54-24 by using the MT-200.
Can be used to suspend the speaker system
from high ceilings.
Allow the speaker system to be mounted to a ceiling and
its angle to be adjusted both vertically and horizontally.
Allow the speaker system to be mounted to a wall or ceiling
and its angle to be adjusted vertically.
Connect 2 speaker systems to allow directivity control
for lower frequencies.
Allow the speaker system to be mounted closely to a wall
or ceiling. This type of mounting offers the advantage of
suppressing interference caused by sound reflecting
from the wall or ceiling, resulting in better sound clarity.
14.
EQUALIZATION USING A EQUALIZER
The HX-5B-WP EB-Q and HX-5W-WP EB-Q frequency response shall fit the EN 54-24 frequency response
limits. Therefore, use the equalizer set according to the table to satisfy the EN 54-24 requirement.
Note: Other frequencies are set to 0 dB.
Equalizer Frequency 800 Hz 1k Hz 1.25k Hz
E-1231 (1/3 octave) Gain -2 dB -1 dB -1 dB
VX-200SE (1/1octave) Gain − -2 dB −
15．FREQUENCY RESPONSE
13
16．SPECIFICATIONS
Standards Certified to the European Standard EN 54-24:2008
Loudspeaker for voice alarm systems for fire detection and fire alarm systems
Certification No. 1438/CPD/0281
Environment Type Type B (Outdoor applications)
Rated Noise Power 200 W (100 V line and 70 V line)
100 V line: 50 Ω (200 W), 83 Ω (120 W), 167 Ω (60 W)
70 V line: 25 Ω (200 W), 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W)
96 dB (1 W, 1 m at 500 Hz to 5 kHz pink noise)
88 dB (1 W, 1 m at 100 Hz to 10 kHz pink noise)
76 dB (1 W, 4 m at 100 Hz to 10 kHz pink noise)
108 dB (200 W, 1 m at 100 Hz to 10 kHz pink noise)
96 dB (200 W, 4 m at 100 Hz to 10 kHz pink noise)
Frequency Response 95 Hz – 20 kHz (60° mode)
Coverage Angle (–6 dB) Horizontal: 211° (500 Hz), 192° (1 kHz), 121° (2 kHz), 118° (4 kHz)
Vertical: 101° (500 Hz), 70° (1 kHz), 68° (2 kHz), 66° (4 kHz)
Operating Temperature –15 ºC to +50 ºC
Dust/Water Protection IPX4 (Install with the every speaker module downward)
Cable Polarity Hot: Black, Com: White
Finish Enclosure: Polypropylene, black (HX-5B-WP EB-Q), white (HX-5W-WP EB-Q)
Punched net: Steel, black (HX-5B-WP EB-Q), white (HX-5W-WP EB-Q)
Dimensions 408 (w) x 546 (h) x 342 (d) mm
Weight 16 kg
Option Suspension bracket ....2, Hex head wrench ....1
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,
Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,
Germany
EN 54-24: 2008
12
1438/CPD/0281
1438
Notes
• The design and specifications are subject to change without notice for improvement.
• The specifications data was measured in an anechoic chamber, according to EN 54-24.
• Reference axis: Axis is on the center of speaker grill and perpendicular to the speaker grill.
• Reference plane: Plane is on the speaker grill and perpendicular to the reference axis.
• Horizontal plane: Plane is containing the reference axis and perpendicular to the reference plane.
with MT-200
Sensitivity (60° mode)
Max.SPL (60° mode)
Rated Impedance 8 (HX-5B-WP EB-Q and HX-5W-WP EB-Q only)Ω
Speaker Component Low frequency: 12 cm cone-typex 4, High frequency: Balanced dome-type x 12
Crossover Frequency 4 k Hz
Enclosure Sealed type
[dB]
50
k02k01k5k10050010502
[Hz]
90
80
70
60
100
Frequency Response (1 W, 4 m)
14
15
URL:http://www.toa.jp/
533-06-260-10
Loading...
