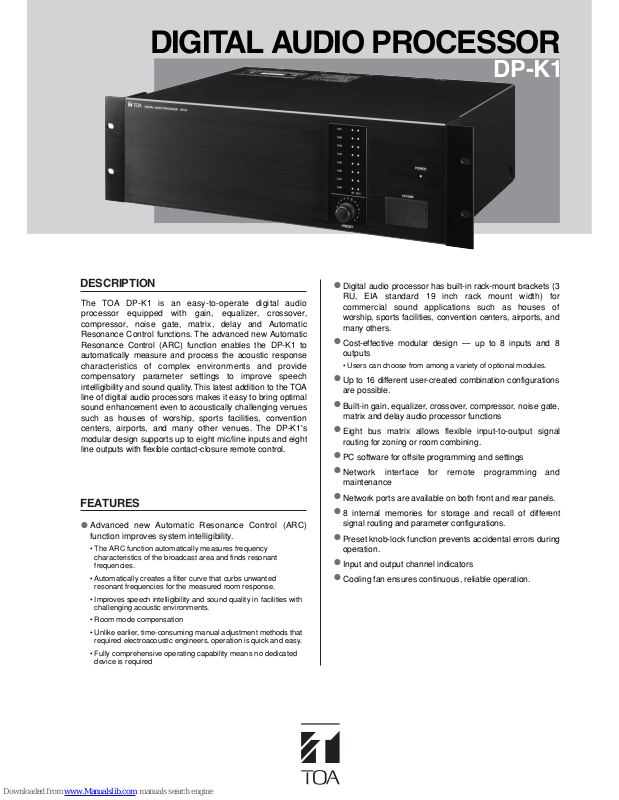

DESCRIPTION

●

The TOA DP-K1 is an easy-to-operate digital audio processor equipped with gain, equalizer, crossover, compressor, noise gate, matrix, delay and Automatic Resonance Control functions. The advanced new Automatic Resonance Control (ARC) function enables the DP-K1 to automatically measure and process the acoustic response characteristics of complex environments and provide compensatory parameter settings to improve speech intelligibility and sound quality. This latest addition to the TOA line of digital audio processors makes it easy to bring optimal sound enhancement even to acoustically challenging venues such as houses of worship, sports facilities, convention centers, airports, and many other venues. The DP-K1's modular design supports up to eight mic/line inputs and eight line outputs with flexible contact-closure remote control.

DIGITAL AUDIO PROCESSOR

DP-K1

FEATURES

Digital audio processor has built-in rack-mount brackets (3 RU, EIA standard 19 inch rack mount width) for commercial sound applications such as houses of worship, sports facilities, convention centers, airports, and many others.

Cost-effective modular design — up to 8 inputs and 8 outputs

• Users can choose from among a variety of optional modules.

Up to 16 different user-created combination configurations are possible.

Built-in gain, equalizer, crossover, compressor, noise gate, matrix and delay audio processor functions

Eight bus matrix allows flexible input-to-output signal routing for zoning or room combining.

PC software for offsite programming and settings

Network interface for remote programming and maintenance

Network ports are available on both front and rear panels.

8 internal memories for storage and recall of different signal routing and parameter configurations.

Preset knob-lock function prevents accidental errors during operation.

Input and output channel indicators

Cooling fan ensures continuous, reliable operation.

●

Advanced new Automatic Resonance Control (ARC) function improves system intelligibility.

• The ARC function automatically measures frequency characteristics of the broadcast area and finds resonant frequencies.

•Automatically creates a filter curve that curbs unwanted resonant frequencies for the measured room response.

•Improves speech intelligibility and sound quality in facilities with challenging acoustic environments.

• Room mode compensation

• Unlike earlier, time-consuming manual adjustment methods that required electroacoustic engineers, operation is quick and easy.

• Fully comprehensive operating capability means no dedicated device is required

Page 2

DIGITAL AUDIO PROCESSOR

DP-K1

APPEARANCE AND DIMENSIONAL DIAGRAM

XLR Connector

Removable Terminal

Block Connector

24 bit

20 bit

A/D

Converter

Mic/Line Input Modules

Digital Input Modules

Monaural type

Stereo type

D-921F

2-Channel input module for mic and line inputs (selectable) with XLR connectors, adjustable input sensitivity, and phantom power.

D-922F

2-Channel input module for mic and line inputs (selectable) with XLR connectors and DIP switches for input sensitivity, phantom power and ground lift.

D-922E

2-Channel input module for mic and line level inputs (selectable) with removable terminal block connectors, input sensitivity DIP switches, phantom power and ground lift.

D-936R

4 stereo input module equipped with standard RCA jacks. This module features two stereo transmission mode:

1) Selection of one of the four stereo inputs.

2) Mixing of all four stereo inputs, transmitting the mixed signal to the D-901 though left/right channel outputs.

D-937SP

Single channel stereo digital input module. With the use of this module, digital signals can be input, permitting direct connection of the D-901 to equipment having a digital output. Owing to the built-in sample rate converter, the module can handle signals of various sampling frequencies.

D-923AE

2-Channel digital input module. With the use of this module, digital signals can be input, permitting direct connection of the D-901 to equipment having a digital output. Owing to the built-in sample rate converter, the module can handle signals of various sampling frequencies.

Applicable AES/EBU Format

D-921E

2-Channel input module for mic and line level inputs (selectable) with removable terminal block connectors, adjustable input sensitivity and phantom power.

Applicable S/PDIF Format

Modules

482.6

466

420

Rear View

Front View

Side View

320

57.3

132.6

37.7

Modular design allows you to configure the most costeffective design for each application. TOA offers a range of modules to suit a variety of input and output requirements.

Page 3

XLR Connector

Removable Terminal Block Connector

RCA Pin Jack Connector

8 inputs/8 outputs

24 inputs/16 outputs

Remote Control Module

Line Output Modules

Applicable AES/EBU Format

Applicable S / PDIF Format

Digital Output Modules

D-971M

4-channel line outputs module equipped with XLR connectors.

D-972AE

4-channel digital output module. With the use of this module, digital signals can be output, permitting direct connection of the D-901 to equipment having a digital input.

D-983

For external remote control of memory presets, gain control, stereo input selection and channel ON/OFF operation plus tally outputs.

D-981

For external remote control of memory presets, gain control, stereo input selection and channel ON/OFF operation plus tally outputs.

D-961SP

2-Channel stereo digital output module. With the use of this module, digital signals can be output, permitting direct connection of the D-901 to equipment having a digital input.

D-971R

4-channel line outputs module equipped with standard RCA pin jack.

D-971E

4-channel line outputs module equipped with removable terminal block connectors.

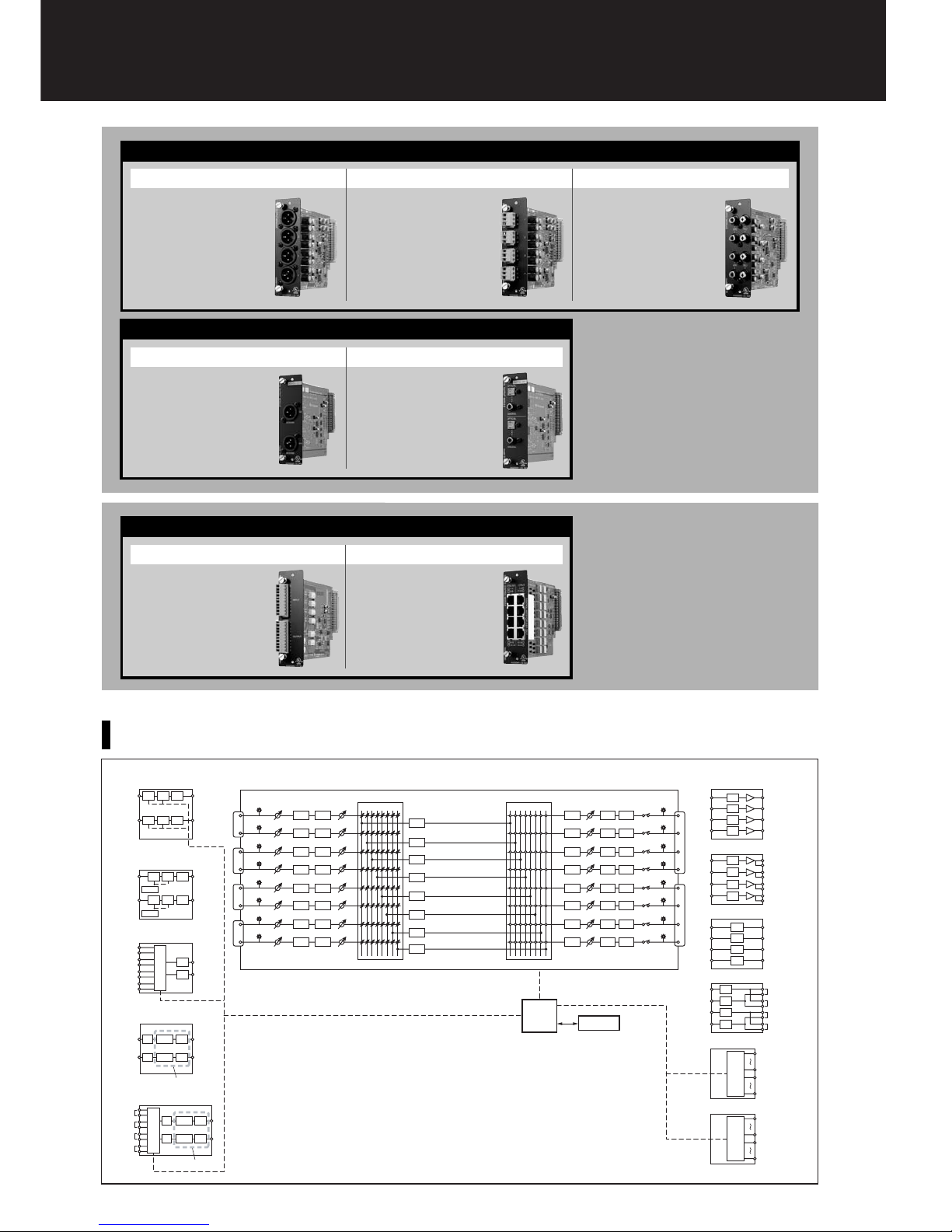

BLOCK DIAGRAM

SIG LED

1234

SIG LED

5678

Filter

Gain

Filter

Gain

Filter

Gain

Filter

Gain

Filter

Gain

Filter

Gain

Filter

Gain

Filter

C/G

Gain

+15 V PAD AD

DIP SW

+15 V PAD AD

DIP SW

L R

Selector

DIR DE-EMP SRC

Selector

OPTICAL

COAXIAL

Microphone/Line Input Module (D-921F or D-921E)

Microphone/Line Input Module (D-922F or D-922E)

Digital Input Module (D-923AE)

Stereo Input Module (D-936R)

Digital Input Module (D-937SP)

Automatic

SIG LED

1234

SIG LED

5678

Filter

COMP

Delay

Filter

COMP

Delay

Filter

COMP

Delay

Filter

COMP

Delay

Filter

COMP

Delay

Filter

COMP

Delay

Filter

COMP

Delay

Filter

COMP

Delay

Gain

DIT

CPU

EtherNet

OPTICAL

COAXIAL

OPTICAL

COAXIAL

Control

IN 1

IN 8

OUT 1

OUT 8

Control

IN 1

IN 24

OUT 1

OUT 16

Line Output Module (D-971M or D-971E)

Line Output Module (D-971R)

Digital Output Module (D-972AE)

Digital Output Module (D-961SP)

Remote Control Module (D-981)

Remote Control Module (D-983)

Page 4

SPECIFICATIONS

Specifications are subject to change without notice. Printed in Japan (0608) 833-52-360-00 u

TOA Corporation

URL : http://www.toa.jp/

Power Source AC mains, 50/60Hz

Power Consumption 40W

Frequency Response 20 – 20,000Hz, ±1dB (+4dB* Input)

Input Max. 8 channels, modular construction (modules optional)

Output Max. 8 channels, modular construction (modules optional)

IO Configuration*

2-IN/4-OUT, 2-IN/8-OUT, 4-IN/4-OUT, 4-IN/8-OUT, 6-IN/4-OUT, 6-IN/8-OUT, 8-IN/8-OUT

Signal Processing

Automatic Resonance Control Function

Parametric equalizer: 20 – 20,000Hz, ±12dB, Q: 0.267 to 69.249

Level Control –

∞

to +12dB (0.5dB steps), with polarity selector

Equalizer/Filter Parametric equalizer: 20 – 20,000Hz, ±12dB, Q: 0.267 to 69.249

Filtering: High-pass filter: 20 – 20,000Hz, 6dB/oct, 12dB/oct

Low-pass filter: 20 – 20,000Hz, 6dB/oct, 12dB/oct Notch filter: 20 – 20,000Hz, Q: 8.651 to 69.249 All-pass filter: 20 – 20,000Hz, Q : 0.267 to 69.249 High shelving filter: 6 – 20,000Hz, ±12dB Low shelving filter: 20 – 500Hz , ±12dB Horn equalizer: 20,000Hz, 0 to +18dB,(0.5dB steps)

Crossover filter: 20 – 20,000Hz, 6dB/oct, 12dB/oct, 18dB/oct, 24dB/oct

Compressor Threshold: –16 to +24dB* (1dB steps)

Ratio: 1 : 1, 2 : 1, 3 :1, 4 : 1, 8 : 1, 12 : 1, 20 : 1,

∞

: 1 Attack time: 0.02 to 100ms Release time: 10ms to 5s

Noise gate Threshold: –

∞

to –26dB* (1dB steps) Attack time: 0.1 to 100ms Release time: 20ms to 5s

Delay Delay time: 0 to 682.0ms (0.021ms steps) Matrix 8 × 8

Level control: –∞ to 0dB (1dB steps), with polarity selector

Preset memory 8

Auxiliary Function Key lock function

Setting Software OS: Windows*

2000/XP

Control system: 10 BASE-T/100 BASE-TX, Auto-negotiation, RJ45 connector

Front Panel Section Preset memory recall knob: 1

Input indicator: Green LED Output indicator: Green LED

Module Slot (Rear Panel) Input module slots: 4

Output module slots: 2 Remote control module slot: 1

Operating Temperature +5°C to +40°C

Finish Panel: Aluminum, hair-line finish, black

Others: Pre-coated steel plate, black, 30% gloss

Dimensions 482.6 (W) × 132.6 (H) × 320 (D)mm (excluding projection)

Weight 7.4kg

Accessory Power cord (2m) × 1, Rack mounting bracket (preinstalled on the unit) × 2, Rack mounting screw × 4,

Blank panel (preinstalled on the unit) × 8, Module mounting screw (spare) × 4, CD (software) × 1

Option Mic/Line input modules: D-921E, D-921F, D-922E, D-922F

Stereo input module: D-936R Digital input modules: D-923AE, D-937SP Line output modules: D-971E, D-971M, D-971R Digital output modules: D-972AE, D-961SP Remote control modules: D-981, D-983

*0 dB =0.775 V *

It is not possible to use 8-IN/4-OUT setting.

Windows is a trademark of Microsoft Corporation.

Note: When installing the unit, never block the intake vents provided in the unit's bottom near the rear.
