Thank you for purchasing TOA’s Outdoor Combination Camera. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

OUTDOOR COMBINATION CAMERA C-CC714 NT

C-CC714 PL

C-CC764 NT

C-CC764 PL

C-CC774 NT

C-CC774 PL

INSTALLATION MANUAL

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ............................................................................... 3

2. GENERAL DESCRIPTION ............................................................................. 5

3. FEATURES .......................................................................................................... 5

4. HANDLING PRECAUTIONS .......................................................................... 6

5. NOMENCLATURE ............................................................................................. 8

6. CONNECTIONS

6.1. Precautions When Installing the Camera ........................................................ 10

6.2. Camera Control Connector Connection (RS-485) .......................................... 11

7. CAMERA SETTINGS

7.1. About AUX Output .......................................................................................... 11

7.2. About Alarm Input ........................................................................................... 11

7.3. Dip Switch Settings ......................................................................................... 12

7.3.1. Camera Address Setting Switch (DIP switch 1: No. 1 – 8) ................... 12

7.3.2. Communication Speed Setting Switch (DIP switch 2: No. 1 – 2) .......... 13

7.3.3. OSD Switch (DIP switch 2: No. 3) ......................................................... 13

7.3.4. Communication Method Selector Switch (DIP switch 2: No. 6) ............ 13

7.3.5. Termination Switch (DIP switch 2: No. 8) ............................................. 13

7.3.6. Firmware Update Switch (DIP switch 3: No.1 – 3) ................................ 13

7.3.7. Memory Clear Switch (DIP switch 3: No. 7) .......................................... 13

8. INSTALLATION

8.1. About Installation ............................................................................................ 18

8.2. Installation Method .......................................................................................... 18

8.3. Wall Mounting Bracket Installation .................................................................. 19

8.4. Attaching Housing and Camera Unit to Wall Mounting Bracket ...................... 20

8.5. Pole Mounting Bracket Installation .................................................................. 27

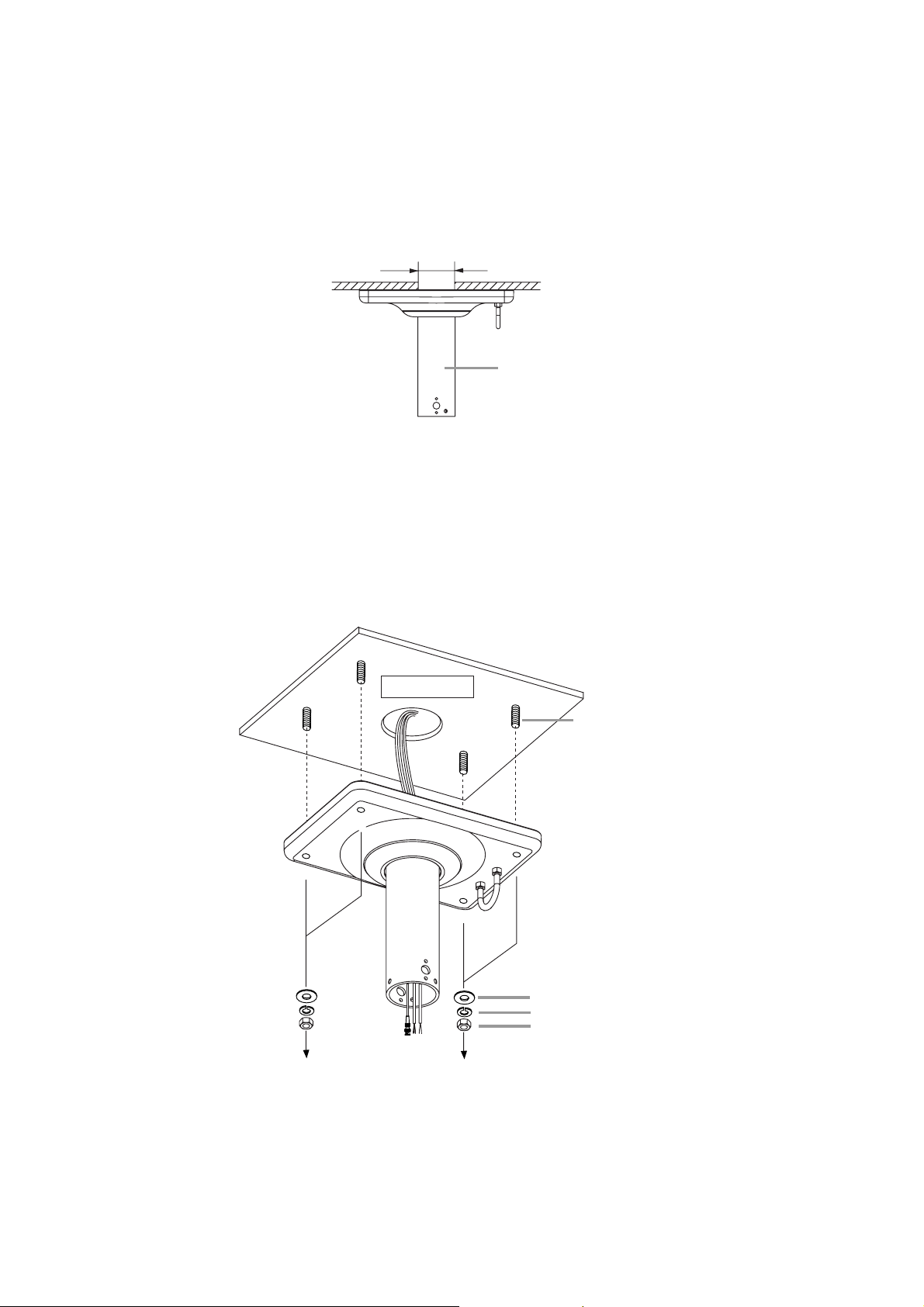

8.6. Suspension Bracket Installation ...................................................................... 28

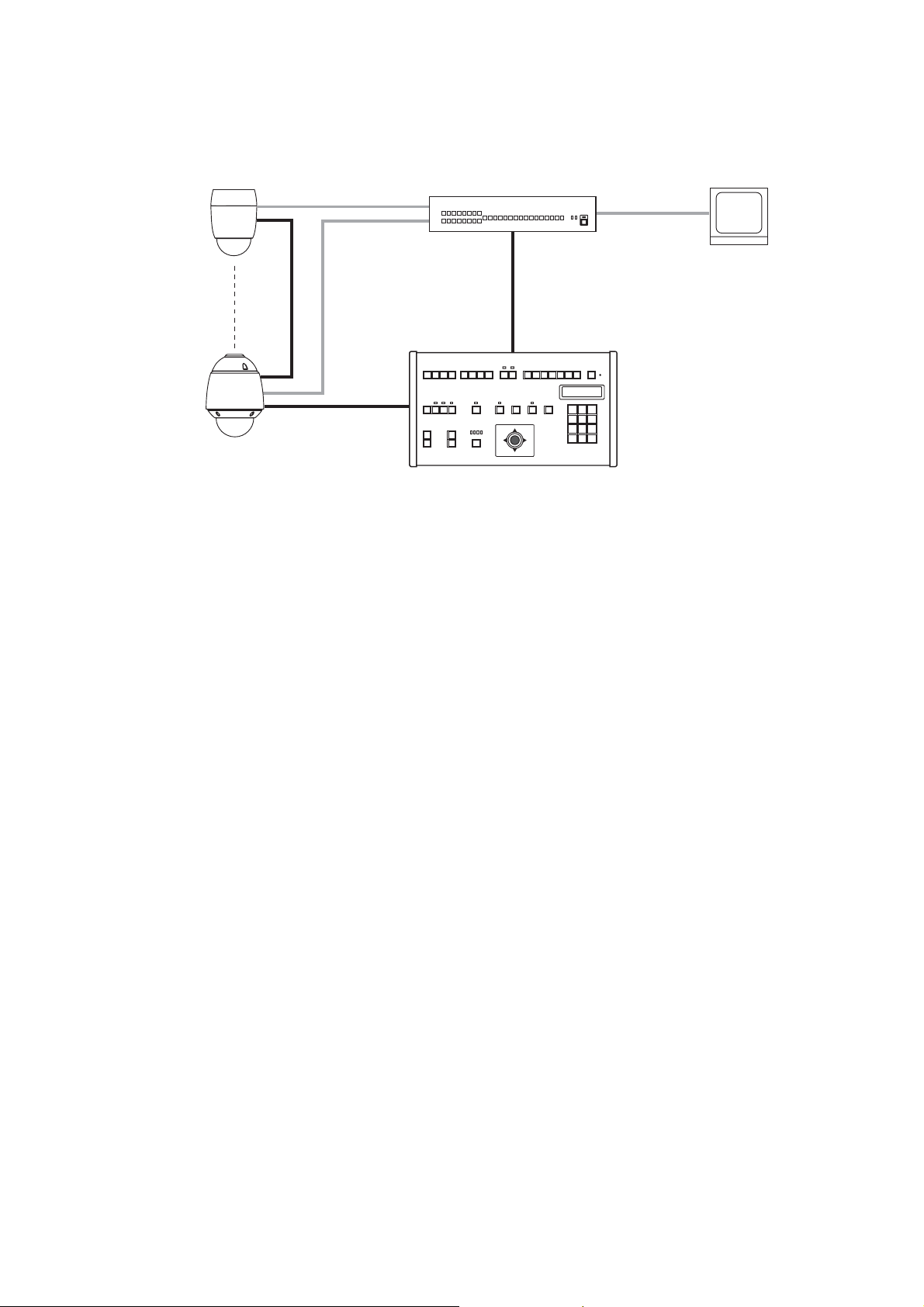

9. SYSTEM EXAMPLES .................................................................................... 29

10. SPECIFICATIONS ............................................................................................. 30

Accessories ............................................................................................................. 34

Optional Products .................................................................................................... 34

1. SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully before use.

• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included.

• We also recommend you keep this instruction manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. Before operating your product, read this manual first and understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.

Do not leave the unit upside-down where it could be exposed to the rain or elements. Water in the unit may cause shorts that could result in fire or electrical shock.

WARNING

When Installing the Unit

• Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.

• Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects (including the unit itself) on the power cord, as doing so may result in fire or electric shock.

• Avoid installing the unit in unstable locations, such as on a rickety or slanted surface. Failure to do so may result in the unit falling and possibly causing personal injury.

• Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket. Doing otherwise may result in the unit falling down and causing personal injury and/or property damage.

• Only use the unit's dedicated mounting hardware. The use of mounting hardware not designated could result in the unit falling and possibly causing personal injury.

• Do not install the unit in the following locations to avoid a traffic accident or personal injury.

Locations which block the driving of the car. Locations where the traffic signal or road sign is hard to be seen.

• To prevent lightning strikes, install the unit at least five meters away from a lightning rod, and yet within the protective range (angle of 45°) of the lightning conductor. Lightning strikes may cause a fire, electric shock or personal injury.

• When installing the unit in the snowy area, take appropriate measures to prevent snow from lying on the unit. If the snow lies on the unit, the unit may fall, causing personal injuries.

• Be sure that at least two persons are available to install the unit. Failure to do so could result in personal injury.

• Do not use any methods other than specified to mount the bracket. Extreme force is applied to the unit and the unit could fall off, possibly resulting in personal injuries.

• Attach the safety wire to the unit. If not attached, the unit could fall off, resulting in personal injury.

• Use nuts and bolts that are appropriate for the ceiling's or wall's structure and composition. Failure to do so may cause the unit to fall, resulting in material damage and possible personal injury.

• Tighten each nut and bolt securely. Ensure that the bracket has no loose joints after installation to prevent accidents that could result in personal injury.

Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.

WARNING

When Installing the Unit

• Avoid installing the unit in locations exposed to sea breeze or corrosive gas. Mounts may become corroded, eventually causing the unit to fall off, which could result in personal injury.

• Do not mount the unit in locations exposed to constant vibration. The mounting screws and/or bolts may be loosened by excessive vibration, potentially causing the unit to fall, which could result in personal injury.

• Avoid installing the unit at heights exceeding 16 meters above the ground since the unit could be exposed to unexpected strong winds that might cause it to fall or result in other accidents.

When the Unit is in Use

• If any of the following irregularities occurs, immediately unplug the power plug from the AC outlet and inform the shop from where the unit was purchased. Further using the unit may result in fire or electric shock.

· If you detect smoke or a strange smell coming from the unit.

· If water or any metallic object gets into the unit

· If the unit falls, or the unit case breaks

· If the power supply cord is damaged (exposure of the core, disconnection, etc.)

· If no camera images are displayed on the monitor TV when the temperature of the camera unit is 0°C or more.

• To prevent a fire or electric shock, never open nor remove the unit case as there are high voltage components inside the unit. Refer all servicing to your nearest TOA dealer.

• Do not insert nor drop metallic objects or flammable materials in the ventilation slots of the unit’s cover, as this may result in fire or electric shock.

• Do not touch a power cable during thunder and lightning, as this may result in electric shock.

Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.

CAUTION

When Installing the Unit

• To avoid electric shocks, be sure to switch off the power before power supply wiring work. Failure to do so may result in electrical shock.

• Leave the installation of the unit to your TOA dealer because the installation requires expert experience and skills. If the unit falls, this could cause personal injures.

When the Unit is in Use

• Do not stand or sit on, nor hang down from the unit as this may cause it to fall down or drop, resulting in personal injury and/or property damage.

• Switch off the power, and unplug the power supply plug form the AC outlet for safety purposes when cleaning or leaving the unit unused for 10 days or more.

• Doing otherwise may cause a fire or electric shock.

• Have the unit checked periodically by the shop from where it was purchased. Failure to do so may result in corrosion or damage to the unit or its mounting brackets that could cause the unit to fall, possibly causing personal injury.

• Contact your TOA dealer as to the cleaning. If dust is allowed to accumulate in the unit over a long period of time, a fire or damage to the unit may result.

2. GENERAL DESCRIPTION

TOA’s dome-type color cameras combine with a high-speed camera drive that permits one 360-degree horizontal rotation per second and a 35x (C-CC774), a 23x (C-CC764) or a 22x (C-CC714) optical zoom lens. Up to 255 arbitrary positions can be preset and such preset positions can be instantaneously repeated. The systems also feature a 12x electronic zoom, timer, and tracing, while the C-CC764 and C-CC774 offer additional functions that include a motion detector, auto flip, black & white mode, privacy masking, and motion compensation (C-CC774 only). Because all these cameras are integrated with a weather-resistant outdooruse housing and a built-in fan heater, they can be freely used outdoors as well.

3. FEATURES

• Digital signal processing realizes high resolution and high picture quality. The unit also features the video memory that increases the electronic sensitivity up to 32 times and enables electronic zooming.

• Permits manual operations of the zoom lens, pan/tilt head, and preset camera positions, and the setting of the camera functions. Also it can correspond to the control using a communications line of RS-485.

• Up to 255 camera positions can be preset.

• Built-in fan heater automatically turns on to keep the camera operable when temperatures decrease.

• Featuring IP66 (IEC60529) compliant dustproof and waterproof.

4. HANDLING PRECAUTIONS

• Noise may appear on the monitor or preset camera positions may deviate with prolonged camera use. In such cases, use the camera’s refresh function to automatically refresh settings and reestablish the home position once a day or week, thus allowing any position deviation to be corrected. When correcting manually, initialize the camera from the remote controller.

• The AC line is equipped with a surge protector to protect the camera against lightning strikes and other power surges. Therefore, remove the surge grounding terminal’s connector when conducting withstand voltage tests, and be sure to replace it after the test is completed.

• It is recommended that the unit be installed in locations where the temperature is under +40°C, as the longevity of the unit may reduce with prolonged unit use under high temperature and high humidity.

• Because the dome camera uses sealed construction, moisture can accumulate inside the camera, possibly causing the inside of the dome to fog. Take care to install the camera when humidity conditions are low.

• Camera images may not immediately be displayed if the power is switched on when the temperature of the camera unit is below 0°C. In such cases, wait for a while with the power switched on. When the temperature inside the enclosure reaches 0°C or higher, normal operation becomes possible after initialization. Note that it could take an hour or two before operation becomes possible when the ambient temperature is –40°C or below.

• Even in locations where the temperature is higher than –40°C, if exposed to strong winds and snow, the snow or ice on the transparent camera dome might not defrost. In such cases, it might be best to leave the power to the camera on at all times.

• Do not direct the camera lens to the sun or strong lighting or light reflection. Exposure to direct sunlight could cause the CCD's color filter to deteriorate, leading to image discoloration.

• When the C-CC774 is recommended that presets be entered into the memory 10 minutes or more after the power has been switched on. The subject may go out of focus when presets have been entered into the memory on the telescope side.

• When the C-CC774 is directed toward horizontal direction on the telescope side, the subject may not be brought into focus.

• Do not install the unit in locations exposed to constant vibration. The units are not designed for vehicle use. Do not install the unit in a vehicle nor ship.

• Mount the unit to a concrete wall or robustly constructed wall surface that can sufficiently withstand the weight of the units. When mounting the units to a pole, pay special attention to the sway and strength of the pole, and mount it securely at an appropriate height that will not cause the pole to sway and possibly weaken it. Moreover, avoid mounting the units to a pole on which other objects susceptible to wind are also mounted.

• Bolts and nuts used to install the unit to a ceiling, or on a wall or pole are not supplied with the unit. Be sure to prepare bolts and nuts keeping the ceiling’s or wall’s structure and material, gross weight, etc in mind.

• Do not give vibration or shock to the unit, as doing so may cause unit breakdown, damage or be leakage. Giving vibration or shock may cause damage or leakage to the unit.

• Avoid installing the units on sea or shore, or in locations exposed to corrosive gas, herbicides or other sprayed liquid chemicals, or extraordinary combustible conditions.

• To prevent the unit falls off, be sure to hang the safety wire first when installing the unit.

• The dome camera is designed solely for suspended installations. The camera or dome must be suspended vertically with its dome facing downward. Use special care not to suspend it at a tilted angle.

• The dome camera is not equipped with a power switch. Perform power construction work so that the camera power can be turned on and off remotely.

• The dome camera features built-in heat generating circuitry. Take care not to touch the internal parts marked “Caution! High Temperature” when working inside the camera during dome cleaning or maintenance .

• Avoid directly touching the dome surface, since camera picture quality could deteriorate if the dome cover becomes smudged and dirty.

• To clean, be sure to first unplug the power plug from the AC outlet, then wipe with a dry cloth. When the unit gets very dirty, use a cloth dampened in a neutral detergent. Never use benzene, thinner or chemically processed towel as the unit's plastic or other parts may be deformed or discolored.

• When cleaning the dome cover, wipe lightly with a soft cloth. In this event, the cover could be scratched and damaged if the dome is covered in dust or sand. When the cover is extremely dirty, it is highly recommended that the cover be removed and that its outside surface be washed lightly with water. Since alcohol-based detergents can turn the dome cover whitish, avoid using them, as camera picture quality could be severely affected.

• When dust has settled on the unit's lens, lightly clean using a commercial camera blower or cleaning paper.

Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the security aspects of this product. UL has only tested for fire, shock or casualties as outlined in UL's Standard(s) for Safety. UL Certification does not cover the performance or reliability of the security hardware and security operating software. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY RELATED FUNCTIONS OF THIS PRODUCT.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/ TV technician for help.

Modifications

Any modifications made to this device that are not approved by TOA Corporation may void the authority granted to the user by the FCC to operate this equipment.

NTSC version complies with Part 15 of the FCC Rules.

[ Housing Appearance ]

[ Housing Bottom ]

[ Camera Unit Top ]

[ Camera Unit Bottom ]

5. NOMENCLATURE

[ Appearance ]

[ Camera Unit Appearance ]

(1) Top cover

(2) Safety wire for housing

(3) Housing adaptor

(4) Safety screw

(5) Dome cover

(6) Decorative frame

(7) Sunshade (Outside)

(8) Case (Inside)

(9) Hexagon sleeve

(10) Safety wire for dome cover

(11) Camera unit fixing screw

(12) Surge protector GND

(13) COM SW*

(14) COM LED*

(15) COM PORT*

(16) DIP switch (SW1)

(17) DIP switch (SW2)

(18) DIP switch (SW3)

(19) Camera unit mounting hole

(20) Safety wire for camera unit

(21) Wall mounting bracket

(22) Hook to connect safety wire for housing

(23) Suspension bracket

(24) Pole mounting bracket

* For handling of (13), (14) and (15), refer to the “Camera Controller Software Operation Manual” of the

enclosed CD-R.

[ C-BC711W Wall Mounting Bracket (optional) ]

[ C-BC711P Suspension Bracket (optional) ]

[ C-BC771PM Pole Mounting Bracket (optional) ]

6.1. Precautions When Installing the Camera

• Insulate the joint of the camera video output cable and the coaxial cable from other equipment by wrapping the insulating tape around it. Also, install such cables taking care that they do not contact metal stuff close to them.

• Avoid install the camera cable in close proximity to other cables of electric products, such as fluorescent lamps. Failure to do this could downgrade the picture quality.

• Installing the camera near the strong electric or magnetic field produced by television transmitting antennas, motors or transformers could distort or shake the monitor screen. In such cases, install the cables in the sheet steel cable piping.

• Before applying the power to the camera, be sure to complete all connections between the camera and related equipment.

• Be sure to insulate each connection of the power supply cables, video output cables or multicore cables from water.

Note: The length of power cable, video output cable and multi wick cable is about 1.8 m.

6. CONNECTIONS

Power cable

Connects to the power supply. (24V AC 50/60 Hz)

Alarm input/output terminal (No. 1

Connects to the sensor of no-voltage make contact or the external equipment that can be controlled using the auxiliary output.

Camera control terminal (No. 6

Connects to cables from the Remote Controller or other camera when controlling the camera using the RS-485 communications line.

Wire color Dot color Terminal name

Orange Black GND

Orange Red Alarm input 3 (AL3)

Yellow Black Alarm input 2 (AL2)

Yellow Red Alarm input 1 (AL1)

Green Black Auxiliary output (AUX)

Green Red GND

Gray Black RS485 (–)

Gray Red RS485 (+)

Video output cable

When controlling with use of the RS-485 communications line, connect this output cable to the video input terminal of the multi-switcher or monitor.

Insulate with vinyl tape.

System controller, Multi switcher, Monitor

6.2. Camera Control Connector Connection (RS-485)

• Connect terminals (+) and (–) of the C-RM500 Remote Controller or the C-IF500 Interface Unit to the camera's terminals (+) (terminal No. 8) and (–) (terminal No. 7), respectively.

• Connect the camera's terminals (+) and (–) to the next camera's terminals (+) and (–) in order.

Notes

• The maximum number of units connectable to a pair of RS-485 lines (from termination to termination) is 32 units including the Remote Controller. The maximum cable length connecting each terminal is 1.2 km in total.

• The camera may not operate correctly if 32 or more units are connected or the total cable distance exceeds

1.2 km. In such cases, split or extend wiring using the C-IF500 Interface Unit.

• Indoor-use and outdoor-use combination cameras can be wired in free combinations.

7. CAMERA SETTINGS

7.1. About AUX Output

Open collector output, Rated: withstand voltage: 20 V DC, Permissible current: under 100 mA

7.2. About Alarm Input

No-voltage make contact input, Rated: open voltage: 18 V DC, Short-circuit current: under 2 mA

Shield twisted pair cable

Connect to the next cameraʼs terminal

Connect to remote controllerʼs camera control terminal

GND

Camera control cable

GND

Camera control cable
