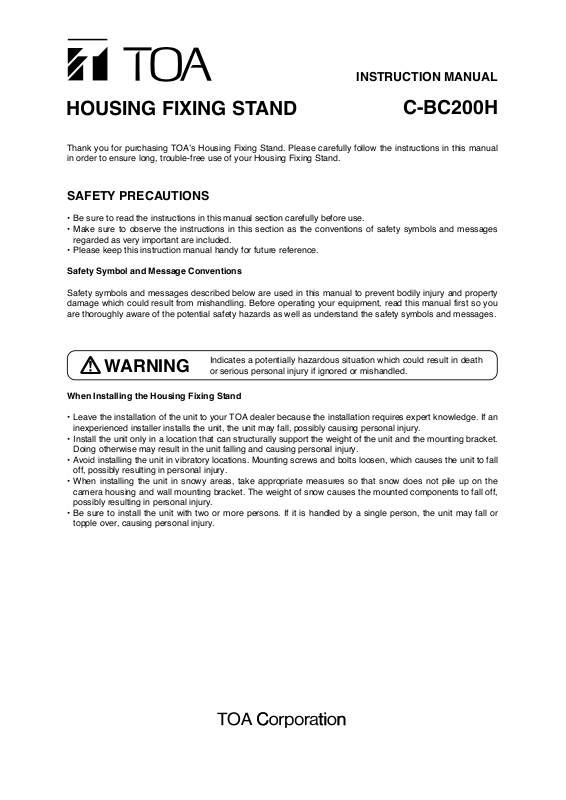

INSTRUCTION MANUAL
HOUSING FIXING STAND
C-BC200H
Thank you for purchasing TOA’s Housing Fixing Stand. Please carefully follow the instructions in this manual
in order to ensure long, trouble-free use of your Housing Fixing Stand.
SAFETY PRECAUTIONS
• Be sure to read the instructions in this manual section carefully before use.
• Make sure to observe the instructions in this section as the conventions of safety symbols and messages
regarded as very important are included.
• Please keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your equipment, read this manual first so you
are thoroughly aware of the potential safety hazards as well as understand the safety symbols and messages.
Indicates a potentially hazardous situation which could result in death
or serious personal injury if ignored or mishandled.
WARNING
When Installing the Housing Fixing Stand
• Leave the installation of the unit to your TOA dealer because the installation requires expert knowledge. If an
inexperienced installer installs the unit, the unit may fall, possibly causing personal injury.
• Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket.
Doing otherwise may result in the unit falling and causing personal injury.
• Avoid installing the unit in vibratory locations. Mounting screws and bolts loosen, which causes the unit to fall
off, possibly resulting in personal injury.
• When installing the unit in snowy areas, take appropriate measures so that snow does not pile up on the
camera housing and wall mounting bracket. The weight of snow causes the mounted components to fall off,
possibly resulting in personal injury.
• Be sure to install the unit with two or more persons. If it is handled by a single person, the unit may fall or
topple over, causing personal injury.
Indicates a potentially hazardous situation which could result in death
or serious personal injury if ignored or mishandled.
WARNING
When Installing the Housing Fixing Stand
• Install the unit only with the specified method. Failure to follow this instruction may cause extreme force to
be applied to the unit and the unit to fall, resulting in personal injury.
• Use nuts and bolts that are appropriate for the ceiling’s or wall’s structure and composition. Failure to do so
may cause the unit to fall, resulting in personal injury.
• Tighten each nut and bolt securely. Ensure that there are no loose joints after installation to prevent
accidents that could result in personal injury.
• Use the specified type of camera housing and wall mounting bracket. If the unit is installed in combination
with equipment not specified, the unit may fall, possibly resulting in personal injury.
• Avoid installing the unit in locations exposed to sea breeze or corrosive gas. The unit or its mount may be
subject to corrosion, which could cause the unit to fall, possibly resulting in personal injury.
Indicates a potentially hazardous situation which could result in
moderate or minor personal injury, and/or property damage if ignored
or mishandled.
CAUTION
When Using the Housing Fixing Stand
• Do not place heavy objects on the unit as this may cause the unit to topple over or fall down and personal
injury could result.
• Do not stand or sit on, nor hang down from the unit as this may cause the unit to topple over or fall down,
possibly resulting in personal injury.
• Have the unit periodically checked by the dealer from where it was purchased. Should the unit’s mount
corrode or structurally deteriorate, the unit could fall down, possibly resulting in personal injury.
GENERAL DESCRIPTION
TOA's C-BC200H Housing Fixing Stand is designed to be used in conjunction with the C-CH100 Series or CCH200 Series camera housings to fix cameras in the predetermined direction. The C-BC200H is constructed
of stainless steel plate and is designed to withstand use in severe outdoor environments without corrosion or
marring of the unit's appearance.
INSTALLATION
Ensure that each bolt is securely tightened after mounting the camera
housing and wall mounting bracket to a wall. If there is any loose
joint, the unit may fall, possibly resulting in personal injury.
WARNING
* Supplied with the C-CH100 or C-CH200 Series Outdoor Camera Housings.
C-CH100 Series Outdoor Camera Housing
[Bottom view]
C-BC200H Housing Fixing Stand
Housing Fixing Stand mounting bolt (accessory)
(M6 x 12 hexagonal head bolt with washer): 2 pieces
C-BC200 Series Outdoor Camera Housing
[Bottom view]
Camera housing mounting bolt*
[C-CH200 Series]
M6 x 12 hexagonal head bolt
with washer: 2 pieces
[C-CH100 Series]
M6 x 12 hexagonal head bolt: 2 pieces
M6 spring washer: 2 pieces
M6 plain washer: 2 pieces
C-BC200K Wall Mounting Bracket
Unit: mm
70
DIMENSIONAL DIAGRAM
SPECIFICATIONS
The unit’s specifications and external view are subject to change without notice.
Accessory
M6 x 12 hexagonal head bolt with washer for mounting the C-BC200H Housing Fixing Stand .............. 2
Vertical : – 60° to + 20°
Horizontal : ± 60°(120°) when using 2 mounting holes
(Can be set freely for up to 360° when C-BC200K is mounted.)
Outdoors (except seaside and industrial districts where the unit is subject to
corrosion, and heights that expose the unit to strong wind pressure)
Stainless steel, off white, paint
119.2 (W)x 108 (H)x 136 (D
)
900 g
Camera Housing : C-CH200 Series, C-CH100 Series
Wall Mounting Bracket : C-BC200K
Angler Adjustment
Applications
Finish
Dimensions
Weight
Applicable Model
Option
133-12-873-8A
URL: http://www.toa.jp/
R3.5
R3.5
120
R3.5
105
100
R8
6-Ø7
Ø70
15
108
68
10018
136
60
R35
20
120
