Toa BS-633AT User Manual

Use the following cables for connections.

· Solid wire: ø0.8 to ø1.6 mm (equivalent to AWG 20 – 14)

· Stranded wire (7-core): 0.75 to 1.25 mm

(equivalent to AWG 18 – 16)

Step 1. Using the cable strip gauge printed on

the input specification label, trim cable sheath 9 mm (0.35") from cable end.

Step 2. Insert the cable fully into the round hole in the terminal

block.

Step 3. To remove the cable, pull it out while pressing the

terminal block button.

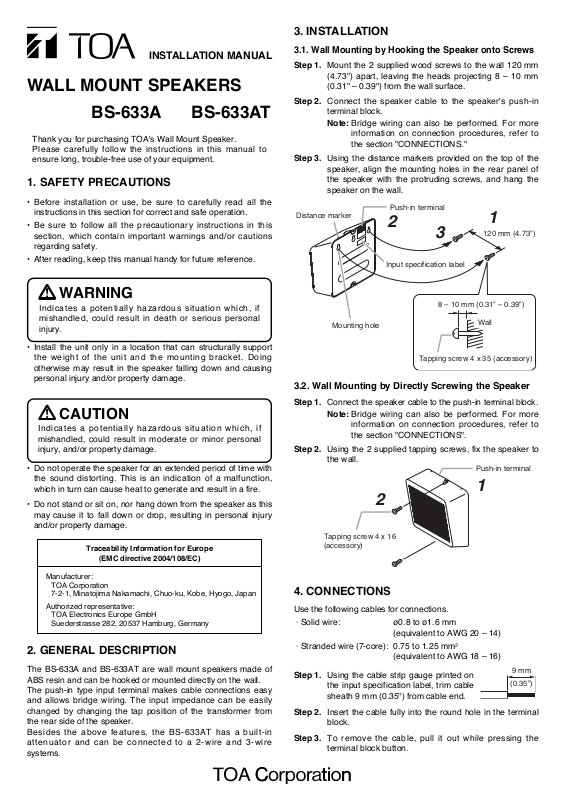

INSTALLATION MANUAL

WALL MOUNT SPEAKERS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.

• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.

• After reading, keep this manual handy for future reference.

1. SAFETY PRECAUTIONS

• Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket. Doing otherwise may result in the speaker falling down and causing personal injury and/or property damage.

Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.

CAUTION

Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.

WARNING

• Do not operate the speaker for an extended period of time with the sound distorting. This is an indication of a malfunction, which in turn can cause heat to generate and result in a fire.

• Do not stand or sit on, nor hang down from the speaker as this may cause it to fall down or drop, resulting in personal injury and/or property damage.

The BS-633A and BS-633AT are wall mount speakers made of ABS resin and can be hooked or mounted directly on the wall. The push-in type input terminal makes cable connections easy and allows bridge wiring. The input impedance can be easily changed by changing the tap position of the transformer from the rear side of the speaker. Besides the above features, the BS-633AT has a built-in attenuator and can be connected to a 2-wire and 3-wire systems.

2. GENERAL DESCRIPTION

Thank you for purchasing TOA's Wall Mount Speaker. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

Step 1. Mount the 2 supplied wood screws to the wall 120 mm

(4.73") apart, leaving the heads projecting 8 – 10 mm (0.31" – 0.39") from the wall surface.

Step 2. Connect the speaker cable to the speaker's push-in

terminal block. Note: Bridge wiring can also be performed. For more

information on connection procedures, refer to the section "CONNECTIONS."

Step 3. Using the distance markers provided on the top of the

speaker, align the mounting holes in the rear panel of the speaker with the protruding screws, and hang the speaker on the wall.

3. INSTALLATION

3.1. Wall Mounting by Hooking the Speaker onto Screws

Step 1. Connect the speaker cable to the push-in terminal block.

Note: Bridge wiring can also be performed. For more

information on connection procedures, refer to the section "CONNECTIONS".

Step 2. Using the 2 supplied tapping screws, fix the speaker to

the wall.

3.2. Wall Mounting by Directly Screwing the Speaker

4. CONNECTIONS

BS-633A BS-633AT

Traceability Information for Europe

(EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation 7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH Suederstrasse 282, 20537 Hamburg, Germany

Distance marker

Mounting hole

Push-in terminal

Input specification label

8 – 10 mm (0.31” – 0.39”)

120 mm (4.73”)

Wall

Tapping screw 4 x 35 (accessory)

Push-in terminal

Tapping screw 4 x 16 (accessory)

9 mm

(0.35”)

6. INPUT CHANGE

The BS-633A/633AT's input is factory-preset to 1.7 kΩ. To change this, detach the black wire connector from the 1.7 kΩ terminal, and reconnect it to the 3.3 kΩ or 10 kΩ terminal for the BS-633A, or the 3.3 kΩ terminal for the BS-633AT.

5. WIRING

To change impedance, change the tap position of the transformer.

5.1. BS-633A (without an Attenuator)

[Wiring diagram]

5.2. BS-633AT (with an Attenuator)

[2-wire system connection]

Note: Short the COM terminal with the R terminal.

[3-wire system connection]

7. SPECIFICATIONS

BS-633A BS-633AT

6 W (100 V line), 3 W (70 V line)

100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)

100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W)

70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)

70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W)

91 dB at 1 W, 1 m (500 – 5,000 Hz, pink noise)

120 – 15,000 Hz (at 20 dB below peak)

12 cm (5") cone-type

600 V vinyl-insulated cable (IV wire or HIV wire), Solid wire: ø0.8 – ø1.6 mm (equivalent to AWG 20 – 14), 7-core twisted wire: 0.75 – 1.25 mm2(equivalent to AWG 18 – 16)

Push-in connector (bridging terminal)

–

3 W: OFF, 1 (–12 dB), 2 (–6 dB), 3 (0 dB) 6 W: OFF, 1 (–13 dB), 2 (–7 dB), 3 (0 dB)

–10°C to +50°C (14°F to 122°F)

Case: ABS resin, off white, Rear board: hard board

173 (w) x 195 (h) x 101 (d) mm or 6.81" x 7.68" x 3.98"

(excluding the attenuator in the case of BS-633AT)

Front fixing hole spacing: 184 mm (7.24"), Rear hook hole spacing: 120 mm (4.73")

780 g (1.72 lb) 810 g (1.79 lb)

Tapping screw 4 x 16 ...... 2, Tapping screw 4 x 35 ......... 2

Model No. Rated Input Rated Impedance

Sensitivity Frequency Response Speaker Component Usable Cable

Connection Attenuation Level

Operating Temperature Finish Dimensions Wall Mounting Dimensions Weight Accessories

Note: The design and specifications are subject to change without notice for improvement.

533-06-157-6A

URL: http://www.toa.jp/

HOT

COM

Black

White

(Factory-wired transformer connection)

Bridging terminal

10 kΩ

3.3 kΩ

1.7 kΩ

COM

Gray

Attenuator

Red

White

(Factory-wired transformer connection)

N COM

Bridging terminal

Black

3.3 kΩ

1.7 kΩ

COM

8 Ω

• BS-633A

To change the factory presetting (1.7 kΩ), detach and reconnect the black wire to the 3.3 kΩ or 10 kΩ terminal.

Matching transformer

Black wire

• BS-633AT

To change the factory presetting (1.7 kΩ), detach and reconnect the black wire to the 3.3 kΩ terminal.

Tubed terminal

Gray

Attenuator

Red

White

(Factory-wired transformer connection)

COM

Bridging terminal

Black

3.3 kΩ

1.7 kΩ

COM

8 Ω

Matching transformer

Black wire

Caution

Never connect the black wire to the rightmost tubed terminal. Failure to observe this instruction may cause the amplifier overload at an attenuator position, resulting in system failure.
