TOA BG-2035 CU Data Sheet

BG-2035/2060/2120
Mixer Amplifier

APPEARANCE AND
DIMENSIONAL DIAGRAM

DESCRIPTION

TOA's BG-2000 Series reflects user demands for affordable, performance-focused
mixer-amplifiers optimized for BGM applications. These units provide 5 mixer inputs
(incl. a slot for an optional input module), making them ideal for use in retail stores,
schools and restaurants, delivering satisfactory power output and the reliable, high­performance audio that TOA has earned its reputation for.

Designed for easy installation and maintenance, these tough, rack-mountable units
are fitted with removable terminal blocks and rear panel-mounted DIP switches. This
allows quick system installation and configuration changes. An input assignable
MOH/ZONE 2 OUT provides system expansion capability for a 2-zone broadcast if
required. The BG-2000 Series features the total reliability that TOA builds into its
products, these compact and attractively priced amplifiers make it easy to offer BGM
wherever desired.

FEATURES

• Compact five channel Mixer-Amplifier for paging, background/foreground music
distribution and music/messaging-on-hold.

• All inputs/outputs with removable terminal blocks allow quick and easy installation.

• Any of five inputs assignable to MOH/ZONE 2 output.

• RCA pin jacks for LINES 2 & 3.

• Phantom Power (+ 24V DC) incorporated for MIC input.

• Module slot accepts 900 Series input plug-in modules for custom system configurations.

• Rear panel-mounted DIP switches allow easy configuring of settings.

• Provides auto/manual mute function with adjustable muting sensitivity.

• Incorporates Remote volume control connection.

• 2-channel broadcast capability together with zone 2 expansion capability in
conjunction with BA-200 Series.

• Tamper-proof, front-panel bass and treble controls are recessed to protect their
settings.

• Thermal protection circuitry prevents potential damage from excessive heat build-up.

• AC Mains Circuit Breaker.

• Accessory security knobs for volume control prevent unauthorized volume setting
changes.

• Optional rack-mount kit.

• UL/cUL Listed.

• Five Year Warranty.

1800 (5.91 ft)

88.4 (3.48")

94.3 (3.71")

Rear View

264 (10.39")

Front View

267.3 (10.52")
250 (9.84")

Side View

unit:mm

TOA Corporation BG-2000 Series 1/3

SPECIFICATIONS

Model No. BG-2035 BG-2060 BG-2120
Power Source 120 V AC, 60 Hz
Rated Output 35 W 60 W 120 W
Power Consumption 94 W (rated output), 50 W (based on cULus standards) 163 W (rated output), 80 W (based on cULus standards) 265 W (rated output), 120 W (based on cULus standards)
Frequency Response 50 Hz – 20k Hz
Total Harmonic Distortion 0.5% or less, at 1 kHz, rated output
Input Mic: –60dB*, 600Ω, electronically balanced, removable terminal block

Line 1/TEL: selectable, 10kΩ, electronically balanced, removable terminal block

Line 2, 3: –10 dB*, 10 kΩ, unbalanced, removable terminal block or RCA jack

Output Speaker 4 Ω, 25 V (), 70 V (140Ω) 4 Ω, 25 V (10Ω), 70 V (83Ω) 4 Ω, 25 V (5.2Ω), 70 V (42Ω)

balanced, removable terminal block balanced, removable terminal block balanced, removable terminal block

MOH 0 dB*, 600 Ω, balanced, removable terminal block

Line 0 dB*, 600 Ω, unbalanced, removable terminal block

Output Regulation 2 dB or less, no load to full load (1k Hz)
Phantom Power On/Off switch for Mic,+24V DC
S/N Ratio Mic: 60 dB or more, Line 1/TEL, Line 2, 3, Module: 75 dB or more (Band Pass: 20 Hz – 20 kHz, Tone Controls: Centered)
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10k Hz
Muting Manual mute/Automatic mute
Control Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control, Module: gain control, Bass tone control, Treble tone control,

MOH out gain control, Mute control (Manual mute), Remote volume control, Mute sense control, Line 1/TEL selector switch, Phantom power switch (Mic),

Auto mute switch (Mic, Line 1/TEL, Module), Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module),

MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch

Indicator Power LED, Signal level LED, Peak LED
Operating Temperature 0°C to 40 °C (32°F to 104 ºF)
Operating Humidity 35 % to 80 % RH (no condensation)
Finish Panel: ABS resin, black/Case: Steel plate, black, paint
Dimensions 264 (W) × 94.3 (H) × 267.3 (D)mm (10.39" × 3.71" × 10.52")
Weight 5.3 kg (11.68 lb) 5.3 kg (11.68 lb) 6 kg (13.23 lb)
Accessory Volume control cover: YA-920 × 5, Removable terminal plug (2 pins) × 4, Removable terminal plug (3 pins) × 2, Removable terminal plug (4 pins) × 1,

Option Rack mounting brackets: MB-1000

*0dB = 1V

Line 1: –10 dB*/TEL: –20 dB*

Module

Removable terminal plug (5 pins) × 1

CHARACTERISTIC DIAGRAMS

BG-2035 BG-2060 BG-2120

10

1

THD (%)

0.1

0.01
0110100

10

5

0

-5

Devation (dB)

-10

-15

-20
10 100 1000 10000 100000

THD vs Power Output

Power Output (W)

Frequency Response

Frequency (Hz)

Measurement: Line 3 input

10

1

THD (%)

0.1

0.01
110100 1000

10

5

0

-5

Devation (dB)

-10

-15

-20
10 100 1000 10000 100000

THD vs Power Output

Power Output (W)

Frequency Response

Frequency (Hz)

10

1

THD (%)

0.1

0.01
110100 1000

10

5

0

-5

Devation (dB)

-10

-15

-20

10 100 1000 10000 100000

THD vs Power Output

Power Output (W)

Frequency Response

Frequency (Hz)

TOA Corporation BG-2000 Series 2/3

ARCHITECTURAL AND ENGINEERING SPECIFICATIONS

The mixer amplifier shall control and mix up to five input signals and deliver an
audio output of 35W/60W/120W. Frequency response shall be 50 to 20k Hz with

0.5% or less THD at rated output. The output regulation shall be 2dB or less, no
load to full load. Mixer inputs shall include four built-in inputs: Mic, Line 1/TEL, Line
2, Line 3 and one modular input, compatible with TOA plug-in modules.
The Mic input shall be electronically balanced with –60dBV sensitivity, 600 ohm
input impedance, switchable phantom power (+24V DC) and removable terminal
block connection. The switch-selectable Line 1/TEL input shall be electronically
balanced with –10dBV (Line 1) / –20dBV (TEL) sensitivity, 10k ohm input
impedance and removable terminal block connection. Line 2 and Line 3 inputs
shall be unbalanced with –10dBV sensitivity, 10k ohm input impedance,
removable terminal block connection and RCA pin jacks. The modular input shall
be compatible with TOA plug-in modules. The mixer amplifier shall include 25V,
70V and 4 ohm balanced outputs with removable terminal block connections.
The mixer amplifier shall include a MOH/ZONE 2 output with 0dBV sensitivity, 600
ohm output impedance and removable terminal block connection. Each input shall
be assignable to the MOH/ZONE 2 output. 2-channel broadcast shall be possible
using the MOH/ZONE 2 output. The Line output shall be unbalanced with 0 dBV
sensitivity, 600 ohm output impedance and removable terminal block connection.
The mixer amplifier shall incorporate manual mute and auto-mute function.
Manual mute function shall allow any input placed in mute receive mode when the

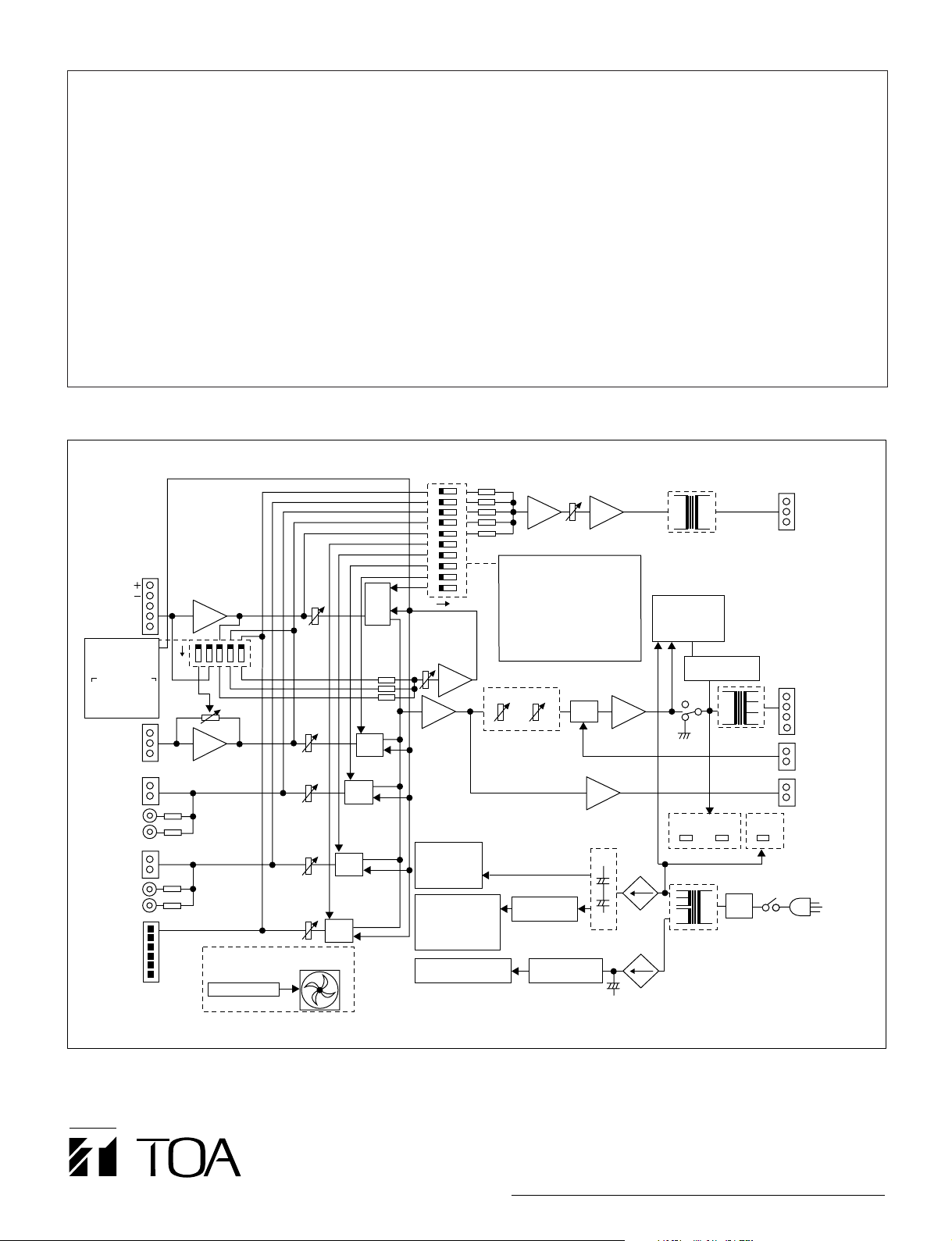

BLOCK DIAGRAM

10

H
C
E

H
C
E

ELECTRONICALLY
BALANCED

ON

15

MIC

LINE 1
/ TEL

LINE 2

MUTE

MUTE

MUTE

1

MUTE SENSE

MIX AMP

MUTE
CTRL

MIC
600Ω

1.LINE 1/TEL

2.MIC
PHANTOM
AUTO MUTE

3.MIC

4.LINE 1/TEL

5.MODULE

LINE 1
/TEL
10 kΩ

LINE 2
10 kΩHE

manual mute terminal is short-circuited. Auto-mute function shall allow input signal
to Mic., Line 1/TEL and Module input to override the inputs set to be muted,
without interrupting the MOH/ZONE 2 output. Rear-mounted DIP switches shall
allow assignment of all inputs to respond to the mute function activation. A rear­mounted MUTE SENSE control shall allow threshold adjustment of mute
activation. 2-channel broadcast shall be possible by connecting the MOH/ZONE 2
output of BG-2000 Series to the unit's LINE input.
Built-in protection circuitry shall monitor current level to minimize potential damage
from overloads, and disable output during excessive operating temperature over
221°F (105°C). Recessed Bass and Treble controls shall be located on the front
panel. Accessory volume control security knob shall be included to prevent the
accidental change of input volume settings.
The mixer amplifier shall be cULus-Listed and capable of operation from a 120V
AC / 60Hz line breaker. Dimensions (W × H × D) shall be 10.39" × 3.71" × 10.52"
(264 × 94.3 × 267.3 mm). Net weight shall be BG-2035/2060: 11.68 lbs. (5.3kg);
BG-2120: 13.23 lbs. (6kg). Front panel finish and material shall be black ABS resin
and case finish (and material) shall be black steel plate.
The mixer amplifier shall be TOA model BG-2035 / BG-2060 / BG-2120.
The optional rack-mount bracket shall be TOA model MB-1000.
The volume control security knob shall be TOA model YA-920.

10: MOH ASSIGN (MODULE)

9: MOH ASSIGN (LINE 3)
8: MOH ASSIGN (LINE 2)
7: MOH ASSIGN (LINE 1/TEL)

ON

6: MOH ASSIGN (MIC)
5: MUTE RECEIVE (MODULE)
4: MUTE RECEIVE (LINE 3)
3: MUTE RECEIVE (LINE 2)
2: MUTE RECEIVE (LINE 1/TEL)
1: MUTE RECEIVE (MIC)

BASS TREBLE

TONE CONTROL

MIX AMP

MOH

VCA

POWER AMP

OT

PROTECT

• DC OFFSET

• AC DETECT

• NOISE MUTE

THERMOSTAT
(ON HEATSINK)

RELAY

MOH OUT (ZONE 2)

SPEAKER OUT (ZONE 1)

OT

H
C

600Ω

E

70 V LINE
25 V LINE
4Ω
COM

+

REMOTE

–

VOLUME

HELINE OUT

600Ω

LINE 3

H

10 k

E

MODULE

10 k

ONLY MODEL BG-2060, BG-2120

FAN CONTROL

TOA Corporation BG-2000 Series 3/3

LINE 3

MODULE

FAN

MUTE

MUTE

POWER
SUPPLY
FOR
POWER AMP

POWER
SUPPLY
FOR
PRE AMP &

PROTECT CIRCUIT

POWER SUPPLY
FOR MODULE & FAN

+Vcc

REGULATOR

(+15 V/–15 V)

REGULATOR
(+24 V)

–Vcc

TOA Electronics, Inc.

www.toaelectronics.com

Tel: [phone]
Fax: [phone]

Specifications are subject to change without notice.

SIGNAL

PT

PEAK

BREAKER

POWER

POWER
SWITCH

120 V AC, 60 Hz

TOA Canada Corporation

www.toacanada.com
Tel: [phone]
Fax: [phone]

(1003) 833-52-409-80u
