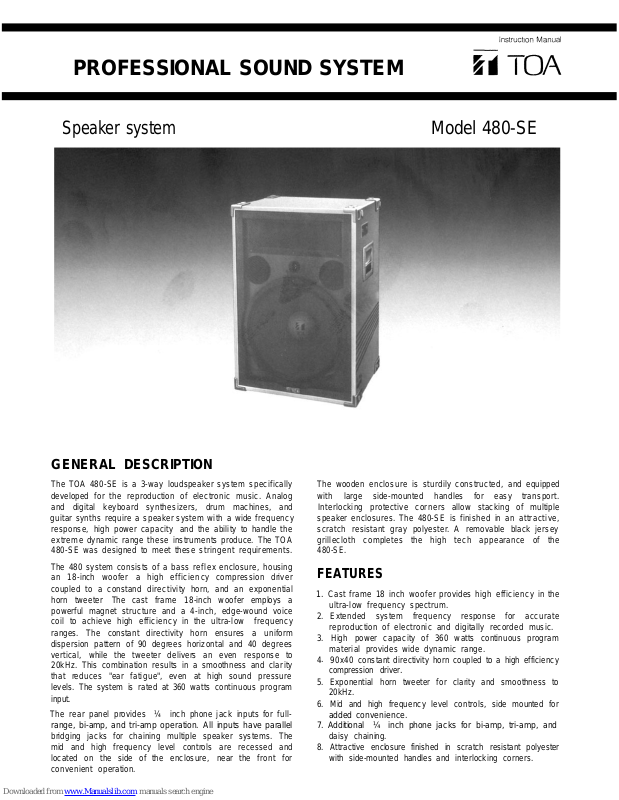

Toa 480-SE Specifications

PROFESSIONAL SOUND SYSTEM

Speaker system

Model 480-SE

GENERAL DESCRIPTION

The TOA 480-SE is a 3-way loudspeaker system specifically
developed for the reproduction of electronic music. Analog
and digital keyboard synthesizers, drum machines, and

guitar synths require a speaker system with a wide frequency

response, high power capacity and the ability to handle the
extreme dynamic range these instruments produce. The TOA
480-SE was designed to meet these stringent requirements.

The 480 system consists of a bass reflex enclosure, housing

an 18-inch woofer a high efficiency compression driver
coupled to a constand directivity horn, and an exponential
horn tweeter The cast frame 18-inch woofer employs a
powerful magnet structure and a 4-inch, edge-wound voice
coil to achieve high efficiency in the ultra-low frequency

ranges. The constant directivity horn ensures a uniform
dispersion pattern of 90 degrees horizontal and 40 degrees
vertical, while the tweeter delivers an even response to

20kHz. This combination results in a smoothness and clarity
that reduces "ear fatigue", even at high sound pressure

levels. The system is rated at 360 watts continuous program

input.
The rear panel provides ¼ inch phone jack inputs for full-

range, bi-amp, and tri-amp operation. All inputs have parallel

bridging jacks for chaining multiple speaker systems. The

mid and high frequency level controls are recessed and

located on the side of the enclosure, near the front for

convenient operation.

The wooden enclosure is sturdily constructed, and equipped
with large side-mounted handles for easy transport.
Interlocking protective corners allow stacking of multiple
speaker enclosures. The 480-SE is finished in an attractive,
scratch resistant gray polyester. A removable black jersey
grillecloth completes the high tech appearance of the
480-SE.

FEATURES

Cast frame 18 inch woofer provides high efficiency in the

1.
ultra-low frequency spectrum.

2. Extended system frequency response for accurate
reproduction of electronic and digitally recorded music.

3. High power capacity of 360 watts continuous program
material provides wide dynamic range.

.

4 90x40 constant directivity horn coupled to a high efficiency

compression driver

5. Exponential horn tweeter for clarity and smoothness to
20kHz.

6. Mid and high frequency level controls, side mounted for
added convenience.

.

7 Additional ¼ inch phone jacks for bi-amp, tri-amp, and

daisy chaining.

8. Attractive enclosure finished in scratch resistant polyester
with side-mounted handles and interlocking corners.

.

Specifications

Enclosure:

Vented (bass reflex) type

Speakers:

Low Frequency, 18" woofer

Mid Frequency, CD Horn plus compession driver
High Frequency, Horn tweeter

Power Handling Capacity

Continuous Pink Noise:

120 watts RMS of band-limited pink noise

(50 Hz~20 kHz)

Countinuous Program:

360 watts

Impedance:

8 ohms

Sensitivity:

102 dB (1W/1m)

Input Panel

Connects to the output of power amplifier. This is the
input jac k when used as a f ull range speaker system.

Connects to corresponding power amplifiers for high,
mid and low frequency ranges when driving the speaker
system with multi-amp operation.

FULL RANGE INPUT

MULTI-AMP (3-WAY) INPUTS

Frequency Response:

40 Hz~20 kHz

Crossover Frequencies:

600 Hz, 8kHz

High and Mid Frequencies Level Controls:

0 ~ -10 dB (with an "OFF" position)

Input Terminals:

¼" Phone jacks for a full-range, biamp, triamp and

chaining

Finish (Enclosure):

Polyester in grey color

Dimemsions:

820(H) X 560(W) X 450(D)mm

32.3(H) X 22.0(W)X 17.7(D)inches

Weight:

45 kg

(99.2

Ibs)

FULL RANGE OUTPUT

Make bridge connection of this output to the full range
input of another system when driving two speaker
systems with one power amplifier.

MULTI-AMP (3-WAY) OUTPUTS

For bridge connection of multi-amp operation.

BI-AMP OUTPUTS

For bridge connection-of bi-amp operation.

Connects to corresponding power amplifiers for high/mid
and low frequency ranges when driving the speaker
system with bi-amp operation.

Bl-AMP INPUTS

Level Controls

MID FREQUENCY LEVEL CONTROL

HIGH FREQUENCY LEVEL CONTROL

Frequency Response (1W/1m: Swept

CAUTION:

DO NOT USE THE BI-AMP AND MULTI-AMP JACKS
UNLESS THE SPEAKER SYSTEM IS DRIVEN UNDER
Bl- AND MULTI-AMPLIFIERED SYSTEM.
CONNECTING THE AMPLIFIER OUTPUT FOR THE
FULL RANGE TO THE MULTI- AND BI-AMP INPUT
JACKS MAY DAMAGE THE SPEAKER.

Adjusts the sound level of the mid and high
frequencies when driving the speaker system as a
full range speaker system. Make the level setting
according to the environmental conditions,
although almost flat frequency response is
obtainable so far as the level controls remain
within the "NORMAL" ranges.

1

/

3

Octave Pink Noise)

Toa Electric CO., Ltd.

MADE IN JAPAN

: Mid & high level controls at NORMAL position
: Mid & high level controls at MAX position

Printed in Japan

133-01-204-80
