TNG LS49 Body parts list

JCK（Q07-01）-QJ50QT-2-1E

1

操纵系总成I

CONTROL ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 40001B20T000 40001B030000 GRIP, LH. 1

2 40200B20T000 40200B030000 GRIP ASSY., THROTTLE 1

3 40500B20T000

4 B07000000505 B07000000505 WASHER SPRING 5MM 1

5 91700B20T000 91700B030000 REAR BREAK SWITCH 1

6 40080B20T000 40080B030000 REAR BREAK ARM 1

7 40004B20T000 40004B030000 SCREW 1

8 B04000500063 B04000500063 NUT 5mm 1

9 40008B20T000 40008B030000 PROTECTOR,, REAR. BRAKE CABL1

10

40600B20T000

11 40100B20TG80

12 40108B20TG80 40108B03G800 BRACKET, HANDLE COVER 1

13 B05004801305 B05004801305 SCREW 4.8X13MM 3

14 B05004201305 B05004201305 SCREW 4.2X13mm 1

15 B01091004565 B01091004565 BOLT 10Χ1.25X45mm 1

16 B07030001005 B07030001005 WASHER 10mm 1

17 B04171012565 B04171012565 NUT 10X1.25mm 1

18 B02010803525 B02010803525 SCREW 8×35mm 1

19

40300B030001 40300B030001

20 40270B20T000

40500B030010

40600B030010 SWITCH ASSY., RH. 1

40100B030000

40270B030001

SWITCH COMP., LH. 1

JOINTING ASSY., HANDLE BAR 1

CABLE ASSY., THROTTLE (NEW) 1
CABLE COMP.，REAR. BRAKE 1

标记 处数 更改文件号 签字 日期

2

操纵系总成II

CONTROL ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

21 40460B20T007

22 40470B20T007 40480B920002 MIRROR ASSY., REAR VIEW, RH. b1

23 40453B20T000 40453B030000 PLASTIC CAP 2

24 B02050803064 B02050803064 HEXAGON SOCKET SCREW 2

25 40455B20T000 40455B030000 RUBBER GASKET 2

26 08526B20T000 08526B030000 BRKT,TURN SIGNAL,FR,L 1

26 08526B20T001 08526B030001 BRKT,TURN SIGNAL,FR,L 1

27 08527B20T000 08527B030000 BRKT,TURN SIGNAL,FR,R 1

27 08527B20T001 08527B030001 BRKT,TURN SIGNAL,FR,R 1

28

81100E050000 81100E050000

29

81300E050000 81300E050000

30 08005AE0D000 08005X010000 SCREW W/WASHER 5X11.5 2

40450B920002

MIRROR COMP., REAR VIEW, LH.b 1

FLASHER LIGHT ASSY., L 1

FLASHER LIGHT ASSY., R 1

标记 处数 更改文件号 签字 日期

3

前叉总成

FRONT FORK ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 43001B20T000

2 43002B20T000

3 43003B20T000

4 43004B20T000

5 43007B20T000 43007B030000 WASHER 1

6 43008J0ET000 43008T020000 PRESS NUT 1

7 43100B20T000

8 43202B20T000 43202B030000 SPRING, ABSORB SHOCK 2

9 43211B20T000 43211B030000 CUSHION BLOCK 2

10 43230B20T000 43230B030000 INNER PIPE ASSY, LEFT 1

11 43350B20T000 43350B030000 JOINTING ASSY, RIGHT INNER PIP1

12 43120B20T000 43120B030000 JOINTING BOARD ,LOWER BOARD1

13 43234B20T000 43234B030000 SHIELD RING 2

14 43213B20T000 43213B030000 ROD GLAND SLEEVE II 2

15 43203B20T000 43203B030000 SPRING 2

16 43212B20T000 43212B030000 ROD GLAND SLEEVE I 2

17 43207B20T000 43207B030000 SPRING SHIELD RING 2

18 43250B20T000 43250B030000 JOINTING ASSY, LEFT INNER PIPE1

19 43206B20T000 43206B030000 DUST COVER 2

20 43330B20T000 43330B030000 INNER PIPE ASSY, RIGHT 1

21 B06010140000 B06010140000 STEEL BALL 4.763 21

22 B06010110000 B06010110000 STEEL BALL 3.969 25

43001B050001

43002B050000

43003B050000

43004B050000

43100B030001

Upper steel bowl, upper bearing 1

Lower steel bowl, upper bearing 1

Upper steel bowl, lower bearing 1

Lower steel bowl, lower bearing 1

FRONT FORK COMP. 1

4

前轮总成

FRONT WHEEL ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 44005B20T001

2 44200B20TB41 44200B14B400 SEAT ASSY., GEAR WHEEL,BLACK1

3 44300B20T000 44300B030000 OIL SEAL 1

4 44102B03B400 44101B03B400 WHEEL HUB, FRONT, BLACK 1

5 44004B20T000 44004B030000 BUSHING RING 1

6 44006B20TT10 44006B03T100 SPACER, BEARING 1

7 B12040100900 B12040100900 BEARING 2

8 B14073501021

9 B04171012564 B04171012554 NUT 10Χ1.25MM 1
10 B1404Z2011C0 B1404Z2011C0 CAP，VALVE 1
11 B1403Z201110 B1403Z201120 RIM，VALVE 1

44004B020000

B14013501011

AXLE, FRONT WHEEL 1

TIRE 1

标记 处数 更改文件号 签字 日期

5

液刹总成

DISC BRAKE ASSY. I

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 45000B20T000 45000B030000 DISK BRAKE ASSY. 1

2 45023B20T000 45023B030000 LEVER, DISC BRAKE 1

3 45024B20T000 45024B030000 BOLT 1

4 B04000600065 B04000600065 STOPPING NUT 6mm 1

5 45400B20T000 45400B030000 OIL PUMP BODY 1

6 45022B20T000 45022B030000 MOUNTING SEAT, LEVER 1

7 B01070602065 B01070602065 BOLT 6X20mm 2

8 45200B20T000 45200B030000 BRAKE HOSE ASSY. 1

9 45001B20T000 45001B030000 BRAKE CYLINDER ASSY. 1

10 45026B20T000 45026B030000 BOLT 2

11 45036B20T000 45036B030000 BOLT 3

12 45033B20T000 45033B030000 BRAKE DISC 1
13 45451B20T000 45451B030000 WASHER，FRONT 1
14 45452B20T000 45452B030000 WASHER，REAR 1
15 45110B20T000 45110B030000 BRAKE PAD KIT 1付

16 45037B20T000 45037B030000 BOLT 1

17 15010B20T000 15010B030000 COVER, OIL PUMP BODY 1

18 91600B20T000 91600B030000 FRONT BRAKE SWITCH 1

19 45029B20T000 45029B030000 WASHER 2

标记 处数 更改文件号 签字 日期

6

消音器总成

MUFFLER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 47100B20T006 47100B030006 MUFFLER ASSY. 1

2 47200B20T006 47200B030006 MUFFLER CANISTER ASSY. 1

3 47121B20T000 47121B030000 SEAL WASHER 1

4 47105B20T006 47105B030006 EXHAUST PIPE ASSY. 1

5 47123B20T000 47123B030000 MUFFLER FIXING PLATE 1

6 47039B20T000 47039B030000 MUFFLER BUSH 1

7 B01070803065 B01070803065 BOLT 8×30mm 1

8 B01070802065 B01070802065 BOLT 8×20mm 1

9 47800B20T000 47800B030000 GASKET, EXHAUST PIPE 1

10 B01070601665 B01070601665 BOLT 6×16mm 2

11 47041B20T000 47041B030000 MUFFLER HOOP 2

12 47042B20T000 47042B030000 ADIABATIC RUBBER 2

13 B01090804564 B01090804564 BOLT 8×40mm 2

14 B01070802065 B01070802065 BOLT 8×20mm 3

15 B07030000804 B07030000804 WASHER 8MM 2

16 B07000000804 B07000000804 WASHER 8MM 2

17 05551B030002 05551B030002 STIKER .MUFFLER 1

18 B100432007P0 B100432007P0 RIVET3.2X7 2

标记 处数 更改文件号 签字 日期

7

空滤器总成

AIR CLEANER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 49500B20T000 49500B030000 AIR CLEANER 1

2 49004B20T000 49004B030000 BUSH 2

3 49350B20T000 49350B030000 CLIP 1

4 49361B20T000 49361B030000 PLATE 1

5 B02000501665 B02000501665 SCREW 5X16mm 2

6 B07000000505 B07000000505 WASHER SPRING 5mm 2

7 B07030000505 B07030000505 WASHER 5mm 2

8 B07020000605 B07020000605 WASHER 6mm 2

9 B01190603065 B01190603065 BOLT 6X30mm 2

10 49202B20T000 49202B030000 FILTER 1

11 49103B20T000 49103B030000 SEAL LOOP 1

12 49101B20T000 49101B030000 CASE, AIR CLEANER 1

13 49401B20T000 49401B030000 CAP, AIR CLEANER 1

14 49005B20T000 49005B030000 PIPE,AIR OUT 1

15 49002B20T000 49002B030000 PIPE,AIR IN 1

16 B05004201905 B05004201905 SCREW 4.2X19mm 5
17 49805BMBT000 49805B920000 SPRING Ⅱ,LOCK φ17.5 6

18 B0109061265 B0109061265 SCREW 6X12MM 2

19 57051B2GT000 57051B140000 PLATE ,ONE WAY VALVE 1

20 49840B0ES000 49840W110000 ONE WAY VALVE II 1

21 49851B20T000 49851B030000 HOSE 570MM 1

22 49852B2GT000 49852B140000 HOSE I 240MM 1

23 49853B2GT000 49853B140000 HOSE II MM 1

24 49870B2GT000 49870B140000 AIR CLEANER,SMALL 1

25 96001B20T000 96001B030000 BAND 2

标记 处数 更改文件号 签字 日期

8

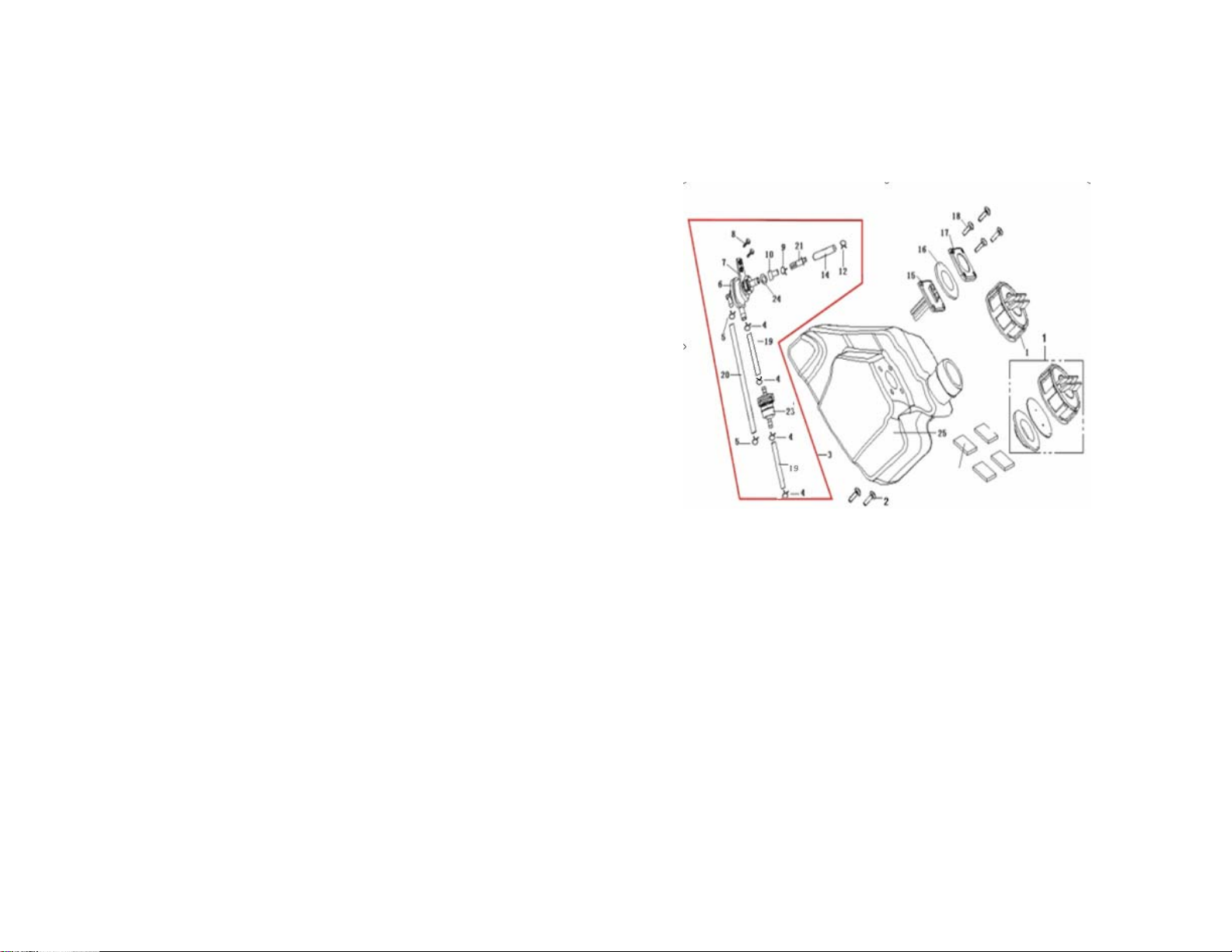

油箱总成Ⅰ

FUEL TANK ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 50200B2AT000 50200B050000 CAN FUEL TANK 1

2 B01010601665 B01010601665 BOLT 6X16mm 2

3 50400B20T000 50400B030000 SWITCH ANDHOSE ASSY 1

4 B17010090003 B17010090003 CLIP 4

5 50307B20T000 50307B030000 CLIP 2

6 50300B0ET000

7 50313B20T000

8 B02000501064 B02000501064 SCREW 5×10mm 2

9 50308B20T000 50308B030000 CLIP φ16 1

10 50311B20T000

12 50309B20T000 50309B030000 CLIP φ11 1

14 50351B030001 50351B030001 FILTER CASE 1

15 50800B20T000

16 50004B20T000

17 50920B0ET000 50920B020000 CUSHION 4

18 B13140601405 B13140601405 BOLT ASSY. 6Χ14mm 4
19 50303B470001 50303B470001 HOSEⅢφ5×10×140 2

20 50303B20T000 50303B030000 HOSE III φ4Xφ8X175 1

21 50352B20T000

23 50340B0ETT10

24 50312B0ET000

25 50100B20T001

50300T030001

47031B030000

50311B020000

50800B020010

50004B140000

50352B030000

50340G120000

50312B140000
50100B030001

SWITCH ASSY 1

PLATE.FUEL COCK 1

COUPLER.FUEL COCK 1

SENSOR ASSY. 1

GLUE MAT 1

FILTER 1

FILTER, FUEL 1

RUBBER SEAL 1

FUEL TANK ASSY 1

标记 处数 更改文件号 签字 日期

9

座垫总成

used

used

SEAT ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 51004B20T000 51004B030000 HELMET BOX 1

2 51100B20T002 51100B030002 SEAT COMP. 1

3 51001B20T000 51001B030000 BOLT 6X65mm 1

4 B07000000603 B07000000603 WASHER SPRING 6mm 3

5 B04000600053 B04000600053 NUT 6mm 3

6 51005B20T000 51005B030000 MOUNTING PANEL ,SEAT 1

7 B13060601604 B13060601604 SCREW ASSY. 6Χ16mm 4

8 51012B20T000 51012B030000 AIRPROOF.BAR 1

9 B01090501664 B01090501664 BOLT 5X16mm 3

10 B07020000504 B07020000504 s 4

11 B04000500054 B04000500054 NUT 5mm 3

12 B05002901605 B05002901605 SCREW 2.9Χ16mm 4

13 65816B20T000 65816B030000 CASE.BATTERY 1

14 65813B030002

14 65813B030003 65813B030003 CASE.BATTERY 1

65813B030000

CAP.BATTERY 1

标记 处数 更改文件号 签字 日期

10

货架总成

CARRIER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 52011B20T000

2 51014B20T000

3 51016B20T000 51016B030000 SPECIAL SCREW 2

4 B01070601665 B01070601665 BOLT M6X16 1

52002B030001

65822J000000

REAR CARRIER 1

DECORATIVE,COVER 2

11

标记 处数 更改文件号 签字 日期

后轮总成

REAR WHEEL ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 B14073501021

2 54100B03B401

3 54200B00T000

4 54001B00T000 54001B000000 SPRING, BRAKE SHOE 2

5 54008B0ET000

6 54002B00T000 54002B000000 REAR INDICATOR 1

7 B04170600064 B04170600064 NUT 6MM 1

8 54003B0ET000

9 B01010603064 B01010603064 BOLT 6Χ30MM 1

10 B1403Z201110

11 B04171415064 B04171415064 NUT 14Χ1.5MM 1

12 54007B0ET000
13 B1404Z2011C0 B1404Z2011C0 CAP，VALVE 1

B14013501011

54101B03B410

54200B910000

54008B030000

54003B070000

B1403Z201120

54007B070000

TIRE 3.5-10 1

RIM ASSY., REAR WHEEL (BLACK) 1

SHOE ASSY., REAR BRAKE 2

RETURN SPRING 1

CAMSHAFT, REAR BRAKE 1

RIM，VALVE 1

ROCKER,REAR BREAK 1

12

标记 处数 更改文件号 签字 日期

车架总成

FRAME ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 57100B20TT12

2 B04171012564 B04171012564 NUT M10X1.25 1

3 58301B20T000

4 58280B20T000

5 B07030001004 B07030001004 WASHER 10mm 2

6 B07000001004 B07000001004 WASHER SPRING 10mm 2

7 B02051002264 B02051002264 BOLT 10X22mm 2

8 58511B0DT000

9 58501B20T000

10 58500B20T000
11 58502B20T000 58502B030000 SPRING，MAIN STAND 1

12 57003B20TT10 57003B03T100 SPRING, SIDE STAND 1
13 57005J0ET000 57005T020000 FIXINGS BOLT，SIDE STAND 1

14 58700B20TT10

15 B01090601664 B01090601664 BOLT 6X16mm 3

16 B04070600064

17 57007B20T000 57007B030000 POTHOOK, HELMET 1

18 58260B20T000

19 58320BSAT000 58320B410000 SUSPEND FRAME ASSY., ENGINE 1

20 58200B20TT10 58200B03T100 BRACKET ASSY., FRAME FRONT 1

21 58504B20T000
22 58505B20T000 58505B030000 PROTECTOR，MAIN STAND 1

23 58506B20T000

24 58340B20T000 58340B030000 BUFFER, ENGINE BRACKET 2

25 58343B20T000 58343B030000 CENTER SPACER 1

26 58342B20T000 58342B030000 DAMPER 3

57100B030008

58301B020050

58260J000005

08382B000000

58501B000000

58520B030001

58700B03TT22

B04070600054

58280J000005

58508B070000

58506B020000

JOINTING ASSY., FRAME 1

AXLE，SUPPORT 1

FOOTCAST, BACK,LEFT 1

PIN 1

SHAFT, MAIN STAND 1

MAIN STAND ASSY. 1

JOINTING ASSY., SINGLE STAND 1

NUT 6mm 1

FOOTCAST, BACK,RIGHT 1

RUBBER，MAIN STAND 1

CLIP，BRAKE CABLE 1

13

后减震总成

REAR SHOCK ABSORBER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 63100B20T001

2 B01070804064 B01070804064 BOLT 8X40MM 1

3 B01071004064 B01071004064 BOLT 10X1.25X 40MM 1

4 B04070008064 B04070008064 NUT M8MM 1

X63800B030001

ABSORBER ASSY.BLACK 1

14

标记 处数 更改文件号 签字 日期

机油箱总成

OIL TANK ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 64091B20T000 64091B030000 CAP, OIL TANK 1

2 64002B20T000 64002B030000 CLIPφ8.5 1

3 64100B20T000 64100B030000 SENSOR, OIL POSITION 1

4 64001B20T000 64001B030000 OIL TANK 1

15

标记 处数 更改文件号 签字 日期

前挡泥板总成

FRONT FENDER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.
1 65101B20TRH0 65101B03RH00 FENDER ,FRONT，RED 1
1 65101B20TL70 65101B03L700 FENDER ,FRONT，BLUE 1
1 65101B20TY40 65101B03Y400 FENDER ,FRONT，YELLOW 1

2 B07020000604 B07020000604 WASHER 6MM 4

3 B02000601624 B02000601624 SCREW 6X16MM 4

4 65103B201000 65103B201000 LEFT SIDE, FRONT FENDER 1

5 65112B20T000 65112B030000 WASHER,RUBBLE 2

6 65102B20T000 65102B030000 RIGHT SIDE, FRONT FENDER 1

7 B02060601224 B02060601224 SCREW 6X12MM 2

8 B07000000604 B07000000604 WASHER SPRING 6MM 4

16

标记 处数 更改文件号 签字 日期

龙头护罩总成

HANDLE COVER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.
1 65201B20TRH0 65201B03RH00 FRAME COVER，FRONT,RED 1
1 65201B20TL70 65201B03L700 FRAME COVER，FRONT,BLUE 1
1 65201B20TY40 65201B03Y400 FRAME COVER，FRONT,YELLOW 1

2 B07020000505 B07020000505 WASHER 5MM 2

3 B02000501665 B02000501665 SCREW 5X16MM 1

4 65202B20T000 65202B030000 FRAME COVER, BACK 1

5 B02000502565 B02000502565 SCREW 5X25MM 1

17

标记 处数 更改文件号 签字 日期

前大罩总成

FRONT COVER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 65340B20T000
2 65301B20TRH0 65301B03RH00 FACEPLATE ，RED 1
2 65301B20TL70 65301B03L700 FACEPLATE，BLUE 1
2 65301B20TY40 65301B03Y400 FACEPLATE ，YELLOW 1

3 B05004201304 B05004201304 TAPPING SCREW 4.2X13 MM 4

4 B05074201604 B05074201604 TAPPING SCREW 4.2X16 MM 2

5 65390B20T000 65390B030000 FRONT RACK 1

6 B07020000605 B07020000605 WASHER 6MM 3

7 B07020000504 B07020000504 WASHER 5MM 2

8 B01010601665 B01010601665 BOLT 6X16MM 3

9 65330B20T000 65330B030000 FIXING SEAT 2

10 65302B20T000 65302B030000 MOTHERBOARD,FRONTCOVER 1

11 B04070600064

12 B01070602065 B01070602065 BOLT 6X20MM 2

65340B140000

B04070600054

FRAME, FRONT 1

NUT 6MM 4

18

标记 处数 更改文件号 签字 日期

脚防护板总成

LEG SHIELD ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 65407B20T000 65407B030000 COVER lower II 1

2 65401B20T000 65401B030000 FOOTPLATE 1

3 65411B20T000 65411B030000 CAP FOOTPLATE 1

4 B13060601605 B13060601605 SCREW ASSY. 6X16mm 2

5 B05004201605 B05004201605 SCREW 4.2X16mm 8

6 B05004201305 B05004201305 SCREW 4.2X13mm 6

7 B01070601265 B01070601265 BOLT 6X12mm 2

8 65406B20T000 65406B030000 COVER LOWER I 1

9 B07020000505 B07020000505 WASHER 5mm 2

10 B02000502025 B02000502025 SCREW 5X20mm 1

11 65404B20T000 65404B030000 COVER,FRONT LUGGAGE BOX 1

12 65402B20T000 65402B030000 COVER, REAR 1

13 B01070601665 B01070601665 BOLT 6X16mm 3

14 65403B20T000 65403B030000 INSPECT COVER,FRAME 1

15 86300B20T001

16 B04070600054 B04070600054 NUT,M6 2

86300B310000

FRONT REFLECTOR 2

19

标记 处数 更改文件号 签字 日期

护板总成

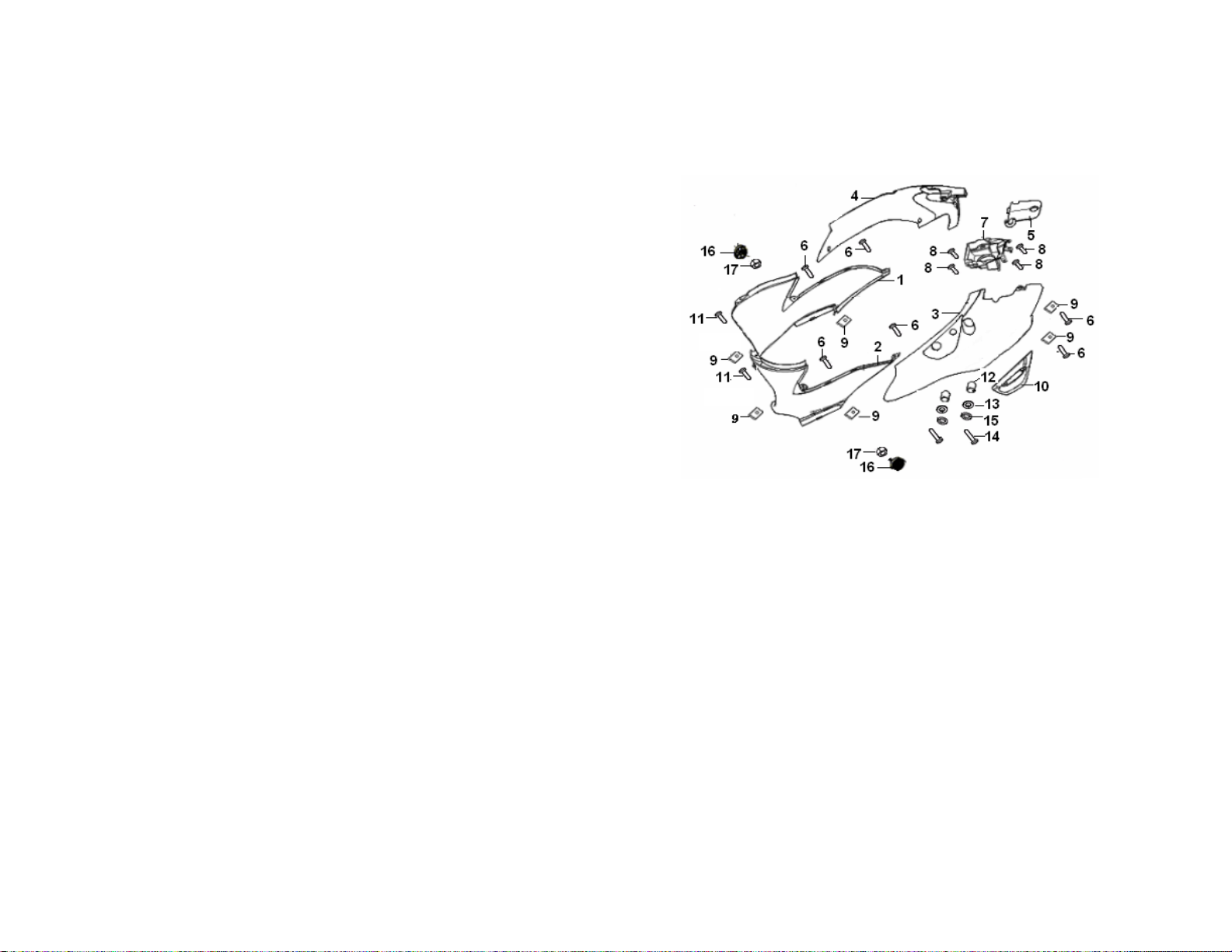

FRAME COVER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 65603B20T000 65603B030000 COVER FRONT RH 1

2 65601B20T000 65601B030000 COVER FRONT LH 1

3 65604B20TRH0 65604B03RH00 COVER REAR LH,RED 1

3 65604B20TL70 65604B03L700 COVER REAR LH,BLUE 1

3 65604B20TY40 65604B03Y400 COVER REAR LH,YELLOW 1

4 65602B20TRH0 65602B03RH00 COVER REAR RH,RED 1

4 65602B20TL70 65602B03L700 COVER REAR RH,BLUE 1

4 65602B20TY40 65602B03Y400 COVER REAR RH,YELLOW 1
5 65606B20TRH0 65606B03RH00 COUPLING BOARD，RED 1
5 65606B20TL70 65606B03L700 COUPLING BOARD，BLUE 1
5 65606B20TY40 65606B03Y400 COUPLING BOARD，YELLOW 1

6 B05004201305 B05004201305 TAPPING SCREW 4.2×13MM 6

7 65615B20T000

8 B05074001005 B05074001005 TAPPING SCREW 4×10MM 4

9 65801J0ET000

10 65612B20T000 65612B030000 HANDLE, LH 1

11 B05004201605 B05004201605 TAPPING SCREW 4.2×16MM 2

12 65613B20T000 65613B030000 BUSH, HANDLE 2

13 B07030000604 B07030000604 WASHER 6MM 2

14 B02000603064 B02000603064 SCREW 6×30MM 2

15 B07000000604 B07000000604 WASHER SPRING 6MM 2

16 B04070600064 B04070600064 NUT,M6 2

17 86400B20T001 86400B030001 REAR REFLECTOR,RH,LH 2

57721B030000

65801T020010

BOARD, FUEL TANK FIXING 1

CARD 6

20

标记 处数 更改文件号 签字 日期

后挡泥板总成

REAR FENDER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 65701B20T000 65701B030000 FENDER, REAR 1

2 B07020000605 B07020000605 WASHER 6mm 4

3 B01010601665 B01010601665 BOLT 6×16mm 4
4 65702B20T001 65702B030001 TAIL，REAR FENDER 1

5 08251B20T000 08251B030000 BRACKET,LICENSEPLATE,WASHER2

6 B02000501264 B02000501264 SCREW 5×12mm 2

7 B04240600064 B04240600064 NUT 5mm 2

8 08202B20T001 08202B030001 BRACKET,LICENSE PLATE 1

9 B04021012554 B04021012554 NUT M10X1.25 2

10 B07020000505 B07020000505 WASHER 5 1

11 B04000500065 B04000500065 NUT M5 1

12 86500B20T000 86500B030000 REAR REFLECTOR DOT 1

13 65770B20T000 65770B030000 BRACKET ASSY 1

14 81500BMBT002 81500B920002 TURN SIGNAL LAMP R.L 1

15 81700BMBT002 81700B920002 TURN SIGNAL LAMP R.R 1

16 81704B20T000 81704B030000 CUSHION,REAR TURN LIGHT 2

17 81703B20T000 81703B030000 RUBBERCUSHION,REARTURNLIGH2

18 08256B130000 08256B130000 LICENSE PLATE

21

标记 处数 更改文件号 签字 日期

仪表总成

SPEEDOMETER ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 70000B030009 70000B030009 SPEEDOMETER ASSY. 1

2 75000B20T003 75000B030003 WIRING COMP. 1

3 72900B20T000 72900B030000 WIRING ASSY, SPEEDOMETER 1

4 B07020000505 B07020000505 WASHER 5mm 3

5 B05004801605 B05004801605 TAPPING SCREW 1

6 70003B20T000 70003B030000 SPEEDOMETER, WASHER 2

7 70007B20T000 70007B030000 LED OIL SENSOR 1

8 70001B20T000 70001B030000 BULB SPEED METER 12V3W 1

9 B05004802505 B05004802505 TAPPING SCREW 2

10 70001B030009 70001B030009 COVER，SPEEDOMETER 1

22

标记 处数 更改文件号 签字 日期

电器总成Ⅰ

BATTERY ASSY. 12V,4AH

(YTX5L

used

BATTERY ASSY. 12V,3AH (YTX4L

used

ELECTRICAL EQUIPMENT ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 96100BM0T000 96100H010000

1 96100B030010 96100B030010

2 96400B20T000 96400B030000 FLASHER 1

3 91900B20T000 91900B030000 LIGHT CORTROL SWITCH 1

4 91901B20T000 91901B030000 RUBBER COVER 1

5 B05004801305 B05004801305 TAPPING SCREW 4.8×13mm 4

6 96200B0DT000 96200B070000 COIL ASSY.,IGNITION 1

7 B02000602064 B02000602064 SCREW 6×20mm 2

8 B07000000604 B07000000604 WASHER SPRING 6mm 4

9 B07030000604 B07030000604 WASHER 6mm 4

10 92000B03001L 92000B03001L HARNESS, WIRING 1

11 88000B030005 88000B030005 LOCK COMP.mark:on,off 1

12 88800B20T000 88800B030000 SEAT LOCK 1

13 88100B030005 88100B030005 LOCK ASSY. STEERING mark:on,off1

14 88400B20T000 88400B030000 LOCK FUEL TANK 1

15 88200B20T000 88200B030000 LOCK, FRONT LUGGAGE BOX 1

16 B02000604064 B02000604064 SCREW 6×40mm 2

17 B01070601665 B01070601665 BOLT 6×16 mm 4

18 98801B0DT000 98801B070000 RECTIFIER 1

19 97701B0DT000 97701B070000 C.D.I 1

20 96900B00T000 96900B000000 WIRE, EARTH 1

­1

-

1

标记 处数 更改文件号 签字 日期

23

电器总成Ⅱ

ELECTRICAL EQUIPMENT ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

21 B13170601264 B13170601264 BOLT 6X12mm 1

22 94100J000002 94100J000002 RELAY ASSY.,STARTER 1

23 92200A020001 92200A020001 WIRE 1

24 86300B0DT001 86300B070001 FRONT REFLECTOR 2

25 95000B20T001 95000B030001 HORN ASSY. 1
26 82000B20T000 82000B030000 TAIL LIGHT ASSY，RR 1

27 82040B030010 82040B030010 COVER，TAIL LIGHT RED

29 82005B20T000 82005B030000 TAIL LIGHT BULB 12V/5W 1

30 82900B20T000 82900B030000 WIRING ASSY. TAIL LIGHT 1

31 80000B20T003 80000B030003 HEADLIGHT COMP. 1

32 81100B20T000 81100B030000 COVER,FRONT TURN LIGHT, L(WH1

33 81300B20T000 81300B030000 COVER,FRONT TURN LIGHT, R(WH1

34 80002B20T000 80002B030000 HEADLIGHT BULB 12V/35W 1

35 80020B20T000 80020B030000 WIRING ASSY.HEAD LIGHT 1

36 81103B20T000 81103B030000 INDICATOR BULB 12V/3W 4

37 96800B20T000 96800B030000 FUSE ALARM SYSTEM 1

38 96001B20T000 96001B030000 BAND 4

39 B04070600054 B04070600054 NUT 6mm 2

40 B02060602064 B02060602064 SCREW 6×20mm 2

41 96310B920000 96310B920000 CHARGER PLUG 1

42 B01090601065 B01090601065 BOLT 6×10MM 2

删除原序号27，28后左，右转向灯灯罩（透明）81500B20T000，81700B20T000因此状态为整体式尾灯

24

标记 处数 更改文件号 签字 日期

发动机附件

ENGINE ATTACHMENT

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 08350B50T000 08350B130000 KICK STARTER ASSY. 1

2 B01020602565 B01020602565 BOLT 6X25mm 1

25

标记 处数 更改文件号 签字 日期

随车工具总成

TOOL KIT ASSY.

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 02110G00P000 02110G130000 BAG, TOOL KIT 1

2 02104G00P000 02104G130000 HANDLE, SCREW DRIVER 1

3 02101B20T000 02101B030000 SOCKET, SPARK PLUG 1

4 02103G00P000 02103G130000 DRIVER, DOUBLE-ENDED 1

5 02108G00P000 02108G130000 WRENCH 1

6 B20011301603 B20011301603 WRENCH, DOUBLE-EENDED 13-161

7 B20011001203 B20011001203 WRENCH, DOUBLE-ENDED 10-12 1

8 B20020600003 B20020600003 SOCKET SPANNER 6 1

26

标记 处数 更改文件号 签字 日期

铭牌不干胶

STICKER

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.
1 05512B20T00A 05512B03000A STICKER，LEFT RIGHT SIDE COVE2

2 05525B50T000 05525B130000 STICKER ,COVER 2

3 57001B03000L 57001B03000L PLATE, LABEL 1

4

05596B030003 05596B030003

5 05533B030005 05533B030005 TIRE PRESSURE 1

6 05522B130000 05522B130000 TNG,STICKER 1

65594B130000 65594B130000

7

8 05531B030002 05531B030002 WARNING STICKER 1

STICKER “EPA” 1

STICKER“Made In China ” 1

27

标记 处数 更改文件号 签字 日期

后货箱总成

BACK BOX ASSY

序号 代码 物料编码 数量 备注

NO. CODE materiel coding QTY.

1 52200B03RH01 52200B03RH01 BACK BOX ASSY (RED) 1

1 52200B03L701 52200B03L701 BACK BOX ASSY (BLUE) 1

1 52200B03Y401 52200B03Y401 BACK BOX ASSY (YELLOW) 1

2 B01010603033 B01010603033 BOLT 6X30MM 2

3 B01010603533 B01010603533 BOLT M6X35 2

4 52221BMBT000 52221B920000 WASHER 4

5 B07020000603 B07020000603 WASHER 6MM 4

6 B07000000603 B07000000603 SPRING WASHER 6MM 4

7 B04000600043 B04000600043 NUT 6MM 4

8 88600BMBT000 88600B920000 BACK BOX LOCK 1

9 B01070601663 B01070601663 SCREW 6X16MM 2
10 52910BMBT000 52910B920000 NUT，CLIPPING 6MM 2
11 52180BMBT000 52180B920000 STORAGE BOX，ASSY PLATE 1

12 52222BMBT000 52222B920000 RUBBER MAT 1

13 B01010601623 B01010601623 BOLT 6X16MM 4

14 52221BMBT000 52221B920000 WASHER 4

含TNG
贴花

28

标记 处数 更改文件号 签字 日期
