t&mSystems Project MIX818 User Manual

Page 1
OPERATION MANUAL
PROJECTMIX818
ZONE 1
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 2
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 3
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 4
SOURCE UP SOURCE DOWN
PAGE BUSY MIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 5
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 6
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 7
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 8
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
MONITOR
OUTPUT LEVEL
FUNCTION
ESC
EMERGENCY
ZONE SELECT
PROJECTMIX818
BGM ALL
PAGE ALL
POWER
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
Page 2
SAFETY PRECAUTIONS
Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. Before operating your product, read this manual first and understand the safety symbols and messages so you are thoroughly aware of the potential safety
Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.
When Installing the Unit
Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in fire or electric shock.
Use the unit only with the voltage specified on the unit. Using a voltage higher than that which is specified may result in fire or electric shock.
Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the power cord in close proximity to heaters, and never place heavy objects -- including the unit itself -- on the power cord, as doing so may result in fire or electric shock.
Be sure to replace the unit's terminal cover after connection completion. Because high voltage is applied to the speaker terminals, never touch these terminals to avoid electric shock.
Be sure to ground to the safety ground (earth) terminal to avoid electric shock. Never ground to a gas pipe as a catastrophic disaster may result.
When the Unit is in Use
Should the following irregularity be found during use, immediately switch off the power, disconnect the power supply plug from the AC outlet and contact your nearest dealer. Make no further attempt to operate the unit in this condition as this may cause fire or electric shock. If you detect smoke or a strange smell coming from the unit. If water or any metallic object gets into the unit If the unit falls, or the unit case breaks If the power supply cord is damaged (exposure of the core, disconnection, etc.) If it is malfunctioning (no tone sounds.)
To prevent a fire or electric shock, never open nor remove the unit case as there are high voltage components inside the unit. Refer all servicing to your nearest dealer.
Do not place cups, bowls, or other containers of liquid or metallic objects on top of the unit. If they accidentally spill into the unit, this may cause a fire or electric shock.
Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the unit falling down, causing personal injury and/or property damage.
Do not insert nor drop metallic objects or flammable materials in the ventilation slots of the unit's cover, as this may result in fire or electric shock.
Page 3
SAFETY PRECAUTIONS
When Installing the Unit
Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric shock.
When unplugging the power supply cord, be sure to grasp the power supply plug; never pull on the cord itself. Operating the unit with a damaged power supply cord may cause a fire or electric shock.
When moving the unit, be sure to remove its power supply cord from the wall outlet. Moving the unit with the power cord connected to the outlet may cause damage to the power cord, resulting in fire or electric shock. When removing the power cord, be sure to hold its plug to pull.
Do not block the ventilation slots in the unit's cover. Doing so may cause heat to build up inside the unit and result in fire.
Avoid installing the unit in humid or dusty locations, in locations exposed to the direct sunlight, near the heaters, or in locations generating sooty smoke or steam as doing otherwise may result in fire or electric shock.
When the Unit is in Use
Do not place heavy objects on the unit as this may cause it to fall or break which may result in personal injury and/or property damage. In addition, the object itself may fall off and cause injury and/or damage.
Make sure that the volume control is set to minimum position before power is switched on. Loud noise produced at high volume when power is switched on can impair hearing.
Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a malfunction, which in turn can cause heat to generate and result in a fire.
Contact your dealer as to the cleaning. If dust is allowed to accumulate in the unit over a long period of time, a fire or damage to the unit may result.
If dust accumulates on the power supply plug or in the wall AC outlet , a fire may result . Clean it periodically. In addition,insert the plug in the wall outlet securely.
Switch off the power,and unplug the power supply plug from the AC outlet for safety purposes when cleaning or leaving the unit unused for 10 days or more. Doing otherwise may cause a fire or electric shock.
An all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the electrical installation of the building.
Page 4
CONTENTS
1.INTRODUCTION................................................................................................1
2.FRONT PANEL LAYOUT...................................................................................1
3. REAR PANEL LAYOUT.....................................................................................4
4.RS 485 COMMUNICATION PROTOCOL........................................................ 9
5. SPECIFICATIONS........................................................................................... 10
6.CONNECTION DIAGRAM................................................................................11
7.CONNECTION AND SETTING............................................................12
Page 5
1. INTRODUCTION
The matrix & paging controller family comprise an 8 channel and 4 channel ones which are cater
for multi-zone ,paging andmulti-soucres selection system .They are complete solution for multi-zone,
multi-functional venues like entertainment places, large hotel,sport or grm centers,shopping mall and
airport ect. PROJECTMIX818 offer direct connection of up 8music source input ,8remote control panels.
4 remote paging consoles and one microphone input,all of these inputs can be freely allocated into
different 8 zone outputs simultaneously.
2. FRONT PANEL LAYOUT
ZONE 1
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 2
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 3
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
Select Source
Zone LED Display
Page Busy
MIC Priority Indicator
MIC Priority Button
Music Volume
Master Volume
MIC Volume
ZONE 4
SOURCE UP SOURCE DOWN
PAGE BUSY MIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 5
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 6
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 7
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
ZONE 8
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MASTER
EMERGENCY
Monitor Zone Select Monitor LED Display
Monitor Zone Output Level
Monitor Volume
ESC ENTER BGM ALL
Page All
MONITOR
ZONE SELECT
OUTPUT LEVEL
FUNCTION
ENTER
ESC
PROJECTMIX818
BGM ALL
PAGE ALL
POWER
1
Page 6
FRONT PANEL LAYOUT
1. Source Select
The source select button (1) is used to select the source for the zone. Each zone has a separate source selection button. There are 9 selectable sources: Line sources 1 through 8 and a local Microphone source.A different local source (remote in wall mixer or source select/volume control)can beconnected to each zone. A zone cannot select the local source connected to another zone.Pressing the source select button will cycle through all zones
in sequence:1, 2, 3, 4, 5, 6,7, 8, L,and OF.To select a required source, press the source select button
(1). Once the display shows the desired source, press
the ENTER (14) buttonto confirm and the change to the selected source.
Note:
The source will only change after the ENTER (14) button is pressed. If the ENTER(14) button is not
pressed,the source selection will return to previous
setting after 10 seconds.When the system is used
in conjunction with remote control panels,the zone source select button will be disabled when a remote controlpanel is connected to a zone .In this instance,
the source selection can only be controlled via the remote control panel in the event power is lost,the last
source selection settings are automatically saved
and the unit will return to its previously configured source selections when powered back on.
2. Zone LED Display
The Single Digit Zone LED Display will display the selected source number: lines 1-8 and local input shown as L.
3. Page Busy
The Zone Page Busy indicator LED (3) will illuminate amber to indicate a paging microphone is paging to this zone.
5. MlCl Priority Button
The MIC1 Priority button (5) will enable/disable the MIC1priority paging function.When enabled,
MIC1will override zones 1-8and all local inputs, if a signal is present on the MIC1 input.When dis
-abled,MIC1 will mix with lines 1-8 and local inputs if required.This Microphone input has been designed to give global priority over all other inputs if enabled via the front panel. The MIC1 priority setting is not
saved when the PROJECTMIX818 is switched off,and will return to its default state on powered back on.The default state of the MIC1 Priority is disabled.
6. Music Volume
The Music Volume control knob (6) controls the selected source (zones 1-8 and local input) input level. If the system is used with Remote Control Panels, the Music Volume knob will be disabled for zones where a remote control panel is connected. Source Music Volume level will be controlled at the remote control panel only.
7. Master Volume
The Master Volume control knob (7) will control the combined MIC1 and Source Output Volume Level, if the MIC1 input has been enabled for a zone. The Master Volume control knob will not control the Paging Console Public Address Volume
Level,or the Line 8 Source Input Volume Level when the Line 8 Source Input Priority Function is enabled. This function has been designedasa global BGM input if required.
8. MIC1 Volume
The MIC1 Volume control knob (8) will control the
MIC1 input level if this global mic has been configured to operate within the zone. Commercial Series
PROJECTMIX818 User Manual.
4. MIC1 Priority Indicator
The MIC1 Priority Indicator LED (4) will illuminate blue indicating the Zone MIC1 priority paging func
-tion is enabled.
2
Page 7
FRONT PANEL LAYOUT
9. Monitor ZONE SELECT
The ZONE SELECT button (9) is used to select
one of the 8 zones to be monitored.Pressing the
zone select button will cycle through allzones in
sequence as follows:1,2,3,4, 5,6, 7, 8, and OFF. A zone can be selected pressing the ZONE SELECT
button.Once the display shows the desired zone,
press the ENTER button to confirm and change
to the selected zone.
Note:
The zone will only change after the ENTER button is pressed, otherwise the source selection will be
returned to its previous setting after 10 seconds. The monitor zone function enables the audio output from a zone to be monitored through a small speaker
on the front panel.This is particularly useful when
controlling the audio in a remote zone or testing
the system.
10. Monitor Zone LED Display
The Single Digit Monitor Zone LED Display (10)
will display the selected zone numbers,1-8.
11. Monitor Zone Output Level
The 5 LED Monitor Zone Output Level Meter(11)
will provide visual indication of the audio signal
level for a selected zone.
12. Monitor Volume
The Monitor Volume control knob (12) will control the in-built Monitor Speaker volume level.
13. ESC
The ESC button (13) is used to cancel the selection of source select,monitor zone select and BGM
function buttons.
14. ENTER
The ENTER button (14) is used to confirm selection
of source select,monitor zone select and BGM function buttons.
15. BGM ALL
The BGM ALL button (15) is used to select the same source for all 8 zones simultaneously.To confirm the BGM ALL selection,press ENTER.
Note:
The BGM ALL selection will only be confirmed after the ENTER button is pressed ,otherwise the source selection will be return to previous setting after 10 seconds.In the event power is lost, the BGM ALL selection settings will be saved and the unit will return to the previous BGM ALL setting when powe red back on.
3
Page 8
3. REAR PANEL LAYOUT
USE ONLY WITHA 250W FUSE
~115V/230V 50-60Hz
110V
INPUT VOLTAGE SELECTOR
FIRE ALARM
CONTACT CLOSURE
12345678G
SLAVE1
MASTER
SLAVE2
SLAVE3
1 2 3 4
ON
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRICUS
AVIS:
-NE PAS QUVRIR
PUBLIC ADDRESS SYSTEM
SERIAL NO:
EXTENSION LINK
LINK IN
LINK OUT
775mV/10K
ALERT
COMMON
EVAC
GROUND
EMC IN
+24V DC
GROUND
LINE 1 LINE 2
R
R
GAIN GAIN
-
­dB
+
L
L
195mV-2V/47K
TONE
EMC
INPUT
OUTPUT
-
+-+
dB
dB
LINE 3
R
GAIN GAIN
-
-
dB
dB
+
+
L
195mV-2V/47K
++
33
--
22
0V 0V
11
GAIN
HF
LF
PAGE
WALL CONTROL
12
3
+
3
-
2
0V
1
300mV-1.1V/10K
LINE 4
1 Dip Switches
2 EVAC / Fire System Interface
3 Tone Output
4 EMC Input
5 Extension Link
6 Remote Source
7 Remote Control Input
8 Page
OUTPUT
0.775V/600
+
dB
-
+10
dB
ZONE
-10
+10
1
dB
-10
+ dB
-
REMOTE
DISABLE ENABLE
REMOTE SOURCE 1
GAIN
-
dB
+
R
­dB
L
0V
+
-
0V
300mV-1.1V/10K
+
+
MIC:5mV LINE:350mV
+
3
-
2
1
GAIN
HF
LF
PAGE
12
3
2
1
-
OUTPUT
0.775V/600
+
dB
-
+10
dB
-10
+10
dB
-10
+ dB
-
REMOTE
WALL CONTROL
3
REMOTE SOURCE 2
-
dB
LINE 5
G
LINE
DISABLE ENABLE
GAIN
+
MIC
ZONE 2
PHANTOM
+
3
-
2
0V
1
+
dB
GAIN
-
+10
dB
HF
-10
+10
dB
LF
-10
+ dB
PAGE
-
WALL CONTROL
12
3
REMOTE SOURCE 3
+
3
-
2
0V
1
300mV-1.1V/10K
LINE 6
-
+
G
MIC:5mV LINE:350mV
OUTPUT
0.775V/600
ZONE 3
REMOTE
DISABLE ENABLE
GAIN
-
dB
+
PHANTOM
MIC
LINE

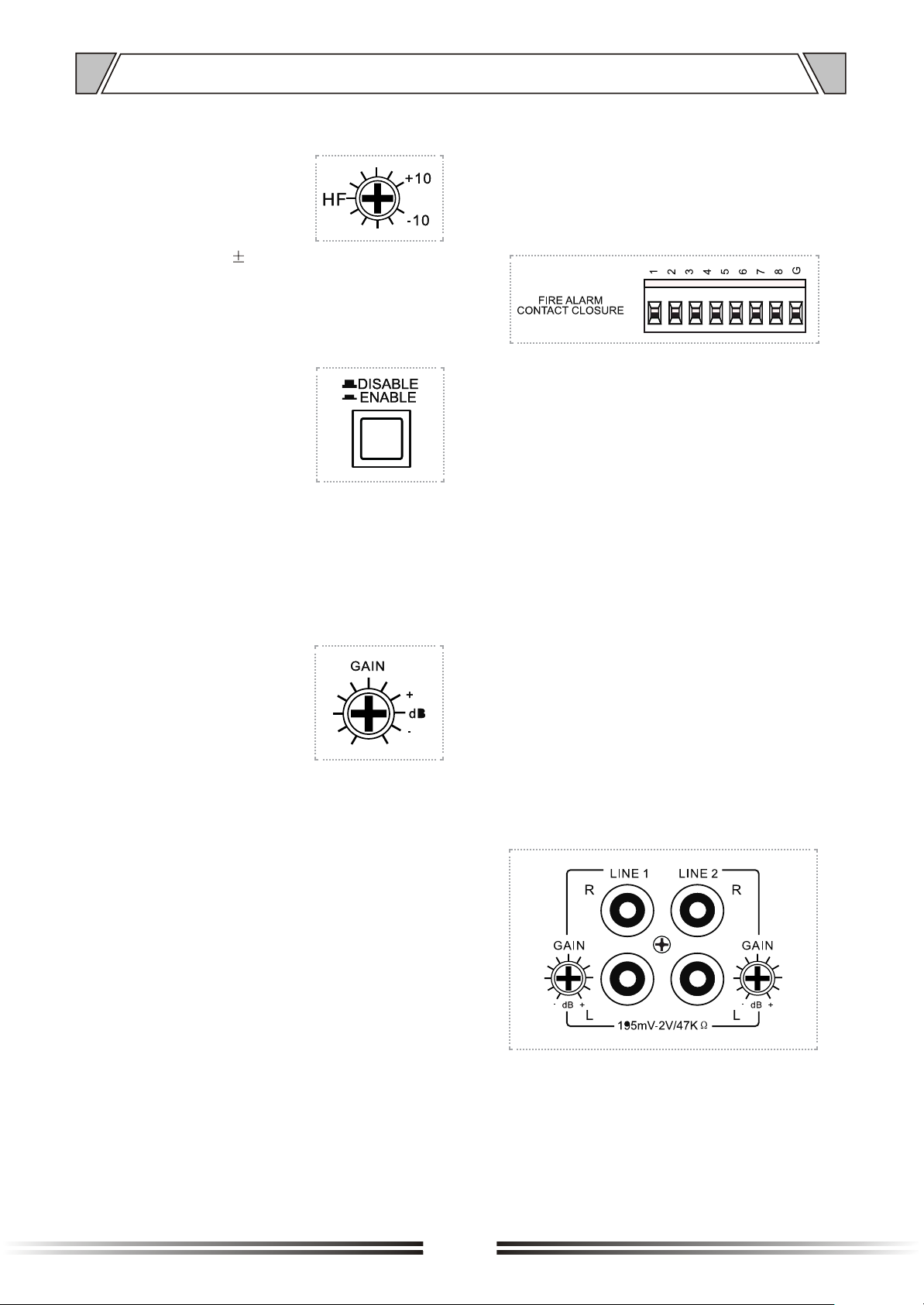

9 LF Bass
10 Output
11 Gain
12 HF
13 Enable/Disable Switch
14 Remote Source Gain
15 Fire Alarm
16 Line Gain
+
3
-
2
0.775V/600
0V
1
+
dB
GAIN
-
+10
dB
HF
-10
+10
dB
LF
-10
+ dB
PAGE
-
WALL CONTROL
12
3
REMOTE SOURCE 4
+
3
-
2
dB
0V
1
300mV-1.1V/10K
LINE 7
-
+
G
MIC:5mV LINE:350mV
OUTPUT
REMOTE
DISABLE ENABLE
GAIN
-
+
MIC
LINE
ZONE 4
PHANTOM
+
3
-
2
0.775V/600
0V
1
+
dB
GAIN
-
+10
dB
HF
-10
+10
dB
LF
-10
+ dB
PAGE
-
WALL CONTROL
12
3
REMOTE SOURCE 5
+
3
-
2
dB
0V
1
300mV-1.1V/10K
LINE 8
-
+
G
MIC:5mV LINE:350mV
OUTPUT
REMOTE
DISABLE ENABLE
-
+
LINE
GAIN
MIC
+
3
-
2
0V
1
+
GAIN
-
+10
HF
ZONE
-10
+10
5
LF
-10
+ dB
PAGE
-
WALL CONTROL
12
3
+
3
-
2
0V
1
300mV-1.1V/10K
PAGING MIC1 PAGING MIC2
12
PHANTOM
3
OUTPUT
0.775V/600
dB
dB
ZONE 6
dB
REMOTE
DISABLE ENABLE
REMOTE SOURCE 6
GAIN
-
dB
+
GAIN
­dB
+
-
0V
GAIN
PAGE
0V
12
3
+
3
2
1
HF
LF
12
3
+
3
-
2
1
300mV-1.1V/10K
GAIN
­dB
17 Line Inputs 18 Paging Console Inputs
19 Paging MIC Gain
20 MIC 1 Input
21 MIC 1 Gain
22 MIC 1 Bass
23 MIC 1 H
OUTPUT
0.775V/600
+
dB
-
+10
dB
ZONE
-10
+10
7
dB
-10
+ dB
-
REMOTE
WALL CONTROL
DISABLE ENABLE
REMOTE SOURCE 7
GAIN
-
dB
+
+
12
3
5mV-300mV/680
+
3
-
2
0V
1
+
GAIN
-
+10
HF
-10
+10
LF
-10
+ dB
PAGE
-
WALL CONTROL
12
3
REMOTE SOURCE 8
+
3
-
2
0V
1
300mV-1.1V/10K
MICROPHONE 1
GAIN
dB
OUTPUT
0.775V/600
dB
dB
ZONE 8
dB
REMOTE
DISABLE ENABLE
GAIN
-
dB
+
LF HF
-8 +8dB-8 +8
dB
1. Dip Switches
Dip switches set the Matrix system address.If the system is to be expanded, each unit must be defined as Master, Slave1,2or3.
If you are expanding the system, only line in puts 1-8 ,MIC 1 and 2 x Remote Paging Consoles of the Master Matrix are enabled .All Slave Matrix
units connected to the Master will use the Master
Matrix inputs.
For the avoidance of doubt, if a Matrix unit is confi
-gured as a slave,the slave Matrix Inputs1 - 8,MIC1
and remote paging consoles inputs will be disabled.
However, the optional wall plates
these additional zones.
can be used to operate

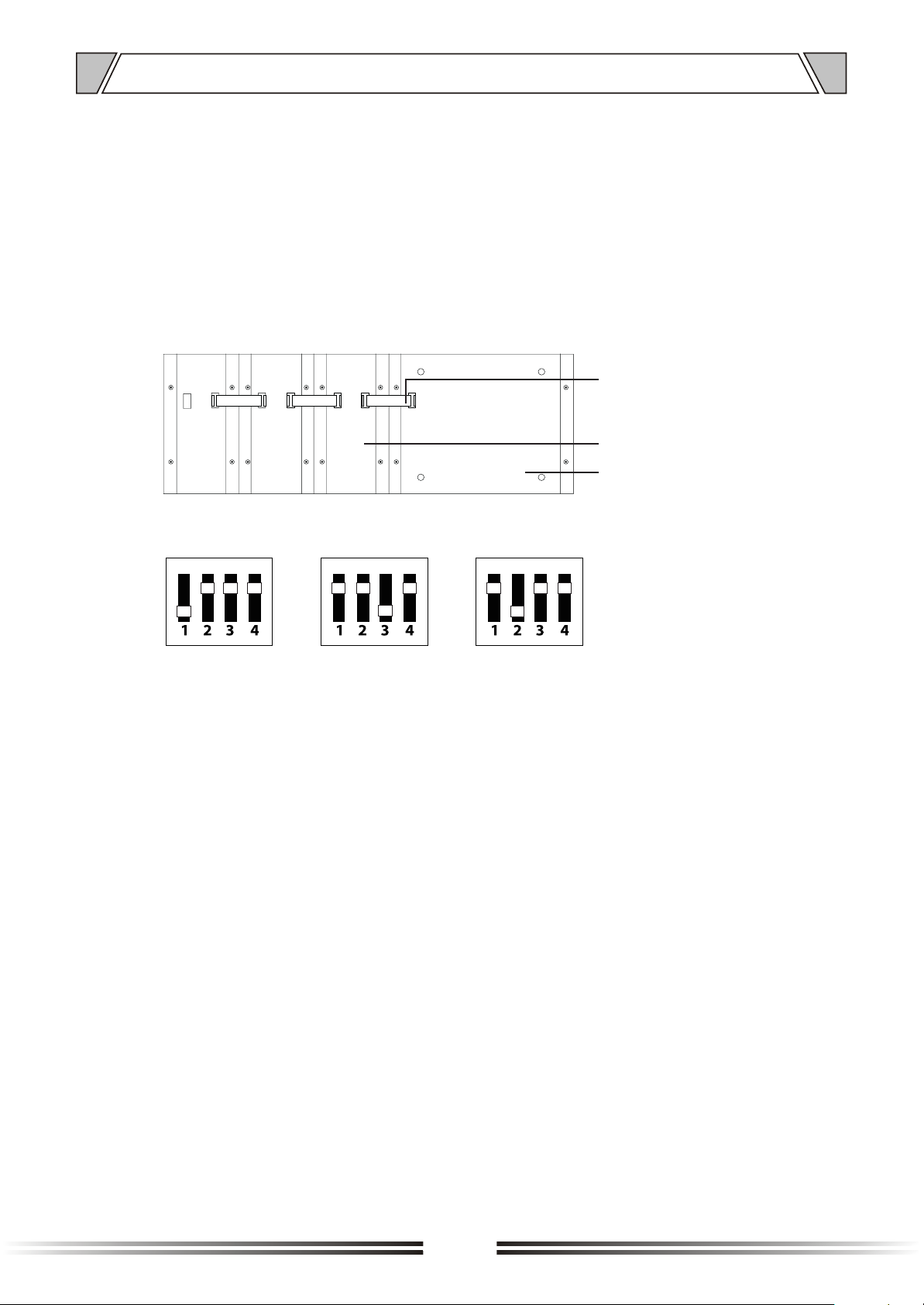

Dip switch settings are as follows for configuring the PROJECTMIX818 as a Master or Slave:
MASTER
SLAVE1
SLAVE2
SLAVE3
SLAVE4
Master Matrix
MASTER
SLAVE1
SLAVE2
SLAVE3
SLAVE4
Extension Matrix 2
MASTER
SLAVE1
SLAVE2
SLAVE3
SLAVE4
Extension Matrix 1
MASTER
SLAVE1
SLAVE2
SLAVE3
SLAVE4
Extension Matrix 3
4
Page 9
REAR PANEL LAYOUT
2. EVAC / Fire System Interface (7 Way Pheonix Connector)
PIN 1- [+24V DC 24V] Power supply input.(Battery
Back Up or UPS)PIN 2- [GROUND DC 24V] Power Supply input .(Battery Back Up or UPS) PIN3 ­[COMMON],
Which is Common for ALERT & EVAC
PIN 4 - [ALERT DRY CONTACT]
The built-inalertvoice message will be broadcast to all 8 zones after triggered by dry contact bet
-ween ALERT and COMMON.
PIN 5 - [EVAC DRY CONTACT]
The built-in EVACvoice message will be broad
-casted to all 8 zones after being triggered by dry contact between EVAC and COMMON.
PIN 6 - [EMC IN]
An optional external voice alarm message may
be broadcasted to all 8 zones of the system,when
an alarm signalis detected from an external voice
messagegenerator. Fire alarm, alert,EVAC and
EMC in are of equivalent priority

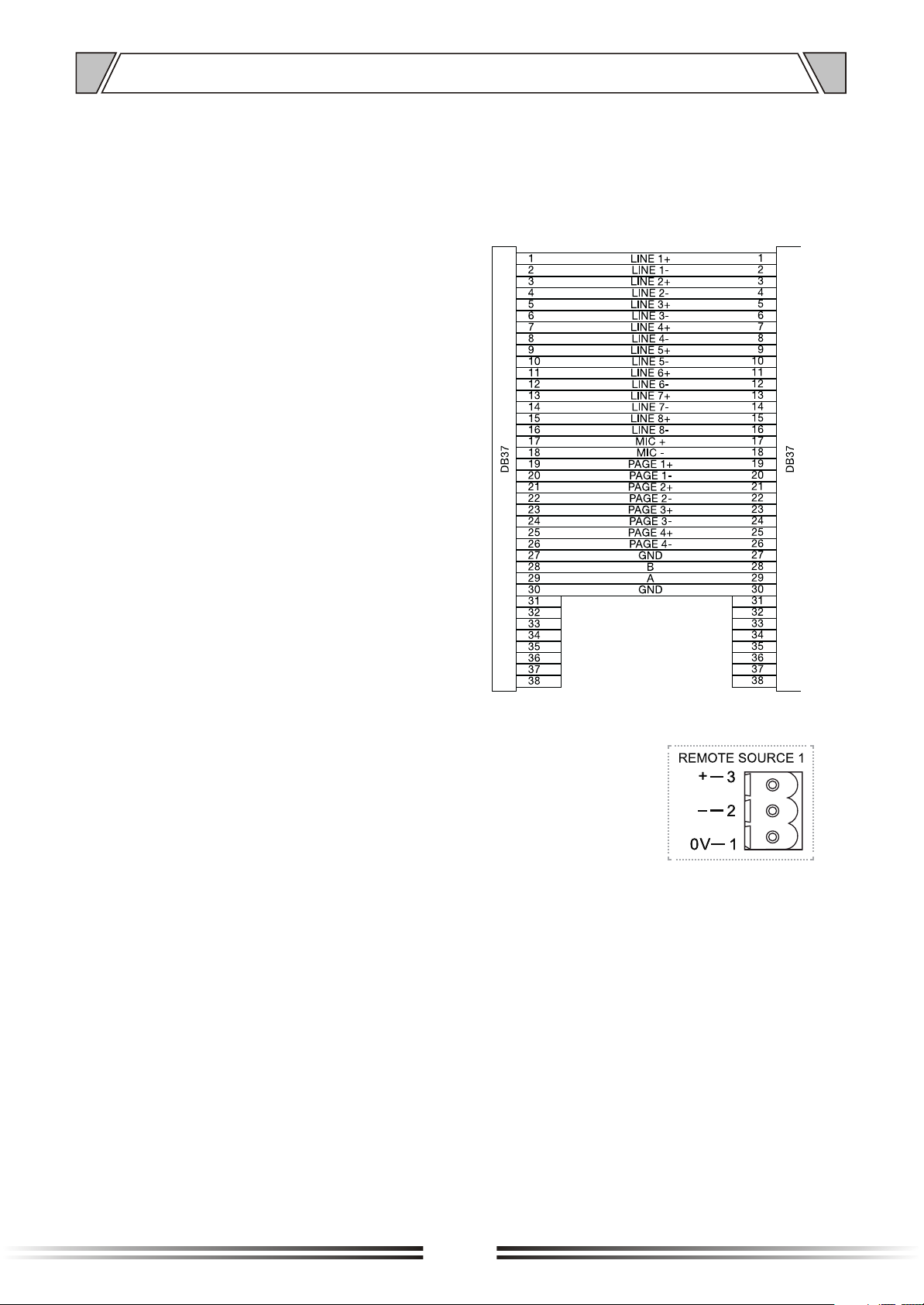

The Matrix can be linked with a DB37 Cable.This will enable the Line I-8 Sources,MIC1 input,Paging Consoles I & 2 , and Communication Data of the master unit to be shared with any Slave Matrix Units connected to the system.
3. Tone Output
The Tone Output Volume Control will adjust the output level of the FIRE ALARM, ALERT, EVAC voice messaging.
4. EMC Input
The EMC INPUT Volume control will adjust the output level of the EMC voice messaging.Fire alarm,ALERT, EVAC and EMC in are of equivalent priority.
5. Extension Link (DB37 Connector)
The extension link connectors enable 8 zone Matrix units to be connected together to form a larger system. Up to four 8 Zone Matrix units can be connected to make a 32 zone system.
6. Remote Source
Each zone can have
a remote line level source connected. The remote source input connector is shown here.
This has been designed to be used if you don't wish to use a local in wall mixer. This could be for example,a Radio MIC.
On selecting this input via the front panel controls, select "L". Please note that this input cannot be distributed to other zones.
5
Page 10
REAR PANEL LAYOUT
Local zone source level has three adjustments, namely:
a. Gain control for the local source Input on the rear of the Matrix b. A Music level control on the Matrix front panel or the remote wall control c. A Master level control on the Matrix front panel.
Please Note: The input signal is set at 300mV-1 .lv/1 OK Ohm
7. Remote Control Panel Input
Each of the eight zones can have a remote control
panel connected . The Remote control Panel will
enable the source and volume to be controlled from
a remote location. Each zonehas its own RJ45 input
connector allowing for a Remote Control Panel to be
connected for control over each zone.
Local Source Connections are as follows:
1. A remote wall panel can be connected to the Matrix, with only one remote wall controller able to be connected per zone.
2. The remote wall panel will be selectable on the system.Therefore,selectable sources will be L (local) as well as source line1 to 8.
The RJ45 pin assignment is as follows:
1. RS485 B
2. RS485 A
3. GND
4. 24V (OUT)
5. GND
6. + 24V (OUT)
7. SPARE
8. SPAR
8. Page
The Zone Page Output Volume Control will adjust the output paging level for the Zone.Every Zone has a Page Output Volume Control which enables the paging level of each zone to be set independently of other zones.
9. LF Bass
The Zone LF Bass of the Zone Output can be controlled by adjusting the LF
Bass Level Control.
This Level Control will provide adjustment of the 100Hz Audio
Frequency by± 10dB. Every Zone has a LF Bass Level Control which enables the LF Bass Level of each zone to be set independently of other zones.
10. Output
Every Zone has an AUDIO OUTPUT
connector; this should
be connected to the Audio Amplifier for the designated Audio Zone. Zone Audio Output Connections are as labeled.
11. Gain
The Zone Gain control will set the maximum Source Output Volume
Level for the Zone.This
will ensure the user cannot adjust the Audio Level too highusing the Master,MIC1and Music Level ControlKnobs
on the Front Panel. Gain will set the Maximum
Output Volume of Line Source and MICI.It will have no control over the Paging Level.
R
6
Page 11
REAR PANEL LAYOUT
12. HF
The Zone HF Treble of the Zone Output can be controlled
by adjusting the HF Treble Level
Control. This Level Control will
provide adjustment of the 100Hz
AudioFrequency by 10dB. Every Zone has a HF Treble Level Control which enables the HF Treble Level of each zone to be set independently of other zones.
13. Enable/Disable Switch
If a Zone Remote Wall Control
Panel is to be used with the System, The R J45 Remote Control Panel Input needs to
be enabled. The RJ45 Remote Control Panel Input is enabled/
disabled by pressing the Enable / Disable
Switch. Every Zone has an RJ45 Remote
Control Panel Input Enable / Disable Switch.
NOTE:
Wall Control Panel is connected.
Only Enable when a Zone Remote
dB
The EMC Input will only take priorityand broad
-cast to zones where there is a Zone FireAlarm Dry Contact Closure.Each zone has aseparate Fire Alarm Dry Contact.Fire alarm, alert,EVAC and EMC in are of equivalent priority.
16. Line Gain
The System Line Source Input Signal Levels can be adjusted from 190mV to 200mV using the Line Source Input Gain control. This will enable the signal level of all sources to be equalized there by ensuring Output Volume Level remains constant when switching from one source to another source.
All system source inputs L(lines 1-8) have a separate Gain Control.
14. Remote Source Gain
The Zone Local Source Input Signal Level can be adjusted from 190mV to 200mV using the Remote Source Gain con
-trol. This will enable the signal level of all sources to be equali
-zed therebyensuring Output Volume Level remains constant when switching from one source to another source. Every Zone Remote Source Input has a Gain Control.
15. Fire Alarm
There are Fire Alarm dry contacts for zones 1-8. When Dry Contact is detected the EMC Input will be open and take priority over all other inputs.
17. Line Inputs
The system has 4 Line Inputs,as well as 4 inputs selectable as mic or line with phantom power
available.
Every Line Source Input has a dual RCA Phono Connect or, which will enable a Stereo Source
Signal to be connected. Note, however, this is a
Mono system and a StereoInput will be combined
to give a Mono Output.
7
Page 12
REAR PANEL LAYOUT
The Line Inputs have an impedance of 47 kohms.
1. Line 1-8 source inputs will be selectable using the Source Select control on the front of the Matrix. 2)
2. The selected source input number will be indicated on the Matrix zone display.
3. Any extension Matrix unit connected to the system will use sources line 1-8 from the master Matrix.
4. Only one set of input sources for lines1-8 can will be connected per system.
18. Paging Console Inputs
Up to two paging consoles can be
connected to the system simul
-taneously via the two paging con
-sole Rj45 input ports.The paging consoles will have equal priority
and will operate on a first come
first served basis . The RJ45 pin
assignment order is as below:
1. RS485 B
2. RS485 A
3. GND
4. + 24V (OUT)
5. GND
6. + 24V (OUT)
7. MIC IN +
8, MIC IN-

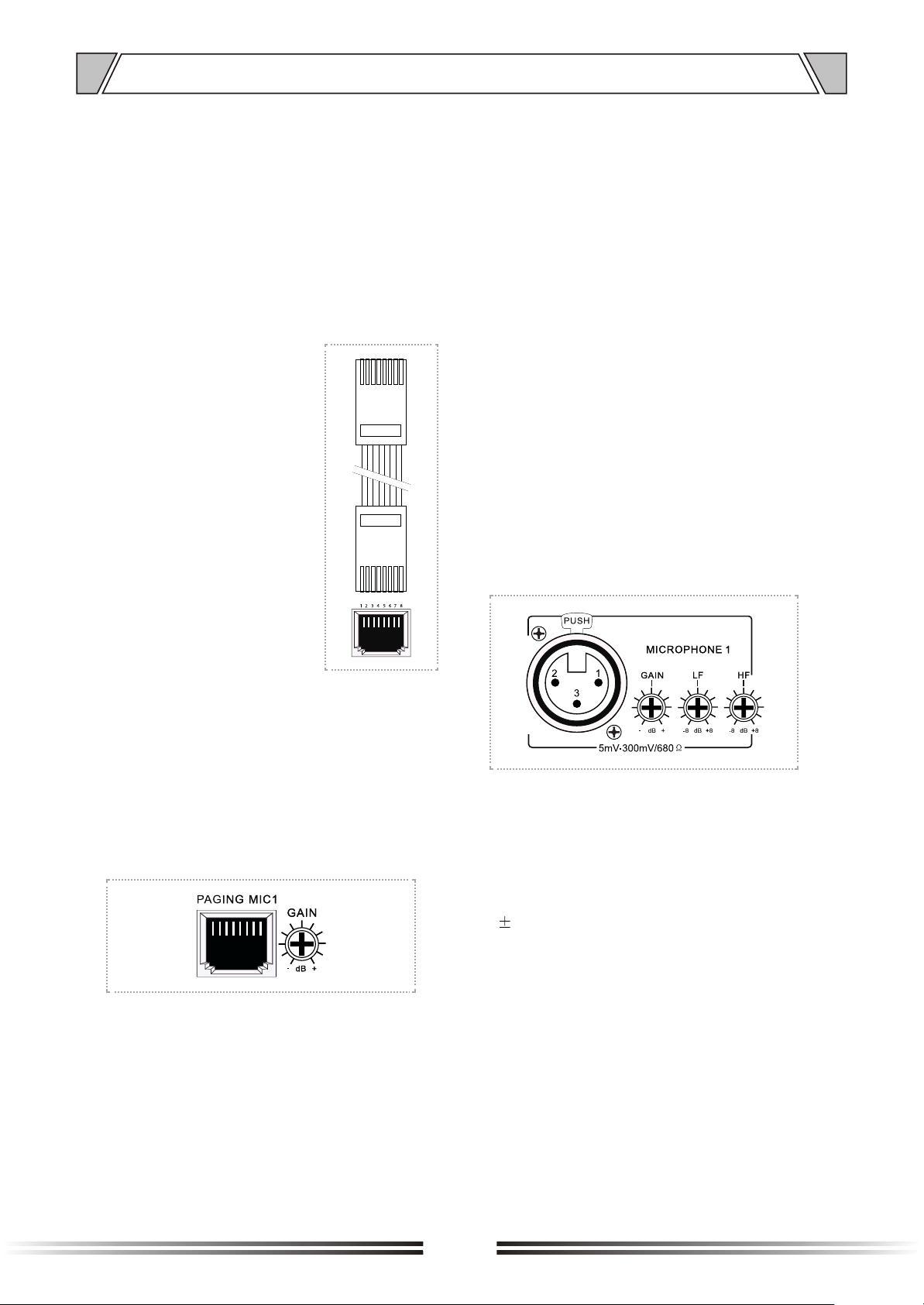

20. MIC1 Input
The balanced MIC1 input XLR type has an impedance of 600ohms. Each zone has aMIC1 Priority Button.
Each zone has a MIC1 priority button.When the
MIC1 priority button is not enabled,MIC1 will be
mixed with the line inputs on each zone (1-8 or L).
When the MIC1 priority button is enabled,MIC1 will take priority over all line inputs (1 - 8 or L) as well the wall control panel for that zone.
MIC1 will have priority only on Zones where the MIC1 Priority Switch is enabled on the front panel. Zones where the MIC1 priority switch is not enabled, MIC1 will mix with the Source Selected for the Zone. The MIC1 level will be controlled by the MIC1 Level Adjustment Knob and the Master Level Adjustment Knob.
The MIC1 signal will be sent to any extension Matrix connected to the system.
19. Paging MIC Gain
The Paging MIC Gain control will adjust the Paging
MIC Input Signal Level. Each Paging MIC will have
its own gain control.There by each Paging MIC can
be set independently of the other Paging MICs.
21. MlCl Gain
The MIC1 Gain controls the MIC1 range from 5mV to 300mV.
22. MlCl Bass
The MIC1 Bass controls the MIC1 gain at 100hz ( 10dB).
8
Page 13
4. RS 485 COMMUNICATION PROTOCOL
RS 485 Communication Protocol
Baud Rate: 57600bps/S Parity Check: Odd parity check Data: 16 bytes Accumulation = 2nd data byte +3rd data byte + 4th data byte
PROJECTMIX818 Inquiry Data
ThePROJECTMIX818 sends inquiry data to 2 remote paging consoles ,8 remote wall panels and extension Matrix. The new data will feed
-back to the Matrixwhen any new data has been checked.Any extension PROJECTMIX818 will only enquire to its own 8 remotewall panels only.
Inquiry Data To Paging Console
The PROJECTMIX818 sends the inquiry data
to remote paging consoles in the following format: AA 10 00 00 AM (accumulation)
AA: data head 10: inquiry to the paging console 00: meaningless AM: (accumulation = 2nd data byte + 3rd data byte + 4th data byte)
Feedback Data From PagingConsole
The feedback data from the remote paging console
to the Matrix after got inquiry andready for paging
format as:
AA 11 Matrix address code zone data AM AA: data head 11 : zone paging command
Matrix address code:
01 : master matrix, 02 : extension matrix 1 03 : extension matrix 2 04 : extension matrix 3 zone data: the zone data is in 8 bytes 0 : no paging 1 : paging, ie: binary system 00000011 B : zone1 and zone 2 paging 00000100B : zone 3 paging 11111111 B : all 8 zone paging AM: (accumulation = 2nd data byte + 3rd data byte + 4th data byte)
Status Data To Paging Console
After getting paging data from the remote paging
console, the Matrix sends zone status data to the
paging console in the following format:
hA 1 E Matrix address code zone data AM AA: data head 1 E: Zone status feedback to paging console Matrix address code= 01 : master matrix 02: extension matrix 1 03: extension matrix 2 04: extension matrix 3 zone data: the zone data is in 8 bytes, 0: no paging 1 :paging, ie: binary system 00000011 B:zonel and zone 2 busy 0000100B: zone 3 busy, 11111111 B: all 8 zone busy AM: (accumulation = 2nd data byte + 3rd data byte + 4th data byte)
Inquiry Data To Remote Wall Plate
If the zone is not controlled by a remote wall plate , the inquiry data will not be sent to this zone.
The inquiry command which is from the Matrix to
the remote wall plate is both inquiry and status data to update the wall plate status, ie:source input, zone volume.The inquiry data format is: hA 20 line input volume AM hA: data head 20: inquiry to wall plate line input: source input 01 : line 1 02 : line 2
08 : line 8 09 : remote sources input volume: volume level 00 : 0 level 01:1 level AM: (accumulation = 2nd data byte + 3rd data byte + 4th data byte)
9
Page 14
RS 485 COMMUNICATION PROTOCOL
Feedback Data From The Wall Plate
The feedback data from the wall plate to the Matrix
delivered in the following format: AA 21 line input volume AM AA: data head 21 : feedback data from wall plate to Matrix line input: source input 01 : line 1 02 : line 2
08 : line 8 09 : remote sources input volume: volume level 00 : 0 level 01:1 level AM: (accumulation= 2nd data byte + 3rd data byte + 4th data byte)
Inquiry Data To Extension Matrix
The Matrix inquiry data to the extension Matrix format as: AA 30 00 00 AM
5. SPECIFICATIONS
Deviation
AC Power Supply
DC Power Supply
Line Input Sensitivity
Line Input Impedance
Local Input Sensitivity Local Gain
MIC1 Sensitivity MIC1 Impedance
MIC Level Control
Paging Console Sensitivity
Paging Console Gain Control
Zone Output
Zone Gain Control
Zone Output Level Control S/N Ratio
Isolation Degree
Channel Crosstalk Gain Deviation
T.H.D
Channel Phase Position
Frequency Response
Frequency Response
Conditions
Voltage selector between 115V & 230V
Clockwise rotation gain to increase
Balanced input
Clockwise rotation gain to increase
Input 100Hz sine wave signal
Input 1KHz sine wave signal & output 0.775V
Balanced output
Input 100Hz sine wave signal
Non-weighting
20Hz-20KHz
20Hz-20KHz
20Hz-20KHz
Line1-8 inputs and remote source input, 20Hz-20KHz
MIC1 input, 80Hz-18KHz
Parameters
AC 115- 230V; 50/60Hz
Specific voltage and frequency values to the machine to prevail in kind.
+24V 195mV-2.0V
47K
500mV
8dB
600
8dB
500mV
8dB
0.775V
8dB
10dB <60dB
>40dB
>50dB
<2dB
<0.07% Same phase
+L/-3dB
+L/-3dB
Deviation
10%
4V
10
Page 15

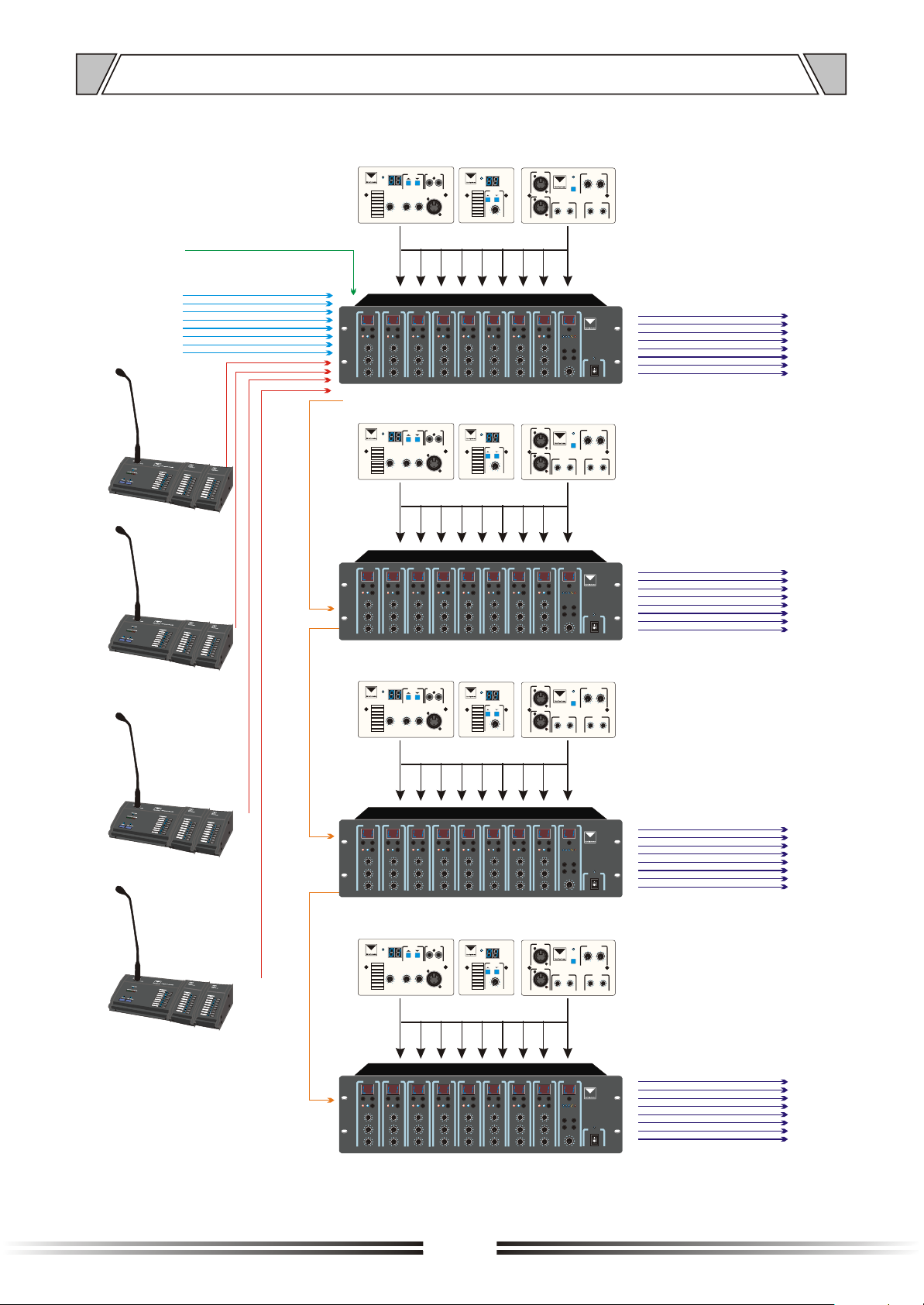

6. CONNECTION DIAGRAM
MIC 1 input
Line 1-8 inputs
PAGING MIC 1
LINK
ZONE 1
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
ZONE 1
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
Remote control pancls
MUSIC INPUT
SOURCE
UP
DOWN
ON
RCML
1
2
MUSIC
SOURCE
3
4
5
6
7
8
MIC 1
MUSIC
MASTER
RCML
1
2
3
4
5
6
7
8
MIC 1
MUSIC
MASTER
MIC
3
ZONE 2
ZONE 3
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
Master matrix
8 remote control panel
MUSIC INPUT
SOURCE
UP
DOWN
ON
MUSIC
SOURCE
MIC
3
ZONE 2
ZONE 3
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MIC
12
ZONE 4
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC
12
ZONE 4
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
ON
RC1
1
UP DOWN
2
3
4
5
6
7
8
ZONE 5
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
ON
RC1
1
UP DOWN
2
3
4
5
6
7
8
ZONE 5
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MIC1
12
SOURCE
ZONE 6
MASTER
SOURCE
ZONE 6
MASTER
3
MIC2
1 2
3
ZONE 8
ZONE 7
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
ZONE 7
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MIC1
12
3
MIC2
1 2
3
ZONE 8
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MUSIC
MIC 1
MUSIC
VOLUME
MIC1 MIC 2
ON
MUSICMUTE
RMI
MIC1
MIC 2
HF LF
HF LF
MONITOR
ZONE SELECT
OUTPUT LEVEL
FUNCTION
BGM ALL
ENTER
PAGE ALL
ESC
EMERGENCY
ON
MUSICMUTE
RMI
MIC1
HF LF
MONITOR
ZONE SELECT
OUTPUT LEVEL
MIC 1
FUNCTION
BGM ALL
ENTER
PAGE ALL
ESC
EMERGENCY
1-8 zone speaker outputs
PROJECTMIX818
POWER
VOLUME
MIC1 MIC 2
MIC 2
HF LF
9-16 zone speaker outputs
PROJECTMIX818
POWER
PAGING MIC 2
PAGING MIC 3
PAGING MIC 4
LINK
LINK
ZONE 1
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
ZONE 1
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
Extension matrix 1
8 remote control panel
MUSIC INPUT
SOURCE
UP
DOWN
ON
RCML
1
2
MUSIC
SOURCE
3
4
5
6
7
8
MIC 1
MUSIC
MASTER
RCML
1
2
3
4
5
6
7
8
MIC 1
MUSIC
MASTER
MIC
3
ZONE 2
ZONE 3
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
Extension matrix 2
8 remote control panel
MUSIC INPUT
SOURCE
UP
DOWN
ON
MUSIC
SOURCE
MIC
3
ZONE 2
ZONE 3
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MIC
12
ZONE 4
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC
12
ZONE 4
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
ON
RC1
1
UP DOWN
2
3
4
5
6
7
8
ZONE 5
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
ON
RC1
1
UP DOWN
2
3
4
5
6
7
8
ZONE 5
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MIC1
12
SOURCE
ZONE 6
MASTER
SOURCE
ZONE 6
MASTER
3
MIC2
1 2
3
ZONE 8
ZONE 7
SOURCE UP SOURCE DOWN
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
ZONE 7
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MIC1
12
3
MIC2
1 2
3
ZONE 8
SOURCE UP SOURCE DOWN
PAGE BUSYMIC1 PRIORITY
MIC 1
MIC 1
MUSIC
MUSIC
MASTER
MASTER
MUSIC
MIC 1
MUSIC
VOLUME
MIC1 MIC 2
ON
MUSICMUTE
RMI
MIC1
MIC 2
HF LF
HF LF
MONITOR
ZONE SELECT
OUTPUT LEVEL
FUNCTION
BGM ALL
ENTER
PAGE ALL
ESC
EMERGENCY
ON
MUSICMUTE
RMI
MIC1
HF LF
MONITOR
ZONE SELECT
OUTPUT LEVEL
FUNCTION
BGM ALL
ENTER
PAGE ALL
ESC
EMERGENCY
17-24 zone speaker outputs
PROJECTMIX818
POWER
VOLUME
MIC1 MIC 2
MIC 2
HF LF
25-32 zone speaker outputs
PROJECTMIX818
POWER
Extension matrix 3
11
Page 16
7.CONNECTION AND SETTING
Power Supply
The remote paging console is powered by the Matrix through the RJ45 communication port when the communication distance is < 50 meters. An extra DC 24V po wer input is equipped on the back part of the paging console to supply power when the communication distance is longer than 50 meters.
Connection Between Remote Paging Console & Extension Keypad
The IDE communication cable is used to provide connection between the remote paging console and the extension keypad as well as between two extension keypads.
Connection Through 10P IDE Cable
Extension Keypad
Remote Paging Console
Extension Keypad Dip Switch Setting
Extension Keypad 1 Extension Keypad 3 Extension Keypad 2
There are 4 address codes on both remote the paging console and the extension keypad which are used to identify these.
Please Note:
Only one address code switch of each dip switch can be placed in the downward position.If any of the dip switches are set at different addresses to those shown above, the console will not operate.
Extension keypad Remote paging Console Connection is made through the supplied 10P IDE cable. Once either two or three QTEP extension panels are connected, the operation of paging announcements is the same as described previously for individual zone paging or all call actions.
12
Page 17
VersionV0.1
Loading...
