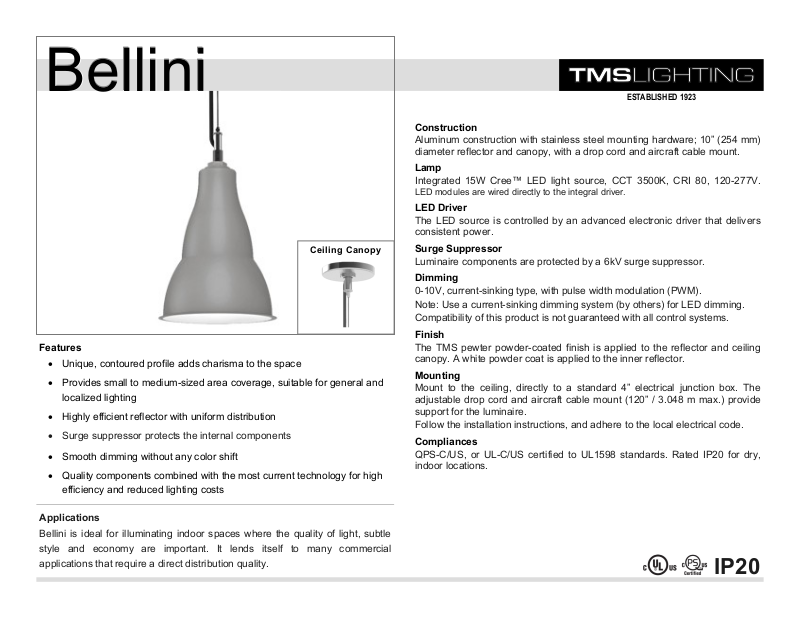

ESTABLISHED 1923
Bellini
Bellini
Bellini
Features
Unique, contoured profile adds charisma to the space
Provides small to medium-sized area coverage, suitable for general and
localized lighting
Highly efficient reflector with uniform distribution
Surge suppressor protects the internal components
Smooth dimming without any color shift
Quality components combined with the most current technology for high
efficiency and reduced lighting costs
Ceili ng Canopy
Construction
Aluminum construction with stainless steel mounting hardware; 10” (254 mm)
diameter reflector and canopy, with a drop cord and aircraft cable mount.
Lamp
Integrated 15W Cree™ LED light source, CCT 3500K, CRI 80, 120-277V.
LED modules are wired directly to the integral driver.
LED Driver
The LED source is controlled by an advanced electronic driver that delivers
consistent power.
Surge Suppressor
Luminaire components are protected by a 6kV surge suppressor.
Dimming
0-10V, current-sinking type, with pulse width modulation (PWM).
Note: Use a current-sinking dimming system (by others) for LED dimming.
Compatibility of this product is not guaranteed with all control systems.
Finish
The TMS pewter powder-coated finish is applied to the reflector and ceiling
canopy. A white powder coat is applied to the inner reflector.
Mounting
Mount to the ceiling, directly to a standard 4” electrical junction box. The
adjustable drop cord and aircraft cable mount (120” / 3.048 m max.) provide
support for the luminaire.
Follow the installation instructions, and adhere to the local electrical code.
Compliances
QPS-C/US, or UL-C/US certified to UL1598 standards. Rated IP20 for dry,
indoor locations.
Applications
Bellini is ideal for illuminating indoor spaces where the quality of light, subtle
style and economy are important. It lends itself to many commercial
applications that require a direct distribution quality.
IP20
Page 2
ESTABLISHED 1923
drop cord
aircraft cable
adjustable drop cord
and aircraft cable
120” (3.048 m) max.
12.75”
(324 mm)
bottom view
10” dia.
(254 mm)
Bellini
Bellini
Bellini
Dimensions
Specifications are subject to change without notice.
TMS Lighting Inc.
247A Summerlea Road,
Brampton, Ontario,
Canada. L6T 4E1
Web Site:
tmslighting.com
North America: (905) 793-1174
Toll-free: (866) 793-1174
Fax: (905) 793-1175
