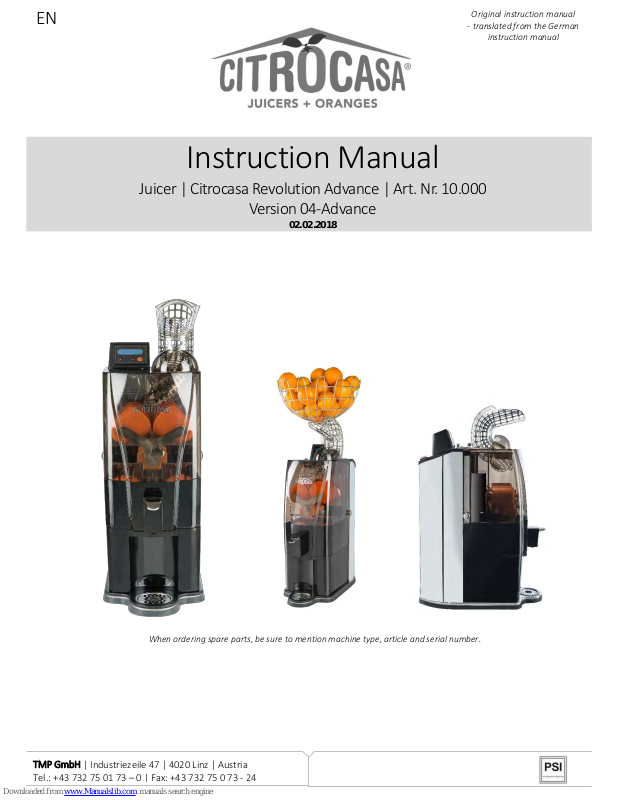

TMP Citrocasa Revolution 10.000 Original Instruction

Instruction Manual

Juicer | Citrocasa Revolution Advance | Art. Nr. 10.000

Version 04-Advance

02.02.2018

When ordering spare parts, be sure to mention machine type, article and serial number.

TMP GmbH | Industriezeile 47 | 4020 Linz | Austria
Tel.: [phone] – 0 | Fax: [phone] - 24

EN

Original instruction manual

- translated from the German

instruction manual

2

Content

1. IMPORTANT GENERAL INFORMATION ....................................... 3

1.1. Safety instructions ................................................................... 5

2. TECHNICAL SPECIFICATIONS ....................................................... 5

3. GUARANTEE ................................................................................ 6

4. OPERATION INSTRUCTIONS ........................................................ 7

4.1. FIRST STEPS .............................................................................. 7

4.2. Language selection................................................................... 9

4.3. OPERATION OF THE MACHINE ............................................... 10

4.3.1. Operation of Citrocasa Revolution ...................................... 11

4.3.2. Continuous-Mode ............................................................... 12

4.3.3. Intelligent Stop-Function ..................................................... 13

4.3.4. Display lock/unlock function ............................................... 15

4.3.5. Cleaning positions (High- & Low position) .......................... 16

4.3.6. Display-Function | pressed fruits ........................................ 17

........................................................................................................... 17

4.3.7. Display-Function – Operating time ..................................... 17

4.4. CLEANING INSTRUCTION ....................................................... 19

5. TROUBLESHOOTING .................................................................. 25

6. CERTIFICATES ............................................................................ 28

7. IMPORTANT SPARE PARTS......................................................... 36

3

1. IMPORTANT GENERAL INFORMATION

This manual refers to the following model from Citrocasa:

Art.Nr.: 10.000 Revolution Advance Version 04

The technical data of the Citrocasa commercial Orange juicers (tension, frequency and other data)
is located on the identification plate, which is both on the back page of this operating/instruction
manual as well as on the equipment itself.

• This unit can be used by children aged 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge when they have been given
supervision or instruction concerning the safe use of the device and understand the resulting
risks. Do not let children play with this device. Cleaning and user maintenance must not be
carried out by children without supervision.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.

• Protective clothing, protective equipment is not necessary for the operation and operating the
machine.

• For all technical questions, please refer to your official dealer or official customer service
representative and mention the article and serial number of your machine which can be found
on the rear side of the machine.

• Clean all areas and parts of the machine which come into contact with fruit or juice before initial
operation as shown in the cleaning instruction.

• Before cleaning the machine, making any repairs or maintenance, it is obligatory to follow these
instructions:

1. Operate machine until no more fruits are left in the pressing area.

2. Switch off machine according to specification of the instruction manual (depending on the

machine type: by automatically stop, by pushing ON/OFF button of the machine or by
releasing SB tap) and remove all remaining fruits or parts of the fruits manually of the
pressing area and/or machine.

3. Finally switch off main power of the machine and unplug machine from power supply.

• Citrocasa meets the necessary measures for a selective disposal of the devices brought on the
market and provides for an environmentally friendly subsequent treatment. Please dispose of
your machine in a proper way by contacting your official dealer/supplier.

• Our machines are certified and in accordance with the GS and TUV safety standards.

• Before operating the machine for the first time, we ask you to please read the instruction

manual carefully.

4

• For safety reasons, only authorized personal are allowed to make any repairs or changes on the
machine. Also, no protection or safety equipment is to be changed, removed or tampered with.

• Due to the fact that no adjustments on the machine are necessary, we ask you to not open the
inside of the machine at any time.

• Only authorized service technicians are permitted to make any repairs to the inside of the
machine.

• In case of damage to the machine, we ask you to either contact CITROCASA directly or contact
your dealer who supplied you with the machine.

• Before cleaning the machine, always unplug the machine from its power supply

• Only use original spare parts and accessories from Citrocasa.

• We give our best effort to provide you with a maximum amount of information in this document.

Should you need further information, we ask you to contact us or your dealer. We will be glad
to answer any questions you may have.

• In our constant efforts to better our products, we reserve the right to make any changes to this
instruction manual without prior notice.

• In principle, a regular maintenance of the machine, for trouble-free operation, is not necessary.
However, we recommend a preventive annual maintenance perform by CITROCASA employees.

• Should you have any suggestions to improvement, questions or comments, please feel free to
contact us with the contact information provided below:

Industriezeile 47, 4020 Linz, Austria

Tel.: [phone]Fax:

[phone]

E-Mail: [email protected]

www.citrocasa.com

• Care is needed when handling cutting blade during cleaning.

• The machine does not be cleaned with a water jet.

• Information for the correct disposal of this product:

5

This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm
to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.

1.1. Safety instructions

To ensure proper operation and to avoid damage to the machine, please observe the following
points

1. The fastening screws of the cross holder cannot be loose or missing.

2. Do not place any foreign objects in the machine as this may cause unnecessary damage.

3. Should machine blockage occur, it is important to disconnect the machine from its power
supply, only then is the front cover to be removed in order to remove orange peels.

4. Never try to remove blockages while the machine is operating. This could lead to serious
injury.

5. Due to the fact that the peel removers and the knife are important functional parts of the
machine, ensure that these parts are mounted carefully and correctly.

2. TECHNICAL SPECIFICATIONS

MODEL

Revolution

Oranges per minute

15 pcs./min

Measurements (H x B x T in cm)

77 x 24 x 51,2 cm

Net weight (in kg)

43 kg

Power supply

230 V / 50 Hz

Power

280 Watt

Fuse Protection

IPx1

Optimum fruit size

65 to 78 mm

6

3. GUARANTEE

• Our quality and examination controls ensure that the machine was supplied in perfect
condition.

• The guarantee covers all complaints caused by construction or material defects which
influence the optimal operation of the machine.

• The guarantee does not cover any damages caused by improper usage of the machine.

• Any changes to the identification plate nullify all possibilities of any guarantee claims.

• Only qualified service personal are allowed to make any repairs or changes on the machine,

should a 3rd person work on the machine, this will make any guarantee claims invalid:

• Should you need service or spare parts, always mention the correct article number or serial
number of the machine.

Guarantee duration: One (1) year from the time of installation

EXCEPTIONS: LABOR COSTS, DRIVING COSTS, DELIVERY COSTS AND PARTS WHICH ARE USED BY
NATURAL WEAR AND TEAR.

7

4. OPERATION INSTRUCTIONS

4.1. FIRST STEPS

In order to achieve an optimum operation of the machine, please follow the below-mentioned
steps carefully.

• After unpacking and positioning the machine on a level surface, remove the front cover by
unscrewing the 2 fastening screws shown in pic. 1. Lift the front cover out of its anchoring
to expose the pressing system.

• Attach the supply tunnel by first fixing the hook on the left side, placing the mounting plate
on the rear and secure the fixation lever (see pic 2).

R

L

Picture 1: front cover fixation screw

Picture 2: lever fruit supply tunnel

8

• Place the peel basket (pic. 3) and the drip cup as shown (pic 4).

• Make sure that the fruit sieve support (inclusive fruit sieve) is in its proper position and the

front cover is closed. (siehe pic. 5 und pic. 6)

• Ensure that the voltage is identical with that shown on the identification plate.
Plug the machine into a standardized and grounded power supply socket. Switch on the
main power switch located at the top of the machine. (Red control lamp lights up, see pic.

7)

Picture 4: Peel basket

Picture 3: trip tray

Picture 5: Fruchtschale

Picture 6: Frontabdeckung geschlossen

Picture 7: main switch

9

4.2. Language selection

It is possible to choose between 5 different display languages:

• English

• German

• Spanish

• French

• Italian

Please follow the points below, to choose your required display language:

• Pic. 8: Switch on the main power switch located at the top of the machine. The control lamp
lights up.

• Pic. 9 No. 1: Select with the FUNC-Button the menu item “Choose language”

• Pic. 9 Nr. 2 & 3: Select your required language by pressing the ON and OFF-Button together.

• Pic. 9 Afterwards select with the FUNC-Button the required menu item. Due to this fact the

display language is stored.

Picture 8: main switch

Picture 9: display language selection

1 2 3

10

4.3. OPERATION OF THE MACHINE

• Fill the supply tunnel with oranges. To make sure that the machine works properly, use
fruits between 65 – 78 mm in diameter. (pic. 10)

min. Ø 65 mm
max. Ø 78 mm

Picture 10: fruit supply tunnel

11

4.3.1. Operation of Citrocasa Revolution

Place a glass or another container under the juice outlet. To begin the pressing procedure, follow
the instructions mentioned below:

Self-Service Mode:

• Pic. 12: Switch on the main power switch located at the side of the machine. The red control
lamp lights up.

• Pic. 13 No. 1 FUNC button: Select the self-service mode by pressing this button. „Self-service
Push “Press”“ is indicated on the display.

• Pic. 14: Stop and start the machine by pressing the self-service button. (SB-Tap)

Picture 11: main switch

Picture 12: Display – self service mode

Picture 13: self service tap

1

12

4.3.2. Continuous-Mode

• Pic. 14: Switch on the main power switch located at the top of the machine. The red control
lamp lights up.

• Pic. 15 No. 1 FUNC button: Select the continuous mode by pressing this button. „Continuous
Push “ON”“ is indicated on the display.

• Pic. 15 No. 2 ON button: Start pressing (continuous mode)

• Pic. 15 No. 3 OFF button: Stop pressing (continuous mode)

Picture 14: main switch

Picture 15: Continuous mode

1 2 3

13

4.3.3. Intelligent Stop-Function

With this function you can adjust after which number of fruits the machine should stop. An
acoustic signal indicates when the peel bucket is full and need to be emptied. Please follow the
description below:

• Pic. 17: Switch on the main power switch located at the top of the machine. The control
lamp lights up.

• Pic. 16: No.1:Select the function “Empty bucket after “xx” oranges” with the FUNC-button

• Pic. 16: No.2/3: Adjust the amount of oranges after the machine should stop with the ON-

button + and OFF-Button -.

• Start the machine in the desired mode.

• As soon as the machine has reached the adjusted amount of oranges, it stops, peeps 5

times and will be locked!

• Pic. 16: No.3: To unlock the machine empty the peel bucket and press the OFF-Button for 5
sec.

• Afterwards the machine can be started again.

Picture 16: Display - Intelligent Stop

Picture 17: main switch

1 2 3

14

Attention:

- Switch off intelligent stop function

To switch off the intelligent stop function please adjust to 00 oranges!

- Switch on intelligent stop function (adjusted orange changed from 00 – XX)

Adjust the amount of pressed oranges – start the machine and press one orange – Machine
stops automatically – Press OFF-button 5 sec – amount of oranges is saved!

Recommended adjustment regarding the intelligent stop function:

Peel bucket

Recommended adjustments

Standard peel bucket

15 oranges

Peel bucket countertop installation

130 oranges

15

4.3.4. Display lock/unlock function

It is possible to lock the display that the adjusted mode cannot be changed unintentionally. Please
find the description below:

• Pic. 18: Switch on the main power switch located at the top of the machine. The control
lamp lights up.

• Adjust the desired display function (pic. 19,No.2)

• Press the OFF-Button + FUNC-Button -> Display locked (pic. 19, No.1+2)

The display is locked and the adjusted mode cannot be changed unintentionally. If the FUNC­button is pressed the display shows how to unlock the display - “Unlock key panel Push OFF &
FUNC”!

Picture 18: main switch

Picture 19: Display – lock function

2

1

16

Unlock display

• Press the FUNC-Button + OFF-Button  Display unlocked (pic. 20, No.1+2)

4.3.5. Cleaning positions (High- & Low position)

• Choose with FUNC-Taste “Push <ON> Top Push <OFF> Lower” (pic. 21, No.1).

• Press the ON-button (No. 1) to set machine to the high-position (pic. 22).

• Press the OFF-button (No. 2) to set the machine the low-position (pic. 23).

Front Cover, fruit sieve support and peel bucket need to be assembled to set the cleaning
positions!

Picture 20: Display – unlock function

Picture 21: Display – cleaning position

Picture 23: Low-position

Picture 22: High-position

1

2

2

1

17

4.3.6. Display-Function | pressed fruits

• Pic 24 No. 1 FUNC button: Press this function button to indicate the total number of
pressed fruits.

4.3.7. Display-Function – Operating time

• Pic. 25 No. 1 FUNC button: Press this function button to indicate the total operating time.

1

Picture 24: Display – fruit counter

Picture 25: Display – operating hours

1

18

Factory mode (only for technicians)

The factory mode is used to adjust different parameters of the machine. This function should only
be used from technician and is locked with a password.

• To skip the factory mode press the FUNC-Button (pic. 26, No. 1)

Picture 26: Display - Factory Mode

1

19

4.4. CLEANING INSTRUCTION

In order to clean the machine properly, please follow the instructions below:

The below-mentioned cleaning steps are to be completed at least twice every 24 hours.

IMPORTANT: Before cleaning the machine, ensure that the machine is disconnected from power
(unplug the machine).

1. Either press the oranges remaining in

the supply tunnel or remove them by
hand.

2. Loosen the front cover screws (left and

right).

3. Remove the front cover:
Pull the lower part of the front cover
slightly towards the front. Then lift the
cover away from the retaining bolts.

Clean the hood with water (30 – 50°C) and
a cleaning cloth to remove any juice and
fruit pulp residues. Rinse thoroughly with
water (30 – 50°C). Dry with disposable
tissues.

CAUTION: Do not clean in a dishwasher!

20

4. Remove the peel bucket.

5. Pull out the fruit sieve support and take

out the fruit sieve.

6. Unscrew the Cross Holder screw.

21

7. Pull out the Cross Holder.

8. Separate the knife guide from the cross

holder by pulling out the cross holder

screw.
(3 individual parts: cross holder, knife
guide, screw)

Caution: When reinstalling the knife make
sure that it rests in the correct position
and that the screw is properly tightened
by hand.

In case of disregard, either the
blade system or the upper pressing
units of the machine might get
damaged.

9. Remove the upper pressing elements
(right and left)

22

10. Unclamp the fixation lever of the feeder

and remove the supply tunnel.

11. Remove the knife by pressing the

fastening tab up and then lift it out of
the anchorage.

12. Remove the front plate/ Double Cover

23

13. Remove the drip cup and the sieve from

the cup.

Place all mentioned parts (with the exception of the acrylic front cover) in a dishwasher or clean them thoroughly

by hand!

11. Clean the housing. The machine must not be
cleaned by means of a water jet but with a
wet cloth and clear water only. Wipe clean
with a cleaning cloth and dry with a
disposable tissue

Re-Mount all parts after cleaning in the opposite order of removal.

Ensure that all parts are correctly mounted and tightened!

We recommend cleaning the machine twice within 24 hours.

PLEASE NOTE:

• DO NOT clean the acrylic front cover in the dishwasher. Cleaning the front cover is to be done by hand with warm
water and disposable drying tissues.

• DO NOT use any abrasive materials or decalcifying agents.

24

Cleaning of the Self-Service Tap (SB-Tap)

1. Please remove SB-tap housing by pulling it up.

2. Pull the tap completely out.

3. Turn the tapping lever to the left and pull it
out upwards.

Dishwasher cleaning of all parts possible!

25

5. TROUBLESHOOTING

PROBLEM

POSSIBLE CAUSE

SOLUTION

The machine is not working

Check if machine is plugged
into power outlet

Connect to power source

No electricity from power outlet

Check the power outlet for
electricity

Main switch off

Check if main switch on the side
of machine is switched on.

ON/OFF switch damaged

Contact your customer service
representative.

The press elements are
blocked

Unplug the machine from its
electricity source and remove the
object which is blocking the
machine in the press elements.

Safety detectors are damaged.

Contact your customer service
representative.

Switching circuit is damaged

Contact your customer service
representative.

Display shows “End position“

Magnet switch for the end
position is damaged

Contact your customer service
representative

Display shows “Feeder tube“

Feeder tube/Inlet tunnel
mounted incorrectly

Mount the Feeder tube/Inlet
basket according to the instruction
manual.

Display shows “Fruit sieve
supporter”

Fruit sieve supporter mounted
incorrectly.

Mount the fruit sieve supporter
according to the instruction
manual.

Display shows “Front cover”

Front cover mounted
incorrectly.

Mount the front cover according to
the instruction manual.

Display shows “Peel Bucket”

Peel Bucket mounted
incorrectly.

Mount the Peel Bucket according
to the instruction manual.

Display show an error message,
although all parts are mounted
according to the instruction
manual.

Security-Magnet is loosen or
the magnet switch is damaged.

Contact your customer service
representative.

The machine has blocked often
during the pressing process.

Power supply voltage is
insufficient.

Check if the power supply
coincides with that which is
mentioned in the instruction
manual.

Switching circuit damaged

Contact your customer service
representative.

Press elements are not
synchronized

Gear wheel or axle is
damaged

Contact your customer service
representative.

You can hear the motor but the
press elements are not turning.

Malfunction inside the machine

Contact your customer service
representative.

The machine stops running
periodically

Overload

Contact your customer service
representative.

The machine stops often
DISPLAY: OVER

Overload

Contact your customer service
representative.

26

5.1. Emergency case - resetting

In case of blockage of the machine (due to incorrect installation to hard or frozen fruit), there will
occure “Overload consult machine” on the display.

Please consider the following steps in the resetting of the machine:

• Pic. 27: Display “Overload consult manual”

• Pic. 28/29: Press ON and OFF as long as the pressing kits are in a nearly horizontally

position.

• Pic. 31/32: Remove the reason for the blockage and switch on and off the main switch to
reset the error message.

Picture 27: Display

Picture 28: Press ON/OFF Buttons

1

2

Picture 29: pressing kits

Picture 30: turn off and on the main switch

27

5.1.2. Emergency case - resetting

In case of not solving the blockage of the machine with pressing the buttons, the machine can be
reset via allen key.

Please consider the following steps in the resetting of the machine:

• Pic. 31: Press the power switch to turn off the machine.

• Pic. 32/33: Pull the allen key out of the holder that is located at the machine base.

(Machine tend laterally) (a usual allen key, size 8, is also useable)

• Pic. 34: Remove the round plastic cap, which is located on the backside of the machine and
run the allen key pass.

• Pic. 35: In order to lift the blockade of the machine, turn the conclusions in any direction.

• Attention: Please put out the crank key before starting the machine!!!

• Now you can switch the machine on and press the SB-tap.

Picture 31: Maschine main switch

Picture 32: Allen key fixation

Picture 34: Allen keyhole

Picture 33: Allen key

Picture 36. Movement of pressing elements

Picture 275: Turning - allen key

Attention: Please do not forget do put out the crank key before

starting the machine!!!

28

6. CERTIFICATES

29

30

31

32

33

34

35

36

7. IMPORTANT SPARE PARTS

Front Cover Revolution Advance

Art. No.: 300104010

Fruit sieve support Revolution Advance

Art. No.: 300114030

Peel Container

Art. No.: 300117032

Fine sieve

Art. No.: 300106012

Upper pressing element

Art. No.: 300107022

300104010

300114030

300106012

300107022

300117032

37

Lower pressing element
(fixed in the fruit sieve support)

Art. No.: 300108022

Knife

Art. No.: 300211023

Double Cover
(detachable machine back wall)

Art. No.: 300226003

Plastic knob - Cross Holder

Art. No.: 300110002

Cross holder

Art. No.: 300249003

300108022

300211023

300226003

300110002

300249003

38

300253003

Cross Holder Screw

Art. No.: 300253003

Knife guide &
guide of peel ejector (rake)

Art. No.: 300109020
Art. No.: 300246023

Rake (Backward peel ejector)

Art. Nr.: 300246023

Electronic box / Main electronics

Art. No.: 300006021

Display complete

Art. No.: 300009060

300246023

300109020

300246023

300009060

300006021

39

SB-Tap complete

Art. No.: 300112030

Fruit supply tunnel

Art. No.: 300239043

Motor

Art. No.: 300002021

Magnet front cover complete

Art. No.: 300605007 - Screw
Art. No.: 300668017 - Magnet
Art. No.: 300128012 - Support

300112030

300239043

300002021

40

Fruit sieve

Art. No.: 300203033

Magnet system SB-Tap

Art. No.: 300207000

SB-Tap lever

Art. No.: 300215013

300203033

300207000
