T-mobile HIGHLIGHT User Manual

OVERVIEW
This guide provides you with everything you need to get started. If you need additional information on features and services, please select one of these helpful options:
n
Refer to your User Guide
n
Having Fun
Turn to the Having Fun section of this booklet to learn what else your new phone can do.
TABLE OF CONTENTS
Introducing Your Phone .................................................. 4
Service Activation ............................................................ 8
SIM Card and Battery ....................................................... 9
Power ............................................................................ 11
Call Functions ............................................................... 11
Mobile Backup ............................................................... 13
Contacts ......................................................................... 14
myFaves
Bluetooth
Emergency Dialing ......................................................... 25
Caring for your Phone .................................................... 26
Tips for Safety ................................................................ 27
®
Setup ............................................................ 15
®
Setup ............................................................ 23
3
4
5
INTRODUCING YOUR PHONE
Touch Screen Navigation
Samsung Highlight
Volume
keys
TM
Clear/
Back key
n
Gently touch an item
to open or activate it.
n
Firmly touch and
slide your nger up
or down the screen
Lock/ Unlock key
to scroll through lists of menu items. Scrolling requires
a rmer touch on
Charging/ Headset Port
the screen than the gentle touch required to open menu items.
n
Flick the screen in
Camera key
End keySend key
an upward motion to quickly scroll through a list.
6
7
Widgets Navigation Shortcuts
The Widget Bar provides quick access to the items you use most frequently.
You can drag the widgets to the main screen to use the application or feature, then drag it back to the Widget Bar
when you are nished.
Shortcuts on the Home screen
Touch to access.
Shortcuts on the Main menu
Touch to access.
8
9
SERVICE ACTIVATION
SIM CARD AND BATTERY
If you are a new T-Mobile® customer and your service has not been activated, simply call Customer Care at
1-800-937-8997 from your landline phone and a
T-Mobile Activations representative will assist you.
You will need the following information when activating service:
n
Service Agreement and agent code on your Agreement
n
Your name, home address, home
phone, and billing address
NOTE: For business and government accounts, please provide the name
of your company or government agency, address, and tax ID.
n
Your Social Security number, current driver’s license
number, and date of birth for credit check purposes
n
Your choice of T-Mobile rate plan and services
(see www.t-mobile.com for latest plan information)
n
SIM serial number and IMEI number
(located on the box bar code label)
By activating service, you acknowledge that you have read, understand,
and agree to be bound by each of T-Mobile’s Terms and Conditions and your Service Agreement.
Your Subscriber Identity Module (SIM) card identies you to
the wireless network. Your phone will not work without the SIM card. To insert the SIM and battery:
1. Detach your SIM card.
2. Remove the back cover by pressing and sliding the back cover away from the phone. Remove the battery.
10
11
3. Slide the SIM card into the SIM card slot with the gold contacts facing down and the notched corner of the SIM card facing out of the slot.
4. Align the gold contacts on the battery with the contacts in the battery compartment. Snap the battery into place and replace the battery cover.
5. Plug the charger into the phone and into an electrical outlet. When charging is complete, disconnect the charger from the phone.
POWER
To turn on the phone, press and hold the End key.
CALL FUNCTIONS
Make calls
1. From the Home screen or from the main menu, tap Phone at the bottom of the screen.
2. Tap the number on the screen.
3. Press the Send key to call.
Answer calls
Press the Send key to accept a call.
End calls
Press the End key to end a call.
12
13
Call and set up voicemail
MOBILE BACKUP
1. From the Home screen or from the main menu, tap Phone at the bottom of the screen.
2. Touch and hold the number 1 on the screen.
3. Follow the tutorial to set up voicemail.
TIP: To reset the password to the last four-digits of your phone number, tap #793# and press the Send key.
Mobile Backup is a free service that lets you store contact information on your phone and on www.my-tmobile.com. You can manage contacts on your phone or on the Web and the changes are synchronized. With Mobile Backup, you don’t have to worry about losing your contact information if you lose your phone.
Your phone contacts are backed up by T-Mobile the rst
time you turn on your phone and each time you make a change to your contacts. Your contacts are available to view and manage on www.my-tmobile.com. You may opt out of this service. However, if you choose certain services (like myFaves
®
), your address book may be backed up in order
to deliver these specic services. See the FAQ section on
www.my-tmobile.com for more details.
14
15
CONTACTS
Add contacts using your phone
1. From the Home screen or from the main menu, tap Ph. Book at the bottom of the screen.
2. Tap Create contact.
3. Tap the First name eld.
4. Enter the contact’s name.
5. Tap Done.
6. Continue on to enter the rest of the information.
7. Tap Save when done.
Call contacts
1. Tap Ph. Book at the bottom of the screen.
2. Tap the green Phone icon to the right of the contact’s name to call.
SETUP
myFaves® is an optional calling plan. Benets of signing up to myFaves:
n
Unlimited nationwide calling to any ve U.S.
numbers, on any network (even landlines)*
n
One-touch calling, text messaging,
e-mail, and photo sharing**
n
No domestic roaming or domestic
long-distance charges
n
Personalize contacts with favorite pictures
and downloadable icons**
* myFaves only applies to calls directly between two people and allows
unlimited nationwide calling to ve U.S. numbers. You can change
myFaves numbers once/month.
** Separate purchase/download charges may apply. Separate charges
apply to send/receive domestic/international text/picture messages and e-mail.
16
17
Subscribe to myFaves
®
To subscribe, go to www.t-mobile.com. When you have
subscribed to myFaves, you will see ve circles on the main
screen a few minutes after you power on your phone.

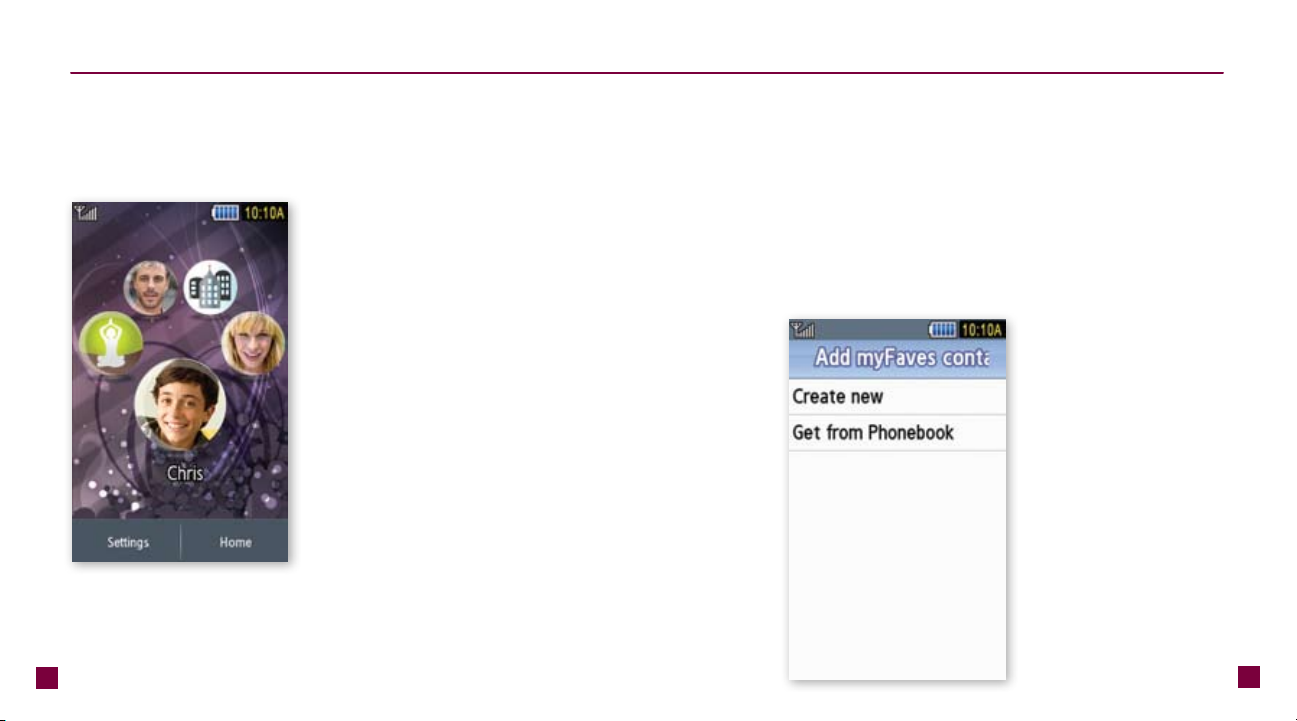

Add myFaves contacts
1. From the Home screen, tap the myFaves circles on the bottom right side of the screen to maximize the circles.
2. Tap an unassigned circle.
3. Tap one of the following options:
n
Create new: Tap the Name eld and enter the
contact’s name. Tap Done. Tap the Number eld and enter the contact’s phone number. Tap Done.
n
Get from Phonebook
: Tap a contact.
18
19
4. Tap Save now or continue to Step 5 to assign a ring­tone and Step 9 to assign an icon.
Assign a ringtone
5. Tap the T-Jingle eld.
6. Tap the ringtone to preview the tone.
7. Tap Select.
8. Tap Save now or continue on to Step 9 to assign an icon.
Assign an icon
9. Tap the unassigned circle above the contact’s name.
10. Tap one of the following:
n
Take picture to take
a picture and assign it to the contact. The camera application opens. Frame the subject and press the Camera key on the right side of the phone to take the picture. Tap Set. Tap Save.
n
Get from Files to
assign a picture you have already taken. Locate the picture.
Tap the picture. Touch and slide your nger
to move the circle. Tap Add. Tap Save.
An hourglass displays in the circle while the contact is being added to the phone book. You can use your phone during this time. Once
the contact is added, you will receive a conrmation message and the
hourglass is replaced by your new contact.
20
21

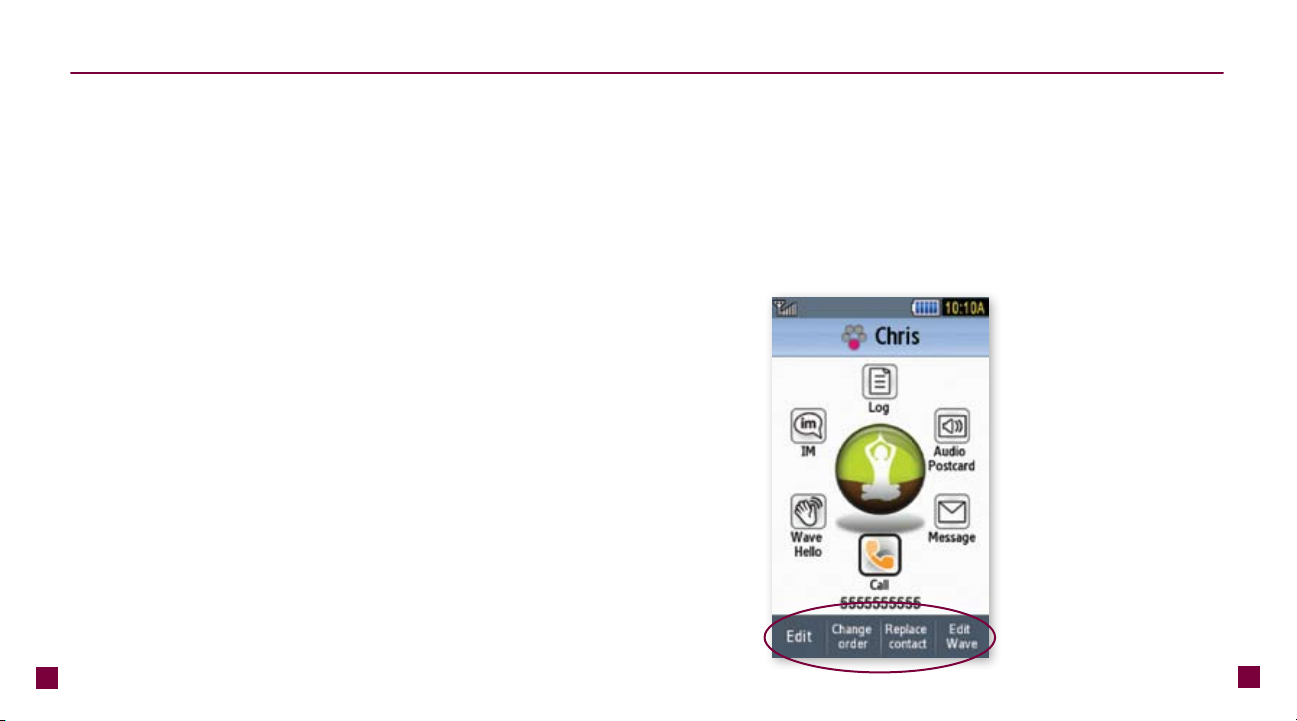

Edit a myFaves contact
Names and icons: You can change names and icons at any time. Phone numbers: You can only change a contact’s phone number once per calendar month. If a number change is not allowed, you will receive an error message explaining why.
1. From the Home screen, tap the myFaves circles on the bottom right side of the screen to maximize the circles.
2. Tap the myFaves contact.
3. Tap Edit.
4. Edit the contact’s name, phone number, and icon.
5. Tap Save.
Replace a myFaves contact
1. From the Home screen, tap the myFaves circles on the bottom right side of the screen to maximize the circles.
2. Tap the myFaves contact.
3. Tap Replace contact.
4. Tap Create new or Get from Phonebook
to replace
with a new contact.
5. Tap Save.
22
23
Move a myFaves contact to another circle
1. From the Home screen, tap the myFaves circles on the bottom right side of the screen to maximize the circles.
2. Tap the myFaves contact.
3. Tap Change order.
4. Touch and drag the circle to the desired location.
5. Tap Done.
BLUETOOTH® SETUP
Your phone comes with Bluetooth®, which is a wireless technology that enables a data connection between your phone and a Bluetooth wireless headset (headset sold separately).
Prepare a Bluetooth wireless headset
To pair your phone with a Bluetooth headset, make sure that your headset is fully charged and that you put the headset into pairing mode. See your Bluetooth headset’s manual for more information.
24
25
Turn on Bluetooth and pair with a headset
1. From the Home screen, tap Menu.
2. Tap Settings.
3. Tap Bluetooth.
4. Tap Turn on. Your phone scans for available Bluetooth devices.
5. Tap the headset to select it.
6. Enter the PIN if needed.
7. Tap OK.
EMERGENCY DIALING
While all phones are equipped with 911 emergency calling, this phone may or may not permit its location to be approximated during a 911 call.*
* Availability of this feature depends on upgrades to the (a) wireless network and (b) 911 calling system that are required to be installed by the local 911 response agency or public safety answering point (PSAP); these upgrades may not be available everywhere within our wireless coverage area or your roaming area. This approximation of the phone’s location and the transmittal of location information are subject to emergency situations, transmission limits, network problems/limitations, interconnecting carrier problems, your phone, buildings/tunnels, signal strength and atmospheric/topographical conditions, and may be curtailed, interrupted, dropped or refused. The phone’s approximate location is transmitted to the local 911 response agency or PSAP while the call is in progress; this approximation is intended solely to aid the PSAP in dispatching emergency assistance or to limit the search area for emergency services personnel. You should not rely solely on a phone for essential communications (such as a medical or other emergency). Please see T-Mobile’s Terms and Conditions and Privacy Policy for additional service restrictions and details.
26
27
CARING FOR YOUR PHONE
TIPS FOR SAFETY
MAKING IT LAST
Your phone is a complex electronic device; think of it as a mini-computer. Here are some hints that will help you extend the life of your new phone.
Phones aren’t cheap, so keep yours in a safe place. Keep the phone away from children who want to see if the phone
sinks or oats, and away from dogs that nd plastic-coated
products to be irresistible chew toys.
Water will damage your phone and accessories. Even a small amount of water from a soda in your car cup-holder,
melting snowakes, tears of joy, squirt-gun crossre, or steam
from the kitchen or bathroom can damage your phone.
Use only batteries and accessories from the original manufacturer of your phone. Non-approved accessories can
damage you or your phone and shorten the phone’s life. Hint: If it’s being sold out of someone’s car trunk, walk away.
If your charger or any other accessory is damaged,
replace it or take it to a qualied service dealer. Do not at­tempt to operate your phone charger if it has received a sharp blow, been dropped, thrown from a speeding motorcycle, or is otherwise damaged; doing so may damage your phone.
Check with your doctor if you have a pacemaker or hearing aid to ensure that cell phone usage is safe with your device. If you have questions about the interaction of cellular radio frequency and any other electronic equipment, ask the manufacturer of the equipment if cell phone radio frequencies will disrupt the equipment’s performance.
When you are driving, T-Mobile encourages you to use your phone in a safe and sensible manner. Here are a few tips:
n
Assess road conditions before answering.
Your safety is more important than any call.
n
Prepare your hands-free headset, if you have one,
or turn on your speakerphone option before you start moving.
n
Keep your phone closed. If it rings and you discover
it’s in the back seat, do NOT crawl over the seat to answer it while driving.
n
Program frequently used numbers into your speed
dial for easy one-touch dialing.
n
Remember that laws prohibiting or restricting the use
of a mobile phone while driving may apply in your area.
having fun
Table of Contents
Text Messaging ................................................................ 2
Picture Messaging ........................................................... 4
E-mail .............................................................................. 6
Instant Messaging (IM) .................................................... 8
Memory Card ................................................................ 11

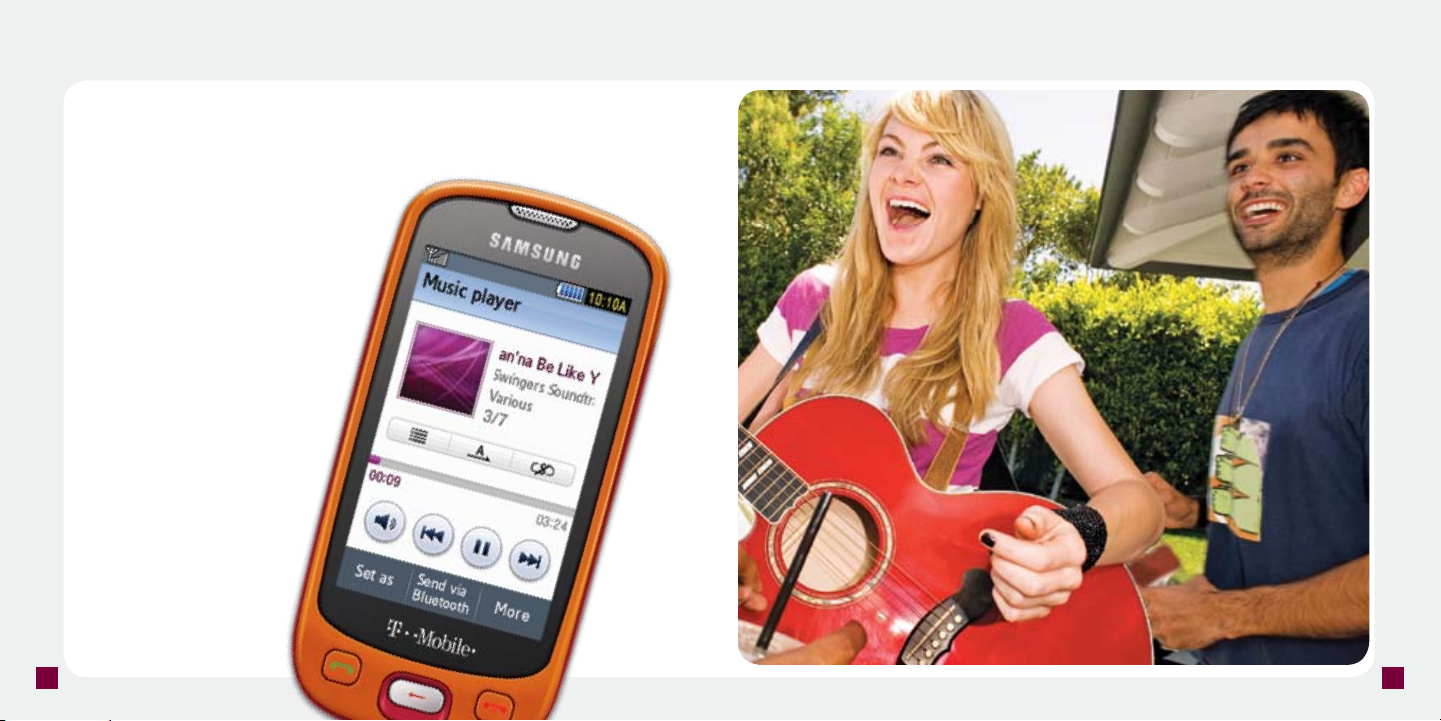

Music ............................................................................. 13
myFaves Call myFaves
Send Text Message ............................................... 15
Send Instant Message .......................................... 16
Send Picture, Video, and Audio Messages ........... 16
Send Audio Postcards .......................................... 18
Wave Hello ............................................................. 19
Web Browsing .............................................................. 20
Accessories for Your Phone .......................................... 22
Additional Information ................................................... 23
®
..................................................................... 14
......................................................... 14
II
11
2
3
Text Messaging
Your phone supports four text modes:
n
ABC mode: This mode allows
you to type letters by tapping the same letter until the correct letter displays. For example, to type RUN, tap 7 three times, 8 twice, and 6 twice.
®
n
T9
mode: This mode allows you to type words with only one touch per letter and the phone predicts the word you want. For example, to type RUN, tap 7, 8, 6.
n
Number mode: This mode
allows you to type numbers.
n
Symbol mode: This mode
allows you to type symbols, such as punctuation marks.
Touch to
change text
mode.
Separate charges may apply to send/receive domestic/international text messages.
Send text messages
1. From the Home screen, tap Menu.
2. Tap Messaging.
3. Tap Create message.
4. Tapthetexteldtoopenthekeypad.
5. Enter your message.
6. Tap Done.
7. Tap Send.
8. Tap one of the following:
n
Recent recipients: Tap the
contact(s) and tap Add.
n
Phonebook: Tap the contact(s)
and tap Add.
n
New number: Enter the phone
number and tap Add.
9. Tap Send.
Read text messages
Yourphonenotiesyouwhenyouhaveanewtextmessage. To read, tap View. To read by going to the Menu:
1. From the Home screen, tap Menu.
2. Tap Messaging.
3. Tap Inbox and tap the message to view.
4
5
Picture Messaging
Send Picture Messages
1. Press the Camera key to open the camera.
2. Frame the subject.
3. Press the Camera key again to take the picture.
4. Tap one of the following:
n
Send to My Album Online? to send your picture to Album.
n
Send totosendtoanotherdestination.Tapthetexteldto
open the keypad. Type your message and tap Done. Tap
Send. Tap Recent recipients, Phonebook, New email, or New number. Tap the contact(s) or enter the phone number
or e-mail address and tap Add.
5. Tap Send.
Separate charges may apply to send/receive domestic/international picture messages.
6
7
E-mail
Your phone comes with e-mail so you can stay connected while you are on the go with Yahoo! Setting up e-mail on your phone is easy—enter your e-mail address and password and your phone automatically receives e-mails from your e-mail account. You can read, send, reply, and even delete e-mails so you can keep in touch whenever you want.
Sign in
1. From the Home screen, tap Menu.
2. Tap Messaging.
3. Tap E-mail.
4. Tap the e-mail provider.
5. TaptheuserIDeld.
6. Enter your username and tap Done.
7. Tap the Passwordeld.
8. Enter your password and tap Done.
9. Tap Sign In.
®
, AOL®, and other popular e-mail providers.
Read e-mail messages
1. From the Home screen, tap Menu.
2. Tap Messaging.
3. Tap E-mail.
4. Tap your e-mail account.
5. If required, sign in to your account.
6. Tap the message you wish to read.
To delete, tap Options and tap Delete and OK.
You can also tap
Options and tap Read, Create, Reply, Forward, Mark Read, Delete, Mark for Deletion, View Other Folder, Refresh Inbox, Signature, Email Settings, and Sign Out.
Separate charges may apply to send/receive/read domestic/international e-mails.
8
9
Instant Messaging
James05 movie @ 7.15. don’t b late.
0207_lana
no worries. on my way.
James05 see you then!
Access and send instant messages
1. From the Home screen, tap Menu.
2. Tap Messaging.
3. Tap IM.
4. Tap AIM, Windows Live, or Yahoo!.
5. Sign in to your account.
Separate charges may apply to send/receive domestic/international instant messages.
10
11
Music
Create playlist
1. From the Home screen, tap Menu.
2. Tap Music player.
3. Tap Playlists.
4. Tap Tap to create.
5. Tapthetexteldtoopenthekeypad.
6. Enter the name of your playlist.
7. Tap Done.
8. Tap Save.
Add songs to your playlist
1. From the Home screen, tap Menu.
2. Tap Music player.
3. Tap All tracks.
4. Tap Add to playlist.
5. Tap the song (s) that you want to add.
6. Tap Add.
7. Tap the desired playlist.
12
13
Access and play music
1. From the Home screen, tap Menu.
2. Tap Music player.
3. Tap All tracks.
4. Tap a song to play.
14
15
Call myFaves® contact
1. From the Home screen, tap the myFaves circles in the lower right corner of your screen to maximize the circles.
2. Touch and hold a myFaves contact to call.
Send text messages
1. From the Home screen, tap the myFaves circles in the lower right corner of your screen to maximize the circles.
2. Tap the contact.
3. Tap Message.
4. Tapthetexteldtoopenthekeypad.
5. Enter your message.
6. Tap Done.
7. Tap Send.
Separate charges may apply to send/receive domestic/international text messages.
16
17
Send instant messages
1. From the Home screen, tap the myFaves circles in the lower right corner of your screen to maximize the circles.
2. Tap the contact.
3. Tap IM.
4. Tap AIM, Windows Live, or Yahoo!.
5. Sign in to communicate with your myFaves contact.
Send picture, video, and audio messages
1. From the Home screen, tap the myFaves circles in the lower right corner of your screen to maximize the circles.
2. Tap the contact and tap Message.
3. Tapthetexteldtoopenthekeypad.
4. Enter your message.
5. Tap Done.
6. Tap one of the following:
n
Image: Tap Take photo
or Add from photos to take a picture with your camera or to select a photo that you have taken.
n
Sound: Tap Record
sound or Add from sounds to record a
voice message or select a previously recorded message.
n
Video: Tap Record
video or Add from videos to record a
new video or to select a previously recorded video.
7. Tap Send.
Separate charges may apply to send/receive domestic/international messages.
18
19
Send audio postcards
1. From the Home screen, tap the myFaves circles in the lower right corner of your screen to maximize the circles.
2. Tap the contact.
3. Tap Audio Postcard.
4. Tap the Left or Right Arrows to navigate to the desired frame.
5. Frame the subject.
6. Press the Camera key to take the picture.
7. Tap Record voice if desired to record a voice message.
8. Tap Send.
Wave hello to your contact
1. From the Home screen, tap the myFaves circles in the lower right corner of your screen to maximize the circles.
2. Tap the contact.
3. Tap Wave hello.
Edit your wave
1. From the Home screen, tap the myFaves circles in the lower right corner of your screen to maximize the circles.
2. Tap the contact.
3. Tap Edit Wave.
4. Tap Create custom wave, Change to a kiss, Change to a hug, or Change to wave.
Separate charges may apply to send/receive domestic/international audio postcards.
20
21
Web Browsing
Experience the mobile Web like never before with T-Mobile’s new web2go optimized for viewing on your phone, a customizable start page for easy access to information, a powerful built-in Web search engine, and account information viewable on your phone.
From the Home screen, tap
For more information about these services, see the web2go section of your services guide or visit t-mobile.com/shop/addons.
SM
experience. New features include access to the browser
Web.
Download content
You can download ringtones, wallpapers, games, applications, myFaves icons, and CallerTunes from your phone. To download:
1. From the Home screen, tap
Web.
2. Tap the
Downloads tab.
3. Tap the item that you want to download.
®
Visit a Web site
1. From the Home screen, tap Web.
2. Tap the
Web addresseldatthe
top of the screen to open the keypad.
3. Enter the Web address.
4. Tap
Full access to the new t-zones® web2go experience requires the purchase of a compatible Web access data plan; separate additional charges may apply for downloads. Not all sites optimized for Web browsers. Actual content available for download may vary.
Go.
Access account information
You can view monthly usage, bill summary, and other informa­tion on your phone. To view:
1. From the Home screen, tap
Web.
2. Tap the
My Account
tab to view.
22
23
Accessories For Your Phone
Additional Information
Whether you are looking for a charger, a fashionable carrying case, a Bluetooth
®
headset, or just want to browse for fun extras for your phone, T-Mobile is the place to shop for accessories. Here are a few examples….
Memory Card Car Charger
To purchase accessories for your phone, visit T-Mobile.com, call 1.800.204.2449 or visit your nearest T-Mobile store.
*Accessory selection subject to change and may vary by location.
myFaves: Not available with all rate plans. myFaves only applies to calls di­rectly between two people and allows unlimited nationwide calling to 5 U.S. numbers. You can change myFaves numbers once/month.
Messaging: You will be charged for all data sent by or to you through
thenetwork,regardlessofwhetherreceived.Characterlength/lesizeof
messages/attachments may be limited. T-Mobile is not liable for content of messages/attachments or for any failures, delays or errors in any T-Mobile
generatedalertsornotications.
Downloads: Additional charges apply; not all downloads available on all devices. You obtain no rights in downloads; duration of use may be limited; may be stored solely for use with your device. T-Mobile is not responsible for any download lost due to your error. See Pricing, Services and Device brochures, and T-Mobile’s Terms and Conditions (including arbitration provisions) at T-Mobile.com, for rate plan information, charges for features and services, and restrictions and details.
®
Yahoo! Yahoo! Inc. The Bluetooth
and the Yahoo!® Messenger logos are registered trademarks of
®
word mark and logo are owned by the Bluetooth SIG, Inc. and are used by T-Mobile under license. T-Mobile, and the magenta color are federally registered trademarks of Deutsche Telekom AG. CallerTunes, t-zones, myFaves and the myFaves design are federally registered trademarks, and web2go is a service mark, of T-Mobile USA, Inc. All other brands, product names, company names, trademarks and service marks are the property of their respective owners. ©2009 T-Mobile USA, Inc.
Loading...
