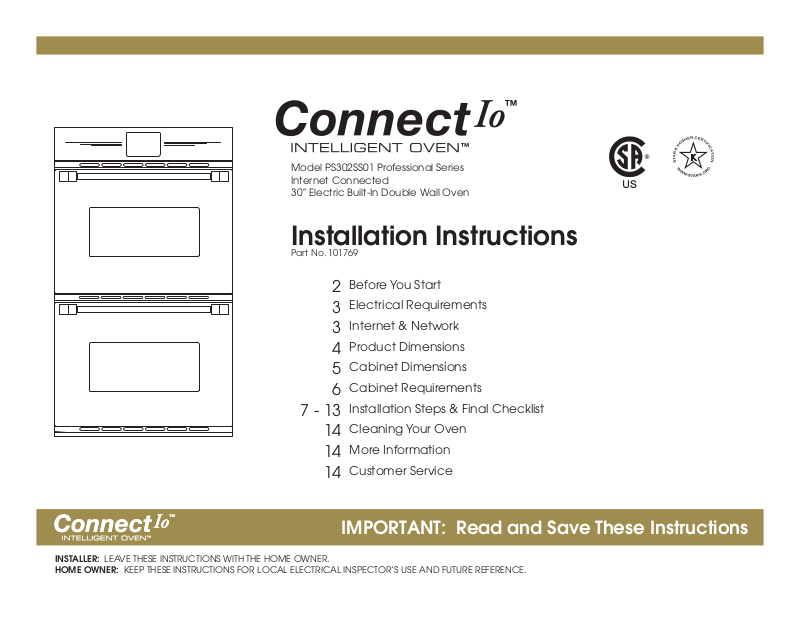

Page 1
Model PS302SS01 Professional Series
Internet Connected
30” Electric Built-In Double Wall Oven
Installation Instructions
Part No. 101769
Before You Start
2
Electrical Requirements
3
Internet & Network
3
Product Dimensions
4
Cabinet Dimensions
5
Cabinet Requirements
6
7 - 13
Installation Steps & Final Checklist
Cleaning Your Oven
14
More Information
14
Customer Service
14
IMPORTANT: Read and Save These Instructions
INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE HOME OWNER.
HOME OWNER: KEEP THESE INSTRUCTIONS FOR LOCAL ELECTRICAL INSPECTOR’S USE AND FUTURE REFERENCE.
Page 2
BEFORE YOU START
!
WARNING!
CAUTION: Oven is heavy. Use care in handling.
!
Proper Installation is your responsibility. Ensure
!
the oven is electrically connected by a qualified
electrical installer and conforms with the National
Electrical Code, ANSI/NFPA 70 - latest edition, or in
CANADA, Canadian Electrical Code, CSA C22.11982 and C22.2 No. 01982 - latest edition.
Do not use this appliance for space heating.
!
We STRONGLY RECOMMEND running CAT5 cable to
where the back of the oven will be located.
Observe all governing codes and ordinances.
Do not remove permanently affixed labels,
warnings, or plates from the oven! These are
important for your safety.
Always disconnect the electrical supply to the
oven before servicing.
Electrical Preparation: Cut out a Square opening
(sized to the junction box) in the top left rear corner
of the oven cabinet and/or sheet rock to enable
the 4-wire oven electrical cord to pass through the
cabinet, and connect to the household electrical
supply. See Cabinet Dimensions (page 5) for
details.
Ensure that the oven is properly grounded. See
Electrical Requirements (page 3) and Installation Steps:
Step 3. Electrical Connections (page 9) for details.
Required cabinet cutout width is 28 5/8” (72.7 cm).
Required cabinet cutout depth is 24” (60.9 cm).
Oven support surface should be flat, level, and be
able to support a weight greater than 575 pounds
(261 kg).
Recessed installation area must provide
complete enclosure surrounding the recessed
portion of the oven.
Oven location should be away from strong draft
areas (windows/doors) and strong heating vents.
SPECIAL SYMBOLS
SPECIAL SYMBOLS
This is a safety alert. Always read and obey all
!
safety messages. This symbol warns you of potential
hazards that can hurt or kill you and others.
This is an information symbol and indicates
i
additional detailed instructions in this manual.
You can be seriously
injured if you don’t follow
the instructions in this
manual before you start.
TOOLS NEEDEDTOOLS NEEDED
•Phillips Screwdriver
•1/4” Hex Driver
PARTS SUPPLIED
•Qty. 4 Phillips Cabinet
Mounting Screws
•Qty. 4 Phillips Finish Trim
Mounting Screws
(Factory installed under bottom vent trim.
See page 12)
2
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 3
i
ELECTRICAL REQUIREMENTS
The Connect Io Intelligent Oven requires a
separate, grounded 4-wire, 240V (AC), 50 Amp
service with its own circuit breaker.
Wire sizes and connections must conform with the
rating of the appliance and to the requirements
of the National Electrical Code, ANSI/NFPA 70
- latest edition, or Canadian Electrical Code, CSA
C22.1-1982 and C22.2 No. 01982 - latest edition,
and all local codes and ordinances.
Oven must be connected to the proper
electrical voltage and frequency as specified
on the model/serial rating plate (located
underneith the right side of control panel).
Oven must be connected to grounded metal
permanent wiring system. Check with a
qualified electrician to make sure the oven is
properly grounded.
Do not ground to a gas pipe.
Do not use an extension cord with this
appliance, because this may result in
electrical shock or other personal injury.
i
INTERNET & NETWORK
A broadband (DSL or cable modem) Internet
connection is required. Dial-up Internet services
are not supported.
The oven either can be connected to a home
network or connected directly to an Internet Service
Providers’ (ISP’s) network box inside the home.
This unit is equipped with a No. 10 ground wire in
the conduit.
The electrical conduit must be kept to the top left
for a flush installation. Never cut the conduit.
Connect the flexible armored cable directly
to 4-wire, 240V household service. If codes
permit and separate grounding wiring is used,
we recommend that a qualified electrician
determine the grounding path and that the wire
gauge is in accordance with local codes.
Junction boxes installed on rear wall behind oven
must be recessed and located at the upper left-
hand corner of the cabinet.
A UL-Listed conduit connector must be provided
at the junction box.
Do not install a fuse in the neutral or grounding
circuit. We recommend a time-delayed fuse or
circuit breaker. Connect directly to the fused
disconnect (or circuit breaker box) through
flexible armored, or non-metallic sheathed,
copper cable (with grounding wire).
The oven’s RJ45 connector enables direct hardwiring either ethernet or wireless bridge connections.
The oven will configure its settings via DHCP
automatically. If your network environment is not
configured to handle DHCP, you must manually
configure the oven Internet settings by entering:
(1) the IP address, (2) network mask, (3) the
gateway IP address, and (4) DNS server address.
IMPORTANT if location
utilizes aluminum wiring:
• Connect the aluminum
wiring to the copper wire using
special connectors designed
and UL listed for joining
aluminum to copper.
• Aluminum/copper
connection must conform
with local codes and industry
accepted wiring practice.
Electrical Specifications:
• Maximum Amp Usage: 46.7A
• Preheat Rating: 5300W
• Broil Element Rating: 3300W
• Baking Element Rating: 2000W
• Convection Element Rating, 1650W
NOTE: If the oven is not
connected to the Internet, it will
still cook and refrigerate, but all
connections to outside the home
will be unavailable.
We recommend running a CAT5 cable to
the back of the oven, where a RJ45 network
connector is mounted.
3
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 4
4
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 5
5
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 6
6
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.

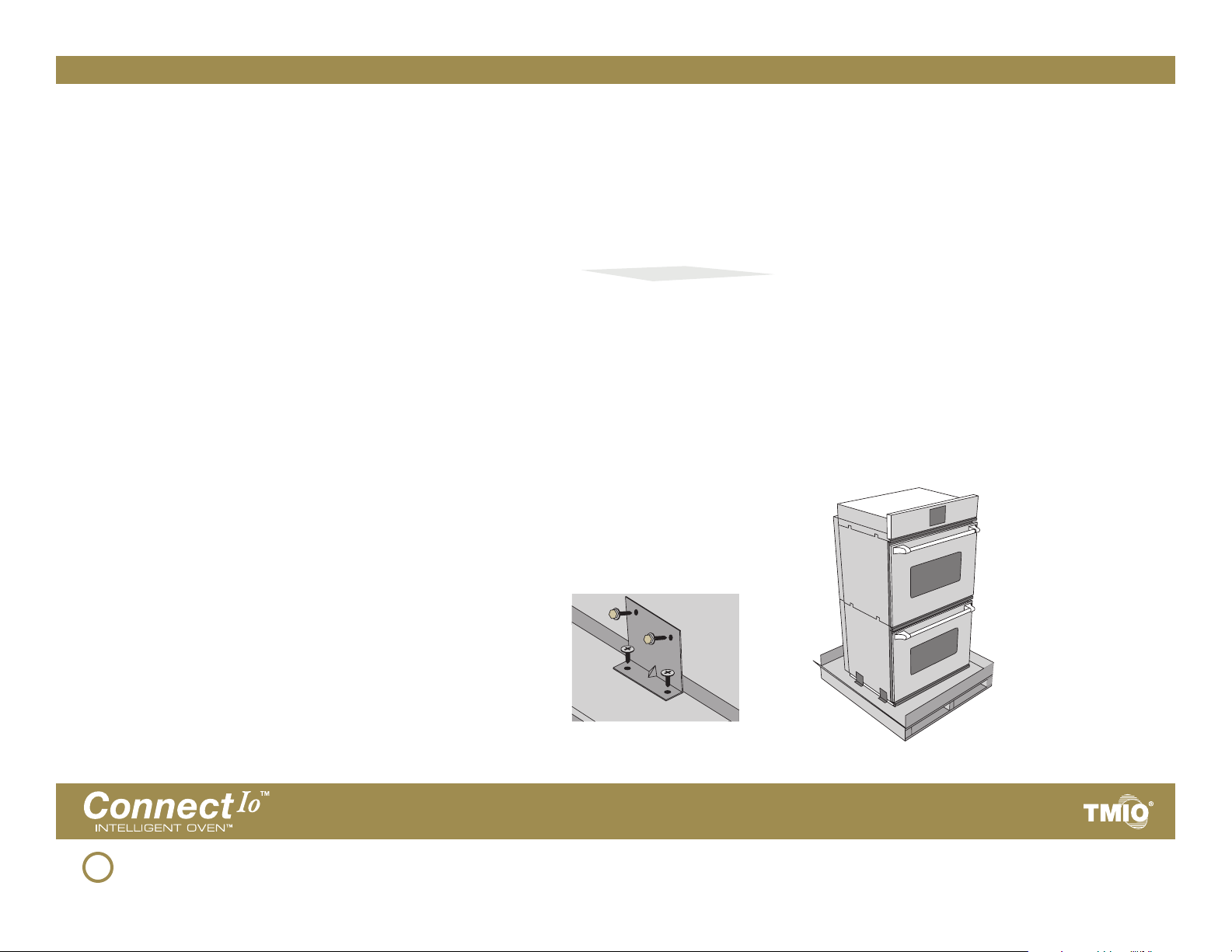

Page 7
7
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 8
INSTALLATION STEPS

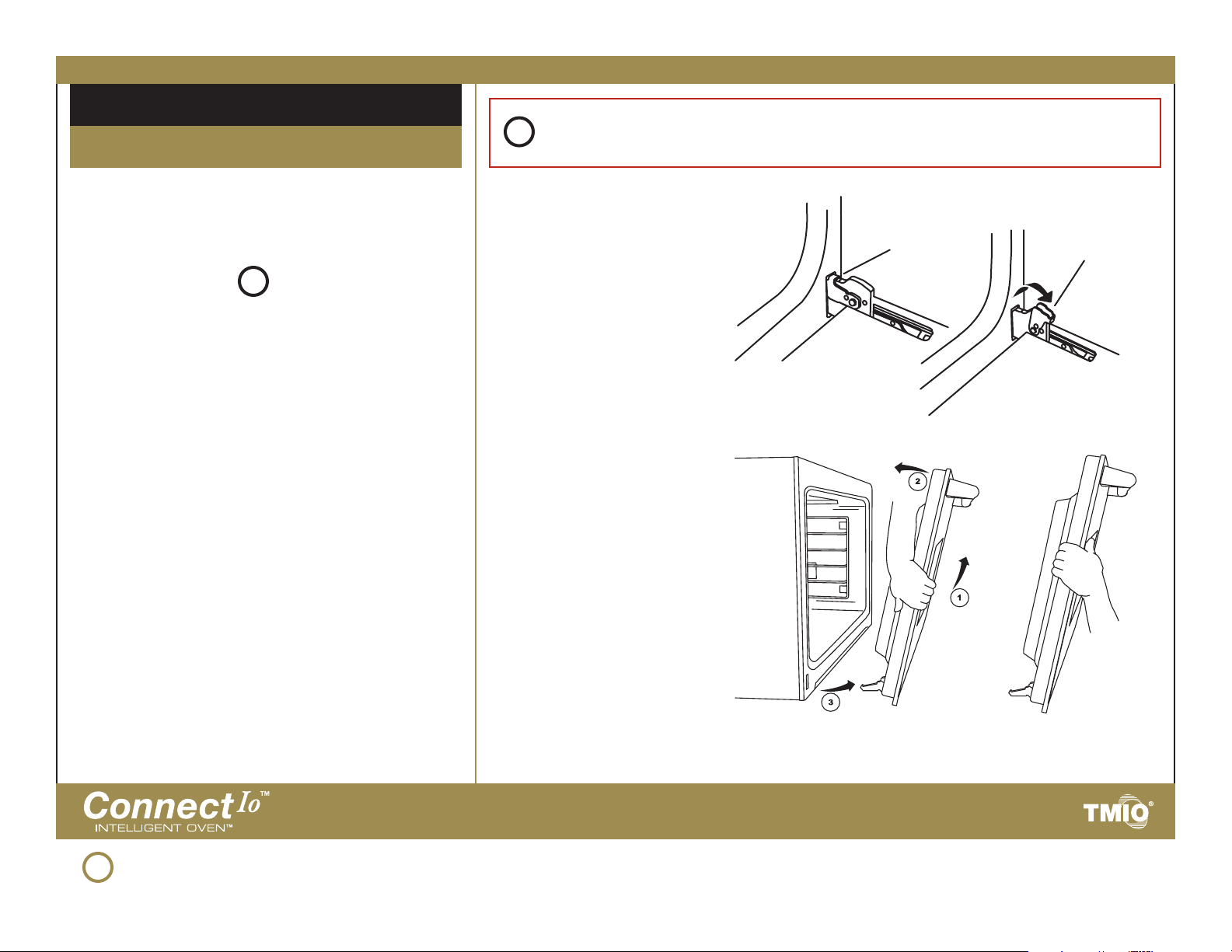

STEP 2. Removing Oven Doors
DOOR REMOVAL: Remove door before installing the oven to ensure handle/oven door are
i
NOT used to lift oven.
j Remove the oven door before lifting the oven
into the cabinet. This will reduce the weight of the
oven and avoid serious damage if the handles are
used to lift the unit.
See “Door Removal”
.
i
k Before lifting the product, remove oven door,
wire racks, oven trays, broiler pan, wine glasses, and
all cardboard packaging from both oven cavities.
• Open the door fully.
• In both back corners of
the door you will see door
catches in the locked
position. Rotate the top
of the catches on both
hinges fully towards you
until the catches stop.
• Squarely facing the front of
the oven, firmly grasp each
side of the oven door near
the handle. Begin closing
the door to nearly upright.
When door stops closing, lift
up the door slightly and pull
out, swinging the bottom of
the door out towards you.
Door hinge
in locked
position
Door hinge
in unlocked
position
• Place door on a protective
surface to prevent scratches
on the door surface.
Hand grip position
for lower door
8
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Hand grip position
for upper door
Page 9
9
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 10
10
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 11
11
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 12
12
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 13
INSTALLATION STEPS
STEP 7. Final Checklist
j Make sure the oven is level, and securely fitted/
attached to the oven cabinetry.
k Reinstall oven door. See “Door Attachment”.
l Make sure to remove all internal packaging from the
oven cavity, and replace the oven racks.
m Make sure all oven vents and opening are clear and
free of any obstruction.
n Some stainless steel parts will have a protective
plastic wrap. Peel off this plastic wrap. Remove all blue
plastic tape.
i

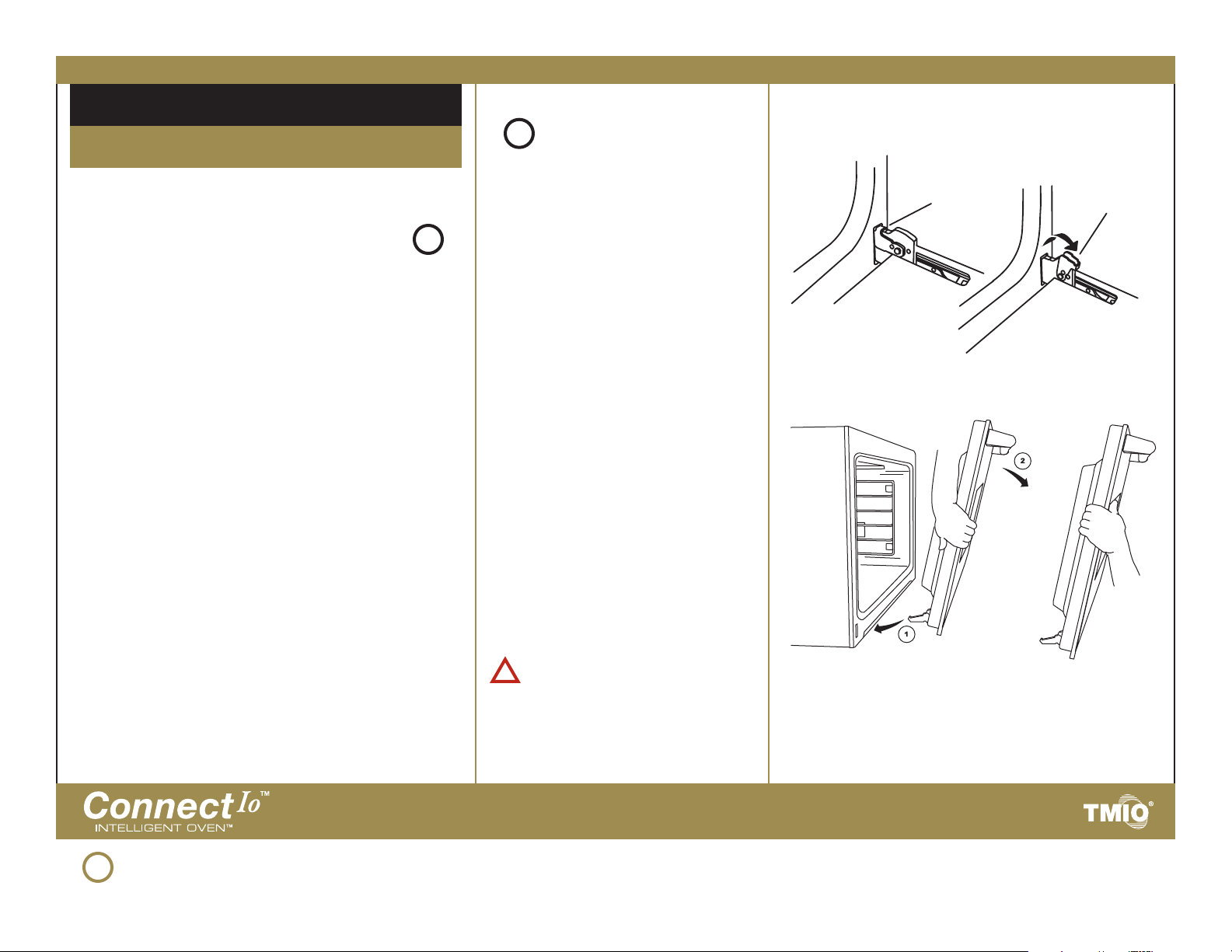

DOOR ATTACHMENT:
i
• Place both hinge arms back in the
slots of the hinge receiver.
• Push the hinge arms in as far as they
will go until the bottom of the door
meets the frame of the oven. When
inserted properly, the hooks on the
hinge arms will automatically lock onto
the hinge receiver. When the hinge
arms are securely inserted and locked
into the hinge receiver, you will not be
able to pull the door out towards you.
• Lower the door gently.
Door hinge
in locked
position
Door hinge
in unlocked
position
o Turn ON the power to the oven at the electrical box.
p Refer to Step 4, Network Connections (page 10, steps
2 – 7) to test and verify your Network Connections.
13
• Rotate the catches back away from
you until the catches rest squarely
against the oven frame.
• The door can now be closed.
• If door appears tilted, it is not inserted
properly into the hinge receivers.
Remove the door and repeat Door
Attachment steps until door is correctly
aligned, and securely fastened.
• Repeat for the second oven door.
WARNING! Misuse of oven door
!
(e.g. stepping, sitting, or leaning
on them) can result in possible
hazards and/or injuries.
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Hand grip position
for lower door
Hand grip position
for upper door
Page 14
CLEANING YOUR OVEN
Cleaning Tips & Precautions
OVEN INTERIOR
Wash the interior of the Connect Io oven
thoroughly with hot, soapy water to remove film
residues and any installation dust or debris before
use for food preparation. Follow this washing
procedure by rinsing and wiping dry. Solutions
stronger than soap and water are rarely needed.
STAINLESS STEEL SURFACES
Wipe clean stainless steel surfaces using a
cleaner intended specifically for stainless steel.
TMIO recommends using the Cerama Bryte®
stainless steel cleaning polish and conditioner for
your Connect Io stainless steel components.
Do NOT use a metal knife, spatula, or any other
metal tool to scrape encrusted material on
stainless steel! Scratches are almost impossible
to remove.
Do NOT use steel wool, abrasive cloths, nonstainless steel cleaners, or powdered cleansers on
stainless steel to remove debris.
MORE INFORMATION
Other Tips & References
Keep the Connect Io Installation Manual in a
convenient location near the Connect Io Intelligent
Oven for easy reference.
Please also read the Connect Io Use & Care Manual
before operating the Connect Io Intelligent Oven. This
manual is also included with your purchase.
CUSTOMER SERVICE
Contact TMIO
For more information, help with installation or operation of
your Connect Io Intelligent Oven, please contact TMIO at:
TMIO Customer Service
+1.800.881.TMIO (8646)
[email protected]
www.tmio.com
1220A Flynn St.
Chattanooga, TN 37403 USA
When contacting TMIO Customer Service, please have
ready: (1) product model number and (2) product serial
number—for faster service. Both numbers are found on the
model/ rating plate underneith the right side of the control
panel. Write them down in the spaces provided below for
easy reference:
REPLACEMENT PARTS:
Only authorized replacement parts
may be used in performing service
on the Connect Io Intelligent Oven.
Do not repair or replace any part
of the appliance unless specifically
recommended in the Connect
Io Use & Care Manual. All other
servicing should be referred to a
qualified technician.
Please also visit www.tmio.com
for more detailed Connect Io
customer service information.
14
Model # Serial #
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Page 15
Designed and manufactured in the USA with pride by TMIO, LLC • Chattanooga, TN • US toll-free +1.800.881.TMIO (8646) • www.tmio.com
Connect IoTM, Intelligent OvenTM, Intelligent OvensTM, Green CleanTM, and TMIO® are registered trademarks of TMIO, LLC.
Loading...
