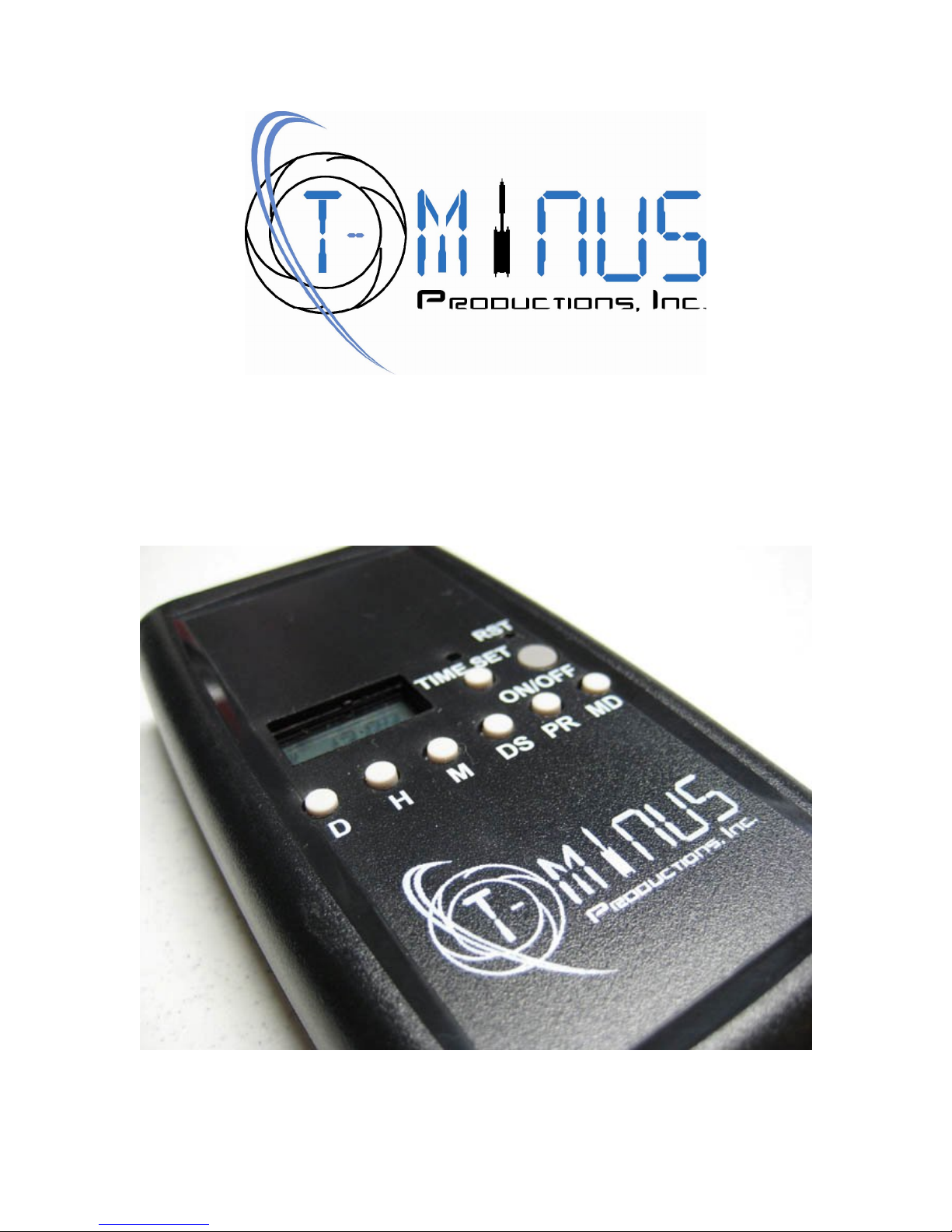

T-Minus 7 DAY PROGRAMMABLE DIGITAL TIMER User Manual

P.O. Box 2596

Flagstaff, AZ 86003

Tel. [phone]

www.tminusproductions.com

7 DAY PROGRAMMABLE DIGITAL TIMER

MANUAL

DIGITAL TIMER INSTRUCTIONS

INSTALLING THE BATTERY

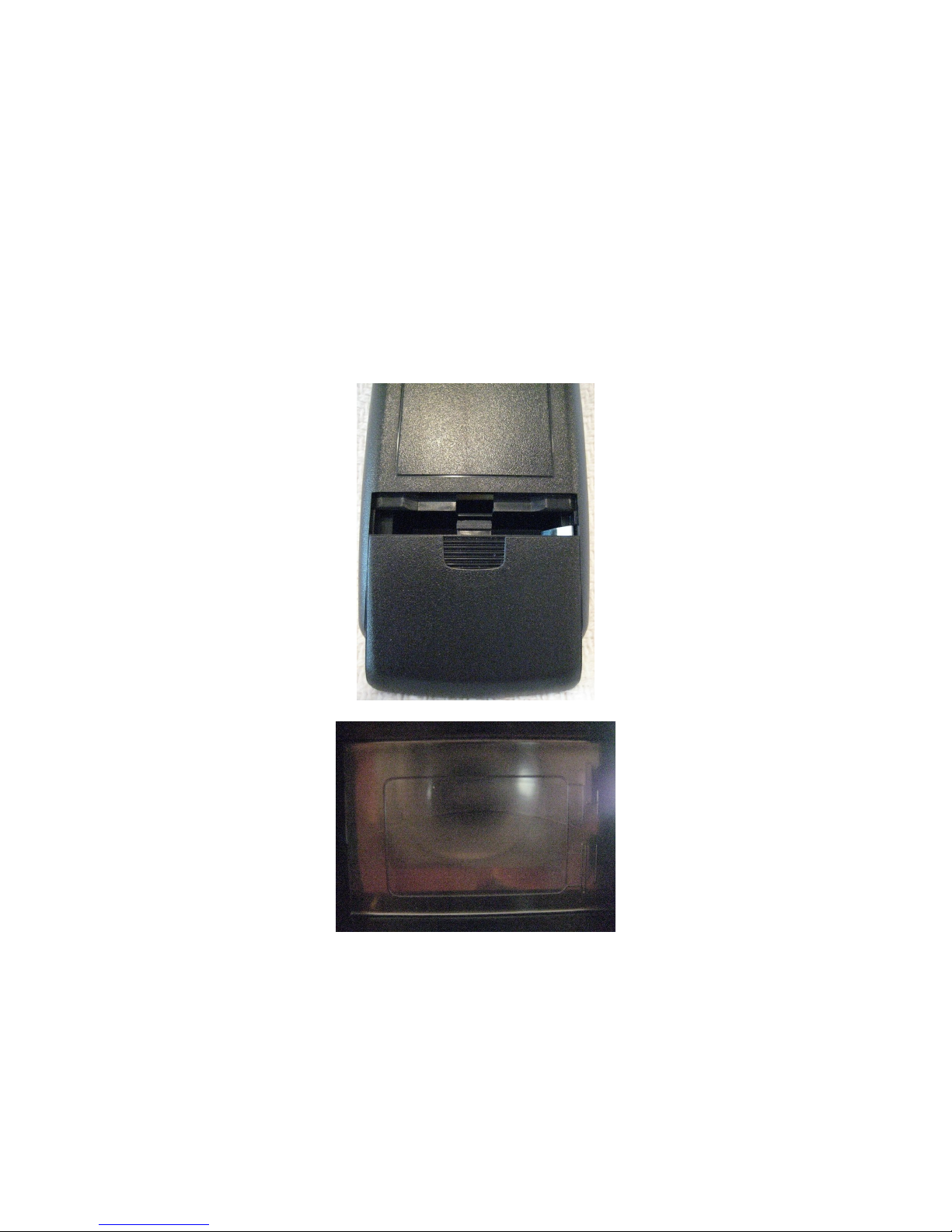

1. The battery can ONLY be installed in one direction. Open up the battery

compartment by pressing your thumb on the ribbed area and at the same time
sliding the lid away from the trigger. Fig.1

2. Look inside the battery compartment and you will see an image of a 9V battery

with a + symbol beside the correct battery positive contact and a – symbol

beside the negative contact. Orient your battery so that the symbols match the
compartment diagram. Fig.2

Fig.1

Fig.2

SETTING THE CURRENT DAY AND TIME

1. I suggest users RESET their triggers prior to each programming for a new launch
to clear past launch program On/Off times. Using a toothpick, insert it into the
RST hole and press until the clock resets to 12:00 then proceed to step 2.

2. To set current day and time, press and hold “Time Set”. While holding the Time
Set button, press DAY to set the current day, press HR to set the current hour and
press MIN to set the current minute.
