Tmi AUTO-RISER User Manual

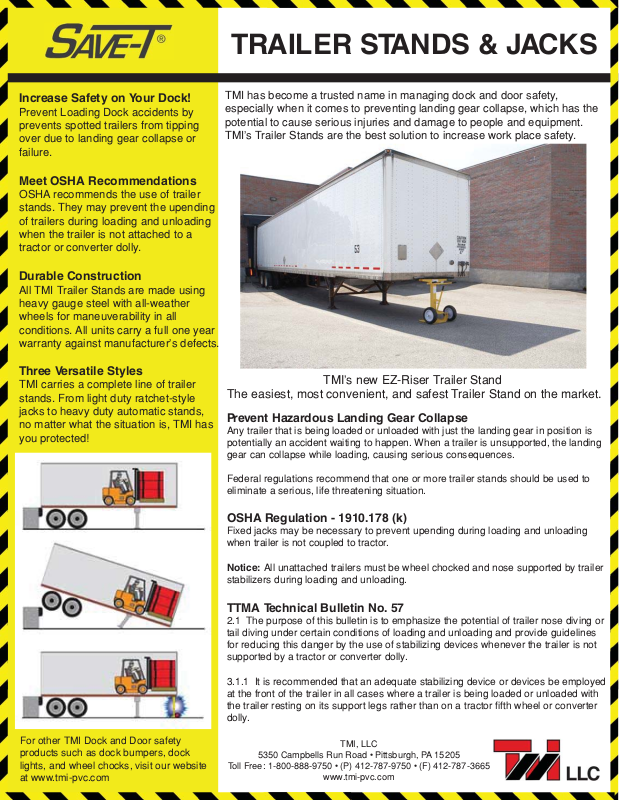

TRAILER STANDS & JACKS

Increase Safety on Your Dock!

Prevent Loading Dock accidents by
prevents spotted trailers from tipping
over due to landing gear collapse or
failure.

Meet OSHA Recommendations

OSHA recommends the use of trailer
stands. They may prevent the upending
of trailers during loading and unloading
when the trailer is not attached to a
tractor or converter dolly.

Durable Construction

All TMI Trailer Stands are made using
heavy gauge steel with all-weather
wheels for maneuverability in all
conditions. All units carry a full one year
warranty against manufacturer’s defects.

Three Versatile Styles

TMI carries a complete line of trailer
stands. From light duty ratchet-style
jacks to heavy duty automatic stands,
no matter what the situation is, TMI has
you protected!

TMI has become a trusted name in managing dock and door safety,
especially when it comes to preventing landing gear collapse, which has the
potential to cause serious injuries and damage to people and equipment.
TMI’s Trailer Stands are the best solution to increase work place safety.

TMI’s new EZ-Riser Trailer Stand

The easiest, most convenient, and safest Trailer Stand on the market.

Prevent Hazardous Landing Gear Collapse

Any trailer that is being loaded or unloaded with just the landing gear in position is
potentially an accident waiting to happen. When a trailer is unsupported, the landing
gear can collapse while loading, causing serious consequences.

For other TMI Dock and Door safety
products such as dock bumpers, dock
lights, and wheel chocks, visit our website
at www.tmi-pvc.com

Federal regulations recommend that one or more trailer stands should be used to
eliminate a serious, life threatening situation.

OSHA Regulation - 1910.178 (k)

Fixed jacks may be necessary to prevent upending during loading and unloading
when trailer is not coupled to tractor.

Notice: All unattached trailers must be wheel chocked and nose supported by trailer
stabilizers during loading and unloading.

TTMA Technical Bulletin No. 57

2.1 The purpose of this bulletin is to emphasize the potential of trailer nose diving or
tail diving under certain conditions of loading and unloading and provide guidelines
for reducing this danger by the use of stabilizing devices whenever the trailer is not
supported by a tractor or converter dolly.

3.1.1 It is recommended that an adequate stabilizing device or devices be employed
at the front of the trailer in all cases where a trailer is being loaded or unloaded with
the trailer resting on its support legs rather than on a tractor fifth wheel or converter
dolly.

TMI, LLC

5350 Campbells Run Road • Pittsburgh, PA 15205

Toll Free: 1-800-888-9750 • (P) 412-787-9750 • (F) 412-787-3665

www.tmi-pvc.com

Auto Riser

TRAILER STANDS & JACKS

EZ-Riser Trailer Stands

• Up to 100,000 lbs Static Load

Capacity

• Working Range from 37” to 48”

• Extra Large Base Plate: 17“ x 18.5”

• Large 16“ Diameter Wheels

• Weight: 200 lbs

• Only One Unit Required Per Trailer

Auto-Riser Trailer Stands

• Up to 100,000 lbs Static Load

Capacity

• Height Adjustable from 42” to 52.5”

• 5” x 30” Support Pad

• Large 17” x 18.5” Base

• 10” Semi-Pneumatic Rubber Tires

• Weight: 150 lbs

• Only One Unit Required Per Trailer

TMI’s new EZ-Riser is a new heavy-duty,
ergonomically designed trailer stand that offers
best in class safety and simplicity. The EZ-Riser
has a unique gas-activated leveling and rising system,
and does not require the user to bend over or perform
other straining motions. The user simply positions the
EZ-Riser trailer stand under the nose of the trailer,
releases the biased-based security pin, allows it to
automatically rise to the underside of the trailer, and
locks it using the security lever, creating a safe condition.

The EZ-Riser has an extra large base, heavy-duty
16” diameter solid rubber tires, and ergonomically
positioned handlebars for easy handling on any
surface. The EZ-Riser has up to a 100,000 lb static
load capacity and successful free-fall strength testing.
While other systems require two stands per trailer, only
one EZ-Riser unit is required.

Made of heavy gauge steel, the square center
down tube is topped with a wide 5''x 30'' support
pad that is automatically extended from a base
height of 42'' to 52.5''. Only one unit is required per
trailer. The Auto Riser has a static load capacity of up
to 100,000 lbs. The extra large 17'' x 18.5'' base pad
maintains trailer stability even during extremely hot
weather when asphalt can sink under the weight of
a loaded trailer.

Ergonomically friendly double positioning handles
with vinyl grips allow the stand to be moved and
positioned with great accuracy, even in snow, sleet,
and loose gravel. The unique gas activated
leveling system and security locking pin safety
feature allow the Auto Riser to be one of the easiest
trailer stands to operate in the business.

EZ-Riser

Auto Riser

Ratchet-Riser Trailer Stands

• 100,000 lbs Static Load Capacity

• 40,000 lbs Lifting Capacity

• 38” Ratcheting/Positioning Handle

• Height Adjustable from 39.5” to 51”

• Large 8“ Circular Base

• 8” Semi-Pneumatic Rubber Tires

• Weight: 105 lbs

• Two Units Required Per Trailer

The Ratchet-Riser is an easy-to-use trailer stand that
economically increases dock safety. The Ratchet-Riser
can be used as a trailer stand (100,000 static load capacity),
as well as a trailer jack (40,000 lbs lifting capacity). To use,
simply place the positioning handle into the receptacle and
ratchet the trailer stand to the required height. The
Ratchet-Riser has an adjustable height from 39.5” to
51”. TMI recommends using two Ratchet-Risers per
trailer. Prevent landing gear collapse and create a
safer working environment with the Ratchet-Riser.

TMI, LLC

5350 Campbells Run Road • Pittsburgh, PA 15205

Toll Free: 1-800-888-9750 • (P) 412-787-9750 • (F) 412-787-3665

www.tmi-pvc.com

Ratchet-Riser
