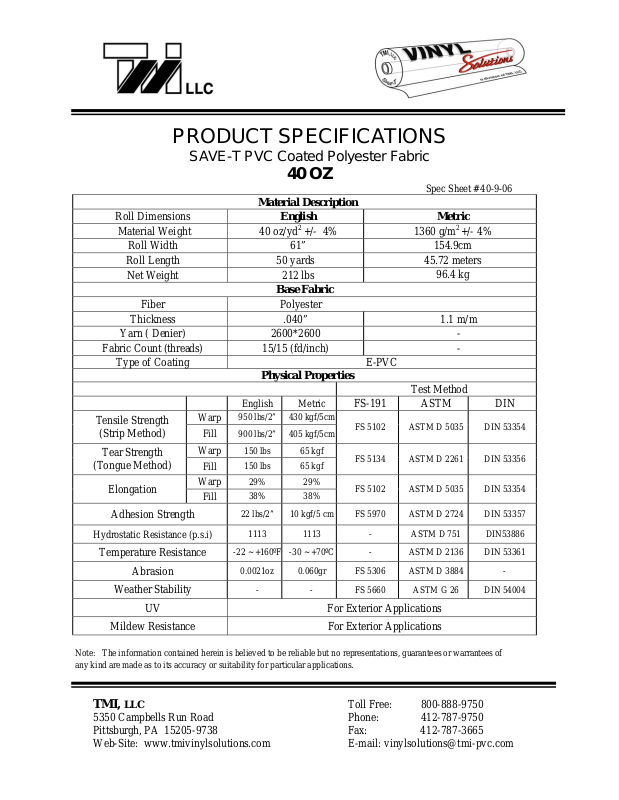

PRODUCT SPECIFICATIONS

SAVE-T PVC Coated Polyester Fabric

40 OZ

Spec Sheet # 40-9-06

Material Description

Roll Dimensions

English

Material Weight 40 oz/yd2 +/- 4% 1360 g/m2 +/- 4%

Roll Width 61” 154.9cm

Roll Length 50 yards 45.72 meters

Net Weight 212 lbs

Base Fabric

Fiber Polyester

Thickness .040” 1.1 m/m

Yarn ( Denier) 2600*2600 -

Fabric Count (threads) 15/15 (fd/inch) -

Type of Coating E-PVC

Physical Properties

Test Method

Tensile Strength

(Strip Method)

Tear Strength

(Tongue Method)

Elongation

Warp

Fill

Warp

Fill

Warp

Fill

English Metric

950 lbs/2” 430 kgf/5cm
900 lbs/2” 405 kgf/5cm

150 lbs 65 kgf
150 lbs 65 kgf

29% 29%
38% 38%

FS-191 ASTM DIN

FS 5102 ASTM D 5035 DIN 53354

FS 5134 ASTM D 2261 DIN 53356

FS 5102 ASTM D 5035 DIN 53354

Metric

96.4 kg

Adhesion Strength

Hydrostatic Resistance (p.s.i)

Temperature Resistance

Abrasion

Weather Stability

22 lbs/2” 10 kgf/5 cm FS 5970 ASTM D 2724 DIN 53357

1113 1113 - ASTM D 751 DIN53886

-22 ~ +160ºF -30 ~ +70ºC - ASTM D 2136 DIN 53361

0.0021oz 0.060gr FS 5306 ASTM D 3884 -

- - FS 5660 ASTM G 26 DIN 54004

UV For Exterior Applications

Mildew Resistance For Exterior Applications

Note: The information contained herein is believed to be reliable but no representations, guarantees or warrantees of
any kind are made as to its accuracy or suitability for particular applications

TMI,

LLC

Toll Free: 800-888-9750

.

5350 Campbells Run Road Phone: [phone]
Pittsburgh, PA 15205-9738 Fax: [phone]
Web-Site: www.tmivinylsolutions.com E-mail: [e-mail]
