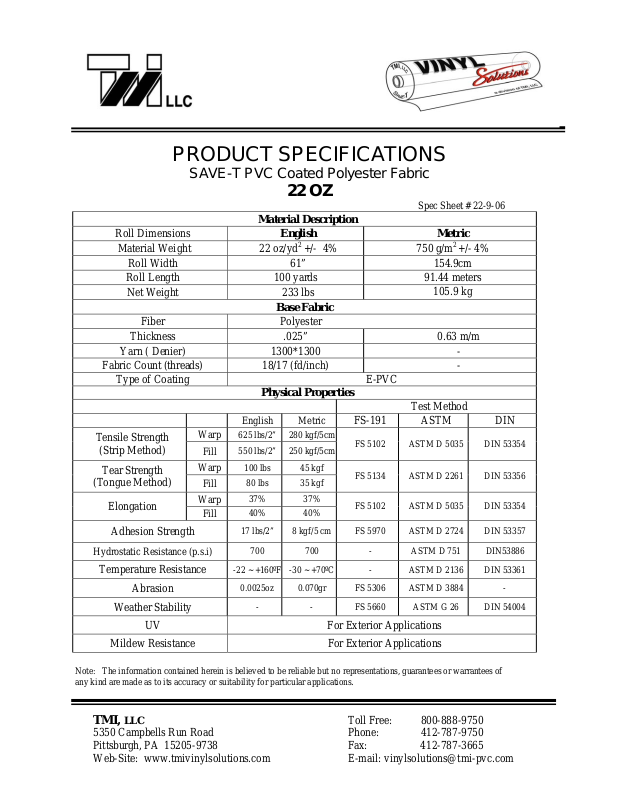

PRODUCT SPECIFICATIONS

SAVE-T PVC Coated Polyester Fabric

22 OZ

Spec Sheet # 22-9-06

Material Description

Roll Dimensions

English

Material Weight 22 oz/yd2 +/- 4% 750 g/m2 +/- 4%

Roll Width 61” 154.9cm

Roll Length 100 yards 91.44 meters

Net Weight 233 lbs

Base Fabric

Fiber Polyester

Thickness .025” 0.63 m/m

Yarn ( Denier) 1300*1300 -

Fabric Count (threads) 18/17 (fd/inch) -

Type of Coating E-PVC

Physical Properties

Test Method

Tensile Strength

(Strip Method)

Tear Strength

(Tongue Method)

Elongation

Warp

Fill

Warp

Fill

Warp

Fill

English Metric

625 lbs/2” 280 kgf/5cm
550 lbs/2” 250 kgf/5cm

100 lbs 45 kgf

80 lbs 35 kgf

37% 37%
40% 40%

FS-191 ASTM DIN

FS 5102 ASTM D 5035 DIN 53354

FS 5134 ASTM D 2261 DIN 53356

FS 5102 ASTM D 5035 DIN 53354

Metric

105.9 kg

Adhesion Strength

Hydrostatic Resistance (p.s.i)

Temperature Resistance

Abrasion

Weather Stability

17 lbs/2” 8 kgf/5 cm FS 5970 ASTM D 2724 DIN 53357

700 700 - ASTM D 751 DIN53886

-22 ~ +160ºF -30 ~ +70ºC - ASTM D 2136 DIN 53361

0.0025oz 0.070gr FS 5306 ASTM D 3884 -

- - FS 5660 ASTM G 26 DIN 54004

UV For Exterior Applications

Mildew Resistance For Exterior Applications

Note: The information contained herein is believed to be reliable but no representations, guarantees or warrantees of
any kind are made as to its accuracy or suitability for particular applications
